U2M-EUB600DMWiFi Module

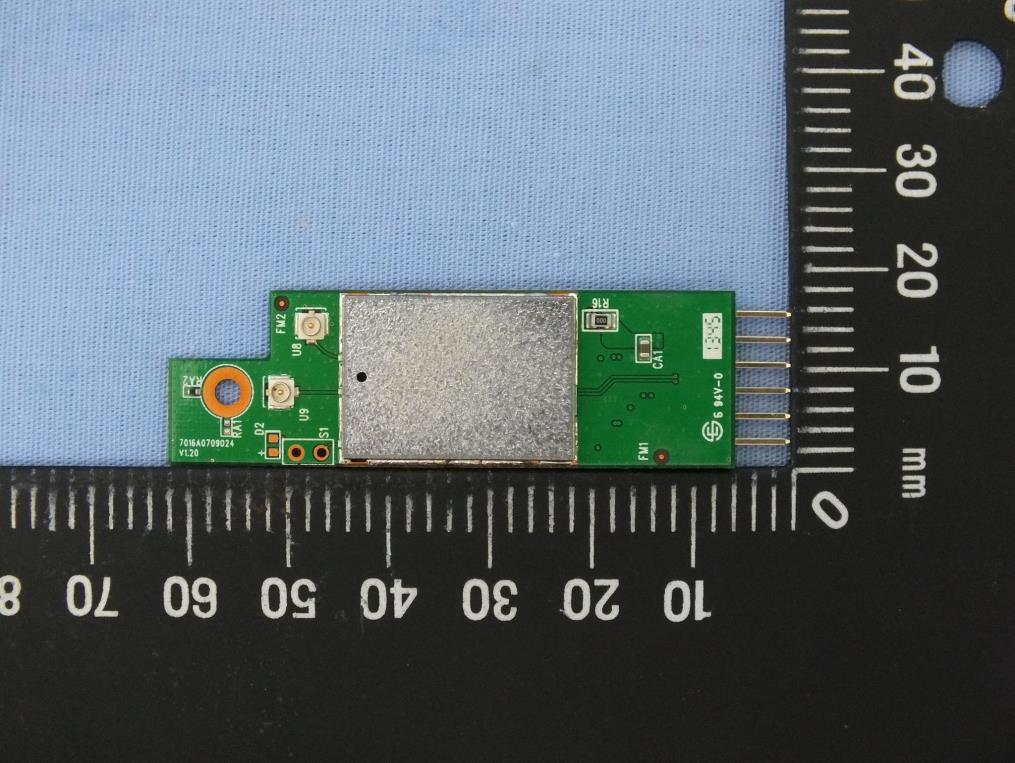

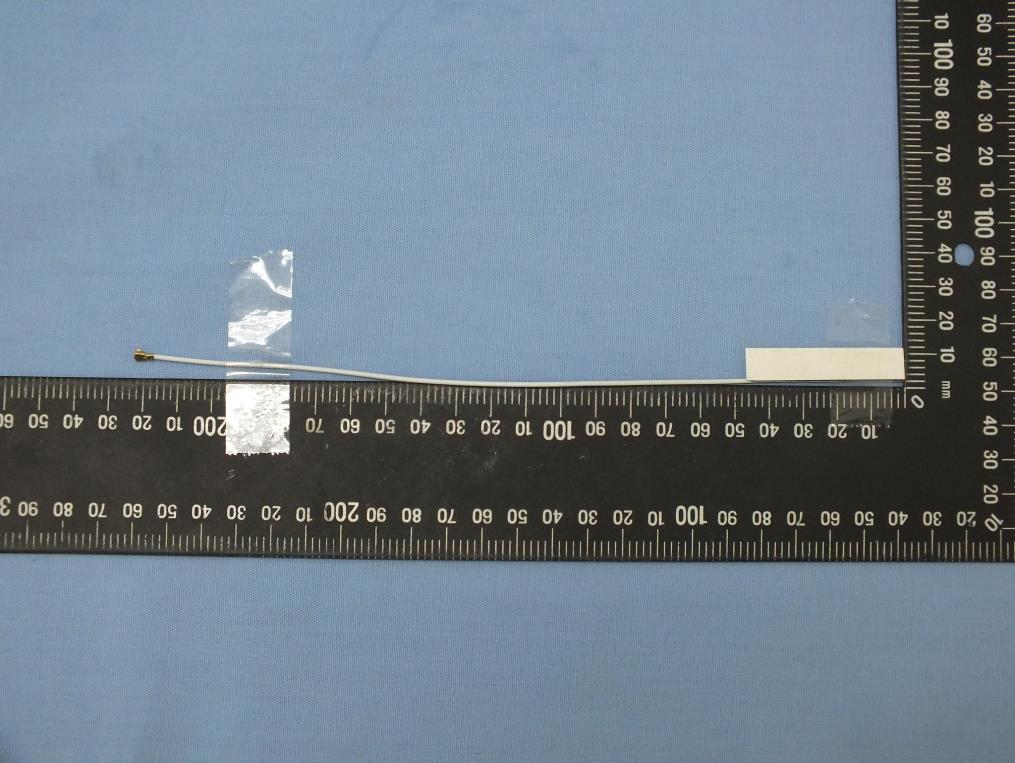

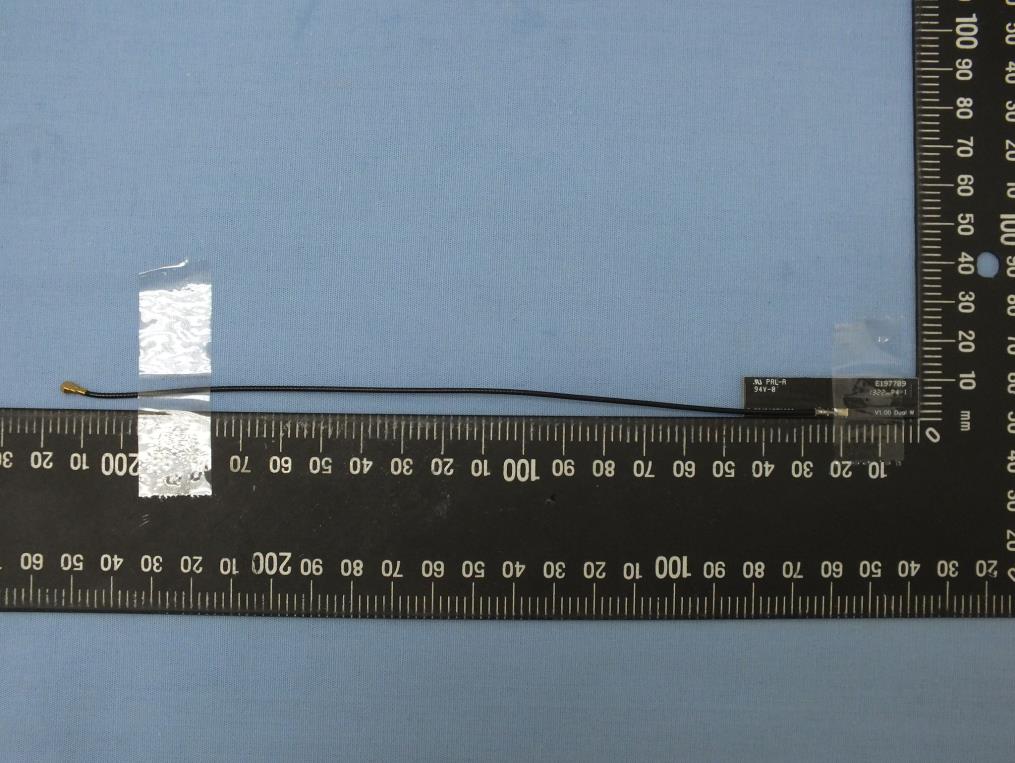

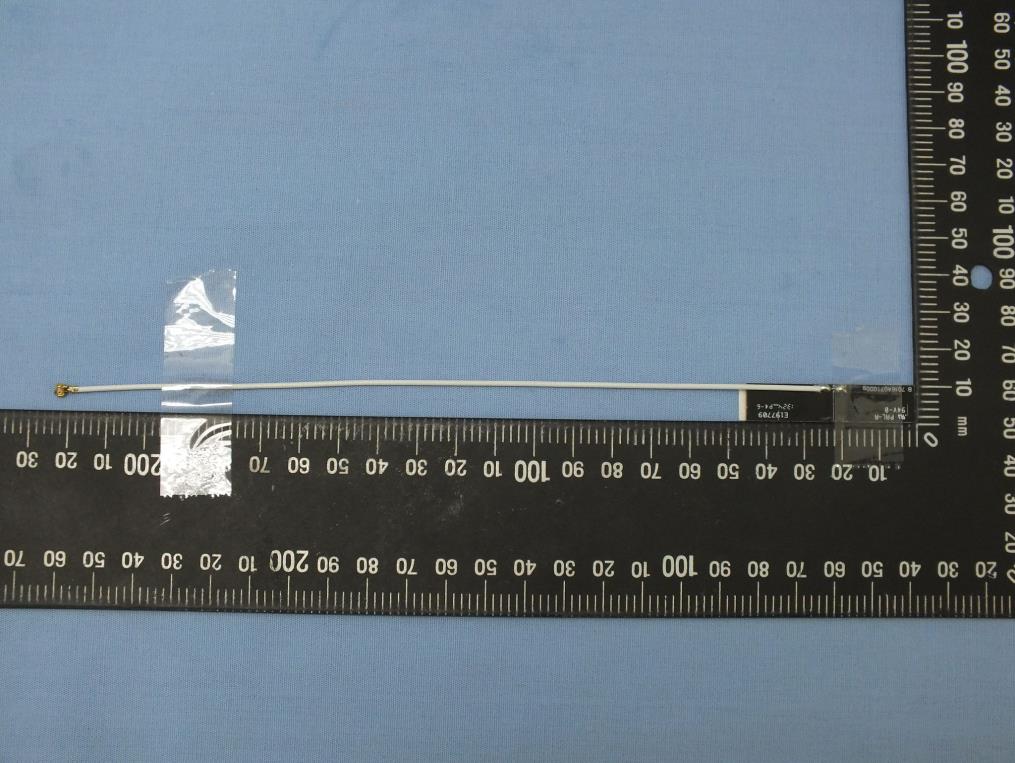

- 1 - 802.11 a/b/g/n Module EUB600-DM User’s Manual - 2 - PRODUCT DESCRIPTION The EUB600-DM is a 2 . 4 G /5G dual band 2T2R USB module base on R T5 57 2N solution. PRODUCT SPECIFICATION RF Specification Radio 1 Support 2 . 4 G H z a n d 5GHz Interface USB 2.0 Operating Voltage 5V Antenna Connectors I-PEX Frequency Band 802.11a/b/g/n 2400~2483.5 MHz and 5150~5850 MHz Data rate 300Mbps Receive Sensitivity (Typical) 802.11g ≤ -89dBm@1~11Mbps 802.11g ≤ -89dBm@6Mbps ≤ -73dBm@54Mbps 802.11g/n_HT20 ≤ -89dBm @ MCS0/8 ≤ -71dBm @ MCS7/15 802.11g/n_HT40 ≤ -89dBm @ MCS0/8 ≤ -69dBm @ MCS7/15 802.11a ≤ -89dBm@6Mbps ≤ -72dBm@54Mbps 802.11a/n_HT20 ≤ -89dBm @ MCS0/8 ≤ -70dBm @ MCS7/15 802.11a/n_HT40 ≤ -89dBm @ MCS0/8 ≤ -68dBm @ MCS7/15 - 3 - PRODUCT Pin Define List of certificated antennas Type Connector 2412~2484MHz PCB Dipole U.FL 2 Type Connector 5150~5250MHz 5250~5350MHz 5470~5725MHz 5725~5850MHz PCB Dipole U.FL Gain : 3dBi Manufacturer :Senao Networks Model name : PCB DM AIOS core module ANT Dual-1.00 T:0.6*1L-45*10(HASL)P24 PAL Note: The EUT has two antennas. (2TX/2RX) Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the IC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. IC statement is required to be available in the users manual: This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 33 3 3 - 4 - Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 2400~2483.5 MHz and 5150~5850 MHz band are restricted to indoor usage only. - 5 - This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. - 6 - End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: U2M-EUB600DM”. - 7 - Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. - 8 - Industry Canada statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit ac…

Text truncated - open the document above for the full version.

International Certification Corp. (全球檢測股份有限公司) Te l：886-3-271-8666 Fax : 886-3-318-0155 No.3-1, Lane 6, Wen 33rd Rd., Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Subject: Modular approval request FCC ID: U2M-EUB600DM Date: December 27, 2013 Dear reviewer: The modular would like to have authorization as a modular approval. The requirements of section 15.212 have been met and shown on the following statements 1) The radio elements of the modular transmitter must have their own shielding The modular has shielding. Please refer to external photo. 2) The modular transmitter must have buffered modulation/da ta inputs The buffer is integrated withRT5572 3) The modular transmitter must have its own power supply regulation The part No. of regulator is IT7312DF 4) The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204 (c). Antenna connector is UFL and no external amplifier is used for this module. The modular complies with above requirement. 5) The modular transmitter must be tested in a stand-alone configuration The modular is tested in a stand-alone configuration via an extender. Please refer to test setup photo. 6) The modular transmitter must be equipped with either a permanently affixed label or must be cap able of electronically displaying its FCC identification number. The modular complies with the requirement. Please refer to label location and label sample exhibit. 7) The modular transmitter must comply with any specific rules or operating requirements The modular complies with the requirement. Detail information please refer to user manual 8) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The modular complies with the requirement for mobile and fixed installation. Please refer to RF exposure exhibit Please contact me if you have any questions about this letter. Best regards Gary Chang , Manager Report & Certification department Tel:+886-3-271-8628 Email:[email protected]
