U2M-MBRIDGEDM802.11 abgn device

Safety Instructions (Read these safety instructions before operating the unit.) n SAFETY PRECAUTIONS IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. WARNINGS nNOTES ON USE • Avoid high temperatures. Allow for sufficient heat dispersion when installed in a rack. • Handle the power cord carefully. Hold the plug when unplugging the cord. • Keep the unit free from moisture, water, and dust. • Unplug the power cord when not using the unit for long periods of time. • Do not obstruct the ventilation holes. • Do not let foreign objects into the unit. • Do not let insecticides, benzene, and thinner come in contact with the unit. • Never disassemble or modify the unit in any way. • Ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths or curtains. • Naked flame sources such as lighted candles should not be placed on the unit. • Observe and follow local regulations regarding battery disposal. • Do not expose the unit to dripping or splashing fluids. • Do not place objects filled with liquids, such as vases, on the unit. • Do not handle the mains cord with wet hands. • When the switch is in the OFF (STANDBY) position, the equipment is not completely switched off from MAINS. • The equipment shall be installed near the power supply so that the power supply is easily accessible. • Do not keep the battery in a place exposed to direct sunlight or in places with extremely high temperatures, such as near a heater. (Only amplifier) Hot surface mark CAUTION: HOT SURFACE. DO NOT TOUCH. The top surface over the internal heat sink may become hot when operating this product continuously. Do not touch hot areas, especially around the “Hot surface mark” and the top panel. CAUTION: To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user. • DECLARATION OF CONFORMITY Our products following the provisions of EC/EU directives, that as follows; LV: 2006/95/EC EMC: 2004/108/EC RoHS: 2011/65/EU ErP: EC regulation 278/2009 and its frame work directive 2009/125/EC R&TTE: 1999/5/EC A NOTE ABOUT RECYCLING: This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with the local recycling regulations. When discarding the unit, comply with local rules or regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with the local regulations concerning battery disposal. This product and the supplied accessories, excluding the batteries, constitute the applicable product according to the WEEE directive. WARNHINWEISE nHINWEISE ZUM GEBRAUCH • Vermeiden Sie hohe Temperaturen. Beachten Sie, dass eine ausreichende Belüftung gewährleistet wird, wenn das Gerät auf ein Regal gestellt wird. • Gehen Sie vorsichtig mit dem Netzkabel um. Halten Sie das Kabel am Stecker, wenn Sie den Stecker herausziehen. • Halten Sie das Gerät von Feuchtigkeit, Wasser und Staub fern. • Wenn das Gerät längere Zeit nicht verwendet werden soll, trennen Sie das Netzkabel vom Netzstecker. • Decken Sie den Lüftungsbereich nicht ab. • Lassen Sie keine fremden Gegenstände in das Gerät kommen. • Lassen Sie das Gerät nicht mit Insektiziden, Benzin oder Verdünnungsmitteln in Berührung kommen. • Versuchen Sie niemals das Gerät auseinander zu nehmen oder zu verändern. • Die Belüftung sollte auf keinen Fall durch das Abdecken der Belüftungsöffnungen durch Gegenstände wie beispielsweise Zeitungen, Tischtücher, Vorhänge o. Ä. behindert werden. • Auf dem Gerät sollten keinerlei direkte Feuerquellen wie beispielsweise angezündete Kerzen aufgestellt werden. • Bitte beachten Sie bei der Entsorgung der Batterien die örtlich geltenden Umweltbestimmungen. • Das Gerät sollte keiner tropfenden oder spritzenden Flüssigkeit ausgesetzt werden. • Auf dem Gerät sollten keine mit Flüssigkeit gefüllten Behälter wie beispielsweise Vasen aufgestellt werden. • Das Netzkabel nicht mit feuchten oder nassen Händen anfassen. • Wenn der Schalter ausgeschaltet ist (OFF (STANDBY) -Position), ist das Gerät nicht vollständig vom Stromnetz (MAINS) abgetrennt. • D…

Text truncated - open the document above for the full version.

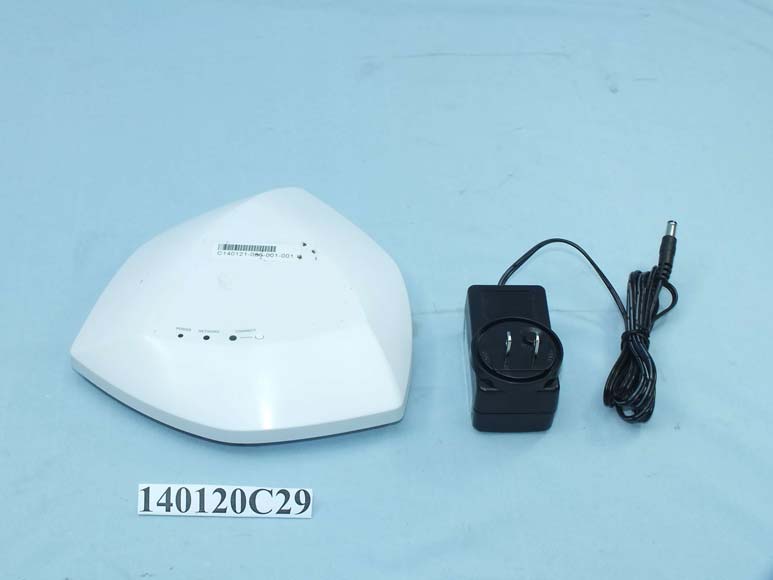

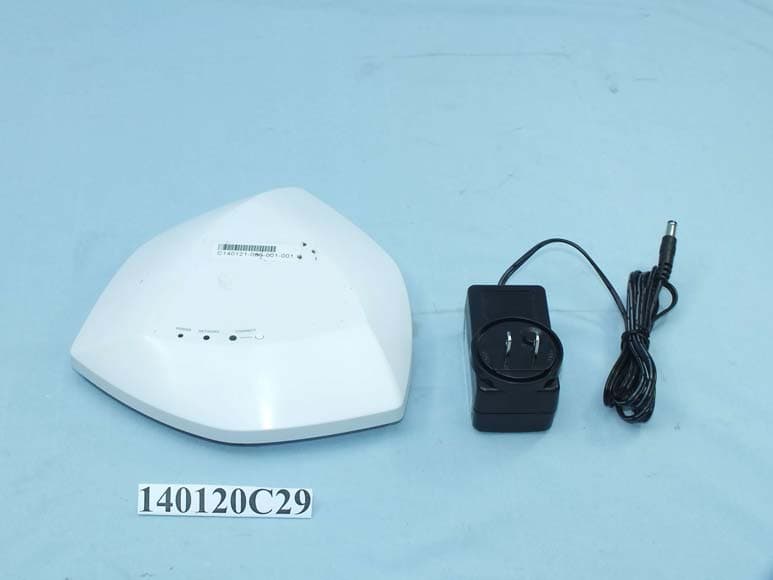

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

: 00:05:CD:3X:XX:XX SSID :DENON KEY : CAN IECS-3(B) / NMB-3(B) MADE IN TAIWAN R.O.C. / FABRIQUE A TAIWAN R.O.C. CONTAINS FCC ID : U2M-EUB600DM CONTAINS IC : 3616C-EUB600DM MODEL NO . HEOS Extend Wireless Range Extender INPUT 12V 1.25A 311A900001 No. 1923 6 9 14 9 13 1 2 11 10 7 12 8 5 12 12 4 3 HEOS Extend (Wireless Range Extender) Denon 06-Aug.-20130.9ESTIMATES.Kato 04-Sep.-20130.91CORRECTIONS.Kato 17-Sep.-20130.92CORRECTIONS.Kato 01-Oct.-20130.93CORRECTIONS.Kato 03-Oct.-20130.94CORRECTIONS.Kato 12-Dec.-20131.00CORRECTIONS.Kato 25-Dec.-2013B3040041.10MODIFICATIONS.Kato 17-Feb.-2014B3040071.20MODIFICATIONS.Kato 03-Mar.-2014B3040121.30MODIFICATION ( Delete mark of UL )S.Kato Daniel Veiga 1 1 14 8 PC ( Natural Translucent / Frosted Clear ) 2 LENS of STATUS LED’S DC INPUT Jack 1 1 FRONT HOUSING 1 5 3 1 2 1 New tooling New tooling Colors TBD by DENON for each status. LED Plastic, Color : White NCS-S0500-N 1 7 13 Sn plated 11 12 16 17 Operation force : 300±50 ｇｆ 15 Ethernet Jack Local procurement ( Need approved by DM’s inspection ) Local procurement ( Need approved by DM’s inspection ) 3 PANTONE Cool Gray 4C PANTONE Cool Gray 4C 4 HEOS LOGO 6 1 9 10 Texture : YS11004 Matt BACK HOUSING New tooling, add the hook on bottom.(ver.0.93) ( The printing is changed. ) Plastic, Color : White NCS-S0500-N PANTONE Cool Gray 4C Texture : YS11004 Matt Texture : YS 1281 LED color : TBD Sn plated 19 BUTTON 1P ( Reset ) New tooling Operation force : 300±50 ｇｆ New tooling Power Switch Slide / Sn plated Local procurement ( Need approved by DM’s inspection ) 1 2 Nut ( for mouting ) Local procurement ( Need approved by DM’s inspection ) Brass ( or Plating Stainless ) 1 Rating Label Local procurement ( Need approved by DM’s inspection ) Base color : White PC sheet (50 1 MAC Label Local procurement ( Need approved by DM’s inspection ) Base color : White PC sheet (50 1 S/No. Label Local procurement ( Need approved by DM’s inspection ) Base color : White PC sheet (50 3 Foot Local procurement ( Need approved by DM’s inspection ) Color : PANTONE PAL7047 GrayRubber ( 18 Plastic, Color : White NCS-S0500-N Texture : YS1285 Matt Plastic, Color : White NCS-S0500-N Texture : YS1285 Matt CONNECT BUTTON H.Yazawa 2014- 3- 3 S.Fukuzuka 2014- 3- 3 K.Sagawa 2014- 3- 3 S.Kato 2014- 3- 3

IL refer to the NOTESrefer to the NOTESrefer to the NOTES DS-1923-2 1 1 ＬＡＢＥＬ（Ｈｅｏｓ Ｅｘｔｅｎｄ） B304004ISSUE2013/12/26S.KatoH.Yazawa Need S .Kato 2014- 3- 3 S .Kato 2014- 3- 3 H.Yaz 2014- 3- 3 K.Sagawa 2014- 3- 3 Ｈｅｏｓ Ｅｘｔｅｎｄ・ａｌｌ１ B304012DELETE mark of UL2014/ 3/ 3S.KatoH.Yazawa FCC ID : U2M-MBRIDGEDM IC : 3616C-MBRIDGEDM

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15

FCC ID: U2M-MBRIDGEDM Report No.: RF140120C29 Operational Description This device is an 802.11 abgn device, which operates in both of 2.4GHz and 5GHz bands; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc from AC adapter. The antenna is PIFA antenna without connector. The other instruction, please have a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA140120C29 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA140120C29 MODEL NO.: HEOS Extend FCC ID: U2M-MBRIDGEDM RECEIVED: Jan. 20, 2014 TESTED: Feb. 17 ~ Mar. 19, 2014 ISSUED: Mar. 27, 2014 APPLICANT: Senao Networks, Inc. ADDRESS: 3F, No. 529, Chung Cheng Rd., Hsintien, New Taipei City, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. Report No.: SA140120C29 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 3 1. CERTIFICATION .......................................................................................................... 4 2. RF EXPOSURE ........................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ..................................... 5 2.2 MPE CALCULATION FORMULA................................................................................. 5 2.3 CLASSIFICATION ....................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .............................. 6 Report No.: SA140120C29 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA140120C29 Original release Mar. 27, 2014 Report No.: SA140120C29 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: 802.11 abgn device MODEL: HEOS Extend BRAND: DENON APPLICANT: Senao Networks, Inc. TESTED: Feb. 17 ~ Mar. 19, 2014 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: HEOS Extend) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Mar. 27, 2014 Ivy / Specialist APPROVED BY: , DATE :Mar. 27, 2014 Ken Liu / Senior Manager Report No.: SA140120C29 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 28cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA140120C29 6 of 6 Report Format Version 5.0.0 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 29.95 6.51 28 0.449 1 5180-5240 16.62 8.51 28 0.033 1 5745-5825 28.82 8.51 28 0.549 1 NOTE: 2.4GHz: Directional gain = 3.5dBi + 10log(2) = 6.51dBi 5GHz: Directional gain = 5.5dBi + 10log(2) = 8.51dBi CONCULSION: Both of the WLAN 2.4G & WLAN 5G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density WLAN 2.4G + WLAN 5.0G = 0.449 + 0.549 = 0.998 Therefore, the maximum calculation of this situation is 0.998, which is less than the “1” limit. ---END---

Report No.: RF140120C29 1 of 94 Report Format Version 5.2.0 FCC TEST REPORT (15.247) REPORT NO.: RF140120C29 MODEL NO.: HEOS Extend FCC ID: U2M-MBRIDGEDM RECEIVED: Jan. 20, 2014 TESTED: Feb. 17 ~ Mar. 19, 2014 ISSUED: Mar. 27, 2014 APPLICANT: Senao Networks, Inc. ADDRESS: 3F, No. 529, Chung Cheng Rd., Hsintien, New Taipei City, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140120C29 2 of 94 Report Format Version 5.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 5 1. CERTIFICATION .......................................................................................................... 6 2. SUMMARY OF TEST RESULTS ................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 7 3. GENERAL INFORMATION .......................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 8 3.2 DESCRIPTION OF TEST MODES ............................................................................ 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................ 11 3.3 DUTY CYCLE OF TEST SIGNAL .............................................................................. 15 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................... 17 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 18 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 19 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................ 20 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 20 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 20 4.1.2 TEST INSTRUMENTS ............................................................................................... 21 4.1.3 TEST PROCEDURES ............................................................................................... 22 4.1.4 DEVIATION FROM TEST STANDARD...................................................................... 22 4.1.5 TEST SETUP ............................................................................................................. 23 4.1.6 EUT OPERATING CONDITIONS .............................................................................. 24 4.1.7 TEST RESULTS ........................................................................................................ 25 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 38 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 38 4.2.2 TEST INSTRUMENTS ............................................................................................... 38 4.2.3 TEST PROCEDURES ............................................................................................... 39 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 39 4.2.5 TEST SETUP ............................................................................................................. 39 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 39 4.2.7 TEST RESULTS ........................................................................................................ 40 4.3 6dB BANDWIDTH MEASUREMENT ......................................................................... 42 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................... 42 4.3.2 TEST SETUP ............................................................................................................. 42 4.3.3 TEST INSTRUMENTS ............................................................................................... 42 4.3.4 TEST PROCEDURE .................................................................................................. 42 4.3.5 DEVIATION FROM TEST STANDARD...................................................................... 42 4.3.6 EUT OPE…

Text truncated - open the document above for the full version.

Report No.: RF140120C29-1 1 of 53 Report Format Version 5.2.0 FCC TEST REPORT (15.407) REPORT NO.: RF140120C29-1 MODEL NO.: HEOS Extend FCC ID: U2M-MBRIDGEDM RECEIVED: Jan. 20, 2014 TESTED: Feb. 17 ~ Mar. 19, 2014 ISSUED: Mar. 27, 2014 APPLICANT: Senao Networks, Inc. ADDRESS: 3F, No. 529, Chung Cheng Rd., Hsintien, New Taipei City, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140120C29-1 2 of 53 Report Format Version 5.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 4 1. CERTIFICATION .......................................................................................................... 5 2. SUMMARY OF TEST RESULTS ................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 6 3. GENERAL INFORMATION .......................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 7 3.2 DESCRIPTION OF TEST MODES .............................................................................. 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................. 9 3.3 DUTY CYCLE OF TEST SIGNAL .............................................................................. 11 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................... 15 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 16 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 17 4. TEST TYPES AND RESULTS ................................................................................... 18 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 18 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 18 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ............. 18 4.1.3 TEST INSTRUMENTS ............................................................................................... 19 4.1.4 TEST PROCEDURES ............................................................................................... 20 4.1.5 DEVIATION FROM TEST STANDARD...................................................................... 20 4.1.6 TEST SETUP ............................................................................................................. 21 4.1.7 EUT OPERATING CONDITION ................................................................................. 22 4.1.8 TEST RESULTS ........................................................................................................ 23 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 32 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 32 4.2.2 TEST INSTRUMENTS ............................................................................................... 32 4.2.3 TEST PROCEDURES ............................................................................................... 33 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 33 4.2.5 TEST SETUP ............................................................................................................. 33 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 33 4.2.7 TEST RESULTS ........................................................................................................ 34 4.3 PEAK TRANSMIT POWER MEASUREMENT .......................................................... 36 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT ........................................ 36 4.3.2 TEST SETUP ............................................................................................................. 36 4.3.3 TEST INSTRUMENTS ............................................................................................... 36 4.3.4 TEST PROCEDURE .................................................................................................. 37 4.3.5 DEVIATION FROM TEST STANDA…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
