U2M-OAP7250AGWireless 802.11ac/b/g/n access point

1 Quick Installation Guide OAP7250AG Wireless 450M + 1.3Gbps Long Range outdoor Dual Band Concurrent AP Please verify contents of the box before continuing to set up the OAP7250AG.
OAP7250AG Access Point
OAP7250AG Quick Start Guide
Mounting Bracket
PoE injector
Mounting Kit Package (includes hex cap screws, washers, wall anchors and bolts, ring clamp)
Ground Cables
Packaged Ground Screw

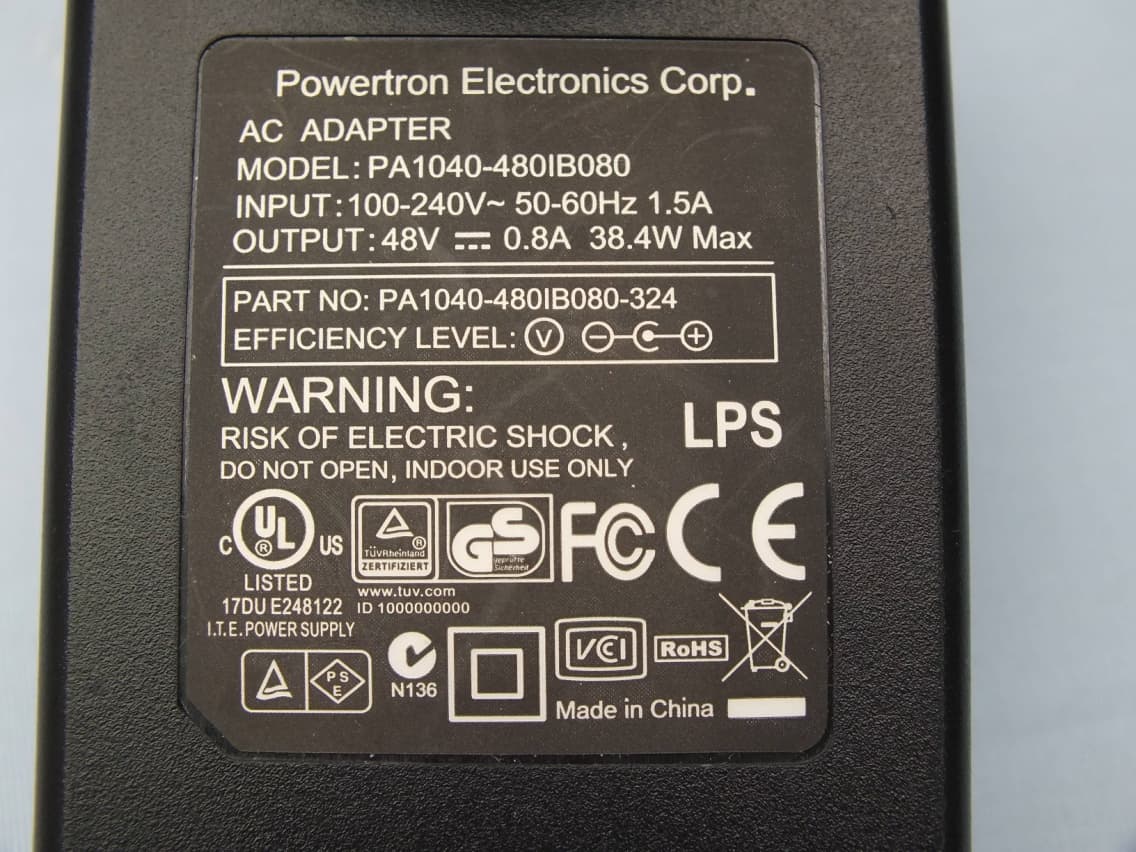

Power Adapter
Pole Mounting Bracket
7dBi 5GHz Omni-directional antennas
5dBi 2.4GHz Omni-directional antennas Connect to the OAP7250AG Access Point 1. Attach and gently tighten the provided antennas to the appropriate port on the OAP7250AG 2. Attach one of the supplied Ground Cables to the Ground screw on the PoE injector. 3. Attach the wire end the Ground Cable to a safety ground. 4. Using one of the CAT5e/CAT6 Ethernet cable, connect one end of the cable to the LAN1 Port (PoE Input) of the CAP7250AG and the other end into the AP/Bridge port on the PoE injector. 5. Connect the second CAT5e/CAT6 Ethernet cable to the Switch/Computer Ethernet port. 6. Connect the Power adapter to the DC IN port of the PoE injector and plug the other end into an electrical outlet. 2 Note: The OAP7250AG can be powered through the LAN1 Port (PoE Input) by any PSE (Power Sourcing Equipment) which supports IEEE802.11at (PoE+) including the provided PoE injector. With adequate input power, the OAP7250AG can power a device connected to the LAN2 Port (PSE Output). IP address configuration 3 1. Ensure that TCP/IP is set to On or Enable open Network Connections and then click Local Area Connection. Select TCP/IPv4 and then click on the Properties button. 2. If your PC is already on a network, ensure that you have set it to a Static IP Address on the interface (Example 192.168.1.10 and the Subnet Mask as 255.255.255.0) Access the OAP7250AG 1. To configure the OAP7250AG, open a web browser and enter 192.168.1.1 in the address bar. Then hit enter. 2. A login screen will appear. The default username and password of the OAP7250AG is admin. Please enter the username and password and the click Login. 4 Wall Mounting the OAP7250AG 1. Make the four locations of the mounting holes on the flat mounting surface. 2. Drill a 37mm deep 8mm hole in the markings and hammer the bolts into the openings. 3. Place the lock and flat washers on the four hex cap screws and drive the screws to attach the bracket to the back of the OAP725AG. 5 4. Tighten the flat washers to secure the bracket to the mounting surface. Pole Mounting the OAP7250AG 1. Place the lock and flat washers on the four hex cap screws and drive the screws to attach bracket to the back of the OAP7250AG 6 2. Drive the four round head screws to attach the Pole Mount Bracket to the bracket. 3. Thread the open end of the Pole Strap through the two tabs on the Pole Mount Bracket. 7 4. Lock and tighten Pole Strap to secure Pole Mount Bracket to the Pole. 8 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 21cm between the radiator & your body. 9 Professional installation instruction 1. Installation personal This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting. 2. Installation location The product shall be installed at a location where the radiating antenna can be kept 21cm from nearby person in normal operation condition to meet regulatory RF exposure requirement. 3. External antenna Use only the antennas which have been approved by the applicant. The non-approved antenna(s) may produce unwanted spurious or excessive RF transmitting power which may lead to the violation of FCC limit and is prohibited. 4. Installation procedure Please refer to user’s manual for the detail. 5. Warning Please carefully select the installation position and make sure that the final output power does not exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalty.

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

Label location

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16

Report No.: SA150716C07D Page No. 1 / 5 Report Format Version: 6.1.1 Reference No.: 150827C23 RF Exposure Report Report No.: SA150716C07D FCC ID: U2M-OAP7250AG Test Model: OAP7250AG Received Date: Aug. 27, 2015 Test Date: Sep. 04 ~ Sep. 18, 2015 Issued Date: Sep. 25, 2015 Applicant: Senao Networks, Inc. Address: 3F, No. 529, Chung Cheng Rd., Hsintien, New Taipei City, R.O.C Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN (R.O.C.) This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: SA150716C07D Page No. 2 / 5 Report Format Version: 6.1.1 Reference No.: 150827C23 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Calculation Result Of Maximum Conducted Power .......................................................................... 5 Report No.: SA150716C07D Page No. 3 / 5 Report Format Version: 6.1.1 Reference No.: 150827C23 Release Control Record Issue No. Description Date Issued SA150716C07D Original release Sep. 25, 2015 Report No.: SA150716C07D Page No. 4 / 5 Report Format Version: 6.1.1 Reference No.: 150827C23 1 Certificate of Conformity Product: Wireless 802.11ac/b/g/n access point Brand: Senao Networks Test Model: OAP7250AG Sample Status: Engineering Sample Applicant: Senao Networks, Inc. Test Date: Sep. 04 ~ Sep. 18, 2015 Standards: FCC Part 2 (Section 2.1091) KDB 447498 D03 IEEE C95.1 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : , Date:Sep. 25, 2015 Celine Chou / Specialist Approved by : , Date:Sep. 25, 2015 Ken Liu / Senior Manager Report No.: SA150716C07D Page No. 5 / 5 Report Format Version: 6.1.1 Reference No.: 150827C23 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 21cm away from the body of the user. So, this device is classified as Mobile Device. 3 Calculation Result Of Maximum Conducted Power Frequency Band (MHz) Max Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 24.71 10.18 21 0.556 1 5180-5240 23.13 2.44 21 0.065 1 5745-5825 22.40 10.80 21 0.377 1 Note: 2412 ~ 2462MHz: Directional gain = 5.41dBi + 10log(3) = 10.18dBi 5180 ~ 5240MHz: Directional gain = -2.33dBi + 10log(3) = 2.44dBi 5745 ~ 5825MHz: Directional gain = 6.03dBi + 10log(3) = 10.80dBi CONCULSION: Both of the WLAN 2.4G & WLAN 5G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density WLAN 2.4G + WLAN 5.0G = 0.556 + 0.377 = 0.933 Therefore, the maximum calculation of this situation is 0.933, which is less than the “1” limit. ---END---

Report No.: RF150716C07D Page No. 1 / 60 Report Format Version: 6.1.1 Reference No.: 150827C23 FCC Test Report Report No.: RF150716C07D FCC ID: U2M-OAP7250AG Test Model: OAP7250AG Received Date: Aug. 27, 2015 Test Date: Sep. 04 ~ Sep. 18, 2015 Issued Date: Sep. 25, 2015 Applicant: Senao Networks, Inc. Address: 3F, No. 529, Chung Cheng Rd., Hsintien, New Taipei City, R.O.C Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. Lab Address: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN (R.O.C.) This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150716C07D Page No. 2 / 60 Report Format Version: 6.1.1 Reference No.: 150827C23 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 9 3.3 Duty Cycle of Test Signal ................................................................................................................... 11 3.4 Description of Support Units ............................................................................................................. 12 3.4.1 Configuration of System under Test .................................................................................................. 12 3.5 General Description of Applied Standards ........................................................................................ 13 4 Test Types and Results ...................................................................................................................... 14 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 14 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 14 4.1.2 Test Instruments ................................................................................................................................ 15 4.1.3 Test Procedures ................................................................................................................................. 16 4.1.4 Deviation from Test Standard ............................................................................................................ 16 4.1.5 Test Set Up ........................................................................................................................................ 17 4.1.6 EUT Operating Conditions ................................................................................................................. 17 4.1.7 Test Results ....................................................................................................................................... 18 4.2 Conducted Emission Measurement .................................................................................................. 31 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 31 4.2.2 Test Instruments ................................................................................................................................ 31 4.2.3 Test Procedures ................................................................................................................................. 32 4.2.4 Deviation from …

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION Conducted Emission Test 2 Radiated Emissions below 1 GHz Test 3 Radiated Emissions above 1 GHz Test
