U2M-PCE2310MWiFi 6 ax1800 2x2 dual concurrent M.2 B key Module

User Manual  Product Name: WiFi 6 ax1800 2x2 dual concurrent M.2 B key Module  Model Name: PCE2310M  FCC ID: U2M-PCE2310M 1. Hardware Design Specification PCE2310M module had been designed to replace ancient ac1200 dual concurrent PCIE module with M.2 B key which would be applied on SDWAN devices for networking with client device via wireless. M.2 B key design would also be compatible with existing 5G module slot. 1.1 Major Components SKUs PCE2310M Main Chip Radio MTK MT7915DAN 2.4GHz Transceiver +iPA MTK MT7975DN 5GHz Transceiver +iPA MTK MT7975DN Zero Wait DFS N/A RF components 2.4GHz FEM N/A 5GHz FEM N/A WIPS FEMs N/A 2.4GHz Filter DEA202450BT-3030A1 x 2 5GHz Filter DEA165550BT-2230C2-H x 2 Diplexer (2.4GHz/5GHz) ACX DP1608-A2455BKT 1.2 WiFi Specification (2.4GHz/5GHz) Based on the transmit power (Tx) and receive sensitivity (Rx) specifications of MT7975DN, we conclude Tx power from chips and summarize Rx specification as the following table. Radio 2.4GHz 5GHz Data Rate 574Mbps 1201Mbps Available Bandwidth 20/40MHz 20/40/80MHz Adopted FEM iPA iPA Available frequency 2412– 2483.5MHz 5150-5850MHz Transmit Power @ antenna port 13-18dBm 12-18dBm Receive Sensitivity -59~-88dBm -57~-86dBm 1.3 Power Consumption The max power consumption is around 7.51W. PCB Dimensions/Layers. PCE2310M Dimension/Layer 52 x 30 x 0.8 mm / 4 layers 1.4 Support driver PCE2310M is an integrated module on customer’s system board. The selected SDK or driver would be discussed and be negotiated firstly. According to initial validation from Seano, we successfully brought up this module on existing NXP and AMD platform. 1.5 Compliant Regulatory The planned certification domain would be covered following regulatory. 1.5.1 Tier 1 Compliant Regulatory Countries/Regions RF Standards EMC Standards Safety Standards USA OET Bulleting 65/Part 2.1093 FCC Part 15.247 FCC Part 15.407 FCC Part 15, Subpart B Class B N/A EU EN 300 328 v2.2.2 EN 300 440 EN 301 893 v2.1.1 EN 50385: 2017 EN 301 489-1/-17 v3.1.1 CISPR 32:2012 EN55032:2012 CISPR 24:2010 EN55024:2010 EN55035 N/A 2. Warning statements FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to all the rules that apply to the product into which this certified RF module is integrated. Additional testing and certification may be necessary when multiple modules are used. RF Exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. USERS MANUAL OF THE END PRODUCT In the users manual of the end product, the end user has to be informed to keep at least 20 cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT The final end product must be labeled in a visible area with the following " Contains FCC ID: U2M-PCE2310M ". This radio transmitter FCC ID: U2M-PCE2310M has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Antenna List No. Manufacturer Part No. Antenna Type Peak Gain 1 AWAN A8EEE-000001 WHITE Dipole 3.23 dBi for 2.4 GHz 5.22 dBi for 5GHz Note: The antenna connector is SMA Male type.

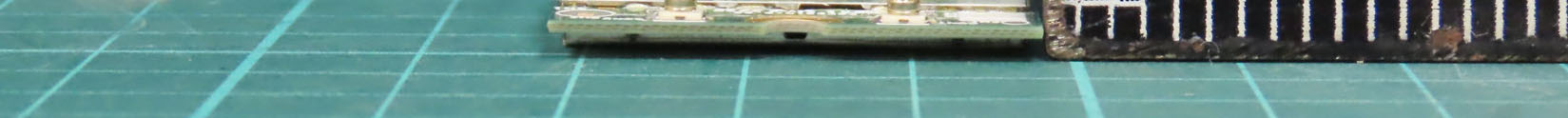

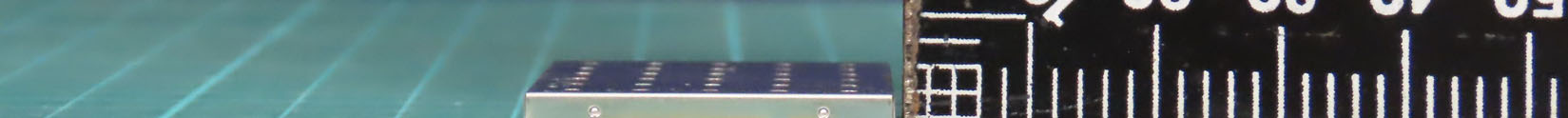

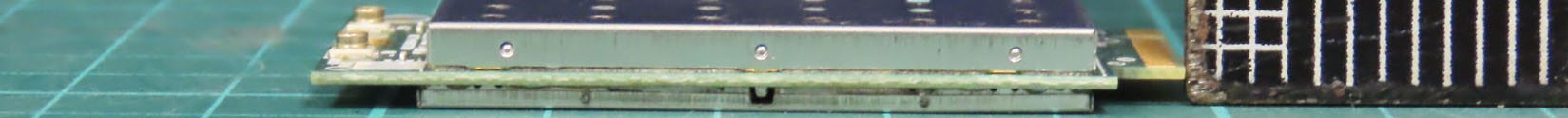

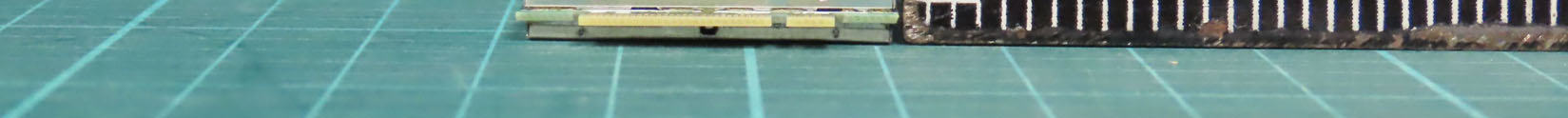

Report No: 22A0237R-Product Photos Page: 1 of 4 (1) EUT Photo (2) EUT Photo Report No: 22A0237R-Product Photos Page: 2 of 4 (3) EUT Photo (4) EUT Photo Report No: 22A0237R-Product Photos Page: 3 of 4 (5) EUT Photo (6) EUT Photo Report No: 22A0237R-Product Photos Page: 4 of 4 (7) EUT Photo (8) EUT Photo

Label Sample

Report No: 22A0237R-Product Photos Page: 1 of 2 (1) EUT Photo (2) EUT Photo Report No: 22A0237R-Product Photos Page: 2 of 2 (3) EUT Photo (4) EUT Photo

Report No.: 22A0237R-RFUSV17S-A Page: 1 of 8 RF Exposure Report Product Name : WiFi 6 ax1800 2x2 dual concurrent M.2 B key Module Model No. : PCE2310M FCC ID : U2M-PCE2310M Applicant : Senao Networks, Inc. Address : 3F, No. 529, Chung Cheng Rd., Hsintien,Taipei,Taiwan Date of Receipt : Oct. 12, 2022 Date of Declaration : Nov. 16, 2022 Report No. : 22A0237R-RFUSV17S-A Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No.: 22A0237R-RFUSV17S-A Page: 2 of 8 Product Name WiFi 6 ax1800 2x2 dual concurrent M.2 B key Module Applicant Senao Networks, Inc. Address 3F, No. 529, Chung Cheng Rd., Hsintien,Taipei,Taiwan Manufacturer Senao Networks, Inc. Model No. PCE2310M FCC ID U2M-PCE2310M Trade Name Senao Applicable Standard KDB 447498 D01 v06 Minimum test separation distance ≥ 20 cm For low power devices Test Result Complied Documented By : ( Senior Project Specialist / Joanne Lin ) Tested By : ( Senior Engineer / Alan Chen ) Approved By : ( Manager / Tim Sung ) Report No.: 22A0237R-RFUSV17S-A Page: 3 of 8 Revision History Report No. Ve r s i o n Description Issued Date 22A0237R-RFUSV17S-A V1.0 Initial issue of report. Nov. 16, 2022 Report No.: 22A0237R-RFUSV17S-A Page: 4 of 8 1. General Information 1.1. EUT Description Product Name WiFi 6 ax1800 2x2 dual concurrent M.2 B key Module Model No. PCE2310M Trade Name Senao FCC ID U2M-PCE2310M Note: For more detailed information please refer to report No.: 22A0237R-RFUSV01S-A, 22A0237R-RFUSV03S-A. Report No.: 22A0237R-RFUSV17S-A Page: 5 of 8 1.2. Test Facility USA : FCC Registration Number: TW0033 Canada : CAB Identifier Number: TW3023 / Company Number: 26930 Site Description : Accredited by TAF Accredited Number: 3023 Test Laboratory : DEKRA Testing and Certification Co., Ltd Address : No. 5-22, Ruishukeng Linkou District, New Taipei City, 24451, Taiwan Performed Location : No. 26, Huaya 1st Rd., Guishan Dist.,Taoyuan City 333411, Taiwan, R.O.C. Phone Number : +886-3-275-7255 Fax Number : +886-3-327-8031 Email Address : [email protected] Website : http://www.dekra.com.tw Report No.: 22A0237R-RFUSV17S-A Page: 6 of 8 2. RF Exposure Evaluation 2.1. Standard Applicable According to KDB 447498 D01 (7.1), A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. 2.2. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 3.0-30 1842/f 4.89/f 900/f 2 6 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 1.34-30 824/f 2.19/f 180/f 2 30 300-1500 -- -- F/1500 30 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 22A0237R-RFUSV17S-A Page: 7 of 8 2.3. Test Result of RF Exposure Evaluation Product : WiFi 6 ax1800 2x2 dual concurrent M.2 B key Module Test Item : RF Exposure Evaluation for CDD mode Band Frequency (MHz) E.I.R.P (dBm) E.I.R.P (mW) Power Density at R = 20 cm (mW/cm2) Limit (mW/cm2) 2.4GHz 2437 27.920 619.441 0.1232 1 5GHz 5240 29.750 944.061 0.1878 1 Note: The conducted output power is refer to report No.: 22A0237R-RFUSV01S-A, 22A0237R-RFUSV03S-A from the DEKRA. Report No.: 22A0237R-RFUSV17S-A Page: 8 of 8 Product : WiFi 6 ax1800 2x2 dual concurrent M.2 B key Module Test Item : RF Exposure Evaluation for Beamforming mode Band Frequency (MHz) E.I.R.P (dBm) E.I.R.P (mW) Power Density at R = 20 cm (mW/cm2) Limit (mW/cm2) 2.4GHz 2437 27.130 516.416 0.1027 1 5GHz 5240 29.750 944.061 0.1878 1 Note: The conducted output power is refer to report No.: 22A0237R-RFUSV01S-A, 22A0237R-RFUSV03S-A from the DEKRA. Results PASS

Report No.: 22A0237R-RFUSV03S-A Page: 1 of 78 Test Report Product Name WiFi 6 ax1800 2x2 dual concurrent M.2 B key Module Model No. PCE2310M FCC ID U2M-PCE2310M Applicant Senao Networks, Inc. Address 3F, No. 529, Chung Cheng Rd., Hsintien,Taipei,Taiwan Date of Receipt Oct. 12, 2022 Issued Date Nov. 16, 2022 Report No. 22A0237R-RFUSV03S-A Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No.: 22A0237R-RFUSV03S-A Page: 2 of 78 Test Report Product Name WiFi 6 ax1800 2x2 dual concurrent M.2 B key Module Applicant Senao Networks, Inc. Address 3F, No. 529, Chung Cheng Rd., Hsintien,Taipei,Taiwan Manufacturer Senao Networks, Inc. Model No. PCE2310M FCC ID U2M-PCE2310M EUT Rated Voltage DC 3.7 V EUT Test Voltage AC 120 V / 60 Hz (by Adapter) DC 3.7 V (by Test Fixture) Trade Name Senao Applicable Standard FCC CFR Title 47 Part 15 Subpart E ANSI C63.4: 2014, ANSI C63.10: 2013 KDB Publication 789033 Test Result Complied Documented By : ( Senior Project Specialist / Joanne Lin ) Tested By : ( Senior Engineer / Bill Lin ) Approved By : ( Senior Engineer / Alan Chen ) Report No.: 22A0237R-RFUSV03S-A Page: 3 of 78 TABLE OF CONTENTS 1. General Information ...................................................................................................................................... 6 1.1. EUT Description ...................................................................................................................................... 6 1.2. Tested System Datails .............................................................................................................................. 9 1.3. Configuration of tested System ................................................................................................................ 9 1.4. EUT Exercise Software ............................................................................................................................ 9 1.5. Test Facility ............................................................................................................................................ 10 1.6. List of Test Equipment ........................................................................................................................... 10 1.7. Uncertainty ............................................................................................................................................. 12 2. Conducted Emission .................................................................................................................................... 13 2.1. Test Setup ............................................................................................................................................... 13 2.2. Limits ..................................................................................................................................................... 13 2.3. Test Procedure ........................................................................................................................................ 14 2.4. Test Result of Conducted Emission ....................................................................................................... 14 3. Maximun conducted output power ............................................................................................................ 16 3.1. Test Setup ............................................................................................................................................... 16 3.2. Limits ..................................................................................................................................................... 17 3.3. Test Procedure ........................................................................................................................................ 19 3.4. Test Result of Maximum conducted output power ................................................................................ 20 4. Maximun Power Spectral Density .............................................................................................................. 27 4.1. Test Setup ............................................................................................................................................... 27 4.2. Limits ..................................................................................................................................................... 27 4.3. Test Procedure ........................................................................................................................................ 28 4.4. Test Result of Maximun Power Spectral Density .................................................................................. 29 5. Radiated Emission ....................................................................................................................................... 37 5.1. Test Setup ............................................................................................................................................... 37 5.2. Limits ..................................................................................................................................................... 38 5.3. Test Procedure .....................…

Text truncated - open the document above for the full version.

承 認 書 APPROVAL 廠 商 CUSTO MER 料 號 PART NO. 品 名 PARTNAM E 生 產 廠 商 CO M PANY 備 註 PART NO 日 期 **年**月**日 DATE 產品重量(g): WEIGHT ____________________________________________ 產品主要材質: MAIN MATERIAL ____________________________________________ 公 司 CO M PANY 地 址 ADDRESS 電 話： 傳真： TELEPHO NE FAX 2020.06.20 連騰科技股份有限公司 新北市新店區北新路三段207-1號B2-F室 886-2-8913-1939 886-2-8913-2538 Cable + Plastic holder + SMA + PCB 7102A0545000 神準科技股份有限公司 ANT DIPOLE 2.4/5GHz A8EEE-000001 WHITE AWAN_連騰 14.8G www.awan-ant.com AWAN-DBDipole Antenna AWANS/N:A8EEE-000001 CustomerS/N:7102A0545000 P.2 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 2 Contents •Antennaproposalandspecification •AntennaPlacement •Measurementdata P.3 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 3 Contents •Antennaproposalandspecification •AntennaPlacement •Measurementdata P.4 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 4 Antennaproposalandspecification AntennaProposal Antennatype•Dipolearray Frequency 2400~2500MHz 5150~5850MHz Impedance50OhmNominal VSWR<2 Gain 2.4G~2.5G@3dBi±0.5dBi 5.15G~5.85G@5dBi±0.5dBi Efficiency 2.4G~2.5G@55~60% 5.15G~5.85G@60~70% PolarizationLinear PhysicalProperties OperatingTemp-40~+80°C Storage Temperature -45~+85°C ConnectorSMAMale P.5 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 5 Drawing P.6 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 6 Contents •Antennaproposalandspecification •AntennaPlacement •Measurementdata P.7 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 7 Contents •Antennaproposalandspecification •AntennaPlacement •Measurementdata -VSWR -Radiationpattern -Gaintable P.8 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 8 Measurementdata VSWR P.9 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 9 Contents •Antennaproposalandspecification •AntennaPlacement •Measurementdata -VSWR -Radiationpattern -Gaintable P.10 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 10 Measurementdata Radiationpattern2.4G(2D) P.11 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 11 Measurementdata P.12 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 12 Measurementdata Radiationpattern2.4G&5G(3D) P.13 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 13 Contents •Antennaproposalandspecification •AntennaPlacement •Measurementdata -VSWR -Radiationpattern -Gaintable P.14 www.awan-ant.com AdvancedWireless&AntennaInc. AdvancedWireless&AntennaInc.AdvancedWireless&AntennaInc. 14 Measurementdata Gaintable Frequency (MHz)` PeakGain (dBi) Efficiency (dB) Efficiency (%) 24003.08-2.2060.28 24503.17-2.2759.33 25003.23-2.3558.15 5150 5.11-1.9064.63 52504.67-1.8565.37 53505.02-1.6367.75 54704.85-1.9563.79 57255.15-2.0462.55 58505.22-2.1760.64 材料组成表 厂商:昆山展騰電子科技有限公司 机种：2&5G_DB_DIPOLE-ANT 14.8g 料号：A8EEE-000001 料号/品名材料组成（须至均质单位）供應商 線1.37低損耗同軸線灰色AWAN 桿套ABSAWAN 上固定座PC+PBTAWAN 下固定座PC+PBTAWAN SMA頭 公頭母針 AWAN PCBFR4AWAN 鉚釘AWAN *天線功能較為敏感，主體周邊機構有變更請通知我們評估 *PCBOSP、處氧化（黑斑）屬正常現象，並不影響其功能特性

Report No.: 22A0237R-RFUSV03S-A Page : 1 of 3 Appendix 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 22A0237R-RFUSV03S-A Page : 2 of 3 Radiated Test Radiated Test (Horn) Report No.: 22A0237R-RFUSV03S-A Page : 3 of 3 Radiated Test (Horn)
