U2M-PCE4550AH802.11 a/n/ac Module

802.11 a/n/ac Module PCE4550AH User’s Manual PRODUCT DESCRIPTION The PCE4550AH is a 5G dual band concurrent 3T3R PCIe module base on QCA9880 commercial grade sol ution. PRODUCT SPECIFICATION RF Specification Radio 1 Support 5GHz Frequency Band 802.11a/n/ac 5.190~5.795GHz Data rate 1300Mbps Receive Sensitivity (Typical) 802.11a ≤ -94dBm@6Mbps ≤ -76dBm@54Mbps 802.11a/ n_HT20 ≤ -93dBm @ MCS0/8/16 ≤ -7 4dBm @ MCS7/15/23 802.11n_HT40 ≤ -92dBm @ MCS0/8/16 ≤ -72dBm @ MCS7/15/23 802.11ac_HT80 ≤ -89dBm@MCS0 ≤ -64dBm@MCS9 Type Connector 5150~5250MHz 5250~5350MHz 5470~5725MHz 5725~5850MHz Dipole UFL 3dBi 3dBi 3dBi 3dBi Dipole UFL 5.5 dBi 5.5 dBi 5.5 dBi 5.5 dBi PIFA UFL 6 dBi 6 dBi 6 dBi 6 dBi Note: The EUT has three antennas. (3TX/3RX) Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the IC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. IC statement is required to be available in the users manual: This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. - 2 - Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. - 3 - This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. - 4 - End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: U2M-PCE4550AH”. - 5 - Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. - 6 - Professional installation instruction 1. Installation personal This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting. 2. Installation location The product shall be installed at a location where the radiating antenna can be kept 20 cm from nearby person in normal operation condition to meet regulatory RF exposure requirement. 3. External antenna Use only the antennas which have been approved by the applicant. The non-approved antenna(s) may produce unwanted spurious or excessive RF transmitting power which may lead to the violation of FCC limit and is prohibited. 4. Installation procedure Please refer to user’s manual for the detail. 5. Warning Please carefully select the installation position and make sure that the final output power does not exceed the limit set force in relevant rules. T…

Text truncated - open the document above for the full version.

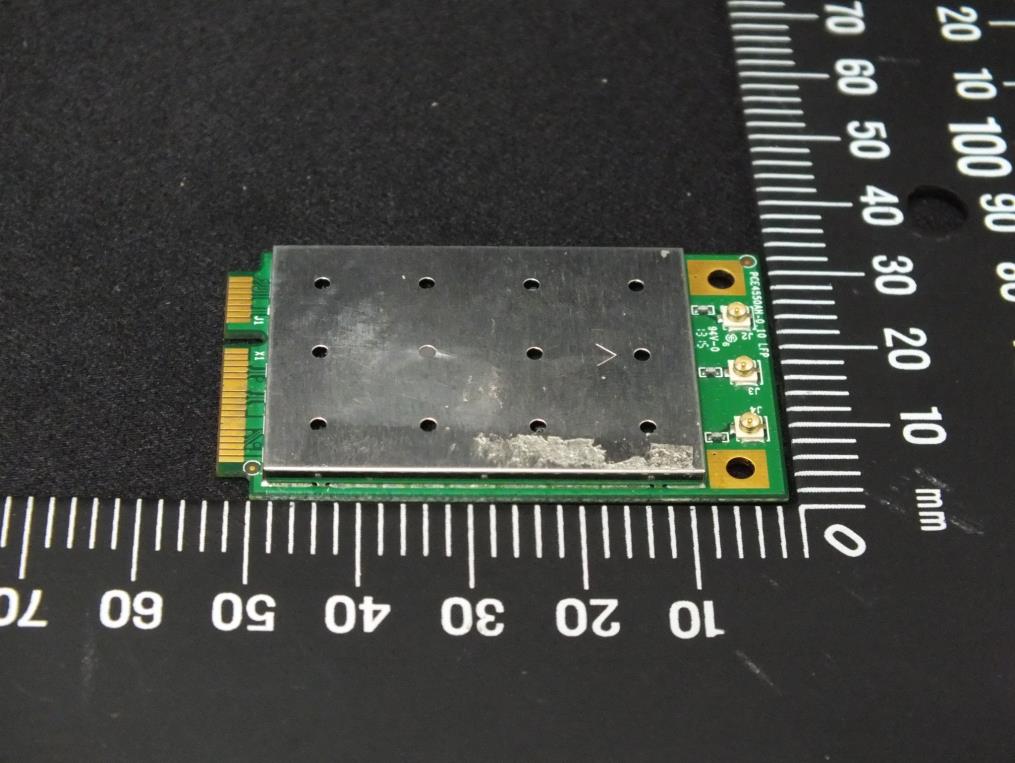

International Certification Corp. (全球檢測股份有限公司) Te l：886-3-271-8666 Fa x : 886-3-318-0155 No.3-1, La ne 6, Wen 33rd Rd., Kwe i Shan Hsiang, Tao Yuan Hsein 333, Ta iwan (R.O.C.) Ga ry Cha ng , Ma nager Re port & Ce rti fication department Te l :+886-3-271-8628 Ema il:[email protected] Subje ct: Modular approval re quest FCC I D: U2M-PCE4550AH Da te : Ma y 17, 2013 De a r re viewer: The modular would like to have authorization as a modular a pproval. The re quirements of s ection 15.212 ha ve been me t and shown on the following statements 1) The ra dio elements of the modular tra nsmitter must have their own shielding The modular has shielding. Please refer to external photo. 2) The modular transmitter must have buffered modulation/da ta i nputs The buffer i s integrated withQCA9880 3) The modular transmitter must have its own power supply re gulation The pa rt No. of regulator is QCA9880 / RT8010 4) The modular transmitter must comply with the a ntenna a nd tra nsmission system re quirements of §§15.203, 15.204(b) a nd 15.204 (c). Ante nna connector i s UFL and no exte rnal amplifier is used for this module. The modular complies with a bove re quirement. 5) The modular transmitter must be tested i n a s tand-alone configuration The modular is tested in a stand-alone configuration via an e xtender. Pl ease re fer to test s etup photo. 6) The modular transmitter must be e quipped with e ither a permanently a ffixed label or must be ca p a ble of e lectronically displaying its FCC i dentification number. The modular complies with the requirement. Pl ease re fer to l abel location and label sample e xhi bit. 7) The modular transmitter must comply with a ny s pecific rules or operating requirements The modular complies with the requirement. Detail i nformation please re fer to us e r manual 8) The modular transmitter must comply with a ny a pplicable RF e xposure requirements i n its final confi guration. The modular complies with the requirement for mobile and fixed i nstallation. Pl ease re fer to RF e xposure exhibit Pl e ase contact me if you have a ny questions a bout this letter. Be s t re gards

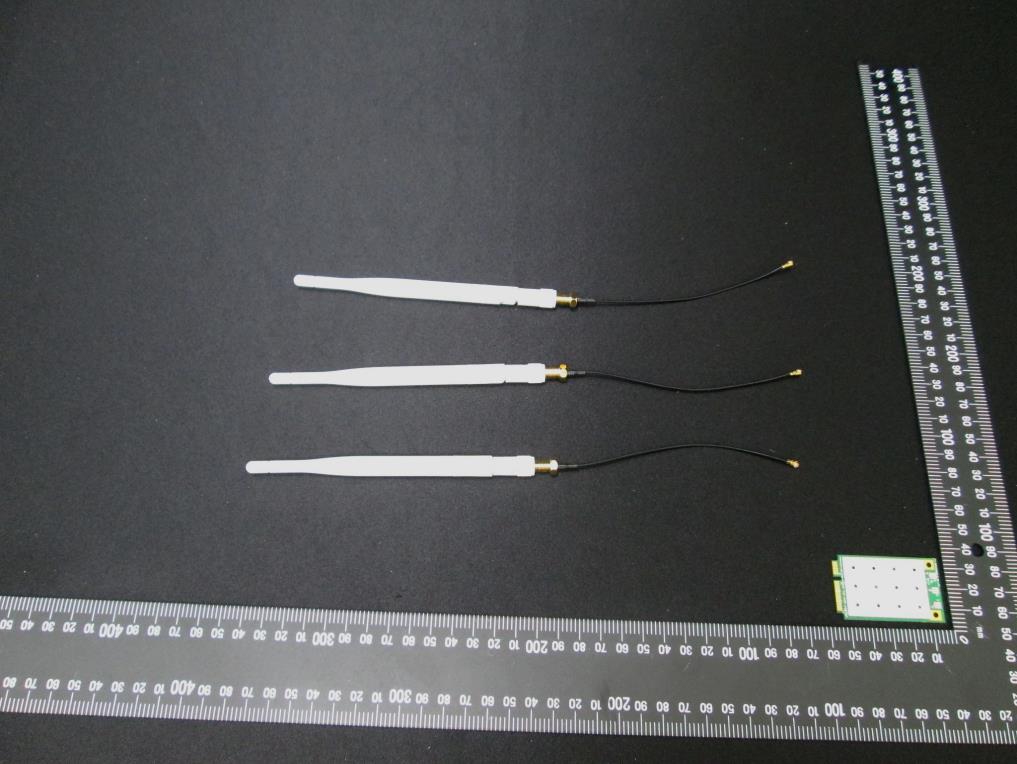

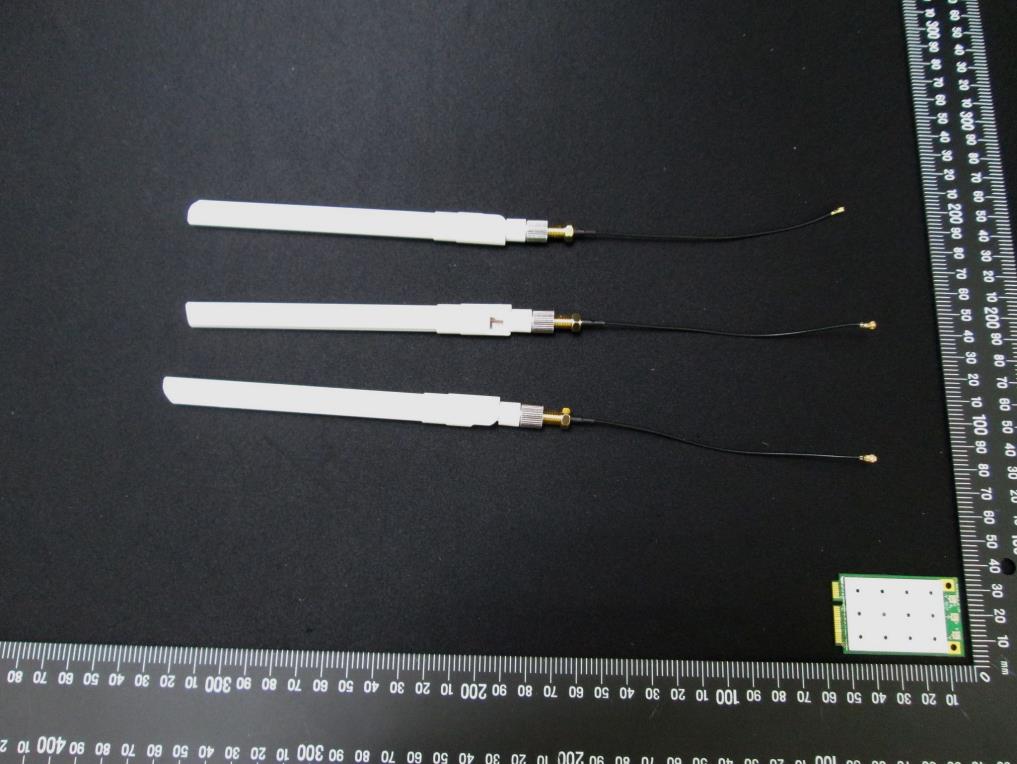

FCC Test Report Report No. : EP341809 SPORTON International Inc. Page No. : B1 of B9 TEL : 886-3-327-3456 Issued Date : Apr. 29, 2013 FAX : 886-3-327-0973 Appendix B. Photographs of EUT 3dBi Dipole antenna 6dBi Dipole antenna FCC Test Report Report No. : EP341809 SPORTON International Inc. Page No. : B2 of B9 TEL : 886-3-327-3456 Issued Date : Apr. 29, 2013 FAX : 886-3-327-0973 PIFA antenna FCC Test Report Report No. : EP341809 SPORTON International Inc. Page No. : B3 of B9 TEL : 886-3-327-3456 Issued Date : Apr. 29, 2013 FAX : 886-3-327-0973

Label Location

FCC Test Report Report No. : EP341809 SPORTON International Inc. Page No. : B4 of B9 TEL : 886-3-327-3456 Issued Date : Apr. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP341809 SPORTON International Inc. Page No. : B5 of B9 TEL : 886-3-327-3456 Issued Date : Apr. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP341809 SPORTON International Inc. Page No. : B6 of B9 TEL : 886-3-327-3456 Issued Date : Apr. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP341809 SPORTON International Inc. Page No. : B7 of B9 TEL : 886-3-327-3456 Issued Date : Apr. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP341809 SPORTON International Inc. Page No. : B8 of B9 TEL : 886-3-327-3456 Issued Date : Apr. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP341809 SPORTON International Inc. Page No. : B9 of B9 TEL : 886-3-327-3456 Issued Date : Apr. 29, 2013 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page Number : 1 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 29, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2M-PCE4550AH RF Exposure Evaluation Report Report No. : FA341809 RF Exposure Evaluation Report APPLICANT : Senao Networks, Inc. EQUIPMENT : 802.11 a/n/ac Module BRAND NAME : Senao MODEL NAME : PCE4550AH FCC ID : U2M-PCE4550AH FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL INC., w ould like to declare that the dev ice has been ev aluated in accordance w ith FCC OET Bulletin 65 Supplement C (Edition 01-01), and pass the limit. Without w ritten approv al of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsi ang, Tao Yuan Hsi en, Tai wan, R.O.C. Approv ed by: Jones Tsai / Manager Rev iew ed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 29, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2M-PCE4550AH RF Exposure Evaluation Report Report No. : FA341809 Table of Contents 1. ADMINISTRATION DATA..................................................................................................................4 1.1. Testing Laboratory....................................................................................................................4 1.2. Applicant .................................................................................................................................4 1.3. Manufacturer ...........................................................................................................................4 2. DESCRIPTION OF EQUIPMENT UNDER TES T (EUT)........................................................................5 3. RF EXPOSURE LIMIT INTRODUCTION.............................................................................................6 4. MAXIMUM PERMISSIBLE EXPOSURE .............................................................................................7 4.1. Limit of Maximum Permissible Exposure....................................................................................7 4.2. Tune up information .................................................................................................................9 4.3. Result of Maximum Permissible Exposure-(5.8G).....................................................................10 4.4. Result of Maximum Permissible Exposure-(5.2G).....................................................................12 SPORTON INTERNATIONAL INC. Page Number : 3 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 29, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2M-PCE4550AH RF Exposure Evaluation Report Report No. : FA341809 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA341809 Rev. 01 Initial issue of report Apr. 29, 2013 SPORTON INTERNATIONAL INC. Page Number : 4 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 29, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2M-PCE4550AH RF Exposure Evaluation Report Report No. : FA341809 1. Administration Data 1.1. Testing Laboratory Test Site SPORT ON INT ERNAT IONAL INC. Test Site Location No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. T EL: +886-3-327-3456 FAX: +886-3-328-4978 1.2. Applicant Company Name Senao NET WORKS, INC. Address 3F, No. 529, Chung Cheng Rd., Hsintien,Taipei,Taiwan 1.3. Manufacturer Company Name Senao Networks, Inc. Address 3F, No. 529, Chung Cheng Rd., Hsintien,Taipei,Taiwan SPORTON INTERNATIONAL INC. Page Number : 5 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 29, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2M-PCE4550AH RF Exposure Evaluation Report Report No. : FA341809 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type 802.11 a/n/ac Module Brand Name Senao Model Name PCE4550AH FCC ID U2M-PCE4550AH Tx Frequency 5.2GHz Band: 5180 MHz ~ 5240 MHz 5.8GHz Band: 5745 MHz ~ 5825 MHz Antenna Type Dipole Antenna / PIFA Antenna Uplink Modulation 802.11a/g/n/ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) EUT Stage Identical Prototy pe Remark: The above EUT's inf ormation was declared by manufacturer. Please refer to the specifications or user's manual f or more detailed description. SPORTON INTERNATIONAL INC. Page Number : 6 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 29, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2M-PCE4550AH RF Exposure Evaluation Report Report No. : FA341809 3. RF Exposure Limit Introduction The FCC categorizes the RF exposure limit based on the intended usage of the dev ice and the user’s awareness and ability to exercise control over his or her exposure. This is a consumer product to be used in the home, hence this device was evaluated by mobile dev ice with general population/uncontrolled exposure condition. The def inition of these category are shown as f ollows:  Mobile Devices: A mobile dev ice is defined as a transmitting device designed to be used in other than f ixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters' radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile dev ices f or RF compliance are f ound in 47 CFR 2.1091.  General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the po…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR341809AN SPORTON INTERNATIONAL INC. Page No. : 1 of 136 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : 802.11 a/n/ac Module Brand Name : Senao Model No. : PCE4550AH FCC ID : U2M-PCE4550AH Standard : 47 CFR FCC Part 15.407 Operating Band : 5150 MHz – 5250 MHz FCC Classification : NII Applicant Manufacturer : Senao Networks, Inc. 3F, No. 529, Chung Cheng Rd., Hsintien, Taipei, Taiwan The product sample received on Apr. 18, 2013 and completely tested on Apr. 29, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager FCC Test Report Report No. : FR341809AN SPORTON INTERNATIONAL INC. Page No. : 2 of 136 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 11 2.4 Test Setup Diagram ............................................................................................................................. 13 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 Emission Bandwidth ............................................................................................................................. 21 3.3 RF Output Power .................................................................................................................................. 26 3.4 Peak Power Spectral Density ............................................................................................................... 37 3.5 Peak Excursion..................................................................................................................................... 45 3.6 Transmitter Radiated Bandedge Emissions ......................................................................................... 49 3.7 Transmitter Radiated Unwanted Emissions ......................................................................................... 70 3.8 Frequency Stability ............................................................................................................................. 133 4 TEST EQUIPMENT AND CALIBRATION DATA .............................................................................. 135 APPENDIX A. TEST PHOTOS ....................................................................................................................... A1 APPENDIX B. PHOTOGRAPHS OF EUT ...................................................................................................... B1 FCC Test Report Report No. : FR341809AN SPORTON INTERNATIONAL INC. Page No. : 3 of 136 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1573260MHz 37.51 (Margin 18.09dB) - AV 40.29 (Margin 25.31dB) - QP FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth Bandwidth [MHz] 20M:26.55 / 40M:49.86 / 80M: 103.65 Information only Complied 3.3 15.407(a) RF Output Power (Maximum Conducted Output Power) Power [dBm] 5150-5250MHz:16.73 Power [dBm] 5150-5250MHz:17 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5150-5250MHz:2.11 PPSD [dBm/MHz] 5150-5250MHz:4 Complied 3.5 15.407(a) Peak Excursion 10.57 dB 13 dB Complied 3.6 15.407(b) Transmitter Radiated Bandedge Emissions Restricted Bands [dBuV/m at 3m]: 5149.80MHz 63.05 (Margin 10.95dB) - PK 53.00 (Margin 1.00dB) - AV Non-Restricted Bands: ≤ -27dBm (68.3dBuV/m@3m) Restricted Bands: FCC 15.209 Complied 3.7 15.407(b) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 912.70MHz 41.93 (Margin 4.07dB) - PK Non-Restricted Bands: ≤ -27dBm (68.3dBuV/m@3m) Restricted Bands: FCC 15.209 Complied 3.8 15.407(g) Frequency Stability 2.6885 ppm Signal shall remain in-band Complied FCC Test Report Report No. : FR341809AN SPORTON INTERNATIONAL INC. Pag…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A1 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Appendix A. Test Photos Radiated Below 1GHzTest_Ant 1 Radiated Below 1GHzTest_Ant 1 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A2 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Radiated Below 1GHzTest_Ant 2 Radiated Below 1GHzTest_Ant 2 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A3 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Radiated Below 1GHzTest_Ant 3 Radiated Below 1GHzTest_Ant 3 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A4 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Radiated Abov e 1GHzTest_Ant 1 Radiated Abov e 1GHzTest_Ant 1 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A5 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Radiated Abov e 1GHzTest_Ant 1 Radiated Abov e 1GHzTest_Ant 1 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A6 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Radiated Abov e 1GHzTest_Ant 2 Radiated Abov e 1GHzTest_Ant 2 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A7 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Radiated Abov e 1GHzTest_Ant 2 Radiated Abov e 1GHzTest_Ant 2 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A8 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Radiated Abov e 1GHzTest_Ant 3 Radiated Abov e 1GHzTest_Ant 3 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A9 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Radiated Abov e 1GHzTest_Ant 3 Radiated Abov e 1GHzTest_Ant 3 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A10 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Conducted Test_Ant 1 Conducted Test_Ant 1 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A11 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Conducted Test_Ant 1 Conducted Test_Ant 1 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A12 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Conducted Test_Ant 1 Conducted Test_Ant 2 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A13 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Conducted Test_Ant 2 Conducted Test_Ant 2 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A14 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Conducted Test_Ant 2 Conducted Test_Ant 2 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A15 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Conducted Test_Ant 3 Conducted Test_Ant 3 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A16 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Conducted Test_Ant 3 Conducted Test_Ant 3 FCC Test Report Report No. : FR341809 SPORTON INTERNATIONAL INC. Page No. : A17 of A17 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Conducted Test_Ant 3
