U2M-PCE4551AH802.11a/n/ac Module

- 1 - 802.11 a/n/ac Module PCE4551AH User’s Manual - 2 - PRODUCT DESCRIPTION The PCE4551AH is a 5G dual band concurrent 3T3R PCIe module base on Q C A9 890 solution. PRODUCT SPECIFICATION RF Specification Radio 1 Support 5GHz Interface 64-bit PCI-E Operating Voltage 3.3V Antenna Connectors I-PEX Frequency Band 802.11a/n/ac 5.190~5.795GHz Data rate 1300Mbps Receive Sensitivity (Typical) 802.11a ≤ -94dBm@6Mbps ≤ -76dBm@54Mbps 802.11a/ n_HT20 ≤ -93dBm @ MCS0/8/16 ≤ -74dBm @ MCS7/15/23 802.11n_HT40 ≤ -92dBm @ MCS0/8/16 ≤ -72dBm @ MCS7/15/23 802.11ac_HT80 ≤ -89dBm@MCS0 ≤ -64dBm@MCS9 PRODUCT Pin Define - 3 - Type Connector 5150~5250MHz 5250~5350MHz 5470~5725MHz 5725~5850MHz Dipole UFL 3dBi 3dBi 3dBi 3dBi Dipole UFL 5.5 dBi 5.5 dBi 5.5 dBi 5.5 dBi PIFA UFL 6 dBi 6 dBi 6 dBi 6 dBi Note: The EUT has three antennas. (3TX/3RX) Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the IC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. IC statement is required to be available in the users manual: This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. - 4 - Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. - 5 - This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. - 6 - End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: U2M-PCE4551AH”. - 7 - Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. - 8 - Professional installation instruction 1. Installation personal This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting. 2. Installation location The product shall be installed at a location where the radiating antenna can be kept 20 cm from nearby person in normal operation condition to meet regulatory RF exposure requirement. 3. External antenna Use only the antennas which have been approved by the applicant. The non-approved antenna(s) may produce unwanted spurious or excessive RF transmitting power which may lead to the violation of FCC limit and is prohibited. 4. Installation procedure Please refer to user’s manual for the detail. 5. Warning Please carefully select the installation position and ma…

Text truncated - open the document above for the full version.

International Certification Corp. (全球檢測股份有限公司) Te l：886-3-271-8666 Fa x : 886-3-318-0155 No.3-1, La ne 6, Wen 33rd Rd., Kwe i Shan Hsiang, Tao Yuan Hsein 333, Ta iwan (R.O.C.) Ga ry Cha ng , Ma nager Re port & Ce rti fication department Te l :+886-3-271-8628 Ema il:[email protected] Subje ct: Li mited Modular approval re quest FCC I D: U2M-PCE4551AH Da te : September 27, 2013 De a r re viewer: The modular would like to have authorization as a limited modular a pproval. The re quirements of s ection 15.212 ha ve been me t and shown on the following statements 1) The ra dio elements of the modular tra nsmitter must have their own shielding The modular has shielding. Please refer to external photo. 2) The modular transmitter must have buffered modulation/da ta i nputs The buffer i s integrated withQCA9890 3) The modular transmitter must have its own power supply re gulation The pa rt No. of regulator is RT8010 4) The modular transmitter must comply with the a ntenna a nd tra nsmission system re quirements of §§15.203, 15.204(b) a nd 15.204 (c). No e xte rnal amplifier is used for this module. 15.203 re quirements does not a pply to this module since this module is professionally i nstalled. 5) The modular transmitter must be tested i n a s tand-alone configuration The modular is tested in a stand-alone configuration via an e xtender. Pl ease re fer to test s etup photo. 6) The modular transmitter must be e quipped with e ither a permanently a ffixed label or must be ca p a ble of e lectronically displaying its FCC i dentification number. The modular complies with the requirement. Pl ease re fer to l abel location and label sample e xhi bit. 7) The modular transmitter must comply with a ny s pecific rules or operating requirements The modular complies with the requirement. Detail i nformation please re fer to us e r manual 8) The modular transmitter must comply with a ny a pplicable RF e xposure requirements i n its final confi guration. The modular complies with the requirement for mobile and fixed i nstallation. Pl ease re fer to RF e xposure exhibit Pl e ase contact me if you have a ny questions a bout this letter. Be s t re gards

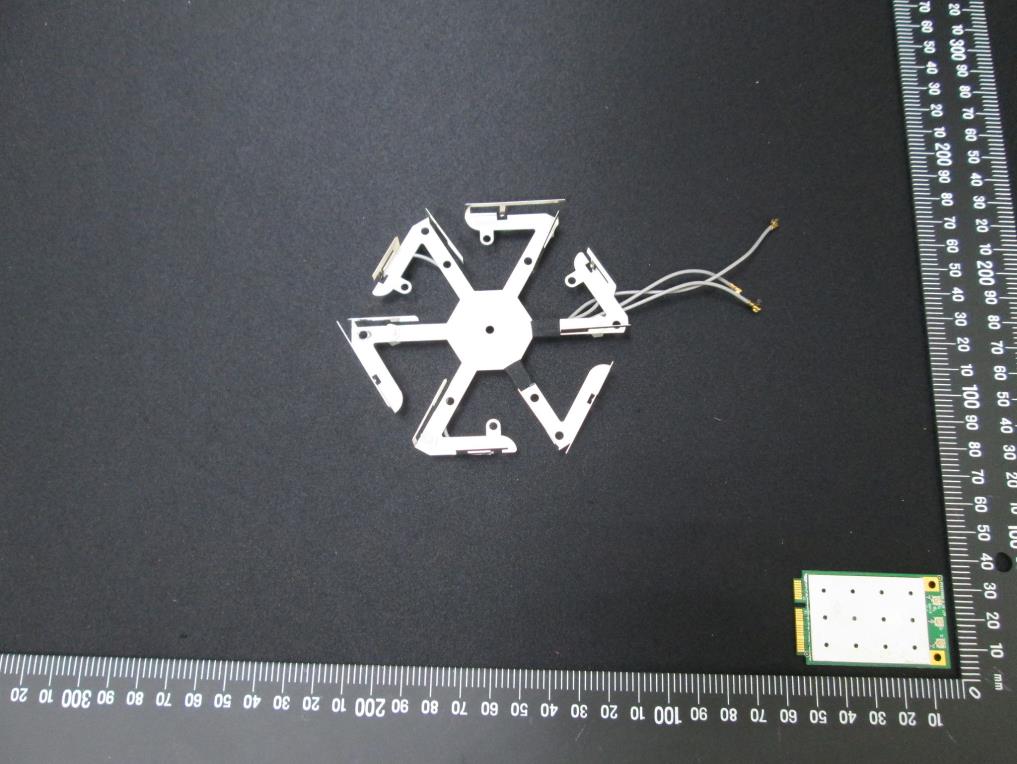

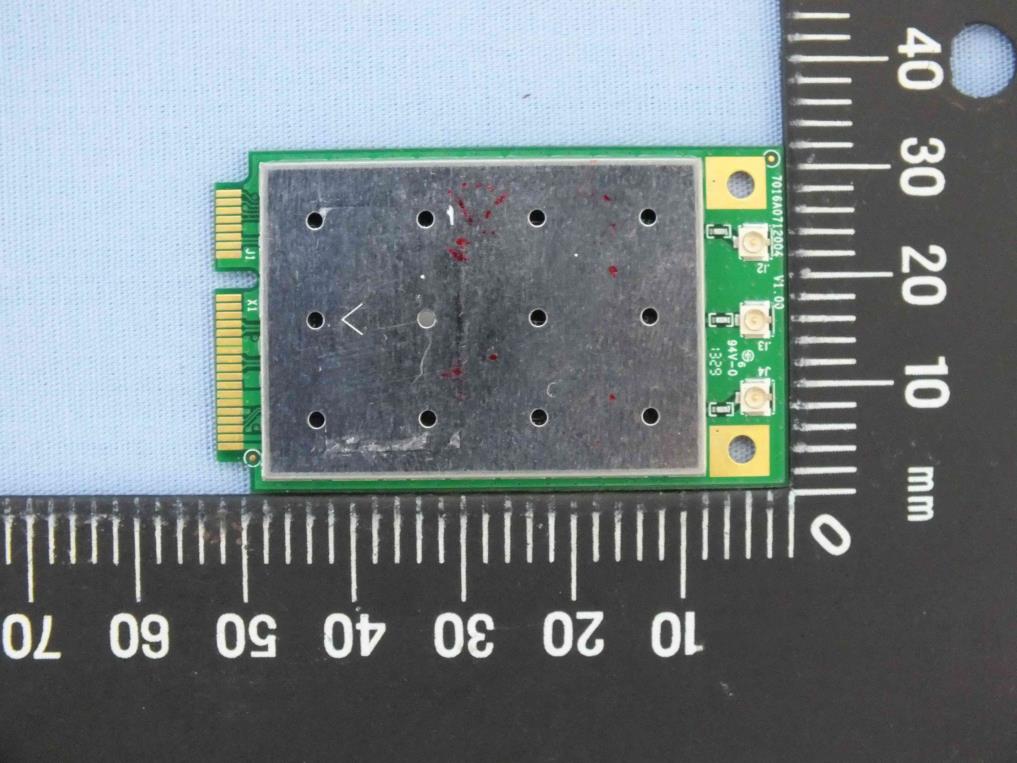

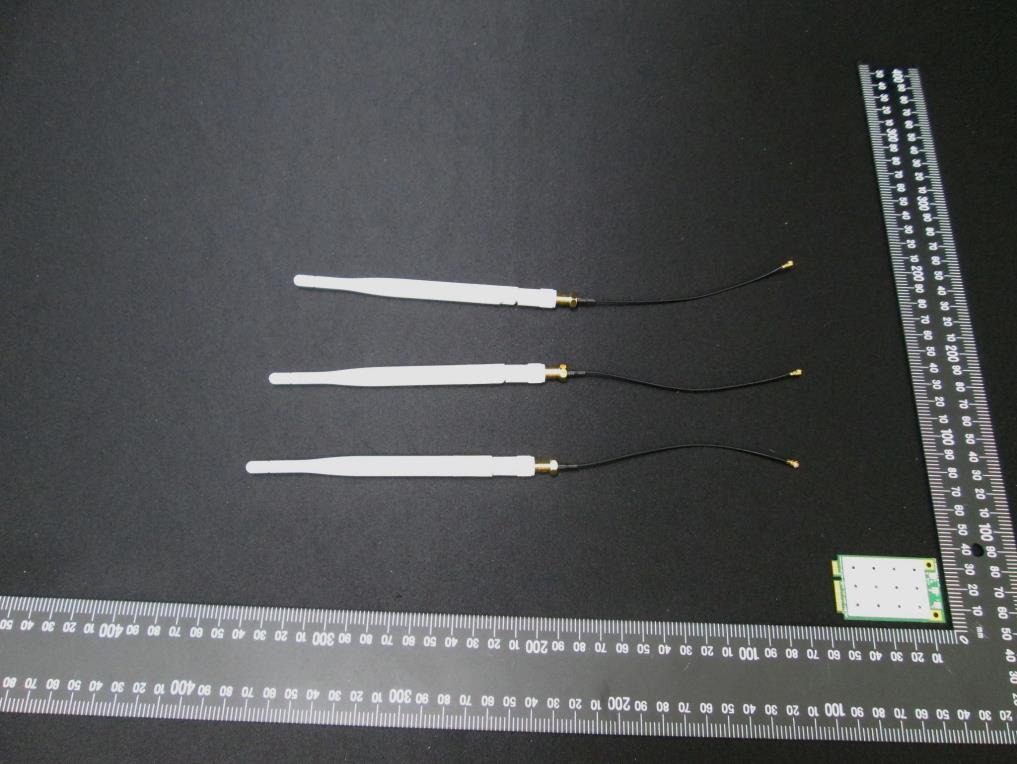

Report No. : EP370334 SPORTON International Inc. Page No. : 1 of 11 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Photographs of EUT EUT with 3 dBi Dipole Antenna EUT with 5.5 dBi Dipole Antenna Report No. : EP370334 SPORTON International Inc. Page No. : 2 of 11 TEL : 886-3-327-3456 FAX : 886-3-327-0973 EUT with 6 dBi PIFA Antenna EUT with 5.5 dBi PIFA Antenna Report No. : EP370334 SPORTON International Inc. Page No. : 3 of 11 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP370334 SPORTON International Inc. Page No. : 4 of 11 TEL : 886-3-327-3456 FAX : 886-3-327-0973

Back side of EUT Label location

FCC EMF Test Report Report No. : FA370334 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA370334 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA370334 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Antenna type Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Dipole 5150-5250 16.58 3 20 0.018 1 Dipole 5725-5850 27.33 3 20 0.215 1 Dipole 5150-5250 15.80 5.5 20 0.027 1 Dipole 5725-5850 27.33 5.5 20 0.382 1 PIFA 5150-5250 16.41 6 20 0.035 1 PIFA 5725-5850 24.74 6 20 0.236 1

FCC Test Report Report No. : FR370334AN SPORTON INTERNATIONAL INC. Page No. : 1 of 109 TEL : 886-3-3273456 Report Version : Rev. 02 FAX : 886-3-3270973 FCC Test Report Equipment : 802.11 a/n/ac Module Brand Name : Senao Model No. : PCE4551AH FCC ID : U2M-PCE4551AH Standard : 47 CFR FCC Part 15.407 Operating Band : 5150 MHz – 5250 MHz FCC Classification : NII Applicant Manufacturer : Senao Networks, Inc. 3F, No. 529, Chung Cheng Rd., Hsintien, Taipei, Taiwan The product sample received on Jul. 03, 2013 and completely tested on Oct. 28, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Gary Chang / Manager FCC Test Report Report No. : FR370334AN SPORTON INTERNATIONAL INC. Page No. : 2 of 109 TEL : 886-3-3273456 Report Version : Rev. 02 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 11 2.4 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 Emission Bandwidth ............................................................................................................................. 20 3.3 RF Output Power .................................................................................................................................. 25 3.4 Peak Power Spectral Density ............................................................................................................... 32 3.5 Peak Excursion..................................................................................................................................... 39 3.6 Transmitter Radiated Unwanted Emissions and Band Edge ............................................................... 43 3.7 Frequency Stability ............................................................................................................................. 106 4 TEST EQUIPMENT AND CALIBRATION DATA .............................................................................. 108 APPENDIX A. TEST PHOTOS ............................................................................................................... A1-A12 FCC Test Report Report No. : FR370334AN SPORTON INTERNATIONAL INC. Page No. : 3 of 109 TEL : 886-3-3273456 Report Version : Rev. 02 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.202MHz 38.02 (Margin 15.52dB) - AV 51.66 (Margin 11.88dB) - QP FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth Bandwidth [MHz] 20M:25.22 / 40M:48.35 / 80M: 97.39 Information only Complied 3.3 15.407(a) RF Output Power (Maximum Conducted Output Power) Power [dBm] 5150-5250MHz:16.58 Power [dBm] 5150-5250MHz:17 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5150-5250MHz:2.04 PPSD [dBm/MHz] 5150-5250MHz:4 Complied 3.5 15.407(a) Peak Excursion 10.68 dB 13 dB Complied 3.6 15.407(b) Transmitter Unwanted Emissions and Band Edge Restricted Bands [dBuV/m at 3m]:5150.00MHz 52.98 (Margin 1.02dB) - AV Non-Restricted Bands: ≤ -27dBm (68.3dBuV/m@3m) Restricted Bands: FCC 15.209 Complied 3.7 15.407(g) Frequency Stability 2.7865 ppm Signal shall remain in-band Complied FCC Test Report Report No. : FR370334AN SPORTON INTERNATIONAL INC. Page No. : 4 of 109 TEL : 886-3-3273456 Report Version : Rev. 02 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR370334AN Rev. 01 Initial issue of report Sep. 25, 2013 FR370334AN Rev. 02 Modified output power by software setting Nov. 05, 2013 FCC Test Report Report No. : FR370334AN SPORTON INTERNATIONAL INC. Page No. : 5 of 109 TEL : 886-3-3273456 Report Version : Rev. 02 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.1…
