U2M-PCE4553AH802.11 3T3R a/n/ac module

802.11 a/n/ac Module PCE4553AH User’s Manual PRODUCT DESCRIPTION The PCE4553AH is a 5Ghz 3T3R 802.11ac PCIe module base on QCA9880 commercial grade sol ution. PRODUCT SPECIFICATION RF Specification Radio 1 Support 5GHz Fr equency Band 802.11a/n/ac 5. 180~5.825GHz Data rate 1300Mbps Receive Sensitivity (Typical) 802.11a ≤ -94dBm@6Mbps ≤ -76dBm@54Mbps 802.11a/ n_HT20 ≤ -93dBm @ MCS0/8/16 ≤ -74dBm @ MCS7/15/23 802.11n_HT40 ≤ -92dBm @ MCS0/8/16 ≤ -72dBm @ MCS7/15/23 802.11ac_HT80 ≤ -89dBm@MCS0 ≤ -64dBm@MCS9 ANTENNA SPECIFICATION Type Connector 5150~5250MHz 5725~5850MHz PCB Dipole UFL #0 3.8750 dBi 4.2025 dBi PCB Dipole UFL #1 2.6248 dBi 4.0181 dBi PCB Dipole UFL #2 4.1618 dBi 3.4374 dBi Note: The EUT has three antennas. (3TX/3RX) Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. End Product Labeling The final end product must be labelled in a visible area with the following "Contains FCC ID: U2M-PCE4553AH" If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Configuration The Wireless Adapter can be configured by Wireless Client Utility (WCU). This chapter describes how to configure your Wireless Adapter for wireless connectivity on your Wireless Local Area Network (WLAN) and use the data security encryption features. After Installing the Adapter, the Adapter’s tray icon will appear in your system tray. It appears at the bottom of the screen, and shows the signal strength using color and the received signal strength indication (RSSI). If the icon is gray, there is no connection. If the icon is red, there is poor signal strength and the RSSI is less than 5dB. If the icon is yellow, there is poor signal strength and …

Text truncated - open the document above for the full version.

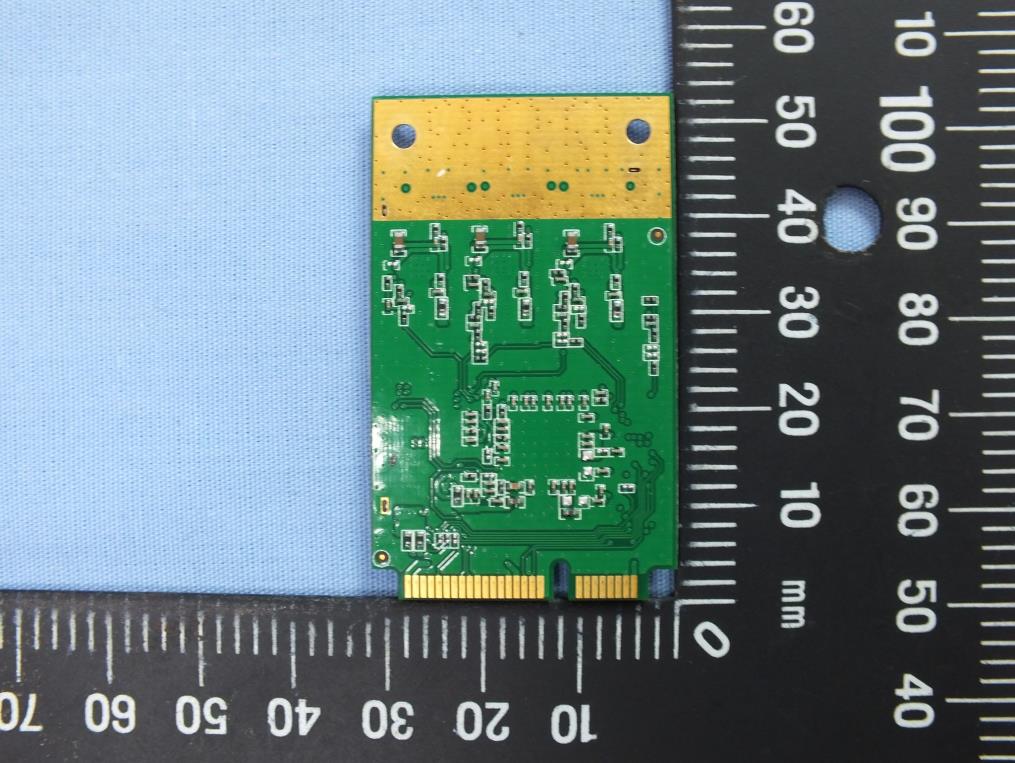

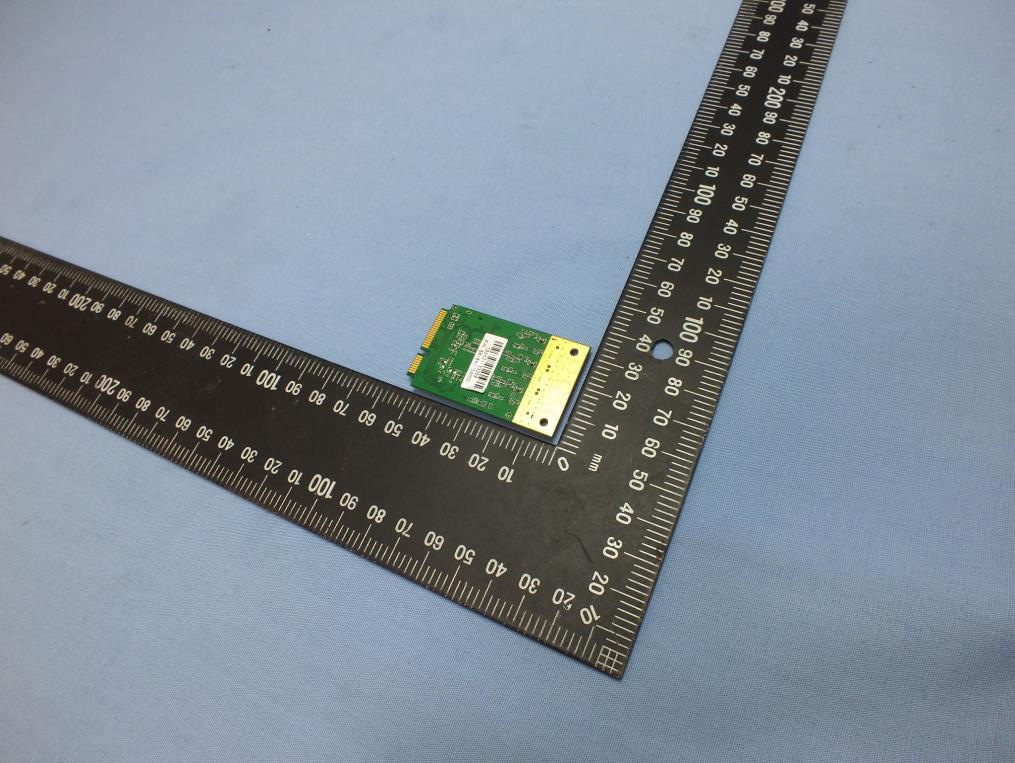

Report No. : EP3N0541 SPORTON International Inc. Page No. : 1 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Photographs of EUT Report No. : EP3N0541 SPORTON International Inc. Page No. : 2 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0541 SPORTON International Inc. Page No. : 3 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973

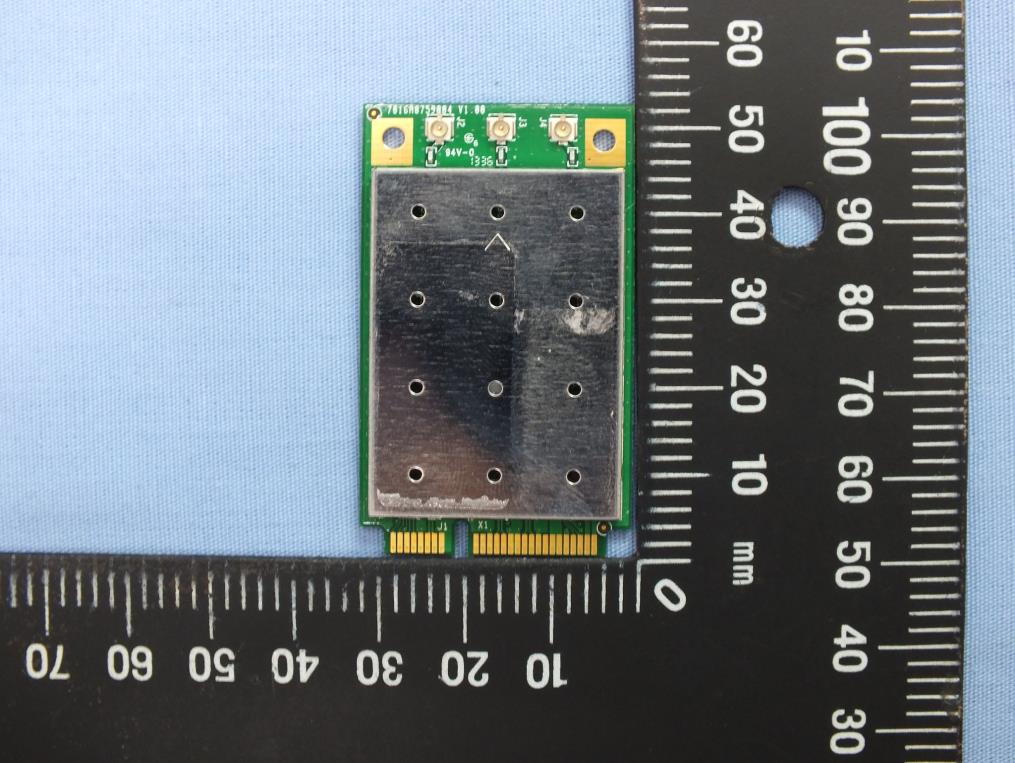

Front side of EUT Label location

Report No. : EP3N0541 SPORTON International Inc. Page No. : 4 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0541 SPORTON International Inc. Page No. : 5 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0541 SPORTON International Inc. Page No. : 6 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0541 SPORTON International Inc. Page No. : 7 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0541 SPORTON International Inc. Page No. : 8 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0541 SPORTON International Inc. Page No. : 9 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0541 SPORTON International Inc. Page No. : 10 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0541 SPORTON International Inc. Page No. : 11 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0541 SPORTON International Inc. Page No. : 12 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0541 SPORTON International Inc. Page No. : 13 of 13 TEL : 886-3-327-3456 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA3N0541 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA3N0541 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA3N0541 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 5150-5250 16.53 4.1618 20 0.023 1 5725-5850 26.88 4.2025 20 0.255 1

FCC Test Report Report No. : FR3N0541AN SPORTON INTERNATIONAL INC. Page No. : 1 of 54 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : 802.11 3T3R a/n/ac module Brand Name : Senao Model No. : PCE4553AH FCC ID : U2M-PCE4553AH Standard : 47 CFR FCC Part 15.407 Operating Band : 5150 MHz – 5250 MHz FCC Classification : NII Applicant : Senao Networks, Inc. 3F, No. 529, Chung Cheng Rd., Hsintien,Taipei,Taiwan The product sample received on Nov. 05, 2013 and completely tested on Feb. 20, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: James Fan / Assistant Manager FCC Test Report Report No. : FR3N0541AN SPORTON INTERNATIONAL INC. Page No. : 2 of 54 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 AC Power-line Conducted Emissions .................................................................................................. 12 3.2 Emission Bandwidth ............................................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 18 3.4 Peak Power Spectral Density ............................................................................................................... 22 3.5 Peak Excursion..................................................................................................................................... 26 3.6 Transmitter Radiated Unwanted Emissions and Band Edge ............................................................... 28 3.7 Frequency Stability ............................................................................................................................... 51 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 53 APPENDIX A. TEST PHOTOS ................................................................................................................. A1-A7 FCC Test Report Report No. : FR3N0541AN SPORTON INTERNATIONAL INC. Page No. : 3 of 54 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.152MHz 44.85 (Margin 11.02dB) - AV 52.36 (Margin 13.51dB) - QP FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth Bandwidth [MHz] 20M:24.64 / 40M:46.96 / 80M: 88.58 Information only Complied 3.3 15.407(a) RF Output Power (Maximum Conducted Output Power) Power [dBm] 5150-5250MHz:16.53 Power [dBm] 5150-5250MHz:17 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5150-5250MHz:1.15 PPSD [dBm/MHz] 5150-5250MHz:4 Complied 3.5 15.407(a) Peak Excursion 10.42 dB 13 dB Complied 3.6 15.407(b) Transmitter Unwanted Emissions and Band Edge Restricted Bands [dBuV/m at 3m]:898.25MHz 42.83 (Margin 3.17dB) - PK Non-Restricted Bands: ≤ -27dBm (68.3dBuV/m@3m) Restricted Bands: FCC 15.209 Complied 3.7 15.407(g) Frequency Stability 3.4596 ppm Signal shall remain in-band Complied FCC Test Report Report No. : FR3N0541AN SPORTON INTERNATIONAL INC. Page No. : 4 of 54 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR3N0541AN Rev. 01 Initial issue of report Mar. 28, 2014 FCC Test Report Report No. : FR3N0541AN SPORTON INTERNATIONAL INC. Page No. : 5 of 54 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) …
