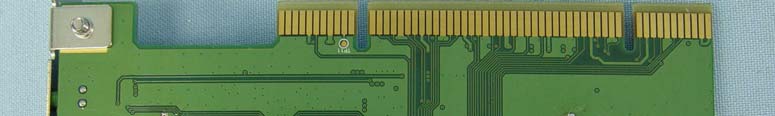

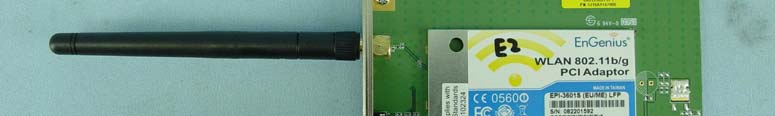

Page 1 CONSTRUCTION PHOTOS OF EUT

EPI-3601S FrequencyLabelxQuality=100

FCC ID .: U2M-PI360701 Label Location

Page 2

FCC ID: U2M-PI360701 Report No. RF970220L08 Operational Description This device is an 802.11 b/g High Power WLAN PCI Adaptor, which operates in the 2.4GHz frequency spectrum with throughput of up to 108Mbps which OFDM technique will be applied. If the signal to noise ratio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by ac adapter. The antenna used in this EUT is Dipole antenna with R-SMA antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: U2M-PI360701 Report No: SA970220L08 1 RF EXPOSURE REPORT REPORT NO.: SA970220L08 MODEL NO.: EPI-3601S ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : Senao Networks Inc. ADDRESS : 3F, No. 529, Chung Cheng Rd., Hsintien, Taipei, Taiwan, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: U2M-PI360701 Report No: SA970220L08 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: U2M-PI360701 Report No: SA970220L08 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: U2M-PI360701 Report No: SA970220L08 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.58489 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS MODULATION Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 51.17 0.016 1.0 6 2437 50.58 0.016 1.0 11 2462 50.35 0.016 1.0 802.11g OFDM MODULATION_NORMAL MODE Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 50.93 0.016 1.0 6 2437 50.93 0.016 1.0 11 2462 44.77 0.014 1.0 802.11g OFDM MODULATION_TURBO MODE Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6 2437 35.81 0.011 1.0

Report No.: RF970220L08 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF970220L08 MODEL NO.: EPI-3601S RECEIVED: Feb. 20, 2008 TESTED: Feb. 20 ~ Feb. 28, 2008 ISSUED: Mar. 07, 2008 APPLICANT : Senao Networks Inc. ADDRESS : 3F, No. 529, Chung Cheng Rd., Hsintien, Taipei, Taiwan, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 60 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF970220L08 2 Report Format Version 2.0.6 Table of Contents 1 CERTIFICATION ............................................................................................. 4 2 SUMMARY OF TEST RESULTS ..................................................................... 5 2.1 MEASUREMENT UNCERTAINTY................................................................... 5 3 GENERAL INFORMATION.............................................................................. 6 3.1 GENERAL DESCRIPTION OF EUT ................................................................ 6 3.2 DESCRIPTION OF TEST MODES .................................................................. 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST............................................. 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.................. 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 10 3.4 DESCRIPTION OF SUPPORT UNITS .......................................................... 10 4 TEST TYPES AND RESULTS ....................................................................... 11 4.1 RADIATED EMISSION MEASUREMENT..................................................... 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................... 11 4.1.2 TEST INSTRUMENTS................................................................................... 12 4.1.3 TEST PROCEDURES ................................................................................... 13 4.1.4 DEVIATION FROM TEST STANDARD ......................................................... 13 4.1.5 TEST SETUP................................................................................................. 14 4.1.6 EUT OPERATING CONDITIONS .................................................................. 14 4.1.7 TEST RESULTS ............................................................................................ 15 4.2 CONDUCTED EMISSION MEASUREMENT................................................. 23 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .............................. 23 4.2.2 TEST INSTRUMENTS................................................................................... 23 4.2.3 TEST PROCEDURES ................................................................................... 24 4.2.4 DEVIATION FROM TEST STANDARD ......................................................... 24 4.2.5 TEST SETUP................................................................................................. 25 4.2.6 EUT OPERATING CONDITIONS .................................................................. 25 4.2.7 TEST RESULTS ............................................................................................ 26 4.3 6DB BANDWIDTH MEASUREMENT ............................................................ 28 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT.......................................... 28 4.3.2 TEST INSTRUMENTS................................................................................... 28 4.3.3 TEST PROCEDURE......................................................................................28 4.3.4 DEVIATION FROM TEST STANDARD ......................................................... 28 4.3.5 TEST SETUP................................................................................................. 29 4.3.6 EUT OPERATING CONDITIONS .................................................................. 29 4.3.7 TEST RESULTS ............................................................................................ 30 Report No.: RF970220L08 3 Report Format Version 2.0.6 4.4 MAXIMUM PEAK OUTPUT POWER............................................................. 35 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............. 35 4.4.2 TEST INSTRUMENTS................................................................................... 35 4.4.3 TEST PROCEDURES ................................................................................... 36 4.4.4 DEVIATION FROM TEST STANDARD ......................................................... 36 4.4.5 TEST SETUP................................................................................................. 36 4.4.6 EUT OPERATING CONDITIONS .................................................................. 36 4.4.7 TEST RESULTS ............................................................................................ 37 4.5 POWER SPECTRAL DENSITY MEASUREMENT........................................ 38 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................... 38 4.5.2 TEST INSTRUMENTS................................................................................... 38 4.5.3 TEST PROCEDURE......................................................................................38 4.5.4 DEVIATION FROM TEST STANDARD ......................................................... 38 4.5.5 TEST SETUP................................................................................................. 38 4.5.6 EUT OPERATING CONDI…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
