U2M-SR9855GWireless 300N Gigabit Gaming Router

User Manual ESR9855G Wireless 300N Gigabit Gaming Router Gigabit & StreamEngine Support 2 2 3 3 Table of Contents 1. INTRODUCTION....................................... ................................................... ................................................... .............................................. 7 1.1. F EATURES & B ENEFITS ................................................... ......................................... 7 1.2. P ACKAGE C ONTENTS ................................................... ........................................... 9 1.3. S AFETY G UIDELINES ................................................... ............................................ 9 1.4. W IRELESS SOHO R OUTER D ESCRIPTION ................................................... .............10 1.5. S YSTEM R EQUIREMENTS ................................................... .....................................12 1.6. A PPLICATIONS ................................................... ................................................... .12 1.7. N ETWORK C ONFIGURATION ................................................... .................................14 a) Ad-hoc (peer-to-peer) Mode ......................... ................................................... ................................................... ................................................... ...... 14 b) Infrastructure Mode ................................ ................................................... ................................................... ................................................... ............ 15 2. UNDERSTANDING THE HARDWARE......................... ................................................... ................................................... ......................... 16 2.1. H ARDWARE I NSTALLATION ................................................... ...................................16 2.2. W ALL M OUNTING ................................................... ................................................17 2.3. IP A DDRESS C ONFIGURATION ................................................... ..............................18 3. LOGIN .............................................. ................................................... ................................................... ................................................... . 20 4. INTERNET SETTINGS.................................. ................................................... ................................................... ........................................ 21 4.1. I NTERNET C ONNECTION T YPE ................................................... ..............................22 4.1.1. DHCP Connection (Dynamic IP Address)............... ................................................... ................................................... ................... 23 4.1.2. PPPoE (Point-to-Point Protocol over Ethernet)...... ................................................... ................................................... .................... 24 4.1.3. PPTP (Point-to-Point Tunneling Protocol) ........... ................................................... ................................................... ...................... 26 4.1.4. Static IP Address Configuration .................... ................................................... ................................................... ............................ 28 4.2. O THER I NTERNET S ETTINGS ................................................... ................................29 4.2.1. RIP (Routing Information Protocol)................. ................................................... ................................................... ........................... 29 4.2.2. DNS Settings ....................................... ................................................... ................................................... ..................................... 30 4.2.3. MTU Settings....................................... ................................................... ................................................... ..................................... 30 4.2.4. WAN Ping........................................... ................................................... ................................................... ...................................... 31 4.2.5. Multicast Streams .................................. ................................................... ................................................... ................................... 31 4.2.6. MAC Cloning ........................................ ................................................... ................................................... .................................... 32 5. WIRELESS SETUP WIZARD.............................. ................................................... ................................................... .................................. 33 5.1. W IRELESS N ETWORK W IZARD S ETUP ................................................... ...................33 5.1.1. Automatic Network Setup............................ ................................................... ................................................... .............................. 34 4 4 5.1.2. Manual Network Setup............................... ................................................... ................................................... ............................... 35 5.1.2.1. Wireless Security Level: BEST (WPA2)............... ................................................... ................................................... ........................................ 38 5.1.2.2. Wireless Security Level: BETTER (WPA) .............. ................................................... ................................................... ...................................... 39 5.1.2.3. Wireless Security Level: GOOD (WEP 64/128-bit) ..... ....................…

Text truncated - open the document above for the full version.

66 66  Public Port : Specify the public port number.  Private Port : Specify the private port number.  Schedule : Select a schedule to Always or Never from the drop-down list. If a schedule does not ex ist, you may create it in the Tools > Schedule section.  Inbound Filter : Select an inbound filter from the drop-down list. If an inbound filter does not exist, you may creat e it from Advanced > Inbound Filter section.  Click on the Add button to insert the entry into the Virtual Server list. 67 67 6.3.3. Special Applications An application rule is used to open single or multi ple ports on your router when the router senses dat a sent to the Internet on a trigger port or port range. An application rule applies to all c omputers on your internal network.  Name : Assign a meaningful name to the virtual server, f or example Web Server. Several well-known types of virtual server are available from the Application Name drop-down list. Selecting one of these entries fil ls some of the remaining parameters with standard values for that type of server.  Triggering Ports : Specify the outgoing port range that is used by t he application.  Firewall Ports : Specify the port range that you would like to ope n for Internet traffic.  Schedule : Select a schedule to Always or Never from the drop-down list. If a schedule does not ex ist, you may create it in the Tools > Schedule section.  Click on the Add button to insert the entry into the Special Applica tions list. 68 68 6.3.4. Port Forwarding Multiple connections are required by some applicati ons, such as internet games, video conferencing, In ternet telephony, and others. These applications have difficulties working through NAT (Network Address Translation). This section is used to open multiple ports or a range of ports in your router and redirect data through thos e ports to a single PC on your network.  Name : Assign a meaningful name to the virtual server, f or example Web Server. Several well-known types of virtual server are available from the Application Name drop-down list. Selecting one of these entries fills some of the r emaining parameters with standard values for that type of server.  IP Address : Specify the IP address for the virtual server ent ry.  TCP/UDP Ports : Specify the TCP or UDP port numbers.  Schedule : Select a schedule to Always or Never from the drop-down list. If a schedule does not ex ist, you may create it in the Tools > Schedule section. 69 69  Inbound Filter : Select an inbound filter from the drop-down list. If an inbound filter does not exist, you may creat e it from Advanced > Inbound Filter section.  Click on the Add button to insert the entry into the Port Forwarding list. 70 70 6.3.5. StreamEngine The StreamEngine feature helps improve the network performance by prioritizing applications.  Enable Traffic Shaping : Place a check in the box to enable traffic shapin g. When this option is enabled, the router restrict s the flow of outbound traffic so as not to exceed the WAN uplink bandwidth.  Automatic Uplink Speed . Place a check in this box to enable automatic upl ink speed. When enabled, this option causes the rou ter to automatically measure the useful uplink bandwidth e ach time the WAN interface is re-established (after a reboot, for example).  Measured Uplink Speed : Displays the uplink speed. This is the uplink spe ed measured when the WAN interface was last re- established. The value may be lower than that repor ted by your ISP as it does not include all of the n etwork protocol overheads 71 71 associated with your ISP's network. Typically, this figure will be between 87% and 91% of the stated u plink speed for xDSL connections and around 5 kbps lower for cable netwo rk connections.  Manual Uplink Speed : Specify an uplink speed or select it from the dro p-down list. If Automatic Uplink Speed is disabled, this options allows you to set the uplink speed manually. Uplink speed is the speed at which data can be transferre d from the router to your ISP.  Connection Type : By default, the router automatically determines w hether the underlying connection is an xDSL/Frame-r elay network or some other connection type (such as cable modem or Ethernet), and it displays the result as Detecte d xDSL or Frame Relay Network. If you have an unusual network connection in which you are actually connected via xDSL but fo r which you configure either Static or DHCP in the WAN settings, setting this op tion to xDSL or Other Frame Relay Network ensures t hat the router will recognize that it needs to shape traffic slightly differently in order to give the best performance. Choosing xD SL or Other Frame Relay Network causes the measured uplink speed to be reported sli ghtly lower than before on such connections, but gi ves much better results.  Click on the Apply button to store these settings. 72 72  Enable StreamEngine : Place a check in this box to enable this option. Enable this option for better performance and exper ience with online games and other interactive applications, su ch as VoIP.  Automatic Classification : Place a check in this box to enable this option. This option is enabled by default so that your rout er will automatically determine which programs should have network priority.  Dynamic Fragmentation : Place a check in this box to enable this option. This option should be enabled when you have a slow Internet uplink. It helps to reduce the impact that large low priority network packets can have on mor e urgent ones by breaking the large packets into several smaller packets. 73 73  Add StreamEngine Rule : A StreamEngine Rule identifies a specific message flow and assigns a priority to that flow. For most applications, automatic classification will be adeq uate, and specific StreamEngine Rules will not be r equired. StreamEngine supports overlaps between rules, where more than one rule ca n match for a specific message flow. If more than o ne rule is found to match the rule with t…

Text truncated - open the document above for the full version.

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

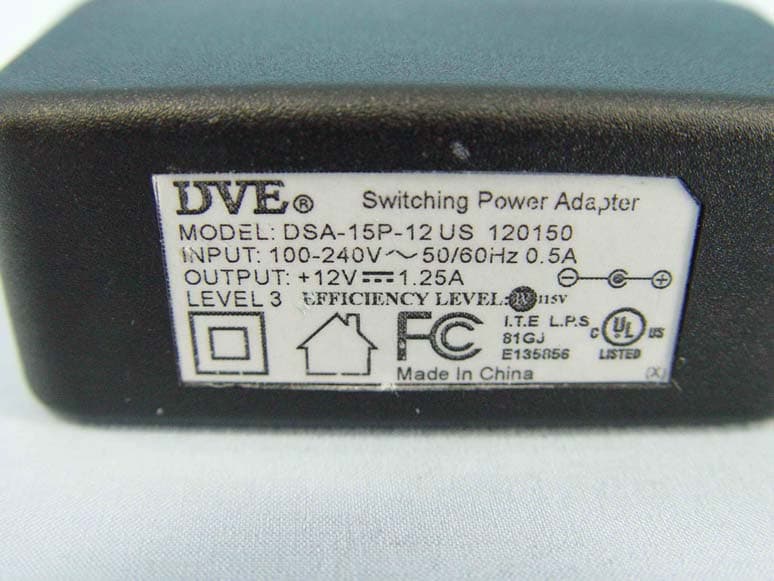

FCC ID: U2M-SR9855G Report No.: RF990118L07 Operational Description This device is a Wireless 300N Gigabit Gaming Router, which operates in the 2.4GHz frequency spectrum with throughput of up to 270Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 270Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with R-SMA antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA990118L07 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990118L07 MODEL NO.: ESR9855G FCC ID: U2M-SR9855G ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Senao Networks, Inc. ADDRESS: 3F, No. 529, Chung Cheng Rd., Hsintien, Taipei, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. Report No.: SA990118L07 Report Format Version 3.0.1 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 25.4 3 20 0.138 1.00

Report No.: RF990118L07 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990118L07 MODEL NO.: ESR9855G RECEIVED: Jan. 18, 2010 TESTED: Jan. 19 ~ Jan. 29, 2010 ISSUED: Feb. 03, 2010 APPLICANT: Senao Networks, Inc. ADDRESS: 3F, No. 529, Chung Cheng Rd., Hsintien, Taipei, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990118L07 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION...................................................................................................... 4 2. SUMMARY OF TEST RESULTS ............................................................................. 5 2.1 MEASUREMENT UNCERTAINTY........................................................................... 5 3. GENERAL INFORMATION ...................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 6 3.2 DESCRIPTION OF TEST MODES .......................................................................... 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .......................... 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 10 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 10 4. TEST TYPES AND RESULTS ............................................................................... 11 4.1 RADIATED EMISSION MEASUREMENT ............................................................. 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS........................................................................................... 12 4.1.3 TEST PROCEDURES ........................................................................................... 13 4.1.4 DEVIATION FROM TEST STANDARD.................................................................. 13 4.1.5 TEST SETUP......................................................................................................... 14 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 14 4.1.7 TEST RESULTS .................................................................................................... 15 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................ 28 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................... 28 4.2.2 TEST INSTRUMENTS........................................................................................... 28 4.2.3 TEST PROCEDURES ........................................................................................... 29 4.2.4 DEVIATION FROM TEST STANDARD.................................................................. 29 4.2.5 TEST SETUP......................................................................................................... 30 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 30 4.2.7 TEST RESULTS .................................................................................................... 31 4.3 6dB BANDWIDTH MEASUREMENT..................................................................... 33 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 33 4.3.2 TEST INSTRUMENTS........................................................................................... 33 4.3.3 TEST PROCEDURE.............................................................................................. 33 4.3.4 DEVIATION FROM TEST STANDARD.................................................................. 33 4.3.5 TEST SETUP......................................................................................................... 34 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 34 4.3.7 TEST RESULTS .................................................................................................... 35 4.4 MAXIMUM OUTPUT POWER ............................................................................... 39 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT................................ 39 4.4.2 INSTRUMENTS ..................................................................................................... 39 4.4.3 TEST PROCEDURE.............................................................................................. 39 Report No.: RF990118L07 3 Report Format Version 3.0.1 4.4.4 DEVIATION FROM TEST STANDARD.................................................................. 40 4.4.5 TEST SETUP......................................................................................................... 40 4.4.6 EUT OPERATING CONDITIONS .......................................................................... 40 4.4.7 TEST RESULTS .................................................................................................... 41 4.5 POWER SPECTRAL DENSITY MEASUREMENT ................................................ 42 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ............................. 42 4.5.2 TEST INSTRUMENTS...........................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
