U2M-UB9700703Wireless-N USB 2.0 Adapter

IEEE802.b/g/n Wireless LAN USB 2.0 Client Adapter User’s Manual Version: 1.0 IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 2 Table of Contents 1 INTRODUCTION ....................................................................................................................5 1.1 F EATURES & BENEFITS..................................................................................................... 5 1.2 P ACKAGE CONTENTS........................................................................................................ 6 1.3 USB ADAPTER DESCRIPTION............................................................................................ 6 1.4 S YSTEM REQUIREMENTS.................................................................................................. 6 1.5 A PPLICATIONS.................................................................................................................. 7 1.6 N ETWORK CONFIGURATION............................................................................................... 7 2 USB ADAPTER FOR WINDOWS VISTA............................................................................... 9 2.1 B EFORE YOU BEGIN......................................................................................................... 9 2.2 I NSTALLING THE DRIVERS.................................................................................................. 9 2.3 P ROFILES........................................................................................................................11 2.3.1 I NFRASTRUCTURE MODE................................................................................................. 12 2.3.2 A D-HOC MODE............................................................................................................... 13 2.4 A UTHENTICATION AND SECURITY..................................................................................... 14 2.4.1 WEP Encryption ....................................................................................................... 14 2.4.2 WPA, WPA2 Authentication & TKIP, AES Encryption .............................................. 15 2.4.3 WPA-PSK Authentication & TKIP, AES Encryption.................................................. 16 2.5 L INK STATUS.................................................................................................................. 17 2.6 S ITE SURVEY................................................................................................................. 18 2.7 S TATI STICS..................................................................................................................... 19 2.8 WPS ............................................................................................................................. 20 2.9 A BOUT........................................................................................................................... 21 2.10 U NINSTALL THE DRIVERS & CLIENT UTILITY...................................................................... 22 3 USB ADAPTER FOR WINDOWS XP .................................................................................. 25 3.1 B EFORE YOU BEGIN....................................................................................................... 25 3.2 I NSTALLING THE DRIVERS................................................................................................ 25 3.3 P ROFILES....................................................................................................................... 28 3.3.1 I NFRASTRUCTURE MODE................................................................................................. 28 3.3.2 A D-HOC MODE............................................................................................................... 29 3.4 A UTHENTICATION AND SECURITY..................................................................................... 30 3.4.1 WEP Encryption ....................................................................................................... 30 3.4.2 WPA, WPA2 Authentication & TKIP, AES Encryption .............................................. 31 3.4.3 WPA-PSK Authentication & TKIP, AES Encryption.................................................. 31 3.4.4 LEAP Authentication ................................................................................................ 32 3.4.5 802.1x with PEAP .................................................................................................... 33 3.4.5.1 PEAP Authentication with EAP/TLS Smartcard .................................................. 33 3.4.6 802.1x with TTLS with EAP-MD5, MS-CHAP, MS-CHAPv2.................................... 34 3.4.7 802.1x CA Server..................................................................................................... 34 3.5 N ETWORK...................................................................................................................... 35 3.5.1 S ITE SURVEY................................................................................................................. 37 3.6 A DVANCED CONFIGURATION............................................................................................ 38 3.7 S TATI STICS..................................................................................................................... 38 3.8 WMM (WIRELESS MULTIMEDIA) ...................................................................................... 40 3.9 WPS ............................................................................................................................. 40 3.10 A BOUT........................................................................................................................... 42 3.11 R ADIO............................................................................................................................ 42 IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Versio…

Text truncated - open the document above for the full version.

IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 46 4 USB Adapter for MAC OS X 4.1 Installing the Drivers Follow the steps below in order to install the USB adapter drivers: 1. Insert the CD-ROM that was provided to you in this package. The setup should run automatically. If the setup does not run automatically, then you must manually select the setup file from the CD-ROM drive. 2. Click on the Continue button to configure the next step. IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 47 3. Select the Macintosh HD and then click on the Continue button. 4. Click on the Continue button to configure the next step. IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 48 5. The installation is complete. Click on the Restart button. 6. Carefully insert the USB adapter into the USB port. MAC OS X will then detect and install the new hardware. 7. The Client Utility is installed in the Applications folder. 4.2 Profiles The Profile tab is used to store the settings of multiple Access Points such as home, office, café, etc. When adding a profile you are required to enter a profile name and SSID as well as configure the power-saving mode, network type, RTS/fragmentation threshold and encryption/authentication settings. A profile can be configured as Infrastructure or Ad-hoc mode. The configuration settings for each mode are described below. IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 49 4.2.1 Infrastructure Mode The infrastructure mode requires the use of an Access Point (AP). In this mode, all wireless communication between two computers has to be via the AP. It doesn’t matter if the AP is stand-alone or wired to an Ethernet network. If used in stand-alone, the AP can extend the range of independent wireless LANs by acting as a repeater, which effectively doubles the distance between wireless stations. IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 50 h Profile: Enter a name for the profile; this does not need to be the same as the SSID. h SSID: Enter the SSID of the network or select one from the drop-down list. The SSID is a unique name shared among all points in your wireless network. The SSID must be identical for all points in the network, and is case-sensitive. h PSM: Select a power saving mode (PSM) option. o CAM (Continuously Awake Mode): Select this option if your notebook is always connected to the power supply. o PSM (Power Saving Mode): Select this option if your notebook uses its battery power. This option minimizes the battery usage while the network is idle. h Network Type: Select Infrastructure from the drop-down list. h RTS Threshold: Place a check in this box if you would like to enable RTS Threshold. Any packet in the RTS/CTS handshake larger than the specified value (bytes) will be discarded. h Fragment Threshold: Place a check in this box if you would like to enable Fragment Threshold. Any packet larger than the specified value (bytes) will be discarded. h Click on the Apply button to save the changes. 4.2.2 Ad-hoc Mode This is the simplest network configuration with several computers equipped with the PC Cards that form a wireless network whenever they are within range of one IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 51 another. In ad-hoc mode, each client is peer-to-peer, would only have access to the resources of the other client and does not require an access point. This is the easiest and least expensive way for the SOHO to set up a wireless network. h Profile: Enter a name for the profile; this does not need to be the same as the SSID. h SSID: Enter the SSID of the network or select one from the drop-down list. The SSID is a unique name shared among all points in your wireless network. The SSID must be identical for all points in the network, and is case-sensitive. h Network Type: Select Ad-hoc from the drop-down list. h Preamble: Select Auto from the drop-down list, unless you are aware of the preamble type (long or short) used in each station. h Ad-hoc wireless mode: Select a wireless mode from the drop-down list depending on the type of stations used in the ad-hoc network. Select B/G Mix if the network consists of 11b and 11g stations. Select B-only or G-only if the network consists of only one type of wireless mode. h RTS Threshold: Place a check in this box if you would like to enable RTS Threshold. Any packet in the RTS/CTS handshake larger than the specified value (bytes) will be discarded. h Fragment Threshold: Place a check in this box if you would like to enable Fragment Threshold. Any packet larger than the specified value (bytes) will be discarded. h Click on the Apply button to save the changes. IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 52 4.3 Authentication and Security The Security tab allows you to configure the authentication and encryption settings such as: WEP, WPA, WPA-PSK, WPA2, and 802.1x. Each security option is described in detail below. 4.3.1 WEP Encryption The WEP tab displays the WEP settings. Encryption is designed to make the data transmission more secure. You may select 64 or 128-bit WEP (Wired Equivalent Privacy) key to encrypt data (Default setting is Disable). WEP encrypts each frame transmitted from the radio using one of the Keys from a panel. When you use WEP to communicate with the other wireless clients, all the wireless devices in this network must have the same encryption key or pass phrase. The following information is included in this tab, as the image depicts below. h Authentication Type: Select Open or Shared from the drop-down list. h Encryption: Select WEP from the drop-down list. h WEP Key: Type a character string into the field. For 64-bit enter 5 alphanumeric or 10 hexadecimal characters. For 128-bit enter 13 alphanumeric or 26 hexadecimal characters. h Click on the Apply button to save the changes. h Show Password check box. If you want to make sure the accuracy of password you type, click the Show Pas…

Text truncated - open the document above for the full version.

IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 53 4.3.2 WPA-PSK Authentication & TKIP, AES Encryption WPA – PSK (Pre-shared Key) is used in a Pre Shared Key mode that does not require an authentication server. Access to the Internet and the rest of the wireless network services is allowed only if the pre-shared key of the computer matches that of the Access Point. This approach offers the simplicity of the WEP key, but uses stronger TKIP encryption. EAP (Extensible Authentication Protocol) is an extension to the PPP protocol that enables a variety of authentication protocols to be used. It passes through the exchange of authentication messages, allowing the authentication software stored in a server to interact with its counterpart in the client. h Authentication Type: Select WPA or WPA2 from the drop-down list. h Encryption: Select TKIP or AES from the drop-down list. h WPA Preshared key: Enter a pass phrase which is between 8 and 32 characters long. h Click on the Apply button to save the changes. h Show Password check box. If you want to make sure the accuracy of password you type, click the Show Password box to check it. 4.4 Link Status The Link Status tab displays the current status of the wireless radio. The following information is included in this tab, as the image depicts below. IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 54 h Status: This indicates the state of the client. There are three options: o Associated: Indicates that the wireless client is connected to an Access Point (AP). The BSSID is shown in the form of 12 HEX digits, which is the MAC address of the AP. o Scanning: Indicates that the wireless client is searching for an AP in the area. o Disconnected: Indicates that there are no APs or clients in the area. h Extra Info: Displayed here are information about the link stats and the percent of output power. h Current Channel: The operating frequency channel that the client is using (infrastructure mode). h Link Speed: The current rate at which the client is transmitting and receiving. h Throughput (bytes/sec): Displays the Tx (transmit) and Rx (receive) kilo-bytes per second. h Link Quality: In infrastructure mode, this bar displays the transmission quality between an AP and a client. In Ad-hoc mode, this bar displays the transmission quality between one client, and another. h Signal Strength: This bar displays the strength of the signal received from an AP or client. h Noise Level: Displays the background noise level; a lower level indicates less interference. h Click on the OK button to close this window. h dBm Check Box. When you click on the check box as the drawing below. The signal strength and noise level will be shown as the dBm measurements. IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 55 4.5 Site Survey The Site Survey tab displays a list of Access Points and Stations in the area, and allows you to connect to a specific one. The following information is included in this tab, as the image depicts below. h SSID: Displays the SSID of the Access Point. The SSID is a unique name shared among all points in your wireless network. The SSID must be identical for all points in the network, and is case-sensitive. h BSSID: Displays the MAC address of the Access Point. h Signal: Displays the receiving signal strength from the Access Point. h Channel: Displays the channel number of the Access Point. h Encryption: Displays the encryption on the Access Point, this includes WEP, TKIP, AES or None. h Authentication: displays the authentication on the Access Point, this includes WPA, WPA-PSK, WPA2, or Unknown. h Network Type: Indicates whether the SSID is a Station (Ad-hoc) or Access Point (Infrastructure). h Rescan: Click on this button to view a list of Access Points in the area. h Connect: to connect with a specific Access Point, select the SSID from the list, and then click on the Connect button. h Add Profile: Click on this button to add the SSID and its associated settings into a profile. h Click on the OK button if you have made any changes. 4.6 Statistics The Statistics tab displays transmit and receive packet statistics in real-time. Information included is frames transmitted/received successfully, transmitted IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 56 successfully without and after retry, received with CRC error, duplicate frames received, etc. 4.7 Advanced Configuration The Advanced tab is used to configure the wireless mode (802.11b-only, 802.11g-only, or 802.11b/g-mixed), B/G protection and country/channel setting. IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 57 h Wireless mode: Select 802.11 B/G/N mixed if the wireless network uses both 11b, 11g and 11n stations and APs. h Tx Rate: The transmit rate should be set to auto, however you may manually select a transmit rate from the drop-down list. h Click on the Apply button to save the changes. IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 58 4.8 About The About tab displays information about the device, such as: the network driver version and date, configuration utility version and date, and the NIC (Network Interface Card) firmware version and date. IEEE802.11b/g/n Wireless LAN USB 2.0 Client Adapter Version 1.0 59 Appendix A – Glossary 8 802.11 A family of specifications for wireless local area networks (WLANs) developed by a working group of the Institute of Electrical and Electronics Engineers (IEEE). A Access Control List ACL. This is a database of network devices that are allowed to access resources on the network. Access Point AP. Device that allows wireless clients to connect to it and access the network ActiveX A Microsoft specification for the interaction of software components. Address Resolution Protocol ARP. Used to map MAC addresses to IP addresses so that conversions can be made in both directions. Ad-hoc network Peer-to-Peer network between wireless clients ADSL Asymmetric Digital Subsc…

Text truncated - open the document above for the full version.

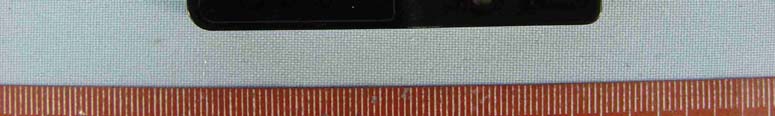

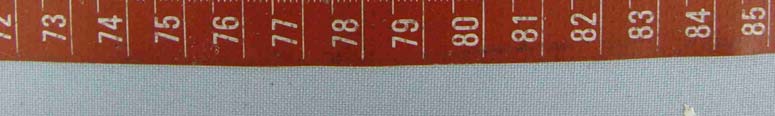

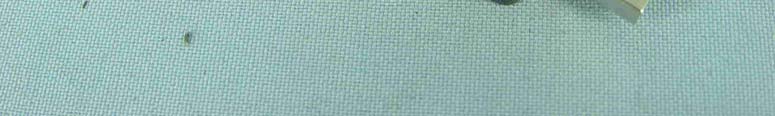

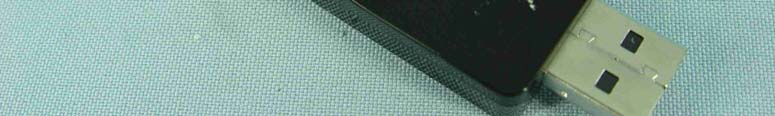

Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: EUB-9702 Page 2

FCC ID .: U2M-UB9700703 Label Location

Page 3 Page 4 Page 5

FCC ID: U2M-UB9700703 Report No.: RF961128L13 OPERATIONAL DESCRIPTION This device is a Wireless-N USB 2.0 Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 150Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is print antenna without connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: SA961128L13 1 Report Format Version 2.0.5 SAR TEST REPORT REPORT NO.: SA961128L13 MODEL NO.: EUB-9702 (refer to item 2.1 for more details) RECEIVED: Nov. 28, 2007 TESTED: Dec. 11, 2007 ISSUED: Dec. 14, 2007 APPLICANT: Senao Networks Inc. ADDRESS: 3F, No. 529, Chung Cheng Rd., Hsintien, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 37 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: SA961128L13 2 Report Format Version 2.0.5 TABLE OF CONTENTS 1. CERTIFICATION ...................................................................................................3 2. GENERAL INFORMATION....................................................................................4 2.1 GENERAL DESCRIPTION OF EUT ......................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................4 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM .............................................6 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION.............9 3. DESCRIPTION OF SUPPORT UNITS ................................................................12 4. DESCRIPTION OF TEST MODES AND CONFIGURATIONS ............................13 4.1. DESCRIPTION OF ANTENNA LOCATION .........................................................13 4.2. DESCRIPTION OF ASSESSMENT POSITION...................................................14 4.3. DESCRIPTION OF TEST MODE ........................................................................14 4.4. SUMMARY OF TEST RESULTS .........................................................................15 5. TEST RESULTS ..................................................................................................16 5.1 TEST PROCEDURES .........................................................................................16 5.2 MEASURED SAR RESULTS...............................................................................18 5.3 SAR LIMITS.........................................................................................................20 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ................................................21 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ..................................................24 6. SYSTEM VALIDATION ........................................................................................25 6.1 TEST EQUIPMENT .............................................................................................25 6.2 TEST PROCEDURE............................................................................................26 6.3 VALIDATION RESULTS ......................................................................................28 6.4 SYSTEM VALIDATION UNCERTAINTIES ..........................................................29 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES...................................30 7.1. PROBE CALIBRATION UNCERTAINTY.............................................................30 7.2. ISOTROPY UNCERTAINTY ...............................................................................31 7.3. BOUNDARY EFFECT UNCERTAINTY...............................................................31 7.4. PROBE LINEARITY UNCERTAINTY ..................................................................32 7.5. READOUT ELECTRONICS UNCERTAINTY ......................................................32 7.6. RESPONSE TIME UNCERTAINTY ....................................................................32 7.7. INTEGRATION TIME UNCERTAINTY ................................................................33 7.8. PROBE POSITIONER MECHANICAL TOLERANCE .........................................34 7.9. PROBE POSITIONING .......................................................................................34 7.10. PHANTOM UNCERTAINTY ................................................................................35 7.11. DASY4 UNCERTAINTY BUDGET ......................................................................36 8. INFORMATION ON THE TESTING LABORATORIES ........................................37 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report No.: SA961128L13 3 Report Format Version 2.0.5 1. CERTIFICATION PRODUCT: Wireless-N USB 2.0 Adapter MODEL: EUB-9702 (refer to item 2.1 for more details) BRAND: EnGenius (refer to item 2.1 for more details) APPLICANT: Senao Networks Inc. TESTED : Dec. 11, 2007 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 IEEE 1528-2003 The above equipment (model: EUB-9702) have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Dec. 14, 2007 Peggy Chen / Specialist TECHNICAL ACCEPTANCE : , DATE:Dec. 14, 2007 Responsible for RF Stanely Hsu / Senior Engineer APPROVED BY : , DATE: Dec. 14, 2007 Gary Chang / Assistant Manager Report No.: SA961128L13 4 Report Format Version 2.0.5 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless-N USB 2.0 Adapter…

Text truncated - open the document above for the full version.

Report No.: RF961128L13 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF961128L13 MODEL NO.: EUB-9702 (refer to item 3.1 for more details) RECEIVED: Nov. 28, 2007 TESTED: Nov. 30 ~ Dec. 04, 2007 ISSUED: Dec. 06, 2007 APPLICANT: Senao Networks Inc. ADDRESS: 3F, No. 529, Chung Cheng Rd., Hsintien, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF961128L13 2 Report Format Version 2.0.6 TABLE OF CONTENTS 1. CERTIFICATION ........................................................................................................4 2. SUMMARY OF TEST RESULTS ................................................................................5 2.1 MEASUREMENT UNCERTAINTY..............................................................................5 3. GENERAL INFORMATION.........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT ...........................................................................6 3.2 DESCRIPTION OF TEST MODES .............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................10 3.4 DESCRIPTION OF SUPPORT UNITS......................................................................10 4. TEST TYPES AND RESULTS .................................................................................. 11 4.1 RADIATED EMISSION MEASUREMENT................................................................. 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.............................................. 11 4.1.2 TEST INSTRUMENTS..............................................................................................12 4.1.3 TEST PROCEDURES ..............................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD ....................................................................13 4.1.5 TEST SETUP............................................................................................................14 4.1.6 EUT OPERATING CONDITIONS .............................................................................14 4.1.7 TEST RESULTS .......................................................................................................15 4.2 CONDUCTED EMISSION MEASUREMENT ...........................................................28 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.........................................28 4.2.2 TEST INSTRUMENTS..............................................................................................28 4.2.3 TEST PROCEDURES ..............................................................................................29 4.2.4 DEVIATION FROM TEST STANDARD ....................................................................29 4.2.5 TEST SETUP............................................................................................................30 4.2.6 EUT OPERATING CONDITIONS .............................................................................30 4.2.7 TEST RESULTS .......................................................................................................31 4.3 6dB BANDWIDTH MEASUREMENT ........................................................................33 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .....................................................33 4.3.2 TEST INSTRUMENTS..............................................................................................33 4.3.3 TEST PROCEDURE.................................................................................................33 4.3.4 DEVIATION FROM TEST STANDARD ....................................................................33 4.3.5 TEST SETUP............................................................................................................34 4.3.6 EUT OPERATING CONDITIONS .............................................................................34 4.3.7 TEST RESULTS .......................................................................................................35 4.4 MAXIMUM PEAK OUTPUT POWER ........................................................................43 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........................43 Report No.: RF961128L13 3 Report Format Version 2.0.6 4.4.2 INSTRUMENTS........................................................................................................43 4.4.3 TEST PROCEDURES ..............................................................................................43 4.4.4…

Text truncated - open the document above for the full version.
