U2M-UB97008001802.11 b/g/n USB Client Adaptor

ENUWI-N3 802.11n USB Wireless Adapter User Manual 2 Table of Contents 1 INTRODUCTION............................................................................................................................... 3 FEATURES & BENEFITS............................................................................................................................... 4 PACKAGE CONTENTS .................................................................................................................................. 4 USB ADAPTER DESCRIPTION ..................................................................................................................... 4 SYSTEM REQUIREMENTS ............................................................................................................................ 5 APPLICATIONS ............................................................................................................................................ 5 NETWORK CONFIGURATION ....................................................................................................................... 6 2 ENUWI-N3 USB ADAPTER FOR WINDOWS® (XP & WINDOWS VISTA®) .......................... 7 BEFORE YOU BEGIN ................................................................................................................................... 7 INSTALLING DRIVERS ................................................................................................................................. 7 PROFILES ...................................................................................................................................................13 INFRASTRUCTURE MODE ...........................................................................................................................13 AD-HOC MODE ..........................................................................................................................................14 AUTHENTICATION AND SECURITY .............................................................................................................16 WEP Encryption...................................................................................................................................16 WPA, WPA2 Authentication & TKIP, AES Encryption........................................................................17 WPA-PSK Authentication & TKIP, AES Encryption ...........................................................................17 LEAP Authentication ...........................................................................................................................18 802.1x with PEAP ................................................................................................................................19 PEAP Authentication with EAP/TLS Smartcard ..................................................................................19 802.1x with TTLS with EAP-MD5, MS-CHAP, MS-CHAPv2 ..............................................................20 802.1x CA Server .................................................................................................................................21 NETWORK (SITE SURVEY) .........................................................................................................................23 ADVANCED CONFIGURATION ....................................................................................................................25 WPS™ ......................................................................................................................................................25 UNINSTALL THE DRIVERS & CLIENT UTILITY ...........................................................................................27 3 ENUWI-N3 USB ADAPTER FOR MAC™ OS X ...........................................................................32 INSTALLING THE DRIVERS .........................................................................................................................32 PROFILES ...................................................................................................................................................34 INFRASTRUCTURE MODE ...........................................................................................................................35 AD-HOC MODE ..........................................................................................................................................37 AUTHENTICATION AND SECURITY .............................................................................................................38 WEP Encryption...................................................................................................................................38 WPA-PSK Authentication & TKIP, AES Encryption ...........................................................................39 LINK STATUS .............................................................................................................................................40 SITE SURVEY .............................................................................................................................................41 STATISTICS ................................................................................................................................................42 ADVANCED CONFIGURATION ....................................................................................................................42 WPS™ ......................................................................................................................................................43 ABOUT.......................................................................................................................................................45 APPENDIX A – GLOSSARY .....................................................................................................................46 APPENDIX B – SPECIFICATIONS ...................…

Text truncated - open the document above for the full version.

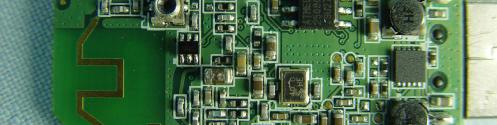

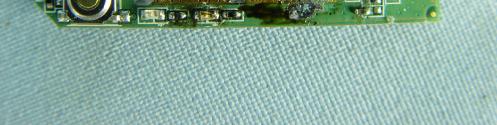

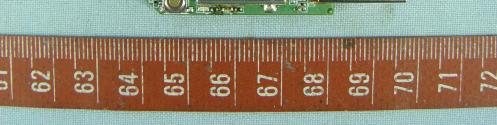

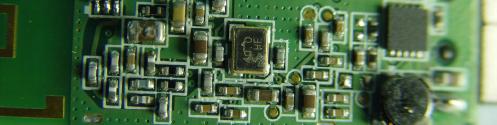

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID .: U2M-UB97008001 Label Location

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID: U2M-UB97008001 Report No.: RF971218L07D Reference No.: 981215L22 OPERATIONAL DESCRIPTION This device is an 802.11 b/g/n USB Client Adaptor, which operates in the 2.4GHz frequency spectrum with throughput of up to 150Mbps which OFDM technique will be applied. If the signal to noise ratio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Printed antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: U2M-UB97008001 Report No: SA971218L07D Report Format Version 3.0.0 Reference No.: 981215L22 1 RF EXPOSURE REPORT REPORT NO.: SA971218L07D MODEL NO.: ENUWI-N3 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Senao Networks Inc. ADDRESS: 3F, No. 529, Chung Cheng Rd., Hsintien, Taipei, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: U2M-UB97008001 Report No: SA971218L07D Report Format Version 3.0.0 Reference No.: 981215L22 2 No evaluation required if power is below this threshold: F(GHz) mW Low 2412 High 2462 24.490 Maximum measured transmitter power: Pout (dBm) Pout (mW) Conducted Power 10.20 10.471 EIRP Power 13.20 20.892 *Note: The antenna is Printed antenna with 3dBi gain Threshold for no SAR evaluation is 24.490mW Transmitter power is 20.892mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF971218L07D 1 Report Format Version 3.0.0 Reference No.: 981215L22 FCC TEST REPORT REPORT NO.: RF971218L07D MODEL NO.: ENUWI-N3 RECEIVED: Dec. 18, 2008 TESTED: Dec. 24 ~ Dec. 25, 2008 ISSUED: Dec. 17, 2009 APPLICANT: Senao Networks Inc. ADDRESS: 3F, No. 529, Chung Cheng Rd., Hsintien, Taipei, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF971218L07D 2 Report Format Version 3.0.0 Reference No.: 981215L22 TABLE OF CONTENTS 1. CERTIFICATION ......................................................................................................... 4 2. SUMMARY OF TEST RESULTS................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY .............................................................................. 5 3. GENERAL INFORMATION ......................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT............................................................................ 6 3.2 DESCRIPTION OF TEST MODES.............................................................................. 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST......................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............................. 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 10 3.4 DESCRIPTION OF SUPPORT UNITS...................................................................... 10 4. TEST TYPES AND RESULTS ................................................................................... 11 4.1 RADIATED EMISSION MEASUREMENT ................................................................. 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT .............................................. 11 4.1.2 TEST INSTRUMENTS .............................................................................................. 12 4.1.3 TEST PROCEDURES ............................................................................................... 13 4.1.4 DEVIATION FROM TEST STANDARD ..................................................................... 13 4.1.5 TEST SETUP ............................................................................................................ 14 4.1.6 EUT OPERATING CONDITIONS.............................................................................. 14 4.1.7 TEST RESULTS ........................................................................................................ 15 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 28 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ......................................... 28 4.2.2 TEST INSTRUMENTS .............................................................................................. 28 4.2.3 TEST PROCEDURES ............................................................................................... 29 4.2.4 DEVIATION FROM TEST STANDARD ..................................................................... 29 4.2.5 TEST SETUP ............................................................................................................ 30 4.2.6 EUT OPERATING CONDITIONS.............................................................................. 30 4.2.7 TEST RESULTS ........................................................................................................ 31 4.3 6dB BANDWIDTH MEASUREMENT ........................................................................ 33 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT...................................................... 33 4.3.2 TEST INSTRUMENTS .............................................................................................. 33 4.3.3 TEST PROCEDURE ................................................................................................. 33 4.3.4 DEVIATION FROM TEST STANDARD ..................................................................... 33 4.3.5 TEST SETUP ............................................................................................................ 34 4.3.6 EUT OPERATING CONDITIONS.............................................................................. 34 4.3.7 TEST RESULTS ........................................................................................................ 35 Report No.: RF971218L07D 3 Report Format Version 3.0.0 Reference No.: 981215L22 4.4 MAXIMUM PEAK OUTPUT POWER ........................................................................ 43 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................... 43 4.4.2 INSTRUMENTS ........................................................................................................ 43 4.4.3 TEST PROCEDURES ............................................................................................... 43 4.4.4 DEVIATION FROM TEST STANDARD ..................................................................... 43 4.4.5 TEST SETUP ............................................................................................................ 44 4.4.6 EUT OPERATING CONDITIONS.............................................................................. 44 4.4.3 TEST RESULTS ........................................................................................................ 45 …

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
