45605 Instructions, Revision a.5 4/4/2007 6:58:13 PM Page 1 of 4 Model: 45605 Z-Wave, RF Controlled, 600W, 120 VAC, Duplex Receptacle R Z-Wave Add callouts for Z-Wave & Pass Through outlets Pass-Through Thank you for your purchase of a GE SmartHome™ Z-Wave ® control device. Z-Wave technology is designed to automate lighting/home control and provide easy remote operation of all your Z-wave enabled devices. The GE Z- Wave product family includes a variety of devices to enable and control lighting in your home. It is up to you whether you want to control one room or your entire house and whether you want to do it all now or start with one room and add more over time. This duplex receptacle is one component of a Z-Wave ® control system and is designed to work with all other Z-Wave enabled devices in a home control network. It will also act as a wireless repeater to insure that commands intended for another device in the network are received, thereby extending the range of the wireless controller. Z-Wave devices of other types and brands can be added to the system and will also act as range extenders if they support this function of repeating the signal received to other nodes in the system. CAUTION! This device is intended for installation in accordance with the National Electric Code and local regulations in the United States, or the Canadian Electrical Code and local regulations in Canada. It is recommended that a qualified electrician perform this installation. The device plugged into the Z-Wave controlled outlet on this module must not exceed 600 watts (Incandescent); 15 Amps, 1800W (Resistive); or ½ HP (Motor). The maximum rating for both outlets combined is 1800W (15A) Resistive. There are no user serviceable parts in this unit. Key Features • One Z-wave remote controlled AC outlet o Remote ON/OFF control via the Z-Wave controller/network o Manual ON/OFF control with the pushbutton • One Always-ON pass through AC outlet Installation This receptacle may be used in new installations or to replace an existing wall receptacle. Insert Wiring Diagram Line -- Black wire Neutral – White wire Ground – Green wire 45605 Instructions, Revision a.5 4/4/2007 6:58:13 PM Page 2 of 4 WARNING! SHOCK HAZARD! Turn OFF the power to the branch circuit for the switch and lighting fixture at the service panel. All wiring connections must be made with the POWER OFF to avoid personal injury and/or damage to the switch. 1. Strip 3/4" of insulation from the ends of the conductors and connect as shown in the wiring diagram. 2. Check the connections to be sure they are tight and no bare conductors are exposed. 3. Make sure the total load does not exceed the receptacle’s rating as listed above. 4. Install in the junction box 5. Turn On the power. Use your primary controller to include the receptacle in the home control network after the receptacle is installed as shown in the above diagram. It can then be added to groups and/or lighting scenes and managed remotely to control the ON/OFF status of the connected lighting. Basic Operation Manual Control The Pushbutton on the 45605 receptacle allows the user to: 1. Manually turn the connected equipment ON or OFF by pressing the button. • This is a toggle switch; if the device is OFF, pressing the button turns the device ON and vice versa. 2. Include or exclude the receptacle from the Z-Wave home control network. • Refer to the instructions for your primary controller to access the network setup function and include or exclude devices. • When prompted by your primary controller, tap the button. • The primary controller should indicate that the action was successful. If the controller indicates the action was unsuccessful, please repeat the procedure. • Once the module is part of the network, the same basic procedure is used to add the module to groups or scenes. Refer to the primary controller’s instructions for details. Please Note: After a power failure, the module defaults to OFF. LED Indicator • The LED will be lit when the Z-Wave controlled outlet is Off. • This is the factory default setting and can be changed if your primary controller supports the node configuration function. See the section on “Configuration” for details. ADVANCED OPERATION The following Advanced Operation parameters require that you have an advanced controller like the GE model 45601 LCD remote. Advanced remotes from other manufacturers may also be able to change these settings; however, basic remotes do not have this capability. All-ON and All-OFF Depending upon your primary controller, the 45605 receptacle can be set to respond to ALL-ON and ALL-OFF commands in up to four different ways. Some controllers may not be able to change the response from its default setting. Please refer to your controller’s instructions for information on whether or not it supports the configuration function and if so, how to change this setting. The four possible responses are: • It will respond to ALL-ON and the ALL-OFF command (default). • It will not respond to ALL-ON or ALL-OFF commands. • It will respond to the ALL-OFF command but will not respond to the ALL-ON command. • It will respond to the ALL-ON command but will not respond to the ALL-OFF command. 45605 Instructions, Revision a.5 4/4/2007 6:58:13 PM Page 3 of 4 Configuration Please note: Not all controllers are capable of this; your controller must be designed to perform this function. The GE model #45601 is designed to do this. Use its “Setup Menu”, “Config Unit” to change the configuration of devices. LED Light When shipped from the factory, the LED on the 45605 is set to turn ON when the connected outlet is turned OFF. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “0”. • Parameter No: 3 • Length: 1 Byte • Valid Values = 0 or 1 (default 1) Restoring Factory Defaults All network settings and configuration parameters can all be restored to their factory default settings by using your master controller to reset the dev…

Text truncated - open the document above for the full version.

Sheenway Asia Ltd Room 1313, 13/F, Austin Tower, Tsim Sha Tsui, Kowloon. Tel: (86-755)82374246 Fax: (86-755)82375277 Email: [email protected] ; [email protected] Federal Communications Commission 7435 Okland Mills Road Columbia, MD 21046 Genelmen: This letter is to comply with section 0.457(d)(2)(i) pertaining to confidential material. Sheenway Asia Ltd would like the following documents regarding this submission for FCC ID: U2Z45605 to be kept confidential. 1. schematics 2. block diagram the above documents contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want the documents to be accessible to general public. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, --------------------------------------------------- Project Engineer company: Sheenway Asia Ltd Tel: (86-755)82374246 Fax: (86-755)82375277 E-mail: [email protected] ; [email protected]

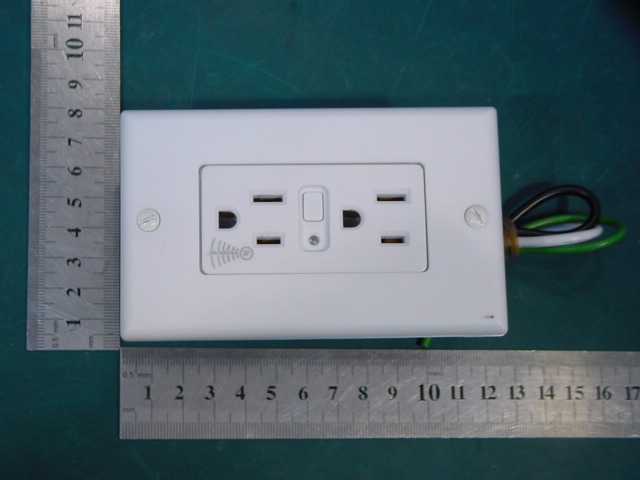

45605 External Photo 1 Photo 1 Appearance of EUT Photo 2 Appearance of EUT

45605 Internal Photo 1 Photo 1 Inside of EUT Photo 2 Inside of EUT 45605 Internal Photo 2 Photo 3 Inside of EUT Photo 4 Inside of EUT 45605 Internal Photo 3 Photo 5 Inside of EUT

Operation description: 45605(ZRP150)—Please refer to hardware block diagram: 1) Plug the unit into the AC 120V, 60Hz line 2) AC power will be rectified and regulated to DC 12V and 3.3V for CONTROL and CPU power supply respectively. 3) Plug the appliance loading to the Z-wave controllable AC outlet 4) Press the push button on the unit to turn the relay ON/OFF to control the appliance loading to ON/OFF. You may use remote controller to do the same operation. 5) Load sense is the circuit that will sense the availability of a load. The relay will be turned on from off state when a load such as a light bulb is plugged into the AC outlet.

Report No.: WT078000355 Page 1/29 EMC TEST REPORT For Duplex receptacle Model Number: ZRP150 45605 FCC ID: U2Z45605 Report Number : WT078000355 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory Guangdong EMC Compliance Test Center Site Location : Bldg. of Metrology &Quality Inspection, Longzhu Road, Shenzhen, Guangdong, China Tel : 0086-755-26941637, 26941529, 26941531 Fax : 0086-755-26941545 Email : [email protected] Report No.: WT078000355 Page 2/29 TABLE OF CONTENTS TEST REPORT DECLARATION ........................................................................................................3 1. TEST RESULTS SUMMARY ...................................................................................................4 2. GENERAL INFORMATION ....................................................................................................5 2.1. Report information ............................................................................................................5 2.2. Laboratory Accreditation and Relationship to Customer .................................................5 2.3. Measurement Uncertainty .................................................................................................6 3. PRODUCT DESCRIPTION ......................................................................................................6 3.1. EUT Description ...............................................................................................................6 3.2. Related Submittal(s) / Grant (s) ........................................................................................6 3.3. Block Diagram of EUT Configuration..............................................................................6 3.4. Operating Condition of EUT ............................................................................................7 3.5. Special Accessories...........................................................................................................7 3.6. Equipment Modifications..................................................................................................7 3.7. Support Equipment List ....................................................................................................7 3.8. Test Conditions .................................................................................................................7 4. TEST EQUIPMENT USED .......................................................................................................7 4.1. Test Equipment Used to Measure Conducted Disturbance ..............................................7 4.2. Test Equipment Used to Measure Radiated Disturbance and bandwidth.........................7 5. CONDUCTED DISTURBANCE TEST ....................................................................................8 5.1. Test Standard and Limit ....................................................................................................8 5.2. Test Procedure ..................................................................................................................8 5.3. Test Arrangement..............................................................................................................8 5.4. Test Data ...........................................................................................................................8 6. RADIATED DISTURBANCE TEST ......................................................................................12 6.1. Test Standard and Limit ..................................................................................................12 6.2. Test Procedure ................................................................................................................12 6.3. Test Arrangement............................................................................................................12 6.4. Test Data .........................................................................................................................13 7. OCCUPIED BANDWIDTH .....................................................................................................16 7.1. Test Standard and Limit ..................................................................................................16 7.2. Test Procedure ................................................................................................................16 7.3. Test Arrangement............................................................................................................16 7.4. Test Data .........................................................................................................................16 8. BAND EDGE .............................................................................................................................18 8.1. Test Standard and Limit ..................................................................................................18 8.2. Band Edge FCC 15.249(d) Limit ....................................................................................18 8.3. Test Procedure ................................................................................................................18 8.4. Test Arrangement............................................................................................................18 8.5. Test Data .........................................................................................................................18 9. ANTENNA REQUIREMENT .................................................................................................20 APPENDIX I TEST PHOTO...............................................................................................................21 APPENDIX II EUT PHOTO ...............................................................................................................25 Report No.: WT078000355 Page 3/29 TEST REPORT DECLARATION Applicant : SHEENWAY ASIA…

Text truncated - open the document above for the full version.

45605 Test Photo 1 Photo 1 Conducted Emission Test Photo 2 Conducted Emission Test 45605 Test Photo 2 Photo 3 Radiated Emission Test Photo 4 Radiated Emission Test 45605 Test Photo 3 Photo 5 Radiated Emission Test Photo 6 Radiated Emission Test
