U2ZBT3101Bluetooth Plug-in Dimmer

Important Note: To comply with the FCC/IC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Note importante: Pour se conformer aux exigences de conformité d'exposition FCC / RF IC, une distance de séparation d'au moins 20 cm doit être maintenue entre l'antenne de cet appareil et toutes les personnes. Ce dispositif ne doit pas être co-localisées ou opérant en conjonction avec tout autre antenne ou transmetteur. Nota Importante: Para cumplir con los requisitos de exposición de la FCC / IC RF, una distancia de separación de al menos 20 cm debe mantenerse entre la antena de este dispositivo y las personas. Este dispositivo no debe ubicarse ni utilizarse junto con ninguna otra antena o transmisor.

Sheenway Asia Ltd Room 1313, 13/F, Austin Tower, Tsim Sha Tsui, Kowloon. Tel (86-755)82374246 Fax (86-755)82375277 Email: [email protected] Date: 01/13/2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize of Shenzhen Academy of Metrology and Quality Inspection and hereafter referred to as SMQ, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by of Shenzhen Academy of Metrology and Quality Inspection on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SMQ as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Helios Kan, Project Engineer Sheenway Asia Ltd REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Sheenway Asia Ltd Room 1313, 13/F, Austin Tower, Tsim Sha Tsui, Kowloon. Tel (86-755)82374246 Fax (86-755)82375277 Email: [email protected] Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: U2ZBT3101 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Helios Kan Project Engineer Sheenway Asia Ltd January 14, 2015

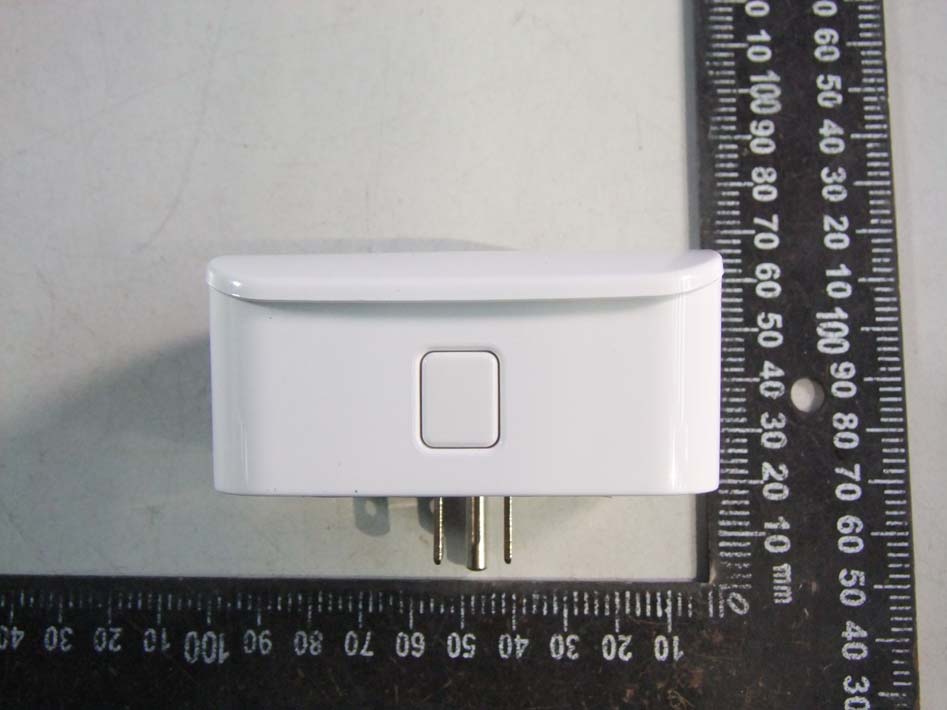

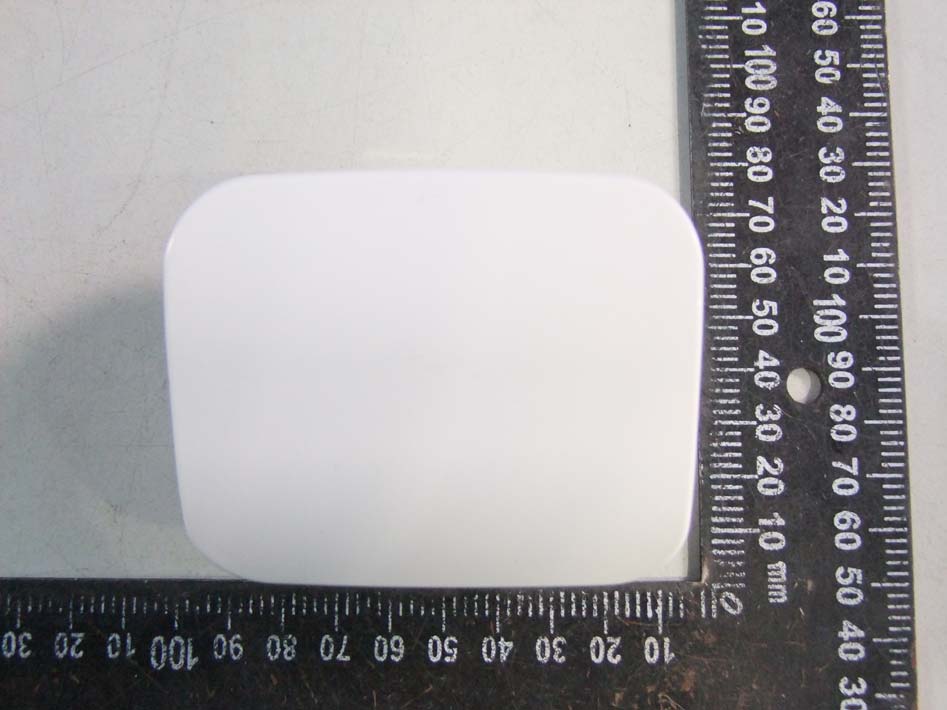

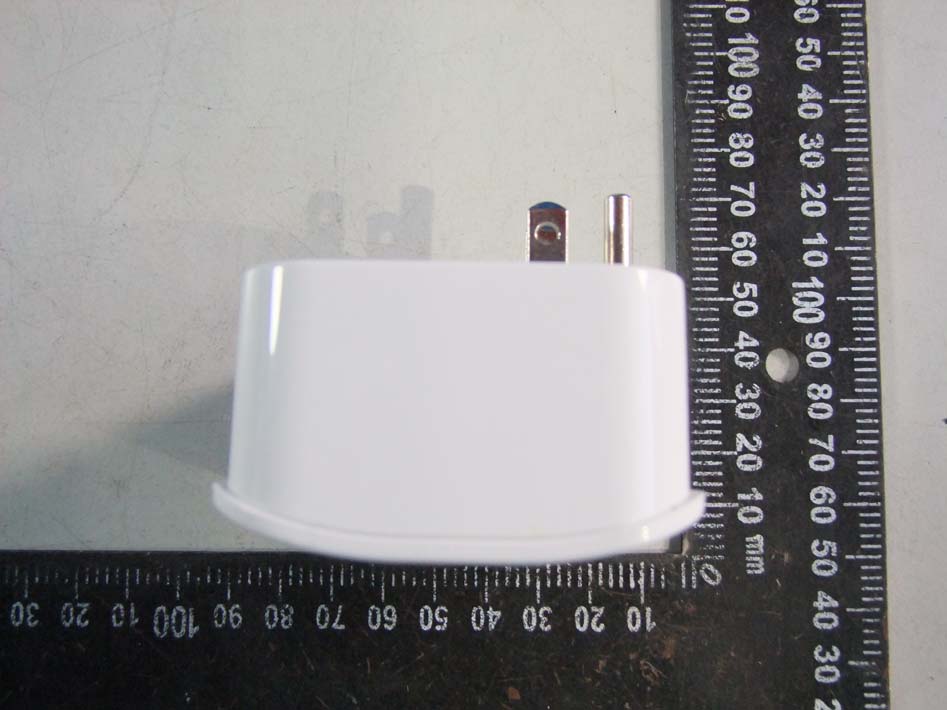

External Photo

U2ZBT3101 MPE calculation Dear Reviewer, The maximum measured power output is: 7.6dBm The maximum antenna gain for integral antenna is: 1.9dBi The maximum permissible exposure is defined in 47 CFR 1.1310 with 1 mW/cm². The Transmitter is using integral antennas that operate at 20 cm or more from nearby persons. The maximum permitted level is calculated using the general equation: S = P’ / 4πR² P’ = 7.6dBm+1.9dBi =9.5dBm=8.9mW R = 20cm π = 3.1416 Solving for S, the power density at 20 cm is: 0.018mW/cm²

FCC TEST REPORT For Bluetooth Plug-in Dimmer Model Number: BT3101 FCC ID: U2ZBT3101 Report Number : WT148004858 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection National Digital Electronic Product Testing Center Site Location : No.4 TongFa Road, Xili Town, Nanshan District, Shenzhen, China Tel : 0086-755-86009898 Fax : 0086-755-86009898-31396 Web : www.smq.com.cn Report No.:WT148004858 Page 2 of 29 Test report declaration Applicant : SHEENWAY ASIA LTD. Address : Room1313, 13/F., AustinTower, 22-26AustinAvenu, TsimSha Tsui, Kowloon. Hong Kong. China Manufacturer : KONIG ELECTRONIC (HUIZHOU) LTD. Address : 2-Plant, East Lake Side, QingTang, Lian He Village, Shui Kou, Hui Cheng District, Huizhou, GuangDong, China. Factory : KONIG ELECTRONIC (HUIZHOU) LTD. Address : 2-Plant, East Lake Side, QingTang, Lian He Village, Shui Kou, Hui Cheng District, Huizhou, GuangDong, China. EUT Description : Bluetooth Plug-in Dimmer Model No : BT3101 FCC ID : U2ZBT3101 Test Standards: FCC Part 15 (October 1, 2014 Edition) ANSI C63.10: 2009 The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the maximum emissions from the EUT. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with FCC Rules Part 15.207, 15.209 and 15.247. The test report is valid for above tested sample only and shall not be reproduced in part without written approval of the laboratory. Project Engineer: Date: Jan.20,2015 (Chen Qichun) Jan.20,2015 Checked by: Date: (Yang Dongping) Jan.20,2015 Approved by: Date: (Lin Bin) Report No.:WT148004858 Page 3 of 29 TABLE OF CONTENTS TEST REPORT DECLARATION ........................................................................................................ 2 1. TEST RESULTS SUMMARY ................................................................................................... 5 2. GENERAL INFORMATION ...................................................................................................... 6 2.1. Report information .......................................................................................................... 6 2.2. Laboratory Accreditation and Relationship to Customer ......................................... 6 2.3. Measurement Uncertainty ............................................................................................. 7 3. PRODUCT DESCRIPTION ...................................................................................................... 8 3.1. EUT Description .............................................................................................................. 8 3.2. Related Submittal(s) / Grant (s) ................................................................................... 8 3.3. Block Diagram of EUT Configuration .......................................................................... 8 3.4. Operating Condition of EUT.......................................................................................... 9 3.5. Support Equipment List ................................................................................................. 9 3.6. Test Conditions ............................................................................................................... 9 3.7. Special Accessories ....................................................................................................... 9 3.8. Equipment Modifications ............................................................................................... 9 4. TEST EQUIPMENT USED ..................................................................................................... 10 5. 6DB BANDWIDTH MEASUREMENT ................................................................................... 11 5.1. Limits of 6dB Bandwidth Measurement .................................................................... 11 5.2. Test Procedure ............................................................................................................. 11 5.3. Test Setup ..................................................................................................................... 11 5.4. Test Data ....................................................................................................................... 12 6. MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT ........................ 13 6.1. Limits of Maximum Peak Conducted Output Power Measurement ..................... 13 6.2. Test Procedure ............................................................................................................. 13 6.3. Test Data ....................................................................................................................... 13 7. MAXIMUM POWER SPECTRAL DENSITY LEVEL MEASUREMENT .......................... 15 7.1. Limits of Maximum Power Spectral Density Level Measurement ........................ 15 7.2. Test Procedure ............................................................................................................. 15 7.3. Test Data ....................................................................................................................... 15 8. CONDUCTED BANDEDGE AND SPURIOUS MEASURMENT ...................................... 17 Report No.:WT148004858 Page 4 of 29 8.1. Limits of Conducted Band Edge and Spurious Measurement .............................. 17 8.2. Test Procedure ............................................................................................................. 17 8.3. Test Data .............................................................................................................…
