U399A408H1Wireless Hand Controller

Specifications The wireless control’s “association” is preset at the factory. This procedure is only required if there is a malfunction, or if you are attempting to use the controller with a chair other than the one it was originally associated with. Troubleshooting • When any control button is pressed, that controller sounds a single “beep”. (All functions operate) Cause: Low Battery Solution: Replace batteries • When any control button is pressed, nothing happens. (No “beeps”, no movement, etc.) Causes: 1. B atteries completely dead 2. Wireless controller has lost “association” to chair.* Solution: 1. Replace batteries 2. Perform Association Procedure* . * The wireless controllers will only function with the chair they have been “associated” with. This prevents unwanted movement in locations with more than one chair. If further service is required, contact your authorized Midmark dealer. Association Procedure:A. Using the wired hand or foot control, press & hold the Stop & Home buttons simultaneously. (after two seconds you will hear a single “beep”) B*. Using the wireless hand control, press & hold the Stop & Home buttons until you hear three “beeps”. (one long “beep” indicates the association failed. Repeat Steps A & B) C. Check for proper operation of wireless hand control. D. Repeat procedure for wireless foot control. * Note: Step B must be performed within 3 seconds of Step A, failure to do so will cause the procedure to fail. Range of Operation ................. 20 ft (6 m) radius Batteries: Hand Control ......................... AA (qty: 2) Foot Control .......................... AA (qty: 2) (Note: Battery access cover is located on back of controller) MA771100i FCC Compliance StatementThis equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Any modifications to this product may violate the rules of the Federal Communications Commission and make operation of the product unlawful. Declaration of Conformity Midmark Corporation declares that 9A408001 thru 9A408008 conforms to the applicable requirements of the Radio Equipment & Telecommunications Equipment Directive 1999/5/EC, Annex II. Serial Number: ALL to present Quality Assurance Manager Gene Harshbarger Midmark Corp. 60 Vista Dr. P.O. Box 286 Versailles, OH 45380 U.S.A. 077-0520-00 User’s Guide Wireless Hand / Foot Controls 9A408 This guide outlines basic operation of the wireless hand / foot control accessory. If service is required, contact your authorized Midmark dealer. Dealer (name / phone):___________________________________ ___________________________________ ___________________________________ ___________________________________ Date of Purchase: _____________________ 003-1735-00 Rev.B © Midmark Corporation 2007 General Information Attention: Wired Hand & Foot Controls Wired hand & foot controls are shipped standard with all models. A wired controller (either hand or foot) is required to perform the Association Procedure. This procedure may be required in the event of a malfunction, do not discard the wired controllers. (Refer to: Association Procedure in this User Guide) Intended UseThis product is intended to control patient positioning while providing better patient access by eliminating the cord from the hand & foot controls. Authorized CE RepresentativeCountries in the EEC should direct all questions, incidents, and complaints to Midmark’s authorized CE Representative listed below: Promotal 22, Rue de St. Denis 53500 Ernee, FRANCE Phone: 33-2-430-517-76 Fax: 33-2-430-569-10 Calling for ServiceIf service is required, contact your Midmark dealer or to locate your nearest service provider, log onto: http://www .midmar k.com To contact Midmark directly: 1-800-Midmark (1-800-643-6275) 8:00 am until 5:00 pm Mon-Fri (EST) Midmark Corporation60 Vista DriveVersailles, OH 45380-0286Phone: 937-526-3662Fax: 937-526-5542midmark.com Limited Warranty SCOPE OF WARRANTYMidmark Corporation (“Midmark”) warrants to the original purchaser itsnew Alternate Care products and components (except for componentsnot warranted under “Exclusions”) manufactured by Midmark to be freefrom defects in material and workmanship under normal use andservice. Midmark’s obligation under this warranty is limited to the repairor replacement, at Midmark’s option, of the parts or the products thedefects of which are reported to Midmark within the applicable warrantyperiod and which, upon examination by Midmark, prove to be defective.APPLICABLE WARRANTY PERIODThe applicable warranty period, measured from the date of delivery tothe original user, shall be one (1) year for all warranted products andcomponents.EXCLUSIONSThis warranty does not cover and Midmark shall not be liable for thefollowing: (1) repairs and replacements because of misuse, abuse,negligence, alteration, accident, freight damage, or tampering;(2) products which are not installed, used, and properly cleaned asrequired in the Midmark “Installation” and or “Installation / OperationManual for this applicable product. (3) products considered to be of aconsumable nature; (4) accessories or parts not manufactured byMidmark; (5) charges by anyone for adjustments, repairs, replacementparts, installation, or other work performed upon or in connection withsuch products which is not expressly authorized in writing in advanceby Midmark.EXCLUSIVE REMEDYMidmark’s only obligation under this warranty is the repai…

Text truncated - open the document above for the full version.

December 11, 2009 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: Randy Evers, Midmark Corporation (FRN #0016172637) FCC ID: U399A408H1 To whom it may concern, Request is hereby submitted by Randy Evers, Midmark Corporation, to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Robert Menke, Midmark Corporation, wishes to keep these items confidential to maintain a competitive advantage in the marketplace. If you have questions or need further information, please contact the undersigned. Sincerely, Randy Evers Electrical Engineer Midmark Corporation 60 Vista Drive, PO Box 286 Versailles OH 45380 937-526-8711 Phone 937-526-8316 FAX [email protected] Midmark Corporation 60 Vista Drive P.O. Box 286 Versailles, Ohio 45380-0286 1-800-MIDMARK midmark.com

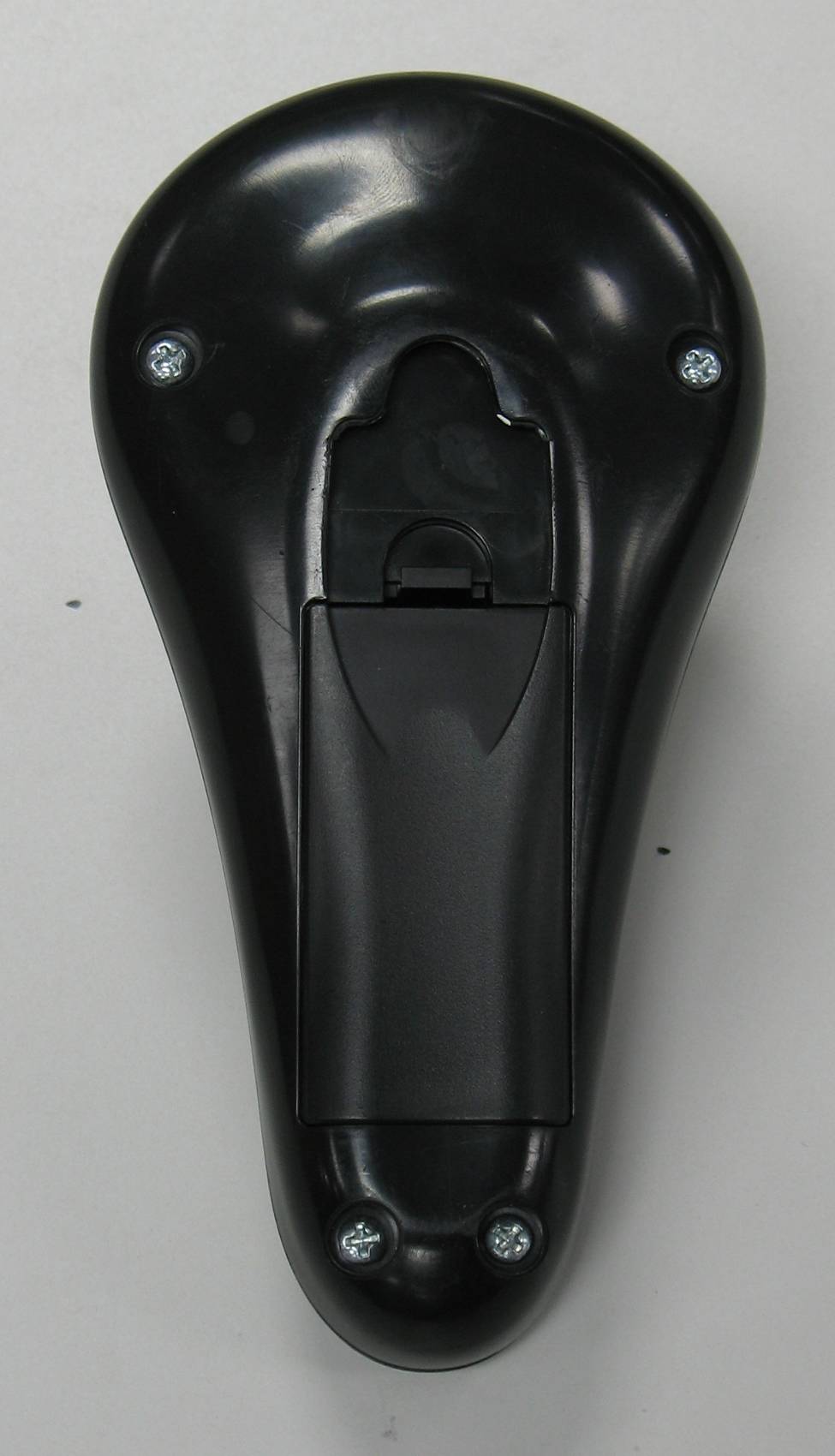

Front Side Back Side

Cover Removed Circuit Board, Component Side Circuit Board, Solder Side

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 3193461LEX-003 Project Number: 3193461 Evaluation of the Wireless Hand Control for Universal Procedure Table Model Number: 9A408H FCC ID: U399A408H1 Industry Canada: 6978A-9A408H1 FCC Part 15 Subpart B & FCC Part 15 Subpart C ICES-003 & RSS-210 Issue 7 For Midmark Corporation Test Performed by: Test Authorized by: Intertek 731 Enterprise Drive Lexington, KY 40510 Midmark Corporation 60 Vista Drive PO Box 286 Versailles, OH 45380 Prepared By:_______________________________Date:____11/23/2009________ Jason Centers, Senior Project Engineer Approved By:______________________________Date:____11/23/2009_________ Bryan C. Taylor, Team Leader 731 Enterprise Drive, Lexington KY 40510 Evaluation For: Midmark Corporation FCC ID: U399A408H1 Model No: 9A408H IC ID: 6978A-9A408T Report Number: 3193461LEX-003 Page 2 of 15 FCC Part 15, ICES-003 & RSS-210 Evaluation TABLE OF CONTENTS 1 JOB DESCRIPTION .......................................................................................................................... 3 1.1 COMPANY INFORMATION............................................................................................................ 3 1.2 TEST SAMPLE INFORMATION....................................................................................................... 3 1.3 SYSTEM SUPPORT EQUIPMENT.................................................................................................... 4 1.4 CABLES USED DURING TESTING................................................................................................. 4 1.5 SYSTEM BLOCK DIAGRAM(S) ...................................................................................................... 4 1.6 MODE(S) OF OPERATION / ENGINEERING JUDGMENTS................................................................ 4 2 EXECUTIVE SUMMARY................................................................................................................. 5 2.1 MODIFICATIONS REQUIRED FOR COMPLIANCE............................................................................ 5 3 TEST FACILITY................................................................................................................................ 6 3.1 TEST EQUIPMENT......................................................................................................................... 6 4 FIELD STRENGTH OF SPURIOUS RADIATION ....................................................................... 7 4.1 TEST PROCEDURE........................................................................................................................ 7 4.2 TEST RESULTS............................................................................................................................. 9 5 RADIATED RECEIVER EMISSIONS .......................................................................................... 14 5.1 TEST PROCEDURE...................................................................................................................... 14 5.2 TEST RESULTS........................................................................................................................... 15 731 Enterprise Drive, Lexington KY 40510 Evaluation For: Midmark Corporation FCC ID: U399A408H1 Model No: 9A408H IC ID: 6978A-9A408T Report Number: 3193461LEX-003 Page 3 of 15 FCC Part 15, ICES-003 & RSS-210 Evaluation 1 JOB DESCRIPTION 1.1 Company Information Company Information Manufacturer: Midmark Corporation Address: 60 Vista Drive PO Box 286 Versailles, OH 45380 Contact Name: Randall Evers Telephone Number: (937) 526-8711 Email Address: [email protected] 1.2 Test Sample Information The Wireless Hand Control for Universal Procedure Table Model 9A408H is a wireless hand controller for a powered examination chair for medical use. This report pertains only to the Wireless Hand Control for Universal Procedure Table Model 9A408H. Test sample Model Number: 9A408H Serial Number: Not Labeled FCC ID: U399A408H1 Device Category: Mobile RF Exposure Category: General Population/Uncontrolled Environment Transmission: Zigbee, 0-QPSK Modulation Frequency Range (MHz) 2405-2480 Antenna Type: Maxrad Model # MMSO2300 (Gain = 0dBi) with 8 inch RG-188/AU cable Antenna Location: External 731 Enterprise Drive, Lexington KY 40510 Evaluation For: Midmark Corporation FCC ID: U399A408H1 Model No: 9A408H IC ID: 6978A-9A408T Report Number: 3193461LEX-003 Page 4 of 15 FCC Part 15, ICES-003 & RSS-210 Evaluation 1.3 System Support Equipment No support equipment was necessary for evaluation. 1.4 Cables Used During Testing No cables were necessary for the evaluation. 1.5 System Block Diagram(s) The diagrams below detail the interconnection of the EUT and its accessories during the testing. Figure 1-1: Test Configuration 1.6 Mode(s) of operation / Engineering Judgments The Wireless Hand Control for Universal Procedure Table was powered by two AA batteries. Midmark Corporation provided a sample with s…

Text truncated - open the document above for the full version.

Radiated Emissions (Back) Radiated Emissions (Front)
