U399A429T1Exam Table w/ Remote Control Transmitter

User’s Guide 625 Wireless Controls 9A429 This guide outlines basic operation of the wireless hand / foot control and the associated base station. If service is required, contact your authorized Midmark dealer. Dealer (name / phone): __________________________________ __________________________________ __________________________________ __________________________________ Date of Purchase: __________________ Midmark Corporation 60 Vista Drive Versailles, OH 45380-0286 Phone: 937-526-3662 Fax: 937-526-5542 www.midmark.com General Information © Midmark Corporation 2009 Intended Use This product is intended to control patient positioning while providing better patient access by eliminating the cord from the foot control. Authorized CE Representative Countries in the EEC should direct all questions, inci- dents, and complaints to Midmark’s authorized CE Representative listed below: Promotal 22, Rue de St. Denis 53500 Ernee, FRANCE Phone: 33-2-430-517-76 Fax: 33-2-430-569-10 Calling for Service If service is required, contact your Midmark dealer. To contact Midmark directly: 1-800-MIDMARK (1-800-643-6275) Monday-Friday 8:00 am until 5:00 pm (EST) www.midmark.com 003-1945-00 Rev. A Limited WarrantyCompliance Information SCOPE OF WARRANTY Midmark Corporation (“Midmark”) warrants to the original purchaser its new Alternate Care products and components (except for components not warranted under “Exclusions”) manufactured by Midmark to be free from defects in material and workmanship under normal use and service. Midmark’s obligation under this warranty is limited to the repair or replace- ment, at Midmark’s option, of the parts or the products the defects of which are reported to Midmark within the applicable warranty period and which, upon examination by Midmark, prove to be defective. APPLICABLE WARRANTY PERIOD The applicable warranty period, measured fromt he date of delivery to the original user, shall be one (1) year for all warranted products and components. EXCLUSIONS This warranty does not cover and Midmark shall not be liable for the following: (1) repairs and replacements because of misuse, abuse, negligence, alteration, accident, freight damage, or tampering; (2) products which are not installed, used, and properly cleaned as required in the Midmark “Installation” and or “Installation / Operation Manual for this applicable product. (3) products considered to of a consumable nature; (4) accessories or parts not manufactured by Midmark; (5) charges by anyone for adjustments, repairs, replacement parts, installation, or other work performed upon or in connection with such products which is not expressly authorized in writing in advance by Midmark. EXCLUSIVE REMEDY Midmark’s only obligation under this warranty is the repair or replacement of defective parts. Midmark shall not be liable for any direct, special, indirect, incidental, exemplary, or consequential damages or delay, including, but not limited to, damages for loss of profits or loss of use. NO AUTHORIZATION No person or firm is authorized to create for Midmark any other obligation or liability in connection with the products. THIS WARRANTY IS MIDMARK’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MIDMARK MAKES NO IMPLIED WARRANTIES OF ANY KIND INCLUDING ANY WARRANTIES OF MERCHANT- ABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF DEFECTIVE PARTS. FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interfer- ence when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communica- tions. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Any modifications to this product may violate the rules of the Federal Communications Commission and make operation of the product unlawful. Declaration of Conformity Midmark Corporation declares that 9A429001 thru 9A429004 conform to the applicable requirements of the Radio Equipment & Telecommunications Equipment Directive 1999/5/EC, Annex II Serial Number: ALL to present Quality Assurance Manager Don Carr Midmark Corporation 60 Vista Drive P.O. Box 286 Versailles, OH 45380 U.S.A. 077-0589-00 Specifications Range of Operation .............20 ft. (6 m) radius Batteries: Hand Control .................................AA (qty. 2) Foot Control ..................................AA (qty. 2) Troubleshooting When any control button is pressed, that controller sounds a single “beep”. (All functions operate) Cause: Low battery Solution: Replace batteries When any control button is pressed, nothing happens. (No “beeps”, no movement, etc.) Cause: 1. Batteries completely dead 2. Wireless controller has lost “association” to chair Solution: 1. Replace batteries 2. Perform Association Procedure* The wireless controllers will only function with the ... chair they have been “associated” with. This prevents unwanted movement in locations with more than one chair. If further service is required, contact your authorized Midmark dealer. Association Procedure The wireless controller will only function with the chair it has been “associated” with. This prevents unwanted movement in locations with more than one chair. Each wireless controller’s association is preset at the factory. This procedure is only required in the event of a malfunction, if a new controller is purchased, or if you are attempting to use the controller with a chair other than the one it was originally associated with. Association Procedure: A) Disconnect power to the table for at …

Text truncated - open the document above for the full version.

FCC ID: U399A429T1 D.L.S. ELECTRONIC SYSTEMS, INC. 1250 Peterson Drive Wheeling, Illinois 60090 February 9, 2010 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Gentlemen: We are submitting for Midmark Corporation, Inc., an 625 Barrier Free Table Transmitter, Model Number: 9A42900T, with an FCC ID: U399A429T1 for Certification. This unit has been tested and complies to Part 15, Subpart C. If there are any questions in regard to this application, please call D.L.S. Electronic Systems, Inc. at (847) 537 6400. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 15, Section 15.249. Thank you for your assistance in this matter. Sincerely, Arnom C. Rowe EMC-001375-NE DLS/cp

1250 Peterson Dr., Wheeling, IL 60090 Request for Confidentiality Date: February 9, 2010 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: U399A429T1 Pursuant to 47 CFR Section 0.459 Midmark Corporation understands that requests for non disclosure and confidential treatment is being made for the following information as stated under the Code of Federal Regulations Chapter 47, Part 0.459 and behalf of APPLICANT NAME: • Block Diagram • Schematics • Description of Operation The above materials contain trade secrets, proprietary and technical information that would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Midmark Corporation understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.

MIDMARI<­ LETTER OF AUTHORIZATION FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Ladies and or Gentlemen: ~ I appoint Brian J. Mattson or Arnom C. Rowe to act as agent in the preparation of applications under Part 15 of the Rules and Regulations of the Federal Communications Commission. I certify that the exhibits properly describe the device being submitted under this application and will implement any changes described in the test report. . The following statement is required by the Federal Communications Commission: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti­ Drug Abuse Act of 1988,21 U.S.C. 853(a), or, in the case of an non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial offederal benefits, that includes FCC benefits, pursuant to that section. ~X-",-_YES NO -zr el ~AU.J - Dated this ------d~----day of_---'rm;pz'--+-'--/l-L-&-rJS-+.L__2009 Agency agreement expiration date: None By -t4+I1 ------.~'skna-tur-e----- Printed Title Telephone 93} -'37.{, -1'3/L.. Applicant _-----'-f{_id_M,_~_r_k _ 2

Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: Side 1 Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: Side 2 Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: Side 3 Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: Side 4 Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: Location of radio board Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: Close-up of antenna

Company: Midmark Corporation Model: 625 Hi\Lo Exam Table; Midmark Base Station Transceiver Photo Description: Label will be located with other compliance labels:

Company: Midmark Corporation Model: Midmark 625 Wireless Basestation Transceiver Date: 11-20-2009 Photo Description: Circuit board - Side 1 Company: Midmark Corporation Model: Midmark 625 Wireless Basestation Transceiver Date: 11-20-2009 Photo Description: Circuit board - Side 2

1250 Peterson Dr., Wheeling, IL 60090 Page -1 of 41- Company:Midmark Corporation Model Tested: 625-003, 625-006 Report Number: 15874 FCC Rules and Regulations / Intentional Radiators Operational in the 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz Bands Part 15, Subpart C, Section 15.249 THE FOLLOWINGMEETS THE ABOVE TEST SPECIFICATION Formal Name:625 Wireless Basestation FCC ID:U39 9A429T1 Kind of Equipment: Medical Exam Table Frequency Range: 2405 - 2480 MHz Test Configuration: Stand Alone (Tested at 240 vac, 60 Hz) Model Number(s): 625-001, 625-002, 625-003, 625-005, 625-006 Model(s) Tested: 625-003, 625-006 Serial Number(s): N/A Date of Tests:November 17 & 18, 2009, and February 16, 2010 Test Conducted For: Midmark Corporation 60 Vista Drive Versailles, Ohio 45380 NOTICE: “This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Additional Description of Equipment Under Test" page listed inside of this report. © Copyright 1983-2009 D.L.S. Electronic Systems, Inc COPYRIGHT NOTICE This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems, Inc. 1250 Peterson Dr., Wheeling, IL 60090 Page -2 of 41- Company:Midmark Corporation Model Tested: 625-003, 625-006 Report Number: 15874 SIGNATURE PAGE Report By: Arnom C. Rowe Test Engineer EMC-001375-NE Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager 1250 Peterson Dr., Wheeling, IL 60090 Page -3 of 41- Company:Midmark Corporation Model Tested: 625-003, 625-006 Report Number: 15874 TABLE OF CONTENTS i. Cover Page................................................................................................................................1 ii. Signature Page...........................................................................................................................2 iii. Table of Contents ......................................................................................................................3 iv. NVLAP Certificate of Accreditation..........................................................................................4 1.0 Summary of Test Report............................................................................................................5 2.0 Introduction...............................................................................................................................5 3.0 Object .......................................................................................................................................5 4.0 Test Set-Up ...............................................................................................................................6 5.0 Test Equipment .........................................................................................................................6 6.0 Ambient Measurements.............................................................................................................7 7.0 Description of Test Sample........................................................................................................8 8.0 Additional Description of Test Sample ......................................................................................9 9.0 Photo Information and Test Set-Up ...........................................................................................9 10.0 Radiated Photos Taken During Testing....................................................................................10 10.0 Conducted Photos Taken During Testing.................................................................................16 11.0 Results of Tests .......................................................................................................................18 12.0 Conclusion ..............................................................................................................................18 TABLE 1 – EQUIPMENT LIST.........................................................................................................19 Appendix A – Electric Field Radiated Emissions Test.........................................................................20 1.0 Conducted Emission Measurements ........................................................................................21 2.0 Band Edge and Restrict Band Compliance...............................................................................27 2.0 Data and Graph(s) taken showing the Band Edge ....................................................................29 3.0 Antenna Connector..................................................................................................................31 4.0 Field Strength of Spurious Emission Measurements ................................................................31 4.0 Radiated Data taken for Fundamental & Spurious Measurements ............................................33 3.0 Data and Graph(s) taken showing the 20 dB Bandwidth ..........................................................37 5.0 Transmitter Duty Cycle Graphs Taken During testing .............................................................39 1250 Peterson Dr., Wheeling, IL 60090 Page -4 of 41- Company:Midmark Corporation Model Tested: 625-003, 625-006 Report Number: 15874 1250 Peterson Dr., Wheeling, IL 60090 Page -5 of 41- Company:Midmark Corporation Model Tested: 625-003, 625-006 Report Number: 15874 1.0 SUMMARY OF TEST REPORT It was found that the 625 Wireless Basestation, Model Number(s) 625-003, 625-006meets the radio interference radiated emission requirements of the FCC ''Rules and Regulations'', Part 15, Subpart C, Section 15.249 for operational in the 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz Bands. 2.0 INTRODUCTION On November 17 & 18, 2009, a series of radio frequency interference measurements was performed on 625 Wireless Basestation, Model Number(s) 625-003, 625-006, …

Text truncated - open the document above for the full version.

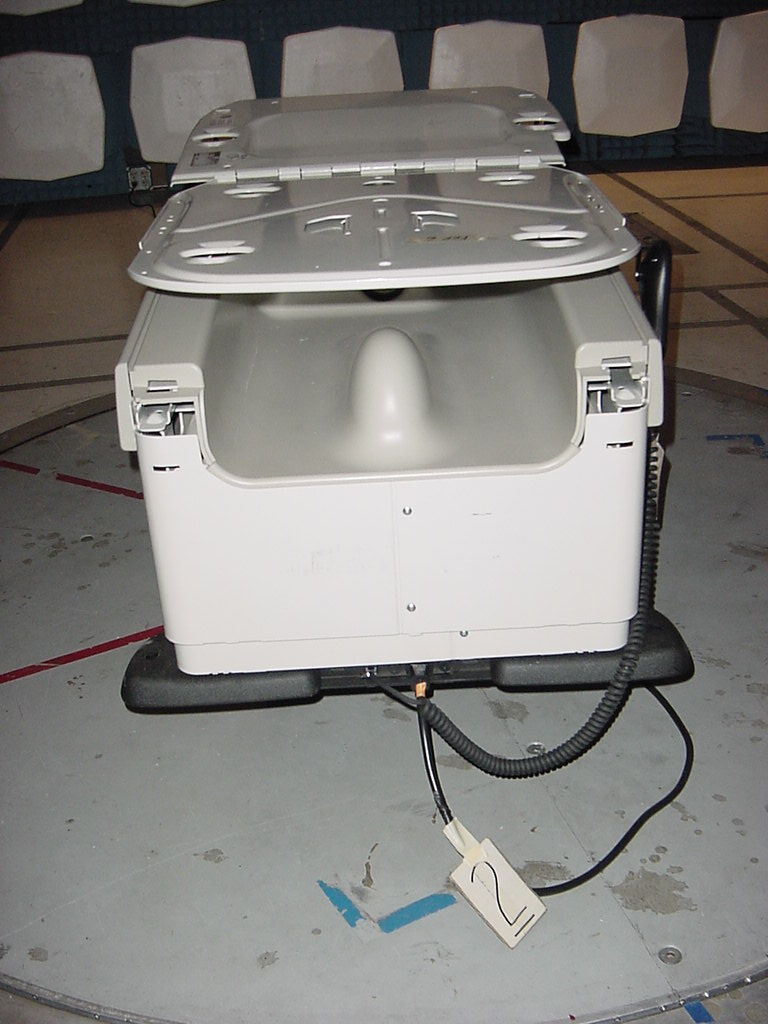

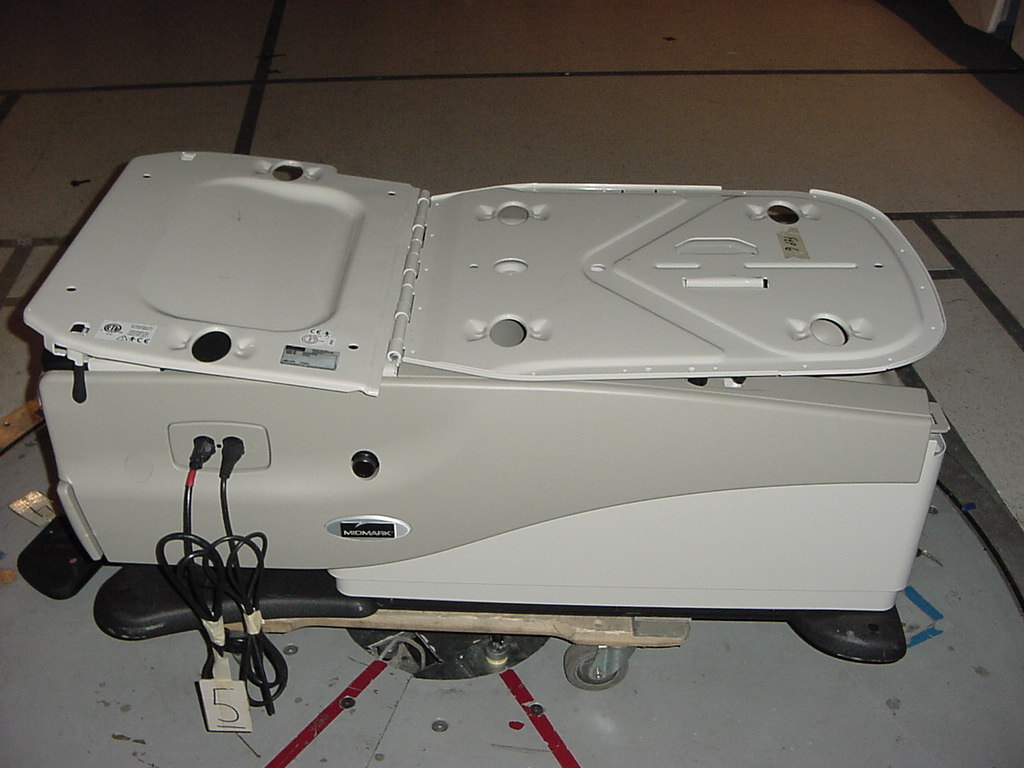

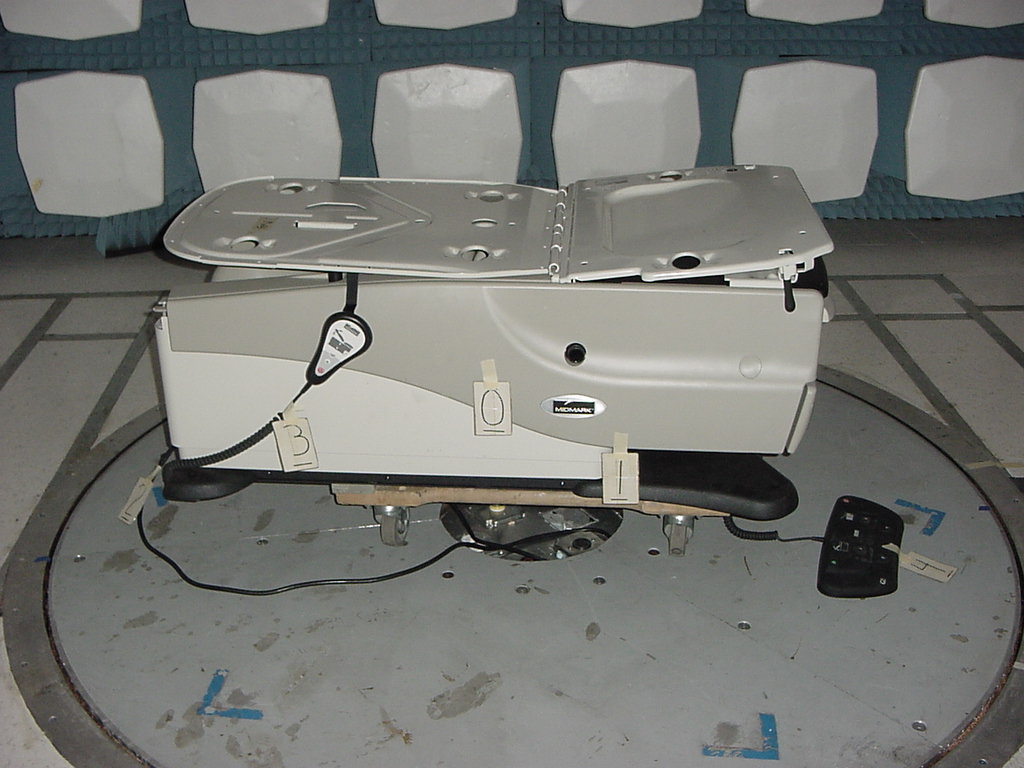

Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: Radiated - Side 1 Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: Radiated - Side 2 Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: Radiated - Side 3 Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: Radiated - Side 4 Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: Close-up of radio board Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: Close-up of antenna Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: AC Line conducted – Front Company: Midmark Corporation Model: 625 Wireless Basestation Transceiver Photo Description: AC Line conducted – Back
