U45-2714507001Eagle Jet

INDEX Product Safety Warnings........................................2 The Ten Best Things About The Eagle Jet............4 Tips for Good Maintenance.......................................5 How to Replace the Propellers..............................5 Packaging Checklist................................................6 Illustration of the Eagle Jet & Accessories..............6 Battery Installation and Recharging.........................7 Pre-Flight Pilot Checks ..............................................8 Flying the Eagle Jet...............................................9 Maximise Your Fun...................................................10 Frequently Asked Questions...................................11 Technical Support........................................................11 Thank you for investing in hours of fun and flying action with your new Eagle Jet. We have included the latest technology and designed the aerodynam- ics of the Eagle Jet to make sure you have a great flying experience. We hope you have as much fun flying as we have had in designing, building and testing the Eagle Jet. Best Regards The Nine Eagle Team WARNING CHOKING HAZARD: Small parts. Not for Children under 3 years. WARNING Do not touch the running propeller! Do not play above someone’s head! Adult supervision is required! 1 PAGE PRODUCT SAFETY WARNINGS General Safety Read this user guide carefully and use the Eagle Jet according to these instructions. You should keep this manual as reference for the future. Small parts included with this toy may cause children to choke if parts are swallowed. Children under 8 years of age should not play with this toy. This toy must be used under strict adult supervision. NEVER touch the moving parts and NEVER fly this toy close to other people or above their heads. When flying, always keep the jet in sight so that you can control its flight. Never insert non-connected wires or cables into the power socket. Transmitter, Batteries & Recharging 1. Always turn your jet and transmitter OFF when not in use. Remove the batteries from the transmitter if not in use for a long time. For the longest flight time we recommend new alkaline batteries or fully charged rechargeable batteries for the transmitter. 2. NEVER charge the Eagle Jet in anyway other than the way described in these instructions. The transmitter charger should only be used for the Eagle Jet. NEVER try to use it to recharge other batteries. 3. Do not try to charge non-rechargeable batteries. Use only the recommended batteries and ensure all batteries in the transmitter are of the same type. If use re-chargeable batteries for the transmitter, please remove the batteries when recharging, and recharge them according to the manufacturers instructions. 4. Install the batteries under correct polarity as shown inside the transmitter casing. The supply terminals are not to be short-circuited Extra Safety for Li-PO Batteries 1.Your Eagle Jet is powered by a small rechargeable Li-PO battery that is fixed inside the aircraft. If not used correctly, Li-PO batteries can cause fire. Do not throw batteries into fire or place them close to heat sources. Also you should keep your batteries in a dry location. 2 PAGE 2.Only recharge the Li-PO battery through the transmitter and NEVER recharge the batteries in excess. When re-charging place the Eagle Jet in an open area with fire proof surroundings. Ensure you do not leave the Eagle Jet unattended whilst charging. Do not connect the batteries with other circuits. Do not use screws and sharp objects to modify or fasten the batteries. NEVER cut or break open the batteries. 3.To maintain the life of the battery, re-charge the batteries at least every 6 months if not in use for a long time. Turn off the power after use. Take Care of the Environment Li-PO batteries should be disposed of by putting the battery in a safe open area and connecting a moderate resistance across the cell terminals until the cell is completely discharged. CAUTION: The battery may get extremely hot during the discharge. Once fully discharged immerse the battery in salt water for several hours and then place it in your recycle rubbish bin. This device complies with part 15 of the FCC rules. Opera- tion is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, in- cluding interference that may cause undesired operation. NOTE:This equipment has been test and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a resi- dential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful in- terference to radio communication. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interfer- ence to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 3 PAGE @ Reorient or relocate the receiving antenna. @ Increase the separation between the equipment and receiver. @ Connect the equipment into an outlet on a circuit differ- ent from that to which the receiver is connected. @ Consult the dealer or an experienced radio/TV techni- cian for help. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for com- pliance could void the user’s authority to operate the equipment. WEEE: When this appliance is out of use, please remove all batteries and dispose of them separately. Bring electrical appliances to the local collecting points for waste electri- cal and electronic equipment. Other components can be disposed of in domestic refuse. The Ten Best…

Text truncated - open the document above for the full version.

Diagram88225-TX-b.sch-1-FriOct1209:43:242007

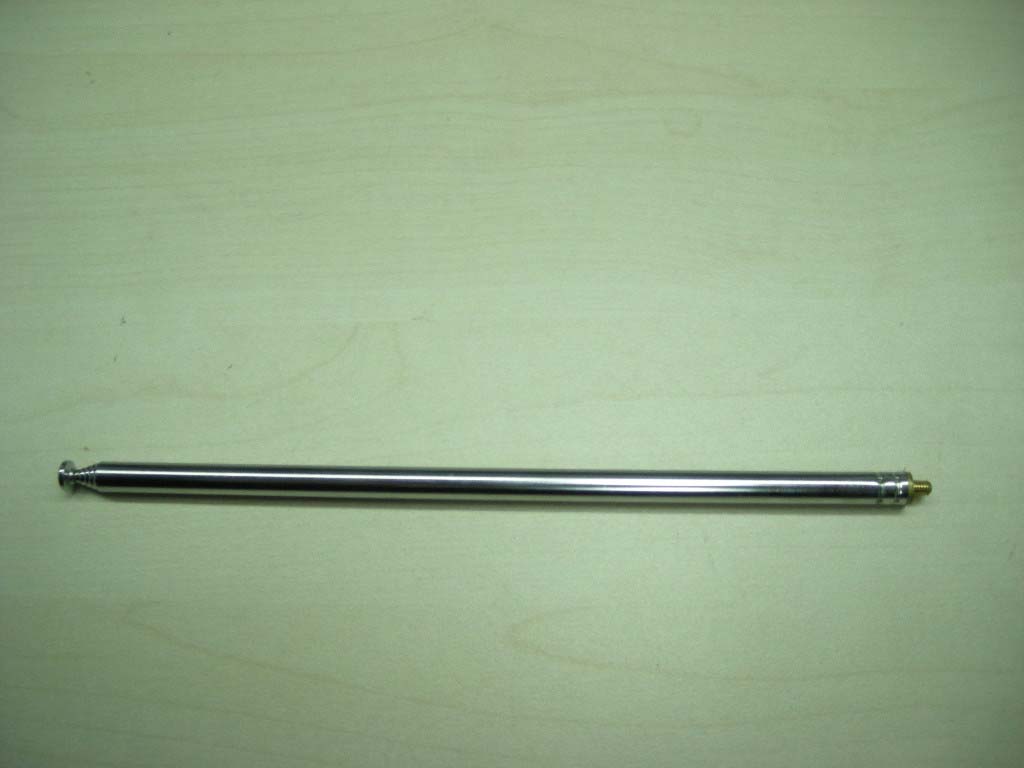

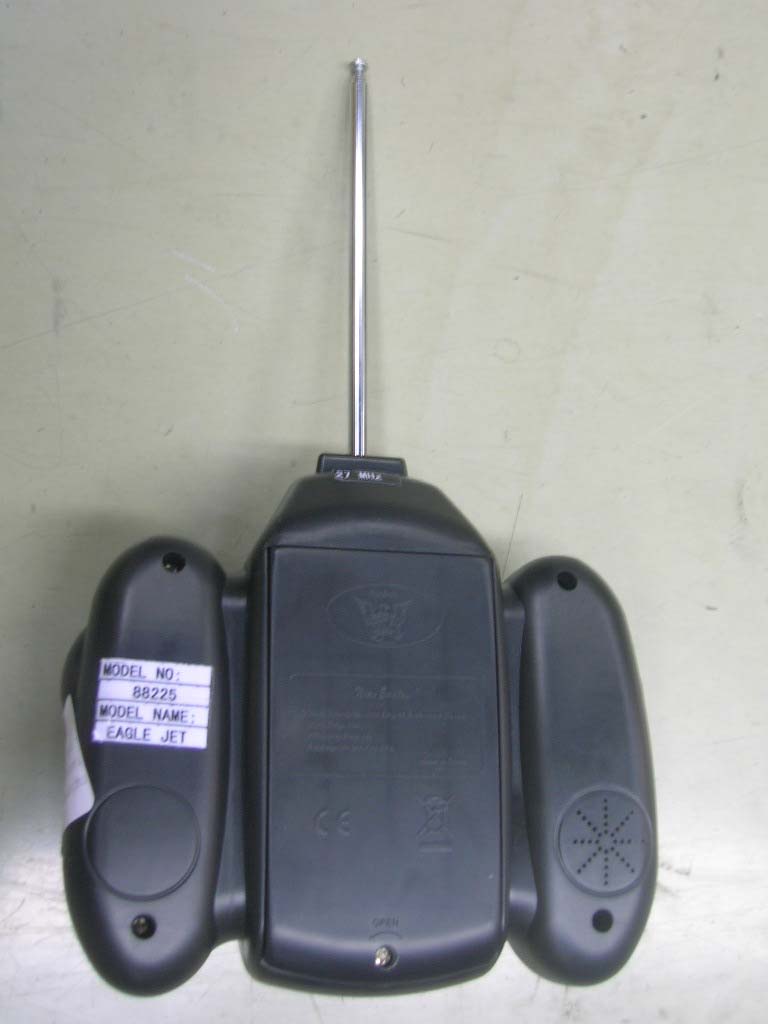

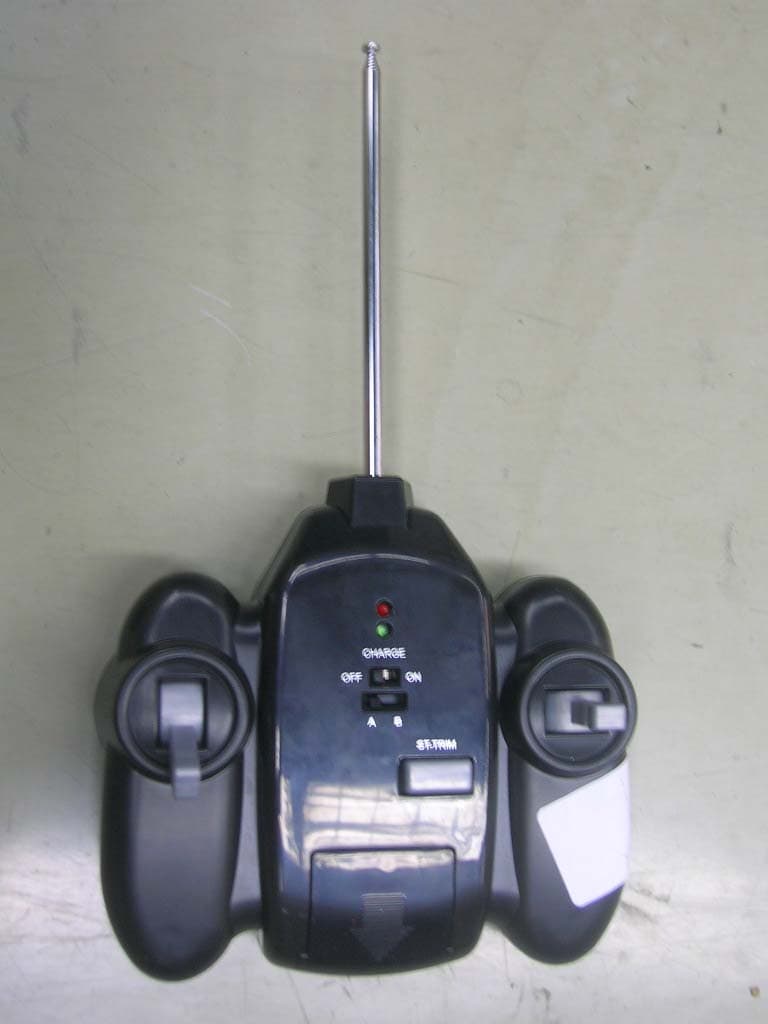

FCC ID: U45-2714507001 Page 1 of 4 External Picture FCC ID: U45-2714507001 Page 2 of 4 FCC ID: U45-2714507001 Page 3 of 4 FCC ID: U45-2714507001 Page 4 of 4

FCC ID: U45-2714507001 Page 1 of 2 FCC ID Label FCC ID: U45-2714507001 Page 2 of 2

FCC ID: U45-2714507001 Page 1 of 3 Internal Picture FCC ID: U45-2714507001 Page 2 of 3 FCC ID: U45-2714507001 Page 3 of 3

Operational Description 1. Inset 6 AA batteries (with 1.5V each) into the EUT. 2. Put the EUT into the semi-anechoic chamber according to the test item. 3. Power on the EUT. 4. Enable the joy stick controlling forward & back.. 5. Test according to the standard. 6. Enable the joy stick controlling left & right. 7. Test according to the standard. 8. Test complete. 9. Turn off the EUT.

88225-TX-A.sch-1 - Fri Oct 12 09:38:54 2007

Report No. JSH007100253-001 Page 1 of 11 FCC ID: U45-2714507001 EMC TEST REPORT No. JSH007100253-001 Applicant : Shanghai Nine Eagles Electronic Technology Co., Ltd. Room 1104, Huaxiang Building, No. 80 Moling Road, Shanghai, 200070, China Manufacturer : Shanghai Nine Eagles Electronic Technology Co., Ltd. No. 28 Yulu road, Malu, Jiading District, Shanghai, China Equipment : Eagle Jet Type/Model : 88225, 88251, 88252, 88253, 88256, 88258, 98231, 98232, 98233, 98236, 98238 SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2006): Radio Frequency Devices ANSIC63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Date of issue: Nov 5, 2007 Tested by: Reviewed by: Wakeyou Wang (Projector Engineer) Jonny Jing (Reviewer) Report No. JSH007100253-001 Page 2 of 11 FCC ID: U45-2714507001 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 6201A Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 Report No. JSH007100253-001 Page 3 of 11 FCC ID: U45-2714507001 Content SUMMARY............................................................................................................................................. 1 DESCRIPTION OF TEST FACILITY............................................................................................................ 2 1. GENERAL INFORMATION............................................................................................................... 4 1.1 Applicant Information..........................................................................................4 1.2 Identification of the EUT .....................................................................................4 1.3 Technical specification ........................................................................................4 1.4 Mode of operation during the test / Test peripherals used...................................5 2. TEST SPECIFICATION..................................................................................................................... 5 2.1 Instrument list ......................................................................................................5 2.2 Test Standard .......................................................................................................5 3. RADIATED EMISSION WITHIN THE INTENTIONAL RADIATOR BAND.............................................. 7 3.1 Limit.....................................................................................................................7 3.2 Test Configuration ...............................................................................................7 3.3 Test Procedure and test setup...............................................................................7 3.4 Test Protocol ........................................................................................................8 3.5 Measurement uncertainty.....................................................................................8 4. SPURIOUS EMISSION OUTSIDE THE INTENTIONAL RADIATOR BAND............................................. 9 4.1 Limit.....................................................................................................................9 4.2 Test Configuration ...............................................................................................9 4.3 Test Procedure and test setup.............................................................................10 4.4 Test Protocol ......................................................................................................10 4.5 Measurement uncertainty...................................................................................11 Report No. JSH007100253-001 Page 4 of 11 FCC ID: U45-2714507001 1. General Information 1.1 Applicant Information Applicant: Shanghai Nine Eagles Electronic Technology Co., Ltd. Room 1104, Huaxiang Building, No. 80 Moling Road, Shanghai, 200070, China Name of contact: Mr. Huang Guochuan Tel: 86 21 69152688 Fax: 86 21 69152687 Manufacturer: Shanghai Nine Eagles Electronic Technology Co., Ltd. No. 28 Yulu road, Malu, Jiading District, Shanghai, China Sample received date : Oct 12, 2007 Date of test : Oct 17, 2007 ~ Nov 5, 2007 1.2 Identification of the EUT Equipment: Eagle Jet Type/model: 88225; 88251, 88252, 88253, 88256, 88258; 98231, 98232, 98233, 98236, 98238 Type identification: All the models above are identical in all hardware/software aspects except their different colour. Here the model 88225 was chosen to perform test. FCC ID: U45-2714507001 1.3 Technical specification Operation Frequency Band: 26.96MHz ~ 27.28MHz Modulation: 2ASK Antenna Designation: Single-pole antenna with non-standard antenna connector, Removable Rating: Built-in Battery: DC 6*1.5V Working frequency: 27.145MHz Description of EUT: The EUT is a transmitter to transmit wireless signal so as to control the flight of plane model. There are two joy sticks on the panel: one control forward & back; the other control left & right. Nevertheless, the two joy sticks cannot work at the same time. Report No. JSH007100253-001 Page 5 of 11 FCC ID: U45-2714507001 1.4 Mode of operation during the test / Test peripherals used Within this test report, EUT was tested with modulation and tested under its rating voltage and frequency. The two joy sticks were operated in turn and the worst test result was recorded. . 2. Test Specification 2.1 Instrument list Equipment Type Manu. Internal no.Cal. Date Due date Test Receiver ESIB 26 R&S EC 3045 2007-6-1 2008-5-31 Ultra-broadband antenna HL 562 R&S EC 3046-1 2007-6-1 2008-5-31 Signal generator SMR 20 R&S EC 3044-1 2007-8-22 2008-8-21 Power meter PM2002…

Text truncated - open the document above for the full version.

FCC ID: U45-2714507001 Page 1 of 3 Test Setup FCC ID: U45-2714507001 Page 2 of 3 Vertical FCC ID: U45-2714507001 Page 3 of 3 Horizontal
