U4F0020Star Module Plus 910MHz

StarModulePlus910_1_3.d oc Revision: 1.3 19/05/2010 Confidential page 1 of 1 DATALOGIC PROPRIETARY INFORMATIONS STAR-Module Plus 910 Preliminary Rev 1.3 Integration Guide Author: Luciano Ruggiero Pier Giorgio Peruzzi SmallSTAR-Module 910 StarModulePlus910_1_3.d oc Preliminary Confidential page 2 of 2 DATALOGIC PROPRIETARY INFORMATIONS Document History Rev 1.3 FW release 119 : New Radio Low Cost Plus version added Rev 1.2 FW release 118: Ddttl improvement, TX routine without byte stuffing Rev 1.1 FW release 117R: Calibration address bug fixed, CD improvement Rev 1.0 FW release 116F Introduction..............................................................................................2 Pinout.......................................................................................................3 Electrical characteristics...............................................................................3 RF chracteristics.........................................................................................4 Timings......................................................................................................4 Block diagram.............................................................................................4 Basic module states.....................................................................................5 Introduction The STAR-Module 910 SLC is an FSK RF half-duplex transceiver working at 910 MHz. Its main features are: • UART baud rate of 38400 8 n 1bps • Default RF baud of 36864bps Manchester encoded • Extended 5.5 to 3.1 V power supply • Temperature range –20°C / +55°C • High RF frequencies precision, due to utilization of a PLL synthesizer • Factory calibration parameters saved on write protected flash block • Factory pre-loaded unique 32 bit address for each module • RF front-end with SAW filter for high out-of-band noise rejection and low spurius level emission • On-board temperature sensor for compensation of frequency drift • Bootloader for in circuit firmware upgrate • Sub-milliampere sleep mode • On-board EEPROM for configuration parameters SmallSTAR-Module 910 StarModulePlus910_1_3.d oc Preliminary Confidential page 3 of 3 DATALOGIC PROPRIETARY INFORMATIONS Pinout IDLE/RX Function HIGH Sleep LOW Rx mode Receive data on TX_DATA, CD# asserted means RF channel is busy Electrical characteristics Description @ 3.3 V @ 5 Unit TX mode current 18 31 mA RX mode current 16 21 mA IDLE mode current 32 52 uA RF characteristics Description Typ Unit TX/RX center frequency 910 MHz FSK modulation frequency shift +/- 75 kHz RX bandwidth 300 kHz Output power (50 Ohm load) -2.5 dBm RX Sensitivity (BER < 5% @36864 baud) -106 dBm CD# threshold -76 dBm RF in/out impedance 50 Ohm Frequency drift from –25 to +55°C +/- 50 ppm RF CONNECTOR - J1 GROUND - 10 RESET_ Input 9 IDLE Input 8 Vdc (3.1 to 5.5 V) - 7 GROUND - 6 not connected - 5 RX_DATA Output 4 CD# (active low) Output 3 TX_DATA Input 2 GROUND - 1 Description Direction Numbe r SmallSTAR-Module 910 StarModulePlus910_1_3.d oc Preliminary Confidential page 4 of 4 DATALOGIC PROPRIETARY INFORMATIONS Block diagram Blocks description: • Reset supervisor: the microcontroller is reset when power supply falls below 3V • Temperature sensor: 10kOhm NTC • Microcontroller: Atmel ATMega8L with RISC AVR core, 8kB Flash, 1kB SRAM, 512 B EEPROM, ADC, UART, I2C controller, 8MHz internal clock oscillator • RF Transceiver: Infineon TDA5252 with PLL synthesizer (reference oscillator 18.958333MHz) • Analog RX baseband circuitry: processing of analog signal from transceiver demodulator to uC ADC • RF Front End: SAW filter, PIN-diode based RX-TX switch SmallSTAR-Module 910 StarModulePlus910_1_3.d oc Preliminary Confidential page 5 of 5 DATALOGIC PROPRIETARY INFORMATIONS Basic module states Different states explanation: • IDLE: this state is entered when pin IDLE is set High. Power consumption is lowered to less than 100 uA. In idle state the radio module is unable to receive or transmit data packets. • TX: RF power amplifier is active. This state can be entered from RX mode, sending to the module a formatted TX packet. Tx mode can’t be hold active more than the maximum data packet (about 20 mS). • RX:receiver is active. Data is sent out from RX_DATA pin and CD is set depending from presence or not of RF carrier. • COMMAND: the module exits from normal functioning and is able to receive configuration commands from host. This state can be entered from RX mode, sending to the module the escape string [ESC]#+CMD[CR] @ 38400, 8, N, 1. To exit this state, the appropriate command must be sent. Fig. 1 RX mode Received RF signal is down-converted to baseband, demodulated and converted to a bit stream presented on TX_DATA pin. Also CD# is driven, asserting presence or lack of carrier in the RF channel as in Fig 1. SmallSTAR-Module 910 StarModulePlus910_1_3.d oc Preliminary Confidential page 6 of 6 DATALOGIC PROPRIETARY INFORMATIONS Absence of RF: high level. Presence of RF: low level. The RF down conversion starts with the reception of the 0xB2 (old protocol) or 0x96 (new protocol) byte, followed by the packet length byte. According to this value the conversion goes on receiving length number bytes plus the two CRCs. Thus the byte stream presented on TX_DATA (output) UART starts with 0xFF, 0xB2 or 0x96, the packet length byte and so on sending the number of length byte to complete the packet reception plus the CRCs bytes. Active blocks are:
Receiver part of transceiver
ADC conversion of RSSI signal
DSP of the analog demodulated signal in order to decide the best RX frequency out of the 2 available
Analog signal conditioning block, prior to ADC conversion
ADC conversion of temperature indication and compensation
UART to receive command strings from the host @38400, N, 8, 1 on pin Data In. The reception of the enter test string [ESC]#+CMD[CR] causes the exit from RX mode and the entering of CMD mode, while the reception of the TX command [STX] [DATA] c…

Text truncated - open the document above for the full version.

Datalogic Scanning Group s.r.l. Gruppo Hydra S.p.A. – art. 2497 Cod. Civ. Direzione/Controllo Datalogic S.p.A. Via S. Vitalino, 13 40012 Lippo di Calderara di Reno Bologna - Italy Tel. +39 051 3147011 - Fax +39 051 3147288 www.datalogic.com R.E.A. Bologna 462539 Capitale sociale 10.000.000,00 euro Codice Fiscale e Partita I.V.A. 02729821203 AGENCY LETTER Date: May 12 th , 2010 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom To whom it may concern This is to certify that Datalogic Scanning Group S.r.l. authorises RFI Global Services Ltd. to act on our behalf for the application of the Datalogic STAR MODULE PLUS 910MHz to RFI Global Services Ltd. Telecommunication Certification Body. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Sincerely, Datalogic Scanning Group S.r.l. Telephone Number +39 051 3147393 Fax Number +39 051 3147288 Email: [email protected]

Datalogic Scanning Group s.r.l. Gruppo Hydra S.p.A. – art. 2497 Cod. Civ. Direzione/Controllo Datalogic S.p.A. Via S. Vitalino, 13 40012 Lippo di Calderara di Reno Bologna - Italy Tel. +39 051 3147011 - Fax +39 051 3147288 www.datalogic.com R.E.A. Bologna 462539 Capitale sociale 10.000.000,00 euro Codice Fiscale e Partita I.V.A. 02729821203 Confidentiality Request Letter Lippo di Calderara di Reno, May 12 th , 2010 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Confidentiality Request; Certification Application FCC ID: U4F0020 Pursuant to Sections 0.457 and 0.459 of CFR 47 Datalogic Scanning Group S.r.l. request that the following information, provided to support the FCC application for the Datalogic STAR MODULE PLUS 910MHz , FCC ID: U4F0020, be held permanently confidential: Schematics, Operating Description, Block Diagram The above material contains trade secrets not customarily released to public that are judged to have the potential to cause detriment to the applicant and provide unjustified benefits to its competitors. This information should not be available for public disclosure for an indefinite period of time. Sincerely, Datalogic Scanning Group S.r.l. Telephone Number +39 051 3147393 Fax Number +39 051 3147288 Email: [email protected]

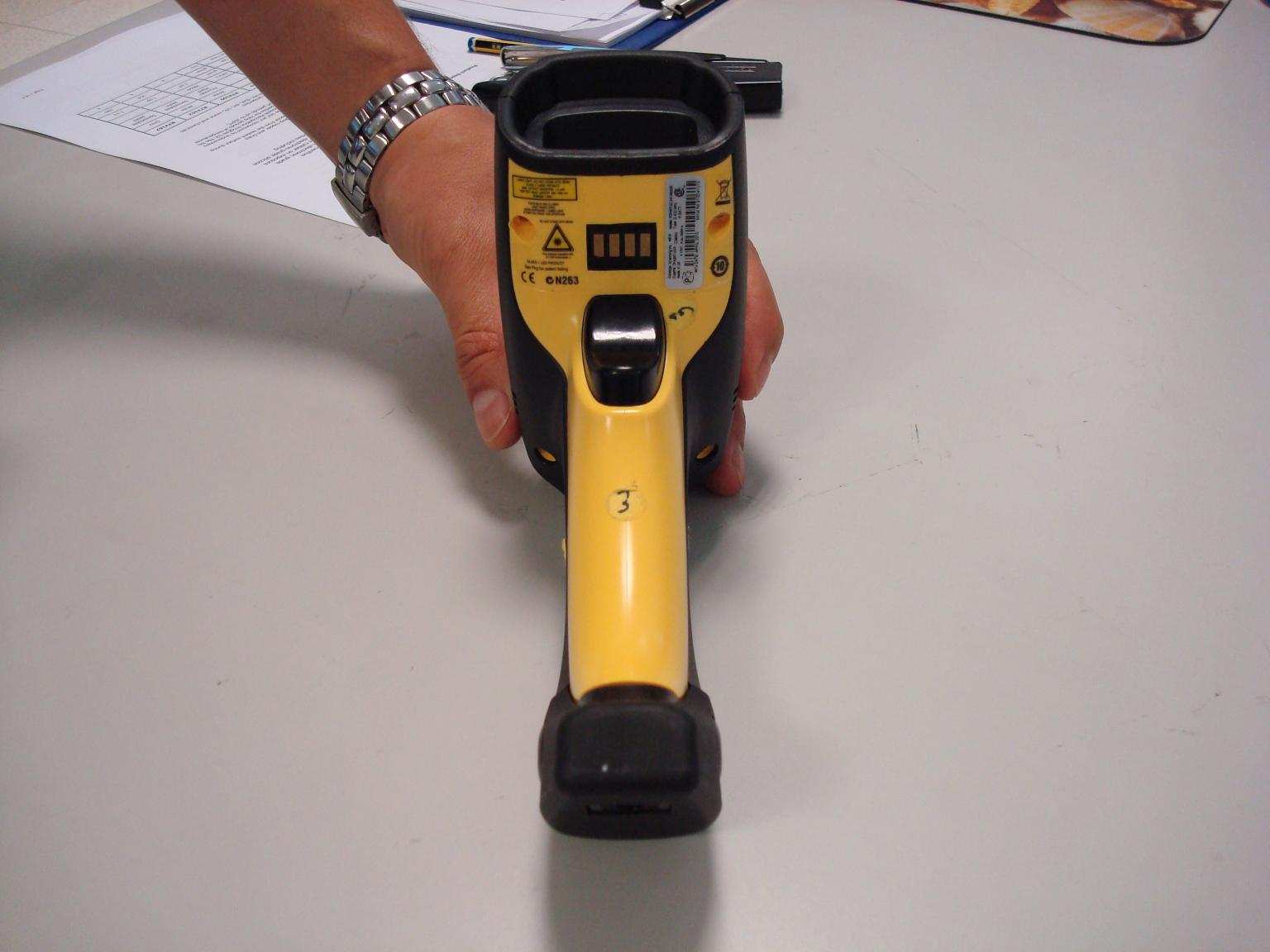

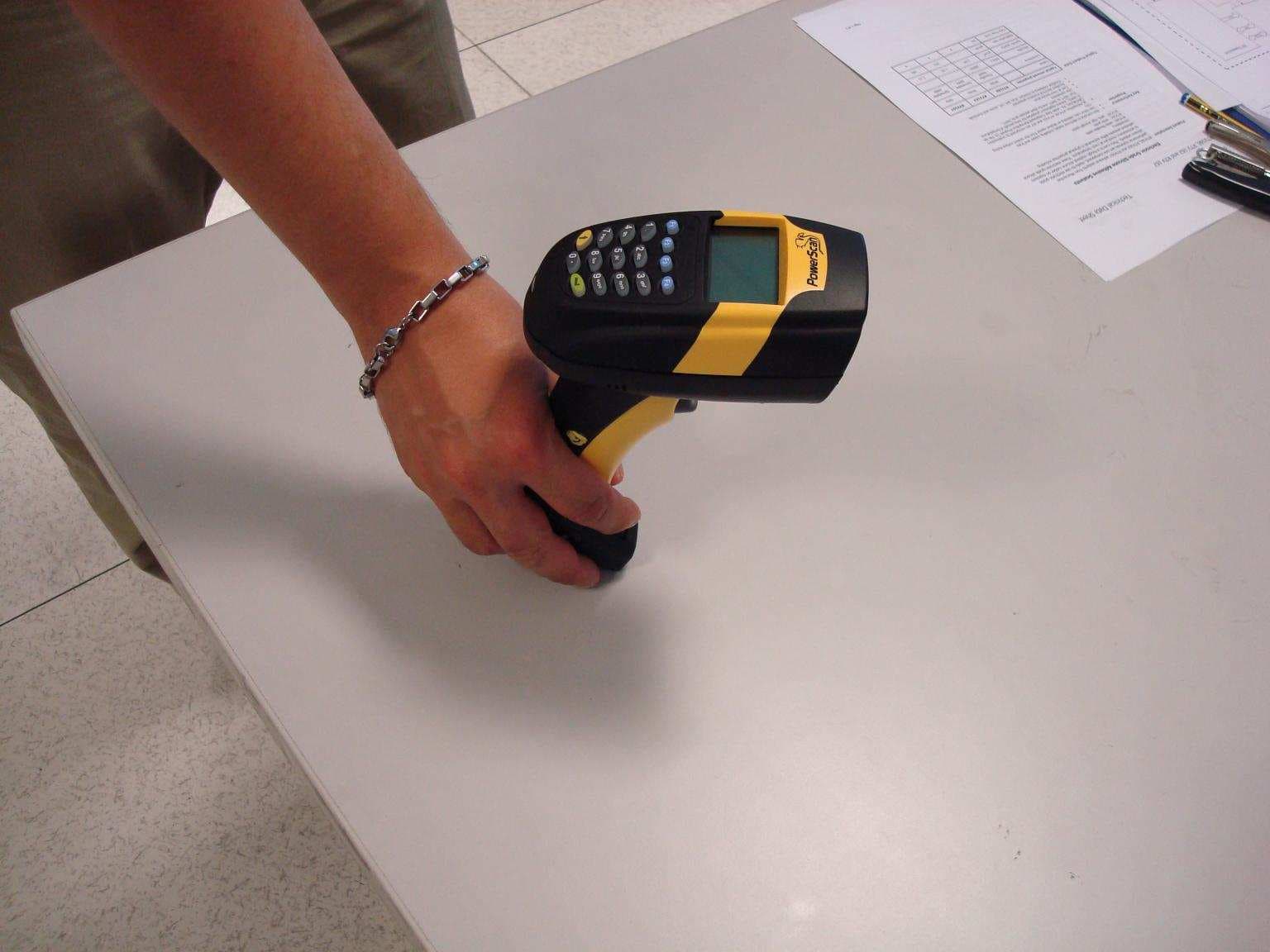

Datalogic Scanning Group s.r.l. Gruppo Hydra S.p.A. – art. 2497 Cod. Civ. Direzione/Controllo Datalogic S.p.A. Via S. Vitalino, 13 40012 Lippo di Calderara di Reno Bologna - Italy Tel. +39 051 3147011 - Fax +39 051 3147288 www.datalogic.com R.E.A. Bologna 462539 Capitale sociale 10.000.000,00 euro Codice Fiscale e Partita I.V.A. 02729821203 AGENCY LETTER Date: May 13 th , 2010 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom To whom it may concern We hereby request limited modular approval for the Datalogic STAR MODULE PLUS 910MHz. The module will be used in the following products: • Readers o PowerScan M8300/DK 910 family (tested) o PowerScan M8300/D 910 family (tested) o PowerScan M8300 910 family (tested) • Base stations o BC8060-910 (tested) o BC8030-910 The non tested models, using the same radio module, have the following differences: Readers: The difference, apart from the colour of the enclosure, is that the presence of a 3 key keypad (/D family) or the absence of the display Base stations: The difference, apart from the colour of the enclosure, is that the BC8030 version has two less components welded. Sincerely, Datalogic Scanning Group S.r.l. Telephone Number +39 051 3147393 Fax Number +39 051 3147288 Email: [email protected]
