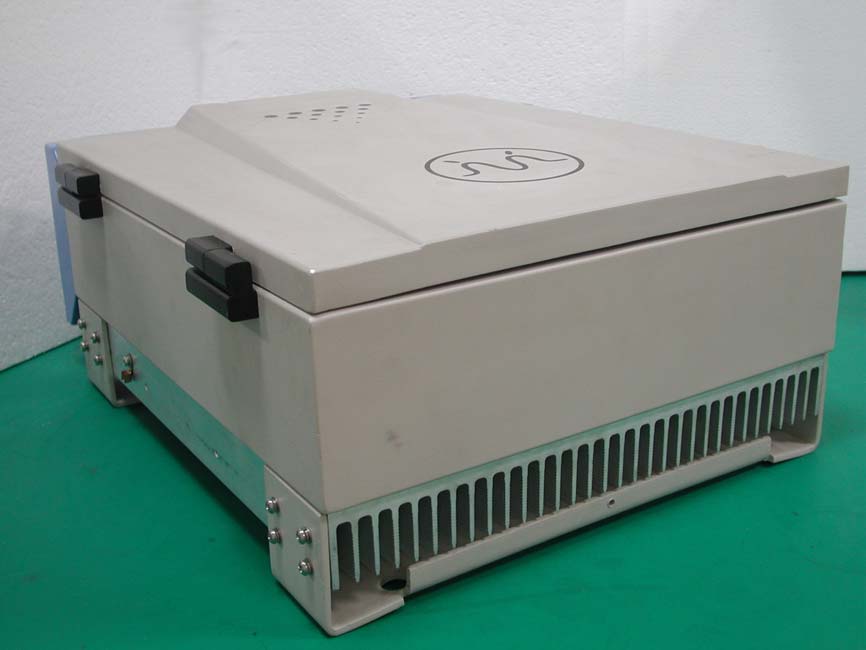

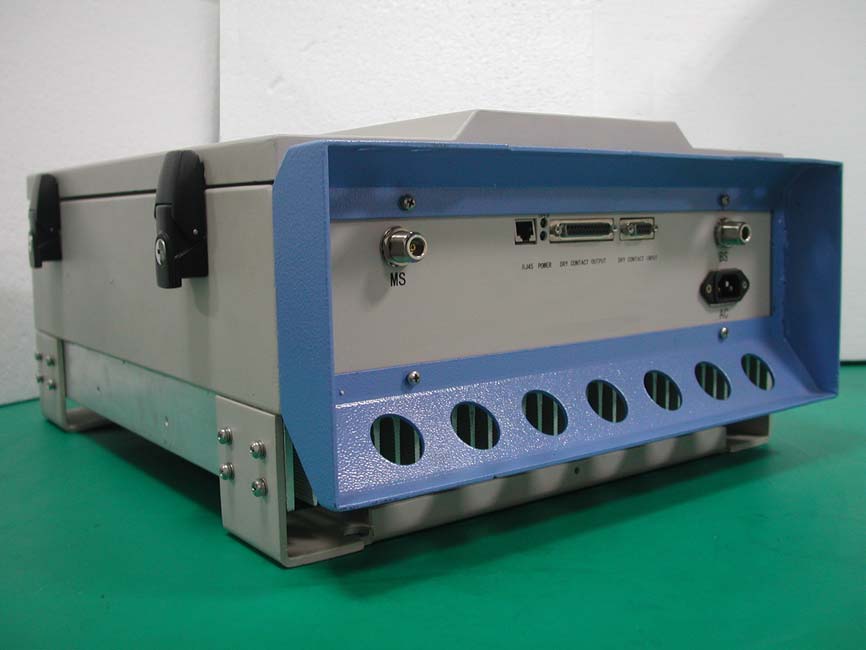

Dual-Band Selective Repeater User’s Manual (1900M Repeater) Longent 2112 Duskywing Drive Raleigh, NC 27613 Office: 919.845.1007 Fax: 919.882.9551 Email: [email protected] www.longent.com 1900 MHz PCS Band Selective Repeater User’s Manual Ve r. 2 2 Contents Contents ............................................................................................................................................2 1. Introduction...................................................................................................................................3 1.1. Product Features.................................................................................................................4 1.2. Front View..........................................................................................................................5 1.3. Bottom View ......................................................................................................................5 2. Specification .................................................................................................................................6 2.1. RF Specifications ...............................................................................................................6 2.2. Electrical Specifications.....................................................................................................6 2.3. Mechanical Specifications .................................................................................................6 2.4. Environmental Specifications ............................................................................................7 2.5. Monitor and Control...........................................................................................................7 3. Functional Description ..................................................................................................................8 3.1. Block Diagram ...................................................................................................................8 3.2. Unit Descriptions .............................................................................................................10 4. Installation................................................................................................................................... 11 4.1. Mounting.......................................................................................................................... 11 4.2. Connection .......................................................................................................................12 5. Operation and Maintenance ........................................................................................................13 5.1. WEB Interface..................................................................................................................13 5.1.1. Introduction ...........................................................................................................13 5.1.2. Hardware and Software Requirements..................................................................13 5.1.3. Environment Configuration...................................................................................14 5.1.4. Basic Operation of WEB Interface........................................................................18 5.2. Keypad Interface ..............................................................................................................25 5.2.1. Menu Tree .............................................................................................................26 5.2.2. View Menu ............................................................................................................27 5.2.3. Configuration Menu ..............................................................................................30 5.2.4. Warning Menu.......................................................................................................32 1900 MHz PCS Band Selective Repeater User’s Manual Ve r. 2 3 1. Introduction Repeaters are used to fill out uncovered areas in cellular mobile systems, such as base station fringe areas, road tunnels, business and industrial buildings, etc. A repeater receives signals from a base station, amplifies and retransmits the signals to mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction. Both directions are served simultaneously. To be able to receive and transmit signals in both directions, the repeater is connected to a donor antenna directed towards the base station and to a service antenna directed towards the area to be covered. Figure 1 Outdoor Application Figure 2 Indoor Application 1900 MHz PCS Band Selective Repeater User’s Manual Ve r. 2 4 Longent dual-band selective repeaters with 2 adjustable bandwidths have filters that can be set to various bandwidths. This repeater type is suitable for the most carriers that need 2 band blocks support in 1900 MHz PCS band. Figure 3 Longent Repeater 1.1. Product Features z Full PCS band support in user definable 5, 10, or 15 MHz steps z 2 programmable bandwidth, 0.5 MHz to 20 MHz for each z RF output power in user definable, 30 dBm max. z Web interface for monitoring and control z Integrated RF module 1900 MHz PCS Band Selective Repeater User’s Manual Ve r. 2 5 1.2. Front View 1.3. Bottom View MSBSBS AC '5@ &217$&7 ,13<7 5☺'5@ &217$&7 2<73<7 32> (5 23(5 1900 MHz PCS Band Selective Repeater User’s Manual Ve r. 2 6 2. Specification 2.1. RF Specifications z Frequency Band 1850 – 1910 MHz, Uplink (Reverse Link) 1930 – 1990 MHz, Downlink (Forward Link) z Number of Bands 2 z Bandwidth 0.5 – 20 MHz, Programmable z Gain Adjustment Range 55 – 85 dB (1 dB Steps) z ALC > 30 dB z Absolute Group Delay < 10 μs (8 μs Typical) z Output Power +30 dBm, Total z Maximum Input Power +13 dBm (Non-destructive) z Out of Band Spurious Emission -30 dBm, max. z Selectivity < -20 dB @ +/-500 kHz out of band …
Text truncated - open the document above for the full version.
Beijing Telestone Technology Co., Ltd. FCC ID.: U5TTS-OR16RD2 6F Saiou Plaza, NO. 5 Haiying Road ,Fengtai Science Park, Beijing 100070, China Tel : 010-8367-0088#6102 / FAX :010-6372--0038 Beijing Telestone Technology Co., Ltd. 6F Saiou Plaza, NO. 5 Haiying Road ,Fengtai Science Park, Beijing 100070, China Tel : 010-8367-0088#6102 Fax: 010-6372-0038 Federal Communications Commission Aug. 07 , 2007 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics, Block Diagram, Tune-up Procedure, Part list, Operation Description. The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Zhang Yong Jun / Vice President Beijing Telestone Technology Co., Ltd.
RF_160, Issue 01 Declaration of Authorization We Name: Beijing Telestone Technology Co., Ltd. Address: 6F Saiou Plaza, NO. 5 Haiying Road ,Fengtai Science Park, Beijing 100070, China City: .................................................................. . Country: ........................................................................ . Declare that: Name: QuieTek Corporation Address: 2F, No.345, Xinhu 2nd Rd., City: Taipei Country: Taiwan, R.O.C is authorized to apply for Certification of the following product(s): Product description: 1900MHz Dual-Band Selective Repeater ............... . Type designation: TS-OR16RD2-30 ........................ . Trademark: Telestone ........................... on our behalf. Date: ...... 2007/08/07 ............ City: ...... Taipei .................. Name: ...Zhang Yong Jun...... ...... Signature:
American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 24, 2007 RE: FCC ID: U5TTS-OR16RD2_ATCB005313 Attention: Natasha Tai I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that while you state the name of a device with in the product, you do not specify the part number of the device etc. Please note that the intent of the part number is to be able to identify the part on the schematics. Please provide a parts list that is in accordance with 2.1033(C)(10) of the FCC rules. 2. Please note that while the report states that the device was set to give maximum output, the test report does not specify if the input is also at maximum. Please also note that the manual states the maximum input level is 13dBm but the input level provided in the reports appear to be only approximately -60dBm or so. Please note that it is important that the input level be specified so that it is shown not to be overdriven and yet does have the maximum rated input level during testing. Please confirm that the maximum rated input level was used during testing. 3. Please note that the WCDMA test report page 4 states the transmit frequency of the device is 1920 ~ 1980 MHz. These are not US frequencies; please correct the report as necessary to properly address US frequencies. 4. Please note that while the data in the tables for section 5 (radiated spurious emissions) appears to have been done using the antenna substitution method, the test procedures stated in section 5.4 doe not appear to be that of an antenna substitution method. Please confirm and please correct the test method listed in the aforementioned section to properly show antenna substitution measurements in accordance with TIA603-C. 5. Please note that the documentation does not state if the power is per channel or composite. Please explain the type power used for this device. Is it per channel or is it composite power. 6. Please note that the device appears to operate in WCDMA HSDPA. Please note that only the FCC can issue grants for HSDPA rev 6. Please explain if this device is or is not a WCDMA HSDPA rev 6 device or only rev 5. 7. Please note that in line with the above the MPE report indicates the device operates using what appears to be GSM, EDGE, WCDMA, 1xEVDO and other modulations. However please note that the report does not appear to address 1xEVDO scheme. Please explain and please provide test data for all modulation schemes applicable to this device. 8. Please provide an operational description that properly addresses ALL modulation types expected to be retransmitted by this device. Please properly address HSDPA rev levels. 9. Please note that based on the responses to the above, more comments may arise. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. z Page 2 August 24, 2007 Any questions about the content of this correspondence should be directed to the sender.
1. Please note that while you state the name of a device with in the product, you do not specify the part number of the device etc. Please note that the intent of the part number is to be able to identify the part on the schematics. Please provide a parts list that is in accordance with 2.1033(C)(10) of the FCC rules. Answer: We have provided a parts list in accordance with 2.1033(C)(10) of the FCC rules. 2. Please note that while the report states that the device was set to give maximum output, the test report does not specify if the input is also at maximum. Please also note that the manual states the maximum input level is 13dBm but the input level provided in the reports appear to be only approximately -60dBm or so. Please note that it is important that the input level be specified so that it is shown not to be overdriven and yet does have the maximum rated input level during testing. Please confirm that the maximum rated input level was used during testing. Answer: Please see our pre-tested data at table1 to 3 for WCDMA, CDMA2000, 1xEVDO testing mode. The setup configuration is shown on figure 1&2 at section 2.2 of the revised report “077078R-HPUSP05V01 Part 24E _(WCDMA_)”. For figure 1, MS output was connected to EUT uplink port through conducted RF cable with an attenuator in between to adjust the maximum input level of EUT to be 13dBm. For figure 2, CMU-200 output was connected to EUT downlink port and also was adjusted to equal to 13dBm at EUT downlink port. We set the output power of the EUT for both at uplink and downlink port equaled to 30dBm during the testing, which is maximum output and the worst case for spurious emission and band edge. From the test measured results on each mode shown on table 1 to 3 under different testing mode (WCDMA, CDMA2000, 1xEVDO), we found that the spurious emission and band edge were not much difference, which are independent of input power level of the EUT while output power of EUT was fixed at 30dBm by ALC(Auto Level Control) function. The measured results on radiated emission and band edge at table 1 to 3 show that there are no much difference for input at -55dBm, 0dBm and 13dBm for each different testing mode (WCDMA, CDMA2000, 1xEVDO), which are independent of EUT input power level while output power of EUT was fixed at 30dBm by ALC(Auto Level Control) function. Table 1: WCDMA , Channel 1960MHz, 12.2Kbps RMC EUT Input level (dBm) 13.1 0 -55 EUT Output Level (dBm) 29.58 29.98 29.53 Highest radiated emission (dBm) -19.54-19.32 -19.86 Band edge level at antenna terminal (dBm) -16.32 -16.99 -16.69 Table 2: CDMA2000 , Channel 1960MHz, (RC1, Traffic Channel @9600 bps) EUT Input level (dBm) 13.1 0 -55 EUT Output Level (dBm) 29.58 29.98 29.53 Highest radiated emission (dBm) -20.11-20.43 -20.39 Band edge level at antenna terminal (dBm) -15.54-15.77 -15.86 Table 3: 1xEVDO , Channel 1960MHz (FTAP/RTAP and subtype 0 PHY configurations) EUT Input level (dBm) 13.1 0 -55 EUT Output Level (dBm) 29.58 29.98 29.53 Highest radiated emission (dBm) -19.54-19.16 -19.33 Band edge level at antenna terminal (dBm) -14.51-14.57 -14.36 Based on the measured results, we chose Figure 3 & 4 at section 2.2 as the setup configuration for measuring radiated emission and band edge, since the normal operation should be MS to communicate with Repeater through antenna and also we control the input level received by the Repeater through antenna is between -10 to 10 dBm as long as the received level is in between 13dBm to -55dBm, the measurement results would be no much difference. 3. Please note that the WCDMA test report page 4 states the transmit frequency of the device is 1920 ~ 1980 MHz. These are not US frequencies; please correct the report as necessary to properly address US frequencies. Answer: we have corrected the report. Please see the revised test report at page 4. 4. Please note that while the data in the tables for section 5 (radiated spurious emissions) appears to have been done using the antenna substitution method, the test procedures stated in section 5.4 doe not appear to be that of an antenna substitution method. Please confirm and please correct the test method listed in the aforementioned section to properly show antenna substitution measurements in accordance with TIA603-C. Answer: The radiated spurious emissions shown at our test report were measured using the antenna substitution method, but we did not state the full complete test procedures in our test report. Please see the revised test report with the full complete procedures of the antenna substitution method, which we used, in section 5.4 in accordance with TIA603-C. 5. Please note that the documentation does not state if the power is per channel or composite. Please explain the type power used for this device. Is it per channel or is it composite power. Answer: The power is per channel. We could not use composite power for testing because the test was required under normal operation at which CMU200 communicated with MS through Repeater with selected channel. 6. Please note that the device appears to operate in WCDMA HSDPA. Please note that only the FCC can issue grants for HSDPA rev 6. Please explain if this device is or is not a WCDMA HSDPA rev 6 device or only rev 5. Answer: This device is not a WCDMA HSDPA and it is only a rev 5 according to 3GPP forum. We have corrected the test report. 7. Please note that in line with the above the MPE report indicates the device operates using what appears to be GSM, EDGE, WCDMA, 1xEVDO and other modulations. However please note that the report does not appear to address 1xEVDO scheme. Please explain and please provide test data for all modulation schemes applicable to this device. Answer: This device is a repeater, which is to amplify the signal input from basestation and mobile station. This device is similar to an amplifier that does not involve any higher layer protocol such as MAC layer or any frame structure, but only to amplify the signal. For those fre…
Text truncated - open the document above for the full version.
Beijing Telestone Technology Co., Ltd. FCC ID.: U5TTS-OR16RD2 6F Saiou Plaza, NO. 5 Haiying Road ,Fengtai Science Park, Beijing 100070, China Tel : 010-8367-0088#6102 / FAX :010-6372--0038 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Model No: TS-OR16RD2-30 FCC ID: U5TTS-OR16RD2 Trade name: Telestone "This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference."
Report No. 077078R-HP-US-RFEXP Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : 1900 MHz Dual-Band Selective Repeater Model No. : TS-OR16RD2-30 FCC ID U5TTS-OR16RD2 Applicant : Beijing Telestone Technology Co., Ltd. Address : 6F, Saiou Plaza, NO. 5 Haiying Road ,Fengtai Science Park, Beijing 100070, China Date of Receipt : Jul. 03, 2007 Date of Declaration : Aug. 16, 2007 Report No. : 077078R-HP-US-RFEXP The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 077078R-HP-US-RFEXP Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Av e r a g e Ti m e (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 30 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*Pi*R 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 23°Cand 58% RH. Report No. 077078R-HP-US-RFEXP Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : 1900 MHz Dual-Band Selective Repeater Test Item : RF Exposure Evaluation Test Site : N/A Antenna Gain The peak gain of the antenna measured in fully anechoic chamber is 8dBi. Output Power Into Antenna & RF Exposure Evaluation Distance (8dBi): PCS 1900 Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 30 cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 1880 259.4179 0.1447 1 PASS 1960 860.9938 0.4803 1 PASS PCS 1900 GPRS Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 30 cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 1880 214.7830 0.1198 1 PASS 1960 933.2543 0.5207 1 PASS WCDMA (Channel 1960MHz, 12.2Kbps RMC) Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 30 cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 1880 273.5269 0.1526 1 PASS 1960 891.2509 0.4972 1 PASS 註解[u1]: Refer “Product” Report No. 077078R-HP-US-RFEXP Page: 4 of 4 Version: 1.0 CDMA2000 (RC1, Traffic Channel @9600 bps) Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 30 cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 1880 238.2319 0.1329 1 PASS 1960 1235.9474 0.6895 1 PASS CDMA2000 1x EVDO (FTAP/RTAP and subtype 0 PHY configurations) Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 30 cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 1880 257.6321 0.1437 1 PASS 1960 926.8298 0.5171 1 PASS
Report No.: 077078R-HPUSP05V01 Page: 1 of 43 Version:1.0 Te s t R e p o r t Product Name : 1900 MHz Dual-Band Selective Repeater Model No : TS-OR16RD2-30 FCC ID : U5TTS-OR16RD2 Applicant : Beijing Telestone Technology Co., Ltd. Address : 6F, Saiou Plaza, NO. 5 Haiying Road ,Fengtai Science Park, Beijing 100070, China Date of Receipt : 2007/07/03 Issued Date : 2007/08/16 Report No. : 077078R-HPUSP05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government. Report No.: 077078R-HPUSP05V01 Page: 2 of 43 Version:1.0 Test Report Certification Issued Date: 2007/08/166 Report No.:077078R-HPUSP05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government. Product Name : 1900 MHz Dual-Band Selective Repeater Applicant : Beijing Telestone Technology Co., Ltd. Address : 6F, Saiou Plaza, NO. 5 Haiying Road, Fengtai Science Park, Beijing 100070, China Manufacturer : Beijing Telestone Technology Co., Ltd. Model No. : TS-OR16RD2-30 Rated Voltage : AC 120V/60Hz Trade Name : Telestone Measurement Standard : FCC CFR Title 47 Part 2 Part24 Measurement Reference : TIA/EIA 603-A Test Result : Complied Documented By : (Engineering Adm. Assistant / Nicole Huang) Te s t e d B y : (Senior Engineer / Shine Hsu) Approved By : (President / Gene Chang) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 註解[u1]: Refe ”TestDate” 註解[u2]: Refer “RptNo” 註解[u3]: 註解[u4]: Refer “Applicant” 註解[u5]: Refer ”ApplyAAdress” 註解[u6]: Model Report No.: 077078R-HPUSP05V01 Page: 3 of 43 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 4 1.1. EUT Description ........................................................................................................... 4 1.2. Operational Description............................................................................................... 5 1.3. Configuration of Signal System .................................................................................. 7 1.4. EUT Setup Procedures ................................................................................................ 7 1.5. Test Facility ...................................................................................................................8 1.6. Type of Emission .......................................................................................................... 8 2. RF Power Output .......................................................................................................... 9 2.1. Test Equipment............................................................................................................. 9 2.2. Test Setup .....................................................................................................................9 2.3. Limits ........................................................................................................................... 10 2.4. Test Procedure............................................................................................................ 10 2.5. Test Specification ....................................................................................................... 10 2.6. Test Result of RF Power Output................................................................................ 11 3. Occupied Bandwidth .................................................................................................. 13 3.1. Test Equipment........................................................................................................... 13 3.2. Test Setup ................................................................................................................... 13 3.3. Test Procedure............................................................................................................ 14 3.4. Test Specification ....................................................................................................... 14 3.5. Test Result of Occupied Bandwidth ......................................................................... 15 4. Spurious Emission At Antenna Terminals ............................................................... 19 4.1. Test Equipment........................................................................................................... 19 4.2. Setup ...........................................................................................................................19 4.3. Limits ........................................................................................................................... 20 4.4. Test Procedure............................................................................................................ 20 4.5. Test Specification ....................................................................................................... 20 4.6. Test Result of Spurious Emission At Antenna Terminals ....................................... 21 5. Spurious Emission ..................................................................................................... 39 5.1. Test Equipment........................................................................................................... 39 5.2. Test Setup ................................................................................................................... 39 5.3. Limits ........................................................................................................................... 40 5.4. Test Procedure.....................................................................................…
Text truncated - open the document above for the full version.
Report No.: 077078R-HPUSP05V01 Page: 1 of 30 Version:1.0 Te s t R e p o r t Product Name : 1900 MHz Dual-Band Selective Repeater Model No : TS-OR16RD2-30 FCC ID : U5TTS-OR16RD2 Applicant : Beijing Telestone Technology Co., Ltd. Address : 6F, Saiou Plaza, NO. 5 Haiying Road ,Fengtai Science Park, Beijing 100070, China Date of Receipt : 2007/07/03 Issued Date : 2007/08/16 Report No. : 077078R-HPUSP05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government. Report No.: 077078R-HPUSP05V01 Page: 2 of 30 Version:1.0 Test Report Certification Issued Date: 2007/08/166 Report No.:077078R-HPUSP05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government. Product Name : 1900 MHz Dual-Band Selective Repeater Applicant : Beijing Telestone Technology Co., Ltd. Address : 6F, Saiou Plaza, NO. 5 Haiying Road, Fengtai Science Park, Beijing 100070, China Manufacturer : Beijing Telestone Technology Co., Ltd. Model No. : TS-OR16RD2-30 Rated Voltage : AC 120V/60Hz Trade Name : Telestone Measurement Standard : FCC CFR Title 47 Part 2 Part24 Measurement Reference : TIA/EIA 603-A Test Result : Complied Documented By : (Engineering Adm. Assistant / Nicole Huang) Te s t e d B y : (Senior Engineer / Shine Hsu) Approved By : (President / Gene Chang) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 註解[u1]: Refe ”TestDate” 註解[u2]: Refer “RptNo” 註解[u3]: 註解[u4]: Refer “Applicant” 註解[u5]: Refer ”ApplyAAdress” 註解[u6]: Model Report No.: 077078R-HPUSP05V01 Page: 3 of 30 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 4 1.1. EUT Description ........................................................................................................... 4 1.2. Operational Description............................................................................................... 5 1.3. Configuration of Signa…
