U5TWFDS-RUCRemote Unit for Wireless Fiber Distribution System

WFDS Tri-mode RU User Manual Rel.11-3.1 © 2011 TELESTONE. All rights reserved. TELESTONE: This document contains proprietary information of TELESTONE and is not to be disclosed or used without the prior written permission of TELESTONE. Due to update and improvement of TELESTONE products and technologies, information in this document is subjected to change without notice. Remote Unit for Wireless Fiber Distribution System User Manual TELESTONE Proprietary © 2011 TELESTONE. All rights reserved. 2 Contents 1. System Description ....................................................................................................................................................... 3 1.1. Topology of Distribution System Solution based on WFDS ........................................................................... 3 2. WFDS Remote Units .................................................................................................................................................... 3 2.1. About This Chapter .......................................................................................................................................... 3 2.2. The compendium of function ........................................................................................................................... 4 2.3. Principle of Work and Specifications .............................................................................................................. 4 2.3.1. Principle of Work .......................................................................................................................... 4 2.3.2. RU Specifications .......................................................................................................................... 4 2.3.3. RU Panel ........................................................................................................................................ 5 2.4. RU Installation ................................................................................................................................................. 7 3. Aphorism ...................................................................................................................................................................... 9 User Manual TELESTONE Proprietary © 2011 TELESTONE. All rights reserved. 3 1. System Description 1.1. Topology of Distribution System Solution based on WFDS The typical topology of distribution system solution based on WFDS is as shown in 0 Figure 1 Topology of WFDS The solution can divided into several parts, signal source, point of interface and WFDS as the distribution system. For downlink signal the point of interface gets the signal from several BTSs and data equipment, then combines them into one signal and feeds Main Unit. Main Unit converts it into optical signal and distributes the signal to Expansion Unit and Remote Unit. The Remote Unit transfers the signal into radio frequency and outputs to the antenna. At each Remote Unit, the operator can set the gain for each system such as GSM, CDMA and 3G independently, wh ich optimizes the covera ge for each system and makes future adjustment convenient. 2. WFDS Remote Units 2.1. About This Chapter This chapter consists of the following sections: The compendium of function Principle of Work and Specifications Application of RU RU Installation and Power Supply ETL system such as GSM and 3G independently, whsystem wh LTE om several BTSs, User Manual TELESTONE Proprietary © 2011 TELESTONE. All rights reserved. 4 2.2. The compendium of function The remote unit is an active transceiver which connects the expansion unit or the main unit. RU is the last step in the entire system, and it takes a very important part in the whole system, that is amplifying. RU receives UL fiber optical signal, then it transmitted into the optical module and transform the optical signal into electric signal, after enlargement, it send by the external connection antenna; in a similar way, equipment receives uplink RF signal by the external connection antenna, and amplified in uplink then input to the optical module. Then output the fiber optical signal to the EU (or MU) after the optical module transform the electrical signal to the optical signal. 2.3. Principle of Work and Specifications 2.3.1. Principle of Work The equipment includes the optical module, UL amplifier, DL amplifier, duplexer, monitoring unit and power supplier. DL: RU receives the DL fiber optical signal from the expansion unit or the main unit, then the optical module transmits the optical signal into RF signal. After amplifying, the signal is sent through coaxial cable by the RF antenna. UL: RU receives RF signal from antenna UL transmitted from coaxial cable. Signal is enlarged by low noise amplifier then transmitted by optical modules. And at last optical signal is sent to expansion unit or main unit. The power of the RU is supplied by upper unit. Meanwhile, RU can receive setting and inquiring information from Expansion and Main Unit. 2.3.2. RU Specifications Figure 2 Tri Mode Remote Unit Remote Unit User Manual TELESTONE Proprietary © 2011 TELESTONE. All rights reserved. 5 Specification Description Working frequency （MHz） 850MHz: UL824-849, DL869-894 1900MHz: UL1850-1910, DL1930-1960 2100MHz UL 1710-1755, DL2110-2155 DL output RF power（dBm） 21 Max Gain（dB） 35 Gain Adjusting（dB） ≥30, 1dB step RF Port Input VSWR ≤2.0 delaying Time（μs） ≤1μs MTBF (h) 100,000 hour Fiber Connector 1 pair FC/APC Connector RF Connectors 1 N-type, female Power consumption (W) 25 Dimensions 326*250*75mm Weight (Kg) 5 Operating Temperature (°C) -10～+50°C Operating Humidity, non-condensing 5% to 95% 2.3.3. RU Panel Figure 3 RU panel 20+/-321+/-2 Max 43 dBm43 User Manual TELESTONE Proprietary © 2011 TELESTONE. All rights reserved. 6 RF port 1 RF antenna port，transmitting/receiving signals to/from distributed antenna. This RF antenna port is a duplexed N-F connectors. The port can be con…

Text truncated - open the document above for the full version.

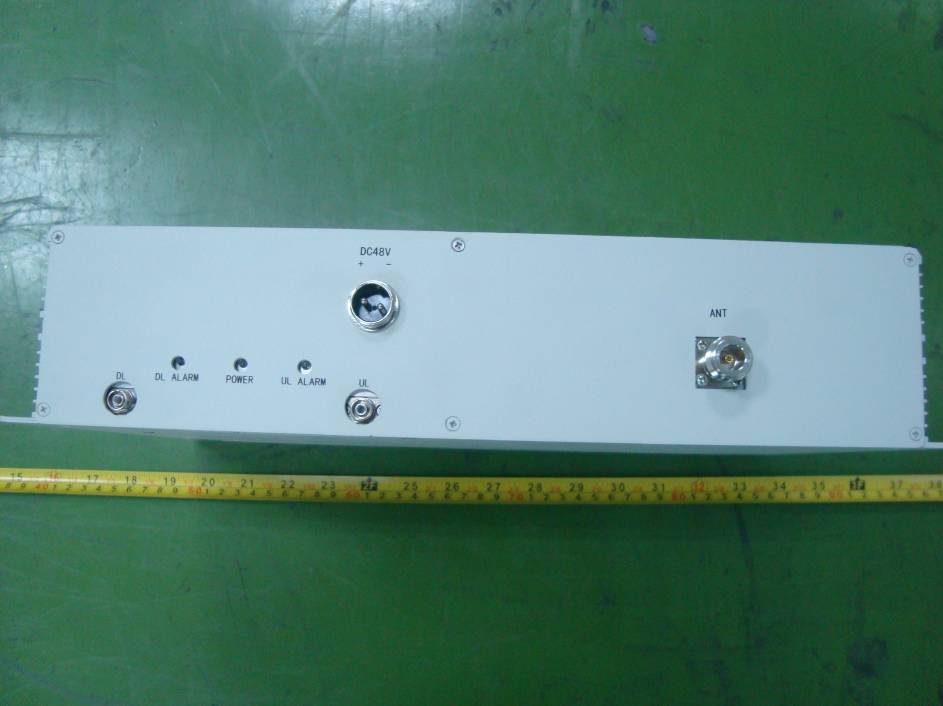

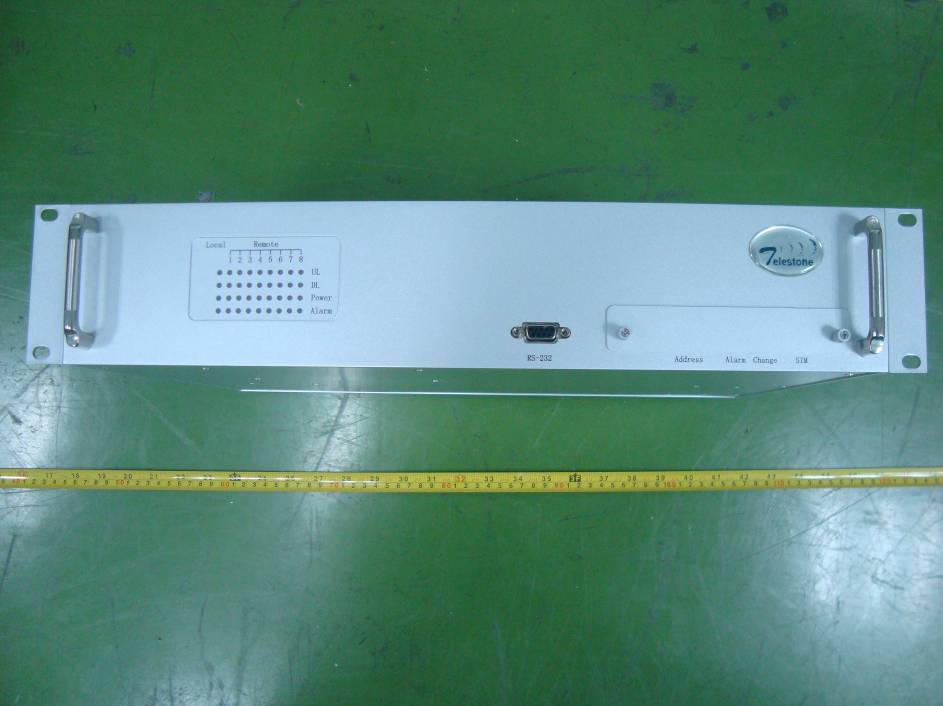

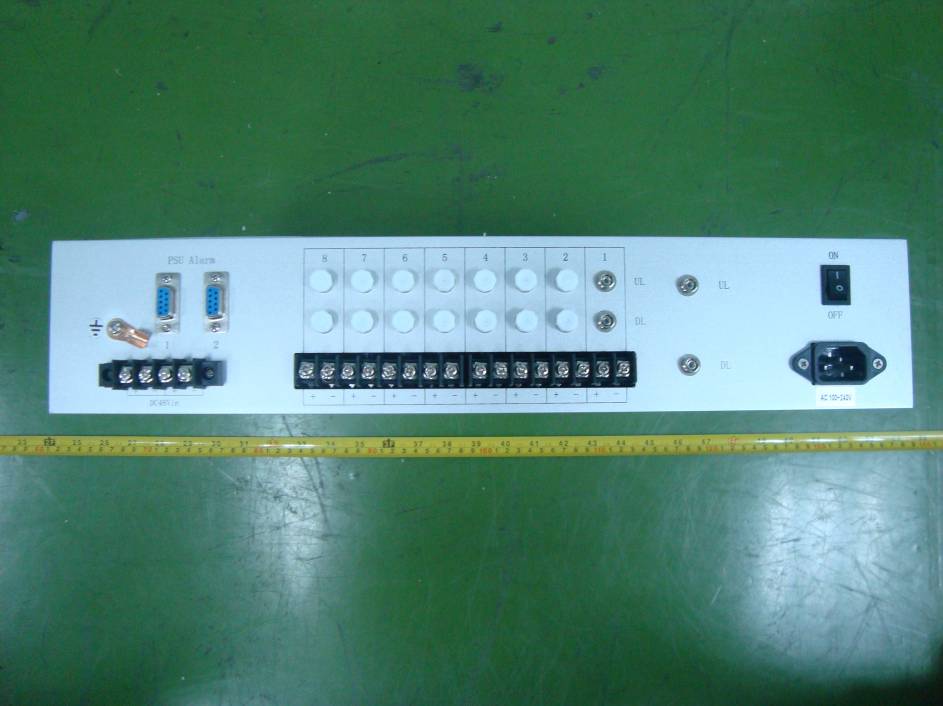

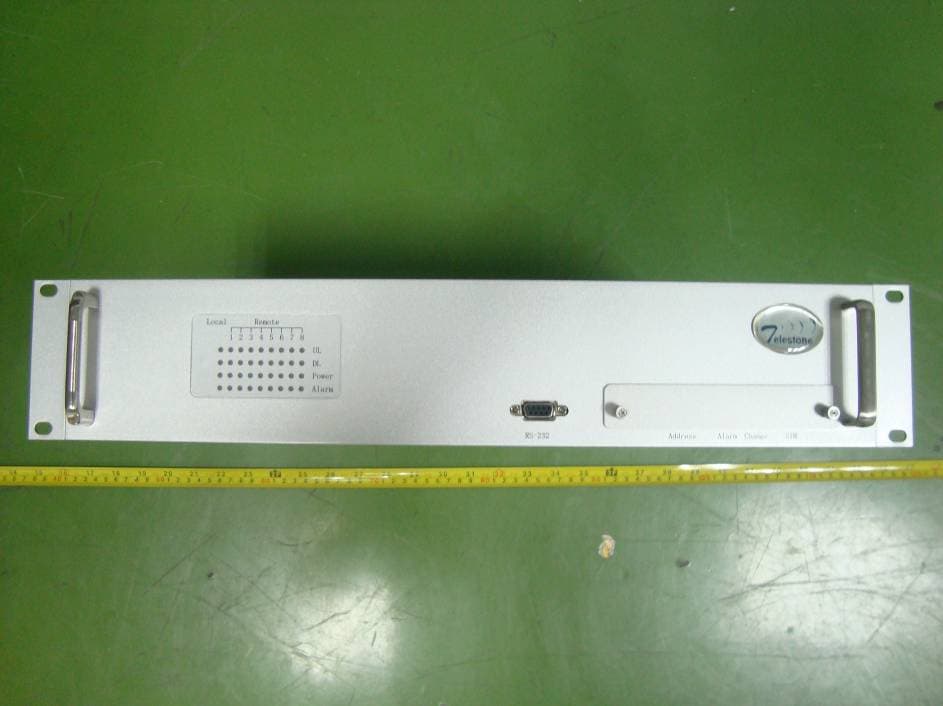

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View EUT – Side View Support Equipment Front View– Expansion Hub Support Equipment RearView– Expansion Hub Support Equipment Front View– Main Hub Support Equipment Rear View– Main Hub

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT –Telestone combiner Top View EUT –Telestone Combiner Bottom View EUT –BST8270-12 Top View EUT –BST8270-12 Bottom View EUT –BST8270-12 Board Top View EUT –BST8270-12 Board Bottom View EUT –TM_Overseas_RUmain board Top View EUT –TM_Overseas_RUmain board Bottom View EUT –RAU-PCS-1960-21 Board Top View EUT –RAU-PCS-1960-21 Board Shielding off Top View EUT –RAU-PCS-1960-21 Board Bottom View EUT –RAU-cellular-881-21 Top View EUT –RAU-cellular-881-21 Shielding off Top View EUT –RAU-cellular-881-21 Bottom View EUT –RAU-AWS-2132-21 Top View EUT –RAU-AWS-2132-21 Shielding off Top View EUT –RAU-AWS-2132-21 Bottom View EUT –PSU board Top View EUT –PSU board Bottom View EUT –Splitter-3 Top View EUT –Splitter-3 shielding off View EUT –Splitter-3 Bottom View

Beijing Telestone Technology Co., Ltd. FCC ID: U5TWFDS-RUC Report Number: R1105246-27 Page 50 of 70 FCC Part 27 Test Report 11 FCC §1.1307(b) & §27.52 & §2.1091 - RF EXPOSURE INFORMATION 11.1 Applicable Standard According to FCC §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 1 (100) 30 1.34-30 824/f 2.19/f 1 (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz 1 = Plane-wave equivalent power density 11.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = Antenna Gain R = distance to the center of radiation of the antenna Maximum average output power at antenna input terminal (dBm):21.69 Maximum average output power at antenna input terminal (mW):147.57 Prediction distance (cm):20 Prediction frequency (MHz):2132 Antenna Gain, typical (dBi):5.0 Maximum Antenna Gain (numeric):3.16 Power density at predication frequency and distance (mW/cm 2 ):0.0928 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ):1.0 Result: The outdoor antenna with 5 dBi gain should have at least 20 cm prediction distance to meet the MPE limit, the highest power density level at 20 cm is 0.0928 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm². Beijing Telestone Technology Co., Ltd. FCC ID: U5TWFDS-RUC Report No.: RSZ11050604-22H&24E Page 10 of 44 FCC Part 22H/24E Test Report FCC §1.1307 & §2.1091 - RF EXPOSURE INFORMATION Applicable Standard According to §1.1307 (b)(1) and §2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Calculation Predication of MPE limit at a given distance, Equation from OET 65, Edition97-01 S = PG/4πR² Where: S = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = the antenna gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Antenna Gain Conducted Power Band Frequency (MHz) (dBi) (numeric) (dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) Cellular 881.6 5.0 3.16 20.49 111.9420 0.0704 0.587 PCS 1960.0 5.0 3.16 21.53 142.2320 0.0895 1.0 Result: The device meets FCC MPE limit at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 22H, 24E MEASUREMENT AND TEST REPORT For Beijing Telestone Technology Co., Ltd. 6F, Saiou Scientific Building, No.5 Haiying Road, Fentai Science Park, Beijing 100070, China FCC ID: U5TWFDS-RUC Report Type: Original Report Product Type: Remote Unit for Wireless Fiber Distribution System Test Engineer: Bruce Zhang Report Number: RSZ11050604-22H&24E Report Date: 2011-06-28 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Beijing Telestone Technology Co., Ltd. FCC ID: U5TWFDS-RUC Report No.: RSZ11050604-22H&24E Page 2 of 44 FCC Part 22H/24E Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 CONFIGURATION OF TEST SETUP.................................................................................................................................7 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................8 SUMMARY OF TEST RESULTS ...............................................................................................................................9 FCC §1.1307 & §2.1091 - RF EXPOSURE INFORMATION .................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 MPE CALCULATION...................................................................................................................................................10 FCC §2.1047 - MODULATION CHARACTERISTIC ............................................................................................11 FCC §2.1046, §22.913 (A), §24.232 (C) - RF OUTPUT POWER ............................................................................12 APPLICABLE STANDARDS...........................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST DATA................................................................................................................................................................13 FCC §2.1049, §22.917, §22.905 & §24.238 - OCCUPIED BANDWIDTH ..............................................................14 APPLICABLE STANDARDS...........................................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST DATA................................................................................................................................................................14 FCC §2.1051, §22.917(A) & §24.238(A) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ..................24 APPLICABLE STANDARDS...........................................................................................................................................24 TEST PROCEDURE........................................................…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 27 TEST AND MEASUREMENT REPORT For Beijing Telestone Technology Co., Ltd. 6F, Saiou Scientific Building, No. 5 Haiying Road, Fentai Science Park, Beijing 100070, China FCC ID: U5TWFDS-RUC Model: WFDS-RUC Report Type: Original Report Product Type: Remote Unit for Wireless Fiber Distribution System Test Engineer: Quinn Jiang Report Number: R1105246-27 Report Date: 2011-06-09 Reviewed By: Victor Zhang EMC/RF Lead Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Beijing Telestone Technology Co., Ltd. FCC ID: U5TWFDS-RUC Report Number: R1105246-27 Page 2 of 70 FCC Part 27 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 6 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 LOCAL SUPPORT EQUIPMENT AND SOFTWARE LIST AND DETAILS.................................................................... 7 2.5 INTERNAL CONFIGURATIONS OF EUT................................................................................................................ 8 2.6 INTERFACE PORTS AND CABLES........................................................................................................................ 8 2.7 TEST SETUP BLOCK DIAGRAM........................................................................................................................... 9 3 SUMMARY OF TEST RESULTS...................................................................................................................... 11 4 FCC §2.1046 & §27.50 – RF OUTPUT POWER............................................................................................... 12 4.1 APPLICABLE STANDARD.................................................................................................................................. 12 4.2 TEST PROCEDURE............................................................................................................................................ 12 4.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 12 4.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 12 4.5 TEST RESULTS................................................................................................................................................. 13 5 FCC §2.1047 - MODULATION CHARACTERISTIC..................................................................................... 14 5.1 APPLICABLE STANDARD.................................................................................................................................. 14 5.2 TEST RESULT................................................................................................................................................... 14 6 FCC §2.1049 & §27.53 - OCCUPIED BANDWIDTH ......................................................................................15 6.1 APPLICABLE STANDARD.................................................................................................................................. 15 6.2 TEST PROCEDURE............................................................................................................................................ 15 6.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 15 6.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 15 6.5 TEST RESULTS................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Below 1 GHz: Radiated Emissions - Front View Below 1 GHz: Radiated Emissions - Rear View Above 1 GHz: Radiated Emissions - Front View Above 1 GHz: Radiated Emissions - Rear View Frequency Stability Test View
