U5X-RE229Glass Break Sensor

The RE229 Glassbreak is a security sensor that detects the sound of breaking glass and sends alarm signals to the security panel. Features • Variable detection range of up to 20 feet • Low battery and tamper indication • VHB™ tape included for easy installation Enroll by placing the panel into wireless enrollment mode and removing the battery tab. Ensure Loop 1 is selected. Select sensitivity by adjusting the dipswitch. See table below for sensitivity settings. Select a mounting location at a height of at least 6.5 feet (2m) and no more than 20 feet (6m) from the window you wish to protect. Ensure the sensor has visual line-of-sight to all windows being protected. Use a glassbreak tester to confirm operation before permanently mounting using the mounting screws or VHB tape. Test the glassbreak to verify operation after enrollment and installation. Note, any glassbreak tester can be used. 1. The sensor is in test mode for 5 minutes after powered. When test mode is active, the LED will flash once per second. 2. Activate the glassbreak tester near the window you wish to protect. 3. If an alarm is detected, the LED will flash rapidly for 2 seconds and an alarm signal will be sent to the panel. If the sensor does not trip, check the sensitivity setting or relocate the sensor and retest. Use the panel installation guide to verify proper system setup. RE229 Glassbreak Honeywell ® Compatible I N S T A L L G U I D E I SENSITIVITYDETECTION RANGE SWITCH 1SWITCH 2 MAX20FTOFFOFF MEDIUM13FTOFFON LOW8FTONOFF LOWEST5FTONON Resolution Compatibles Mounting Holes Sensitivity Switches ON IC NOTICE This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux cnr d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) L’appareil ne doit pas produire de brouillage, et (2) L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. IC: 8310A-RE229 FCC NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Alula could void the user’s authority to operate this equipment. FCC ID: U5X-RE229 TRADEMARKS Alula is a trademark owned by Alula Holdings, LLC. “Honeywell” is a trademark owned by Honeywell International, Inc. Alula products will function with Honeywell systems. However, no Alula product is produced by, endorsed by, or officially associated with Honeywell. Alula recommends verifying proper enrollment and operation, per control panel installation instructions, at installation. 3M and VHB are trademarks owned by 3M Company. Panasonic is a registered trademark owned by Panasonic Corporation. Specifications Physical Housing Dimensions Weight with Battery Mounting Fastener 4.1 x 2.3 x 1.0 inches (10.6 x 6.0 x 2.6 centimeters) 2.75 ounces (78 grams) #6 screws, anchors, VHB tape (all provided) Environmental Operating Temperature Maximum Humidity 32°F to 120°F (0°C to 49°C) 85% non-condensing relative humidity Sensor Specifications Frequency Replacement Battery Nominal Battery Life Battery Voltage Current Draw Transmitted Indications 345 MHz One Panasonic ® CR123A 3.5 years 3.0 VDC (Nominal), 2.2 VDC (Low) 30 mA (Maximum), 50 uA (Quiescent) Low Battery, Tamper, Supervision, Alarm Certification RE229FCC, IC Specifications subject to change without notice. 47-00003-02 • REV A • 2020-04-01 Tech Support Line • (888) 88-ALULA • (888) 882-5852 alula.net Pro Tips 3M™ VHB Tape works great if the surface is properly prepared and firm pressure is applied for over 10 seconds. Surface Preparation • Clean the surface • Ensure the mounting surface temperature is above 50 °F When sensor detects breaking glass, the LED will turn on for 5 seconds.

April 9, 2020 RE: Confidentiality Request for U5X-RE229/8310A-RE229 To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Alula has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ Paul Saldin, Vice President (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

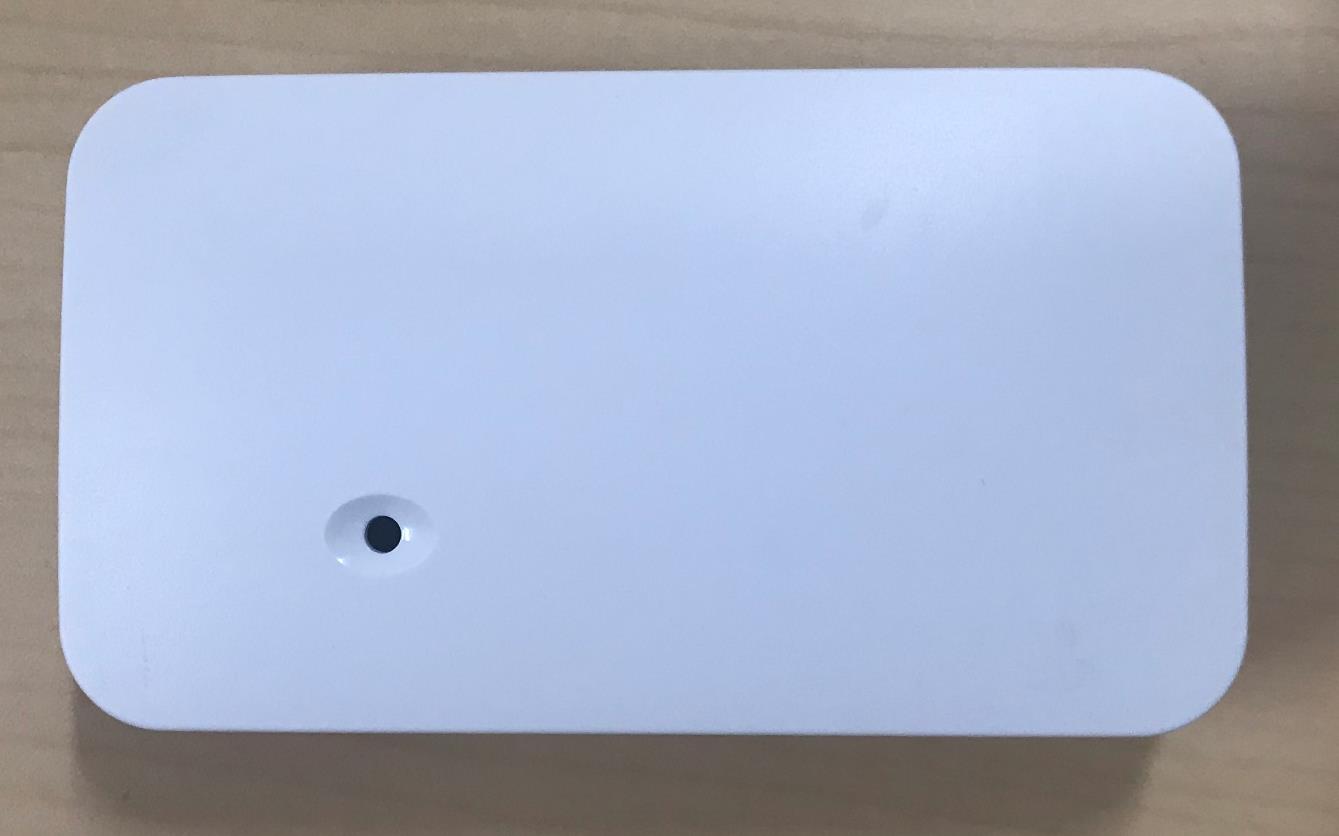

Exhibit A - External Photos FCC ID: U5X-RE229 IC: 8310A-RE229

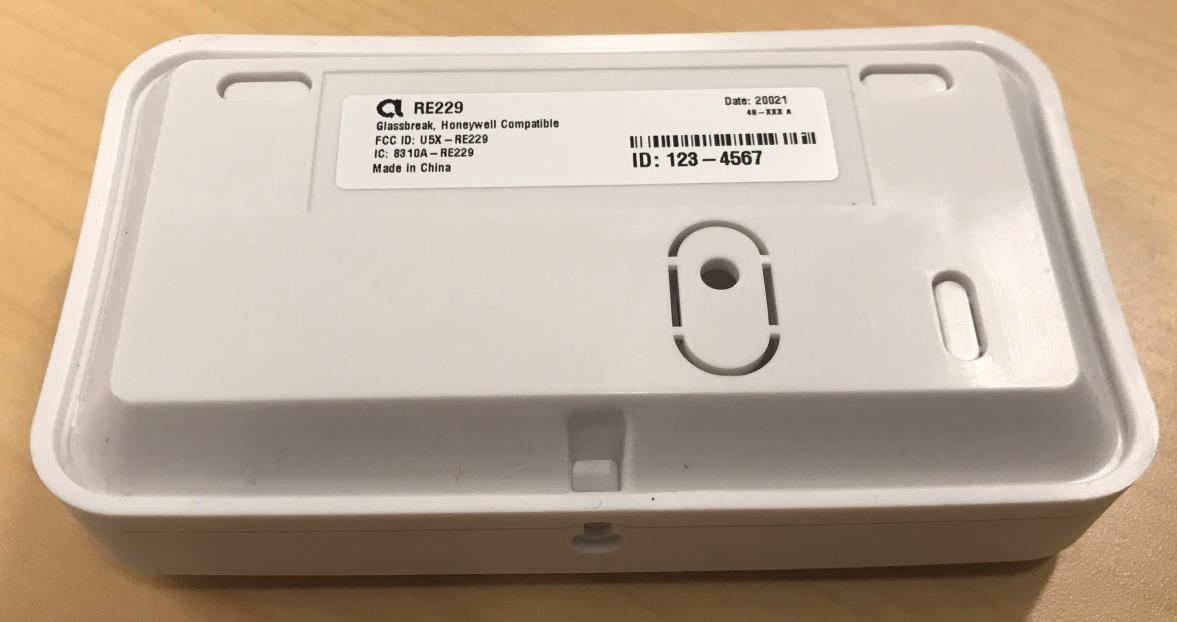

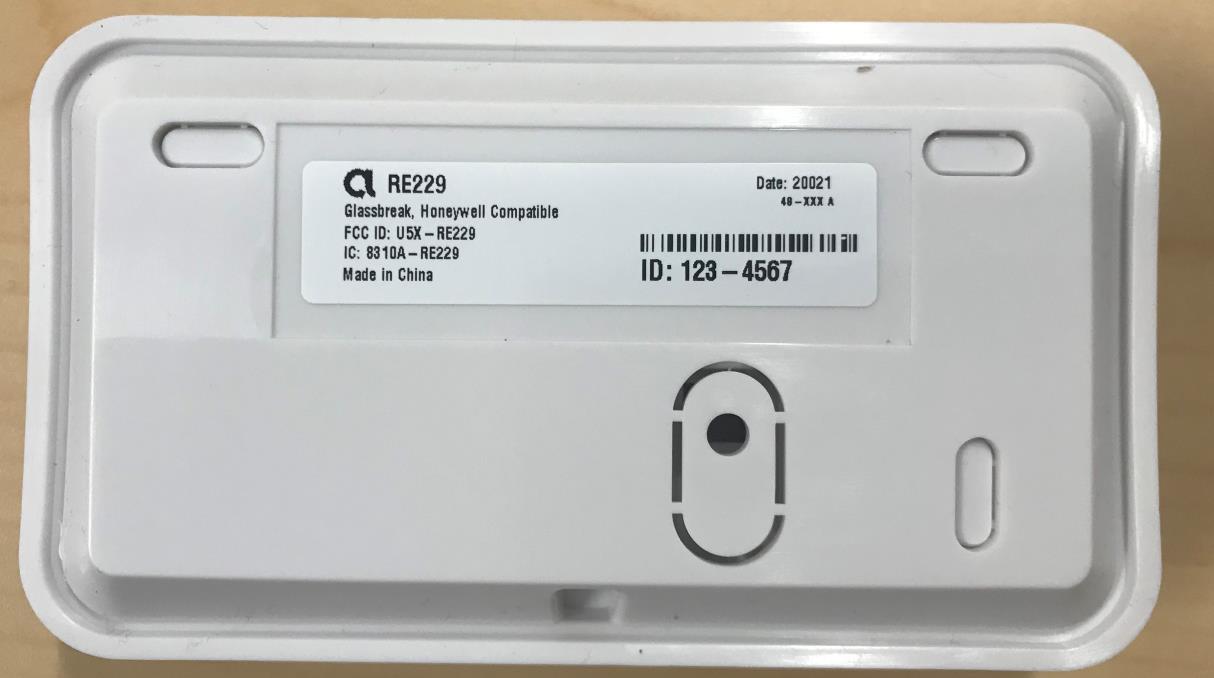

Exhibit B – ID Label Photos FCC ID: U5X-RE229 IC: 8310A-RE229

Exhibit C – Internal Photos FCC ID: U5X-RE229 IC: 8310A-RE229 Antenna Transmitter Crystal

SAR & RF Exposure Exemption Technical Brief Application Information APPLICANT Alula DATE 4/9/2020 PROD DESC Glass Break Sensor PMN RE229 Glass Break Sensor HVIN RE229 FVIN 75-00111-02 IC 8310A-RE229 SAR Evaluation Exemption (RSS-102, Section 2.5.1) From RSS-102, Section 2.5.1 Exemption Limits for Routine Evaluation – SAR Evaluation “SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Table 1.” This device is meant to be mounted to the wall or ceiling of a residence. As such, it will always be at least 20cm from the user, and is thus exempt from SAR evaluation. RF Exposure Exemption (RSS-102, Section 2.5.2) Field strength measurements were taken at 3 meters. Because of the low duty cycle of this device, the 20dB duty cycle correction is allowed. Using the standard conversion from field strength, EIRP is calculated as follows: EIRP (dBm) = (E – 20) + 20log(3) – 104.8 From RSS-102, Section 2.5.2 Exemption Limits for Routine Evaluation – RF Exposure Evaluation “RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows:  At or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz.” Thus, the EIRP limit for exemption from RF exposure evaluation is calculated as follows: EIRP Limit (dBm) = 10log(1.31 x 10 -2 ƒ 0.6834 ) + 30 The table that follows will show that the device is exempt from RF exposure evaluation. Frequency (MHz) Peak Level (dBuV/m) EIRP (dBm) EIRP Limit (dBm) Margin (dB) Test Result 345.0 94.5 -20.8 28.5 -49.3 PASS 690.0 61.2 -54.1 30.6 -84.6 PASS 1035.0 54.0 -61.3 31.8 -93.0 PASS 1380.0 54.8 -60.5 32.6 -93.1 PASS 1725.0 61.6 -53.7 33.3 -87.0 PASS 2070.0 59.6 -55.7 33.8 -89.5 PASS 2415.0 60.4 -54.9 34.3 -89.1 PASS 2760.0 61.3 -54.0 34.7 -88.6 PASS 3105.0 61.4 -53.9 35.0 -88.9 PASS 3450.0 63.2 -52.1 35.4 -87.4 PASS Sincerely, Paul Saldin Vice President Alula

Engineering Solutions & Electromagnetic Compatibility Services FCC Part 15.231 Test Data 345 MHz Sensor Model: RE229 for Alula 2340 Energy Park Drive, Suite 100 St. Paul, MN 55108 (USA) Contact: Jake Peterson Testing Conducted By: Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 RTL Test Engineer: Khue Do RTL Project/Report Number: 2019214 January 7, 2020 I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the applicable parts of FCC Part 2, FCC Part 15, and ANSI C63.10. Signature: Date: January 7, 2020 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Alula. Test results relate only to the item tested. This report replaces R0.1. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANAB. Refer to certificate and scope of accreditation AT-1445. ISED#: 2956A 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com Rhein Tech Laboratories, Inc. Client: Alula 360 Herndon Parkway, Suite 1400 Model: RE229 Herndon, VA 20170 Standards: FCC Part 15.231 http://www.rheintech.com Report #: 2019214 FCC/ISED Cross Reference 5 second timing FCC 15.231(a)(1) RSS-210 Issue 9 A1.1 Field Strength FCC 15.231(b)(2) RSS-210 Issue 9 A1.2 Restricted Band FCC 15.205 RSS-Gen Issue 5 8.10 General Field Strength FCC 15.209 RSS-Gen Issue 5 8.9 Bandwidth FCC 15.231(c) RSS-210 Issue 9 A1.3 The Equipment Under Test (EUT) was the 345 MHz Model RE229, RTL Bar Code 23531. Transmitter Deactivation 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds after activation. Deactivation Data, RE229 Frequency (MHz) Deactivation Marker (s) Limit (s) Result (Pass / Fail) 345.0 2.5 5.0 Pass Plot: OBW 20 dB and 99% Re f 8 0 d BμV CLRWR A Att 10 dB* TRG * Center 345 MHz6 s/ 3DB R BW 100 kHz V BW 300 kHz SWT 60 s SGL *1 PK -20 -10 0 10 20 3 0 40 50 6 0 70 80 1 Marker 1 [T1 ] 63.59 dBμV 2.500000 s T RG 50 dBμV BW Date: 24.DEC.2019 10:34:31 2 of 9 Rhein Tech Laboratories, Inc. Client: Alula 360 Herndon Parkway, Suite 1400 Model: RE229 Herndon, VA 20170 Standards: FCC Part 15.231 http://www.rheintech.com Report #: 2019214 Measurement uncertainty: ±1 x 10 -6 Hz. This measurement uncertainty is an expanded uncertainty for 95% confidence level received with a coverage factor k=2. Deactivation Test Equipment RTL Asset # Part Type Manufacturer Model Serial Number Calibration Due Date 901581 Spectrum Analyzer (20 Hz – 50 GHz) Rohde & Schwarz FSU 1166.1660.50 04/26/2021 Test Personnel: Khue Do December 24, 2019 EMC Test Engineer Signature Date of Test 3 of 9 Rhein Tech Laboratories, Inc. Client: Alula 360 Herndon Parkway, Suite 1400 Model: RE229 Herndon, VA 20170 Standards: FCC Part 15.231 http://www.rheintech.com Report #: 2019214 Radiated Spurious Harmonics Emissions The data and limits presented in this report are for radiated emissions per 15.231(b)(2) which references 15.35(b), and peak limiting for restricted bands per 15.209(e), which again references 15.35(b)(2), as procured by Alula. No average data is presented in this report. Data (if applicable) is also presented for spurious, non-harmonic radiated emissions per 15.209. 15.231(b) In addition to the provisions of §15.205, the field strength of emissions from intentional radiators operated under this section shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (μV/m) Field Strength of Spurious Emissions (μV/m) 40.66 – 40.70 2 250 225 70 – 130 1 250 125 130 – 174 1 250 to 3 750 125 to 375 174 – 260 3 750 375 260 – 470 3 750 to 12 500 1 375 to 1 250 1 Above 470 12 500 1 250 1 Linear Interpolation Test Procedure Radiated fundamental and spurious emissions were tested at 3 m. The EUT was tested in the three orthogonal planes with the receive antenna in both polarities. The emissions were maximized; that is, the measurement antenna height was varied between 1 and 4 m, and the EUT was rotated through 360° on a rotating turntable until the maximum emissions were found. Both horizontal and vertical measurement antenna polarizations were used. A resolution bandwidth of 120 kHz was used for frequencies less than 1000 MHz, and a resolution bandwidth of 1 MHz was used for frequencies greater than or equal to 1000 MHz. The video bandwidth was set to a value at least three times greater than the resolution bandwidth. EUT Disposition The EUT was adapted to continuously transmit for testing purposes. 15.231 Radiated Spurious Emissions Test Data – Peak: Frequency (MHz) Antenna Polarity (H / V) Raw Emission (dBμV/m) Site Correction Factor (dB/m) Corrected Emission (dBμV/m) Limit (dBμV/m) Margin (dB) Result (Pass / Fail) 345.00 H 63.6 30.9 94.5 97.3 -2.8 Pass 690.00 H 62.0 -0.8 61.2 77.3 -16.1 Pass 1035.00 H 49.2 4.8 54.0 74.0 -20.0 Pass 1380.00 H 43.4 11.4 54.8 74.0 -19.2 Pass 1725.00 H 42.4 19.2 61.6 77.3 -15.7 Pass 2070.00 H 49.1 10.5 59.6 77.3 -17.7 Pass 2415.00 H 49.4 11.0 60.4 77.3 -16.9 Pass 2760.00 H 49.7 11.6 61.3 74.0 -12.7 Pass 3105.00 H 49.0 12.4 61.4 77.3 -15.9 Pass 3450.00 H 50.0 13.2 63.2 77.3 -14.1 Pass 4 of 9 Rhein Tech Laboratories, Inc. Client: Alula 360 Herndon Parkway, Suite 1400 Model: RE229 Herndon, VA 20170 Standards: FCC Part 15.231 http://www.rheintech.com Report #: 2019214 Measurement uncertainty: Measurement uncertainties shown for these tests are expanded uncertainties expressed at 95% confiden…

Text truncated - open the document above for the full version.

U5X-RE229 Alula Holdings, LLC 4/15/2020 Page 1 of 6 Test Report 2340 Energy Park Drive Suite 100 St. Paul, MN 55108 Glass Break Sensor FCC ID: U5X-RE229 Certification Test Report U5X-RE229 Alula Holdings, LLC 4/15/2020 Page 2 of 6 Test Report 2340 Energy Park Drive Suite 100 St. Paul, MN 55108 April 15, 2020 Contents 1. Introduction ............................................................................................................................. 3 2. Statement of Compliance ........................................................................................................ 3 2.1. FCC Part 2 §2.907 ............................................................................................................ 3 2.2. FCC Part 2 §2.909 ............................................................................................................ 3 2.3. FCC Part 2 §2.911 ............................................................................................................ 3 2.4. FCC Part 2 §2.913 ............................................................................................................ 3 2.5. FCC Part 2 §2.915 ............................................................................................................ 3 2.6. FCC Part 2 §2.925 ............................................................................................................ 3 2.7. FCC Part 2 §2.943, 2.945 ................................................................................................. 3 2.8. FCC Part 2 §2.947 ............................................................................................................ 3 2.9. FCC Part 2 §2.948 ............................................................................................................ 4 2.10. FCC Part 2 §2.1033 ...................................................................................................... 4 3. Discussion of Laboratory Measurements and Rules Compliance .......................................... 5 3.1. FCC Part 15 §15.231(a)(1) ............................................................................................... 5 3.2. FCC Part 15 §15.231(a)(2) ............................................................................................... 5 3.3. FCC Part 15 §15.231(a)(3) ............................................................................................... 5 3.4. FCC Part 15 §15.231(a)(4) ............................................................................................... 5 3.5. FCC Part 15 §15.231(a)(5) ............................................................................................... 5 3.6. FCC Part 15 §15.231(b) ................................................................................................... 5 3.6.1. Field Strength Limits ................................................................................................ 5 3.6.2. Duty Cycle Correction Factor and Average Emission Calculation ........................... 5 3.6.3. Measured Radiated Field Strength Data ................................................................... 5 3.7. FCC Part 15 §15.231(c) ................................................................................................... 6 3.7.1. Bandwidth Requirements - Limits and Measured Data ............................................ 6 1. Introduction The RE229 is a glass break sensor designed for use in a wireless home security system. The device is powered by a single CR123A lithium battery. It measures 4.15” x 2.35” x 1.00” and weighs approximately 2.75 ounces. The device transmits packets to a security system which indicate the state of a tamper switch and the detection of breaking glass. Additional operational detail and descriptions can be found in Exhibit F. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2. Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1. FCC Part 2 §2.907 This is an application for certification of original equipment 2.2. FCC Part 2 §2.909 We have been informed of the grantee responsibilities with regard to certified equipment. 2.3. FCC Part 2 §2.911 a) This application has been filed electronically using form 731. b) All required information has been supplied in this application and its attachments. c) All required information has been supplied in this application and its attachments. d) All information provided for this application is true and correct to the best of our knowledge and belief. We certify compliance with the requirements of §1.2002 concerning the Anti-Drug Abuse Act of 1988. Signatures are supplied electronically, and statements agreed to, in the appropriate block of form 731 and in all attachments were required. The technical test data has been signed by the agency performing the testing. e) The technical test data has been signed by the agency performing the testing. f) Signatures have been supplied electronically by an officer of Alula. 2.4. FCC Part 2 §2.913 a) This application has been filed electronically. b) Appropriate fees have been filed electronically. c) Equipment samples shall be supplied as requested. 2.5. FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.6. FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X-RE229”. See Exhibit B for a photograph showing the label and location on the device. 2.7. FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.8. FCC Part 2 §2.947 a) Measurement procedure follows ANSI C63.4: 2009. b) A description of utilized test equipment is contained in the report. 2.9. FCC Part 2 §2.948 Measurements were taken at the following FCC-approved facility: Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 He…

Text truncated - open the document above for the full version.

Exhibit J - Test Setup Photos FCC ID: U5X-RE229 IC: 8310A-RE229
