U5X-RE616Wireless Siren

RE616 Wireless Siren Features •Remote Wireless Siren •Works RE6100 panel •Siren cadence synchronized to panel •Automatically follows panel beep volume •Wall-powered, with backup power on CR123A battery •Can use multiple Sirens on one panel •Cover tamper •Unparalleled wireless range •Low Battery indication •3x4x1.25 inches Key Instructions ENROLLMENT Open the Siren battery door, giving access to the programming switches. Power the Siren with its battery. Enrolling RE6100 Panel into Siren – to send panel siren signals to Siren 1. Put Siren Function in ENROLL Mode. 2.Put the RE6100 into enroll mode. The Siren will beep 4 times, indicating enrollment. 3.Put Siren Function Switches in RUN Mode. Operation •Alarm Siren follows panel alarm pattern. •Supervision Siren sends supervisory signals to panel IF: Siren has AC power. AND, if Special Transmitter is enrolled in Siren... Siren has heard signal from Special Transmitter in previous 60 minutes. •Tamper When cover is opened on Siren. RE616 Wireless Siren Instructions.docPage 1 of 231-Dec-14 24-Hour Tech Support Line: (715)808-0164 www.ResolutionProducts.com ENROLL RUN ENROLL RUN 1 2 1 2 12 1 2 Siren Specifications Supervisory Time64-68 minutes Alarm Sound Intensity85dB, minimum, at 1m Receiver:Dual antenna diversity Transmitter>Dual antenna Dirersity Electrical Connection:US 2-prong Electrical outlet blades Mounting hardware:Secure with outlet plate mounting screw Backup Battery Life:48 hours cumulative, non-rechargeable Back-up Battery:CR123A 1550 mAH Temperature Range:0F to 120F Housing dimensions:3x4x1.25 inches Specifications subject to change without notice. Warranty Resolution Products, Inc. will replace products that are defective in their first five (5) years. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Products, Inc. could void the user's authority to operate this equipment. FCC ID: U5X-RE616 (Siren) IC Notice This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. IC: 8310A-RE616 (Siren) RE616 Wireless Siren Instructions.docPage 2 of 231-Dec-14 24-Hour Tech Support Line: (715)808-0164 www.ResolutionProducts.com

December 16, 2014 RE: Confidentiality Request for U5X-RE616/8310A-RE616 To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit Short Term PermanentBlock Diagrams Short TermExternal Photos Short Term Permanent* 1 Internal Photos Short Term PermanentOperation Description/Theory of Operation Short Term PermanentParts List & Placement/BOM Short Term PermanentTune-Up Procedure Short Term PermanentSchematics Short TermTest Setup Photos Short Term Permanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ Resolution Products, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By:__________________________ Paul Saldin, Vice President (Signature/Title 3 )(Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

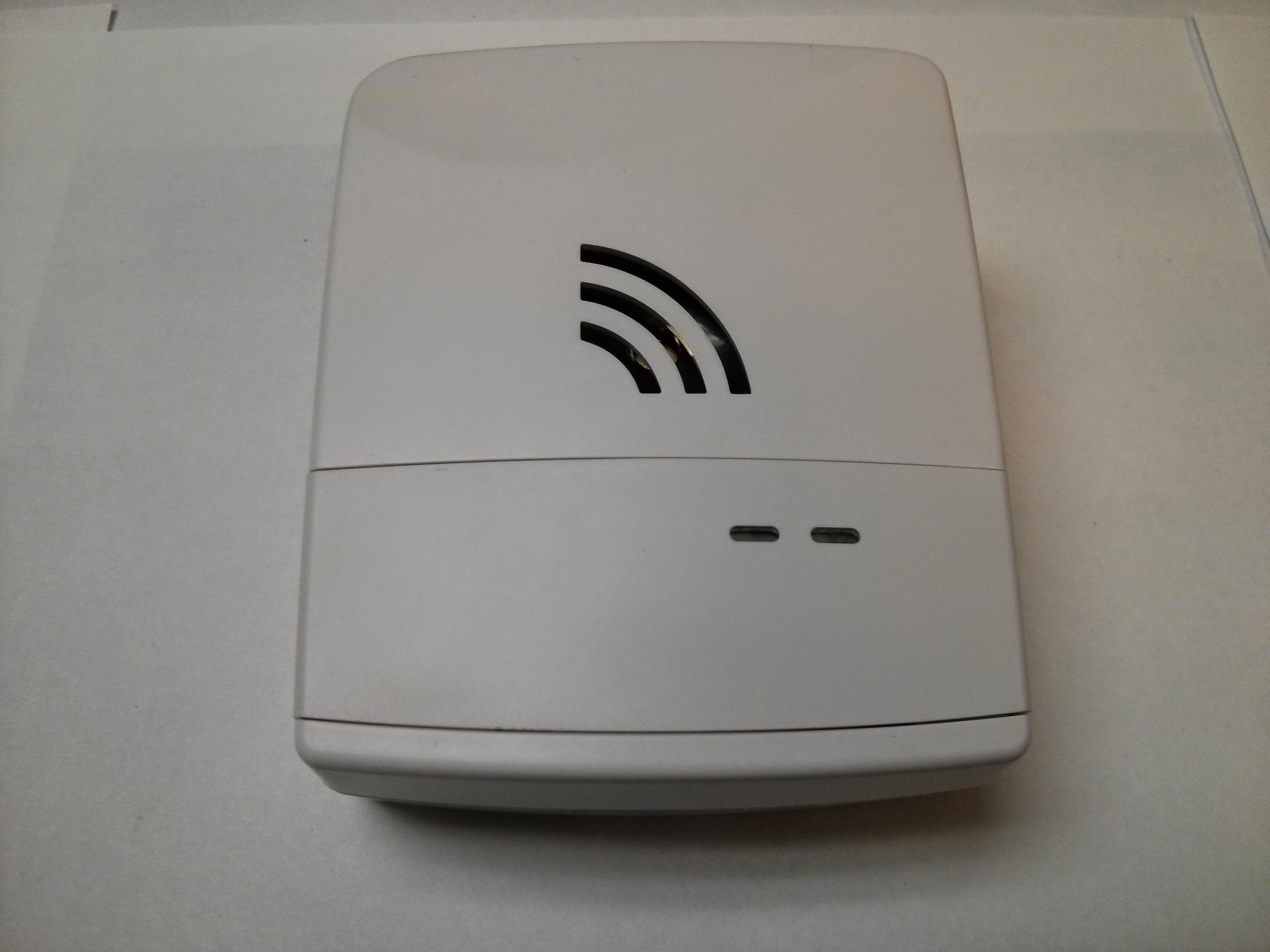

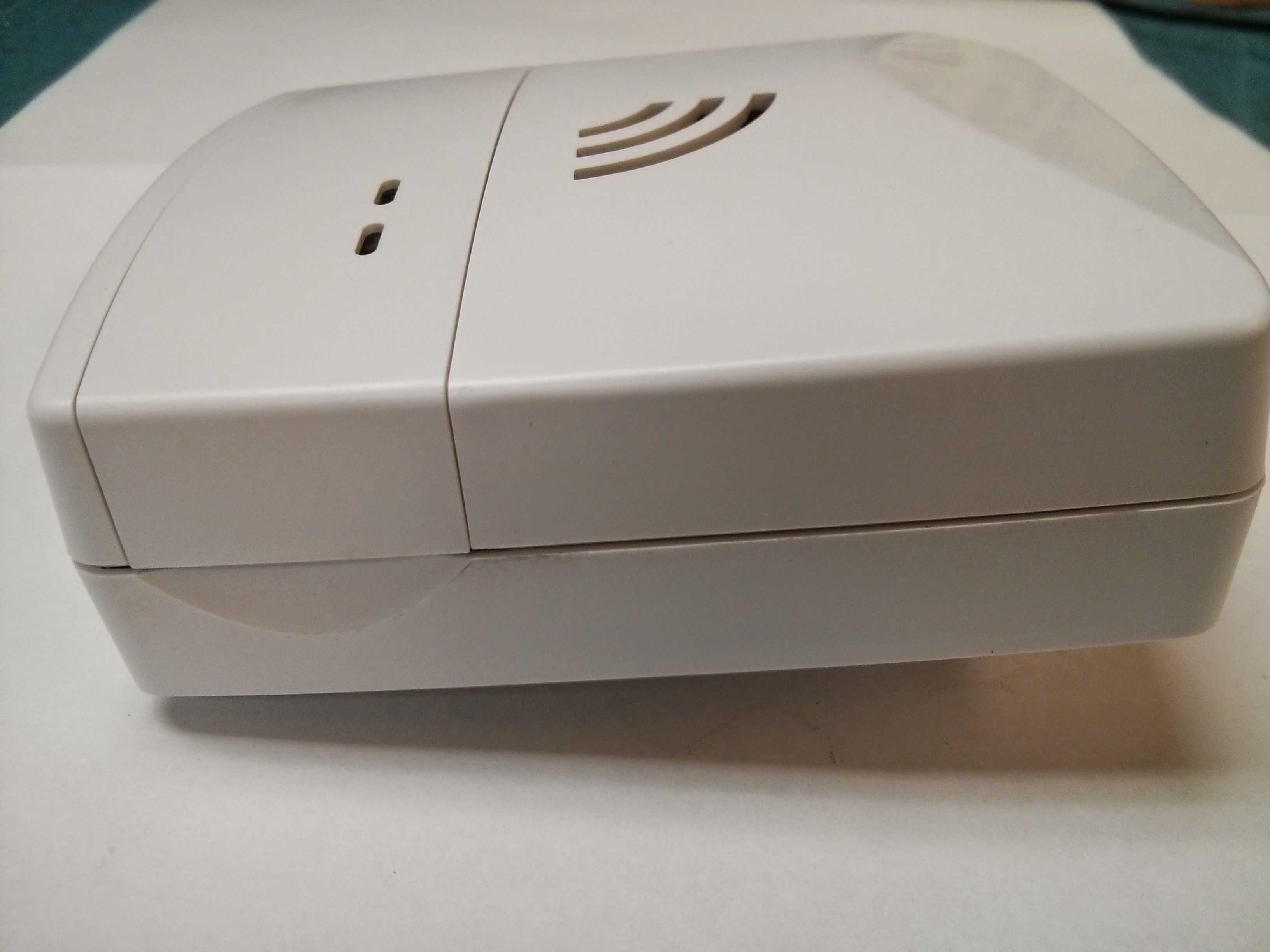

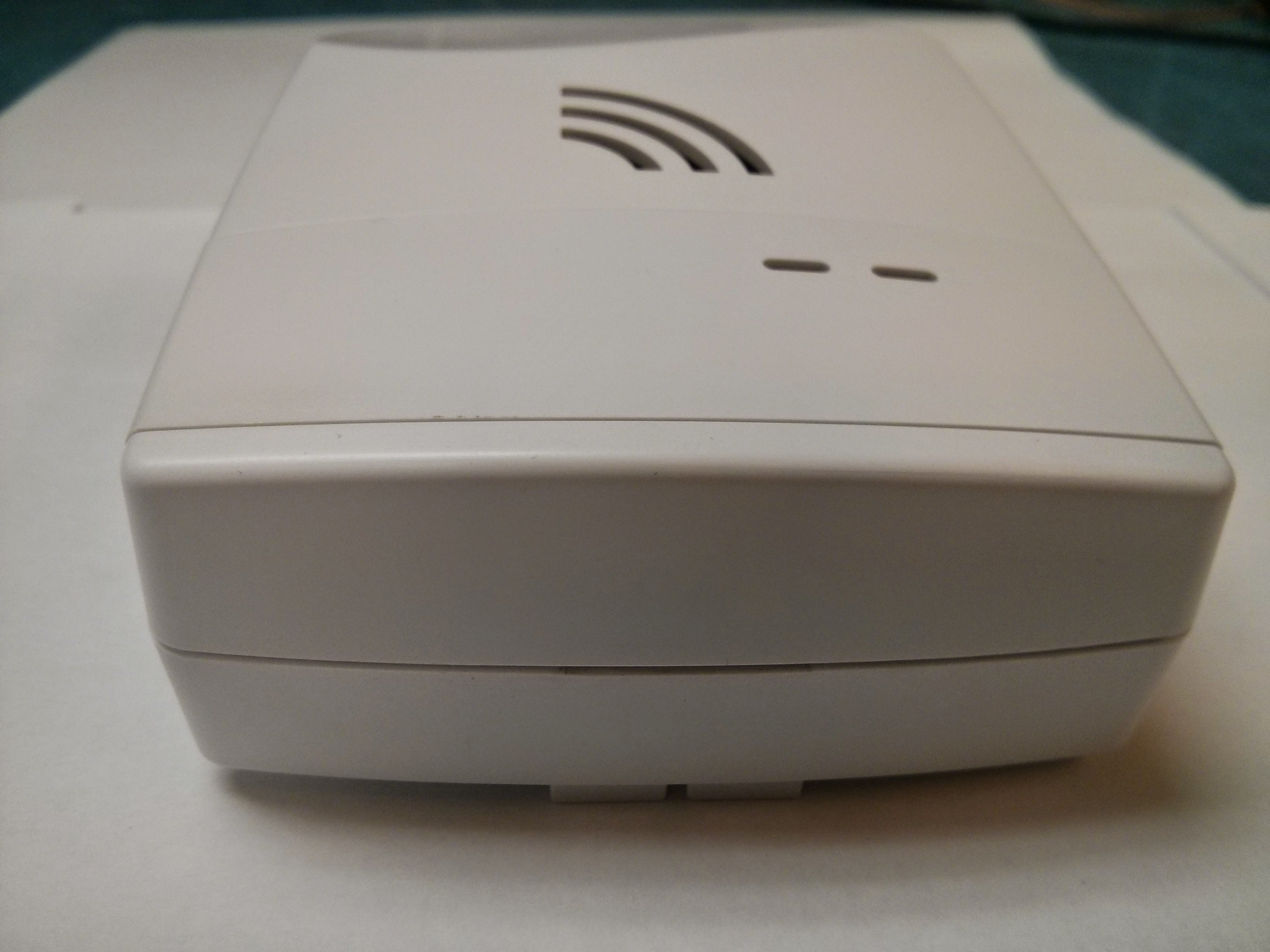

Exhibit A RE616 External Photos

Exhibit B RE116 ID Label Photo

Exhibit C RE116 Internal Photos

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 15.231 Test Data EUT: 433.92 MHz 56-0042-03 RevF00 Siren for Resolution Engineering, Inc. 1402 Heggen Street Hudson, WI 54016 Contact: Josh Gathje Testing Conducted By Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 RTL Test Engineer: Dan Baltzell RTL Project/Report Number: 2014210 December 9, 2014 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Resolution Engineering. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0042-03 RevF00 Siren Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014210 2 of 13 Testing Represented in Report The data and limits presented in this report are for radiated emissions per 15.231(b)(2) which references 15.35(b), and peak limiting for restricted bands per 15.209(e), which again references 15.35(b)(2), as procured by Resolution Engineering. No average data is presented in this report. Data is also presented for spurious, non-harmonic radiated emissions per 15.209. The Equipment Under Test (EUT) was the 433.92 MHz 56-0042-03 RevF00 Siren (RTL bar code 21186 for spurious emissions and 21187 for unintentional emissions). 15.231 Radiated Emissions Spurious Test Data - Side Antenna – FCC Limits/ 3m Distance Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 433.920 Peak H 80.6 17.7 98.3 100.8 -2.5 Pass 867.840 Peak H 44.3 24.0 68.3 80.8 -12.5 Pass 1301.763 Peak H 33.5 28.1 61.6 74.0 -12.4 Pass 1735.688 Peak V 18.3 28.1 46.4 80.8 -34.4 Pass 2169.590 Peak H 46.7 -8.8 37.9 80.8 -42.9 Pass 2603.510 Peak V 59.5 -9.1 50.4 80.8 -30.4 Pass 3037.430 Peak H 56.1 -9.0 47.1 80.8 -33.7 Pass 3471.350 Peak V 49.3 -7.0 42.3 80.8 -38.5 Pass 3905.270 Peak V 45.3 -2.6 42.7 74.0 -31.3 Pass 4339.190 Peak V 32.7 -1.5 31.2 74.0 -42.8 Pass 15.231 Radiated Emissions Spurious Test Data - Bottom Antenna – FCC Limits/ 3m Distance Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 433.920 Peak V 80.0 17.7 97.7 100.8 -3.1 Pass 867.840 Peak H 32.4 24.0 56.4 80.8 -24.4 Pass 1301.763 Peak V 21.4 28.1 49.5 74.0 -24.5 Pass 1735.688 Peak H 23.6 28.1 51.7 80.8 -29.1 Pass 2169.590 Peak V 44.8 -8.8 36.0 80.8 -44.8 Pass 2603.510 Peak V 56.4 -9.1 47.3 80.8 -33.5 Pass 3037.430 Peak V 54.9 -9.0 45.9 80.8 -34.9 Pass 3471.350 Peak V 49.2 -7.0 42.2 80.8 -38.6 Pass 3905.270 Peak V 45.9 -2.6 43.3 74.0 -30.7 Pass 4339.190 Peak V 29.2 -1.5 27.7 74.0 -46.3 Pass * FCC/IC restricted band All spurious emissions in the applicable frequency range were investigated, only harmonic emissions were present as noted above Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0042-03 RevF00 Siren Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014210 3 of 13 15.209 Radiated Emissions Unintentional Test Data – FCC Limits/ 3m Distance Temperature: 43°F Humidity: 52% Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 41.689 Qp V 37.1 -16.8 20.3 40.0 -19.7 Pass 84.234 Qp V 44.1 -24.7 19.4 40.0 -20.6 Pass 148.068 Qp V 31.9 -22.5 9.4 43.5 -34.1 Pass 151.029 Qp H 30.5 -22.6 7.9 43.5 -35.6 Pass 151.929 Qp H 26.4 -22.6 3.8 43.5 -39.7 Pass 180.333 Qp V 34.2 -22.0 12.2 43.5 -31.3 Pass 206.686 Qp V 31.1 -20.2 10.9 43.5 -32.6 Pass Test Procedure Radiated fundamental and spurious emissions were tested at three meters. The EUT was tested in the three orthogonal planes with the receive antenna in both polarities. The emissions were maximized per ANSI C63.4:2003 8.3.1.2; that is, the measurement antenna height was varied between 1 and 4 m, and the EUT was rotated through 360° on a rotating turntable until the maximum emissions were found. Both horizontal and vertical measurement antenna polarizations were used. A resolution bandwidth of 100 kHz was used for frequencies less than 1000 MHz, and a resolution bandwidth of 1 MHz was used for frequencies greater than or equal to 1000 MHz. The video bandwidth was set to a value at least three times greater than the resolution bandwidth. EUT Disposition The EUT was adapted to continuously transmit for testing purposes, as well as a normal operating mode for unintentional emissions. Radiated Emissions Test Equipment RTL Bar Code Manufacturer Model Part Serial Number Calibration Due Date 901581 Rohde & Schwarz FSU Spectrum Analyzer 1166.1660.50 11/13/15 900724 ARA LPB-2520 Bilog Periodic Antenna (25 MHz-2000 MHz) 1037 4/19/15 900932 Hewlett Packard 8449B OPT H02 Preamplifier 1-26.5 GHz 3008A00505 9/5/15 900772 EMCO 3161-02 Horn Antenna (2.0-4.0 GHz) 9804-1044 4/20/15 900321 EMCO 3161-03 Horn Antenna (4.0-8.0 GHz) 9508-1020 4/20/17 900323 EMCO 3160-07 Horn Antenna (8.0-12.4 GHz) 9605-1054 4/20/17 900356 EMCO 3160-08 Horn Antenna (12.4-18.0 GHz) 9607-1044 4/20/17 901218 EMCO RA42-K-F-43_C Horn Antenna (18.0-26.5 GHz) 960281-003 4/20/17 N/A Rhein Tech Laboratories, Inc. Automated Emission Tester Emissions Testing Software Rev. 14.0.2 N/A 901592 Insulated Wire Inc. KPS-1503-3600-KPR SMK RF Cables 20’ NA 9/3/15 901593 Insulated Wire Inc. KPS-1503-360-KPR SMK RF Cables 36” NA 9/3/15 Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon …
