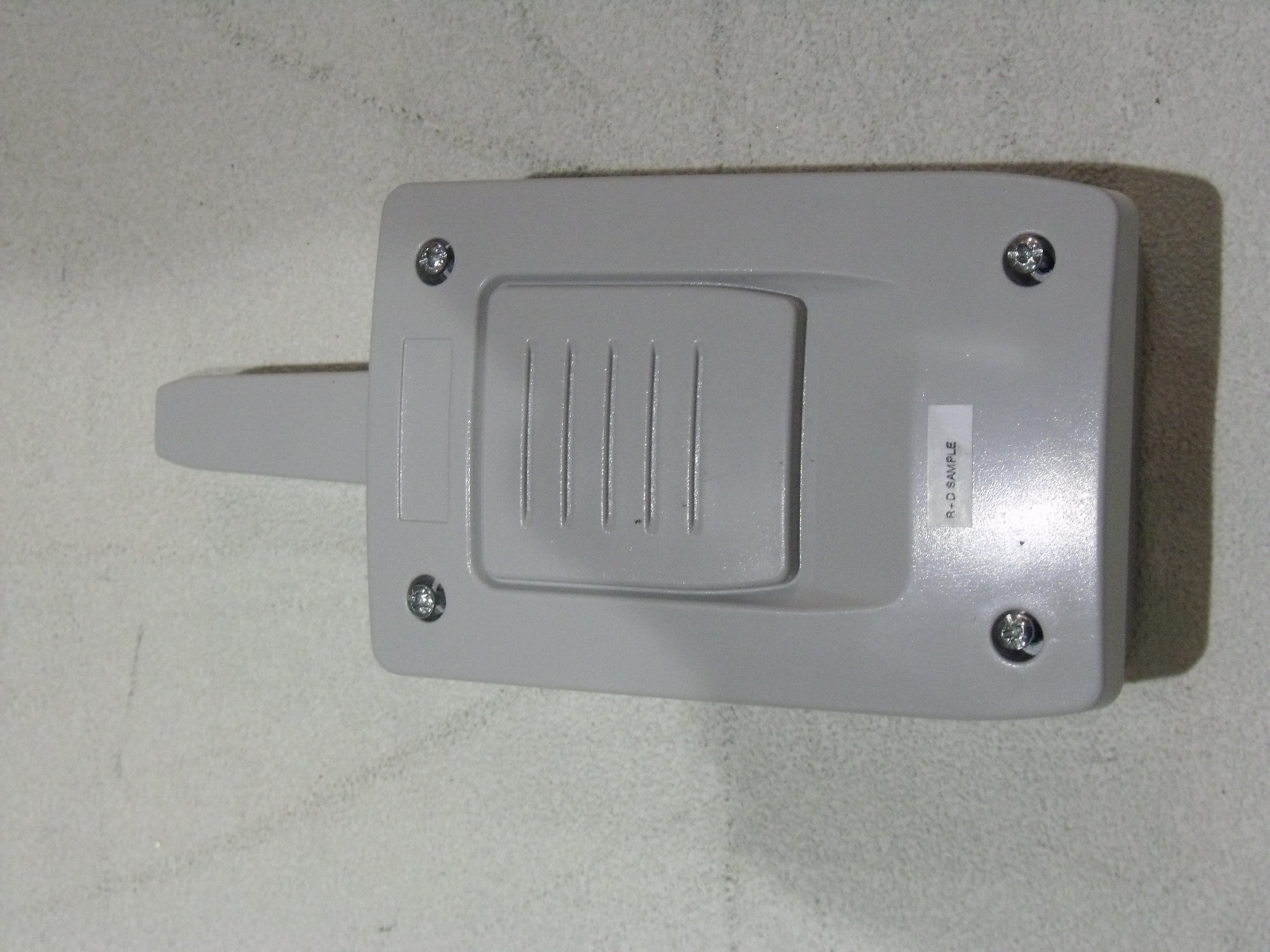

U5Z-BASE5001B-2BReceiver for security gate system

COD. 1248017-GB / 1.2 BASE500 1 BASE500-1B / BASE500-2B TECHNICAL CHARACTERISTICS BASE500-1B / BASE500-2B Frequency 868,35MHz Coding High security rolling code Memory 500 codes Number of relays 1 / 2 relays Supply 12/24V ac/dc Power supply range 9-23 / 22-35V dc 8-16 / 16-27V ac Relay contacts 1A Standby/Op. consumption 60mA / 90mA Op. temperature -20ºC to +85ºC Watertightness IP54 (with glands IP65) Size 63x74x25mm Box dimensions 82x190x40mm COD. 1248017-GB / 1.2 BASE500 2 INSTALLATION AND CONNECTIONS Attach the rear part of the housing to the wall using the plugs and screws supplied. Pass the cables through the bottom of the receiver. Connect the power cables to the terminals marked in the mother board, as indicated. Fix the receiver front to the rear part using the screws supplied. OPERATING The pilot lights are activated every 5 seconds to indicate the correct supply of power to the equipment. Upon receiving a code, the receiver checks whether it is in its memory, activating the corresponding relay. The relay activation mode is selected in either impulse or ON/OFF using the Imp/Bies jumper (only with the relay 2). For adjustment of relay 1, see manual of the programming tool. PROGRAMMING MANUAL PROGRAMMING Press the receiver programming button for 1 sec. and an acoustic signal will be heard. The receiver will enter standard programming (see table). If the receiver programming button is held pressed down, the receiver Hill enter special programming, cyclically passing from one configuration to the next. Once the programming configuration for the transmitter to be registered has been chosen, send the code to be programmed by pressing the transmitter. Every time a transmitter is programmed, the receiver will issue an acoustic signal for 0.5 sec. After 10 seconds without programming or pressing the first two transmitter buttons, the receiver will exit programming mode, issuing two acoustic signals of 1 sec. If upon programming a transmitter the receiver memory is full, it will issue 7 acoustic signals of 0.5 sec. and exit programming. Configuration of transmitter programming in the receiver. Led R1 Led R2 Standard Programming (default option, the receiver is always configured on pluri-channel) The relays are activated 1st relay by channel 1 and 2nd relay by channel 2 (3rd relay by channel 1 and 4th relay by channel 2) Flashing Flashing Special programming Press the transmitter channel to activate the relay 1 on the receiver ON OFF Press the transmitter channel to activate the relay 2 on the receiver OFF ON Press the transmitter channel to activate the two relays at once * ON ON • If working in ON/OFF activation mode, relay 1 will act as impulse and relay 2 as ON/OFF. Therefore, on the first press relay 1 will close and open the contact and relay 2 will only close. On the second, relay 1 will close and open the contact and relay 2 will open. N.B.: Each transmitter can be configured independently on the receiver. COD. 1248017-GB / 1.2 BASE500 3 TOTAL RESET In programming mode, the programming button is held down and the “MR” reset jumper is bridged for 3 secs. The receiver will issue 10 short acoustic warning signals followed by others at a faster pace to indicate that the operation has been successful. The receiver is now in programming mode. After 10 seconds without programming or quickly pressing the programming button, the receiver will exit programming mode, issuing two acoustic signals of 1 sec. GROUPS Receivers can be configured with a group (from 0 to 7) so that there is no interference when working near each other. 125kHz 125kHz868MHz 125kHz C3- G1 C2- G2 C3- G1 G1 G2 125kHz868MHz C2- G1 C2- G1 C3- G2 C2- G2 C3- G2 C1- G0 C2- G0 C=channel G=group N.B. Group 0 enables all groups. GROUP CONFIGURATION The configuration can be carried out with the programming tool or by self-programming as follows. COD. 1248017-GB / 1.2 BASE500 4 Self-programming After the receiver has been totally reset, it will be configured with the group of the first radio-programmed transmitter by enabling the hands free mode. Exception: If the receiver has been configured using programming tools, the group may only be changed with the programming tool. Operations On powering the receiver, the led R1 will flash the same number of times as the group number with which it is configured. USE OF THE RECEIVER These receivers are designed for use as remote controls for garage doors. Their use is not guaranteed for directly activating any other equipment different to that specified. The manufacturer reserves the right to modify equipment specifications without prior notice. IMPORTANT ANNEX Disconnect the power supply before handing the unit. In compliance with the European Directive low-voltage electrical equipment, we hereby inform users of the following requirements: · For units which are permanently connected, an easily accessible circuit-breaker device must be built into the wiring system. · This unit must always be installed in a vertical position and firmly fixed to the structure of the building. · This unit must only be handled by a specialised installer, by his maintenance staff or by a duly trained operator. · The instruction manual for this unit must always remain in the possession of the user. · Terminals of maximum section 3,8mm2 must be used for the power supply connections. · Use time delayed fuses. Hereby, JCM TECHNOLOGIES, S.A., declares that this BASE500-1B, BASE500- 2B is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To comply with FCC rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the batte…

Text truncated - open the document above for the full version.

REVISAT MODIFICAT INFORMACIÓ CONFIDENCIAL Location FCC laser marking 45,7x21,2mm G.Reverter 13-12-11 BASE5001B-2B - location of FCC label 1:1 1 1 FCC ID: U5Z-BASE5001B-2B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 5

FCC CFR47 PART 15 SUBPART B CERTIFICATION TEST REPORT FOR RECEIVER MODEL NUMBER: Base500-2B REPORT NUMBER: 1001446422 FCC ID: U5Z-BASE5001B2B ISSUE DATE: 2011-12-01 REVISION DATE: 2011-12-12 Prepared for JCM TECHNOLOGIES S A BISBE MORGADES, 46 BAIXOS VIC 08500, SPAIN Prepared by UNDERWRITERS LABORATORIES INC. 1285 WALT WHITMAN RD. MELVILLE, NY 11747, U.S.A. TEL: (631) 271-6200 FAX: (877) 854-3577 REPORT NO: 1001446422 DATE: 2011-12-01 EUT: Receiver MODEL: Base500-2B FCC ID: U5Z-BASE5001B2B Page 2 of 25 UNDERWRITERS LABORATORIES INC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. Revision History Rev. Issue Date Revisions Revised By -- 2011- 12-01 Initial Issue B. DeLisi -- 2011- 12-12 Change from DoC Report to Certification Report B. DeLisi REPORT NO: 1001446422 DATE: 2011-12-01 EUT: Receiver MODEL: Base500-2B FCC ID: U5Z-BASE5001B2B Page 3 of 25 UNDERWRITERS LABORATORIES INC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 5. EQUIPMENT UNDER TEST ............................................................................................... 6 5.1. DESCRIPTION OF EUT .............................................................................................. 6 5.2. MANUFACTURER’S DESCRIPTION OF MODEL DIFFERENCES ............................. 6 5.3. MODE(S) OF OPERATION ......................................................................................... 6 5.4. MODIFICATIONS ........................................................................................................ 6 5.5. DETAILS OF TESTED SYSTEM ................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 9 7. APPLICABLE LIMITS AND TEST RESULTS ...................................................................11 7.1. RADIATED EMISSIONS .............................................................................................11 7.2. AC MAINS LINE CONDUCTED EMISSIONS .............................................................16 8. SETUP PHOTOS ...............................................................................................................20 REPORT NO: 1001446422 DATE: 2011-12-01 EUT: Receiver MODEL: Base500-2B FCC ID: U5Z-BASE5001B2B Page 4 of 25 UNDERWRITERS LABORATORIES INC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: JCM TECHNOLOGIES S A BISBE MORGADES, 46 BAIXOS VIC 08500, SPAIN EUT DESCRIPTION: Receiver MODEL: Base500-2B SERIAL NUMBER: Non-serialized Production Unit DATE TESTED: 2011-11-30 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART B Pass Underwriters Laboratories Inc. tested the above equipment in accordance with the requirements set forth in the above standards, using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by Underwriters Laboratories Inc. based on interpretations of these calculations. The results show that the equipment is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation, as described by the referenced documents. This document may not be altered or revised in any way unless done so by Underwriters Laboratories Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Underwriters Laboratories Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL By: Tested By: Joseph Danisi Bob DeLisi Lead Engineering Assoicate Sr. Staff Engineer UL UL REPORT NO: 1001446422 DATE: 2011-12-01 EUT: Receiver MODEL: Base500-2B FCC ID: U5Z-BASE5001B2B Page 5 of 25 UNDERWRITERS LABORATORIES INC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2009. 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 1285 Walt Whitman Rd. Melville, NY 11747, USA. UL Melville is accredited by NVLAP, Laboratory Code 100255-0. The f…

Text truncated - open the document above for the full version.

1. SETUP PHOTOS RADIATED EMISSION RADIATED EMISSIONS 30M-1GHz (FRONT) RADIATED EMISSIONS 30M-1GHz (BACK) RADIATED EMISSIONS ABOVE 1GHz (FRONT) RADIATED EMISSIONS ABOVE 1GHz (BACK) AC MAINS LINE CONDUCTED EMISSION LINE CONDUCTED EMISSION (FRONT) END OF REPORT LINE CONDUCTED EMISSION (BACK)
