U5Z-RBAND-OSTransmitter for automatic door safety edges

COD. 1248034-GB / 1.1 RBAND/OS – RBAND/OSB - 1 - • INTRODUCTION DESCRIPTION The RadioBand system is designed of Industrial, Commercial and Domestic door and gate applications where a safety edge is used. The system provides a wireless system replacing spiral cables or energy chain systems to provide the safety signal to the door or gate control panel. The receiver monitors the status of transmitters connected to it. Up to three transmitters per output can be connected to the receiver. There are two outputs on each receiver. The system is compatible with 8K2 monitored safety edges, opto safety edges and volt free safety contacts. Two inputs available in the transmitter. The system complies with EN ISO 13849-1. USE OF THE SYSTEM This equipment is designed to be installed with a safety edge for door and gate installations. It is not guaranteed for directly activating equipment other than that specified. The manufacturer reserves the right to change the specification of the equipment without prior warning. • RBAND/O TECHNICAL CHARACTERISTICS System non compatible with RADIOBAND 1G. RBAND/OS – RBAND/OSB Frequency Multifrequency system (433 MHz, 868 MHz) Power supply 3V DC (2 x 1.5V LR6 AA) Operating consumption 10mA Radiated power < 25mW Operating temperature -20ºC - +85ºC Watertighness IP65 Size 151x60x23mm Range 10 metres Battery life (aprox) 2 years COD. 1248034-GB / 1.1 RBAND/OS – RBAND/OSB - 2 - • INSTALLATION PROCEDURE AND BASIC WIRING MECHANICAL INSTALLATION Fix the back of the box to the door. Install the transmitter following the technical manual and avoid placing metallic surfaces between the receiver and the transmitter. Pass the cables through the bottom of the transmitter. Connect the safety edge following the electrical connections clause and ensure that the safety edge keeps totally waterproof. Fix the front of the transmitter to the back with the screws supplied for the purpose. SELECTOR JUMPERS Allow selecting the type of the security element which is connected. Jumper selector Function CS Voltage free safety contact BS 8k2 monitored safety edge O Opto safety edge 8k2 MONITORED SAFETY EDGE Ensure the safety edge selection jumper is fitted in the BS position. Electromechanical safety edges with 8k2 output are also considered 8k2 monitored safety edges. OPTO SAFETY EDGES The use of opto safety edges requires the autotest signal or the current detector signal from the receiver. Ensure the safety edge selection jumper is fitted in the O position. The system is only compatible with low power opto transmitter/receiver (3Vdc / 3mA). The opto safety edge remains in standby mode (non functioning) until it receives an activation signal from the receiver. The activation signal is sent during the auto-test and it enables the opto safety edge for 60 seconds (by default) to allow the full travel of the door/gate. When using the current detector signal instead of autotest, the opto safety edge will remain active during the motor movement. COD. 1248034-GB / 1.1 RBAND/OS – RBAND/OSB - 3 - The activation time of the opto safety edge can be modified. Before doing this operation it is necessary to know the door travel time. 1. Press the receiver PROG and CHECK buttons simultaneously until the three CHECK, B1 and B2 leds go light on. 2. Press the PROG button to begin the memorisation of the time the opto safety edge will be activated. You will hear a beep each second, to count the time easier. 3. Press the PROG button another time to memorise the total time the opto safety edge will be activated. 4. Program the transmitter to the receiver again (see paragraph PROGRAMMING). CONNECTION OF THE VOLTAGE FREE CONTACT When a voltage free contact is to be connected, (eg. photocells or electromechanical safety edges without resistive output), fit the jumper in CS position. Note: In order to comply with the EN 12453 safety standard for the use of motorized garage doors, the device connected to this input must have some verification system to ensure its proper functioning. COD. 1248034-GB / 1.1 RBAND/OS – RBAND/OSB - 4 - CONNECTING AN AUXILIARY INPUT When programming in the receiver the Mode 4 (See PROGRAMMATION clause), an auxiliary input turns available on the transmitter. The transmitter transmits the status of auxiliary input to the second relay of the receiver. This auxiliary input is a normally open contact and it will be programmed always in the relay 2 of the receiver. In case of using an 8k2 monitored safety edge or a voltage free safety contact, this auxiliary input will be on the S terminal. In case of using an opto safety edge, this auxiliary input will be on the BS terminal. Example of auxiliary input NO COD. 1248034-GB / 1.1 RBAND/OS – RBAND/OSB - 5 - COD. 1248034-GB / 1.1 RBAND/OS – RBAND/OSB - 6 - • PROGRAMMATION Each safety edge transmitter must be learnt into the appropriate channel of the safety edge receiver. Mode Configuration of transmitter programming in the receiver. Led R1 Led R2 1 By pressing the transmitter, relay 1 on the receiver will be activated ON OFF 2 By pressing the transmitter, relay 2 on the receiver will be activated OFF ON 3 By pressing the transmitter, the two relays will be activated at the same time ON ON 4 The relays are activated 1st relay by channel 1 (operate as normal operation for connecting a safety element) and 2nd relay by channel 2 (connection of an auxiliary input, the sender transmits the status of the auxiliary input to the second relay of the receiver) (operates as a normally open contact for connecting an auxiliary input) Flashing Flashing Notes: - Modes 1, 2 and 3: Up to 6 transmitters (3 on output R1 and 3 on output R2) can be connected to the receiver in modes 1, 2 and 3. - Mode 4: In this mode only 3 transmitters can be connected to the receiver. The second relay cannot make the function of indicating low battery. - Each transmitter can be configured independently on the receiver. - A Transmitter should only be connected to one receiver. COD. 1248…

Text truncated - open the document above for the full version.

INFORMACIÓ CONFIDENCIAL RG10-8 JCM TECHNOLOGIES David Clos 18-11-09 Làser---- PL-IN RB2TC-TUV+FCC 1 1 Plànol marcatge làser 1:1 Detall G.Reverter 28-10-10 1 FCC ID: U5Z-RBAND-OS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: U5Z-RBAND-OS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 37,67 mm

Underwriters Laboratories Inc. A not-for-profit organization dedicated 1285 Walt Whitman Rd. to public safety and committed to Melville, NY 11747 quality service for over 100 years Tel: (631) 271-6200 Fax: (631)439-6095 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 www.ul.com/emc (631) 271-6200 Job Number: 1001299229 Project Number: 10CA53025 File Number: MC16722 Date: 2011-03-31 Model: RBAND/OS FCC ID U5Z-RBAND-OS Electromagnetic Compatibility Test Report For JCM TECHNOLOGIES S A Copyright  2010 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Job Number: 1001299229 File Number: MC16722 Page 2 of 69 Model Number: RBAND/OS Client Name: JCM TECHNOLOGIES S A FCC ID: U5Z-RBAND-OS Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Test Report Details Tests Performed By: Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 Tests Performed For: JCM TECHNOLOGIES S A BISBE MORGADES, 46 BAIXOS VIC, 08500 Applicant Contact: GEMMA REVERTER Phone: +34938833231 Fax: +34938833233 E-mail: [email protected] Test Report Date: 2011-03-31 Product Type: Security Door Operator Product standards FCC Part 15, Subpart C, 15.231 Model Number: RBAND/OS Sample Serial Number: Not Available EUT Category: Periodic Low Power Transmitter Testing Start Date: 2011-10-05 Date Testing Complete: 2011-03-31 Overall Results: Compliant Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA websites referenced at the end of this report. Job Number: 1001299229 File Number: MC16722 Page 3 of 69 Model Number: RBAND/OS Client Name: JCM TECHNOLOGIES S A FCC ID: U5Z-RBAND-OS Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Report Directory 1.0 G E N E R A L - Product Description ..................................................................................................................4 1.1 Equipment Description ...................................................................................................................................4 1.2 Equipment Marking Plate ...............................................................................................................................4 1.3 Device Configuration During Test ..................................................................................................................5 1.3.1 Equipment Used During Test: ....................................................................................................................5 1.3.2 Input/Output Ports: .....................................................................................................................................5 1.3.3 EUT Internal Operating Frequencies: ........................................................................................................6 1.3.4 Power Interface: .........................................................................................................................................6 1.4 Block Diagram: ...............................................................................................................................................7 1.5 EUT Configurations ........................................................................................................................................8 1.6 EUT Operation Modes ....................................................................................................................................8 2.0 Summary ............................................................................................................................................................9 2.1 Deviations from standard test methods ..........................................................................................................9 2.2 Device Modifications Necessary for Compliance ...........................................................................................9 2.3 Reference Standards .................................................................................................................................. 10 2.4 Results Summary ........................................................................................................................................ 10 3.0 Calibration of Equipment Used for Measurement ........................................................................................... 11 4.0 Emissions Test Results ................................................................................................................................... 11 4.1 Test Conditions and Results – Occupied Bandwidth .................................................................................. 12 4.2 Test Conditions and Results – Pulse Train and Polling Signals ................................................................. 17 4.3 Test Conditions and Results – Cease Op…

Text truncated - open the document above for the full version.

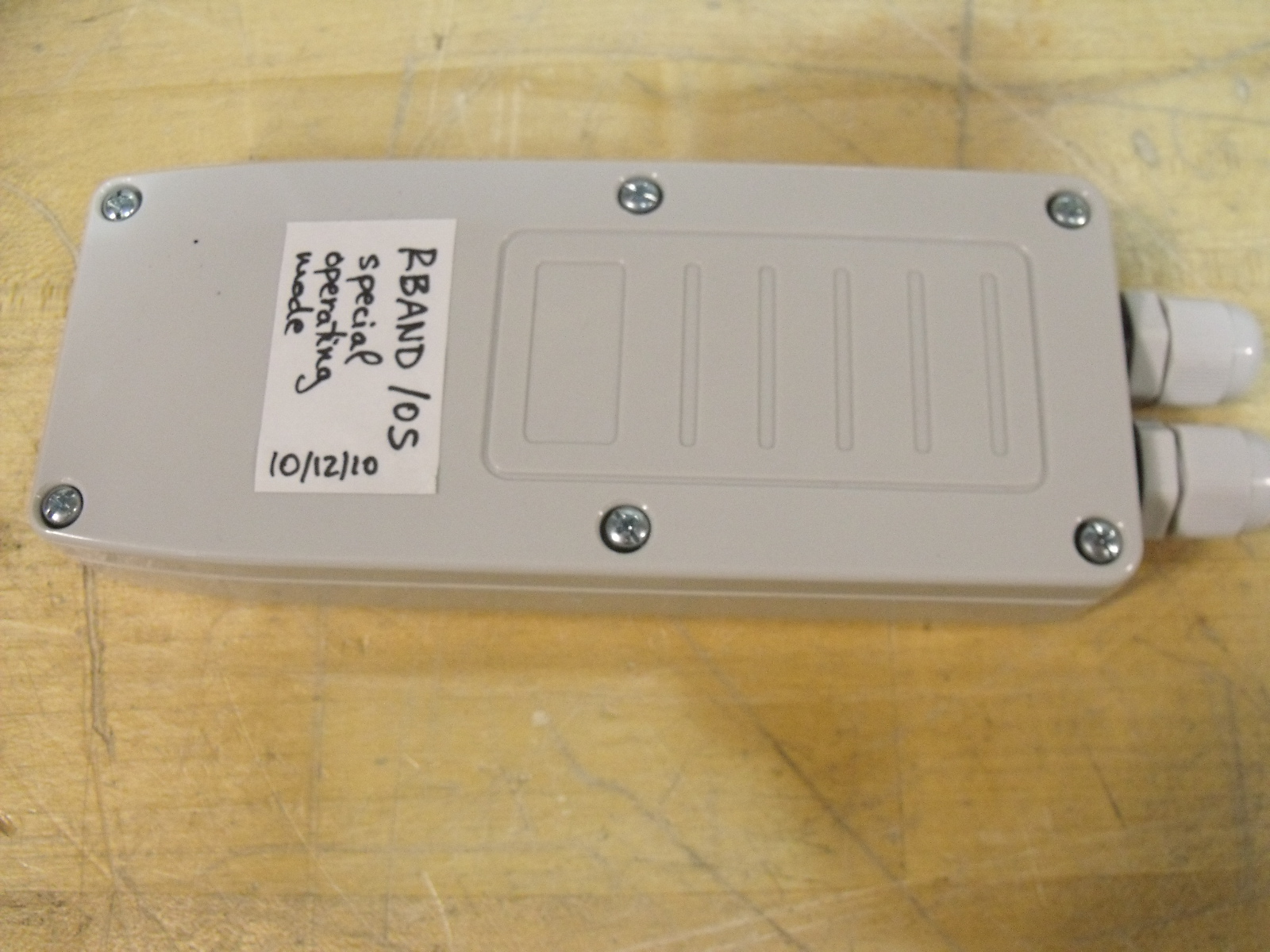

Job Number: 1001299229 File Number: MC16722 Page 13 of 69 Model Number: RBAND/OS Client Name: JCM TECHNOLOGIES S A FCC ID: U5Z-RBAND-OS Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 1 Test Setup for Occupied Bandwidth Job Number: 1001299229 File Number: MC16722 Page 48 of 69 Model Number: RBAND/OS Client Name: JCM TECHNOLOGIES S A FCC ID: U5Z-RBAND-OS Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 14 Test setup for Radiated Emissions – Transmitter Front View Rear View Job Number: 1001299229 File Number: MC16722 Page 49 of 69 Model Number: RBAND/OS Client Name: JCM TECHNOLOGIES S A FCC ID: U5Z-RBAND-OS Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Front View Rear View Job Number: 1001299229 File Number: MC16722 Page 50 of 69 Model Number: RBAND/OS Client Name: JCM TECHNOLOGIES S A FCC ID: U5Z-RBAND-OS Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Front View Rear View
