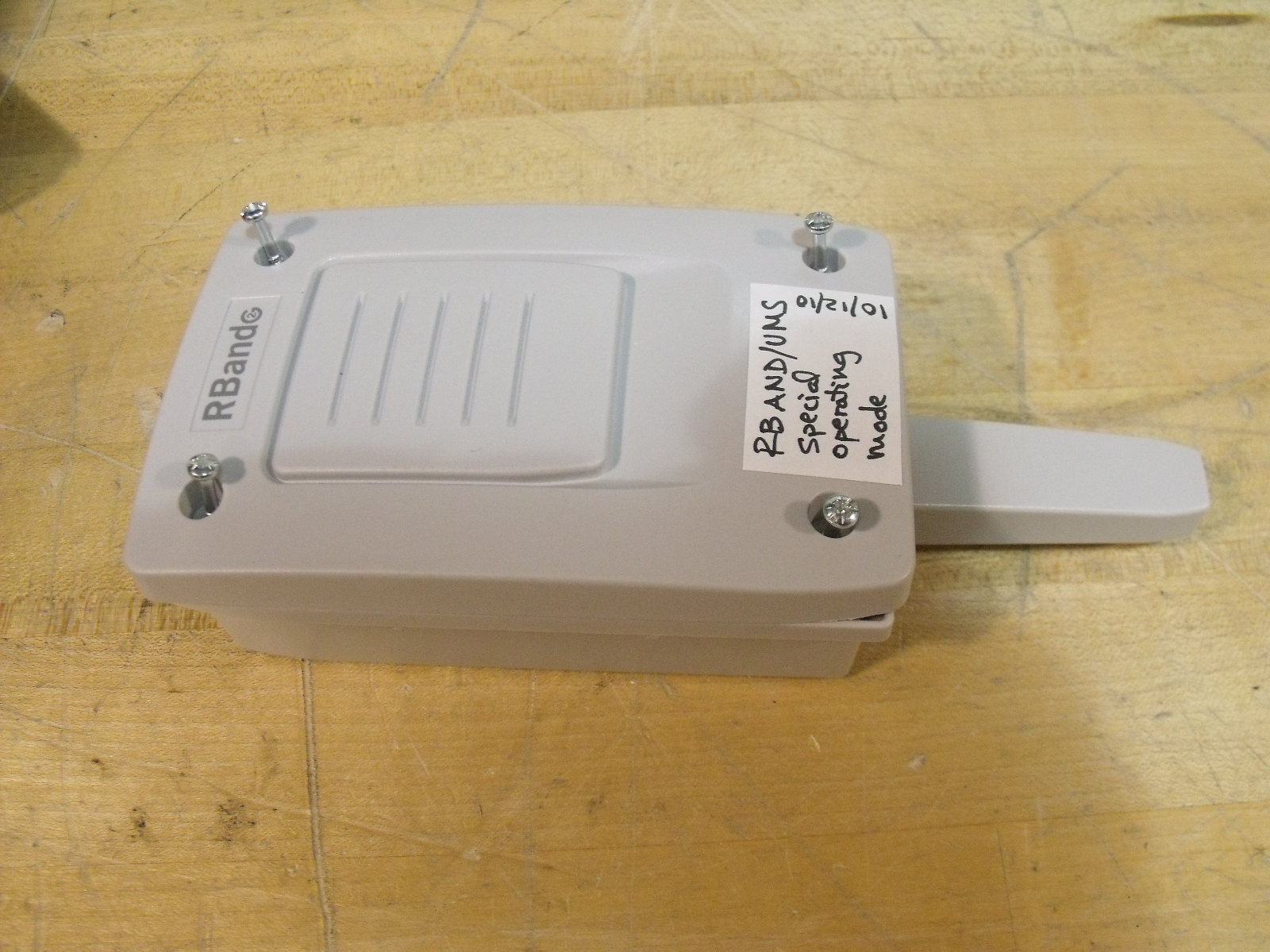

U5Z-RBAND-UMSTransceiver for automatic door safety edges

COD. 1248033-GB / 1.1 RBAND/UMS - RBAND/CSM - 1 - • INTRODUCTION DESCRIPTION The RadioBand system is designed of Industrial, Commercial and Domestic door and gate applications where a safety edge is used. The system provides a wireless system replacing spiral cables or energy chain systems to provide the safety signal to the door or gate control panel. The receiver monitors the status of transmitters connected to it. Up to three transmitters per output can be connected to the receiver. There are two outputs on each receiver. The system is compatible with 8K2 monitored safety edges, opto safety edges and volt free safety contacts. Two inputs available in the transmitter. The system complies with EN ISO 13849-1 as long as the current detector is not connected to J13. USE OF THE SYSTEM This equipment is designed to be installed with a safety edge for door and gate installations. It is not guaranteed for directly activating equipment other than that specified. The manufacturer reserves the right to change the specification of the equipment without prior warning. • TECHNICAL CHARACTERISTICS System non compatible with RADIOBAND 1G. RBAND/UMS RBAND/CSM Frequency Multifrequency system (433 MHz, 868 MHz) Multifrequency system (433 MHz, 868 MHz) Memory 6 transmitters (3 on relay 1, 3 on relay 2) 6 transmitters (3 on relay 1, 3 on relay 2) Relay numbers 2 relays --- Power supply 12/24V ac/dc pluggable Power supply range 9-35V dc 8-28V ac --- Relay contacts 1A 1A Consumption standby/operating Max 255mA Max 20mA Autotest signal input Two 0/12/24V ac/dc inputs with selectable polarity integrated Radiated power < 25mW < 25mW Operating temperature -40ºC a +85ºC -40ºC a +85ºC Seal IP54 (with IP65 cable seals) IP20 Box size 82 x 190 x 40mm 50 x 47 x 14mm Range 10 metres 10 metres COD. 1248033-GB / 1.1 RBAND/UMS - RBAND/CSM - 2 - CHECK BUTTON PROGRAMMING BUTTON FREQUENCY SELECTOR SWITCH CONTROL PANEL CONNECTION CHECK BUTTON SAFETY EDGE OR VOLT FREE CONTACT SELECTOR PROGRAMMING BUTTON FREQUENCY SELECTOR SWITCH RESET JUMPER POWER SUPPL Y R1 / R2 OUTPUTS AUTO TEST CONNECTION CURRENT DETECTOR CONNECTION COD. 1248033-GB / 1.1 RBAND/UMS - RBAND/CSM - 3 - • INSTALLATION PROCEDURE AND BASIC WIRING MECHANICAL INSTALLATION RBAND/UMS Fix the back of the box to the wall, using the wall plugs and screws supplied. Install the receiver, close to the door and avoid metal surfaces between the receiver and the transmitter. Pass the cables through the bottom of the receiver. Connect the power cables to the terminals of the printed circuit, following the indications of the connections diagram. Store transmitters. Fix the front of the receiver to the back with the screws supplied for the purpose. INSTALLATION ADVISES Use the cable entry at the bottom of the receiver for the power supply and control connections. The transmitter and receiver antenna must be parallel to each other for optimum signal reception. Fit the batteries ensuring the correct polarity. After programming the transmitter re-fit the front cover of the transmitter and the receiver. MECHANICAL INSTALLATION RBAND/CSM Connect to a control panel using a connector for safety devices. The power supply must be disconnected. OPTIONS SELECTOR Option No ON OFF 1 – Channel selection See table Multifrequency system See table Multifrequency system 2 – Channel selection See table Multifrequency system See table Multifrequency system 3 – Autotest polarity Negative polarity Positive polarity 4 – Relay 2 function Low battery indicator Normal function Nota: Options 3 and 4 non available in RBAND/CSM >20cm COD. 1248033-GB / 1.1 RBAND/UMS - RBAND/CSM - 4 - • ELECTRICAL CONNECTIONS The outputs can be configured to act an 8k2 or as a N/C Contact. - The relay jumper in position BS the output is 8K2. - The relay jumper in position CS the output is N/C Contact. AUTOTEST SIGNAL Whilst the RadioBand receiver monitors the RadioBand transmitter every 20 seconds, the system must be tested at the exact time when the door/gate receives a signal to move. This test is done with the auto test signal. The auto test signal ensures that all of the parts of the safety edge system are ok before the door/gate can operate. The auto test signal is sent from the door/gate control panel and activates the output from the RadioBand receiver. When the door/gate control panel receives this output it allows the door/gate to start. AUTO TEST CONNECTION POWER SUPPLY + - TO SAFETY EDGE / CONTACT INPUT OF CONTROL PANEL TO SAFETY EDGE / CONTACT INPUT OF CONTROL PANEL UVW CURRENT DETECTOR CONNECTION CONTROL PANEL MOTOR CONNECTION CONNECTION NEEDED IF YOU OPERATE WITH OPTO SAFETY EDGE WITH OUT AUTOTEST COD. 1248033-GB / 1.1 RBAND/UMS - RBAND/CSM - 5 - The RadioBand receiver will accept two types of auto test signal. The function selector switch must be put in the correct position for the auto test signal. 1- Positive autotest: A 0V signal which switches to 12/24V ac/dc for the auto test. 2- Negative autotest: A 12/24V ac/dc signal which switches to 0V for the auto test. Both autotest inputs must be connected althought one of them is not used. The auto-test signal from the control panel must only remain activated for up to 3 seconds. In order to comply with the EN ISO 13849-1 safety standard, it is necessary to connect the autotest signal. • PROGRAMMATION Each safety edge transmitter must be learnt into the appropriate channel of the safety edge receiver. Mode Configuration of transmitter programming in the receiver. Led R1 Led R2 1 By pressing the transmitter, relay 1 on the receiver will be activated ON OFF 2 By pressing the transmitter, relay 2 on the receiver will be activated OFF ON 3 By pressing the transmitter, the two relays will be activated at the same time ON ON 4 The relays are activated 1st relay by channel 1 (operate as normal operation for connecting a safety element) and 2nd relay by channel 2 (operates as a normally open contact for connecting an auxiliary input) (connection of an auxiliary input, the…
