U6A-BR485DSMART 300N BROADBAND ROUTER

http://www.sapido.com.tw/ User Manual v1.0.0 1 E-TOP 11n Broadband Router BR485d Smart 300N Broadband Router User Manual http://www.sapido.com.tw/ User Manual v1.0.0 2 Table of Contents ........................................................................................................1 FCC Caution ............................................................................ ...................................5 Chapter 1 Introduction ........................................................................................... 6 1.1 Hardware Features ............................................................................... 6 1.2 Product Appearance ............................................................................. 7 Chapter 2 System and Network Setup .................................................................. 9 2.1 Build Network Connection..................................................................... 9 2.1.1 Router Mode .................................................................................. 9 2.1.2 AP Mode ...................................................................................... 10 2.1.3 Wi-Fi AP Mode............................................................................. 10 2.2 Connecting BR485D ........................................................................... 10 2.3 Network setup ..................................................................................... 11 2.3.1 Windows 2000 ............................................................................. 12 2.3.2 Windows XP ................................................................................ 12 2.3.3 Windows Vista / Windows 7......................................................... 13 2.4 Router IP Address Lookup .................................................................. 15 2.4.1 Log into Web GUI ........................................................................ 16 Chapter 3 Internet Connection ............................................................................ 18 3.1 Plug and Play...................................................................................... 18 3.1.1 Smart Phone /iPhone Internet sharing plug and play................... 18 3.2 Router Mode- Using as a broadband router........................................ 19 3.2.1 WAN Interface- Ethernet Port ...................................................... 20 3.2.1.1 Static IP ................................................................................ 26 3.2.1.2 DHCP Client ......................................................................... 28 3.2.1.3 PPPoE .................................................................................. 29 3.2.1.4 PPTP .................................................................................... 31 3.2.1.5 L2TP ..................................................................................... 32 3.2.1.6 Advance function .................................................................. 34 3.2.2 WAN Interface- 3G USB dongle .................................................. 34 3.2.3 WAN Interface- Wireless.............................................................. 36 3.3 AP Mode-Using as a Access Point...................................................... 37 3.4 WiFi AP Mode- Using as a Network Converter ................................... 39 Chapter 4 Wireless Setup.................................................................................... 42 4.1 Wireless Setup.................................................................................... 42 4.1.1 Setup Wireless LAN by WPS button............................................ 42 4.1.2 Wireless band mode .................................................................... 44 http://www.sapido.com.tw/ User Manual v1.0.0 3 4.1.3 Wireless Basic Setup from Web GUI ........................................... 44 4.1.3.1 Multiple APs.......................................................................... 47 4.1.3.2 Enable Universal Repeater Mode......................................... 48 4.2 Wireless Security Setup...................................................................... 49 4.3 Wireless Access Control ..................................................................... 51 Chapter 5 Router Mode Security Setup............................................................... 54 5.1 NAT..................................................................................................... 54 5.1.1 Virtual Server ............................................................................... 54 5.1.2 Virtual DMZ.................................................................................. 55 5.2 Firewall ............................................................................................... 55 5.2.1 Port Filtering ................................................................................ 56 5.2.2 IP Filtering.................................................................................... 57 5.2.3 MAC Filtering ............................................................................... 58 5.2.4 URL Filtering................................................................................ 59 5.2.5 QoS ............................................................................................. 60 5.2.6 Denial of Service.......................................................................... 61 5.2.7 VLAN Settings ............................................................................. 62 5.3 Server Setup....................................................................................... 63 5.3.1 FTP.............................................................................................. 63 Chapter 6 Advanced Setup ................................................................................. 65 6.1 Dynamic DNS Setting .......................................................... 65 6.2 Wireless Advanced S…

Text truncated - open the document above for the full version.

http://www.sapido.com.tw/ User Manual v1.0.0 51 2. Encryption- WPA (WPA, WPA2, and WPA2 Mixed), WPA Authentication Mode (1) Enterprise (RADIUS): Please fill in the RADIUS server Port, IP Address, and Password (2) Personal (Pre-Shared Key): Pre-Shared Key type is ASCII Code; the length is between 8 to 63 characters. If the key type is Hex, the key length is 64 characters. (3) Apply Change & Reset: Click on ‘Apply Changes’ to save setting data. Or click ‘Reset’ to reset all the input data. 4.3 Wireless Access Control Access Control allows user to block or allow wireless clients to access this router. Users can select the access control mode, then add a new MAC address with a simple comment and click on “Apply Change” to save the new addition. To delete a MAC address, select its http://www.sapido.com.tw/ User Manual v1.0.0 52 corresponding checkbox under the Select column and click on “Delete Selected” button. Take the wireless card as the example. (1) Please select Deny Listed in Wireless Access Control Mode first, and then fill in the MAC address what you plan to block in the MAC Address field. Click Apply Changes to save the setting. (2) The MAC address what you set will be displayed on the Current Access Control List. http://www.sapido.com.tw/ User Manual v1.0.0 53 (3) The wireless client will be denied by the wireless router. http://www.sapido.com.tw/ User Manual v1.0.0 54 Chapter 5 Router Mode Security Setup This section contains configurations for the BR485D’s advanced functions such as: virtual server, DMZ, and Firewall to provide your network under a security environment. 5.1 NAT 5.1.1 Virtual Server The Virtual Server feature allows users to create Virtual Servers by re-directing a particular range of service port numbers (from the WAN port) to a particular LAN IP address. Item Description Enable Port Forwarding Select to enable Port Forwarding service or not. IP Address Specify the IP address which receives the incoming packets. Protocol Select the protocol type. Public Port Range Enter the port number, for example 80-80. Private Port Range Enter the port number, for example 20-22. Comment Add comments for this port forwarding rule. Add Click on Add to enable the settings. Current Port Forwarding Table It will display all port forwarding regulation you made. Delete Selected & Delete All Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. Reset Click Reset to cancel. Please find the following figure to know that what the virtual server is. The web server is located on 192.168.1.100, forwarding port is 80, and type is TCP+UDP. http://www.sapido.com.tw/ User Manual v1.0.0 55 5.1.2 Virtual DMZ The DMZ feature allows one local user to be exposed to the Internet for special-purpose applications like Internet gaming or videoconferencing. When enabled, this feature opens all ports to a single station and hence renders that system exposed to intrusion from outside. The port forwarding feature is more secure because it only opens the ports required by that application. Item Description Enable DMZ It will enable the DMZ service if you select it. DMZ Host IP Address Please enter the specific IP address for DMZ host. Apply Changes & Reset Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data. 5.2 Firewall http://www.sapido.com.tw/ User Manual v1.0.0 56 5.2.1 Port Filtering When enabled packets are denied access to Internet/filtered based on their port address. Item Description Enable Port Filtering Select Enable Port Filtering to filter ports. Port Range Enter the port number that needs to be filtered. 註解 [J1]: 111 http://www.sapido.com.tw/ User Manual v1.0.0 57 Protocol Please select the protocol type of the port. Comment You can add comments for this regulation. Apply Changes & Reset Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data. Current Filter Table It will display all ports that are filtering now. Delete Selected & Delete All Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. Reset You can click Reset to cancel. Port 80 has been blocked as the following illustrate. 5.2.2 IP Filtering When enabled, LAN clients are blocked / filtered from accessing the Internet based on their IP addresses. IP: 192.168.1.x Port: 80-80 http://www.sapido.com.tw/ User Manual v1.0.0 58 Item Description Enable IP Filtering Please select Enable IP Filtering to filter IP addresses. Local IP Address Please enter the IP address that needs to be filtered. Protocol Please select the protocol type of the IP address Comment You can add comments for this regulation. Apply Changes & Reset Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data. Current Filter Table It will display all ports that are filtering now. Delete Selected & Delete All Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. Reset You can click Reset to cancel. 5.2.3 MAC Filtering When enabled, filtering will be based on the MAC address of LAN computers. Any computer with its MAC address on this list will be blocked from accessing the Internet. http://www.sapido.com.tw/ User Manual v1.0.0 59 Item Description Enable MAC Filtering Please select Enable MAC Filtering to filter MAC addresses. MAC Address Please enter the MAC address that needs to be filtered. Comment You can add comments for this regulation. Apply Changes & Reset Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data. Current Filter Table It will display all ports that are filtering now. Delete Selected & Delete All Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. Reset You can click Reset to cancel. 5.2.4 URL Filtering URL Filtering is used to restrict users to access specif…

Text truncated - open the document above for the full version.

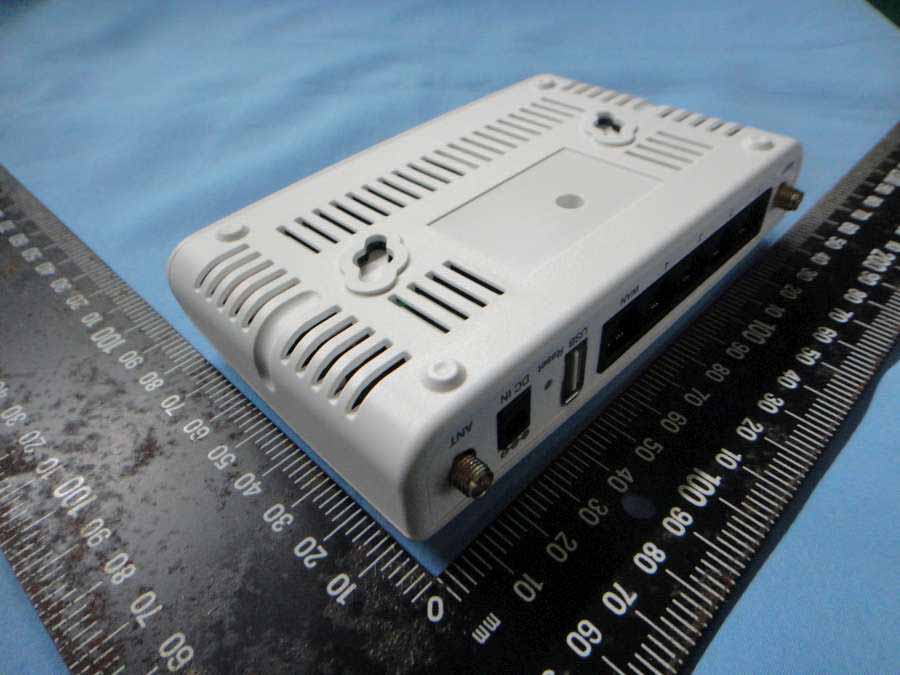

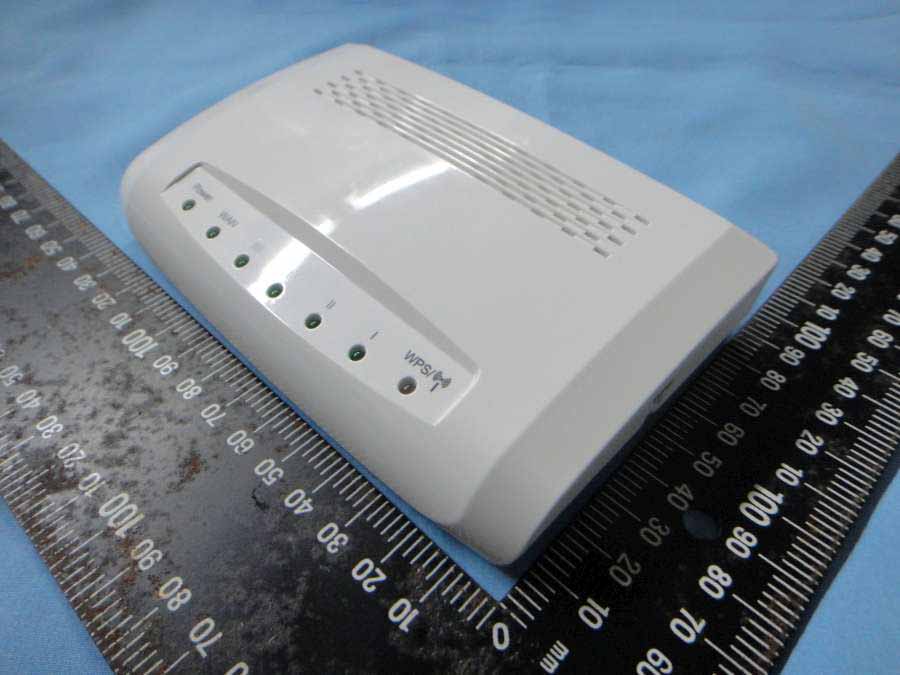

Compliance Certification Services Inc. Report No.T11112830801 Page A1 / 7 External Photo (BR485d) Compliance Certification Services Inc. Report No.T11112830801 Page A2 / 7 Compliance Certification Services Inc. Report No.T11112830801 Page A3 / 7

FCC ID:U6A-BR485D 200% 3LSBR485DNBSX1XX SUJEN2012.01.10 BR485D 49*29mm 29mm 49mm 50

Compliance Certification Services Inc. Report No.T11112830801 Page A4 / 7 Internal Photo (BR485d) Compliance Certification Services Inc. Report No.T11112830801 Page A5 / 7 Compliance Certification Services Inc. Report No.T11112830801 Page A6 / 7 Compliance Certification Services Inc. Report No.T11112830801 Page A7 / 7

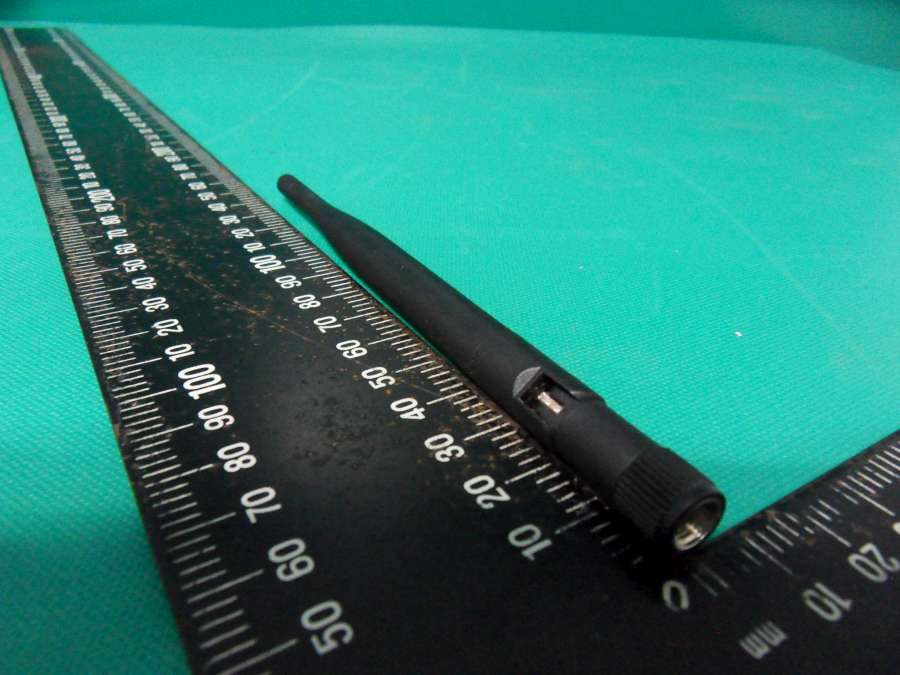

擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD YONG-SHUN TECHNOLGY CO.,LTDYONG-SHUN TECHNOLGY CO.,LTD YONG-SHUN TECHNOLGY CO.,LTD Date: 2.4/5.X GHz 3dBi/4dBi Antenna(白色) A Yong-Shun P/N Production Description Version Customer P/N AN-152RRSU00 APPROVAL SHEET Customers: 易通展科技股份有限公司 2011/11/29 Approve ApproveApprove ApproveChief ChiefChief ChiefResponsible ResponsibleResponsible Responsible Jimmy JimmyJimmy JimmyFrank FrankFrank FrankHunter HunterHunter Hunter Approved By Customer Approved By CustomerApproved By Customer Approved By Customer YONG-SHUN Technology Co., LTD. 擁瞬科技股份有限公司 擁瞬科技股份有限公司擁瞬科技股份有限公司 擁瞬科技股份有限公司 Address: No.29, Xikun 1st St., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C.) Tel: +886-2-26841827 Fax: +886-2-26835010 Xinxie Technology Co., LTD. (Shenzhen) 欣協科技有限公司 欣協科技有限公司欣協科技有限公司 欣協科技有限公司 (深圳廠 深圳廠深圳廠 深圳廠 ) Address: Nanbiantou Industrial Area, Dongfang Village, Songgang Town, Shenzhen City, China Tel：+86-755-27553831 Fax：+86-755-27092799 Approved By Yong-Shun Approved By Yong-ShunApproved By Yong-Shun Approved By Yong-Shun 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD Table of Contents Item 1. Drawing 2. Test Report -Electrical test 3. Material Certifications -Cable -Connector 4. Packing -PE Bag -Carton Modification History: REV.Content 02011/11/29 Date 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD PolarizationVertical Weight10±0.5g Operating Temp -20°C+65°C Standard connectorReverse SMA PLUG Frequency range Impedance V.S.W.R Radia tion Gain3dBi/4dBi PC/PBT/TPEE Whip Electrical Properties Mechanical Properties 2.4GHz/5.XGHz 50Ω ≦2.0 Omni-directional 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD Electrical Test 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 2400MHz 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 2450MHz 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 2500MHz 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 4900MHz 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 5150MHz 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 5550MHz 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 5850MHz 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD Antenna Efficiency 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD CABLE SPECIFICATION 線材規格

FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 114 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 115 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Once Antenna Gain: 4 dBi = 2.51188643 mW No non-compliance noted: (MPE distance equals 20 cm) IEEE 802.11a = 0.0796 * 7.6913 *2.51188643 ÷ 400 = 0.00384 IEEE 802.11n HT20 = 0.0796 * 15.0357 *2.51188643 ÷ 400 = 0.00752 IEEE 802.11n HT40 = 0.0796 * 13.3209 *2.51188643 ÷ 400 = 0.00666 Mode Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11a 4.00 20.0 8.86 7.69 1.00 0.003845 IEEE 802.11n HT20 4.00 20.0 11.77 15.04 1.00 0.007516 IEEE 802.11n HT40 4.00 20.0 11.25 13.32 1.00 0.006659 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 1 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART E AND ANSI C63.4:2003 TEST REPORT For Smart 300N Broadband Router Model : BR485d Trade Name : E-TOP Issued for E-Top Network Technology Inc. No. 82 , Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date: January 07, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 2 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 January 07, 2012 Initial Issue ALL Sunny Chang FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 3 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 7 4. TEST METHODOLOGY ............................................................................................... 7 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 10 7. FCC PART 15.407 REQUIREMENTS.......................................................................... 11 7.1 26dB BANDWIDTH ................................................................................................ 11 7.2 MAXIMUM CONDUCTED OUTPUT POWER ........................................................ 11 7.3 PEAK POWER SPECTRAL DENSITY ................................................................... 11 7.4 PEAK EXCURSION ............................................................................................... 11 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 11 7.6 RADIATED EMISSION........................................................................................... 11 7.7 CONDUCTED EMISSION ...................................................................................... 11 7.8 FREQUENCY STABILITY ...................................................................................... 11 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE ..................................................... 11 APPENDIX II SETUP PHOTOS ....................................................................................... 11 FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 4 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant E-Top Network Technology Inc. Address No. 82 , Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Manufacturer E-Top Network Technology Inc. Address No. 82 , Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Equipment Under Test Smart 300N Broadband Router Model BR485d Trade Name E-TOP Tested Date November 23, 2011 ~ December 24, 2011 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart E AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Jeter Wu Eric Huang Assistant Manager Assistant Section Manager FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 5 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Smart 300N Broadband Router Model Number BR485d Brand Name E-TOP Identify Number T11112830801 Received Date December 28, 2011 IEEE 802.11a, 802.11n HT20 : 5180MHz ~ 5240MHz, Frequency Range IEEE 802.11n HT40 : 5190MHz ~ 5230MHz, IEEE 802.11a : 8.86dBm (7.6913mW) IEEE 802.11n HT20 : 11.77dBm (15.0357mW) Transmit Power IEEE 802.11n HT40 : 11.25dBm (13.3209W) IEEE 802.11a, 802.11n HT20 : 20MHz Channel Spacing IEEE 802.11n HT40 : 20MHz IEEE 802.11a, 802.11n HT20 : 4 Channels Channel Number IEEE 802.11n HT40 : 3 Channels IEEE 802.11a : 54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 130,117,104,78, 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps Transmit Data Rate IEEE 802.11n HT40 : 300, 270,243, 216,162 ,135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps IEEE 802.11a : OFDM (64QAM, 16QAM, QPSK, BPSK) Type o…

Text truncated - open the document above for the full version.

FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 64 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 7.5 CONDUCTED SPURIOUS EMISSION LIMITS § 15.407 (b), (1) For transmitters operating in the 5.15-5.25 GHz band: all emissions outside of the 5.15-5.35 GHz band shall not exceed an EIRP of -27 dBm/MHz. (2) For transmitters operating in the 5.25-5.35 GHz band: all emissions outside of the 5.15-5.35 GHz band shall not exceed an EIRP of -27 dBm/MHz. Devices operating in the 5.25-5.35 GHz band that generate emissions in the 5.15-5.25 GHz band must meet all applicable technical requirements for operation in the 5.15-5.25 GHz band (including indoor use) or alternatively meet an out-of-band emission EIRP limit of -27 dBm/MHz in the 5.15-5.25 GHz band. The provisions of § 15.205 apply to intentional radiators operating under this section. TEST EQUIPMENT Name of EquipmentManufacturer Model Serial Number Calibration Due Spectrum AnalyzerR&S FSEK 30835253/002 SEP. 29, 2012 Remark: Each piece of equipment is scheduled for calibration once a year TEST SETUP EUT Spectrum Analyzer TEST PROCEDURE Conducted RF measurements of the transmitter output were made to confirm that the EUT antenna port conducted emissions meet the specified limit and to identify any spurious signals that require further investigation of measurements on the radiated emissions site. The transmitter output is connected to the spectrum analyzer. The resolution bandwidth is set to 1MHz. The video bandwidth is set to 1MHz. Peak detection measurements are compared to the average EIRP limit, adjusted for the maximum antenna gain. If necessary, additional average detection measurements are made. Measurements are made over the 30 MHz to 40 GHz range with the transmitter set to the lowest, middle, and highest channels. FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 65 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TEST RESULTS OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT CH Low ( 30MHz ~ 40GHz / IEEE 802.11a Mode ) CH Middle ( 30MHz ~ 40GHz / IEEE 802.11a Mode ) FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 66 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CH High ( 30MHz ~ 40GHz / IEEE 802.11a Mode ) FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 67 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CH Low ( 30MHz ~ 40GHz / IEEE 802.11n HT20 Mode / Chain 0 ) CH Middle ( 30MHz ~ 40GHz / IEEE 802.11n HT20 Mode / Chain 0 ) FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 68 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CH High ( 30MHz ~ 40GHz / IEEE 802.11n HT20 Mode / Chain 0 ) FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 69 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CH Low ( 30MHz ~ 40GHz / IEEE 802.11n HT20 Mode / Chain 1 ) CH Middle ( 30MHz ~ 40GHz / IEEE 802.11n HT20 Mode / Chain 1 ) FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 70 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CH High ( 30MHz ~ 40GHz / IEEE 802.11n HT20 Mode / Chain 1 ) FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 71 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CH Low ( 30MHz ~ 40GHz / IEEE 802.11n HT40 Mode / Chain 0 ) CH Middle ( 30MHz ~ 40GHz / IEEE 802.11n HT40 Mode Chain 0 ) FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 72 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CH High ( 30MHz ~ 40GHz / IEEE 802.11n HT40 Mode / Chain 0 ) FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 73 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CH Low ( 30MHz ~ 40GHz / IEEE 802.11n HT40 Mode / Chain 1 ) CH Middle ( 30MHz ~ 40GHz / IEEE 802.11n HT40 Mode Chain 1 ) FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 74 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CH High ( 30MHz ~ 40GHz / IEEE 802.11n HT40 Mode / Chain 1 ) FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 75 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 7.6 RADIATED EMISSION LIMITS (1) According to § 15.205 (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 - 0.110 16.42 - 16.423 399.9 - 410 4.5 - 5.15 1 0.495 - 0.505 16.69475 - 16.69525608 - 614 5.35 - 5.46 2.1735 - 2.1905 16.80425 - 16.80475960 - 1240 7.25 - 7.75 4.125 - 4.128 25.5 - 25.67 1300 - 1427 8.025 - 8.5 4.17725 - 4.17775 37.5 - 38.25 1435 - 1626.5 9.0 - 9.2 4.20725 - 4.20775 73 - 74.6 1645.5 - 1646.5 9.3 - 9.5 6.215 - 6.218 74.8 - 75.2 1660 -1710 10.6 -12.7 6.26775 - 6.26825 108 -121.94 1718.8 - 1722.2 13.25 -13.4 6.31175 - 6.31225 123 - 138 2200 - 2300 14.47 – 14.5 8.291 - 8.294 149.9 - 150.05 2310 - 2390 15.35 -16.2 8.362 - 8.366 156.52475 - 156.52525 2483.5 - 2500 17.7 - 21.4 8.37625 - 8.38675 156.7 - 156.9 2655 - 2900 22.01 - 23.12 8.41425 - 8.41475 162.0125 - 167.17 3260 - 3267 23.6 - 24.0 12.29 - 12.293 167.72 - 173.2 3332 - 3339 31.2 - 31.8 12.51975 - 12.52025240 - 285 3345.8 - 3338 36.43 - 36.5 12.57675 - 12.57725322 -335.4 3600 - 4400 ( 2 ) 13.36 - 13.41 Remark: 1. 1 Until February 1, 1999, this restricted band shall…

Text truncated - open the document above for the full version.

FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 116 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 117 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. RADIATED RF MEASUREMENT SETUP FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 118 / 119 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. RADIATED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC IDU6A-BR485D Report No.T11112830801-RP1-1 Page 119 / 119 This report shall not be reproduced, except in full, without the written approval of Complian…

Text truncated - open the document above for the full version.
