U6A-WA982N11n WALL ROUTER

http://www.sapido.com.tw 1 USER MANUAL V1.0 E-TOP WA982n 11n Wall Router User Manual http://www.sapido.com.tw 2 USER MANUAL V1.0 Table of Contents FCC Caution ..........................................................................................................................................4 Safe Seating Gestures .......................................................................................................................... 5 Chapter 1 Introduction ................................................................................................................. 6 1.1 Overview ...................................................................................................................... 6 1.2 Features .......................................................................................................................7 1.3 Specifications .............................................................................................................. 8 1.3.1 Product Appearance ........................................................................................ 10 1.3.2 LED Indicator Status Description ................................................................... 10 1.4 System Requirements .............................................................................................. 11 1.5 Get Your IP Automatically & Manually .................................................................... 11 1.5.1 Network Testing................................................................................................ 14 1.5.2 Testing with Internet Browser ......................................................................... 14 1.5.2.1 Testing with DOS (Windows XP Platform)......................................................... 15 Chapter 2 Hardware Installation................................................................................................ 17 2.1 Diagram of Connecting Hardware to WA982N Broadband Router ...................... 17 2.1.1 Hardware Connection and Application for Router Mode ............................. 17 Chapter 3 One Button Setup...................................................................................................... 18 3.1 One Button Setup configuration for Router Mode ................................................ 18 Chapter 4 Router Setup.............................................................................................................. 22 4.1 Administrator Setup Instruction.............................................................................. 22 4.2 IP Configuration ........................................................................................................ 22 4.2.1 WAN ................................................................................................................... 23 4.2.2 WAN Interface–3.5G (HSDPA/UMTS) .............................................................. 23 4.2.3 WAN Interface– Ethernet Port ......................................................................... 24 4.2.4 WAN Interface– WiMAX.................................................................................... 25 4.2.5 WAN Interface– Wireless ................................................................................. 26 4.2.6 WAN Access Type – Static IP .......................................................................... 27 4.2.7 WAN Access Type –Dynamic IP ...................................................................... 30 4.2.8 WAN Access Type –PPPoE.............................................................................. 32 4.2.9 WAN Access Type – PPTP ............................................................................... 34 4.2.10 LAN Interface Setup ......................................................................................... 37 4.2.11 Dynamic DNS Setting....................................................................................... 39 4.3 Wireless Setup .......................................................................................................... 40 4.3.1 Wireless Basic Settings................................................................................... 41 4.3.2 Wireless Advanced Settings ........................................................................... 46 http://www.sapido.com.tw 3 USER MANUAL V1.0 4.3.3 Wireless Security Setup .................................................................................. 47 4.3.4 Wireless Access Control ................................................................................. 50 4.3.5 WDS Settings .................................................................................................... 51 4.3.6 WPS ................................................................................................................... 56 4.4 NAT .............................................................................................................................61 4.4.1 Visual Server..................................................................................................... 61 4.4.2 Visual DMZ ........................................................................................................ 63 4.5 Firewall .......................................................................................................................63 4.5.1 Port Filtering ..................................................................................................... 64 4.5.2 IP Filtering ......................................................................................................... 65 4.5.3 MAC Filtering .................................................................................................... 67 4.5.4 URL Filtering ..................................................................................................... 68 4.6 System Management ................................................................................................ 69 4.6…

Text truncated - open the document above for the full version.

E-TOP Network Technology Inc. No. 82, Gongye b 2"d Rd., Tainan City 70955, Taiwan, R.O.C. Confidentiality Request FCC ID : U6A--WA982N Product : Iln Wall Router Model : WA982n Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pwsuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, name1 title : Ren C hen /Director tel: 06-3840077* 360 1 fax: 06-3 84 1 808 email: [email protected]

Company Logo Here Company name Company address Date: November 2, 2011 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: U6A-WA982N, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, ( Signature Here) Name: Title: Tel: E-mail: Date:

Company NameXXXXXXX Mar. 23, 2005 FCC ID：U6A-WA982N Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No.8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712,Taiwan R.O.C. Name: Daphne Liang Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: E-TOP / WA982n FCC ID: U6A-WA982N Product Name: 11n Wall Router Signature FCC grantee contact person information. Name/Title: Company Name: Address: TEL: FAX: Email:

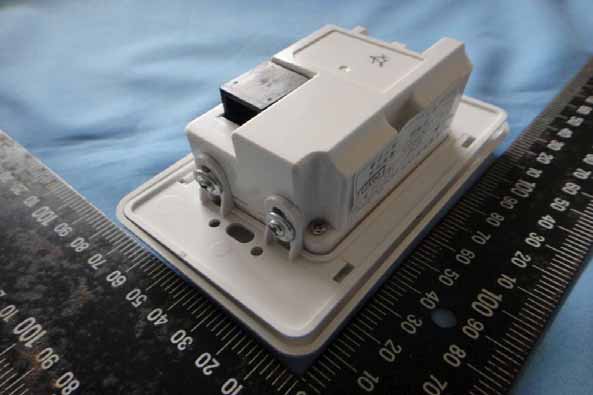

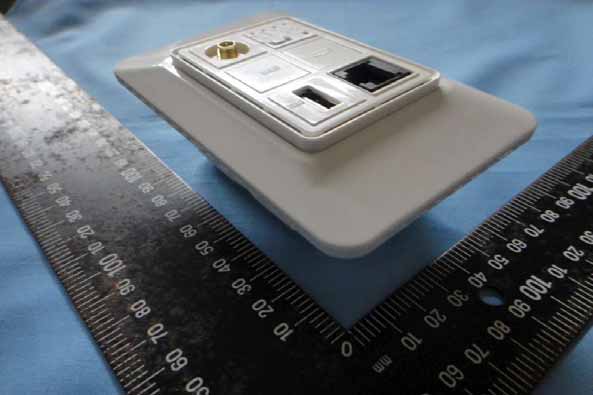

Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A1 / 13 Rev. 00 PHOTOGRAPHS OF EUT External Photo Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A2 / 13 Rev. 00 Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A3 / 13 Rev. 00 Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A4 / 13 Rev. 00

3LSWA982NNBSX1XX WA982N SUJEN 2011.11.03 50 Nonbrand 29*19

Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A5 / 13 Rev. 00 Internal Photo Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A6 / 13 Rev. 00 Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A7 / 13 Rev. 00 Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A8 / 13 Rev. 00 Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A9 / 13 Rev. 00 Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A10 / 13 Rev. 00 Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A11 / 13 Rev. 00 Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A12 / 13 Rev. 00 Compliance Certification Services Inc. Report No.:T110914408 Date of Issue: November 04, 2011 Page A13 / 13 Rev. 00

Description of Operation The EUT is a 11n Wall Router with IEEE 802.11b/g/n (1T1R) . And this device provided of transmitting speed: IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 144.4, 130, 115.6, 86.7, 57.8, 43.3, 28.9, 14.4, 72.2, 65, 21.7, 13, 7.2 Mbps IEEE 802.11n HT40 :300, 270, 240, 180, 120, 90, 60, 30, 150, 135, 45, 27, 15 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK. The device adapts DSSS and OFDM modulation. And the antenna was a Dipole Antenna and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz～2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz～2452MHz Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40: 5MHz Channel Number IEEE 802.11b/g, 802.11n HT20:11 Channels IEEE 802.11n HT40 :7 Channels

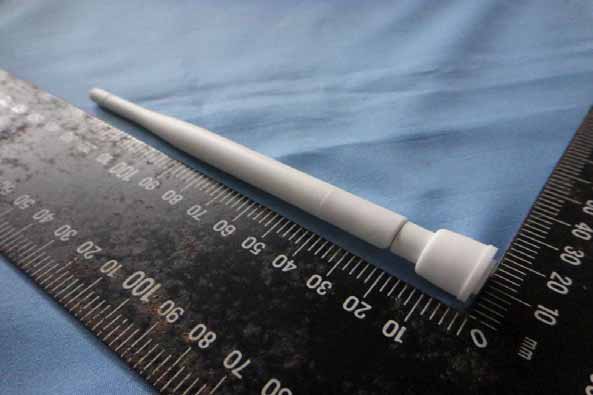

Customers:易通圓科技股份有限公司 Customer Model No.: Master Wave Model No.:98152MRSX008 Product Description: Issue Date: REV.:00 承 認 書 APPROVAL SHEET 2011/9/30 8152 Replacement Ant. 核准 Approve主管 Chief承辦 Responsible CharleneCoreyHero 客戶承認用印 Customer Approved 權億承認用印 Confirmation Signature 2011.9.30 MASTER WAVE TECHNOLOGY CO., LTD. 權億科技股份有限公司 Address: No.81-8, Longshou St., Taoyuan City, Taoyuan County 330, Taiwan (R.O.C.) Tel: +886-3-3600306 Fax: +886-3-3600979 Shengyih Electronic Plastic Co. Ltd (Shou Zhou) 聲億電子塑膠有限公司 (蘇州廠 ) Address: No.95 Wusong south Rd of Luzhi Town Wu zhong Area Suzhou City, China Tel：+86-512-65046030 Fax：+86-512-65046033 Shengyih Electronic Plastic Manufactory (Dongguan) 聲億電子塑膠製品廠 (東莞廠) Address: Mu-Lun Administration Area, Changping Town,Dongguan City.Guangdong Province,China T el：+86-769-83914045 Fax：+86-769-83914046 Table of Contents Item 1. Antenna Specifications -Drawing -Electrical Properties -Mechanical Properties 2. Test Report -Electrical test -Pattern test -Antenna Efficiency 3. Material Certifications -Connector -Cable 4. Packing -PE Bag -Carton Modification History: REV.Content 002011/9/30 Date Dimension(L*W*H)145*Ø10.1*Ø6 mm Type Frequency range Impedance VSWR Electrical Properties Mechanical Properties RP SMA Plug 8152 Replacement Antenna 2.4~2.5 GHz 50 Ohms ≦2.0 TPEEMaterial Connector Electrical Test 2D Radiation Pattern XY-Plane XZ-Plane YZ-Plane Antenna Efficiency 90.42 92.76 87.14 Efficienc y ( % ) 2500 2450 2400 Fre q uenc y ( MHz ) -2.16 -2.27 -2.75 Avera g e Gain ( dB ) 2.74 2.76 2.28 Peak Gain ( dBi ) 2500 2450 2400 Fre q uenc y ( MHz ) YZ-Plane -2.21 -2.32 -2.79 Avera g e Gain ( dB ) 2.18 2.07 1.79 Peak Gain ( dBi ) 2500 2450 2400 Fre q uenc y ( MHz ) XZ-Plane 1.67 1.72 1.56 Avera g e Gain ( dB ) 2.96 3.00 2.68 Peak Gain ( dBi ) 2500 2450 2400 Fre q uenc y ( MHz ) XY-Plane Material Specifications Electrical Properties ≦250Vrms ≦670 Vrms ≧2000 Megohms ≧500 cycles Operating Temperature Contact Resistance Dielectric Withstanding Voltage Insulation Resistance 50 ohm 0~6 GHz ≦1.5 Impedance Frequency Range V.S.W.R Durability (mating) Center contact: 3.0 Milliohms (Max.) Outer contact: 2.0 Milliohms (Max.) Recommended coupling nut torque 4.0 in. lbs. ~ 8.8in. lbs. Coupling nut retention force ≧60 lbs. Contact captivation axial ≧6 lbs. Coupling Proof Torque15 in-1bs.min MIL-STD-202,METHOD 106 Thermal shock Corrosion Vibration Material DataMaterial Body Center Contact Insulator Brass Brass Teflon Connector SMA Shock Environmental Ratings Working Voltage Moisture Resistance -65°C ~ +165°C MIL-STD-202,METHOD 107,Condition B MIL-STD-202,METHOD 101,Condition B MIL-STD-202,METHOD 213,Condition I MIL-STD-202,METHOD 204,Condition D CABLE SPECIFICATION 線材規格

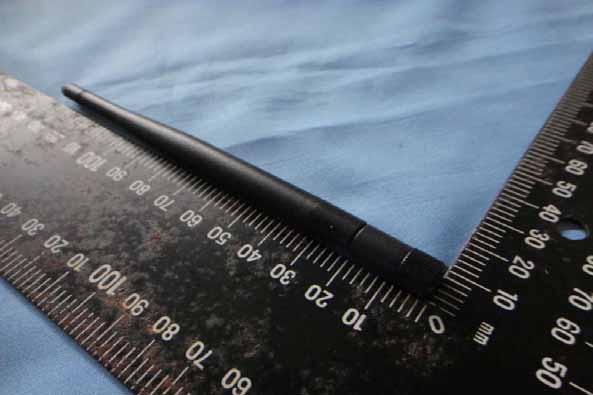

擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD YONG-SHUN TECHNOLGY CO.,LTDYONG-SHUN TECHNOLGY CO.,LTD YONG-SHUN TECHNOLGY CO.,LTD Date: 2.4GHz 3dBi Antenna(白色) 0 Yong-Shun P/N Production Description Version Customer P/N AN-152NRSU00 APPROVAL SHEET Customers: 易通展科技股份有限公司 2011/8/11 Approve ApproveApprove ApproveChief ChiefChief ChiefResponsible ResponsibleResponsible Responsible Jimmy JimmyJimmy JimmyFrank FrankFrank FrankHunter HunterHunter Hunter Approved By Customer Approved By CustomerApproved By Customer Approved By Customer YONG-SHUN Technology Co., LTD. 擁瞬科技有限公司 擁瞬科技有限公司擁瞬科技有限公司 擁瞬科技有限公司 Address: No.29, Xikun 1st St., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C.) Tel: +886-2-26841827 Fax: +886-2-26835010 Xinxie Technology Co., LTD. (Shenzhen) 欣協科技有限公司 欣協科技有限公司欣協科技有限公司 欣協科技有限公司 (深圳廠 深圳廠深圳廠 深圳廠 ) Address: Nanbiantou Industrial Area, Dongfang Village, Songgang Town, Shenzhen City, China Tel：+86-755-27553831 Fax：+86-755-27092799 Approved By Yong-Shun Approved By Yong-ShunApproved By Yong-Shun Approved By Yong-Shun 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD Table of Contents Item 1. Drawing 2. Test Report -Electrical test 3. Material Certifications -Cable -Connector 4. Packing -PE Bag -Carton Modification History: REV.Content 02011/8/11 Date 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD Polarization Vertical Weight 11±0.5g Operating Temp -20°C+65°C Standard connector Reverse SMA Plug Frequency range Impedance V.S.W.R Radia tion Gain 3dBi PC/PBT/TPEE Whip Electrical Properties Mechanical Properties 2.4GHz~2.5GHz 50Ω ≦2.0 Omni-directional 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD Electrical Test 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 2350MHz 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 2400MHz 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 2450MHz 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD 2500MHz 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD Antenna Efficiency 擁瞬科技股份有限公司 YONG-SHUN TECHNOLGY CO.,LTD CABLE SPECIFICATION 線材規格

Compliance Certification Services Inc. Reference No.: T110713401-RP1 FCC IDU6A-WA982N Report No.T110914408-RP1 Page 1 / 102 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For 11n Wall Router Model Number: WA982n Brand: E-TOP Issued for E-Top Network Technology Inc. No. 82, Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date : November 04, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Compliance Certification Services Inc. Reference No.: T110713401-RP1 FCC IDU6A-WA982N Report No.T110914408-RP1 Page 2 / 102 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 November 04, 2011 Initial Issue ALL Sunny Chang Compliance Certification Services Inc. Reference No.: T110713401-RP1 FCC IDU6A-WA982N Report No.T110914408-RP1 Page 3 / 102 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ...................................................................................4 2. EUT DESCRIPTION ........................................................................................................5 3. DESCRIPTION OF TEST MODES ..................................................................................7 4. TEST METHODOLOGY ..................................................................................................8 5. FACILITIES AND ACCREDITATIONS............................................................................8 5.1 FACILITIES............................................................................................................................................8 5.2 EQUIPMENT..........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS LISTINGS..............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................9 6. CALIBRATION AND UNCERTAINTY.............................................................................10 6.1 MEASURING INSTRUMENT CALIBRATION..................................................................................10 6.2 MEASUREMENT UNCERTAINTY.....................................................................................................10 7. SETUP OF EQUIPMENT UNDER TEST.........................................................................11 7.1 SETUP CONFIGURATION OF EUT..................................................................................................11 7.2 SUPPORT EQUIPMENT.....................................................................................................................12 7.3 EUT OPERATING CONDITION.........................................................................................................13 8. APPLICABLE LIMITS AND TEST RESULTS.................................................................14 8.1 6DB BANDWIDTH................................................................................................................................14 8.2 MAXIMUM PEAK OUTPUT POWER.................................................................................................25 8.3 MAXIMUM PERMISSIBLE EXPOSURE...........................................................................................29 8.4 POWER SPECTRAL DENSITY..........................................................................................................31 8.5 CONDUCTED SPURIOUS EMISSION.............................................................................................33 8.6 RADIATED EMISSIONS......................................................................................................................33 8.7 POWERLINE CONDUCTED EMISSIONS........................................................................................33 9. ANTENNA REQUIREMENT ............................................................................................33 9.1 STANDARD APPLICABLE..................................................................................................................33 9.2 ANTENNA CONNECTED CONSTRUCTION...................................................................................33 APPENDIX I SETUP PHOTOS ...........................................................................................33 APPENDIX II PHOTOGRAPHS OF EUT ................................................................A1 Compliance Certification Services Inc. Reference No.: T110713401-RP1 FCC IDU6A-WA982N Report No.T110914408-RP1 Page 4 / 102 1. TEST REPORT CERTIFICATION Applicant E-Top Network Technology Inc. Address No. 82, Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Manufacturer E-Top Network Technology Inc. Address No. 82, Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Equipment Under Test 11n Wall Router Model Number WA982n Data Applies To N/A Brand Name E-TOP Date of Test August 03, 2011 ~ October 04, 2011 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. Reference No.: T110713401-RP1 FCC IDU6A-WA982N Report No.T110914408-RP1 Page 5 / 102 2. EUT DESCRIPTION Product Name 11n Wall Router Model Number WA982n Data Applies To N/A Model Differecne N/A Brand Name E-TOP Received Date September 14, 2011 Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz2452MHz Transmit Power IEEE 802.11b Mode : 14.62dBm (D…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: T110713401-RP1 FCC IDU6A-WA982N Report No.T110914408-RP1 Page 98 / 102 APPENDIX I SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T110713401-RP1 FCC IDU6A-WA982N Report No.T110914408-RP1 Page 99 / 102 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T110713401-RP1 FCC IDU6A-WA982N Report No.T110914408-RP1 Page 100 / 102 Compliance Certification Services Inc. Reference No.: T110713401-RP1 FCC IDU6A-WA982N Report No.T110914408-RP1 Page 101 / 102 RF CONDUCTED SETUP Compliance Certification Services Inc. Reference No.: T110713401-RP1 FCC IDU6A-WA982N Report No.T110914408-RP1 Page 102 / 102 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
