U6BCG7Radar Detector

Rev. 1/1/03 BG Tech America, Inc. 300 Park Boulevard, Suite 335, Itasca, Illinois 60143 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: U6BCG7. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 688AUT7 BlockDiagram-EWR-737.pdf 688AUT7 BlockDiagram-EWR-757.pdf 688AUT7 Circuit Diagram-EWR-737(757)LASER.pdf 688AUT7 Circuit Diagram-EWR-737_LASER.pdf 688AUT7 Circuit Diagram-EWR-737_MAIN.pdf 688AUT7 Circuit Diagram-EWR-757_MAIN.pdf 688AUT7 Theory of Operation-EWR-737.pdf 688AUT7 Theory of Operation-EWR-757.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Si Song Attached: Copy of FCC Confidentiality Policy

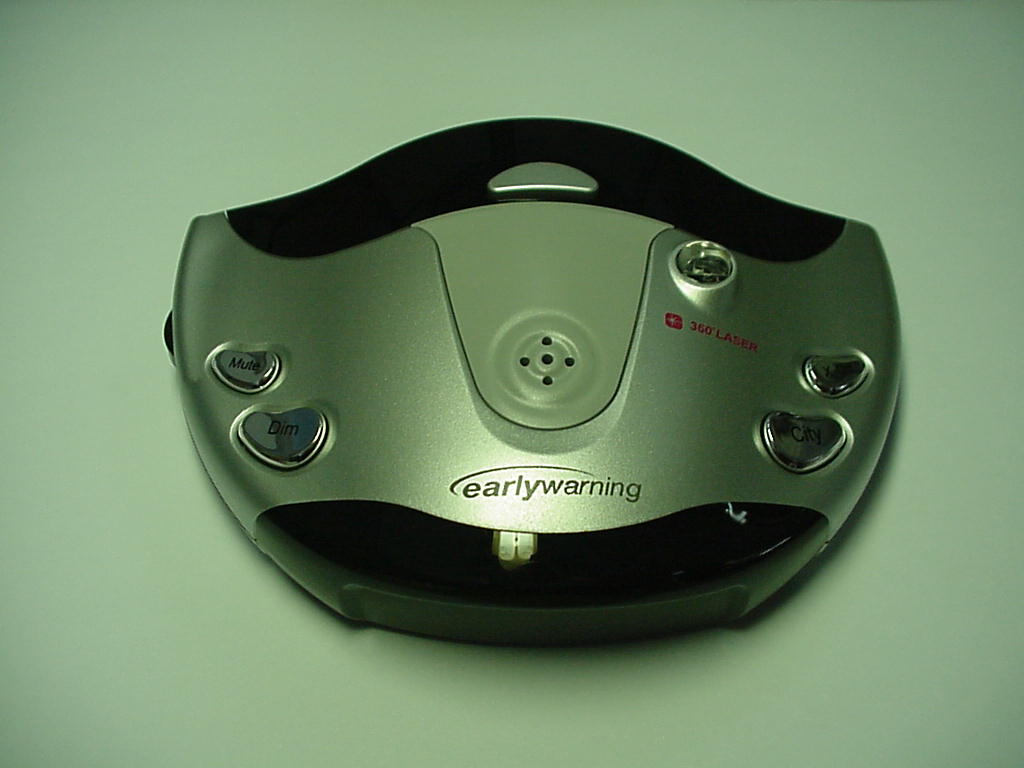

BG TECH AMERICA, INC. FCC ID: U6BCG7 MODEL EWR-737

BG TECH AMERICA, INC. FCC ID: U6BCG7 MODEL EWR-757

BG TECH AMERICA, INC. FCC ID: U6BCG7 MODEL EWR-737

BG TECH AMERICA, INC. FCC ID: U6BCG7 MODEL EWR-757

FCC PART 15 TEST REPORT Applicant BG TECH AMERICA, INC. Address 300 PARK BOULEVARD SUITE 335 ITASCA, IL 60143 FCC ID U6BCG7 Model Number EWR-737 (Model with no voice) EWR-757 (Model with voice) Product Description RADAR DETECTOR Date Sample Received 3/23/2007 Date Tested 4/15/07 Tested By JOSEPH SCOGLIO Approved By MARIO DE ARANZETA Report Number 688AUT7TestReport.doc Total Pages 11 Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: BG TECH AMERICA, INC. FCC ID: U6BCG7 REPORT: W:\B\BGTech_AMERICA\688AUT7\688AUT7TestReport.doc Page 2 of 11 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 GENERAL INFORMATION .......................................................................................... 4 TEST EQUIPMENT LIST............................................................................................. 5 TEST PROCEDURES ................................................................................................. 6 RADIATED SPURIOUS EMISSIONS............................................................................ 8 APPLICANT: BG TECH AMERICA, INC. FCC ID: U6BCG7 REPORT: W:\B\BGTech_AMERICA\688AUT7\688AUT7TestReport.doc Page 3 of 11 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. I attest that the necessary measurements were made by me or under my supervision, at TIMCO ENGINEERING, INC. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Certificate #0955-01 Authorized by: Mario de Aranzeta Authorized Signature: < Mario de Aranzeta> Function: Engineer Date: 4/23/2007 APPLICANT: BG TECH AMERICA, INC. FCC ID: U6BCG7 REPORT: W:\B\BGTech_AMERICA\688AUT7\688AUT7TestReport.doc Page 4 of 11 GENERAL INFORMATION The test results relate only to the items tested. DUT Description Radar Detector FCC ID U6BCG7 Model Number EWR-737 (Model with no voice) EWR-757 (Model with voice) 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Laboratory Test Conditions Temperature: 26ºC Humidity: 55% Modifications to DUT: No Yes (explanation below) APPLICANT: BG TECH AMERICA, INC. FCC ID: U6BCG7 REPORT: W:\B\BGTech_AMERICA\688AUT7\688AUT7TestReport.doc Page 5 of 11 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/20/07 3/19/10 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Antenna: Standard Gain Horn 8.2-12.5 GHz Systron Donner DBG-520-20 Not Serialized No Cal req. No Cal req. Antenna: Standard Gain Horn 18.0-26.3 GHz Systron Donner DBE-520-20 Not Serialized No Cal req. No Cal req. Analyzer Silver Tower Quasi-Peak Adapter HP 85650A 3303A01844 CAL 10/30/06 10/30/08 Analyzer Silver Tower RF Preselector HP 85685A 2620A00294 CAL 3/6/07 3/6/09 Analyzer Silver Tower Spectrum Analyzer HP 8568B Opt 462 3552A22064 3638A08608 CAL 10/30/06 10/30/08 LISN Electro- Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log-Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 APPLICANT: BG TECH AMERICA, INC. FCC ID: U6BCG7 REPORT: W:\B\BGTech_AMERICA\688AUT7\688AUT7TestReport.doc Page 6 of 11 TEST PROCEDURES RADIATION INTERFERENCE: Testing was done in accordance with ANSI C63.4- 2003. Section 15.35(b) specifies the use of an average detector in this band. In addition, the peak level of an emission shall not exceed the average limit by more than 20 dB using a minimum resolution B=bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions caused by other circuitry within the device. 1) Determine the frequency of the peak emission: Start Frequency 11.7 GHz Stop Frequency 12.2 GHz RBW equal to or greater than 1 MHz VBW equal to or greater than 1 MHz Detector Function Peak Maximize the emissions with regards to device orientation, antenna polarization, and antenna height. Sweep the band using Max Hold for a minimum of 2 minutes. Record this frequency for measuring the peak emission. In addition record the frequency of other spurious emissions noted. 2) Determine the peak level of the emission: Center Frequency Set to the frequency determined in Step 1 RBW Equal to or greater than 1 MHz VBW Equal to or greater than 1 MHz Detector Function Peak Measure the value of the peak emission using Max Hold for a minimum of 2 minutes. This can be done at zero span or a frequency span where the analyzer does not show a “Measurement Uncalibrated” message. Record the peak value. If the peak measurement is compliant with the average limit an average measurement is not necessary. If the peak value exceeds the average limit by less than 20 dB proceed to Step 3. 3) Determine the average level of the emission: Center Frequency Set to the frequency determined in Step 1 Span Zero RBW Equal to or greater than 1 MHz VBW Equal to or greater than 10 Hz Detector Function Peak This measurement uses video averaging and must be done in Linear mode. The analyzer Reference Level is adjusted so that a signal is clearly visi…
