Revision 1.1 Early Warning EW-303 / EW-404 Operation Guide EW-303 / EW-404 Jun 4, 2010 Revision 1.1 Early Warning EW-303 / EW-404 Table of Contents OPERATION GUIDE Table of Contents 1 CONTROLS, FEATURES, & OPERATION 1.1 Controls 1.2 Tutorial mode 1.3 Factory Default Settings Summary 1.4 Important Information Revision 1.1 Early Warning EW-303 / EW-404 CONTROLS, FEATURES, & OPERATION 1.1 Controls 1.1.1 Power / Volume Rotary Volume knob turns unit On and Off, and controls volume. The rotary knob also sets the volume level. Power/Volume rotary knob is located on left side of the unit. 1.1.2 Mute Button. (short Key) Mute On/Off Operation Mute button will allow the user to toggle between Alert On and the Alert Off. With a received signal present pressing the mute button momentarily turns off the alert. 1.1.3 Dim button. (short Key) Dim level displayed and operation. Pressing on the Dim button will allow the user to change brightness of the screen. Tone Dim level ‘two beeps’ Bright ‘one beep’ Dim (At 50% Brightness) ‘one beep’ Dark with no light indicators except for “P” Note. When on Dark mode, only “P” on display will be lit (At 50% brightness) 1.1.4 City button. (short Key) City mode displayed message and operation When a signal is present and when no signal is present, A momentary push of the city button will allow the user to toggle between Highway mode and the city mode. While in city mode, the unit must not give an Audio Alert (remains silent) until the microwave power density of the incoming signal reaches the X-Band City Mode Level. Revision 1.1 Early Warning EW-303 / EW-404 1.2 Tutorial Mode Press and hold the Dim and City Buttons for > 1 seconds while turning on the power to the unit. This will display the Tutorial mode below: Alert Sequence: K-Alert : Blinking X/Ka LED, according to the SSM level. X-Alert : Blinking X/Ka LED, according to the SSM level. Ka-Alert: Blinking X/Ka LED, according to the SSM level. Laser-Alert: Blink L LED, synchronize with alert tone. 1.3 Factory Default Setting Summary Function Default Value Alert Mode Highway mode Display Brightness Bright Mute Mute Off X-band on/off on Ka-band on/off on 1.4 Important Information Federal Law Governs the Use of Radar Detectors. It is not against federal law to receive radar transmissions with your Early Warning™ radar detector. Revision 1.1 Early Warning EW-303 / EW-404 The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action. *FCC STATEMENT* This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,and (2) this device must accept any interference received. including interference that may cause undesired operation NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT

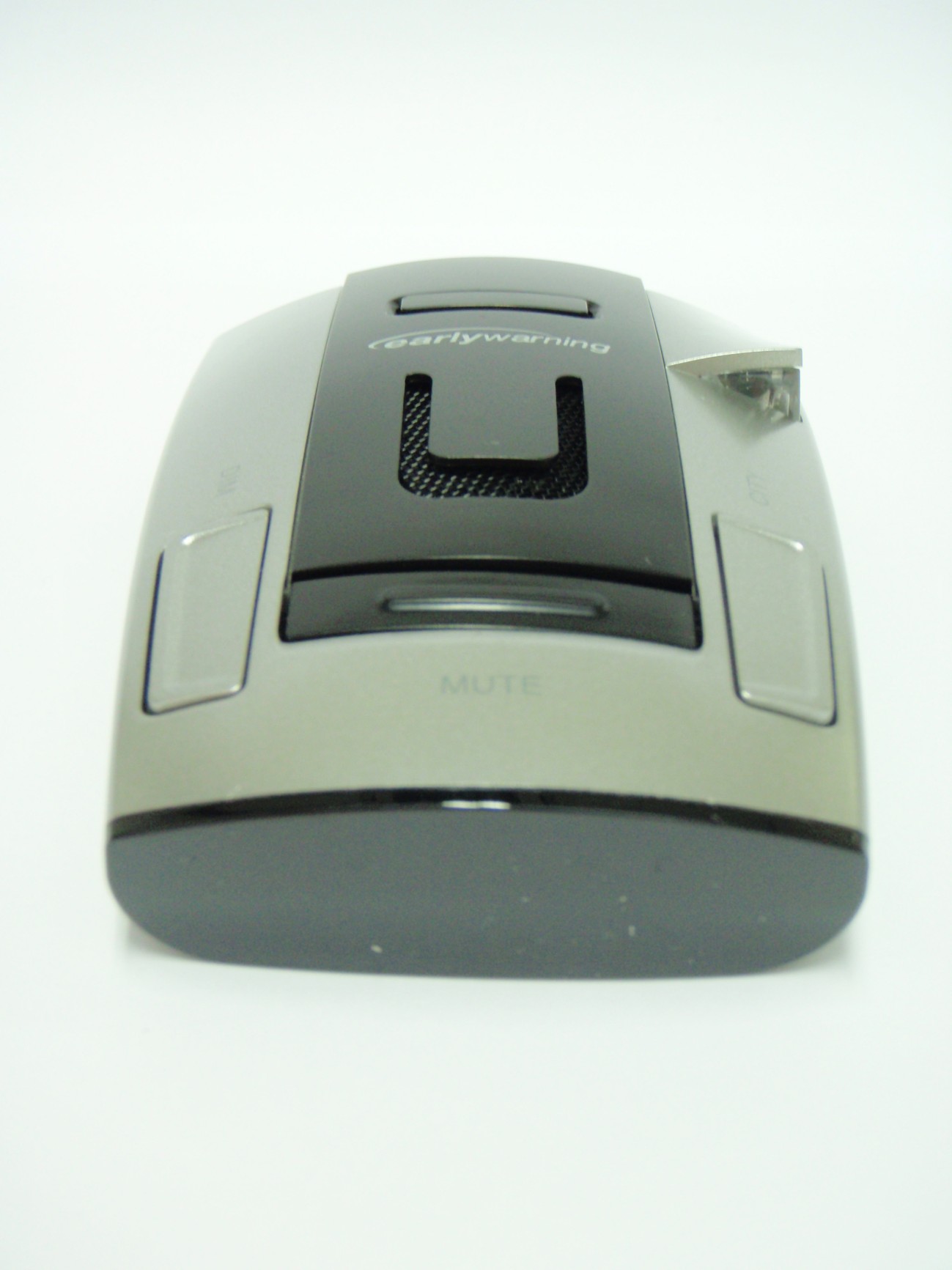

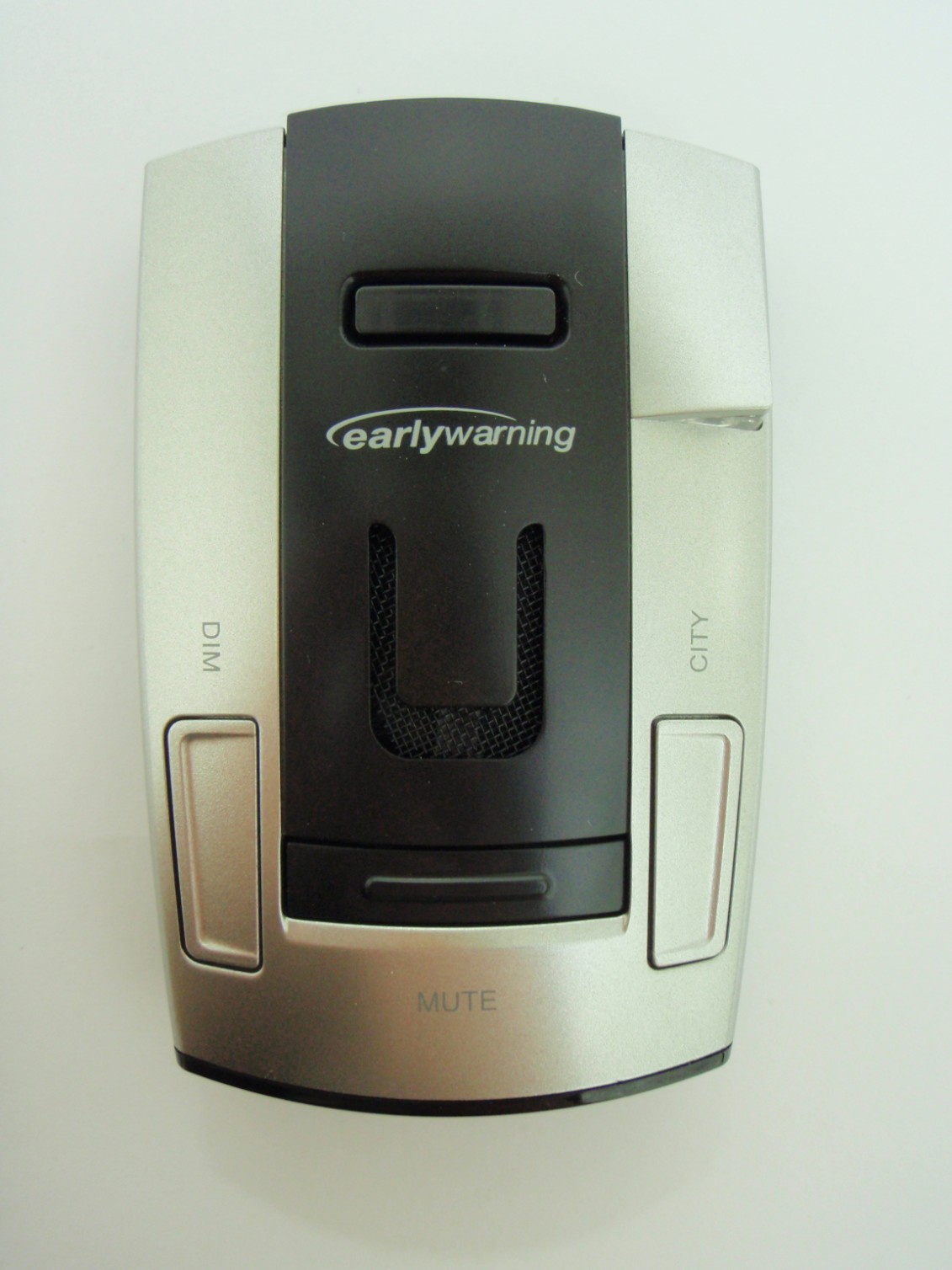

APPLICANT: BG TECH AMERICA, INC. FCC ID: U6BDH10 EXTERNAL PHOTOS

APPLICANT: BG TECH AMERICA, INC. FCC ID: U6BDH10 INTERNAL PHOTOS

FCC PART 15 RADAR DETECTOR REPORT Applicant BG TECH AMERICA INC. Address 300 PARK BOULEVARD SUITE 335 ITASCA, IL 60143 FCC ID: U6BDH10 Product Description RADAR DETECTOR Date Sample Received 6/14/2010 Date Tested 7/2/2010 Tested By Joe Scoglio Approved By Mario R. de Aranzeta Report Number 1394UT10Testreport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: BG TECH AMERICA, INC. FCC ID:: U6BDH10 REPORT: Z:\B\BGTech_AMERICA\1394UT10\1394UT10TestReport.doc Page 2 of 11 TABLE OF CONTENTS GENERAL REMARKS ................................................................................................................. 3 GENERAL INFORMATION .......................................................................................................... 4 TEST EQUIPMENT LIST ............................................................................................................. 5 TEST PROCEDURES .................................................................................................................. 6 RADIATED SPURIOUS EMISSIONS ........................................................................................... 8 VERTICAL PLOT......................................................................................................................... 9 HORIZONTAL PLOT ................................................................................................................. 10 RADIATED EMISSIONS TEST SETUP PHOTO.......................................................................... 11 APPLICANT: BG TECH AMERICA, INC. FCC ID:: U6BDH10 REPORT: Z:\B\BGTech_AMERICA\1394UT10\1394UT10TestReport.doc Page 3 of 11 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 7/2/2010 APPLICANT: BG TECH AMERICA, INC. FCC ID:: U6BDH10 REPORT: Z:\B\BGTech_AMERICA\1394UT10\1394UT10TestReport.doc Page 4 of 11 GENERAL INFORMATION The test results relate only to the items tested. DUT Description Radar Detector FCC ID U6BDH10 DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Modifications to DUT None Test Standards FCC Part 15, Subpart B, ANSI C63.4-2003 APPLICANT: BG TECH AMERICA, INC. FCC ID:: U6BDH10 REPORT: Z:\B\BGTech_AMERICA\1394UT10\1394UT10TestReport.doc Page 5 of 11 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 3/10/10 3/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 3/23/09 3/23/11 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 6/10/09 6/10/11 Frequency Counter HP 5385A 3242A07460 CAL 5/26/09 5/26/11 Hygro- Thermometer Extech 445703 0602 CAL 1/30/09 1/30/11 Modulation Analyzer HP 8901A 3435A06868 CAL 5/26/09 5/26/11 Digital Multimeter Fluke FLUKE-77-3 79510405 CAL 5/18/09 5/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 APPLICANT: BG TECH AMERICA, INC. FCC ID:: U6BDH10 REPORT: Z:\B\BGTech_AMERICA\1394UT10\1394UT10TestReport.doc Page 6 of 11 TEST PROCEDURES General: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: Testing was done in accordance with ANSI C63.4-2003. Section 15.35(b) specifies the use of an average detector in this band. In addition, the peak level of an emission shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions caused by other circuitry within the device. 1) Determine the frequency of the peak emission: Start Frequency 11.7 GHz Stop Frequency 12.2 GHz RBW equal to or greater than 1 MHz VBW equal to or greater than 1 MHz Detector Function Peak Maximize the emissions with regards to device orientation, antenna polarization, and antenna height. Sweep the band using Max Hold for a minimum of 2 minutes. Record this frequency for measuring the peak emission. In addition record the frequency of other spurious emissions noted. 2) Determine the peak level of the emission: Center Frequency Set to the frequency determined in Step 1 RBW Equal to or greater than 1 MHz VBW Equal to or greater than 1 MHz Detector Function Peak Measure the value of the peak emission using …
