U6OCA913Digital Wireless Receiver

DMR-101 &DMT-101（BESTA） User’s Manual Main Features This is the first microphone created with 2.4G Digital Wireless Technology, avoiding interferences issues stipulated in wireless microphone that you can enjoy high-quality sounds now.  First innovative 2.4G Digital Wireless Technology in Industry is featured with its high-speed transmission and 60m linear reception; it used for no-harassment in management of channels with audio quality in perfection rendered!  2.4G Technology is featured on its extremes of energy saving; it use of alkaline battery ( 1.5V AA x2) that is endurable more than 30 hours successively.  The exterior streamlined design, in line with visible pearl black paint and further thermal UV treatment, is free of paint falling everlastingly which highlights its high quality.  The dustproof cover, made of high-stiffness of steel, presents higher level of protective effects from extremely precise electroplating treatment and coating on the surface; the closely integrated design in the microphone and dustproof cover is excellent in drop and shock resistance which significantly reduces extra sound generated from shakes.  Volume Adjuster is uniquely attached that + - buttons on the microphone enables to adjust volume remotely with ease.  The ultra-thin design of mini receiver at 200g enables you to hand carry in convenience or include it into decoration at home simply or use with a power bank outdoors.  The set is equipped with thick, solid bass and clear pitches that highly sensitive microphone component enables presentation of genuine human voice which is applicable to multiple purposes such as singing, giving speech, conference and teaching.  Within echo sounds effects perfectly sing in Karaoke.  Need not to connect an audio mixer, background music and microphone sound mix down automatically.  Digital Wireless Receiver I. Parts of Introduction Up Side 1. Light of Power ON/OFF：Green light is on when it is powered on, standby is red. 2. Power ON：Press &hold for 2 seconds (light from red to green) to turn on the receiver. Power OFF：Press &hold for 3 seconds (light from green to red) to turn off the receiver. Front Side 1. Match Button on Microphone(MIC1、MIC2): It is used for match between microphone and receiver. Back Side 2. DC In: Connect Power Supply and Input power at 5V (DC). 3. MINI USB: Connect to PC/ Notebook, as the switch of previous/next page in presentation mode 4. Audio Output (MIC): ψ6.3mm audio output hole connects receiver to power amplifier (mixer) 5. Echo Control: Echo effects control 6. LINE In: Connects to background music or Karaoke music 7. LINE Out: Connect 3.5mm cable or connect to powered speaker through composite video connector II. Installation and Operation of Receiver: 1. Connection of Power Input： Connect input side of 5V（DC）Power Supply to power input hole and connect the other side to AC Power Outlet. (▲Note：AC Power spec of POWER SUPPLY must fit with voltage range locally.) 2. Connection of Audio Output (A)： Connect double ψ6.3mm Plug to Audio Output Hole of Receiver(MIC) and connect the other plug to Power Amplifier or other input surfaces of mixer (MIC IN). (▲Note：Please connect both sides of double ψ6.3mm Plug well, then, power on Power Amplifier or other machines with audio input, such as mixer. It is to avoid any temporary sound of contact while in connection between machines such as Power Amplifier or Mixer and double ψ6.3mm Plug.) 3. Connection of Audio Output (B)：Connects to LINE OUT hole by powered speaker through composite video connector or 3.5mm cable 4. Power on and activate the receiver; green light is on.  Digital Wireless Microphone I. Parts of Introduction 1. Head of Microphone. 2. Volume Light：5 degrees of volume control, light more means volume up. 3. Volume Key－：Press it to decrease the volume of microphone; Volume Key＋：Press it to increase the volume of microphone. 4. LED indicator：Green is on while it is powered on; Red is on means to replace it with new batteries. 5. Power Switch：Push ON/OFF switches. 6. Left/ Right Key：By Karaoke to raise/lower key or as the switch of previous/next page in power point mode with dongle II. Battery Installation 1. As shown on above chart： Rotate bottom side of microphone counterclockwise until the sleeve is removed. 2. Please put into 2 batteries (1.5V AA Alkaline Battery) correctly into the battery compartment that negative pole is toward the microphone head. 3. Rotate the bottom side of microphone back clockwise once Item 2 is done. 4. The batteries shall be removed if not use microphone for a long time, avoiding damages of springs and circuit inside arisen out of battery fluid flowed. 5. Match Key(above the battery)：It is used for match between microphone and receiver (It is default paired already). III. Operation Frequency of receiver and microphone has been matched while in delivery, please operate as follows: 1. Power on the microphone by Power Switch. At this time, the green light is on. At the mean time, volume light of receiver is on, referring to volume of microphone. (Note：If the pairing light is off, means receiver and microphone is not match which needs to be done anew.) 2. Please operate as follows for matching microphone anew if necessary： a. Power on the receiver and microphone; remove bottom sleeve of microphone. b. Press match key of microphone and power light is flashing, then press match keys of receiver (MIC1 or MIC2) that the receiver is entering into status of searching frequency now. When the pairing light of receiver is on, means they are matched. c. Under normal situation, the above matching should be done within 15 seconds. If not, the flashing will turn off automatically. █ Precaution 1. The most microphone systems recommended in use simultaneously is at 2 sets to avoid interferences. 2. Do not use and store it in thermal, humid places with dust and place it apart from child below 3 years. 3. Do not drop it down and collide by force to avoid damages of…

Text truncated - open the document above for the full version.

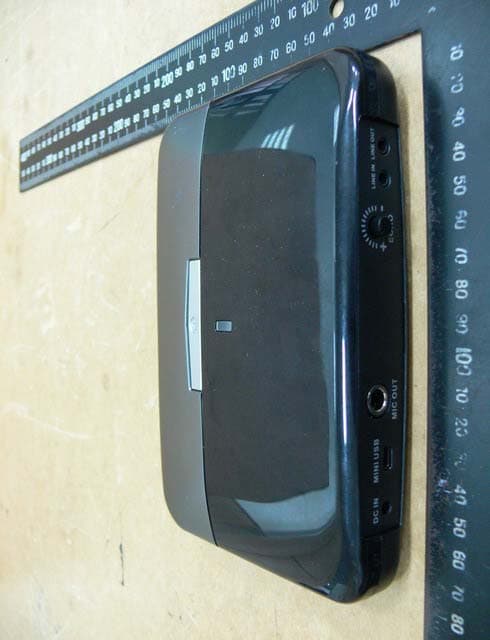

Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 1 of 18 Appendix Photos 1. External Photos 2. Internal Photos 3. Set Up Photo of Radiated Emission 4. Set Up Photo of Conducted Emission Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 18 External Photos Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 18 Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 18 Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 18 Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 18 Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 18 Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 18 Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 18

44mm 24mm FCC
ID:
U6OCA913 DMR-101 8709130000018 FCC
ID:
U6OCA913 DMR-101 8709130000018

Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 18 Internal Photos Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 18 Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 18 Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 18 Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 18 Metal Stamping Antenna / Gain: 2.5 dBi

Registration number: W6M21411-14612-C-1 FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Page 15 of 33 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain (Directional gain) EIRP = 14.85 dBm + 2.5 dBi = 17.35 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Distance D – Cable Loss AG – Antenna Gain Item Unit Value Remarks P mW 30.5492 Peak value D dB AG dBi 2.5 G 1.77827941 Calculated Value R cm 20 Assumed value S mW/cm 2 0.010807597 Calculated value Limits: Limit for General Population / Uncontrolled Exposure Frequency (MHz) Power Density (mW/cm 2 ) 1500 – 100.000 1.0

WT217-01C APPROVAL SHEET CUSTOMER : 無敵科技股份有限公司 ISSUE DATE : 2011.11.23 APPROVED COMPANY APPROVED BY CHECK BY PREPARED BY APPROVAL NO : H2B2BC1H1B0100 MODEL : WiFi/Bluetooth Metal Stamping Antenna(AA113) Customer NO : APPROVAL SHEET RoHS com pliance Tolerances (Unless otherwise specified) X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Unictron Technologies Corporation Website: www.unictron.com Scale : Unit：mm Drawn By : Gilespi Checked By : Jason Designed By : Wilson Approved By :Jaixing THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION DOCUMENT REV. TITLE： WiFi/BT Metal Stamping Antenna (AA113) NO. H2B2BC1H1B0100 A PAGE 1 OF 8 H 2 1B CHB 1 0B 2 (1) (2) (3) (4) (5) (6) 0 10 WiFi/BT Metal Stamping Antenna (AA113) 1. Explanation of Part Number Product Code: (1) Product Categories: B2: 2.4G Metal Stamping Antenna (2) Applications: B: WiFi (3) Dimensions: C1: 29x2.6x8.6(mm) (4) Material: H: Tinplate nickel plating (5) Working Frequency and Polarization: 1B: 2400MHz ~ 2500MHz / linear polarization (6) Antenna Series: 01: serial number Tolerances (Unless otherwise specified) X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Unictron Technologies Corporation Website: www.unictron.com Scale : Unit：mm Drawn By : Gilespi Checked By : Jason Designed By : Wilson Approved By :Jaixing THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION DOCUMENT REV. TITLE： WiFi/BT Metal Stamping Antenna (AA113) NO. H2B2BC1H1B0100 A PAGE 2 OF 8 2. Features *Stable and reliable in performances *Low temperature coefficient of frequency *RoHS compliance 3. Applications *2.4G Systems 4. Description *Unictron’s 2.4G antenna is specially designed for 2.4G applications. It has excellent stability and sensitivity to consistently provide high signal reception efficiency. 5. Electrical Specifications Characteristics Specifications Unit Outline Dimensions 29 x 2.6 x 8.6 mm Frequency Range 2400 ~ 2500 MHz VSWR 2 max Impedance 50 Ω Polarization Linear Polarization Peak Type A: 2.5 @2450MHz Type B: 2.5 @2450MHz dBi Gain Efficiency Type A: 50 @2450MHz Type B: 50 @2450MHz % Temperature Coefficient of Frequency 0±20 max (@ -20°C~ 80°C) ppm/°C Note： 1. These test results are based on customer's housing and ground plane (please refer to No.7). Tolerances (Unless otherwise specified) X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Unictron Technologies Corporation Website: www.unictron.com Scale : Unit：mm Drawn By : Gilespi Checked By : Jason Designed By : Wilson Approved By :Jaixing THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION DOCUMENT REV. TITLE： WiFi/BT Metal Stamping Antenna (AA113) NO. H2B2BC1H1B0100 A PAGE 3 OF 8 6. Antenna Dimensions (unit: mm) 7. Antenna Assembly Location Diagram & Layout Guide: (1)Test Board Type A Type B Tolerances (Unless otherwise specified) X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Unictron Technologies Corporation Website: www.unictron.com Scale : Unit：mm Drawn By : Gilespi Checked By : Jason Designed By : Wilson Approved By :Jaixing THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION DOCUMENT REV. TITLE： WiFi/BT Metal Stamping Antenna (AA113) NO. H2B2BC1H1B0100 A PAGE 4 OF 8 (2)Layout Guide Type A: Type B: Tolerances (Unless otherwise specified) X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Unictron Technologies Corporation Website: www.unictron.com Scale : Unit：mm Drawn By : Gilespi Checked By : Jason Designed By : Wilson Approved By :Jaixing THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION DOCUMENT REV. TITLE： WiFi/BT Metal Stamping Antenna (AA113) NO. H2B2BC1H1B0100 A PAGE 5 OF 8 8. Electrical Characteristics (1) Return Loss Type A Type B (2) VSWR Type A Type B Tolerances (Unless otherwise specified) X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Unictron Technologies Corporation Website: www.unictron.com Scale : Unit：mm Drawn By : Gilespi Checked By : Jason Designed By : Wilson Approved By :Jaixing THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION DOCUMENT REV. TITLE： WiFi/BT Metal Stamping Antenna (AA113) NO. H2B2BC1H1B0100 A PAGE 6 OF 8 (3) Three D Radiation Pattern measurements The definition of the measurement face X Y Z Tolerances (Unless otherwise specified) X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Unictron Technologies Corporation Website: www.unictron.com Scale : Unit：mm Drawn By : Gilespi Checked By : Jason Designed By : Wilson Approved By :Jaixing THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION DOCUMENT REV. TITLE： WiFi/BT Metal Stamping Antenna (AA113) NO. H2B2BC1H1B0100 A PAGE 7 OF 8 (4) WiFi/BT Antenna Three D Radiation Pattern (unit：dBi) a. 2400MHz Type A (Up View) Type B (Up View) b. 2450MHz Type A (Up View) Type B (Up View) c. 2483MHz Type A (Up View) Type B (Up View) Y X Z Y X Z Y X Z Y X Z Y X Z Y X Z Tolerances (Unless otherwise specified) X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Unictron Technologies Corporation Website: www.unictron.com Scale : Unit：mm Drawn By : Gilespi Checked By : Jason Designed By : Wilson Approved By :Jaixing THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION DOCUMENT REV. TITLE： WiFi/BT Metal Stamping Antenna (AA113) NO. H2B2B…

Text truncated - open the document above for the full version.

of Applicant: INVENTEC BESTA CO., LTD. Address: 10FL., No. 36, Lane 513, Rui Guang Road, Nei Hu Dist., Taipei 114, Taiwan, R.O.C. Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1, IC 5107A A2LA Accredited No.: 2732.01 Report No.: W6M21411-14612-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Digital Wireless Receiver Model No.: DMR-101 FCC ID: U6OCA913 Registration number: W6M21411-14612-C-1 FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 33 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 NOTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................3 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 T EST STANDARDS.........................................................................................................................5 2 TECHNICAL TEST .........................................................................................................................6 2.1 S UMMARY OF TEST RESULTS........................................................................................................6 2.2 TEST ENVIRONMENT....................................................................................................................6 2.3 TEST EQUIPMENT LIST.................................................................................................................7 2.4 GENERAL TEST PROCEDURE........................................................................................................9 3 TEST RESULTS (ENCLOSURE) ................................................................................................11 3.1 P EAK OUTPUT POWER (TRANSMITTER) ......................................................................................12 3.2 E QUIVALENT ISOTROPIC RADIATED POWER................................................................................15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................15 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS....................................................16 3.5 S PURIOUS EMISSIONS (TX) .........................................................................................................17 3.6 RADIATED EMISSION ON THE BAND EDGE..................................................................................21 3.7 MINIMUM 6 DB BANDWIDTH.....................................................................................................23 3.8 PEAK POWER SPECTRAL DENSITY.............................................................................................26 3.9 R ADIATED EMISSION FROM DIGITAL PART................................................................................29 3.10 P OWER LINE CONDUCTED EMISSION.........................................................................................30 APPENDIX.............................................................................................................33 Registration number: W6M21411-14612-C-1 FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 33 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: November 18, 2014 Kent Lin Date WTS-Lab. Name Signature Technical responsibility for area of testing: November 18, 2014 Kevin Wang Date WTS Name Signature Registration number: W6M21411-14612-C-1 FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 33 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber N…

Text truncated - open the document above for the full version.

Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 18 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 18 Above 1GHz Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 18 RF Registration number: W6M21411-14612-FCC FCC ID: U6OCA913 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 18 of 18 Set Up Photo of Conducted Emission
