U6YRDAA8190Enhanced Cell Modem

PANASONIC AVIONICS CORPORATION Enhanced Cell Modem ASC-AA8190-01 PROPRIETARY AND CONFIDENTIAL PAGE 1 OF 22 Panasonic Avionics Corporation 26200 Enterprise Way Lake Forest, CA 92630 USA PRODUCT DESCRIPTION FOR Enhanced Cell Modem PART NUMBER: RD-AA8190-01 PANASONIC AVIONICS CORPORATION Enhanced Cell Modem ASC-AA8190-01 PROPRIETARY AND CONFIDENTIAL PAGE 2 OF 22 TABLE OF CONTENTS 1.0 GENERAL .......................................................................................................................................... 4 1.1 Purpose ............................................................................................................................................. 4 2.0 WIRELESS DATA INTERFACES ...................................................................................................... 6 2.1 Frequency Band or Channel Usage .................................................................................................. 6 2.2 Hardware Maximum Transmitter Output Power ................................................................................ 6 2.3 Hardware Reset Button ..................................................................................................................... 6 2.4 Cellular Interface ............................................................................................................................... 7 2.5 Cellular Antenna Interface ................................................................................................................. 9 2.6 Wireless LAN Interface ................................................................................................................... 10 2.7 Wireless Antenna Inteface .............................................................................................................. 11 3.0 ELECTRICAL CHARACTERISTICS................................................................................................ 12 3.1 Power Consumption & Current Draw .............................................................................................. 12 3.2 Power Factor ................................................................................................................................... 12 3.3 Circuit Breakers and Fuses ............................................................................................................. 12 4.0 FUNCTIONS ..................................................................................................................................... 13 4.1 Functionality and Interface Characteristics ..................................................................................... 13 4.2 Hardware Block Diagram ................................................................................................................ 14 5.0 PHYSICAL CHARACTERISTICS .................................................................................................... 15 5.1 Installation Location(s) .................................................................................................................... 15 5.2 Form Factor ..................................................................................................................................... 15 5.3 Digital Inputs and Outputs Characteristics ...................................................................................... 16 5.3.1 Ethernet Interface .................................................................................................................. 16 5.4 Discrete Inputs and Outputs Characteristics ................................................................................... 17 5.4.1 5V Discrete Input ................................................................................................................... 17 5.4.2 28V Discrete Input ................................................................................................................. 17 5.5 SIM Slots ......................................................................................................................................... 18 6.0 ENVIRONMENTAL CHARACTERISTICS ....................................................................................... 19 6.1 Operating Temperature ................................................................................................................... 19 7.0 BATTERIES ...................................................................................................................................... 20 8.0 WARNINGS ...................................................................................................................................... 21 9.0 FCC and ISED Statements...........................................................................................22 PANASONIC AVIONICS CORPORATION Enhanced Cell Modem ASC-AA8190-01 PROPRIETARY AND CONFIDENTIAL PAGE 3 OF 22 LIST OF FIGURES Figure 1: RD-AA8190-01 Enhanced Cell Modem Outline Drawing ..............................................................4 Figure 2: RD-AA8190-01 Enhanced Cell Modem Outline Drawing (continued) ...........................................5 Figure 7: eCM Front Panel ...........................................................................................................................6 Figure 3: LRU Block Diagram(s) ................................................................................................................ 14 Figure 4: Center of Gravity ........................................................................................................................ 15 Figure 15: FCC ID ...................................................................................................................................... 21 Figure 16: Hot Surface ............................................................................................................................... 21 Figure 17: ESD ..............................................................…

Text truncated - open the document above for the full version.

Date: 04/17/2018 VCB_F-01: Operating Procedures Form – FCC Authorization v02 Page 1 of 1 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: SUBJECT: FCC Application for (FCC ID: U6YRDAA8190) To Whom It May Concern: We, the undersigned, hereby authorize _David Zhang___ (Individual’s name) in __Vista Laboratories, Inc. __ (Company) at _1261 Puerta Del Sol, San Clemente, CA 92673_____ (Address) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by __ Vista Laboratories, Inc. ____ (Company) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Client’s signature: Client’s name & title: Ali Tariq – Project Manager II Contact information / address: 26200 Enterprise Way Lake Forest, CA 92630 USA

Date: 04/17/2018 VCB_F-01: Operating Procedures Form – FCC Confidentiality v03 Page 1 of 1 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: U6YRDAA8190 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Type of Confidentiality Requested Exhibit Type ☐Short Term ☒Permanent Block Diagrams ☒Short Term External Photos ☒Short Term ☐Permanent* Internal Photos ☐Short Term ☒Permanent Operation Description ☐Short Term ☒Permanent Parts List/BOM ☐Short Term ☒Permanent Schematics ☒Short Term Test Setup Photos ☒Short Term ☐Permanent* User manual ☐Short Term ☒Permanent Tune Up Procedure *Requires further justification before permanent confidentiality will be allowed. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for an initial period of 180 (ie- “45”, “90” or “180”) days. Sincerely, Client’s signature: Client’s name & title: Ali Tariq – Project Manager II Contact information / address: 26200 Enterprise Way Lake Forest, CA 92630 USA

Panasonic Avionics Corporation 26200 Enterprise Way, Lake Forest, CA 92630, USA Page | 1 This letter certifies that Panasonic Avionics Corporation authorizes Phalanx International and their associates in filling applications for homologation services on our behalf for the following product: Trademark: Panasonic Avionics Corporation P/N: RD-AA8190-01 Model: Enhanced Cell Modem Please direct correspondence realting to the applications to Phalanx International. Signature: Ihab Elgamil Digitally signed by Ihab Elgamil Date: 2020.12.18 11:45:17 -08'00' Director, Connectivity Product Management

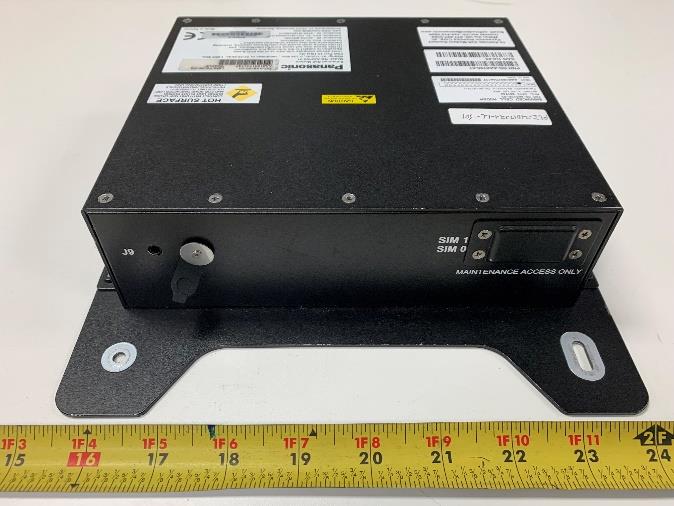

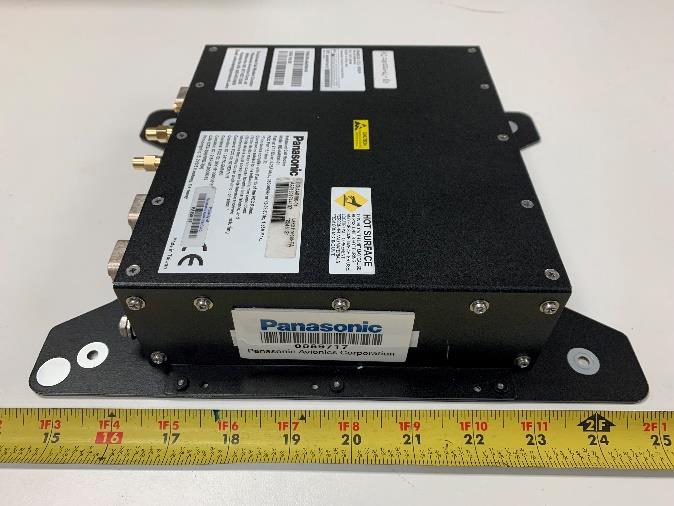

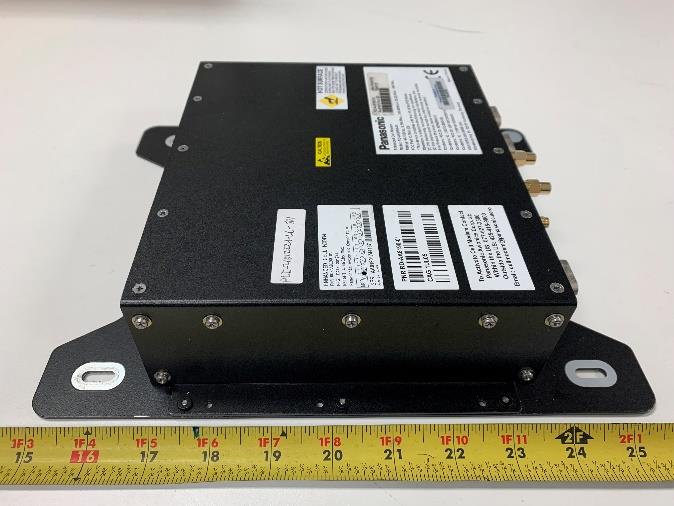

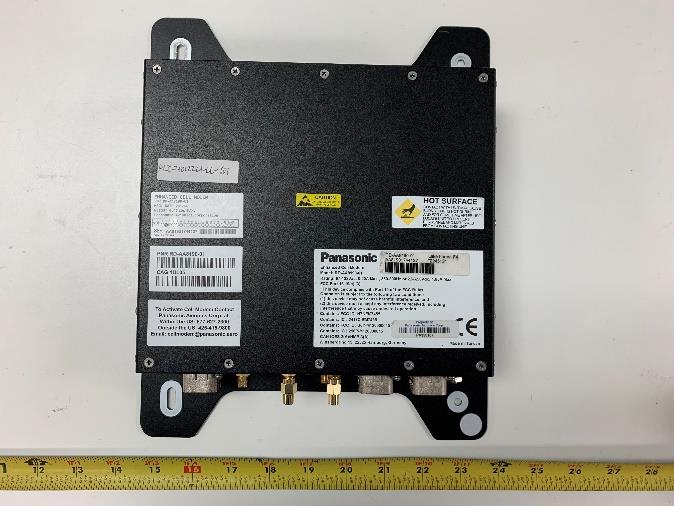

EUT-External-Top EUT-External-Bottom EUT-External-Front EUT-External-Back EUT-External-Left EUT-External-Right EUT-Antenna-Front EUT-Antenna-Top

EUT-PCBA1-Top EUT-PCBA1-Bottom EUT-PCBA2-Top EUT-PCBA2-Bottom Cellular Radio module WLAN Radio mdoule

MPE CALCULATION (FCC ID: U6YRDAA8190) RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 801.11b/g/n: 2412-2462MHz 802.11a/n/ac: 5150-5825MHz WCDMA/LTE B2: 1850-1910MHz WCDMA/LTE B4: 1710-1755MHz WCDMA/LTE B5: 824-849MHz LTE B7: 2500-2570MHz LTE B12: 699-716MHz LTE B13: 777-787MHz LTE B25: 1850-1915MHz LTE B26: 814-849MHz LTE B30: 2305-2315MHz LTE B41: 2496-2690MHz Limits for General Population/Uncontrolled Exposure in the band of: 300 - 1500 MHz, Power Density Limit: f/1500 mW/cm2 Limits for General Population/Uncontrolled Exposure in the band of: 1500 - 100,000 MHz Power Density Limit: 1 mW / cm 2 Equation: S = PG / 4R 2 or R = √PG / 4S Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna Prediction distance 20 cm Radio Frequency (MHz) Max Conducted Output Power (dBm) Antenna Gain (dBi) Separation distance (cm) Power Density (mW/ cm 2 ) MPE Limit (mW/ cm 2 ) 2.4GHz WLAN 2412-2462 24.41 3 20 0.110 1 5.2GHz WLAN 2412-2462 23.32 5 20 0.135 1 5.3GHz WLAN 2412-2462 23.16 5 20 0.130 1 5.6GHz WLAN 2422-2452 23.39 5 20 0.137 1 5.8GHz WLAN 5150-5825 24.70 5 20 0.186 1 WCDMA/LTE B2 1850-1910 24 1 20 0.063 1 WCDMA/LTE B4 1710-1755 24 1 20 0.063 1 WCDMA/LTE B5 824-849 24 1 20 0.063 0.549 LTE B7 2500-2570 23 1 20 0.050 1 LTE B12 699-716 24 1 20 0.063 0.466 LTE B13 777-787 24 1 20 0.063 0.518 LTE B25 1850-1915 24 1 20 0.063 1 LTE B26 814-849 24 1 20 0.063 0.542 LTE B30 2305-2315 23 1 20 0.050 1 LTE B41 2496-2690 23 1 20 0.050 1 The above results show that the device complies with the MPE requirement. The WLAN is able to transmit simultaneously with WCDMA/LTE. The worst-case ratio = 0.186/1 + 0.063/0.466 = 0.321 < 1.0 The above results show that the device complies with the simultaneous transmission MPE requirement.

Phone: +1 (949) 393-1123 Web: www.vista-compliance.com Email: [email protected] FCC ISED RF Test Report Test Report Number PLI-21033041-LC-FCC-IC-RF-WLAN FCC ID ISED ID Applicant U6YRDAA8190 216P-RDAA8190 Panasonic Avionics Corporation Applicant Address 26200 Enterprise Way, Lake Forest, CA 92630 Product Name Enhanced Cell Modem Model (s) RD-AA8190-01 Date of Receipt 02/25/2021 Date of Test 04/05/2021-04/23/2021 Report Issue Date 04/23/2021 Test Standards 47 CFR Part 15.247 47 CFR Part 15.407 RSS-247 Issue 2, Feb 2017 Test Result PASS Issued by: Vista Compliance Laboratories 1261 Puerta Del Sol, San Clemente, CA 92673 USA www.vista-compliance.com Daniel Bruno (Test Technician) David Zhang (Technical Manager) This report is for the exclusive use of the applicant. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Note that the results contained in this report pertain only to the test samples identified herein, and the results relate only to the items tested and the results that were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested and the results thereof based upon the information provided to us. The applicant has 60 days from date of issuance of this report to notify us of any material error or omission. Failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is not to be reproduced by any means except in full and in any case not without the written approval of Vista Laboratories. Report# PLI-21033041-LC-FCC-IC-RF-WLAN Page 2 of 25 REVISION HISTORY Report Number Version Description Issued Date PLI-21033041-LC-FCC-IC-RF-WLAN 01 Initial report 04/23/2021 Report# PLI-21033041-LC-FCC-IC-RF-WLAN Page 3 of 25 TABLE OF CONTENTS 1 TEST SUMMARY ...................................................................................................................................................... 4 2 GENERAL INFORMATION ..................................................................................................................................... 5 2.1 Applicant .......................................................................................................................................................... 5 2.2 Product information ...................................................................................................................................... 5 2.3 Test standard and method .......................................................................................................................... 6 3 TEST SITE INFORMATION ..................................................................................................................................... 6 4 MODIFICATION OF EUT / DEVIATIONS FROM STANDARDS ....................................................................... 6 5 TEST CONFIGURATION AND OPERATION ....................................................................................................... 6 5.1 EUT Test Configuration ................................................................................................................................. 6 5.2 Supporting Equipment ................................................................................................................................. 7 6 UNCERTAINTY OF MEASUREMENT ................................................................................................................... 7 7 TEST RESULTS .......................................................................................................................................................... 8 7.1 Radiated Spurious Emissions into Restricted Frequency Bands ......................................................... 8 8 EUT AND TEST SETUP PHOTOS ......................................................................................................................... 24 9 TEST INSTRUMENT LIST ..................................................................................................................................... 25 Report# PLI-21033041-LC-FCC-IC-RF-WLAN Page 4 of 25 1 Test Summary Test Item Test Requirement Test Method Result Radiated Spurious Emissions into Restricted Frequency Bands 47 CFR Part 15.247 RSS-247 Issue 2, Feb 2017 ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Pass Report# PLI-21033041-LC-FCC-IC-RF-WLAN Page 5 of 25 2 General Information 2.1 Applicant Applicant Panasonic Applicant address 26200 Enterprise Way, Lake Forest, CA 92630 Manufacturer Panasonic Manufacturer Address 26200 Enterprise Way, Lake Forest, CA 92630 2.2 Product information Product Name Enhanced Cell Modem Model Number RD-AA8190-01 Family Models N/A Serial Number CAG 1UL05 (Panasonic Asset No.: 0089717) Frequency Band 802.11b/g/n:2412MHz-2462MHz 802.11a/n/ac:5180MHz-5240MHz, 5260MHz-5320MHz, 5500MHz- 5720MHz, 5745MHz-5825MHz WCDMA B2, B5, B4 LTE B2, B4, B5, B7, B12, B13, B25, B26, B30 and B41 Type of modulation 802.11b: DSSS(DBPSK/DQPSK/ CCK) 802.1111a/g/n/ac: OFDM(BPSK/QPSK/16QAM/64QAM/ 256QAM) WCDMA: QPSK LTE CAT-M1: QPSK, 16QAM LTE NB-IOT: …

Text truncated - open the document above for the full version.

Report No.: FR6N2801AC Page : 1 of 63 Report Version: Rev. 01 FCC Test Report FCC ID : U6Y-M120000015 Equipment : IEEE 802.11A/B/G/N/AC DUAL 3T3R WIFI PCIE Model No. : M120000015 Brand Name : Panasonic Applicant : Panasonic Avionics Corporation Address : 26200 ENTERPRISE WAY, LAKE FOREST, CA 92630-8400 USA Standard : 47 CFR FCC Part 15.247 Received Date : Nov. 28, 2016 Tested Date : Dec. 02 ~ Dec. 15, 2016 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR6N2801AC Page : 2 of 63 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 6dB and Occupied Bandwidth .............................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 22 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 50 4 TEST LABORATORY INFORMATION ............................................................................................... 63 Report No.: FR6N2801AC Page : 3 of 63 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR6N2801AC Rev. 01 Initial issue Apr. 06, 2017 Report No.: FR6N2801AC Page : 4 of 63 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.481MHz 30.86 (Margin -15.46dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 4874.00MHz 52.99 (Margin -1.01dB) - AV Pass 15.247(b)(3) Maximum Output Power Max Power [dBm]: 29.01 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR6N2801AC Page : 5 of 63 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 3 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 3 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 3 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 3 MCS 0-15 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Model Type Connector Operating Frequencies (MHz) / Antenna Gain (dBi) 2400~2483.5 5150~5250 5725~5850 1 RD-NB2573-PULSE SN11 Dipole R-SMA 3 5 5 2 RD-NB2573-PULSE SN02 Dipole R-SMA 3 5 5 3 RD-NB2573-PULSE SN03 Dipole R-SMA 3 5 5 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 3.3Vdc from host 1.1.4 Accessories N/A Report No.: FR6N2801AC Page : 6 of 63 Report Version: Rev. 01 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 802.11 b / g / n HT20 802.11n HT40 Channel Frequency(MHz) Channel Frequency(MHz) 1 2412 3 2422 2 2417 4 2427 3 2422 5 2432 4 2427 6 2437 5 2432 7 2442 6 2437 8 2447 7 2442 9 2452 8 2447 --- --- 9 2452 --- --- 10 2457 --- --- 11 2462 --- --- 1.1.6 Test Tool and Duty Cycle Test Tool ART2, Version: 4.9.802.1 Duty Cycle and Duty Factor Mode Duty cycle (%) Duty factor (dB) 11b 100.00% 0.00 11g 98.62% 0.06 HT20 98.52% 0.06 HT40 95.66% 0.19 Report No.: FR6N2801AC Page : 7 of 63 Re…

Text truncated - open the document above for the full version.

Report No.: FR6N2801AN Page : 1 of 127 Report Version: Rev. 01 FCC Test Report FCC ID : U6Y-M120000015 Equipment : IEEE 802.11A/B/G/N/AC DUAL 3T3R WIFI PCIE Model No. : M120000015 Brand Name : Panasonic Applicant : Panasonic Avionics Corporation Address : 26200 ENTERPRISE WAY, LAKE FOREST, CA 92630-8400 USA Standard : 47 CFR FCC Part 15.407 Received Date : Nov. 28, 2016 Tested Date : Dec. 02, 2016 ~ Feb. 03, 2017 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR6N2801AN Page : 2 of 127 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List .............................................................................................................. 10 1.3 Test Setup Chart .................................................................................................................................. 10 1.4 The Equipment List .............................................................................................................................. 11 1.5 Testing Applied Standards ................................................................................................................... 12 1.6 Measurement Uncertainty .................................................................................................................... 12 2 TEST CONFIGURATION ..................................................................................................................... 13 2.1 Testing Condition ................................................................................................................................. 13 2.2 The Worst Test Modes and Channel Details ....................................................................................... 13 3 TRANSMITTER TEST RESULTS ........................................................................................................ 15 3.1 Conducted Emissions ........................................................................................................................... 15 3.2 Emission Bandwidth ............................................................................................................................. 20 3.3 RF Output Power .................................................................................................................................. 25 3.4 Peak Power Spectral Density ............................................................................................................... 31 3.5 Transmitter Radiated and Band Edge Emissions ................................................................................ 36 3.6 Frequency Stability ............................................................................................................................. 125 4 TEST LABORATORY INFORMATION ............................................................................................. 127 Report No.: FR6N2801AN Page : 3 of 127 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR6N2801AN Rev. 01 Initial issue Apr. 06, 2017 Report No.: FR6N2801AN Page : 4 of 127 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.484MHz 30.59 (Margin -15.68dB) - AV Pass 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 5350.000MHz 53.00 (Margin -1.00dB) - AV Pass 15.407(a) Emission Bandwidth Meet the requirement of limit Pass 15.407(e) 6dB bandwidth Meet the requirement of limit Pass 15.407(a) RF Output Power Max Power [dBm]: 5150~5250MHz: 23.32 5250~5350MHz: 23.16 5470~5725MHz: 23.39 5725~5850MHz: 24.70 Pass 15.407(a) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR6N2801AN Page : 5 of 127 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5150-5250 5250-5350 5470-5725 5725-5850 a 5180-5240 5260-5320 5500-5720 5745-5825 36-48 [4] 52-64 [4] 100-144 [9] 149-165 [5] 3 6-54 Mbps 5150-5250 5250-5350 5470-5725 5725-5850 n (HT20) 5180-5240 5260-5320 5500-5720 5745-5825 36-48 [4] 52-64 [4] 100-144 [9] 149-165 [5] 3 MCS 0-23 5150-5250 5250-5350 5470-5725 5725-5850 n (HT40) 5190-5230 5270-5310 5510-5710 5755-5795 38-46 [2] 54-62 [2] 102-142 [4] 151-159 [2] 3 MCS 0-23 5150-5250 5250-5350 5470-5725 5725-5850 ac (VHT20) 5180-5240 5260-5320 5500-5720 5745-5825 36-48 [4] 52-64 [4] 100-144 [9] 149-165 [5] 3 MCS 0-9 5150-5250 5250-5350 5470-5725 5725-5850 ac (VHT40) 5190-5230 5270-5310 5510-5710 5755-5795 38-46 [2] 54-62 [2] 102-142 [4] 151-159 [2] 3 MCS 0-9 5150-5250 5250-5350 5470-5725 5725-5850 ac (VHT80) 5210 5290 5530~5690 5775 42 [1] 58 [1] 106-138 [2] 155 [1] 3 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n/ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. Note 3: The device has disabled the 5600-5650MHz band by S/W setting. 1.1.2 Antenna Details Ant. No. Model Type Connector Operating Frequencies (GHz) / Antenna Gai…

Text truncated - open the document above for the full version.

Report No.: FZ6N2801 Page : 1 of 18 Report Version: Rev. 01 FCC DFS Test Report FCC ID : U6Y-M120000015 Equipment : IEEE 802.11A/B/G/N/AC DUAL 3T3R WIFI PCIE Model No. : M120000015 Brand Name : Panasonic Applicant : Panasonic Avionics Corporation Address : 26200 ENTERPRISE WAY, LAKE …

Text truncated - open the document above for the full version.
