U8D-F1LS3222Bluetooth Module

KDͬ/ŶƚĞŐƌĂƚŽƌƐ/ŶƐƚĂůůĂƚŝŽŶDĂŶƵĂů CONFID ENTIAL INFORMATION F1LS3222 Bluetooth v5.2 Low energy module The F1LS3222 Wireless Gecko family of SoCs is part of the Wireless Gecko portfolio. F1LS3222 Wireless Gecko SoCs are ideal for enabling energy-friendly Bluetooth 5.2 networking for IoT devices. The single-die solution combines a 38.4 MHz Cortex-M33 with a high performance 2.4 GHz radio to provide an industry-leading, energy efficient wireless, SoC for IoT connec-ted applications. Wireless Gecko applications include: • Asset Tags and Beacons • Consumer Electronics Remote Controls • Portable Medical • Bluetooth Mesh Low Power Nodes • Sports, Fitness, and Wellness devices • Connected Home • Building Automation and Security KEY FEATURES • 32-bit ARM® Cortex®-M33 core with 38.4 MHz operating frequency • Up to 352 kB of flash and 32 kB of RAM • Energy-efficient radio core with low active and sleep currents • Bluetooth 5.2 • Integrated PA with up to 6 dBm • (2.4 GHz) TX power • Secure Boot with Root of Trust and Secure Loader (RTSL) F1LS3222 Bluetooth v5.2 Low energy module Table of Contents 1. Feature List 2. System Overview 3. Electrical Specifications 4. Application Schematic 5. Pin Definitions 6. Module Package Specifications 7. Soldering Recommendations 8. Packing Information 9. Revision History F1LS3222 Bluetooth v5.2 Low energy module 1. Feature List The F1LS3222 highlighted features are listed below. • Low Power Wireless System-on-Chip • High Performance 32-bit 38.4 MHz MHz ARM Cortex ® -M33 with DSP instruction and floating-point unit for efficient sig-nal processing • Up to 352 kB flash program memory • Up to 32 kB RAM data memory • 2.4 GHz radio operation • Radio Performance • -98.9 dBm sensitivity @ 1 Mbit/s GFSK • TX power up to 6 dBm • 2.5 mA radio receive current • 3.4 mA radio transmit current @ 0 dBm output power • 7.5 mA radio transmit current @ 6 dBm output power • Low System Energy Consumption • 3.6 mA RX current (1 Mbps GFSK) • 8.2 mA TX current @ 6 dBm output power • 27 μA/MHz in Active Mode (EM0) at 76.8 MHz(optional) • 1.40 μA EM2 DeepSleep current (32 kB RAM retention and RTC running from LFXO) • 1.75 μA EM2 DeepSleep current (32 kB RAM retention and RTC running from Precision LFRCO) • 0.17 μA EM4 current • Supported Modulation Format • 2 (G)FSK with fully configurable shaping • OQPSK DSSS • (G)MSK • Protocol Support • Bluetooth Low Energy (Bluetooth 5.2) • Proprietary • Wide selection of MCU peripherals • 12-bit 1 Msps SAR Analog to Digital Converter (ADC) • Up to 18 General Purpose I/O pins with output state reten-tion and asynchronous interrupts • 8 Channel DMA Controller • 12 Channel Peripheral Reflex System (PRS) • 4 × 16-bit Timer/Counter with 3 Compare/Capture/PWM channels • 1 × 32-bit Timer/Counter with 3 Compare/Capture/PWM channels • 32-bit Real Time Counter • 24-bit Low Energy Timer for waveform generation • 1 × Watchdog Timer • 2 × Universal Synchronous/Asynchronous Receiver/Trans-mitter (UART/SPI/SmartCard (ISO 7816)/IrDA/I 2 S) • 1 × Enhanced Universal Asynchronous Receiver/Transmit-ter (EUART) • 2 × I 2 C interface with SMBus support • Digital microphone interface (PDM) • Precision Low-Frequency RC Oscillator to replace 32 kHz sleep crystal • RFSENSE with selective OOK mode • Die temperature sensor with +/-1.5 degree C accuracy after single- point calibration • Wide Operating Range • 1.71 V to 3.8 V single power supply • -40 °C to 85 °C • Security Features • Secure Boot with Root of Trust and Secure Loader (RTSL) • Hardware Cryptographic Acceleration for AES128/256, SHA-1, SHA-2 (up to 256-bit), ECC (up to 256-bit), ECDSA, and ECDH • True Random Number Generator (TRNG) compliant with NIST SP800-90 and AIS-31 • ARM ® TrustZone ® • Secure Debug with lock/unlock • Demensions • 9.15 x 15.73 x 1.9mm silabs.com | Building a more connected world. Preliminary Rev. 0.5 | 2 F1LS3222 Bluetooth v5.2 Low energy module re connected world. 2. System Overview 2.1 Introduction The F1LS3222 Module combines an energy-friendly MCU with a high performance radio transceiver. The devices are well suited for secure connected IoT multi-protocol devices requiring high performance and low energy consumption. This section gives a short intro-duction to the full radio and MCU system. A block diagram of the F1LS3222 is shown in Figure 3.1 2.2 Radio The F1LS3222 features a highly configurable radio transceiver supporting the Bluetooth Low Energy wireless proto-col. 2.2.1 Antenna Interface The F1LS3222 Module includes an integrated chip –antenna . The table below includes performance specifications for the integrated Chip-antenna. silabs.com | Building a more connected world. Preliminary Rev. 0.5 | 7 F1LS3222 Bluetooth v5.2 Low energy module 2.2.2 Fractional-N Frequency Synthesizer The F1LS3222 contains a high performance, low phase noise, fully integrated fractional-N frequency synthesizer. The synthesizer is used in receive mode to generate the LO frequency for the down-conversion mixer. It is also used in transmit mode to directly generate the modulated RF carrier. The fractional-N architecture provides excellent phase noise performance, frequency resolution better than 100 Hz, and low energy consumption. The synthesizer’s fast frequency settling allows for very short receiver and transmitter wake up times to reduce system energy consumption. 2.2.3 Receiver Architecture The F1LS3222 uses a low-IF receiver architecture, consisting of a Low-Noise Amplifier (LNA) followed by an I/Q down-conversion mixer. The I/Q signals are further filtered and amplified before being sampled by the IF analog-to-digital converter (IFADC). The IF frequency is configurable from 150 kHz to 1371 kHz. The IF can further be configured for high-side or low-side injection, provid-ing flexibility with respect to known interferers at the image frequency. The Automatic Gain Control (AGC) module adjusts the receiver gain to optimize performance and avoid saturation for excellent selec-tivity and blocking performan…

Text truncated - open the document above for the full version.

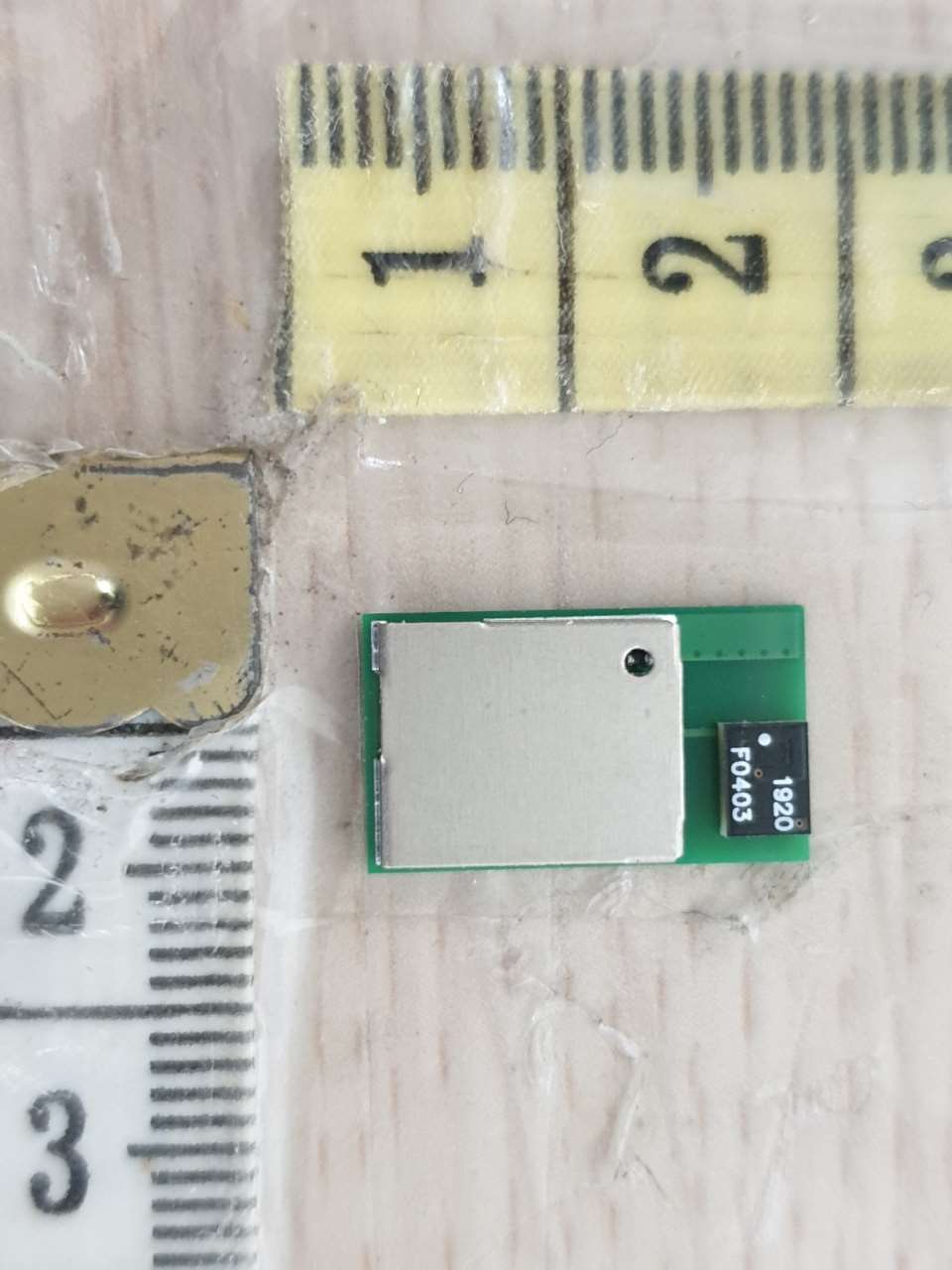

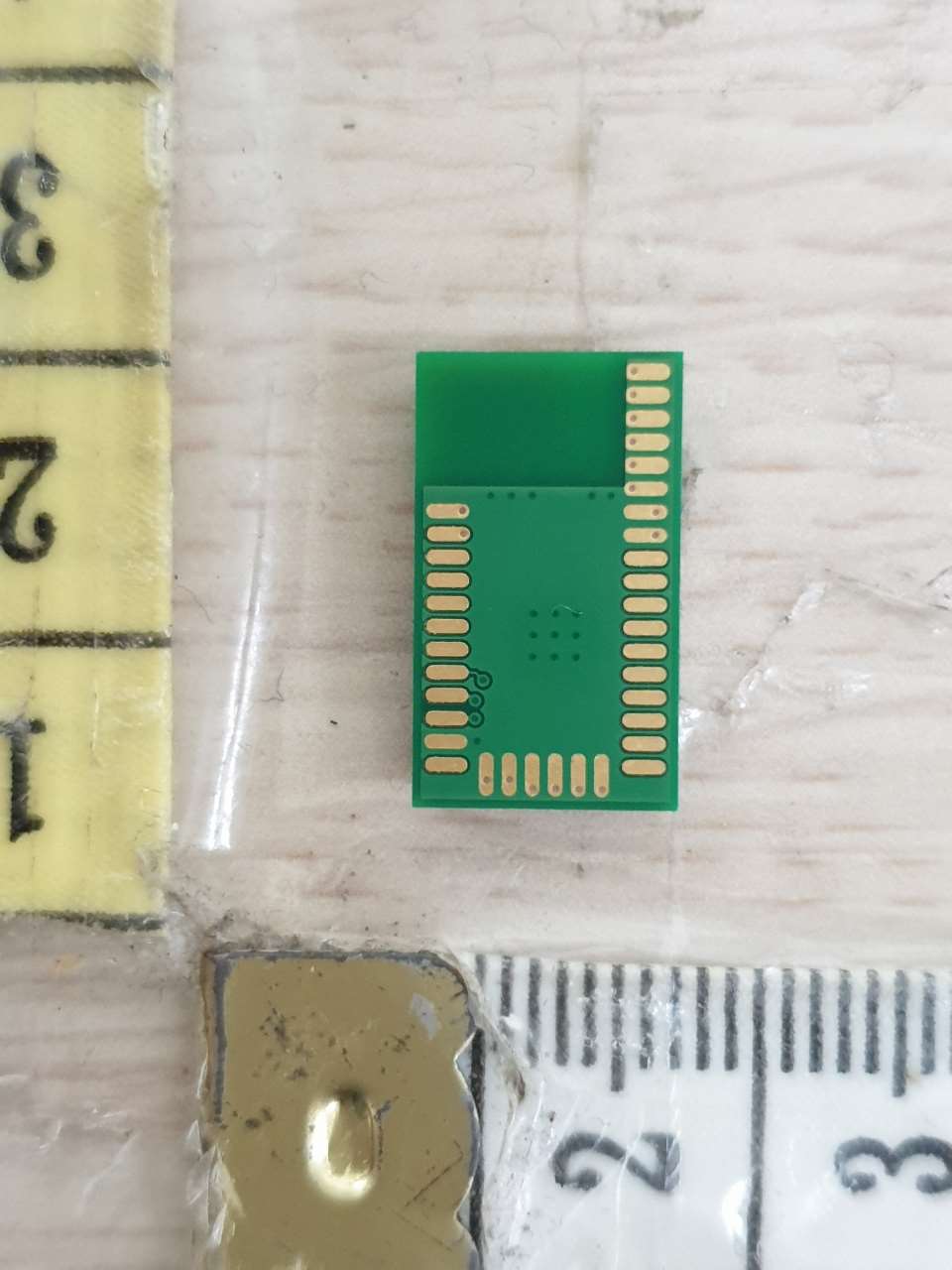

FCC ID: U8D-F1LS3222 Page 1 of 8 Upper FCC ID: U8D-F1LS3222 Page 2 of 8 Lower FCC ID: U8D-F1LS3222 Page 3 of 8 Side 1 FCC ID: U8D-F1LS3222 Page 4 of 8 Side 2 FCC ID: U8D-F1LS3222 Page 5 of 8 Side 3 FCC ID: U8D-F1LS3222 Page 6 of 8 Side 4 FCC ID: U8D-F1LS3222 Page 7 of 8 Internal FCC ID: U8D-F1LS3222 Page 8 of 8 Antenna

FCC ID: U8D-F1LS3222 Copyright Ⓒ 2021, KRL Co., Ltd. SAMPLE LABEL & LOCATION Firmtech Co., Ltd M/N : F1LS3222 FCC ID: U8D-F1LS3222

FCC ID: U8D-F1LS3222 Page 1 of 2 Main Board Front FCC ID: U8D-F1LS3222 Page 2 of 2 Main Board Rear

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF1-21T0127 Page ( 2 ) of ( 33 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7 KES A4 Revision history Revision Date of issue Test report No. Description - 2021.08.17 KES-RF1-21T0127 Initial KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF1-21T0127 Page ( 3 ) of ( 33 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7 KES A4 TABLE OF CONTENTS 1. General information ................................................................................................................................................... 4 1.1. EUT description ........................................................................................................................................ 4 1.2. Test configuration ...................................................................................................................................... 4 1.3. Device modifications ................................................................................................................................. 5 1.4. Information about Variant Model name ..................................................................................................... 5 1.5. Sample calculation .................................................................................................................................... 5 1.6. Measurement Uncertainty ......................................................................................................................... 5 1.7. Frequency/channel operations ................................................................................................................... 6 2. Summary of tests ........................................................................................................................................................ 7 3. Test results .................................................................................................................................................................. 8 3.1. 6 ㏈ bandwidth ........................................................................................................................................ 8 3.2. Output power ........................................................................................................................................... 10 3.3. Power spectral density ............................................................................................................................. 12 3.4. Radiated restricted band and emissions ................................................................................................... 14 3.5. Conducted spurious emissions & band edge ........................................................................................... 27 3.6. AC conducted emissions ......................................................................................................................... 30 Appendix A. Measurement equipment ......................................................................................................................... 32 Appendix B. Test setup photos ..................................................................................................................................... 33 KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF1-21T0127 Page ( 4 ) of ( 33 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7 KES A4 1. General information Applicant: Firmtech co., Ltd Applicant address: 807, 555, Dunchon-daero, Jungwon-gu, Seongnam-si, Gyeonggi-do, South Korea Test site: KES Co., Ltd. Test site address: 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea 473-21, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea Test Facility FCC Accreditation Designation No.: KR0100, Registration No.: 444148 FCC rule part(s): 15.247 FCC ID: U8D-F1LS3222 Test device serial No.: Production Pre-production Engineering 1.1. EUT description Equipment under test Bluetooth Module Frequency range 2 402 ㎒ ~ 2 480 ㎒ (BLE) Model: F1LS3222 Modulation technique GFSK Number of channels 2 402 ㎒ ~ 2 480 ㎒ (BLE) : 40ch Antenna specification Antenna type : Chip Antenna // Peak gain: 0.8 ㏈i Power source DC 3.3 V H/W version V 1.0 S/W version V 1.0 1.2. Test configuration The Firmtech co., Ltd // Bluetooth Module // F1LS3222 // FCC ID: U8D-F1LS3222 was tested according to the specification of EUT, the EUT must comply with following standards and KDB documents. FCC Part 15.247 KDB 558074 D01 v05 r02 ANSI C63.10-2013 KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF1-21T0127 Page ( 5 ) of ( 33 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, cont…

Text truncated - open the document above for the full version.

FCC ID: U8D-F1LS3222 * Standalone SAR test exclusion considerations 1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times |E| 2, |H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times |E| 2, |H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 30 3.0-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.0 30 Note : f=frequency in MHz *=Plane-wave equivalent power density FCC ID: U8D-F1LS3222 2. MPE Calculation Method S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR 2 3. Calculated Result and Limit Mode Frequency (MHz) Maximum conducted power Antenna Gain Distance Power Density Limit dBm mW dBi mW Cm mW/cm 2 mW/cm 2 Bluetooth LE 1Mbps 2402 2.79 1.901 0.80 1.202 20 0.000 1 2440 2.57 1.807 0.80 1.202 20 0.000 1 2480 2.44 1.754 0.80 1.202 20 0.000 1

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF1-21T0127 Page ( 33 ) of ( 33 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7 KES A4 Appendix B. Test setup photos Radiated Conducted BLANK The end of test report.
