U8D-FB755ACBLUETOOTH EMBEDDED MODULE

Bluetooth Embedded Module FB755AC & FB755AS User Guide Version 1.1 FIRMTECH Co., Ltd. B-606, Ssangyong IT Twin Tower, Sangdaewon-dong, 442-5 Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea 462-120 Tel : +82-31-719-4812 Fax : +82-31-719-4834 www.firmtech.co.kr FB755AC & FB755AS User Guide Version 1.1 Revision History Page 2 / 31 Revision History Revision Date Change Descriptions 1.0 05-10-2007 - Write a draft 1.1 15-12-2008 - Connecting with Connection WIZARD - PC Configuration using Config tool FB755AC & FB755AS User Guide Version 1.1 (C) Copyright FIRMTECH Co., Ltd. 2005 Page 3 / 31 (C) Copyright FIRMTECH Co., Ltd. 2005 All rights reserved The products and operation descriptions contained herein shall be protected by copyright law. Any part or whole of products or operation description shall not be copied, reproduced, translated, nor transformed into readable form by electronic device or machines, without prior consent in writing by FIRMTECH Co., Ltd. There might be some misprinting or technical faults in the products and operation description which are subject to change without prior notice. FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected. • Consult the dealer or an experienced radio/TV technician for help . Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FB755AC & FB755AS User Guide Version 1.1 List of Content Page 4 / 31 List of Content 1 What is Bluetooth?...........................................................................................................................................................5 1.1 Features of Bluetooth........................................................................................................................................5 1.2 Operation of Bluetooth.....................................................................................................................................5 2 Product Overview.............................................................................................................................................................7 3 Product Components......................................................................................................................................................8 3.1 FB755AC....................................................................................................................................................................8 3.2 FB755AS....................................................................................................................................................................8 3.3 PC Interface Kit (Option)..................................................................................................................................8 4 Product Appearance.....................................................................................................................................................10 4.1 FB755AC Dimension.........................................................................................................................................10 4.2 FB755AS Dimension.........................................................................................................................................10 4.3 FB755AC PIN Assign........................................................................................................................................11 4.4 FB755AS PIN Assign........................................................................................................................................11 5 Interface (Pin Connection)........................................................................................................................................13 5.1 Without Flow Control......................................................................................................................................13 5.2 With Flow Control.............................................................................................................................................13 5.3 1:N Communication.........................................................................................................................................14 6 PC Interface Board (Jig Board)..............…

Text truncated - open the document above for the full version.

XR-150/XR-450 Portable Radio Manual * This Service manual is subject to change according to improvement of XR-150/XR-450 Portable Radio without notice. * Version #2 (2009-06-09) 2 Table of Contents 1. Features ------------------------------------------ 6 2. Components of XR-150/XR-450 Series Radio ---------------------- 7 3. Appearance of XR-150/XR-450 Series Radio -------------------- 8 4. Basic Operation of XR-150/XR-450 Series Radio -------------------- 9 4.1 Installation and Removing the Antenna ---------------------- 9 4.2 Installation and Removing the Battery ---------------------- 10 4.3 Installation and Removing the Belt Clip --------------------- 10 4.4 Accessory Connector ------------------------------- 11 4.5 Operating XR-150/XR-450 Radio -------------------------------- 11 5. Charging the Battery ------------------------------- 12 6. Operating Instructions of XR-150/XR-450 Series Radio ----------- 14 7. Precautions ------------------------------- 27 8. Safety Notes -------------------------------- 28 9. Specification -------------------------------- 29 9.1 XR-150 --------------------------------- 29 9.3 XR-450 --------------------------------- 30 Thank you for your purchase of the XR-150/XR-450 Series Radio. 1. Before using the Radio, please read the enclosed user guide in details. 2. The functions and specifications are subject to be changed without notice for improvement of the Radio performance. 3 RADIO FREQUENCY ENERGY SAFETY INFORMATION Your Xradio radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only”. In addition, your XRADIO radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: ■ FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. ■ American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. ■ American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields– RF and Microwave. ■ The following accessories are authorized for use with this product. Use of accessories other than those (listed in the instruction) specified may result in RF exposure levels exceeding the FCC requirements for wireless RF exposure. To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: ■ DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or antenna specifically authorized by the manufacturer for use with this radio. ■ DO NOT transmits for more than 50% of total radio use time (“50%duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX indicator” lights red. You can cause the radio to transmit by pressing the “PTT” switch. ■ ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when 4 transmitting and only use the Xradio belt-clip which is listed in instructions when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from your mouth, and slightly off to one side. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to as-sure that this radio operates with the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your XRADIO radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. Occupational/Controlled Use The radio transmitter is used in situations in which persons are exposed as consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. OPERATING NOTES ■ When transmitting with a portable radio, hold the radio in a vertical position with its microphone 5 to 10 cm (2 to 4 inches) away from your mouth. Keep the antenna at least 2.5 cm (1 inch) from your head and body. ■ If you wear a portable two-way radio on your body, ensure that the antenna is at least 2.5 centimeters (1 inch) from your body when transmitting. PRECAUTIONS WARNING! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of the body, especially the face or eyes, while transmitting. The transceiver will perform best if the microphone is 5 to 10 cm (2 to 4 inches) away from the lips and the transceiver is vertical. WARNING! NEVER operate the transceiver with a headset or other audio accessories at high volume levels. CAUTION! NEVER short the terminals of the battery pack. NEVER connect the transceiver to a power source other than the Battery listed below Such a connection will ruin the transceiver. DO NOT push the PTT when not actually desiring to transmit. 5 AV O I …

Text truncated - open the document above for the full version.

Firmtech Co., Ltd B-606, Ssangyong IT Twin Tower, Sangdaewon-dong, 442-5,Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea 462-120 TEL No : +82-31-719-4812 / FAX No : +82-31-719-4834 July 20, 2010 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Firmtech Co.,Ltd. FCC Application for FCC ID: U8D–FB755AC To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely, Jae Hoon Kim Team Manager

Firmtech Co., Ltd B-606, Ssangyong IT Twin Tower, Sangdaewon-dong, 442-5,Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea 462-120 TEL No : +82-31-719-4812 / FAX No : +82-31-719-4834 July 20, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: U8D–FB755AC. including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Firmtech Co.,Ltd. LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyung-Taek Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, Jae Hoon Kim Team Manager

Firmtech Co., Ltd B-606, Ssangyong IT Twin Tower, Sangdaewon-dong, 442-5,Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea 462-120 TEL No : +82-31-719-4812 / FAX No : +82-31-719-4834 July 20, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Firmtech Co.,Ltd. FCC ID : U8D–FB755AC Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Firmtech Co.,Ltd.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Firmtech Co.,Ltd.. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX U8D-FB755AC SCH DIA.pdf Parts list CONF APPENDIX U8D-FB755AC PL.pdf Block diagram CONF APPENDIX U8D-FB755AC BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX U8D-FB755AC OpDes.pdf External Photos SHORT-TERM CONF U8D-FB755AC EXT Photo.pdf Internal Photos SHORT-TERM CONF U8D-FB755AC INT Photo.pdf Test-Setup Photos SHORT-TERM CONF U8D-FB755AC Test Photo.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF U8D-FB755AC Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Hoon Kim Team Manager

Firmtech Co., Ltd B-606, Ssangyong IT Twin Tower, Sangdaewon-dong, 442-5,Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea 462-120 TEL No : +82-31-719-4812 / FAX No : +82-31-719-4834 ATTESTATION STATEMENT In re : Firmtech Co.,Ltd. FCC ID: U8D–FB755AC Date : July 20, 2010 15.247(a)(1) The hopping sequence must be pseudorandom all Channels are used equally on average the receiver input bandwidth is approximately equal to the transmit ba ndwidth the receiver hops in sequence with the transmitted signal 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) The system does not coordinate its channel selection/hopping sequence with oth er frequency hopping systems for the express purpose of avoiding the simultane ous occupancy of individual hopping frequencies by multiple transmitters. Sincerely, Jae Hoon Kim Team Manager

Firmtech Co., Ltd B-606, Ssangyong IT Twin Tower, Sangdaewon-dong, 442-5,Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea 462-120 TEL No : +82-31-719-4812 / FAX No : +82-31-719-4834 FCC ID: U8D–FB755AC Request for Limited Modular approval Transmitter Module Characteristics  The module will be used to the ma nufactured product by Firmtech Co., Ltd. No Requirements EUT 1 Have its own RF shielding Device is equipped with metal shielding to cover RF section. Refer to external photos. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered thought logic or microprocessor inputs. 3 Have it own power supply regulation Internal 3.3V power regulation. Refer to Module Block diagram 4 Meet the antenna requirements of Section 15.203 Refer to external photos. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested on a supplied developmen t platform for limited modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the out side of the device into which the module is installed must also display a label referring to the enclosed module Label is to be placed in Front of the EUT(FB 755AC), and other label is to be placed in the User’s Guide. Refer to FCC ID label format. 7 The modular transmitter is manufactured so t hat the user cannot influence the operation of the transmitter that will operate outsi de of the scope of the regulations. Refer to “User’s Guide” 8 Address compliance with the Commission’s RF exposure limits in Sections 1.1310 and 2.1091. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). This device is categorically excluded from routine environmental because it operate at very low power level

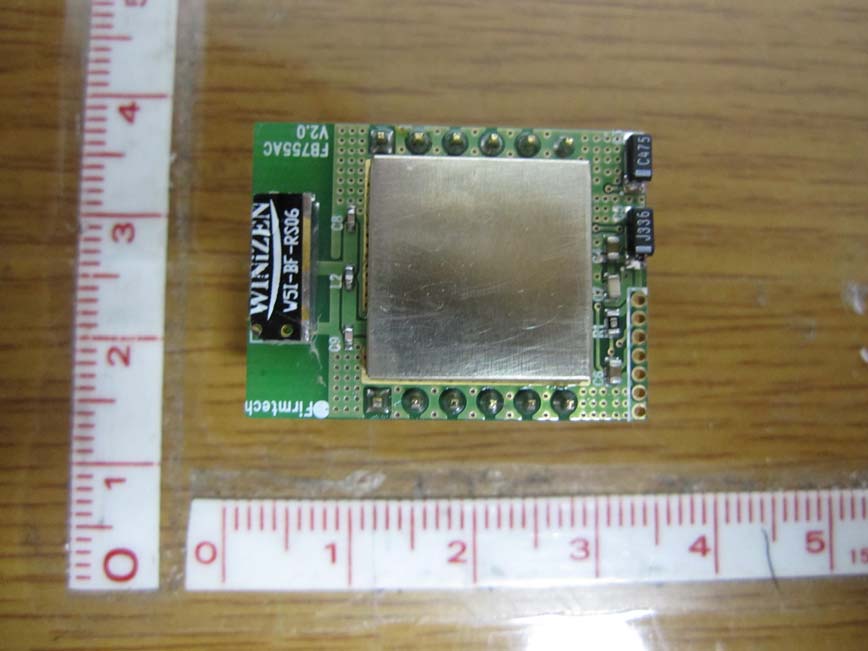

FCC ID.: U8D-FB755AC Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 2 Upper Lower 20mm 27mm FCC ID.: U8D-FB755AC Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 2 ANTENNA- M/N: W5I–BF–XX

Model No.: U8D–FB755AC Copyright Ⓒ 2010, LTA Co., Ltd. SAMPLE LABEL & LOCATION

FCC ID.: U8D-FB755AC Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 1 MainBoard - Front MainBoard - Rear

Ref. No.: LR500191007E Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 34 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: July 15~20, 2010 Test Report S/N: LR500191007E Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Part 15 Spread Spectrum Transmitter (DSS) Manufacturing Description : Bluetooth Embedded Module Manufacturer : Firmtech Co., Ltd Model name : FB755AC Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480MHz RF power : 9.11 dBm - Conducted Data of issue : July 21, 2010 This test report is issued under the authority of: The test was supervised by: Kyung-Taek LEE, Technical Manager Hyun-Chae You, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 U8D-FB755AC Firmtech Co., Ltd Ref. No.: LR500191007E Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TTANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND – EDGE & SPURIOUS ----------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 10 14 18 21 27 30 33 Ref. No.: LR500191007E Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 34 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2010-09-30 ECT accredited Lab. RRL KOREA KR0049 2011-09-01 EMC accredited Lab. FCC U.S.A 610755 2011-04-22 FCC filing VCCI JAPAN R2133, C2307 2011-06-21 VCCI registration IC CANADA IC5799 2012-05-14 IC filing Ref. No.: LR500191007E Copyright ○ c 2010, LTA Co., Ltd. Page 4 of 34 2. Information’s about test item 2-1 Applicant & Manufacturer Company name : Firmtech co., Ltd. Address : B-606, Ssangyong IT Twin Tower, Sangdaewon-dong, 442-5, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea 462-120 Tel / Fax : TEL No : +82-31-719-4812 / FAX No : +82-31-719-4834 2-2 Equipment Under Test (EUT) Trade name : Bluetooth Embedded Module FCC ID : U8D-FB755AC Model name : FB755AC Serial number : Identical prototype Date of receipt : July 14, 2010 EUT condition : Pre-production, not damaged Antenna type : Chip Antenna (M/N: W5I–BF–XX) Max Gain 1.79 dBi Frequency Range : 2402 ~ 2480MHz RF output power : Maximum 9.11 dBm Number of channels : 79 Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Spread Spectrum (FHSS) Type of Modulation : GFSK Power Source : 3.3 Vdc 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer NoteBook PP17L 04465 DELL Ref. No.: LR500191007E Copyright ○ c 2010, LTA Co., Ltd. Page 5 of 34 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies > 15 hops C 15.247(a) 20 dB Bandwidth 99% Bandwidth > 1.5 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 250 mWatt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) C 15.109 Field Strength - Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003  Antenna Requirement The Firmtech Co., Ltd. FB755AC unit complies with the requirement of §15.203. The antenna is connected to inside of EUT. And type is Chip antenna. Ref. No.: LR500191007E Copyright ○ c 2010, LTA Co., Ltd. Page 6 of 34 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent cha…

Text truncated - open the document above for the full version.

FCC ID: U8D–FB755AC Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 2 Radiated Emission FCC ID: U8D–FB755AC Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 2 Conducted Emission
