U8D-FB900ASBLUETOOTH SPP BRIDGE

Firmtech co., Ltd
BLUETOOTH SPP BRIDGE - FCC ID U8D-FB900AS - Firmtech co., Ltd
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Apr 24, 2007
Application Purpose
Original Equipment
Date of Application
Apr 23, 2007
Equipment Note
BLUETOOTH SPP BRIDGE
Frequency Range
2402.00000000 - 2480.00000000
Company
Firmtech co., Ltd
Country
South Korea

Documents & Files

Select a file to view

Users Manual

โ†—

Attestation Statements

โ†—

Cover Letter(s)

โ†—
โ†—

External Photos

โ†—

ID Label/Location Info

โ†—

Internal Photos

โ†—

Operational Description

โ†—

RF Exposure Info

โ†—

Test Report

โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ABOUT FB900AS: Class 1 / RS232 Interface DIP switch is available for a second setting 4dBi Dipole Antenna provided Bluetooth SPP Bridge FB900AS Unlimited Your Free Firmtech.Co,LTD www.firmtech.co.kr [email protected] Model name: FB900AS User Manual ver 1.0D 2 Contact: Firmtech.Co,LTD www.firmtech.co.kr [email protected] r T. +82.31.719.4812 F. +82.31.719.4834 FB900AS User Manual ver1.0D Contact US Firmtech.Co,LTD Tel: 82-31-719-4812~3 Fax: 82-31-719-4834 Address : D801,Sigma2 Officetel, Gumi-Dong 18,Bundang-Gu, Sungnam-Si, Kyunggi-Do, Korea Website : www.firmtech.co.kr [email protected] 3 Contact: Firmtech.Co,LTD www.firmtech.co.kr [email protected] r T. +82.31.719.4812 F. +82.31.719.4834 FB900AS User Manual ver1.0D BM series & FB Series Bluetooth Serial Adapter BM1001 BM2001 FB151AS FB151AC FB155BC Description Bluetooth Serial adapter Bluetooth USB Adapter Embedded bluetooth module Embedded bluetooth module Embedded bluetooth module Power Class Class1 Class1 Class1 Class1 Class2 RF Range Up to 100m Up to 100m Up to 100m Up to 100m Up to 30 m Power Connector DC plug or DB9 USB port Header 2.54mm Header 2.54mm Header 2.54mm Power Voltage DC 5V ~12V DC 5V DC 3.3V DC 3.3V DC 3.3 V Signal Interface Female DB9 USB Header 2.54mm 1X 9X2 Header 2.54mm 1X 9X2 Header 2.54mm 1X4X2 Serial Interface RS232 RS232 UART UART UART Flow Control RTS,CTS,DTR,DSR Support RTS,CTS,DTR,DSR Support RTS,CTS,DTR,DSR Support RTS,CTS,DTR,DSR Support RTS,CTS Support DIP Switch Support Support No No No Bluetooth Profile Serial Port Profile Serial Port Profile Serial Port Profile Serial Port Profile Serial Port Profile Bluetooth Version 1.2 1.2 1.2 1.2 1.2 Applicable Antenna Stub Antenna Dipole Antenna Patch Antenna Stub Antenna Dipole Antenna Patch Antenna Stub Antenna Dipole Antenna Patch Antenna Included Chip Antenna Included Chip Antenna Certification FCC,CE,MIC FCC,CE,MIC MIC MIC MIC Dimension 68 X 21 X 16 70 X 23 X 11.5 36.5 X 23 mm 37.5 X 23 mm 18 X 20 mm 5 Contact: Firmtech.Co,LTD www.firmtech.co.kr [email protected] r T. +82.31.719.4812 F. +82.31.719.4834 FB900AS User Manual ver1.0D Table of Contents 1. About FB900AS.................................................................................................................. 6 2. Package Constitution................................................................................. 7 3. External view.......................................................................................... 8 4. Specification & Power consumption .............................................................. 9 5. Function Select Switch .............................................................................10 6. LED Indication ........................................................................................14 7. PC Configuration Mode .............................................................................15 7.2 Start the PC configuration Mode................................................................................ 17 7.3 Configuration Menu โ€“ Remote Control is OFF. .......................................................... 19 [1] BlueTooth Address....................................................................................................... 19 [2] Authentication ..............................................................................................................19 [3] LOCAL NAME.............................................................................................................. 20 [4] TARGET address......................................................................................................... 20 [5] Flow Control ................................................................................................................21 7.4 Configuration Menu (Remote Control is On) .............................................................. 21 [6] CONNECTION MODE................................................................................................. 21 [7] REMOTE CONTROL ID .............................................................................................. 22 [8] REMOTE CONTROL PW ............................................................................................ 22 [9] Operation Mode........................................................................................................... 22 8. Operation Mode ......................................................................................23 8.1 Operation Mode1........................................................................................................ 23 8.2 Operation Mode2........................................................................................................ 26 9. Remote Control ......................................................................................27 9.1 Change the Target device address at remote site...................................................... 27 10. Range information with External Antennas...................................................29 6 Contact: Firmtech.Co,LTD www.firmtech.co.kr [email protected] r T. +82.31.719.4812 F. +82.31.719.4834 FB900AS User Manual ver1.0D 1. About FB900AS Bluetooth serial bridge, FB900AS is a product that is developed, designed and produced by Firmtech Co, ltd. (formerly BTnetworks Inc.). FB900AS can do serial link to extend the communication distance. Strong Security Security of Bluetooth wireless communication is very strong because it use the frequency hopping and 128bit encryption in 2.4Ghz frequency range. Enhanced Frequency Hopping FB151AX is supported Bluetooth version 1.2 for AFHS. Simple Using Hardware setting is very easy and simple. - The maintenance is very convenience. - One pair of FB900AS will try to connect automatically whenever powered up. It does not require extra software for operation. - No installation of driver and application software. Simple Configuration User may set the parameter of FB900AS with HyperTerโ€ฆ

Text truncated - open the document above for the full version.

Attestation Statements

D801,Sigma2 Officetel, Gumi-Dong 18,Bundang-Gu, Sungnam-si, Kyunggi-Do, Korea April 19, 2007 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA LETTER OF ATTESTATION STATEMENT To whom it may concern: Regarding FCC antenna requirements of FCC 15.203 , we will use the antenna with reverse polarity SMA connector other than a standard SMA connector for mass production. Sincerely, Taek-Jong, No Technical Director

Cover Letter(s)

D801,Sigma2 Officetel, Gumi-Dong 18,Bundang-Gu, Sungnam-si, Kyunggi-Do, Korea April 19, 2007 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA In re: Firmtech CO., LTD. FCC ID: U8D-FB900AS Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Firmtech CO., LTD. hereby requests confidentiality of the Block diagram(Block Diagram_U8D-FB900AS.pdf), Schematics(Schematic_U8D-FB900AS.pdf), Parts list(Part List_ U8D-FB900AS.pdf) and Operational description(Operational Description_ U8D-FB900AS.pdf). These documents contain detailed system and equipment description and related information about the product which Firmtech CO., LTD. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Firmtech CO., LTD. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Taek-Jong, No Technical Director

Cover Letter(s)

D801,Sigma2 Officetel, Gumi-Dong 18,Bundang-Gu, Sungnam-si, Kyunggi-Do, Korea April 19, 2007 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA In re: Firmtech CO., LTD. FCC ID: U8D-FB900AS Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, Firmtech CO., LTD. requests short-term confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos(Test Photo_U8D-FB900AS.pdf) External photos(Ext Photo_ U8D-FB900AS.pdf) Internal photos(Int Photo_ U8D-FB900AS.pdf)) Userโ€™s manual(User Manual_ U8D-FB900AS.pdf)) These documents contain detailed system and equipment descriptions and related information about the product, which Firmtech CO., LTD.considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Firmtech CO., LTD. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Taek-Jong, No Technical Director

External Photos

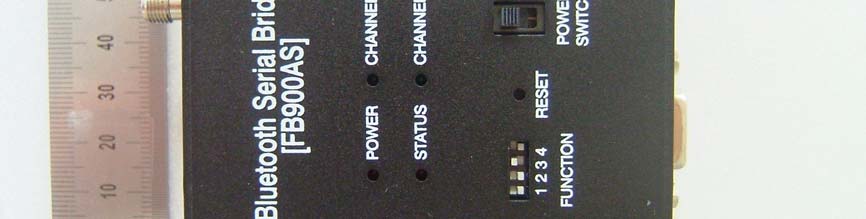

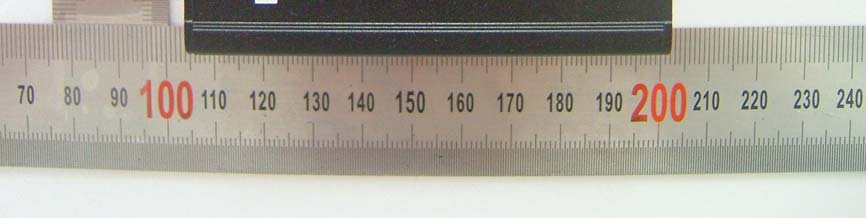

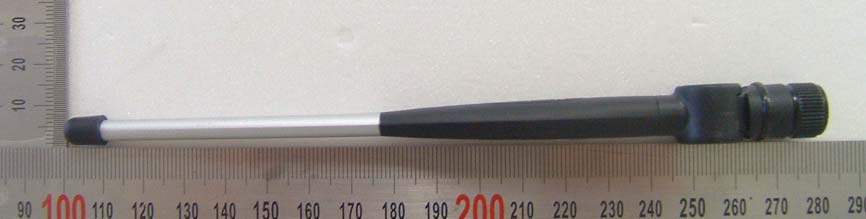

FCCID: U8D-FB900AS Copyright โ’ธ 2007, DIGITAL EMC Co., Ltd. View 1 FCCID: U8D-FB900AS Copyright โ’ธ 2007, DIGITAL EMC Co., Ltd. View 2 FCCID: U8D-FB900AS Copyright โ’ธ 2007, DIGITAL EMC Co., Ltd. View 3 FCCID: U8D-FB900AS Copyright โ’ธ 2007, DIGITAL EMC Co., Ltd. View 4

ID Label/Location Info

FCC ID: U8D-FB900AS FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER ยง2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase

Internal Photos

FCC ID: U8D-FB900AS Copyright โ’ธ 2007, DIGITAL EMC Co., Ltd. View 1 FCC ID: U8D-FB900AS Copyright โ’ธ 2007, DIGITAL EMC Co., Ltd. View 2 FCC ID: U8D-FB900AS Copyright โ’ธ 2007, DIGITAL EMC Co., Ltd. View 3 FCC ID: U8D-FB900AS Copyright โ’ธ 2007, DIGITAL EMC Co., Ltd. View 4

Operational Description

(แ„Œแ…ฎ)๋น„ํ‹ฐ๋„คํŠธ์›์Šค ๊ท€์ค‘ ํ’ˆ ๋ช… 2.4GHz W-LAN Antenna๋‹ด๋‹น๊ฒ€ํ† ์Šน์ธ ๊ทœ ๊ฒฉ ๋ชจ ๋ธ ๋ช… ET-AP04T ์ฝ”๋“œ ๋ฒˆํ˜ธ ์Šน์ธ ๋ฒˆํ˜ธ 1์‹  ๊ทœ ์กฐ ๊ฑด2์žฌ์Šน์ธ 3๊ธฐ ํƒ€ ์—…์ฒด ๋‹ด๋‹น์Šน์ธ์ผ์ž . . * ์ƒ๊ธฐ ํ’ˆ๋ชฉ์— ๋Œ€ํ•˜์—ฌ ์Šน์ธ ํ•ฉ๋‹ˆ๋‹ค. ๊ฐœ ๋ฐœ ์‹ค๋‹ด๋‹น๊ฒ€ํ† ์Šน์ธ ์ƒ์‚ฐ๊ธฐ์ˆ ๋ถ€ ํ’ˆ์งˆ๊ด€๋ฆฌ๋ถ€ ๊ตฌ ๋งค ๋ถ€ ์—… ์ฒด ์šฉ ์Šน ์ธ ์› ์Šน ์ธ ์—… ์ฒด ์Šน ์ธ ๋ฐฐ ํฌ ์ฒ˜ ๊ณต ๊ธ‰ ์—… ์ฒด (แ„Œแ…ฎ)๋น„ํ‹ฐ๋„คํŠธ์›์Šค ๊ท€์ค‘ ๋‹ด๋‹น๊ฒ€ํ† ํ™•์ธ์Šน์ธ //// ๋‹ด๋‹น๊ฒ€ํ† ํ™•์ธ์Šน์ธ //// ํ’ˆ ๋ช… : 2.4GHz ๋Œ€์—ญ ๋ฌด์„ ๋žœ์šฉ Antenna Model : ET-AP04T ์—…์ฒด Code : ๋‹ค์Œ๊ณผ ๊ฐ™์ด 2.4GHz ๋Œ€์—ญ์˜ ๋ฌด์„  ์†ก์ˆ˜์‹ ์šฉ ์•ˆํ…Œ๋‚˜์˜ ์‚ฌ์–‘ ์Šน์ธ์›์„ ์ œ์ถœํ•˜์˜ค๋‹ˆ ๊ฒ€ํ† ํ›„ ์Šน์ธ ํ•˜์—ฌ ์ฃผ์‹œ๊ธฐ ๋ฐ”๋ž๋‹ˆ๋‹ค. 2005 ๋…„ 04 ์›” ์ผ ์‚ฌ ์–‘ ๆ‰ฟ ่ช ้ก˜ ์ฃผ ์†Œ : ์„œ์šธ์‹œ ๊ฐ•์„œ๊ตฌ ๊ฐ€์–‘3๋™ 1487๋ฒˆ์ง€ ๊ฐ€์–‘ํ…Œํฌ๋…ธํƒ€์šด206ํ˜ธ Tel. : 02-3661-8114 Fax. : 02 - 3663 - 5143 ์ƒ ํ˜ธ : ์ด์— ์”จํ…Œํฌ(์ฃผ) ๋Œ€ ํ‘œ : ์ด ๊ธฐ ์ถ˜ ๅฐ ์ „ ์ž ๊ธฐ ๊ตฌ 1. ๊ฐœ ์š” 2. 2.4GHz ๋Œ€์—ญ ๋ฌด์„  ์†ก์ˆ˜์‹ ์šฉ Antenna ๊ตฌ์„ฑ 3. ํŠน ์„ฑ 4. ์‹œํ—˜์ ˆ์ฐจ 5. ๊ฒ€์‚ฌ์„ฑ์ ์„œ 6. ํ’ˆ์งˆ๋ณด์ฆ 7. ํฌ ์žฅ ๋ชฉ ์ฐจ 1. ๊ฐœ ์š” ๋ณธ ์ œํ’ˆ์€ 2.4GHz ๋Œ€์—ญ์˜ Dipole Antenna ๋กœ ๊ตฌ์„ฑ๋˜๋ฉฐ, ๋‹ค์ˆ˜๋กœ ๊ตฌ์„ฑ ํ• ์ˆ˜ ์žˆ์œผ๋ฉฐ 2.4GHz ๋Œ€์—ญ์˜ ๋ฌด์„  LAN ๋ฐ ๋ฌด์„ CATV, ๋ฌด์„ ๊ฐ์‹œ ๋ฐ ๋ฌด์„ A/V ์†ก์ˆ˜์‹ , MMDS, WLL, Bluetooth ๋“ฑ ์–‘๋ฐฉํ–ฅ ํ†ต์‹ ์— ์‚ฌ์šฉํ•  ์ˆ˜ ์žˆ๋Š” ์ˆ˜์ง ๋‹ค์ดํดํ˜• ์•ˆํ…Œ๋‚˜์ด๋‹ค. 1) ์•ˆํ…Œ๋‚˜ ์‚ฌ์šฉ์กฐ๊ฑด ํœด๋Œ€ ๊ณ ์ •์ด๋™์‹ค์™ธ์‹ค๋‚ด๊ธฐํƒ€ 2) ์ ์šฉ๋ฒ”์œ„ ๋ณธ ์‚ฌ์–‘์Šน์ธ์›์€ ๊ท€์‚ฌ์—์„œ ๊ฐœ๋ฐœ ํ˜น์€ ์ƒ์‚ฐ๋˜๋Š”, ์‹œ์Šคํ…œ์— ์žฅ์ฐฉ๋˜์–ด ์‚ฌ์šฉํ•˜๋Š” ๋ฌด์„ ๋žœ ๋˜๋Š” RF ์†ก์ˆ˜์‹  ์‹œ์Šคํ…œ์˜ ์•ˆํ…Œ๋‚˜์— ๋Œ€ํ•˜์—ฌ ๊ทœ์ •ํ•œ๋‹ค. 3) ํ•„์š”์กฐ๊ฑด 3-1. ๋ณธ ์ œํ’ˆ์— ์ ์šฉ ๋ฐ ์‚ฌ์šฉ๋˜๋Š” ๋ชจ๋“  ์žฌ๋ฃŒ๋Š” ๊ธฐ๊ตฌ์ ์œผ๋กœ ๊ฒฌ๊ณ ํ•˜๊ณ  ์ „๊ธฐ์ ์ด๊ณ  ํšŒ๋กœ์ ์ธ ํŠน์„ฑ์„ ๋งŒ์กฑ ํ•  ์ˆ˜ ์žˆ๋Š” ์–‘์งˆ์˜ ์ œํ’ˆ์ด์–ด์•ผ ํ•œ๋‹ค. 3-2. ๋ณธ ์ œํ’ˆ์— ์‚ฌ์šฉ๋˜๋Š” ๋ชจ๋“  ์†Œ์ž๋ฅ˜๋Š” ์‹ ๋ขฐ๋„ ๋ฐ ์•ˆ์ „๋„๋ฅผ ๋ณด์žฅ ํ•  ์ˆ˜ ์žˆ๋Š” ์‚ฐ์—…์šฉ ๋“ฑ๊ธ‰ ๋˜๋Š” ๋™๊ธ‰ ์ด์ƒ์˜ ๋ถ€ํ’ˆ์ด์–ด์•ผ ํ•œ๋‹ค. 3-3. ๋ณธ ์ œํ’ˆ์— ์‚ฌ์šฉํ•˜๋Š” ๋ชจ๋“  ๋ถ€ํ’ˆ์€ ๊ณ ์žฅ์œผ๋กœ ์ธํ•˜์—ฌ ์‚ฌ์šฉ๋˜๋Š” ์‹œ์Šคํ…œ์˜ ๋™์ž‘์— ๋‚˜์œ ์˜ํ–ฅ์„ ํŒŒ๊ธ‰์‹œํ‚ค๊ฑฐ๋‚˜ ์ธ์ ‘ํ•ด ์žˆ๋Š” ๋‹ค๋ฅธ ๋ถ€ํ’ˆ ๋˜๋Š” ํšŒ๋กœ๋ฌผ์— ์†์ƒ์„ ์ฃผ์–ด์„œ ๋Š” ์•ˆ๋œ๋‹ค. 4) ๊ฐ€๊ณต ๋ฐ ์กฐ๋ฆฝ 4-1. ์•ˆํ…Œ๋‚˜์˜ ๊ฐ€๊ณต ์กฐ๋ฆฝ์„ ๊ทœ๊ฒฉ๋Œ€๋กœ ์ •ํ™•ํžˆ ์‹œํ–‰ํ•˜์—ฌ ์ปจ๋„ฅํ„ฐ ๋“ฑ์ด ๋ถ„๋ฆฌ ๋˜์ง€ ์•Š๋„๋ก ํ•œ๋‹ค. 4-2. ๋ณธ ๊ทœ๊ฒฉ์—์„œ ๋ช…์‹œํ•˜์ง€ ์•Š์€ ์น˜์ˆ˜ ๋ฐ ๊ณต์ฐจ๋Š” ์‹ค์ œ ์‚ฌ์šฉ์— ์ง€์žฅ์ด ์—†๋Š” ๋ฒ”์œ„๋‚ด์— ์„œ ์ด๋ฅผ ํ—ˆ์šฉํ•œ๋‹ค. 5) ๊ฒ€์‚ฌ ๋ฐ ์‹œํ—˜ 5-1. ์™ธ๊ด€๊ฒ€์‚ฌ - ๋ถ€ํ’ˆ์˜ ์ƒํƒœ๊ฐ€ ์–‘ํ˜ธ ํ•˜์—ฌ์•ผ ํ•˜๋ฉฐ ๋ˆ„๋ฝ, ์˜ค์‚ฝ์ž…, ๋ฏธ์‚ฝ์ž… ๋“ฑ์˜ ์—ฌ๋ถ€ ํ™•์ธ - ์™ธ๊ด€์ƒ ์ด๋ฌผ์งˆ ๋“ฑ ์•ˆํ…Œ๋‚˜ ๋“ฑ์— ์œ ํ•ดํ•œ ์š”์†Œ๊ฐ€ ์žˆ๋Š”์ง€ ํ™•์ธ - ๋ถ€ํ’ˆ์˜ ๋ฐฉํ–ฅ๊ณผ ์น˜์ˆ˜๋Š” ๋„๋ฉด์˜ ๊ทœ๊ฒฉ๊ณผ ์ผ์น˜ ํ•˜๋Š”์ง€ ์—ฌ๋ถ€ ํ™•์ธ - ๋ถ€ํ’ˆ์˜ ์œ„์น˜์™€ ๋ฏธ๋ถ€์ฐฉ ์ƒํƒœ ํ™•์ธ 5-2. ๊ธฐ๋Šฅ๊ฒ€์‚ฌ ์กฐ๋ฆฝํ›„ ์ „์šฉ์ง€๊ทธ ๋ฐ COMPUTER TEST๋ฅผ ์‹œํ–‰ํ•˜์—ฌ ํšŒ๋กœ์— OPEN ๋ฐ SHORT์ƒํƒœ ๊ฒ€์‚ฌ 5-3. ํŠน์ˆ˜๊ฒ€์‚ฌ ์ฃผ๊ธฐ์ ์œผ๋กœ ์•ˆํ…Œ๋‚˜์˜ ํŠน์„ฑ ํ™•์ธ์„ ์œ„ํ•œ ๋ณ„๋„๊ฒ€์‚ฌ ์‹œํ–‰. Termination 2. ์•ˆํ…Œ๋‚˜ (Dipole Antenna) ๊ตฌ์„ฑ NO.๋ถ€ ํ’ˆ ๋ช…MODELQ'ty๋น„๊ณ  1Antenna Housing (URETHANE) ET-AP04T 1 2 Antenna ์†Œ์ž (๋ฐฉ์‚ฌ๋ถ€) 1 3 Connector + Cable 1 3. ํŠน ์„ฑ โ–  Electrical Specifications MODELET-AP04T Frequency Range (MHz) 2400โˆผ2500 Bandwidth (MHz) 100 (ยฑ 10%@Center Frequency) VSWR (Max) 2.0 : 1(Typ.) Polarization Linear ( Vertical ) Gain (dBi) 4ยฑ0.5 Cross-Polarization 20.0dB Beam-width Omni Directional Impedance (โ„ฆ) 50 Temperature -30ยฐCโˆผ60ยฐC Relative Humidity 0 to 95% RH โ–  Mechanical Specifications Dimension (W / H / D) (mm) ฯ†8.3 , h-165ยฑ1mm Radiating Element Material RG-178 COAX CABLE Element Housing Material URETHANE / BLACK COLOR Wind-load (km/h) for indoor SMA(MALE) ์žฅ ์žฅ r 4. ์‹œํ—˜์ ˆ์ฐจ 4-1. ์‹œํ—˜์žฅ๋น„ ๊ฐœ์š”๋„ 4-1-1. ์‹œํ—˜ ์ค€๋น„๋ฌผ No. ๋น„๋ช…๋ชจ๋ธ์ˆ˜๋Ÿ‰๊ทœ๊ฒฉ 1Network AnalyzerAgilant 85107B145MHz-50GHz Agilant 8753ES130KHz- 6GHz 2Cal. KitAgilant 85032B1SMA , N-Type 3TerminationSMA(M,F) , N(M)1VSWR โ‰ค 1.1:1 4-1-2. ๊ธฐํƒ€์žฅ๋น„ No.๋น„๋ช…๋ชจ๋ธ์ˆ˜๋Ÿ‰๊ทœ๊ฒฉ 1 Spectrum AnalyzerProlink 3c +15MHz-2150MHz 2Spectrum AnalyzerR3131(Advantest)19KHz-3GHz 3Noise Figure AnalyzeAgilant N8973A110MHz~3GHz 4Noise SourceAgilant N4000A110MHz~18GHz 4-2. Calibration , ์žฅ๋น„ ์—ฐ๊ฒฐ๋„ port1port2 (SMA) (SMA) 4-2-1. Calibration ๋ฐฉ๋ฒ• ๋ฐ ์ธก์ • Agilant 85107B Calibration ๋ฐฉ๋ฒ•์— ์˜ํ•˜์—ฌ Calibration ๋ฐ Cal. ๊ฒฐ๊ณผ๋ฅผ ํ™•์ธํ•œ๋‹ค. Calibration ์ ˆ์ฐจ์— ๋”ฐ๋ผ Calibration ์‹คํ–‰ํ•˜๊ณ  Cal. ์ƒํƒœ์˜ ์ด์ƒ์œ ๋ฌด๋ฅผ ํ™•์ธํ•œํ›„ ์ธก์ •ํ•œ๋‹ค. (์‚ฌ์šฉํ•˜์ง€ ์•Š๋Š” port๋Š” term. ์‹œํ‚จ๋‹ค.) -.85052B 3.5m Calibration Kit -.8517 B -->S-Parameter Test Set 45MHz-50GHz -.83651B -->Synthesized Sweeper 10MHz-50GHz 4-3. ์‹œํ—˜๊ณผ์ • 4-3-1. ๋„คํŠธ์›Œํฌ ์ธก์ • 4-3-2. ๋ฌด๋ฐ˜์‚ฌ์‹ค ์ธก์ • 5. ๊ฒ€์‚ฌ ์„ฑ์ ์„œ 5.1 ๊ฒ€์‚ฌ ๊ทœ๊ฒฉ ๋‚ฉํ’ˆ์ฒ˜ (แ„Œแ…ฎ)๋น„ํ‹ฐ๋„คํŠธ์›์Šค ํ’ˆ ๋ช… 2.4GHz W-LAN Antenna ๊ทœ ๊ฒฉET-AP04T ์™ธ๊ด€๊ฒ€์‚ฌ ๊ฒ€ ์‚ฌ ํ•ญ ๋ชฉ๊ทœ ๊ฒฉ ๋น„ ๊ณ  ๋„๋ฉด๊ฒ€์‚ฌ ๋„๋ฉด ๊ทœ๊ฒฉ ์ฐธ์กฐ ๊ธฐ๊ตฌ๊ฒ€์‚ฌ๊ฐ€๊ณต,๋„์žฅ์ƒํƒœ ์กฐ๋ฆฝ์ƒํƒœ ๋‹จํ’ˆ๊ฒ€์‚ฌ ๊ฒ€ ์‚ฌ ํ•ญ ๋ชฉ๊ทœ ๊ฒฉ ๋น„ ๊ณ  Frequency Range(MHz) 2400-2500 Bandwidth(MHz) 100(ยฑ10%@Center Freq.) V.S.W.R(Max) 1 : 2.0 Beam-width Omni Directional Polarization Linear(Vertical) Gain 4ยฑ0.5 Impedance 50โ„ฆ(ยฑ5 @Center Frequency) AntennaCross-Polarization Min. 20.0dB Temperature -30ยฐC ~ 60ยฐC Relative Humidity 0 to 95% RH Dimension (W/H/D) ฯ†8.3 , h-165ยฑ1mm Radiating Element Mat' RG-178 COAX CABLE Element Housing Mat'l URETHANE Wind-load (km/h) for indoor Termination SMA(MALE,์˜ค๋ฅธ๋‚˜์‚ฌ) *REMARK ์„œ์šธ์‹œ ๊ฐ•์„œ๊ตฌ ๊ฐ€์–‘3๋™ 1487๋ฒˆ์ง€ ๊ฐ€์–‘ํ…Œํฌ๋…ธํƒ€์šด 206ํ˜ธ 5-2. ๊ฒ€์‚ฌ ์„ฑ์ ์„œ ๊ฒฐ ์žฌ ๋‹ด๋‹น๊ฒ€ํ† ์Šน์ธ CUSTOMER NAME: DATE: 2004.02.12 ์ด๊ทœ์ฐฝ MODEL NAME: ET-AP04 LOT ์ˆ˜๋Ÿ‰: 20 EA INSPECTOR: ์ด ๊ทœ ์ฐฝ ๊ฒ€ํ†  ์ˆ˜๋Ÿ‰: 20 EA 03/03 X(M) => (๊ฒ€ํ†  ์ˆ˜๋Ÿ‰์˜ ํ‰๊ท ์น˜๋ฅผ ํ‘œ์‹œํ•œ ๊ฒƒ์ž„.) ํ•ญ๋ชฉ ์ ๊ฒ€์‚ฌํ•ญ X(M) ๊ฒฐ๊ณผ 1. COVER ํŒŒ๊ดด 3kgf์˜ ํž˜์œผ๋กœ CONNECTOR์˜ 10kgf์—์„œ COVER ์ดํƒˆ ์—†์Œ. ์–‘ํ˜ธ ์ˆ˜์ง ๋ฐฉํ–ฅ์œผ๋กœ ํž˜์„ ๊ฐ€ํ•œ ํ›„ ์ „๊ธฐ/๊ธฐ๊ตฌ์ ์œผ๋กœ ์ด์ƒ ์—†์„ ๊ฒƒ 2. ๋น„ํ‹€๋ฆผ 3kgfmm์˜ ํž˜์œผ๋กœ COVER๋ฅผ - ์–‘ํ˜ธ ๋น„ํ‹€์—ˆ์„ ๋•Œ ์ „๊ธฐ/ ๊ธฐ๊ตฌ์ ์œผ๋กœ ์ด์ƒ ์—†์„ ๊ฒƒ 3. ๋‚˜์‚ฌ์ฒด๊ฒฐ set์— ์กฐ๋ฆฝ ์‹œ ์ด์ƒ ์—ฌ๋ถ€ ํ™•์ธ -์–‘ํ˜ธ 4. Dimension ฯ†8.3, h-165ยฑ1.0mm 87.13 ์–‘ํ˜ธ 5. ์ •์žฌํŒŒ๋น„ ์ธก์ • 2.0 ์ดํ•˜์ผ ๊ฒƒ. 1.831.671.91 ์–‘ํ˜ธ (2.4GHz)(2.45GHz)(2.4835GHz) 6. Beam Width Beam Pattern ์ธก์ •์‹œ ๋ฐ˜์น˜๊ฐ์—์„œ - ์–‘ํ˜ธ ์ˆ˜ํ‰๋น”ํญ์ด ๋ฌด์ง€ํ–ฅ ์ผ๊ฒƒ. 7. Gain 4ยฑ0.5 ์•ˆ์— ํฌํ•จ๋  ๊ฒƒ. 3.84.14.0 ์–‘ํ˜ธ (2.4GHz)(2.45GHz)(2.4835GHz) 8. Impedance 50โ„ฆ(ยฑ5 @Center Frequency) 50โ„ฆ์–‘ํ˜ธ ๋ฒ”์œ„ ์•ˆ์— ํฌํ•จ๋  ๊ฒƒ. 9.Termination AP์— ๋ถ€์ฐฉ๊ฐ€๋Šฅ ํƒ€์ž…์ผ๊ฒƒ.SMA(Male)์–‘ํ˜ธ ์ ํ•ฉ ํŒ ์ • ๋ณธ ๊ฒ€์‚ฌ์„ฑ์ ์„œ๋Š” ๋‹น์‚ฌ์—์„œ ์‹œํ—˜, ๊ฒ€์‚ฌ๋œ ์„ฑ์ ์„œ์ž„์„ ์ฆ๋ช…ํ•จ. ์ด์— ์”จํ…Œํฌ(แ„Œแ…ฎ) 5-3. ๊ฒ€์‚ฌ ๋ฐ์ดํ„ฐ 1) V.S.W.R 2) Smith Chart 3) Log Mag 4) Beam Pattern C H 1 ME Ml og MA G5 dB /R E F - 2 0 dB CENTER 2 441.000 000 MHzSPAN 200.000 000 MHz Cor Del 27 Sep 2001 19:44:24 1 2 3 3_:-45.129 dB 2 441.000 000 MHz Min 1_:-17.402 dB 2.4 GHz 2_:-16.267 dB 2. 483 GHz 6. ํ’ˆ ์งˆ ๋ณด ์ฆ ๋ฐ ํ•˜ ์ž ๋ณด ์ฆ 7. ํฌ ์žฅ 7-1. ์ฃผ๋ฌธ์‚ฌ์˜ ์ƒํ˜ธ์™€ ์ƒ์‚ฐ์‚ฌ์˜ ์ƒํ˜ธ๋ฅผ ๋ช…๊ธฐํ•˜๋˜ ์–‘์‚ฌ ํ˜‘์˜๋กœ ์ง„ํ–‰ํ•œ๋‹ค. 7-2. ๋ชจ๋ธ๋ช…, ์ˆ˜๋Ÿ‰ ๋“ฑ์„ ๋ช…๊ธฐ ํ•˜์—ฌ ๋‚ฉํ’ˆํ•œ๋‹ค. ๋น„ ๊ณ  INNER BOX ์ด ์‚ฌ์–‘์Šน์ธ์›์€ ๊ท€์‚ฌ์—์„œ ์Šน์ธ๋˜๋Š” ์‹œ์ ์ธ 2004๋…„ 2 ์›” ์ผ๋ถ€ํ„ฐ ๋ฐœํšจํ•œ๋‹ค. SW 2์ข… (A๊ณจ) 1/200EA 6-1. ๋ณธ ์‚ฌ์–‘์Šน์ธ์›์— ๊ทœ์ •๋œ ์‚ฌํ•ญ์— ๋Œ€ํ•œ ํ™•์ธ๊ฒ€์‚ฌ ์ด์™ธ์— ์ œํ’ˆํ’ˆ์งˆ์„ ์กฐ์‚ฌํ•˜๊ธฐ ์œ„ํ•˜์—ฌ ํ•„์š”ํ•œ ๊ฒ€์‚ฌ๋ฅผ ์‹œํ–‰ํ•  ์ˆ˜ ์žˆ๋‹ค. 6-2. ๋ณธ ์‚ฌ์–‘์Šน์ธ์›์˜ ๋ช…์‹œ๋œ ์‚ฌํ•ญ์ค‘์—์„œ ๊ธฐ์ˆ ํ–ฅ์ƒ์„ ๋ชฉ์ ์œผ๋กœ ๊ทธ ํ’ˆ์งˆ์ด ๋ณด์ฆ๋˜๋Š” ๊ฒฝ์šฐ์—๋Š” ๊ฒ€์‚ฌ ๋ฐ ์‹œํ—˜ ๋ฐฉ๋ฒ•์˜ ์ผ๋ถ€๋ฅผ ๊ท€์‚ฌ์™€ ํ˜‘์˜ ํ›„ ๋ณ€๊ฒฝ ํ•  ์ˆ˜ ์žˆ๋‹ค. 6-3. ๋ณธ ์‚ฌ์–‘์Šน์ธ์›์˜ ๋ช…์‹œ๋œ ์‚ฌํ•ญ์ค‘์—์„œ ์‹ ๋ขฐ๋„ ๋ฐ ํ˜ธํ™˜์„ฑ ๋˜๋Š” ์„ฑ๋Šฅ์— ์ง€์žฅ์ด ์—†๋Š” ๋ฒ”์œ„๋‚ด์—์„œ ๊ท€์‚ฌ์˜ ์Šน์ธ์„ ์ทจ๋“ํ•œ ํ›„์— ํ˜•์ƒ ๋ฐ ์žฌ๋ฃŒ๋ฅผ ๋ณ€๊ฒฝ ํ•  ์ˆ˜ ์žˆ๋‹ค. 6-4. ๋‚ฉํ’ˆ์™„๋ฃŒํ›„ ์ œ์ž‘๋ถ€์‹ค๋กœ ์ธํ•˜์—ฌ ํ•˜์ž๊ฐ€ ๋ฐœ์ƒ๋˜๋Š” ๊ฒฝ์šฐ์—๋Š” ํ•˜์ž ๋ณด์ฆ๊ธฐ๊ฐ„๋™์•ˆ ์ฆ‰์‹œ ๋ฌด์ƒ์œผ๋กœ ์ˆ˜๋ฆฌ ๋ฐ ๊ตํ™˜ ํ•˜์—ฌ์•ผ ํ•œ๋‹ค. 6-5. ํ•˜์ž ๋ณด์ฆ๊ธฐ๊ฐ„์€ 1๋…„์œผ๋กœํ•˜๋ฉฐ, ํ•˜์ž ๋ณด์ฆ๊ธฐ๊ฐ„ ์ดํ›„์—๋Š” ์œ ์ƒ์œผ๋กœ ํ•˜์ž๋ณด์ˆ˜๋ฅผ ํ•  ์ˆ˜ ์žˆ๋‹ค. ํ’ˆ ๋ช… ์ˆ˜ ๋Ÿ‰์žฌ ์งˆ TRAY1/25EA P.S * ์ฃผ ๊ธฐ

RF Exposure Info

FCC ID: U8D-FB900AS MPE Calculations The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 14.74 dBm + 4.0 dBi EIRP = 18.74 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 ฯ€) S = (29.78 * 2.51) / (4 * 20 2 * ฯ€) S = 0.0149 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm) Conclusion: The Maximum permissible exposure (MPE) of the general Population/Uncontrolled for this device is 1.0 mW/cm 2 . The power density at 20cm does not exceed the 1.0 mW/cm 2 . Therefore, the exposure condition of the EUT is compliant with FCC rules. Estimated safe separation: R = โˆš(PG / 4ฯ€) R = โˆš(30.55 * 2.50 / 4ฯ€) R = 2.44 cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (4.0 / 10) G = 2.51

Test Report

DEMC#DR50110704G Copyright โ—‹ c 2007, DIGITAL EMC Co., Ltd. Page 1 of 42 DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE Firmtech CO., LTD. D801,Sigma2 Officetel,Gumi-Dong 18.Bundang-Gu, Sungnam-si,Kyunggi-Do,Korea Dates of Tests: April 2 ~ 18, 2007 Test Report S/N: DR50110704G Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification : Frequency Hopping Spread Spectrum (FHSS) Device name : Bluetooth SPP Bridge Manufacturer : Firmtech CO., LTD. FCC ID : U8D-FB900AS Model name : FB900AS Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part 15.247 Subpart C ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480 MHz Max. Output power : 14.74dBm Conducted Data of issue : April 19, 2007 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. U8D-FB900AS Firmtech CO., LTD. DEMC#DR50110704G Copyright โ—‹ c 2007, DIGITAL EMC Co., Ltd. Page 2 of 42 TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TRANSMITTER REQUIREMENTS --------------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 PEAK OUTPUT POWER ----------------------------------------------------------------------- 3.2.6 CONDUCTED SPURIOUS EMISSIONS ---------------------------------------------------- 3.2.7 RADIATED EMISSIONS --------------------------------------------------------------------------- 3.2.8 AC LINE CONDUCTED EMISSIONS ------------------------------------------------------- APPENDIX TEST EQUIPMENT FOR TESTS -------------------------------------------------------- 3 4 5 5 6 6 8 11 14 18 21 28 35 40 DEMC#DR50110704G Copyright โ—‹ c 2007, DIGITAL EMC Co., Ltd. Page 3 of 42 1. General information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the โ€œGeneral requirements for the competent of calibration and testing laboratoryโ€. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer April 19,2007 Won-Jung LEE Data Name Signature Report Reviewed By: manager April 19,2007 Harvay Sung Data Name Signature Ordering party: Company name : Firmtech Co., LTD Address : D801,Sigma2 Officetel, Gumi-Dong 18,Bundang-Gu, City/town : Kyunggi-Do ,Sungnam-si Country : Korea Zip code : 463-741 Date of order : March 20, 2007 DEMC#DR50110704G Copyright โ—‹ c 2007, DIGITAL EMC Co., Ltd. Page 4 of 42 2. Information about test item U8D-FB900AS 2.1 Equipment information Equipment model no. FB900AS Equipment serial no. Identical prototype Type of equipment Bluetooth SPP Bridge Frequency band 2402 ~ 2480 MHz Type of Modulation GFSK Channel Access Protocol Frequency Hopping Channel Spacing 1.0 MHz Type of antenna Chip Antenna 2.2 Tested frequency Frequency TX RX Low frequency 2402MHz 2402MHz Middle frequency 2441MHz 2441MHz High frequency 2480MHz 2480MHz 2.3 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Details of power supply : 5.0 VDC 2.4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Adaptor KSAFB0500050W1EU Kuantech Co., Ltd 2.5 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing -> None DEMC#DR50110704G Copyright โ—‹ c 2007, DIGITAL EMC Co., Ltd. Page 5 of 42 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) I. Test Items 15.247(a) Carrier Frequency Separation > 25 kHz Conducted C Number of Hopping Frequencies > 75 hops C 20 dB Bandwidth < 1 MHz C Dwell Time 0.4 seconds within a 30 second period per any frequency C 15.247(b) Transmitter Output Power < 1Watt C 15.247(c) Band-edge /Conducted The radiated emission to any 100 kHz of outband shall be at least 20dB below the highest inband spectral density. C Conducted Spurious Emissions C 15.205 15.209 Radiated Emissions FCC 15.209 Limits Radiated C 15.207 AC Conducted Emissions EN 55022 AC Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 DEMC#DR50110704G Copyright โ—‹ c 2007, DIGITAL EMC Co., Ltd. Page 6 of 42 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span = 3 MHz (wide enough to capture the peaks of two adjacent channels) RBW = 30 kHz (1% of the span or more) Sweep โ€ฆ

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: U8D-FB900AS Copyright โ’ธ 2007, DIGITAL EMC Co., Ltd. View 1 FCC ID: U8D-FB900AS Copyright โ’ธ 2007, DIGITAL EMC Co., Ltd. View 2

Contact Information

Applicant

Jae Hoon Kim
[email protected]82-31-719-4812Fax: 82-31-719-4834

Test Firm

DT&C Co.,Changho Lee
[email protected]82-31-321-2664Fax: 82-31-321-1664

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz30.00 mW
Confidentiality
Long Term
Grant Notes
Power is Conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This transmitter is restricted for use with the specific antenna(s) tested in this application for Certification. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
