U8G-P1215Pepwave 500mW 802.11n platform

COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2011 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. Document Rev.3.0.1 Mar-11 User Manual http://www.pepwave.com 2 Copyright © 2011 Pepwave Table of Contents 1 INTRODUCTION AND SCOPE ................................................................................. 3 2 PRODUCT FEATURES ............................................................................................. 4 3 PACKAGE CONTENTS ............................................................................................ 5 4 PEPWAVE AP ONE OVERVIEW .............................................................................. 6 4.1 FRONT VIEW ......................................................................................................................... 6 4.2 REAR PANEL VIEW ................................................................................................................ 6 5 INSTALLATION ......................................................................................................... 7 5.1 INSTALLATION PROCEDURES .................................................................................................. 7 6 INFORMATION.......................................................................................................... 8 6.1 SYSTEM ................................................................................................................................ 8 6.2 WIRELESS ............................................................................................................................. 9 7 CONFIGURATION ................................................................................................... 13 7.1 SYSTEM .............................................................................................................................. 13 7.2 WIRELESS NETWORKS ......................................................................................................... 16 7.3 ADVANCED WIRELESS SETTINGS.......................................................................................... 28 7.4 WDS .................................................................................................................................. 30 7.5 SNMP ................................................................................................................................ 31 7.6 WEB ADMINISTRATION ......................................................................................................... 34 8 TOOLS - DIAGNOSTIC TOOLS .............................................................................. 36 9 COMMANDS ........................................................................................................... 37 9.1 ACTIVATE CHANGES ............................................................................................................ 37 9.2 FIRMWARE .......................................................................................................................... 38 9.3 CONFIGURATION.................................................................................................................. 39 9.4 MISC .................................................................................................................................. 40 10 RESTORATION OF FACTORY DEFAULTS........................................................... 41 10.1 AP ONE .............................................................................................................................. 41 APPENDIX A. ................................................................................................................ 42 User Manual http://www.pepwave.com 3 Copyright © 2011 Pepwave 1 Introduction and Scope Pepwave AP One is an enterprise grade 802.11b/g/n Wi-Fi access point with centralized management system. It is a powerful solution for building wireless networks for all business needs. Each Pepwave AP One is loaded with essential features such as Multiple SSID, VLAN, WDS and Guest Protect. One Pepwave AP One can masquerade up to 4 different access points. Each virtual access point can have its own security policy (e.g. WPA, WPA2, etc.) and authentication mechanism (e.g. 802.1x, open, captive portal, etc), to facilitate building your network much faster, easier and more cost-effective than ever before. Pepwave AP One comes with a high-power Wi-Fi transmitter which greatly enhances coverage and performance. User Manual http://www.pepwave.com 4 Copyright © 2011 Pepwave 2 Product Features Key features of Pepwave AP One: • High-power output enhances coverage and lowers cost of ownership • Independent security policies and encryption mechanisms per virtual AP • Centralized management via InControl • WDS Support for secure and fast network expansion • Guest Protect Support • WMM (Wi-Fi Multimedia) and QoS (Quality of Service) Support User Manual http://www.pepwave.com 5 Copyright © 2011 Pepwave 3 Package Contents The following items are the contents of a Pepwave AP One package: • 1 x Pepwave AP One unit • 1 x Omni-directional Antenna • 1 x Power Supply Unit • 1 x Instruction Sheet User Manual http://www.pepwave.com 6 Copyright © 2011 Pepwave 4 Pepwave AP One Overview 4.1 Front View 4.2 Rear Panel View Connectors Antenna (Left-most Connector) A RP-SMA connector for connecting the antenna. WAN A 10/100BaseT Ethernet connector, normally to be connected to back haul network. Reset A reset button to be depressed with a pin. Depress and hold for at least 5 seconds to restore factory defaults. For further details, please refer to Section 10, Restoration of Factory Defaults. Power Connector A connector for DC 12V power input, to be connected with the supplied power adaptor. LED Indicators Power OFF – Power off ON – Power on Status OFF – T…

Text truncated - open the document above for the full version.

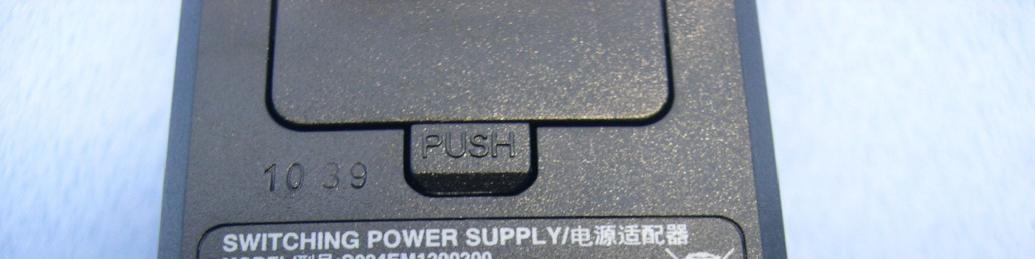

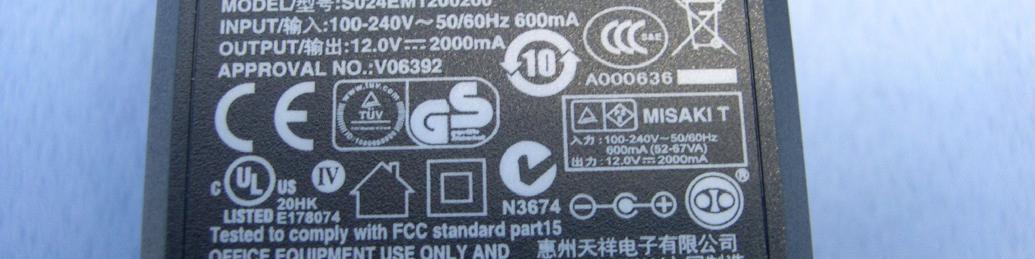

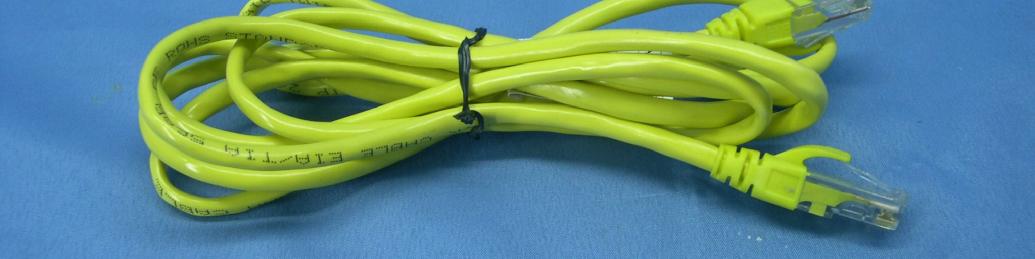

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig.1) FCC ID: U8G-P1215 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Back Side : LABEL

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Report No.: SA110211E01 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110211E01 MODEL NO.: NA FCC ID: U8G-P1215 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Pismo Labs Technology Limited ADDRESS: 1703A, 17/F, Park Building 476 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA110211E01 Report Format Version 4.0.0 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110211E01 Report Format Version 4.0.0 3 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 977.2 5.1 20 0.629 1.00 --- END ---

Report No.: RF110211E01 1 Report Format Version 4.0.0 Cancels and replaces the report No.: RF110112E03 dated Jan. 27, 2011 FCC TEST REPORT REPORT NO.: RF110211E01 MODEL NO.: NA FCC ID: U8G-P1215 RECEIVED: Feb. 11, 2011 TESTED: Feb. 15 to 16, 2011 ISSUED: Mar. 01, 2011 APPLICANT: Pismo Labs Technology Limited ADDRESS: 1703A, 17/F, Park Building 476 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110211E01 2 Report Format Version 4.0.0 Cancels and replaces the report No.: RF110112E03 dated Jan. 27, 2011 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................13 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................14 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................15 4. TEST TYPES AND RESULTS..............................................................................17 4.1 CONDUCTED EMISSION MEASUREMENT........................................................17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................17 4.1.2 TEST INSTRUMENTS..........................................................................................17 4.1.3 TEST PROCEDURES..........................................................................................18 4.1.4 DEVIATION FROM TEST STANDARD.................................................................18 4.1.5 TEST SETUP.......................................................................................................19 4.1.6 EUT OPERATING CONDITIONS.........................................................................19 4.1.7 TEST RESULTS...................................................................................................20 4.2 RADIATED EMISSION MEASUREMENT.............................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................22 4.2.2 TEST INSTRUMENTS..........................................................................................23 4.2.3 TEST PROCEDURES..........................................................................................24 4.2.4 DEVIATION FROM TEST STANDARD.................................................................24 4.2.5 TEST SETUP.......................................................................................................25 4.2.6 EUT OPERATING CONDITIONS.........................................................................25 4.2.7 TEST RESULTS...................................................................................................26 4.3 6dB BANDWIDTH MEASUREMENT....................................................................55 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................55 4.3.2 TEST INSTRUMENTS..........................................................................................55 4.3.3 TEST PROCEDURE.............................................................................................55 4.3.4 DEVIATION FROM TEST STANDARD.................................................................55 4.3.5 TEST SETUP.......................................................................................................55 4.3.6 EUT OPERATING CONDITIONS.........................................................................55 4.3.7 TEST RESULTS...................................................................................................56 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................60 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................60 4.4.2 INSTRUMENTS....................................................................................................60 4.4.3 TEST PROCEDURES..........................................................................................60 Report No.: RF110211E01 3 Report Format Version 4.0.0 Cancels and replaces the report No.: RF110112E03 dated Jan. 27, 2011 4.4.4 DEVIATION FROM TEST STANDARD.................................................................60 4.4.5 TEST SETUP.......................................................................................................60 4.4.6 EUT OPERATING CONDITIONS.........…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
