U8G-P1217Pepwave Wireless Product

PISMO LABS TECHNOLOGY LIMITED

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Aug 08, 2011
Application Purpose: Original Equipment
Date of Application: Aug 08, 2011
Equipment Note: Pepwave Wireless Product
Frequency Range: 2422.00000000 - 2452.00000000
Company: PISMO LABS TECHNOLOGY LIMITED
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2011 Pepwave Lt d. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. User Manual Pepwave Surf Series: Surf mini Surf 400 Surf 400-DX July 11 Pepwave Surf / Surf AP / Surf DX Series - 2 - Copyright © 2011 Pepwave Pepwave User Manual Table of Contents 1 COPYRIGHT ..................................................................................................................................... 3 2 DISCLAIMER ..................................................................................................................................... 3 3 PRODUCT DESCRIPTION ................................................................................................................. 4 3.1 PRODUCT FEATURES ..................................................................................................................... 4 3.2 HARDWARE SETUP ........................................................................................................................ 5 3.3 LED DESCRIPTION ........................................................................................................................ 6 4 USING THE PEPWAVE DEVICES ....................................................................................................... 8 4.1 PRE-CONFIGURING PC SETUP ....................................................................................................... 8 4.2 FIRST TIME SETUP ........................................................................................................................... 9 4.3 SETTINGS DETAILS ....................................................................................................................... 13 4.4 INTEGRATED WI-FI ACCESS POINT CONFIGURATION .................................................................... 18 4.5 TEST THE SETUP ............................................................................................................................ 21 4.6 PORT FORWARDING ................................................................................................................... 22 4.7 QOS ......................................................................................................................................... 24 4.8 FIRMWARE UPGRADE ................................................................................................................. 25 4.9 DEBUG AND SYSTEM INFORMATION ............................................................................................. 26 4.10 RESTORE TO DEFAULT SETTINGS .................................................................................................... 27 APPENDIX: .......................................................................................................................................... 28 FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT ............................................... 28 Pepwave Surf / Surf AP / Surf DX Series - 3 - Copyright © 2011 Pepwave Pepwave User Manual 1 Copyright Copyright © 2011 by Pepwave Ltd. The content of this documentation may not be reproduced in any part or as a whole without the prior written permission of Pepwave Ltd. 2 Disclaimer Pepwave does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent right nor the patent rights of others. Pepwave further reserves the right to make changes in any products described herein without notice. This documentation is subject to change without notice. Pepwave Surf / Surf AP / Surf DX Series - 4 - Copyright © 2011 Pepwave Pepwave User Manual 3 Product Description 3.1 Product Features  Signal strength LED for showing the current signal strength  Always-on, integrated Wi-Fi access point (except Surf 400-DX)  WPA/WPA2-Personal and WPA/WPA2-Enterprise security support  Wi-Fi Multimedia (WMM) support  Built-in DHCP server and NAT routing to manage client devices  Customizable, built-in web portal for simple web-based configuration Surf 400-DX Surf mini /400 Pepwave Surf / Surf AP / Surf DX Series - 5 - Copyright © 2011 Pepwave Pepwave User Manual 3.2 Hardware Setup 3.2.1 Surf mini 1. Attach the provided antenna to the right most antenna connector 2. Connect the LAN port to the computer’s Ethernet port with an Ethernet cable. 3. Connect the end of the included power adapter to the power socket on Pepwave Surf mini . 4. Switch on the power adaptor. 3.2.2 Surf 400 1. Attach the provided antenna to the right most antenna connector 2. Connect the LAN port to the computer’s Ethernet port with an Ethernet cable. 3. Connect the end of the included power adapter to the power socket on Pepwave Surf 400. 4. Optionally, connect a 3G USB Modem to the USB Port. 5. Switch on the power adaptor. 3.2.3 Surf DX Series Please follow the installation guide to set up the Pepwave Surf 400-DX. Pepwave Surf / Surf AP / Surf DX Series - 6 - Copyright © 2011 Pepwave Pepwave User Manual 3.3 LED Description 3.3.1 Surf mini / 400 Series LED Color Status Description PWR Green On Power is on Off Power is off RDY Green On Device is booted Off Device is not booted ENET Green On Ethernet is connected Blinking Sending/Receiving data Off Ethernet is not connected Green On Associated with an access point Blinking Acquiring IP address Off Not associated with any access point Number of LED The number of lit signal bars depends on the strength of the received signal. A larger number of lit signal bars indicate stronger signals. Pepwave Surf / Surf AP / Surf DX Series - 7 - Copyright © 2011 Pepwave Pepwave User Manual 3.3.2 Surf DX Series LED Color Status Description PWR Green On Power is on Off Power is off LAN Green On Ethernet is connected Off Ethernet is not connected Wi-Fi Gr…

Text truncated - open the document above for the full version.

External Photos

Page 52 of 55 FCC ID: U8G-P1217 Anbotek Compliance Laboratory Limited Report No. 201106796F Figure 1 The EUT-Overall View Figure 2 The EUT-Front View Page 53 of 55 FCC ID: U8G-P1217 Anbotek Compliance Laboratory Limited Report No. 201106796F Figure 3 The EUT-Back View Figure 4 The EUT-Side View

ID Label/Location Info

The proposed Label Location on EUT Proposed FCC ID Label Location Proposed Label Location on EUT The EUT-Back View/Proposed FCC ID Label Location

ID Label/Location Info

FCC ID Label Sample for FCC ID: U8G-P1217 FCC ID: U8G-P1217 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

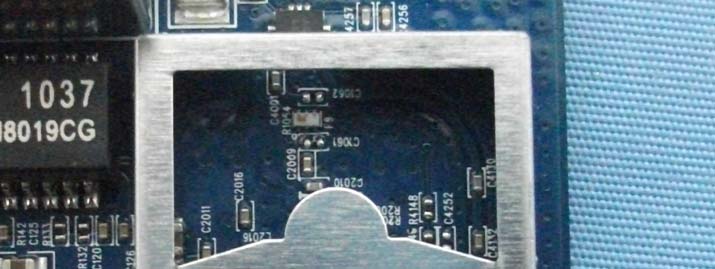

Page 54 of 55 FCC ID: U8G-P1217 Anbotek Compliance Laboratory Limited Report No. 201106796F Figure 5 PCB of the EUT-Front View(Shielding) Figure 6 PCB of the EUT-Back View Page 55 of 55 FCC ID: U8G-P1217 Anbotek Compliance Laboratory Limited Report No. 201106796F Figure 7 PCB of the EUT-Front View (unshielded) Figure 8 PCB of the EUT-Front View (WIFI Module)

RF Exposure Info

Maximum Permissible Exposure (MPE) Calculation FCC rule part 1.1310 provides the following Exposure limits: Limits for Occupational / Control Exposures: 300-1500MHz: f(MHz)/300mW/cm 2 over 6 minutes; 1500-100,000MHz: 5mW/cm 2 over 6 minutes Limits for General Population / Uncontrolled Exposure: 300-1500MHz: f(MHz)/1500mW/cm 2 over 6 minutes; 1500-100,000MHz: 1mW/cm 2 over 30 minutes EUT details: FCC ID: U8G-P1217 Equipment: Mobile Equipment Users: General population Distance (R) = 20 cm Limit applied: 1mW/cm 2 The Friis formula is applied to calculation the field power density: Pd = (Pout*G) / (4*π*r 2 ), where: Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = Gain of antenna in linear scale = 3.1416 R = distance between observation point and center of the radiator in cm The measured Peak values are: Highest measured Peak output power: 90.8 mW equals 19.58 dBm Antenna gain of EUT: 5dBi equals 3.16 in linear scale Highest Power Density generated = (90.8 * 3.16) / (4*π*20 2 ) mW/cm 2 = 0.0571 mW/cm 2 Conclusion: 20cm is a safe distance because, since at this distance, the EUT emits far under the permissible limit of 1 mW/cm 2

Test Report

Page 1 of 55 FCC ID: U8G-P1217 Anbotek Compliance Laboratory Limited Report No. 201106796F FCC TEST REPORT for Pismo Labs Technology Limited Pepwave Wireless Product Model No.: Pismo 325, Surf series, AP series, Mesh Connector series, MAX series Report Number : 201106796F Date of Test : Jul. 01~09, 2011 Date of Report : Jul. 19, 2011 Prepared for : Pismo Labs Technology Limited Address : Room 1703A, 17/F, Park Building 476 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong Prepared By : Anbotek Compliance Laboratory Limited Address : 1/F, 1 /Building, SEC Industrial Park, No.4 Qianhai Road, Nanshan District, Shenzhen, 518054, China Tel: (86) 755-26014771 Fax: (86) 755-26014772 Page 2 of 55 FCC ID: U8G-P1217 Anbotek Compliance Laboratory Limited Report No. 201106796F TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION.........................................................................................................4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Auxiliary Equipment Used during Test ....................................................................................................5 1.3. Description of Test Facility ......................................................................................................................6 1.4. Measurement Uncertainty.........................................................................................................................6 2. MEASURING DEVICE AND TEST EQUIPMENT.................................................................... 7 3. TEST METHODOLOGY ............................................................................................................... 8 3.1. Summary of Test Results..........................................................................................................................8 3.2. Description of Test Modes........................................................................................................................8 3.3. List of channels:........................................................................................................................................9 4. CONDUCTED EMISSION TEST................................................................................................ 10 4.1. Block Diagram of Test Setup .................................................................................................................10 4.2. Power Line Conducted Emission Measurement Limits (15.207) ...........................................................10 4.3. Configuration of EUT on Measurement .................................................................................................10 4.4. Operating Condition of EUT ..................................................................................................................10 4.5. Test Procedure ........................................................................................................................................11 4.6. Power Line Conducted Emission Measurement Results ........................................................................11 5. FCC PART 15.247 REQUIREMENTS FOR DSSS & OFDM MODULATION..................... 14 5.1 Test Setup ................................................................................................................................................14 5.2 6dB Bandwidth ........................................................................................................................................14 5.3 Maximum Peak output power test ...........................................................................................................21 5.4 Band Edges Measurement .......................................................................................................................22 5.5 Peak Power Spectral Density...................................................................................................................28 5.6 Radiated Emissions..................................................................................................................................35 5.6.1. Requirements (15.209 & 15.205): .......................................................................................................35 5.6.2. Test Configuration:..............................................................................................................................35 5.6.3. Test Procedure .....................................................................................................................................36 5.6.4.Test Results...........................................................................................................................................36 7. PHOTOGRAPH............................................................................................................................. 50 7.1. Photo of Conducted Emission Measurement..........................................................................................50 7.2. Photo of Radiation Emission Test ..........................................................................................................50 APPENDIX I (Photos of EUT) (5 Pages) Page 3 of 55 FCC ID: U8G-P1217 Anbotek Compliance Laboratory Limited Report No. 201106796F TEST REPORT Applicant : Pismo Labs Technology Limited Manufacturer : Pismo Labs Technology Limited EUT : Pepwave Wireless Product Model No. : Pismo 325, Surf series, AP series, Mesh Connector series, MAX series Serial No. : N/A Rating : 12V , 1A Trade Mark : Pepwave Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.247: 2010 The device described above is tested by Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results ar…

Text truncated - open the document above for the full version.

Test Setup Photos

Page 50 of 55 FCC ID: U8G-P1217 Anbotek Compliance Laboratory Limited Report No. 201106796F 7. PHOTOGRAPH 7.1. Photo of Conducted Emission Measurement 7.2. Photo of Radiation Emission Test

Contact Information

Applicant

Antony Chong(Director of Hardware Engineering)

[email protected]85229907634Fax: 85230070588

Technical Contact

TeleconformityMark Koop

[email protected]+31 84 8395876

Rietven 31 · Enschede, Overyssel · Netherlands

Test Firm

Shenzhen Anbotek Compliance Laboratory LimitedDaniel zhu

[email protected]86-755-26014771

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.42 GHz - 2.45 GHz	40.00 mW

Confidentiality

Long Term

Grant Notes

Power Output listed is Conducted. The antennas associated with this transmitter must be installed to provide a minimum separation distance of 20cm from all persons, and must not be co-located or operating with any other antenna or transmitter. End-users and installers must be provided with antenna installation procedures and transmitter operating conditions for satisfing RF Exposure compliance.
