COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2011 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. AP Pro Document Rev.2 Sep-11 User Manual Pepwave AP Pro http://www.pepwave.com 2 Copyright © 2011 Pepwave Table of Contents 1 INTRODUCTION AND SCOPE ................................................................................. 3 2 PRODUCT FEATURES ............................................................................................. 4 3 PACKAGE CONTENTS ............................................................................................ 5 3.1 AP PRO ........................................................................................................................... 5 4 PEPWAVE AP PRO OVERVIEW .............................................................................. 6 4.1 AP PRO ........................................................................................................................... 6 5 INSTALLATION......................................................................................................... 7 5.1 INSTALLATION PROCEDURES .............................................................................................. 7 6 INFORMATION.......................................................................................................... 8 6.1 SYSTEM ........................................................................................................................... 8 6.2 WIRELESS........................................................................................................................ 8 7 CONFIGURATION ................................................................................................... 11 7.1 SYSTEM ......................................................................................................................... 11 7.2 WIRELESS NETWORKS .................................................................................................... 13 7.3 ADVANCED WIRELESS SETTINGS ...................................................................................... 20 7.4 WDS ............................................................................................................................ 22 7.5 SNMP........................................................................................................................... 22 7.6 WEB ADMINISTRATION..................................................................................................... 24 8 COMMANDS ........................................................................................................... 25 8.1 ACTIVATE CHANGES ....................................................................................................... 25 8.2 FIRMWARE ..................................................................................................................... 25 8.3 CONFIGURATION ............................................................................................................. 25 8.4 MISC ............................................................................................................................. 25 9 RESTORATION OF FACTORY DEFAULTS........................................................... 26 9.1 AP PRO ......................................................................................................................... 26 APPENDIX A. ................................................................................................................ 27 User Manual Pepwave AP Pro http://www.pepwave.com 3 Copyright © 2011 Pepwave 1 Introduction and Scope Pepwave AP Pro is an enterprise grade 802.11a/b/g/n Wi-Fi access point with centralized management system. It is a powerful solution for building wireless networks for all business needs. Each Pepwave AP Pro is loaded with essential features such as Multiple SSID, VLAN, WDS and Guest Protect. One Pepwave AP Pro can masquerade up to 4 different access points. Each virtual access point can have its own security policy (e.g. WPA, WPA2, etc.) and authentication mechanism (e.g. 802.1x, open, captive portal, etc), to facilitate building your network much faster, easier and more cost-effective than ever before. Pepwave AP Pro comes with a high-power Wi-Fi transmitter which greatly enhances coverage and performance. User Manual Pepwave AP Pro http://www.pepwave.com 4 Copyright © 2011 Pepwave 2 Product Features Key features of Pepwave AP Pro: • High-power output enhances coverage and lowers cost of ownership • Independent security policies and encryption mechanisms per virtual AP • Centralized management via InControl • WDS Support for secure and fast network expansion • Guest Protect Support • WMM (Wi-Fi Multimedia) and QoS (Quality of Service) Support User Manual Pepwave AP Pro http://www.pepwave.com 5 Copyright © 2011 Pepwave 3 Package Contents 3.1 AP Pro The following items are the contents of a Pepwave AP Pro package: • 1 x Pepwave AP Pro unit • 2 x Omni-directional Antenna • 1 x Power Supply Unit • 1 x Instruction Sheet User Manual Pepwave AP Pro http://www.pepwave.com 6 Copyright © 2011 Pepwave 4 Pepwave AP Pro Overview 4.1 AP Pro Front View Connectors Antenna (Left-most Connector) A RP-SMA connector for connecting the antenna. WAN A 10/100BaseT Ethernet connector, normally to be connected to back haul network. Reset A reset button to be depressed with a pin. Depress and hold for at least 5 seconds to restore factory defaults. For further details, please refer to Section 10, Restoration of Factory Defaults. Power Connector A connector for DC 12V power input, to be connected with the supplied power adaptor. LED Indicators Power OFF – Power off ON – Power on Status OFF – The unit is initializing. ON – The unit is ready. Ethernet OFF – The Ethernet port is not connected. ON …

Text truncated - open the document above for the full version.

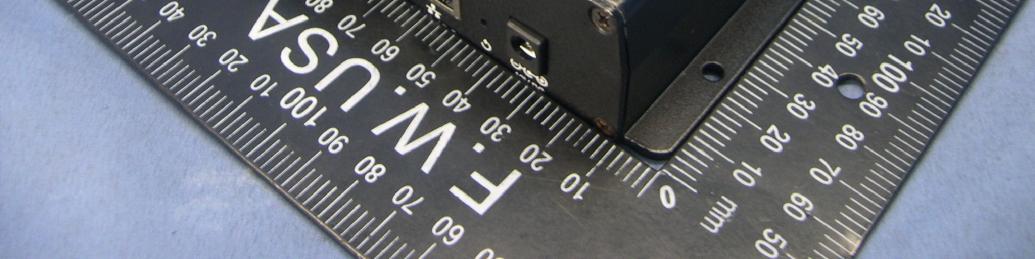

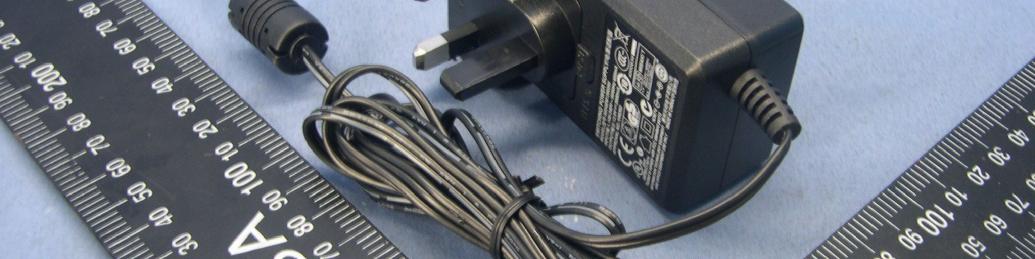

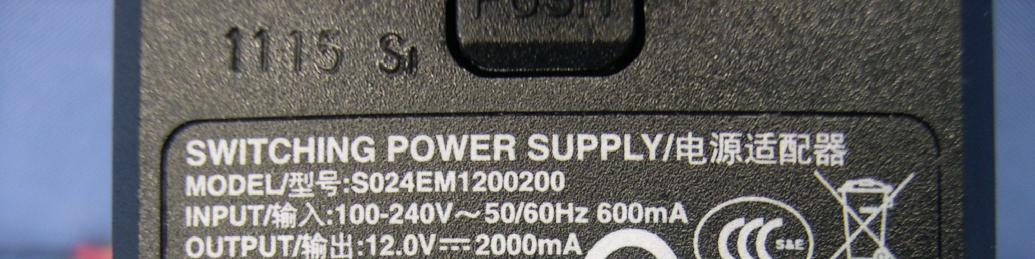

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig.1) FCC ID: U8G-P1220 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Back Side : LABEL

Page 4 Page 5 Page 6 Page 7

Report No.: SA110728E04 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110728E04 MODEL NO.: Pismo335, Surf series, AP series, Air series, Mesh Connector series, MAX series FCC ID: U8G-P1220 APPLICANT: Pismo Labs Technology Limited ADDRESS: 1703A, 17/F, Park Building 476 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 8 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA110728E04 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT..............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. ANTENNA GAIN.......................................................................................................5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...........................6 Report No.: SA110728E04 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA110728E04 Original release Aug. 31, 2011 Report No.: SA110728E04 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: Pepwave Wireless Product BRAND NAME: Pepwave MODEL NO.: Pismo335, Surf series, AP series, Air series, Mesh Connector series, MAX series TEST SAMPLE: R&D SAMPLE APPLICANT: Pismo Labs Technology Limited STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: Pismo335) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Aug. 31, 2011 ( Claire Kuan, Specialist ) APPROVED BY : , DATE: Aug. 31, 2011 ( May Chen, Deputy Manager ) Report No.: SA110728E04 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN There are two antennas provided to this EUT, please refer to the following table: Transmitter Circuit Antenna Type Antenna Connector For 2.4~2.5GHz Gain (dBi) For 5.15~5.35GHz Gain (dBi) For 5.35~5.875GHz Gain (dBi) Chain(0) 3 5.5 6 Chain(1) Omni Directional (Dipole) RP SMA Plug 3 5.5 6 The EUT incorporates CDD function with 802.11a, 802.11b, 802.11g. Report No.: SA110728E04 Report Format Version 4.0.0 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): 802.11b: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 317.7 6 20 0.252 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi) = 6 802.11g: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 463.8 6 20 0.367 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi) = 6 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 491.5 3 20 0.195 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2422-2452 219.4 3 20 0.087 1.00 Report No.: SA110728E04 Report Format Version 4.0.0 7 For 15.247(5GHz): 802.11a: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 386.8 9 20 0.611 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi) = 9 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 386.8 6 20 0.306 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5755 ~ 5795 386.1 6 20 0.306 1.00 Report No.: SA110728E04 Report Format Version 4.0.0 8 For 15.407(5GHz): 802.11a: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180 ~ 5240 15.8 8.5 20 0.022 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (d…

Text truncated - open the document above for the full version.

Report No.: RF110728E04 1 Report Format Version 4.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF110728E04 MODEL NO.: Pismo335, Surf series, AP series, Air series, Mesh Connector series, MAX series FCC ID: U8G-P1220 RECEIVED: July 28, 2011 TESTED: Aug. 11 to 16, 2011 ISSUED: Aug. 31, 2011 APPLICANT: Pismo Labs Technology Limited ADDRESS: 1703A, 17/F, Park Building 476 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 133 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110728E04 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD..............................................................................5 1. CERTIFICATION...........................................................................................6 2. SUMMARY OF TEST RESULTS...................................................................7 2.1 MEASUREMENT UNCERTAINTY................................................................9 3. GENERAL INFORMATION.........................................................................10 3.1 GENERAL DESCRIPTION OF EUT............................................................10 3.2 DESCRIPTION OF TEST MODES..............................................................13 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............14 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................18 3.4 DESCRIPTION OF SUPPORT UNITS........................................................19 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................20 4. TEST TYPES AND RESULTS (For 2400 ~ 2483.5MHz Band)....................21 4.1 CONDUCTED EMISSION MEASUREMENT..............................................21 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................21 4.1.2 TEST INSTRUMENTS................................................................................21 4.1.3 TEST PROCEDURES.................................................................................22 4.1.4 DEVIATION FROM TEST STANDARD.......................................................22 4.1.5 TEST SETUP..............................................................................................23 4.1.6 EUT OPERATING CONDITIONS................................................................23 4.1.7 TEST RESULTS..........................................................................................24 4.2 RADIATED EMISSION MEASUREMENT...................................................26 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................26 4.2.2 TEST INSTRUMENTS................................................................................27 4.2.3 TEST PROCEDURES.................................................................................28 4.2.4 DEVIATION FROM TEST STANDARD.......................................................28 4.2.5 TEST SETUP..............................................................................................29 4.2.6 EUT OPERATING CONDITIONS................................................................29 4.2.7 TEST RESULTS..........................................................................................30 4.3 6dB BANDWIDTH MEASUREMENT..........................................................59 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................59 4.3.2 TEST INSTRUMENTS................................................................................59 4.3.3 TEST PROCEDURE...................................................................................59 4.3.4 DEVIATION FROM TEST STANDARD.......................................................59 4.3.5 TEST SETUP..............................................................................................59 4.3.6 EUT OPERATING CONDITIONS................................................................59 4.3.7 TEST RESULTS..........................................................................................60 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................64 Report No.: RF110728E04 3 Report Format Version 4.0.0 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........64 4.4.2 INSTRUMENTS..........................................................................................64 4.4.3 TEST PROCEDURES.................................................................................64 4.4.4 DEVIATION FROM TEST STANDARD.......................................................64 4.4.5 TEST SETUP..............................................................................................64 4.4.6 EUT OPERATING CONDITIONS................................................................65 4.4.7 TEST RESULTS..........................................................................................66 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................68 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................68 4.5.2 TEST INSTRUMENTS................................................................................68 4.5.3 TEST PROCEDURE...................................................................................68 4.5.4 DEVIATIO…

Text truncated - open the document above for the full version.

Report No.: RF110728E04-1 1 Report Format Version 4.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF110728E04-1 MODEL NO.: Pismo335, Surf series, AP series, Air series, Mesh Connector series, MAX series FCC ID: U8G-P1220 RECEIVED: July 18, 2011 TESTED: Aug. 11 to 16, 2011 ISSUED: Aug. 31, 2011 APPLICANT: Pismo Labs Technology Limited ADDRESS: 1703A, 17/F, Park Building 476 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 83 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110728E04-1 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD..............................................................................4 1. CERTIFICATION...........................................................................................5 2. SUMMARY OF TEST RESULTS...................................................................6 2.1 MEASUREMENT UNCERTAINTY.....................................................................7 3. GENERAL INFORMATION...........................................................................8 3.1 GENERAL DESCRIPTION OF EUT..............................................................8 3.2 DESCRIPTION OF TEST MODES..............................................................11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................15 3.4 DESCRIPTION OF SUPPORT UNITS........................................................16 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................17 4. TEST TYPES AND RESULTS.....................................................................18 4.1 CONDUCTED EMISSION MEASUREMENT..............................................18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................18 4.1.2 TEST INSTRUMENTS................................................................................18 4.1.3 TEST PROCEDURES.................................................................................19 4.1.4 DEVIATION FROM TEST STANDARD.......................................................19 4.1.5 TEST SETUP..............................................................................................20 4.1.6 EUT OPERATING CONDITIONS................................................................20 4.1.7 TEST RESULTS..........................................................................................21 4.2 RADIATED EMISSION MEASUREMENT...................................................23 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................23 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS24 4.2.3 TEST INSTRUMENTS................................................................................25 4.2.4 TEST PROCEDURES.................................................................................26 4.2.5 DEVIATION FROM TEST STANDARD.......................................................26 4.2.6 TEST SETUP..............................................................................................27 4.2.7 EUT OPERATING CONDITION..................................................................27 4.2.8 TEST RESULTS..........................................................................................28 4.3 OUTPUT TRANSMIT POWER MEASUREMENT.......................................49 4.3.1 LIMITS OF OUTPUT TRANSMIT POWER MEASUREMENT.....................49 4.3.2 TEST INSTRUMENTS................................................................................49 4.3.3 TEST PROCEDURE...................................................................................49 4.3.4 DEVIATION FROM TEST STANDARD.......................................................49 4.3.5 TEST SETUP..............................................................................................50 4.3.6 EUT OPERATING CONDITIONS................................................................50 4.3.7 TEST RESULTS..........................................................................................51 4.4 PEAK POWER EXCURSION MEASUREMENT.........................................57 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT.......................57 4.4.2 TEST INSTRUMENTS................................................................................57 4.4.3 TEST PROCEDURE...................................................................................57 4.4.4 DEVIATION FROM TEST STANDARD.......................................................57 4.4.5 TEST SETUP..............................................................................................58 4.4.6 EUT OPERATING CONDITIONS................................................................58 4.4.7 TEST RESULTS..........................................................................................59 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT...........................62 Report No.: RF110728E04-1 3 Report Format Version 4.0.0 4.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT.........62 4.5.2 TEST INSTRUMENTS................................................................................62 4.5.3 TEST PROCEDURES........................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
