U8G-P1740Pepwave / Peplink / Pismo Wireless Product

C OPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2013 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. Surf SOHO Pepwave Surf SOHO Firmware 6.0 May 2013 http://www.pepwave.com 2 Copyright @ 2013 Pepwave Table of Contents 1 INTRODUCTION AND SCOPE .............................................................................................. 3 2 GLOSSARY .......................................................................................................................... 4 3 PEPWAVE SURF SOHO OVERVIEW ..................................................................................... 5 4 INSTALLATION ................................................................................................................... 6 4.1 PREPARATION........................................................................................................................................ 6 4.2 CONSTRUCTING THE NETWORK ................................................................................................................. 6 5 CONNECTING TO WEB ADMIN INTERFACE ......................................................................... 7 APPENDIX A. RESTORATION OF FACTORY DEFAULTS .......................................................... 7 APPENDIX B. DECLARATION ............................................................................................... 8 FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT ............ 8 http://www.pepwave.com 3 Copyright @ 2013 Pepwave 1 Introduction and Scope The Pepwave Surf SOHO provides link aggregation across multiple WAN connections, allowing a combination of technologies like 3G HSDPA, EVDO, 4G LTE, Wi-Fi, external WiMAX dongle, and Satellite to be utilized to connect to the Internet. This manual presents how to set up the Pepwave Surf SOHO Router and provides an introduction to the features and usage of Pepwave Surf SOHO Router. http://www.pepwave.com 4 Copyright @ 2013 Pepwave 2 Glossary The following terms, acronyms, and abbreviations are frequently used in this manual: Term Definition 3G 3rd Generation standards for wireless communications (e.g. HSDPA) 4G 4th Generation standards for wireless communications (e.g. WiMAX, LTE) DHCP Dynamic Host Configuration Protocol DNS Domain Name System EVDO Evolution-Data Optimized HSDPA High-Speed Downlink Packet Access HTTP Hyper-Text Transfer Protocol ICMP Internet Control Message Protocol IP Internet Protocol LAN Local Area Network MAC Address Media Access Control Address MTU Maximum Transmission Unit MSS Maximum Segment Size NAT Network Address Translation PPPoE Point to Point Protocol over Ethernet QoS Quality of Service SNMP Simple Network Management Protocol TCP Transmission Control Protocol UDP User Datagram Protocol VPN Virtual Private Network VRRP Virtual Router Redundancy Protocol WAN Wide Area Network WINS Windows Internet Name Service WLAN Wireless Local Area Network http://www.pepwave.com 5 Copyright @ 2013 Pepwave 3 Pepwave Surf SOHO Overview 3.1.1 Front Panel Appearance 3.1.2 LED Indicators The statuses indicated by the Front Panel LEDs are as follows: Power and Status Indicators Wi-Fi OFF Power off Green Power on Status OFF System initializing Red Booting up or busy Green Ready state 3.1.3 Rear Panel Appearance ** Optional Antenna ports are for future functionality, they are disabled by software in default settings. Wi-Fi LED Power Connector LAN Ports Antenna A Antenna B WAN Port USB Ports Wi-Fi Signal LED Reset Button Status LED http://www.pepwave.com 6 Copyright @ 2013 Pepwave 4 Installation Connecting the Network with Pepwave Surf SOHO Router: 4.1 Preparation Before installing Pepwave Surf SOHO Router, please prepare the following:  At least one Internet/WAN access account and/or Wi-Fi access information.  For each network connection,  Ethernet WAN: A 10/100 BaseT UTP cable with RJ45 connector  USB: A USB modem  Wi-Fi WAN: Wi-Fi antennas  A computer with TCP/IP network protocol and a web browser installed. Supported browsers include Microsoft Internet Explorer 8.0 or above, Mozilla Firefox 10.0 or above, Apple Safari 5.1 or above, and Google Chrome 18 or above. 4.2 Constructing the Network At the high level, construct the network according to the following steps: 1. With an Ethernet cable, connect a computer to one of the LAN ports on the Pepwave Surf SOHO. Repeat with different cables for up to 4 computers to be connected. 2. With another Ethernet cable or a USB modem, connect it to one of the WAN ports on the Pepwave Surf SOHO. Repeat the same procedure for other WAN ports. 3. Connect the power adapter to the power connector on the rear panel of Pepwave Surf SOHO, and then plug it into a power outlet. http://www.pepwave.com 7 Copyright @ 2013 Pepwave 5 Connecting to Web Admin Interface 1. Start a web browser on a computer that is connected with Pepwave Surf SOHO through LAN. 2. To connect to Web Admin Interface of Pepwave Surf SOHO, enter the following LAN IP address in the address field of the web browser: http://192.168.50.1 (This is the default LAN IP address of Pepwave Surf SOHO.) 3. Enter the following to access the Web Admin Interface. Username: admin Password: admin (This is the default Username and Password of Pepwave Surf SOHO. The Admin and Read-only User Password can be changed at System > Admin Security of the Web Admin Interface.) Appendix A. Restoration of Factory Defaults To restore the factory default settings on a Pepwave Surf SOHO unit, follow the steps below: 1. Locate the reset button on the rear panel of Pepwave Surf SOHO unit. 2. With a paper clip, press the reset button and hold it for at least 10 seconds until the unit reboots itself. After Pepwave Surf SOHO finishes rebooting, the factory default settings will be restored. Important Note All previous configurations and band…

Text truncated - open the document above for the full version.

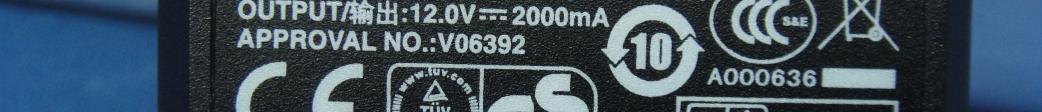

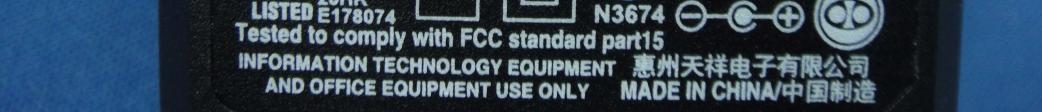

Report No.: 130218E07 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 130218E07 Page 2 Report No.: 130218E07 Page 3

(Fig.1) FCC ID: U8G-P1740 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Back Side: LABEL HERE

Report No.: 130218E07 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 130218E07 Page 2 Report No.: 130218E07 Page 3 Report No.: 130218E07 Page 4 Report No.: 130218E07 Page 5 Report No.: 130218E07 Page 6

Report No.: SA130218E07 1 of 7 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA130218E07 MODEL NO.: Surf SOHO, Surf SOHO LTE, MAX, Surf Pro, AP Pro, Device Connector, Express, Balance, Pismo 734, CarFi, Flex AP FCC ID: U8G-P1740 RECEIVED: Feb. 18, 2013 TESTED: Mar. 03 to May 27, 2013 ISSUED: May 31, 2013 APPLICANT: Pismo Labs Technology Limited ADDRESS: FLAT/RM A5, 5/F, HK SPINNERS IND BLDG PHASE 6, 481 CASTLE PEAK ROAD, CHEUNG SHA WAN, HONG KONG. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA130218E07 2 of 7 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA130218E07 3 of 7 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130218E07 Original release May 31, 2013 Report No.: SA130218E07 4 of 7 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Pepwave / Peplink / Pismo Wireless Product BRAND NAME: Pepwave / Peplink / Pismo MODEL NO.: Surf SOHO, Surf SOHO LTE, MAX, Surf Pro, AP Pro, Device Connector, Express, Balance, Pismo 734, CarFi, Flex AP TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Pismo Labs Technology Limited TESTED DATE: Mar. 03 to May 27, 2013 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: Surf SOHO) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: May 31, 2013 ( Elsie Hsu, Specialist ) APPROVED BY : , DATE: May 31, 2013 ( May Chen, Manager ) Report No.: SA130218E07 5 of 7 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION This product could be applied with one USB Cellular Modem, and the safe distance is 34 cm for collocated radio. Report No.: SA130218E07 6 of 7 Report Format Version 5.0.0 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: For 15.247(2.4GHz): FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 951.796 0.83 34 0.07932 1 For 15.247(5GHz): FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 98.407 3.49 34 0.01513 1 For 15.407(5GHz): FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180 ~ 5240 47.874 3.49 34 0.00736 1 For USB Cellular Modem: DEVICE MAX EIRP (mW) MAX EIRP (dBm) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) USB Cellular Modem 7000 38.45 34 0.48187 0.55 This product can operate with a plug-in 3G device which has maximum of 7W ERP(7000mW EIRP) output power. Report No.: SA130218E07 7 of 7 Report Format Version 5.0.0 CONCLUSION: Both of the WLAN and plug-in device (USB Cellular Modem 3G) can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density For WLAN (2.4GHz): Therefore, the worst-case sit…

Text truncated - open the document above for the full version.

Report No.:RF130218E07 1 of 101 Report Format Version 5.1.1 FCC TEST REPORT (15.247) REPORT NO.: RF130218E07 MODEL NO.: Surf SOHO (Refer to 3.1 for more details) FCC ID: U8G-P1740 RECEIVED: Feb. 18, 2013 TESTED: Mar. 07 to May 27, 2013 ISSUED: May 31, 2013 APPLICANT: Pismo Labs Technology Limited ADDRESS: FLAT/RM A5, 5/F, HK SPINNERS IND BLDG PHASE 6, 481 CASTLE PEAK ROAD, CHEUNG SHA WAN, HONG KONG. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.:RF130218E07 2 of 101 Report Format Version 5.1.1 Table of Contents RELEASE CONTROL RECORD..............................................................................6 1. CERTIFICATION ...........................................................................................7 2. SUMMARY OF TEST RESULTS ...................................................................8 2.1 MEASUREMENT UNCERTAINTY ................................................................9 3. GENERAL INFORMATION .........................................................................10 3.1 GENERAL DESCRIPTION OF EUT ............................................................10 3.2 DESCRIPTION OF TEST MODES ..............................................................13 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............14 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................17 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................18 3.5 CONFIGURATION OF SYSTEM UNDER TEST .........................................19 4. TEST TYPES AND RESULTS (for 2.4GHz, 2.400 ~ 2.4835GHz Band) ......20 4.1 CONDUCTED EMISSION MEASUREMENT ..............................................20 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................20 4.1.2 TEST INSTRUMENTS ................................................................................20 4.1.3 TEST PROCEDURES .................................................................................21 4.1.4 DEVIATION FROM TEST STANDARD .......................................................21 4.1.5 TEST SETUP ..............................................................................................21 4.1.6 EUT OPERATING CONDITIONS ................................................................22 4.1.7 TEST RESULTS ..........................................................................................23 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ......................25 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ...25 4.2.2 TEST INSTRUMENTS ................................................................................26 4.2.3 TEST PROCEDURES .................................................................................27 4.2.4 DEVIATION FROM TEST STANDARD .......................................................27 4.2.5 TEST SETUP ..............................................................................................28 4.2.6 EUT OPERATING CONDITIONS ................................................................28 4.2.7 TEST RESULTS ..........................................................................................29 4.3 6dB BANDWIDTH MEASUREMENT ..........................................................42 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................42 4.3.2 TEST INSTRUMENTS ................................................................................42 4.3.3 TEST PROCEDURE ...................................................................................42 4.3.4 DEVIATION FROM TEST STANDARD .......................................................42 4.3.5 TEST SETUP ..............................................................................................42 4.3.6 EUT OPERATING CONDITIONS ................................................................42 4.3.7 TEST RESULTS ..........................................................................................43 4.4 CONDUCTED OUTPUT POWER MEASUREMENT ..................................44 Report No.:RF130218E07 3 of 101 Report Format Version 5.1.1 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...........44 4.4.…

Text truncated - open the document above for the full version.

Report No.: RF130218E07-1 1 of 51 Report Format Version 5.1.1 FCC TEST REPORT (15.407) REPORT NO.: RF130218E07-1 MODEL NO.: Surf SOHO (Refer to 3.1 for more details) FCC ID: U8G-P1740 RECEIVED: Feb. 18, 2013 TESTED: Apr. 01 to May 09, 2013 ISSUED: May 31, 2013 APPLICANT: Pismo Labs Technology Limited ADDRESS: FLAT/RM A5, 5/F, HK SPINNERS IND BLDG PHASE 6, 481 CASTLE PEAK ROAD, CHEUNG SHA WAN, HONG KONG. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF130218E07-1 2 of 51 Report Format Version 5.1.1 Table of Contents RELEASE CONTROL RECORD..............................................................................4 1. CERTIFICATION ...........................................................................................5 2. SUMMARY OF TEST RESULTS ...................................................................6 2.1 MEASUREMENT UNCERTAINTY .....................................................................7 3. GENERAL INFORMATION ...........................................................................8 3.1 GENERAL DESCRIPTION OF EUT ..............................................................8 3.2 DESCRIPTION OF TEST MODES .............................................................. 11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................14 3.4 DUTY CYCLE OF TEST SIGNAL................................................................15 3.5 DESCRIPTION OF SUPPORT UNITS ........................................................16 3.6 CONFIGURATION OF SYSTEM UNDER TEST .........................................17 4. TEST TYPES AND RESULTS .....................................................................18 4.1 CONDUCTED EMISSION MEASUREMENT ..............................................18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................18 4.1.2 TEST INSTRUMENTS ................................................................................18 4.1.3 TEST PROCEDURES .................................................................................19 4.1.4 DEVIATION FROM TEST STANDARD .......................................................19 4.1.5 TEST SETUP ..............................................................................................19 4.1.6 EUT OPERATING CONDITIONS ................................................................20 4.1.7 TEST RESULTS ..........................................................................................21 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ......................23 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ...23 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS23 4.2.3 TEST INSTRUMENTS ................................................................................24 4.2.4 TEST PROCEDURES .................................................................................25 4.2.5 DEVIATION FROM TEST STANDARD .......................................................25 4.2.6 TEST SETUP ..............................................................................................26 4.2.7 EUT OPERATING CONDITION ..................................................................26 4.2.8 TEST RESULTS ..........................................................................................27 4.3 TRANSMIT POWER MEASUREMENT .......................................................36 4.3.1 LIMITS OF TRANSMIT POWER MEASUREMENT ....................................36 4.3.2 TEST INSTRUMENTS ................................................................................36 4.3.3 TEST PROCEDURE ...................................................................................37 4.3.4 DEVIATION FROM TEST STANDARD .......................................................37 4.3.5 TEST SETUP ..............................................................................................37 4.3.6 EUT OPERATING CONDITIONS ................................................................38 4.3.7 TEST RESULTS ..........................................................................................39 4.4 PEAK POW…

Text truncated - open the document above for the full version.

Report No.: 120709E01不放 1 of 2 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120709E01不放 2 of 2 RADIATED EMISSION TEST
