U8G-P1803Multi-Cellular Mobile Router, Trade name(Pepwave, Peplink, Pismo)

PISMO LABS TECHNOLOGY LIMITED

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Mar 11, 2015
Application Purpose: Original Equipment
Date of Application: Mar 11, 2015
Equipment Note: Multi-Cellular Mobile Router, Trade name(Pepwave, Peplink, Pismo)
Frequency Range: 2412.00000000 - 2462.00000000
Company: PISMO LABS TECHNOLOGY LIMITED
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2014 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. Pepwave Routers User Manual Pepwave Products: MAX 700/HD2/HD2 IP67/HD2 mini/HD4/BR1/BR1 IP55/BR2 IP55/On-The-Go MAX HD2/HD4 with MediaFast Surf SOHO Pepwave Firmware 6.1 December 2014 Pepwave Routers User Manual http://www.pepwave.com 2 Copyright @ 2014 Pepwave Table of Contents !" #$% & '( )*+ !% & ', - . / 0 102 / / . 3 4567(888 4)5679:)) 45679:);<=(4 445679:)>?@?A 4A5679:)#?+5 !?&%&'( 4=5679:4B5679:4#?+5 !?&%&'C 4(567DE, 4C567DEB);<AA) 4,567*@FG+ FH) . / I / / . - AJ*9*)4 =< &&?@)= =)K@'L?@M+ " #$)( =K@J?M?@M+ " #$N@O?@> @)C 0I P (Q&RR5@), ()K&5@), S I . 2 0 3 PI T U ,D&'?L ?@M'V6"WD&'?LW ?@M') ,)K&?O <&R48 3I . T U - 8N+ @ Q6"44 8)K RRR&Q6"A 8Q?F%?Q6"A= 84Q6"9 &R+K+ L$A, 8A:X@&>?L:" ?@M'= Pepwave Routers User Manual http://www.pepwave.com 3 Copyright @ 2014 Pepwave / .Y 0 ) ?@MZ5 !?&%&'K@ @K&L+?@M== ))L+ !R?@MK@ @< J L+?@M=( )[? #?@M5 !?&%&'&?'?L'=C 2 .I2 \]^ / P < [<"=, )G+ < #&O E D +?@!&"6GE (4 !%'?@_`&'(= - / 4;<' L[<" ?@M'(( 2 0 0 S A*a@!<R?LXC A)K'>ER 'J*a@!<R?LXC) 2 P =<%#&!?@M O?L ,) 0 P Sb P CZ' H',( C)D&@!#?!+K@R,C C6R?L&?@,C P . 33 ,*a@!&@!;@a@!%? #&RRER '88 30 3 )89?M+6O&?R&a?R?X8= )8)<<G< O 8, )8K ?J?L& 5&@&M )84 O?L %#&!?@M…

Text truncated - open the document above for the full version.

Users Manual

Pepwave Routers User Manual http://www.pepwave.com 41 Copyright @ 2014 Pepwave ! ! " # $ !% % " & ''(( )*+,-./01023/145510161708/169:;/<=;>40/<4/0:;1?/@ )*+,-A ( , BCD % "% E F GHIJK ! " %" F %&!LIMNOPQHROPSTNUOHSPHVWPX & %! & ! E & " YY +Z [ \ ,Z+ ]( ^ "% %_` "" " ^ " a ^!% ! " ^ ^ & a bY - (c -d e & f /7g1h/<8:0/<=; & i " " j "! Pepwave Routers User Manual http://www.pepwave.com 42 Copyright @ 2014 Pepwave klm + ,- Yn * ( ,+DCo-,C+pqmrsltuvwxxyvzxru{tr|}~zzr |zuytutyxysyymzmwzrvlmtyvzmyxvtvltvxszmrvuwzumm}~zzr |zuytuvlmxxwzrqmrs{ + ,- Yn * ( ,+DCo-,C+p +d+ D-d ^ WUUQPIJP& ! & i (( -d `! "" % ! % ! " B D ( n +p [ C,C+p ( `! " ^ !% "" % `! !% & i " "! % "" n * ( ,+D -p [ Cpd -d $ ! "" a j Pepwave Routers User Manual http://www.pepwave.com 43 Copyright @ 2014 Pepwave ¡¢£ ¤¥¦§rvmtmumvvzrutmxtvm|tv\ ,Z+ ] ̈© \}kxmx|m¤¥¦yzxzvª|txr vlmtyyxyztvm¤¥¦«lx|zrvlmmvqxsum«svvxrªqxmzvvxvlm|muzm|yzxzv ¬vlmzuvxrmwxs|«mvlmlzlmuvyzxzvªvlmumxr|xrmwxs|«mxwmyzxzvªtr| uxxrªtr||xyzv«mmtuzrvlmqxsum«svvxr} kx|zut«mtytvzst¤¥¦xrrmvzxrª|txrvlmtyyxyztvm¤¥¦«lx|zrvlm mvqxsum«svvxrªqxmzvvlm C ( -® Y[ xwªtr||xyzv«mmtuzrvlmqxsum«svvxr} ̄xstrtuxumvyzxzvzmuxrvlm - (c ®+- [ }~zvlm ,-C Y( «svvxrzrvlm xmuyxr|zrxwvxqx|zvlmxrrmvzxrumvvzr} °±²³ ́μ¶·μ ̧³μ¹ " & " "&%!! %%" ! ^ ºH»PHMX¼½½JK& Pepwave Routers User Manual http://www.pepwave.com 44 Copyright @ 2014 Pepwave ¾¿À¾ÁÂÃÄÅÆÄÂÇÈÉ Êxq\ ,Z+ ] ̈© \Ëlxxumt¤¥¦xrrmvzxrtr|vlmrz ,-C Y( } © \ + ,Ì ' ,C+pÍÎ © \ n +pp ' ,C+p \-D Ï % ÐÑ n +pp ' ,C+p , c + [ & % " ! Ï ÐÑ# · GÒÓ · ºOHOIVÔÓ · ÓÓÓUÕ % " "" "% "& " && "!% `F F ! !" % " A+*,Cpd+ [ ! " Ö¼×Ø ^ "" Ù & " !! " ÐÑ ÔÓUSÚHSXIMÛ & ^ ^ a [[((Ü *®p , - (]ÜÝ -* Y , Þ-, Z-ß Ï ÐÑ` "" " &% ^ ` "" ! "! ! " Pepwave Routers User Manual http://www.pepwave.com 45 Copyright @ 2014 Pepwave © \ + ,Ì ' ,C+pàÎ ,-p [ ®ß ,-, ! "& ! ÐÑ & áPLHIMVUMMPVOPX "GIQVUMMPVO "! áPLHIMUMMPVOPX â b( , -D ã-p [ ZC [ , c ! " & " " & "" !% Ñ ÐÑ ! +Zp ( , -D ã-p [ ZC [ , c ! " & " " & "" !% ÐÑ ! Ñ !" "! % äPHQOåQPX %ÓPSQIQOPMVPæ¼NOUç & " èHMHÛPXéK NQOULáNJPQ Ø ºPVOIUMêëìíç î - Y , cnc'] , c + [ ! ^% "! ÐÑ !% " &! " GIQHéJPXÓIMÛGÖºäUUïN½Ò××Ó "! % " GIQHéJPXFºPVOIUMêðìñ!! " Pepwave Routers User Manual http://www.pepwave.com 46 Copyright @ 2014 Pepwave © \ + ,Ì ' ,C+pòÎ ßp-DC ' \ C ' + C [ ! " % ÑF "& "! ÐÑ& " "" % ÑF " # · % · "" · i · ó% · ÑFiôiõ FGIQHéJPX" & ! FºPVOIUMöìë!! " ã-p [ ZC [ , c YY +Z-p ' +pC,+ & & " " % ÐÑ ! & Ð &" /16938409=; & " " ^"& & ^ + , b[ ! " "" a! ! ÐÑ÷"! ¼NOU " " " " % ""& ` ! " &% ! "ø " " & ¼X»PSOIQP º½PPX ^&a Bâ ! % a % % % ÷"! õ NQOUL êññðø % "ù õ &" a! " ^GPRHNJO "! õ F¼NOU " õ & % "" i" % ÐÑ & Pepwave Routers User Manual http://www.pepwave.com 47 Copyright @ 2014 Pepwave © \ + ,Ì ' ,C+púÎ "&! "& " % a % % " ó % " õFFØ % a % % % óÙ % "!% õ% ûü& ! `û `!õ ¼NOU õFF & % ÷"! õFF ¼NOU n[[(( nY +p F% " Ø 61ýþ/7<8h25/<;ÿ25/40209/6þ2/40=;155</;;145</:2</ %õ "" ^` 6914?/09/240/<16/=;155</;;0809/8<2?241þ6þ2/40 f =; õ "" ! " "! õ "" E " ! `% "! !! ^ GPRHNJO õ "" "! \ ^ E ! & Ñ! " &% & " "% ô & Ñ & & %! ^ A bY ß,+ n \Þ `! ! " " &" ÐÑ "` õ E ÷ "! PMHéJPX [[ C,C+p- Y *® Y C ' [[(( Ô…

Text truncated - open the document above for the full version.

Users Manual

Pepwave Routers User Manual http://www.pepwave.com 81 Copyright @ 2014 Pepwave !"#$!%&'(!($!$( #&')*+ #, -./0123425026 789:;8<=>;?@AB@CD>>?@E=;<?BFGE<H;IE9GD<;<EJKLA;<<EA9@;<@CDA9@ME , NO#' &'#'(!($!#'$( #!( PQR34S6QTUV2W0V4QX0YZS[PQR34S6QTX6/\X5]((#'&(!, ^$(!## &'#'(!($!#'$( #!( 562_01`TUV2W0V4QX0YZS[TPQR34S6QTX6/\X5TUV2W0V4QX0YZS[a bcdbefghifjklimnop NOO&#!# O$( #!#%q r #'O*!##s&#$#!#% +&!*!##s&#$#!#% s& +O&#(!%Ot64QPYYu13vvZSu0#'O,w t6S2Z04xyzx (#!, UV2W0V4QX0YZS[t622Z4{| }Z{~ P//YZS32Z04 0./32ZWZYZ2[ 789:;8<=9ID@AI;HDC;8IAEKL=EM@AE@CI;89E=9GI;8G9GECDHEJKLA;<<EA9@;< IEDI=?ECC;9GE=EC9@<D9@;<<9EI<E9D==IECCD<=>I;9;A;?G@C;>9@;<>I;M@=EC9GE G@GEC9D>>?@AD9@;<A;H>D9@:@?@9B Pepwave Routers User Manual http://www.pepwave.com 82 Copyright @ 2014 Pepwave 501.3Y P//YZS32Z04 0./32ZWZYZ2[ 789:;8<=9ID@AI;HDC;8IAEKL=EM@AE9;9GECDHE=EC9@<D9@;<<9EI<E9D==IECCF@?? :EI;89E=9GI;8G9GECDHEJKLA;<<EA9@;<>EIC@C9E<9?BIEDI=?ECC;>I;9;A;?G@C ;>9@;<>I;M@=ECG@GA;H>D9@:@?@9B9;H;C9D>>?@AD9@;<CD<=8CEICC9@??:E<E@9I;HJKL?@< ?;D=:D?D<A@<FGE<H8?9@>?E<9EI<E9CEIMEICDIEDAAECCE= V|20. 789:;8<=9ID@A:EGDM@;IAD<:EHD<DE=:B=E@<@<I8?EC@<DA8C9;HI8?E9D:?EK =ED8?9I8?EAD<:E=E@<E=;IA;<<EA9@;<C9GD9AD<<;9:EHD9AGE=F@9GD<B;9GEI8?EC NO( !!#%#501.3YP//YZS32Z040./32ZWZYZ2[, uZ/ JD<99;<;FH;IED:;89AIED9@<;89:;8<=I8?EC@C@9;8I;88:EGD<<E?;IDM@=E;989;I@D? G99>B;898:EIK:< bcdfgifmiefghifjklimnop s!##OUV2W0V4QX0YZS[ &,sOV|20.(Ot3R6$, NO$& &!#¡6v3VY2,¢£¤¥¥¦¤§ ̈©ª«¥¬¦® ̄°«¥¦«£«±¤«²§£«³®©ª¥& !!#'$( # !!#O(&O% O!$ #, ́(Ot61RZS6O(#']!#¡6v3VY2O'O#', N'O##% $(!]('((O&#O(#( μ, Pepwave Routers User Manual http://www.pepwave.com 83 Copyright @ 2014 Pepwave ¶%( !]PV20#!(O¡6v3VY2·VY6, ̧!V|20.O'O !'#O&$(,! O&#'# O(#!O #!$!!'#O&, Pepwave Routers User Manual http://www.pepwave.com 84 Copyright @ 2014 Pepwave N&!]!#PQQ·VY6O$& O$!,+O& (#!%O#$PQR34S6QTX6/\X5TX6/\X5UV2W0V4Q V|20.·VY6|, 56_V|20.·VY6t622Z4{| t61RZS653.6 G@CCE99@<C>EA@@EC9GE<DHE;9GE;89:;8<=9ID@AI8?E ¹43WY6 G@CCE99@<C>EA@@ECFGE9GEI9GE;89:;8<=9ID@AI8?E9DECEEA9JGE<º»¼½¾¿@C AGEAE= 9GEI8?E9DECEEA99ID@A@CHD9AGE=D<=DA9@;<CDIE9DE<:B9GEE>FDME I;89EI:DCE=;<9GE;9GEI>DIDHE9EIC;9GEI8?EJGE<º»¼½¾¿@C8<AGEAE=9GEI8?E=;EC <;99DEEEA99GEE>FDMEI;89EI=@CIEDI=C9GE;9GEI>DIDHE9EIC;9GEI8?E t0V1S6 G@CCE99@<C>EA@@EC9GEC;8IAED==IECC<E9F;I;IÀKD==IECC;I9ID@A9GD9 HD9AGEC9GEI8?E ¡6|2Z432Z04 G@CCE99@<C>EA@@EC9GE=EC9@<D9@;<D==IECC<E9F;I;I=;HD@<<DHE;I9ID@A9GD9 HD9AGEC9GEI8?E Pepwave Routers User Manual http://www.pepwave.com 85 Copyright @ 2014 Pepwave ÁÂÃ¼Ä»Å¼Ã¿@CAG;CE<D<=D=;HD@<<DHEC8AGDCÆÇÇÈÉÊËÌÇÍ@CE<9EIE=D<B ;89;@<DAAECCEC9;ÆÇÇÈÉÊËÌÇÍD<=ÎËÆÇÇÈÉÊËÌÇÍF@??HD9AG9G@CAI@9EI@;<;8HDBE<9EI DF@?=ADI=ÏÐÑD99GEE<=;D=;HD@<<DHE9;HD9AGD<BG;C9F@9GD<DHEGDM@<9GE =;HD@<<DHE@<9GEH@==?EB;8E<9EIÆÇÇÈÉÊËÎÒ;IEÓDH>?EÔÔÔËÆÇÇÈÉÊËÌÇÍ ÔÔÔËÆÇÇÈÉÊËÌÇËÕÖ;IÆÇÇÈÉÊËÌÇË×ØF@??D?C;HD9AG?DA@<F@?=ADI=C@<D<B;9GEI>;C@9@;<@C <;9C8>>;I9E= L7@DCEIMEIGDC;<E<9EI<E9D==IECCD<=H8?9@>?ECEIMEI<DHECD<=@;<E;9GE <DHEC@C=E@<E=GEIEDAAECCEC9;D<B;<E;9GECEIMEI<DHECF@??D?C;HD9AG9G@CI8?E X1020S0Y34QX012 G@CCE99@<C>EA@@EC9GE>I;9;A;?D<=>;I9;9ID@A9GD9HD9AGEC9G@CI8?E PY{01Z2~. G@CCE99@<C>EA@@EC9GE:EGDM@;I;9GEE>FDMEI;89EI;I9GEA8C9;HI8?E 7<E;9GE;??;F@<MD?8ECAD<:ECE?EA9E=Ï<;9E9GD9C;HEE>FDMEI;89EIC>I;M@=E;<?B C;HE;9GECE;>9@;<CÑ JE@G9E=ÙD?D<AE EIC@C9E<AE <;IAE= I@;I@9B 7MEI?;F EDC9ÚCE= ;FEC9D9E<AB GE8>A;H@<CEA9@;<C=E9D@?9GE?@C9E=D?;I@9GHC u61.Z4326 t6||Z04|04ÛZ4` ·6S0R61[ G@CCE99@<C>EA@@ECFGE9GEI9;9EIH@<D9EEÓ@C9@<CECC@;<C;<D?ECC>IEEIIE=JKL A;<<EA9@;<@<9GEEME<99GD9DH;IE>IEEIIE=JKLA;<<EA9@;<@CIEA;MEIE=G@CCE99@<@C D>>?@AD:?E9;9GEÜ¿ÄÝÞß¿àáâ¿ãäÄäß¿»å¿D<=âãÄÂãÄßæD?;I@9GHCÙB=ED8?99G@CCE99@<@C =@CD:?E=<9G@CADCEEÓ@C9@<CECC@;<CF@??<;9:E9EIH@<D9E=;IDEA9E=FGE<D<B;9GEI JKLA;<<EA9@;<@CIEA;MEIE=JGE<9G@CCE99@<@CE<D:?E=EÓ@C9@<CECC@;<CHDB:E 9EIH@<D9E=FGE<D<;9GEIJKLA;<<EA9@;<@CIEA;MEIE=C8AG9GD9;<?B9GE>IEEIIE= GED?9GBJKLA;<<EA9@;<ÏCÑ@C8CE=D9D<B>;@<9@<9@HE Pepwave Routers User Manual http://www.pepwave.com 86 Copyright @ 2014 Pepwave xçzyzxPY{01Z2~.èé6Z{~26Qê3Y34S6 NO##'# #O# )*+#'$!#(O# #( ë!(,NO##'#!#$!!%OPY{01Z2~.#é6Z{~26Q ê3Y34S6, NO& &O#' #O#(##$()*+###! O#'O O)*+#!#O!#'O, ́O!#(O' «®¦ìíî²§#'O, ï"&!]#OO !!#'#'O#'q · ð O)*+ñqñò · ð O)*+óqñò · )# ï#)*+qñò · s!!!ñqñò · s!!!óqñò · ́w¶qñò N!#'O#ôòõöñò÷ñò÷ñò÷ñò÷ñò÷ñòø, ùO#' #(##$( ð O)*+ñ#ñô,úûõöñòüôò"ñòòû, ùO#' #(##$( ð O)*+ó#ñô,úûõöñòüôòø"ñòòû, ùO#' #(##$()# ï#)*+#ñô,úûõöñòüôòø"ñòòû, ùO#' #(##$(s!!!ñ#ñô,úûõöñòüôòø"ñòòû, ùO#' #(##$(s!!!ó#ñô,úûõöñòüôòø"ñòòû, ùO#' #(##$( ́w¶#ñô,úûõöñòüôòø"ñòòû, Pepwave Routers User Manual http://www.pepwave.com 87 Copyright @ 2014 Pepwave xçzyzyPY{01Z2~.èX61|Z|264S6 NO #'# ###O!#O ##O!# !((##$# ë##(#$!,ï"&!] #%] &% $#'(O$#&#O#OO!# ¬ýþ©¥« ̈²§ÿ ̄¥…

Text truncated - open the document above for the full version.

Users Manual

Pepwave Routers User Manual http://www.pepwave.com 121 Copyright @ 2015 Pepwave maximum transmission power will be 20 dBm (100 mW). NOTE: Users are required to choose an option suitable to local laws and regulations. Per FCC regulation, the country selection is not available on all models marketed in US. All US models are fixed to US channels only. Preferred Frequency These buttons determine the frequency at which access points will attempt to broadcast. This feature will only work for APs that can transmit at both 2.4GHz and 5GHz frequencies. 5 GHz Protocol This section displays the 5 GHz protocols your APs are using. 5GHz Channel Bonding There are three options: 20 MHz, 20/40 MHz, and 40 MHz. With this feature enabled, the Wi-Fi system can use two channels at once. Using two channels improves the performance of the Wi-Fi connection. 5 GHz Channel This drop-down menu selects the 5 GHz 802.11 channel to be utilized. If Auto is set, the system will perform channel scanning based on the scheduled time set and choose the most suitable channel automatically. 2.4 GHz Protocol This section displays the 2.4GHz protocols your APs are using. 2.4 GHz Channel Bonding There are three options: 20 MHz, 20/40 MHz, and 40 MHz. With this feature enabled, the Wi-Fi system can use two channels at once. Using two channels improves the performance of the Wi-Fi connection. 2.4 GHz Channel This drop-down menu selects the 802.11 channel to be utilized. Available options are from 1 to 11 and from 1 to 13 for the North America region and Europe region, respectively. (Channel 14 is only available when the country is selected as Japan with protocol 802.11b.) If Auto is set, the system will perform channel scanning based on the scheduled time set and choose the most suitable channel automatically. Management VLAN ID This field specifies the VLAN ID to tag to management traffic, such as AP to AP controller communication traffic. The value is 0 by default, meaning that no VLAN tagging will be applied. NOTE: change this value with caution as alterations may result in loss of connection to the AP controller. Power Boost A With this option enabled, the AP under this profile will transmit using additional power. Please note that using this option with several APs in close proximity will lead to increased interference. Output Power A This drop-down menu determines the power at which the AP under this profile will broadcast. When fixed settings are selected, the AP will broadcast at the specified power level, regardless of context. When Dynamic settings are selected, the AP will adjust its power level based on its surrounding APs in order to maximize performance. The Dynamic: Auto setting will set the AP to do this automatically. Otherwise, the Dynamic: Manual setting will set the AP to dynamically adjust only of instructed to do so. If you have set Dynamic:Manual, you can go to AP>Toolbox>Auto Power Adj. to give your AP further instructions. Beacon Rate A This drop-down menu provides the option to send beacons in different transmit bit rates. The bit rates are 1Mbps, 2Mbps, 5.5Mbps, 6Mbps, and 11Mbps. Beacon Interval A This drop-down menu provides the option to set the time between each beacon send. Available options are 100ms, 250ms, and 500ms. DTIM A This field provides the option to set the frequency for beacon to include delivery traffic indication messages (DTIM). The interval unit is measured in milliseconds. Pepwave Routers User Manual http://www.pepwave.com 122 Copyright @ 2015 Pepwave Slot Time A This field provides the option to modify the unit wait time before it transmits. The default value is 9μs. ACK Timeout A This field provides the option to set the wait time to receive acknowledgement packet before doing retransmission. The default value is 48μs. Frame Aggregation A With this feature enabled, throughput will be increased by sending two or more data frames in a single transmission. A - Advanced feature. Click the button on the top right-hand corner to activate. Web Administration Settings Enable Check the box to allow the Pepwave router to manage the web admin access information of the AP. Web Access Protocol These buttons specify the web access protocol used for accessing the web admin of the AP. The two available options are HTTP and HTTPS. Management Port This field specifies the management port used for accessing the device. HTTP to HTTPS Redirection This option will be available if you have chosen HTTPS as the Web Access Protocol. With this enabled, any HTTP access to the web admin will redirect to HTTPS automatically. Admin User Name This field specifies the administrator username of the web admin. It is set as admin by default. Admin Password This field allows you to specify a new administrator password. You may also click the Generate button and let the system generate a random password automatically. Pepwave Routers User Manual http://www.pepwave.com 123 Copyright @ 2015 Pepwave Navigating to AP>Settings on some Pepwave models displays a screen similar to the one shown below: Wi-Fi Radio Settings Operating Country This option sets the country whose regulations the Pepwave router follows. Wi-Fi Antenna Choose from the router's internal or optional external antennas, if so equipped. Important Note Per FCC regulations, the country selection is not available on all models marketed in the US. All US models are fixed to US channels only. Wi-Fi AP Settings Protocol This option allows you to specify whether 802.11b and/or 802.11g client association requests will be accepted. Available options are 802.11ng and 802.11na. By default, 802.11ng is selected. Channel This option allows you to select which 802.11 RF channel will be used. Channel 1 (2.412 GHz) is selected by default. Channel Width Auto (20/40 MHz) and 20 MHz are available. The default setting is Auto (20/40 MHz), which allows both widths to be used simultaneously. Output Power This option is for specifying the transmission output power for the Wi-F…

Text truncated - open the document above for the full version.

Cover Letter(s)

Vicky Yuan

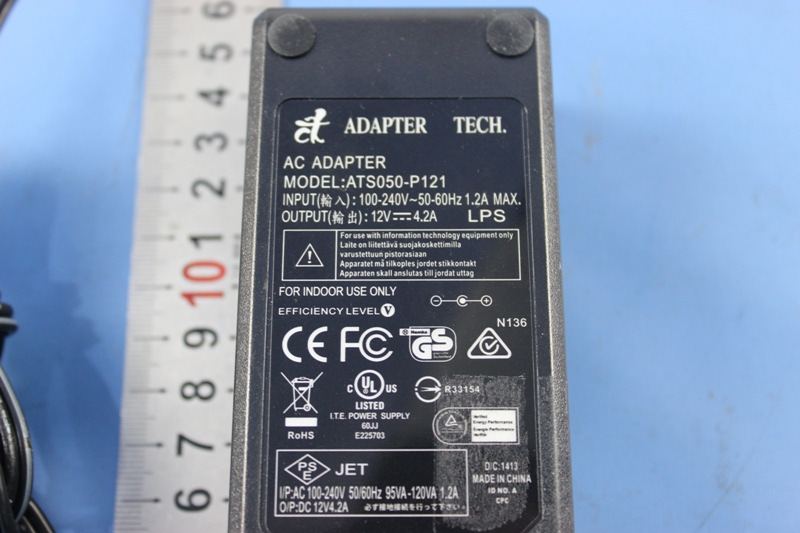

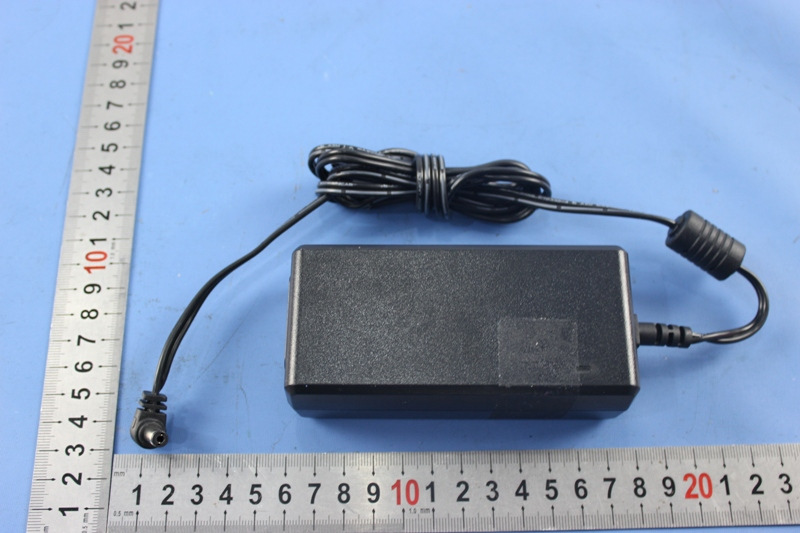

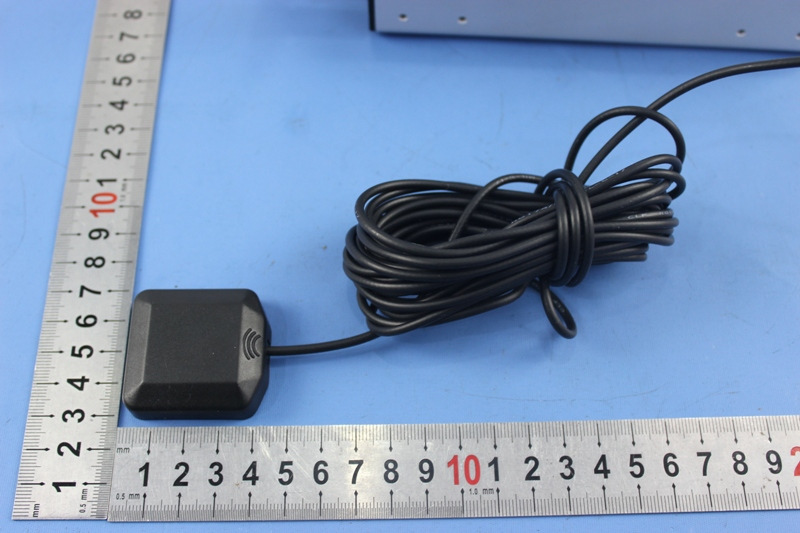

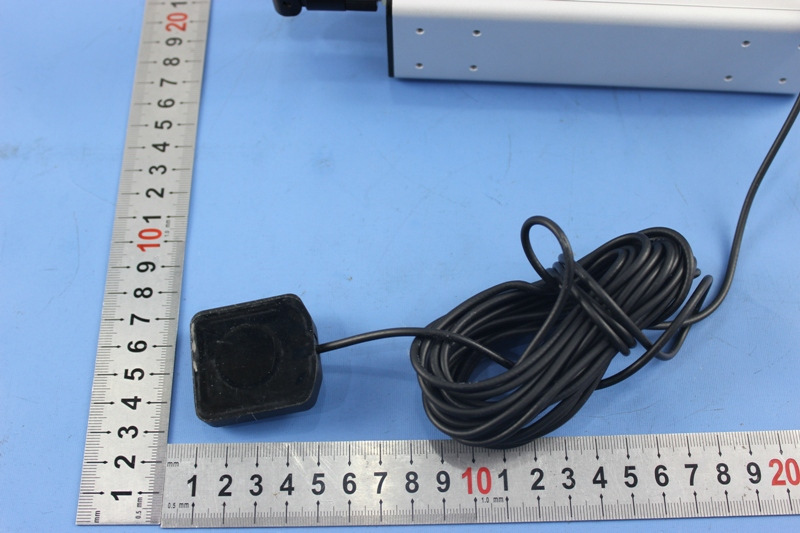

External Photos

1 Photographs - EUT Constructional Details Test model No.: MAX HD4 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Antony Chong(Director of Hardware Engineering)

[email protected]85229907634Fax: 85230070588

Technical Contact

SGS-CSTC Standards Technical Services LtdEmen Li

[email protected]0755-2654-4119

No.1 Workshop, M-10, Middle Section, · Shenzhen · China

Non-Technical Contact

SGS-CSTC Standards Technical Services LtdVicky Yuan

[email protected]0755-25328517

Test Firm

SGS-CSTC Standards Technical Services Co.,Ltd.June Zhang

[email protected]8675525328598Fax: 86075526710594

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	281.00 mW

Confidentiality

Long Term

Grant Notes

Power Output listed is Conducted. Device is an 802.11n device in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. This device is granted for use in Mobile only configurations in which the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 40 cm (without connecting to USB modem) and 65cm (with connecting USB 3G modem-Max. 7W ERP) from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has a 20 MHz and 40 MHz Bandwidth for WLAN function and it contains 5G NII WLAN(2.4G WLAN), transmitters and LTE module and capable to connect USB 3G modem (Max. 7W ERP).
