U8G-P1805Pepwave / Peplink / Pismo Wireless Product

User Manual For Model ONE/20/30/30 LTE/210/310/305/380/580/710/1350/2500 Peplink Balance Firmware 6.1 Copyright & TrademarksSpecifications are subject to c hange without prior notice. Copyright © Peplink In ternational Ltd. All Rights Reserved. Peplink and the Peplink logo are tradema rks of Peplink International Ltd. Other brands or produ cts mentioned may be trademarks or registered trademarks of their respectiv e owners. Peplink Balance Multi-WAN Bonding Routers USER MANUAL Peplink Balance Series http://www.peplink.com -2 / 227- Copyright © Peplink TABLE OF CONTENTS 1 INTRODUCTION AND SCOPE ······························· ··················································· ············6 2 GLOSSARY ············································ ··················································· ···························7 3 PRODUCT COMPARISON CHART ··························· ··················································· ··········8 4 PRODUCT FEATURES ··································· ··················································· ··················12 4.1 Supported Network Features ···························· ··················································· ······ 12 4.2 Other Supported Features ····························· ··················································· ········· 13 5 PACKAGE CONTENTS······································ ··················································· ···············15 5.1 Peplink Balance One ·································· ··················································· ·········· 15 5.2 Peplink Balance 20 / 30 / 30 LTE ····················· ··················································· ········ 15 5.3 Peplink Balance 210 / 310 ···························· ··················································· ·········· 15 5.4 Peplink Balance305 / 380 / 580 / 710 / 1350 / 2500 ··· ··················································· ·· 15 6 PEPLINK BALANCE OVERVIEW ···························· ··················································· ··········16 6.1 Peplink Balance One ·································· ··················································· ·········· 16 6.2 Peplink Balance 20 ··································· ··················································· ············ 18 6.3 Peplink Balance 30 ··································· ··················································· ············ 20 6.4 Peplink Balance 30 LTE ······························· ··················································· ········· 22 6.5 Peplink Balance 210 ·································· ··················································· ··········· 24 6.6 Peplink Balance 310 ·································· ··················································· ··········· 26 6.7 Peplink Balance 305 ·································· ··················································· ··········· 28 6.8 Peplink Balance 380 ·································· ··················································· ··········· 31 6.9 Peplink Balance 580 ·································· ··················································· ··········· 34 6.10 Peplink Balance 710 ·································· ··················································· ········ 37 6.11 Peplink Balance 1350 ································· ··················································· ······· 40 6.12 Peplink Balance 2500 ································· ··················································· ······· 43 7 INSTALLATION········································ ··················································· ·······················47 7.1 Preparation ········································· ··················································· ················ 47 7.2 Constructing the Network ····························· ··················································· ·········· 47 7.3 Configuring the Network Environment ··················· ··················································· ···· 49 8 BASIC CONFIGURATION ·································· ··················································· ··············55 8.1 Connecting to the W eb Admin Interface ················ ··················································· ···· 55 8.2 Configuration with the Setup W izard ··················· ··················································· ······ 56 8.3 Advanced Setup ····································· ··················································· ············· 59 8.4 Cellular WAN ······································· ··················································· ··············· 60 9 CONFIGURING THELAN INTERFACE ···························· ··················································· ···65 10 DROP-IN MODE ······································· ··················································· ······················70 11 CONFIGURING THE WAN INTERFACE(S) ························· ··················································7 3 11.1 Connection Method(s) ································ ··················································· ········ 75 11.2 Physical Interface Settings ·························· ··················································· ········ 82 USER MANUAL Peplink Balance Series http://www.peplink.com -3 / 227- Copyright © Peplink 11.3 WAN Health Check ·································· ··················································· ·········· 83 11.4 Bandwidth Allowance Monitor ·························· ··················································· ···· 86 11.5 Additional Public IP Settings ························· ··················································· ······· 87 11.6 Dynamic DNS Settings ································ ··················································· ······· 88 12 BANDWIDTH BONDING SPEEDFUSION TM ·················································· ·····················…

Text truncated - open the document above for the full version.

USER MANUAL Peplink Balance Series http://www.peplink.com -51 / 227 - Copyright © Peplink your carrier. The default and recommended Operator Settings is Auto . APN / Login / Password / SIM PIN When Auto is selected, the information in these fields will be f illed automatically. Select the option Custom and you may customize these parameters. The parameters values are determined by and can be obtained from the ISP. General Settings DNS Servers Each ISP may provide a set of DNS servers for DNS lookups.T his setting specifies the DNS (Domain Name System) Servers to be used when a DNS lookup is routed through this connection. Selecting Obtain DNS server address automatically results in the DNS Servers assigned by the PPPoE server to be used for outbound DNS lookups over the WAN connection. (The DNS Servers are obtained along with the WAN IP address assigned from the PPPoE server.) When Use the following DNS server address(es) is selected, you can put custom DNS server addresses for this WAN connection into the DNS Server 1 and DNS Server 2 fields. Standby State This option allows you to choose whether to remain the connection connected or disconnected when this WAN connection is no longer in th e highest priority and has entered the standby state. When Remain connected is chosen, upon bringing up this WAN connection to active, it will be immediately avail able for use. Idle Disconnect When Internet traffic is not detected within the user specified timeframe, the modem will automatically disconnect. Once the traffic is resumed by the LAN host, the connection will be re-activated, USER MANUAL Peplink Balance Series http://www.peplink.com -52 / 227 - Copyright © Peplink Health Check Settings Heath Check Method This setting allows you to specify the health check method for the Cellular connection. The as available options are Disabled, Ping, DNS Lookup, HTTP, and SmartCheck The default method is DNS Lookup .See Section for configuration details. Timeout If a health check test cannot be completed within the spe cified amount of time, the test will be treated as failed. Health Check Interval This is the time interval between each health check test. Health Check Retries This is the number of consecutive check failures before tre ating a connection as down. Recovery Retries This is the number of responses required after a health check failure before treating a connection as up again. Dynamic DNS Settings Dynamic DNS Service Provider This setting specifies the dynamic DNS service provider to be used for the WAN based on supported dynamic DNS service providers: · changeip.com · dyndns.org · no-ip.org · tzo.com · DNS-O-Matic Select Disabled to disable this feature.See Section for configuration details. Bandwidth Allowance Settings Bandwidth Allowance Monitor This option allows you to enable bandwidth usage moni toring on this WAN connection for each billing cycle. When this is not enabled, ban dwidth usage of each month is still being tracked but no action will be taken. USER MANUAL Peplink Balance Series http://www.peplink.com -53 / 227 - Copyright © Peplink See Section for configuration details. MTU This setting specifies the Maximum Transmission Unit. By default, MTU is set to Custom 1440. You may adjust the MTU value by editing the text fie ld. Click Default to restore the default MTU value. Select Auto and the appropriate MTU value will be automatically detected. The auto-detection will run each time when t he WAN connection establishes USER MANUAL Peplink Balance Series http://www.peplink.com -54 / 227 - Copyright © Peplink Configuring theLAN Interface. — WAN Configuration For basic configuration, refer to Section , Basic Configuration . For advanced configuration, refer to Section , Configuring the WAN Interface(s) . USER MANUAL Peplink Balance Series http://www.peplink.com -55 / 227 - Copyright © Peplink 8 Basic Configuration 8.1 Connecting to the Web Admin Interface 1. Start a W eb browser on a computer that is connected wi th the Peplink Balance through the LAN. 2. To connect to the W eb Adminof thePeplink Balance, e nter the following LAN IP address in the address field of the web browser: http://192.168.1.1 (This is the default LAN IP address of the Peplink Balance. ) 3. Enter the following to access the W eb Admin Interface. User Name : admin Password : admin (This is the default Admin User login of the Peplink Balance. The Admin and Read-only User Password can be changed at System > Admin Security .) 4. After successful login, the Dashboard of the W eb Admin Interfacewill be displayed. It looks similar to the following: Important Note The Save button causes the changes to be saved. Configuration change s (e.g., WAN, LAN, admin settings, etc.) take effect after clicking the Apply Changes button on each page’s top right corner. USER MANUAL Peplink Balance Series http://www.peplink.com -56 / 227 - Copyright © Peplink 8.2 Configuration with the Setup Wizard The Setup Wizard simplifies the task of configuring WAN c onnection(s) by guiding the configuration process step-by-step. To begin, click Setup Wizard after connecting to theWeb Admin Interface. Click Next to begin. Select YES if you want to set up Drop-in Mode using the setup wizard (note: Drop-in Mode is available on the Peplink Balance 210+). Click on the appropriatecheckbox(es) to select the WAN connection(s) to be configured. If you have chosen to configure Drop-in Mode using thesetup wizard, the box of WAN portthat is to be configured in Drop-in Mode will be checked by default. USER MANUAL Peplink Balance Series http://www.peplink.com -57 / 227 - Copyright © Peplink IfDrop-in Modeis going to be configured, the setup wiza rd will move on to Drop-in Settings . Select the connection type for WAN connection(s) from th e following screen: Depending on the selection of connection type, furt her configuration may be needed.For example,PPPoEand Static IP require additional settingsfor the selected WAN port. Please refer to Section , Configur…

Text truncated - open the document above for the full version.

USER MANUAL Peplink Balance Series http://www.peplink.com -101 / 227 - Copyright © Peplink Send All Traffic To This featureenables you to prioritize the WAN connecti ons used by this VPN profile. 13.2 IPsec Status IPsec Status shows the current connection status ofeac h connection profile and is displayed at Status > IPsec VPN. USER MANUAL Peplink Balance Series http://www.peplink.com -102 / 227 - Copyright © Peplink 14 Outbound Policy Management The Peplink Balance canflexibly manage and load bala nce outbound traffic among WAN connections. Important Note Outbound policy is applied only when more than one WA N connection is active. The settings for managing and load balancing outbound traffic are located at Network> Outbound Policy . Outbound policies for managing and load balancing out bound traffic are located at Network > Outbound Policy>click on USER MANUAL Peplink Balance Series http://www.peplink.com -103 / 227 - Copyright © Peplink 14.1 Outbound Policy There are three main selections for the outbound traffi c policy: — High Application Compatibility — Normal Application Compatibility — Custom Outbound Policy Settings High Application Compatibility Outbound traffic from a source LAN device is routed th rough the same WAN connection regardless of the destination Internet IP address and p rotocol. This option provides the highest application compatibility. Normal Application Compatibility Outbound traffic from a source LAN device to the same d estination Internet IP address will be routed through the same WAN connection persistently ,regardless of protocol. This option provides high compatibility to most applications, and users still benefit from WAN link load balancing when multiple Internet servers are accessed . Custom Outbound traffic behavior can be managed by defining rules in a custom rule table. A default rule can be defined for connections that cannot be matched with any of the rules. The default policy is Normal Application Compatibility . Tip Want to know more about creating outbound rules? Visit our YouTube Channel for a video tutorial! http://youtu.be/rKH4AS_bQnE USER MANUAL Peplink Balance Series http://www.peplink.com -104 / 227 - Copyright © Peplink 14.2 Custom Rules for Outbound Policy Click in the Outbound Policy form.Choose Custom and press the Save button.The followingscreen will then be displayed: The bottom-most rule is Default . Edit this rule to change the device’s default manner ofcontrolling outbound traffic for all connections that donot match any of the rules above it. Under the Service he –– ading, Default to change thesesettings. To rearrange the priority of o utbound rules, drag and drop them into the desired sequence. By default, Auto is selected for as the Default Rule .You can select Custom to change the algorithm to be used. Please refer to the upcoming sections for the de tails onthe available algorithms. To create a custom rule, click Add Rule at the bottom of the table.The following window wil l be displayed: USER MANUAL Peplink Balance Series http://www.peplink.com -105 / 227 - Copyright © Peplink New Custom Rule Settings Service Name This setting specifies the name of the outbound traffic rule. Enable This setting specifies whether the outbound traffic rule takes effect.When Enable is checked, the rule takes effect: traffic is matched and acti ons are takenby the Peplink Balance based on the other parameters of the rule.Whe n Enable is unchecked, the rule does not take effect: the PeplinkBalance disregards the other parameters of the rule. Source This setting specifies the source IP address, IP network, or MAC address for traff ic that matches the rule. Destination This setting specifies the destination IP address, IP net work, or domain name for traffic that matches the rule. If Domain Name is chosen and a domain name, such as foobar.com, is ent ered, any outgoing accesses to foobar.com and *.foobar.com will match this criterion. You may enter a wildcard (.*) at the end of a domain name to match any host with a name having the domain name in the middle. If you enter foobar.*, for example, www.foobar.com , www.foobar.co.jp , or foobar.co.uk will also match. Placing wildcards in any other positi on is not supported. NOTE: if a server has one Internet IP address and multip le server names, and if one of the names is defined here, accesses to any one of the server na mes will also match this rule. Protocol and Port This setting specifies the IP protocol and port of traff ic that matches this rule. You may select common protocols from the Protocol Selection Tool drop-down menu. USER MANUAL Peplink Balance Series http://www.peplink.com -106 / 227 - Copyright © Peplink Algorithm This setting specifies the behavior of the Peplink Balan ce for the custom rule. One of the following values can be selected: — Weighted Balance — Persistence — Enforced — Priority — Overflow — Least Used (not applicable to Balance 20/30/30 LTE) — Lowest Latency (not applicable to Balance 20/30/30 LTE ) The upcoming sections detail the listed algorithms. Terminate Sessions on Link Recovery This setting specifies whether to terminate existing IP sessions on a less preferred WAN connection in the event that a more preferred WAN conne ction is recovered. This setting is applicable to the Weighted,Persistence , and Priority algorithms. By default, this setting is disabled. In this case, existin g IP sessions will not be terminated or affected when any other WAN connection is recovered.Whe n this setting is enabled, existing IP sessions may be terminated when another WAN connection is recovered, such that only the preferred healthy WAN connection(s) isused at any point in time. 14.2.1 Algorithm: Weighted Balance This setting specifies the ratio of WAN connection us age to be applied on the specified IP protocol andport. This setting is applicable only when Algorithm is set to Weighted Balance . The amount of matching traffic that is distributed to a WAN connection is proportional…

Text truncated - open the document above for the full version.

USER MANUAL Peplink Balance Series http://www.peplink.com -151 / 227 - Copyright © 2014 Peplink OSPFv2 / RIPv2 Settings Area ID Determine the name of your Area ID to apply to this group. Machines linked to this group will send and receive related OSPFv2 packets, while unlinked machines will ignore it. Link Type Choose the network type that this area will use. Interfaces Determine which interfaces this area to use to listen to and deliver OSPFv2 packets RIPv2 Settings Interfaces Determine which interfaces this group to use to listen to and deliver RIPv2 packets. USER MANUAL Peplink Balance Series http://www.peplink.com -152 / 227 - Copyright © 2014 Peplink 21 Miscellaneous Settings The miscellaneous settings include configuration for High Availability, PPTP Server, Service Forwarding, and Service Passthrough. 21.1 High Availability (Available on Peplink Balance 210+) Peplink Balance supports High Availability (HA) configurations via an open standard Virtual Router Redundancy Protocol (VRRP, RFC 3768). In an HA configuration, two same-model Peplink Balance units (e.g. a pair of Peplink Balance 210 units, or a pair of Peplink Balance 710 units) provide redundancy and failover in a master-slave arrangement. In the event that the Master Unit is down, the Slave Unit becomes active. High Availability will be disabled automatically where there is a Drop-in connection configured on a LAN Bypass port. The following diagram illustrates an HA configuration with twoPeplink Balance 210 units, and two Internet connections: In the diagram, the WAN ports ofeach Peplink Balance unit connect to the router andto the modem.Both Peplink Balance unitsconnect to the same LAN switch via a LAN port. An elaboration on the technical details of the implementation, by Peplink Balance, of Virtual Router Redundancy Protocol (VRRP, RFC 3768) is as follows:  In an HA configuration, the two Peplink Balance units communicate with each other using VRRP over the LAN.  The two Peplink Balance units broadcast heartbeat signals to the LAN at a frequency of one heartbeat signal per second.  In the event that no heartbeat signal from the Master Peplink Balance unit is received in 3 seconds (or longer) since the last heartbeat signal, the Slave Peplink Balance unit becomes active.  The Slave Peplink Balance unit initiates the WAN connections, and binds to a previously configured LAN IP address.  At a subsequent point when the Master Peplink Balance unit recovers, it will once again become active. You can configure High Availability at the following location:Network>Misc. Settings > High Availability: USER MANUAL Peplink Balance Series http://www.peplink.com -153 / 227 - Copyright © 2014 Peplink Interface for Master Router Interface for Slave Router High Availability Enable Checking this box specifies that the Peplink Balance unit is part of a High Availability configuration. Group Number This number identifies a pair of Peplink Balance units operating in a High Availability configuration.The two Peplink Balance units in the pair must have the same Group Number value. Preferred Role This setting specifies whether the Peplink Balance unit operates in Master or Slave mode. Click the corresponding radio button to set the role of the unit. One of the units in the pair must be configured as the Master and the other unit must be configured as the Slave Resume Master Role Upon Recovery This option is displayed when Master mode is selected in Preferred Role. If this option is enabled, once the device hasrecovered from an outage, it will take over and resume its Master role from the slave unit. Configuration Sync. This option is displayed when Slave mode is selected in Preferred Role. If this option is enabled and the Master Serial Number entered matches with the actual master unit's, the master unit will automatically transfer the configuration to this unit. Please make sure the LAN IP Address and the Subnet Mask fields are set correctly in the LAN Settings page. You can refer to the Event Log for the configuration synchronization status. Master Serial Number If the box Configuration Sync. is checked, the serial number of the Master unit is required here for the feature to work properly. Virtual IP The HA pair must share the same Virtual IP. This Virtual IP and the LAN Administration IP must be under the same network. LAN Administration IP This setting specifies a LAN IP address to be used for accessing administration functionality. This address should be unique within the LAN. Subnet Mask This setting specifies the subnet mask of the LAN. USER MANUAL Peplink Balance Series http://www.peplink.com -154 / 227 - Copyright © 2014 Peplink Important Note For Balance Routers in NAT mode, the Virtual IP (VIP) should be set as the default gateway for all hosts sitting on the LAN segment. For example, a firewall sitting behind the Balance should set its default gateway as the Virtual IP instead of the IP of Master Balance. In Drop-in mode, no other configuration needs to be set. Please note that the Drop-in WAN cannot be configured as a LAN Bypass port while it is configured for High Availability. USER MANUAL Peplink Balance Series http://www.peplink.com -155 / 227 - Copyright © 2014 Peplink 21.2 PPTP Server Peplink Balance has a built-in PPTP Server, which enables remote computers to conveniently and securely access the local network. PPTP server settingsare located at: Network> Misc. Settings > PPTP Server Simply check the box to enable the PPTP server function. All connected PPTP sessions are displayed on the Client List at Status > Client List.Please refer to section 25.3 for details. PPTP Server Setting Listen On This setting is for specifying the WAN connection(s) and IP address(es) that the PPTP server should listen on. Authentication (This option is only applicable on Peplink Balance 305 and 380+.) This setting is for specifying the user database source for PPTP authentication. Three sources can be selected: Local User Accounts, LDAP Se…

Text truncated - open the document above for the full version.

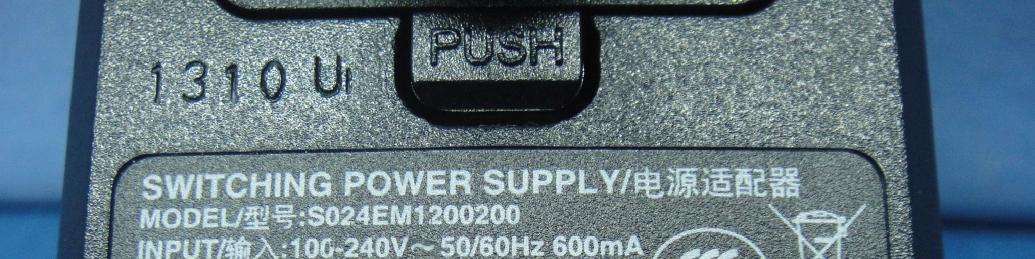

Report No.: 131210E02 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 131210E02 Page 13 Report No.: 131210E02 Page 14

(Fig.1) FCC ID: UG8-P1805 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Back View:

Report No.: 131210E02 Page 2 Report No.: 131210E02 Page 3 Report No.: 131210E02 Page 4 Report No.: 131210E02 Page 5 Report No.: 131210E02 Page 6 Report No.: 131210E02 Page 7 Report No.: 131210E02 Page 8 Report No.: 131210E02 Page 9 Report No.: 131210E02 Page 10 Report No.: 131210E02 Page 11 Report No.: 131210E02 Page 12

Report No.: SA131210E02 1 of 9 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA131210E02 MODEL NO.: Balance One, Balance, MAX, Pismo805 FCC ID: U8G-P1805 RECEIVED: Dec. 10, 2013 TESTED: Feb. 06, 2014 ISSUED: Apr. 02, 2014 APPLICANT: Pismo Labs Technology Limited ADDRESS: FLAT/RM A5, 5/F, HK SPINNERS IND BLDG PHASE 6, 481 CASTLE PEAK ROAD, CHEUNG SHA WAN, HONG KONG. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA131210E02 2 of 9 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN....................................................................................................... 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 7 Report No.: SA131210E02 3 of 9 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA131210E02 Original release Apr. 02, 2014 Report No.: SA131210E02 4 of 9 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Pepwave / Peplink / Pismo Wireless Product BRAND NAME: Pepwave/Peplink / Pismo MODEL NO.: Balance One, Balance, MAX, Pismo805 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Pismo Labs Technology Limited TESTED DATE: Feb. 06, 2014 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: Balance One) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Apr. 02, 2014 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Apr. 02, 2014 ( May Chen, Manager ) Report No.: SA131210E02 5 of 9 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 22cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA131210E02 6 of 9 Report Format Version 5.0.0 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: For 2.4GHz Transmitter Circuit Brand Antenna Type Gain (dBi) (Include cable loss) Connecter Type Cable Length (cm) Frequency range (MHz to MHz) Chain (0) Ant. 1 SmartAnt PIFA 3.73 i-pex 20 2400 ~ 2483.5 Chain (1) Ant. 2 SmartAnt PIFA 4.51 i-pex 20 2400 ~ 2483.5 For 5GHz Transmitter Circuit Brand Antenna Type Gain (dBi) (Include cable loss) Connecter Type Cable Length (cm) Frequency range (MHz to MHz) Chain (0) Ant. 3 SmartAnt PIFA 2.14 i-pex 20 5150 ~ 5250 4.22 5725 ~ 5850 Chain (1) Ant. 4 SmartAnt PIFA 1.85…
