U8G-P1AC1Pepwave / Peplink / Pismo Wireless Product

PISMO LABS TECHNOLOGY LIMITED
Pepwave / Peplink / Pismo Wireless Product - FCC ID U8G-P1AC1 - PISMO LABS TECHNOLOGY LIMITED
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 08, 2015
Application Purpose
Original Equipment
Date of Application
Sep 08, 2015
Equipment Note
Pepwave / Peplink / Pismo Wireless Product
Frequency Range
2412.00000000 - 2462.00000000
Company
PISMO LABS TECHNOLOGY LIMITED
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

β†—

Attestation Statements

β†—

Cover Letter(s)

β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—
β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright Β© 2015 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. Pepwave AP One Series: AP One AC mini / AP One In-Wall / AP One 300M / AP One Flex 300M Pepwave AP Pro Series: AP Pro / AP Pro 300M / AP Pro Duo June 2015 User Manual http://www.pepwave.com 2 Copyright Β© 2015 Pepwave Table of Contents 1 Introduction and Scope.......................................................................................................... 4 2 Product Features and Benefits ............................................................................................ 5 3 Package Contents..................................................................................................................... 6 3.1 AP One AC mini .................................................................................................................... 6 3.2 AP One Enterprise ............................................................................................................... 6 3.3 AP One In-Wall ..................................................................................................................... 6 3.4 AP One 300M ........................................................................................................................ 7 3.5 AP One Flex 300M ............................................................................................................... 7 3.6 AP Pro / AP Pro 300M / AP Pro Duo .............................................................................. 7 4 Hardware Overview ................................................................................................................ 8 4.1 AP One AC mini .................................................................................................................... 8 4.2 AP One Enterprise ............................................................................................................... 9 4.3 AP One In-Wall ................................................................................................................... 11 4.4 AP One 300M ...................................................................................................................... 12 4.5 AP One Flex 300M ............................................................................................................. 13 4.6 AP Pro / AP Pro 300M / AP Pro Duo ............................................................................ 14 5 Installation .............................................................................................................................. 15 5.1 Installation Procedures ................................................................................................... 16 6 Using the Dashboard ............................................................................................................ 17 6.1 General ................................................................................................................................. 17 6.2 AP ........................................................................................................................................... 19 7 Configuration .......................................................................................................................... 21 7.1 System .................................................................................................................................. 21 7.1.1 Admin Security .............................................................................................................. 21 7.1.2 Firmware ......................................................................................................................... 23 7.1.3 Time .................................................................................................................................. 23 7.1.4 Event Log ......................................................................................................................... 24 7.1.5 SNMP ................................................................................................................................. 25 7.1.6 Controller ........................................................................................................................ 27 7.1.7 Configuration ................................................................................................................. 28 7.1.8 Reboot .............................................................................................................................. 29 User Manual http://www.pepwave.com 3 Copyright Β© 2015 Pepwave 7.2 AP ........................................................................................................................................... 29 7.2.1 Wireless SSID.................................................................................................................. 29 7.2.2 Settings............................................................................................................................. 39 7.2.3 WDS ................................................................................................................................... 42 7.3 Network ............................................................................................................................... 43 7.3.1 WAN .................................................................................................................................. 43 7.3.2 LAN .................................................................................................................................... 45 7.3.3 PepVPN ............................................................................................................................. 48 8…

Text truncated - open the document above for the full version.

External Photos

Report No.: 150703E06 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 150703E06 Page 2

ID Label/Location Info

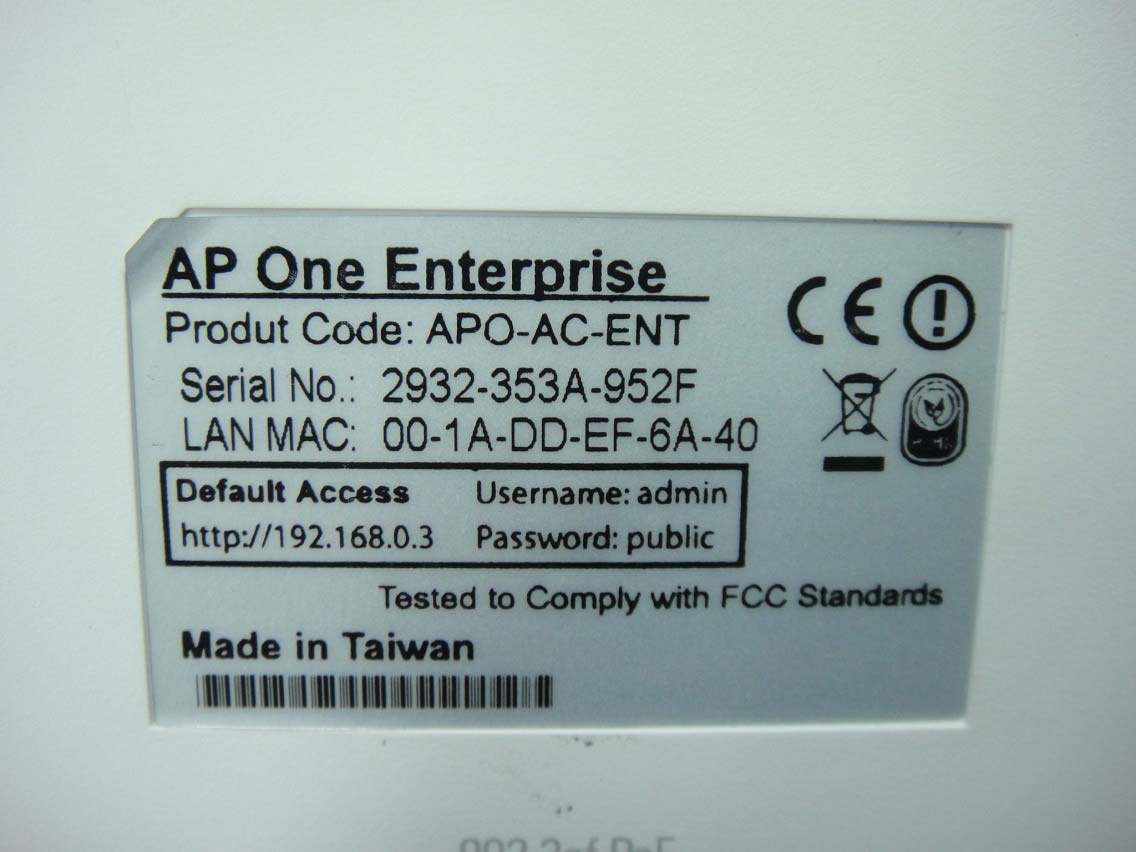

Label location Front view Back view Remarks: The label will be permanently affixed at a conspicuous location on the device. FCC ID: U8G-P1AC1

Internal Photos

Report No.: 150703E06 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 150703E06 Page 2 Report No.: 150703E06 Page 3 Report No.: 150703E06 Page 4 Report No.: 150703E06 Page 5 Report No.: 150703E06 Page 6 Model No.: RFPCA240617IM5B301 Report No.: 150703E06 Page 7 Model No.: RFPCA240617IM5B301 Report No.: 150703E06 Page 8 Report No.: 150703E06 Page 9 Model No.: RFPCA240610IM5B301 Report No.: 150703E06 Page 10 Model No.: RFPCA351710IMAB301 Report No.: 150703E06 Page 11 Report No.: 150703E06 Page 12 Model No.: RFPCA351710IMAB301 Report No.: 150703E06 Page 13 Model No.: RFPCA351710IMAB301 Report No.: 150703E06 Page 14

RF Exposure Info

Report No.: SA150703E06 Page No. 1 / 6 Report Format Version: 6.1.1 Reference No.: RF Exposure Report Report No.: SA150703E06 FCC ID: U8G-P1AC1 Test Model: AP One Enterprise Series Model: Pismo AC1 Received Date: July 03, 2015 Test Date: Aug. 13, 2015 Issued Date: Aug. 24, 2015 Applicant: Pismo Labs Technology Limited Address: FLAT/RM A5, 5/F, HK SPINNERS IND BLDG PHASE 6, 481 CASTLE PEAK ROAD, CHEUNG SHA WAN, HONG KONG. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA150703E06 Page No. 2 / 6 Report Format Version: 6.1.1 Reference No.: Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Calculation Result of Maximum Conducted Power ........................................................................... 6 Report No.: SA150703E06 Page No. 3 / 6 Report Format Version: 6.1.1 Reference No.: Release Control Record Issue No. Description Date Issued SA150703E06 Original release. Aug. 24, 2015 Report No.: SA150703E06 Page No. 5 / 6 Report Format Version: 6.1.1 Reference No.: 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA150703E06 Page No. 6 / 6 Report Format Version: 6.1.1 Reference No.: 3 Calculation Result of Maximum Conducted Power Frequency Band (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 270.521 8.74 20 0.40265 1 5180-5240, 5745-5825 121.128 10.57 20 0.27477 1 Note: 2.4GHz: Directional gain = 10 log[(10 G1/20 + 10 G2/20 + 10 G3/20 ) 2 / 3] = 8.74dBi 5GHz: Directional gain = 10 log[(10 G1/20 + 10 G2/20 + 10 G3/20 ) 2 / 3] = 10.57dBi Conclusion: Both of the 2.4GHz and 5GHz WLAN can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.40265 / 1 + 0.27477 / 1 = 0.677, which is less than β€œ1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---

Test Report

Report No.: RF150703E06 Page No. 1 / 63 Report Format Version: 6.1.1 Reference No.: FCC Test Report Report No.: RF150703E06 FCC ID: U8G-P1AC1 Test Model: AP One Enterprise Series Model: Pismo AC1 Received Date: July 03, 2015 Test Date: Aug. 13 to 17, 2015 Issued Date: Aug. 24, 2015 Applicant: Pismo Labs Technology Limited Address: FLAT/RM A5, 5/F, HK SPINNERS IND BLDG PHASE 6, 481 CASTLE PEAK ROAD, CHEUNG SHA WAN, HONG KONG. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150703E06 Page No. 2 / 63 Report Format Version: 6.1.1 Reference No.: Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................. 10 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 13 3.4 Description of Support Units ............................................................................................................. 14 3.4.1 Configuration of System under Test .................................................................................................. 15 3.5 General Description of Applied Standards ........................................................................................ 16 4 Test Types and Results ...................................................................................................................... 17 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 17 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 17 4.1.2 Test Instruments ................................................................................................................................ 18 4.1.3 Test Procedures ................................................................................................................................. 20 4.1.4 Deviation from Test Standard ............................................................................................................ 20 4.1.5 Test Setup .......................................................................................................................................... 21 4.1.6 EUT Operating Conditions ................................................................................................................. 21 4.1.7 Test Results ....................................................................................................................................... 22 4.2 Conducted Emission Measurement .................................................................................................. 35 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 35 4.2.2 Test Instrum…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF150703E06-1 Page No. 1 / 61 Report Format Version:6.1.1 Reference No.: FCC Test Report Report No.: RF150703E06-1 FCC ID: U8G-P1AC1 Test Model: AP One Enterprise Series Model: Pismo AC1 Received Date: July 03, 2015 Test Date: Aug. 13 to 17, 2015 Issued Date: Aug. 24, 2015 Applicant: Pismo Labs Technology Limited Address: FLAT/RM A5, 5/F, HK SPINNERS IND BLDG PHASE 6, 481 CASTLE PEAK ROAD, CHEUNG SHA WAN, HONG KONG. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150703E06-1 Page No. 2 / 61 Report Format Version:6.1.1 Reference No.: Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................. 10 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 13 3.4 Description of Support Units ............................................................................................................. 14 3.4.1 Configuration of System under Test .................................................................................................. 15 3.5 General Description of Applied Standard .......................................................................................... 16 4 Test Types and Results ...................................................................................................................... 17 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 17 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 17 4.1.2 Test Instruments ................................................................................................................................ 18 4.1.3 Test Procedures ................................................................................................................................. 20 4.1.4 Deviation from Test Standard ............................................................................................................ 20 4.1.5 Test Setup .......................................................................................................................................... 21 4.1.6 EUT Operating Conditions ................................................................................................................. 21 4.1.7 Test Results ....................................................................................................................................... 22 4.2 Conducted Emission Measurement .................................................................................................. 41 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 41 4.2.2 Test In…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 150703E06 1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 150703E06 2 RADIATED EMISSION TEST (Below 1GHz) Report No.: 150703E06 3 RADIATED EMISSION TEST (Above 1GHz)

Contact Information

Applicant

Antony Chong(Director of Hardware Engineering)
[email protected]85229907634Fax: 85230070588

Test Firm

Bureau Veritas CPS (H.K.) Ltd., Taoyuan BranchRichard Chen
[email protected]+886-3-2600884Fax: +886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz271.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. This device has 20 MHz and 40 MHz bandwidth mode.
