Copyright & Trademarks Specifications are subject to change without notice. Copyright © 2020 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. Pepwave MAX User Manual Pepwave Products: MAX BR1 5G Pepwave Firmware 8.1.1 April 2021 https://www.peplink.com 1 Copyright @ 2021 Pepwave TTable of Contents Introduction and Scope 7 Glossary 8 Product Features 9 Supported Network Features 9 WAN 9 LAN 10 VPN 10 Firewall 10 Captive Portal 10 Outbound Policy 10 AP Controller 11 QoS 11 Other Supported Features 12 Pepwave MAX Mobile Router Overview 13 BR1 5G 13 Advanced Feature Summary 14 Drop-in Mode and LAN Bypass: Transparent Deployment 14 QoS: Clearer VoIP 14 Per-User Bandwidth Control 15 High Availability via VRRP 15 USB Modem and Android Tethering 16 Built-In Remote User VPN Support 16 SIM-card USSD support 17 DPI Engine 17 NetFlow 17 Wi-Fi Air Monitoring 18 Installation 19 Preparation 19 Constructing the Network 19 Configuring the Network Environment 20 Mounting the Unit 21 Wall Mount 21 Car Mount 21 https://www.peplink.com 2 Copyright @ 2021 Pepwave IP67 Installation Guide 21 Connecting to the Web Admin Interface 22 SpeedFusion Cloud 24 Activate SpeedFusion Cloud Service 24 Enable SpeedFusion Cloud 27 Connect Clients to Cloud 34 Link Wi-Fi to Cloud 35 Optimize Cloud Application 37 Configuring the LAN Interface(s) 38 Basic Settings 38 Port Settings 50 Captive Portal 51 Configuring the WAN Interface(s) 54 Ethernet WAN 54 DHCP Connection 57 Static IP Connection 58 PPPoE Connection 58 L2TP Connection 60 Cellular WAN 62 Wi-Fi WAN 67 Creating Wi-Fi Connection Profiles 73 WAN Health Check 74 Dynamic DNS Settings 77 Advanced Wi-Fi Settings 79 ContentHub Configuration 83 ContentHub 83 Configuring the ContentHub 83 Configure a website to be published from the ContentHub 83 Configure an application to be published from the ContentHub 86 MediaFast Configuration 88 Setting Up MediaFast Content Caching 88 Scheduling Content Prefetching 89 Viewing MediaFast Statistics 91 Bandwidth Bonding SpeedFusionTM / PepVPN 93 PepVPN 93 https://www.peplink.com 3 Copyright @ 2021 Pepwave The Pepwave Router Behind a NAT Router 99 IPsec VPN 102 IPsec VPN Settings 102 Outbound Policy 107 Outbound Policy 107 Adding Rules for Outbound Policy 109 Algorithm: Weighted Balance 113 Algorithm: Persistence 114 Algorithm: Enforced 115 Algorithm: Priority 115 Algorithm: Overflow 116 Algorithm: Least Used 117 Algorithm: Lowest Latency 117 Expert Mode 117 Port Forwarding 119 UPnP / NAT-PMP Settings 120 NAT Mappings 122 QoS 124 User Groups 124 Bandwidth Control 124 Application 125 Application Prioritization 125 Prioritization for Custom Applications 125 DSL/Cable Optimization 126 Firewall 127 Outbound and Inbound Firewall Rules 128 Access Rules 128 Apply Firewall Rules to PepVpn Traffic 132 Intrusion Detection and DoS Prevention 132 Content Blocking 133 Application Blocking 133 Web Blocking 133 Customized Domains 134 Exempted User Groups 134 Exempted Subnets 134 URL Logging 134 https://www.peplink.com 4 Copyright @ 2021 Pepwave Routing Protocols 135 OSPF & RIPv2 135 BGP 137 Remote User Access 141 L2TP with IPsec 141 OpenVPN 141 PPTP 142 Authentication Methods 142 Miscellaneous Settings 144 High Availability 144 Certificate Manager 147 Service Forwarding 148 SMTP Forwarding 148 Web Proxy Forwarding 149 DNS Forwarding 150 Custom Service Forwarding 150 Service Passthrough 150 UART 152 GPS Forwarding 154 Ignition Sensing 154 Ignition Sensing installation 155 GPIO Menu 157 NTP Server 157 Grouped Networks 158 Remote SIM Management 158 SIM Toolkit 159 AP 162 AP Controller 162 Wireless SSID 162 Wireless Mesh 166 Settings 167 AP Controller Status 173 Info 173 Access Point (Usage) 175 Wireless SSID 177 Mesh / WDS 178 Wireless Client 179 https://www.peplink.com 5 Copyright @ 2021 Pepwave Nearby Device 180 Event Log 181 Toolbox 182 System Settings 183 Admin Security 183 Firmware 186 Web admin interface : automatically check for updates 186 Web admin interface : install updates manually 187 The InControl method 188 Time 189 Schedule 189 Email Notification 190 Event Log 193 SNMP 194 SMS Control 197 InControl 198 Configuration 198 Feature Add-ons 199 Reboot 200 Tools 201 Ping 201 Traceroute Test 202 PepVPN Test 202 Wake-on-LAN 203 CLI (Command Line Interface Support) 203 Status 204 Device 204 GPS Data 206 Active Sessions 206 Client List 208 WINS Client 209 UPnP / NAT-PMP 209 OSPF & RIPv2 210 BGP 210 SpeedFusion Status 211 Event Log 213 WAN Quality 215 https://www.peplink.com 6 Copyright @ 2021 Pepwave Usage Reports 216 Real-Time 216 Hourly 217 Daily 217 Monthly 218 Appendix A: Restoration of Factory Defaults 221 Appendix B: Declaration 221 https://www.peplink.com 7 Copyright @ 2021 Pepwave Introduction and Scope Pepwave routers provide link aggregation and load balancing across multiple WAN connections, allowing a combination of technologies like 3G HSDPA, EVDO, 4G LTE, Wi-Fi, external WiMAX dongle, and satellite to be utilized to connect to the Internet. The MAX wireless SD-WAN router series has a wide range of products suitable for many different deployments and markets. Entry level SD-WAN models such as the MAX BR1 are suitable for SMEs or branch offices. High-capacity SD-WAN routers such as the MAX HD2 are suitable for larger organizations and head offices. This manual covers setting up Pepwave routers and provides an introduction to their features and usage. Tips Want to know more about Pepwave routers? Visit our YouTube Channel for a video introduction! https://youtu.be/13M-JHRAICA https://www.peplink.com 8 Copyright @ 2021 Pepwave Glossary The following terms, acronyms, and abbreviations are frequently used in this manual: Term Definition 3G 3rd generation standards for wireless communications (e.g., HSDPA) 4G 4th generation standards for wireless communications (e.g., LTE) DHCP Dynamic Host Configur…

Text truncated - open the document above for the full version.

https://www.peplink.com 92 Copyright @ 2021 Pepwave https://www.peplink.com 93 Copyright @ 2021 Pepwave 13 Bandwidth Bonding SpeedFusion TM / PepVPN Pepwave bandwidth bonding SpeedFusion TM is our patented technology that enables our SD- WAN routers to bond multiple Internet connections to increase site-to-site bandwidth and reliability. SpeedFusion functionality securely connects your Pepwave router to another Pepwave or Peplink device (Peplink Balance 210/310/380/580/710/1350 only). Data, voice, or video communications between these locations are kept confidential across the public Internet. Bandwidth bonding SpeedFusion TM is specifically designed for multi-WAN environments. In case of failures and network congestion at one or more WANs, other WANs can be used to continue carrying the network traffic. Different models of our SD-WAN routers have different numbers of site-to-site connections allowed. End-users who need to have more site-to-site connections can purchase a SpeedFusion license to increase the number of site-to-site connections allowed. Pepwave routers can aggregate all WAN connections’ bandwidth for routing SpeedFusion TM traffic. Unless all the WAN connections of one site are down, Pepwave routers can keep the VPN up and running. VPN bandwidth bonding is supported in Firmware 5.1 or above. All available bandwidth will be utilized to establish the VPN tunnel, and all traffic will be load balanced at packet level across all links. VPN bandwidth bonding is enabled by default. 13 . 1 PepVPN To configure PepVPN and SpeedFusion, navigate to Advanced>SpeedFusion™ or https://www.peplink.com 94 Copyright @ 2021 Pepwave Advanced>PepVPN. The local LAN subnet and subnets behind the LAN (defined under Static Route on the LAN settings page) will be advertised to the VPN. All VPN members (branch offices and headquarters) will be able to route to local subnets. Note that all LAN subnets and the subnets behind them must be unique. Otherwise, VPN members will not be able to access each other. All data can be routed over the VPN using the 256-bit AES encryption standard. To configure, navigate to Advanced>SpeedFusion™ or Advanced>PepVPN and click the New Profile button to create a new VPN profile (you may have to first save the displayed default profile in order to access the New Profile button). Each profile specifies the settings for making VPN connection with one remote Pepwave or Peplink device. Note that available settings vary by model. A list of defined SpeedFusion connection profiles and a Link Failure Detection Time option will be shown. Click the New Profile button to create a new VPN connection profile for making a VPN connection to a remote Pepwave or Peplink device via the available WAN connections. Each profile is for making a VPN connection with one remote Pepwave or Peplink Device. https://www.peplink.com 95 Copyright @ 2021 Pepwave PepVPN Profile Settings Name This field is for specifying a name to represent this profile. The name can be any combination of alphanumeric characters (0-9, A-Z, a-z), underscores (_), dashes (-), and/or non-leading/trailing spaces ( ). Active When this box is checked, this VPN connection profile will be enabled. Otherwise, it will be disabled. Encryption By default, VPN traffic is encrypted with 256-bit AES. If Off is selected on both sides of a VPN connection, no encryption will be applied. Authentication Select from By Remote ID Only, Preshared Key, or X.509 to specify the method the Pepwave MAX will use to authenticate peers. When selecting By Remote ID Only, be sure to enter a unique peer ID number in the Remote ID field. Remote ID / Pre-shared Key This optional field becomes available when Remote ID / Pre-shared Key is selected as the Pepwave router’s VPN Authentication method, as explained above. Pre-shared Key defines the pre-shared key used for this particular VPN connection. The VPN connection's session key will be further protected by the pre- shared key. The connection will be up only if the pre-shared keys on each side match. When the peer is running firmware 5.0+, this setting will be ignored. Enter Remote IDs either by typing out each Remote ID and Pre-shared Key, or by pasting a CSV. If you wish to paste a CSV, click the icon next to the “Remote ID / Preshared Key” setting. Remote ID/Remote These optional fields become available when X.509 is selected as the Pepwave MAX’s VPN authentication method, as explained above. To authenticate VPN https://www.peplink.com 96 Copyright @ 2021 Pepwave Certificate connections using X.509 certificates, copy and paste certificate details into these fields. To get more information on a listed X.509 certificate, click the Show Details link below the field. Allow Shared Remote ID When this option is enabled, the router will allow multiple peers to run using the same remote ID. NAT Mode Check this box to allow the local DHCP server to assign an IP address to the remote peer. When NAT Mode is enabled, all remote traffic over the VPN will be tagged with the assigned IP address using network address translation. Remote IP Address / Host Names (Optional) If NAT Mode is not enabled, you can enter a remote peer’s WAN IP address or hostname(s) here. If the remote uses more than one address, enter only one of them here. Multiple hostnames are allowed and can be separated by a space character or carriage return. Dynamic-DNS host names are also accepted. This field is optional. With this field filled, the Pepwave MAX will initiate connection to each of the remote IP addresses until it succeeds in making a connection. If the field is empty, the Pepwave MAX will wait for connection from the remote peer. Therefore, at least one of the two VPN peers must specify this value. Otherwise, VPN connections cannot be established. Cost Define path cost for this profile. OSPF will determine the best route through the network using the assigned cost. Default: 10 Data Port This field is used to specify a UDP port number for …

Text truncated - open the document above for the full version.

https://www.peplink.com 175 Copyright @ 2021 Pepwave 24 .2 Access Point (Usag e) A detailed breakdown of data usage for each AP is available at AP > Controller Status > Access Point. Usage AP Name/Serial Number This field enables you to quickly find your device if you know its name or serial number. Fill in the field to begin searching. Partial names and serial numbers are supported. Online Status This button toggles whether your search will include offline devices. Managed Wireless Devices This table shows the detailed information on each AP, including channel, number of clients, upload traffic, and download traffic. Click the blue arrows at the left of the table to expand and collapse information on each device group. You could also expand and collapse all groups by using the buttons. On the right of the table, you will see the following icons: . Click the icon to see a usage table for each client: Click the icon to configure each client https://www.peplink.com 176 Copyright @ 2021 Pepwave For easier network management, you can give each client a name and designate its location. You can also designate which firmware pack (if any) this client will follow, as well as the channels on which the client will broadcast. Click the icon to see a graph displaying usage: Click any point in the graphs to display detailed usage and client information for that device, using that SSID, at that point in time. On the Data Usage by menu, you can display the information by SSID or by AP send/receive rate. Click the Event tab next to Wireless Usage to view a detailed event log for that particular device: https://www.peplink.com 177 Copyright @ 2021 Pepwave 24 .3 Wireless SSID In-depth SSID reports are available under AP > Controller Status > Wireless SSID. Click the blue arrow on any SSID to obtain more detailed usage information on each SSID. https://www.peplink.com 178 Copyright @ 2021 Pepwave 24 .4 Me sh / W DS Mesh / WDS allows you to monitor the status of your wireless distribution system (WDS) or Mesh, and track activity by MAC address by navigating to AP > Controller Status > Mesh / WDS. This table shows the detailed information of each AP, including protocol, transmit rate (sent / received), signal strength, and duration. https://www.peplink.com 179 Copyright @ 2021 Pepwave 24 .5 W ire le s s Clie n t You can search for specific Wi-Fi users by navigating to AP > Controller Status > Wireless Client. Here, you will be able to see your network’s heaviest users as well as search for specific users. Click the icon to bookmark specific users, and click the icon for additional details about each user: https://www.peplink.com 180 Copyright @ 2021 Pepwave 24 .6 Ne arb y De vice A listing of near devices can be accessed by navigating to AP > Controller Status > Nearby https://www.peplink.com 181 Copyright @ 2021 Pepwave Device. Suspected Rogue Devices Hovering over the device MAC address will result in a popup with information on how this device was detected. Click the icons and the device will be moved to the bottom table of identified devices. 24 .7 Eve n t Lo g You can access the AP Controller Event log by navigating to AP > Controller Status > Event Log. https://www.peplink.com 182 Copyright @ 2021 Pepwave Events This event log displays all activity on your AP network, down to the client level. Use to filter box to search by MAC address, SSID, AP Serial Number, or AP Profile name. Click View Alerts to see only alerts, and click the More... link for additional records. 25 Toolbox Tools for managing firmware packs can be found at AP>Toolbox. Firmware Packs Here, you can manage the firmware of your AP. Clicking on will result in information regarding each firmware pack. To receive new firmware packs, you can click Check for Updates to download new packs, or you can click Manual Upload to manually upload a firmware pack. Click Default to define which firmware pack is default. https://www.peplink.com 183 Copyright @ 2021 Pepwave 26 Syst e m Se t tin g s 26.1 Ad m in Se c u rit y There are two types of user accounts available for accessing the web admin: admin and user. They represent two user levels: the admin level has full administrative access, while the user level is read-only. The user level can access only the device's status information; users cannot make any changes on the device. A web login session will be logged out automatically when it has been idle longer than the Web Session Timeout. Before the session expires, you may click the Logout button in the web admin to exit the session. 0 hours 0 minutes signifies an unlimited session time. This setting should be used only in special situations, as it will lower the system security level if users do not log out before closing the browser. The default is 4 hours, 0 minutes. For security reasons, after logging in to the web admin Interface for the first time, it is recommended to change the administrator password. Configuring the administration interface to be accessible only from the LAN can further improve system security. Administrative settings configuration is located at System>Admin Security. https://www.peplink.com 184 Copyright @ 2021 Pepwave Admin Settings Router Name This field allows you to define a name for this Pepwave router. By default, Router Name is set as MAX_XXXX, where XXXX refers to the last 4 digits of the unit’s serial number. Admin User Name Admin User Name is set as admin by default, but can be changed, if desired. Admin Password This field allows you to specify a new administrator password. Confirm Admin Password This field allows you to verify and confirm the new administrator password. Read-only User Name Read-only User Name is set as user by default, but can be changed, if desired. User Password This field allows you to specify a new user password. Once the user password is set, the read-only user feature will be enabled. Confirm User Password This field allows you to verify and confirm the new user password. Web Session Ti…

Text truncated - open the document above for the full version.

PISMO LABS TECHNOLOGY LIMITED A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong Tel: +852 2990 7600; Fax: +852 3007 0588 Date: May 26, 2021 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: U8G-P1AX02 To Whom It May Concern, Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: _____________________ Antony Chong Director of Hardware Engineering [email protected] ●Block Diagrams ●Schematics ●Operational Description The above materials contai n trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application.

PISMO LABS TECHNOLOGY LIMITED A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong Tel: +852 2990 7600; Fax: +852 3007 0588 Date: May 26, 2021 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: U8G-P1AX02 To Whom It May Concern, Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: _____________________ Antony C hong Director of Hardware Engineering [email protected] ●External Photos ●Internal Photos ●Test Setup photos ●Users Manuals

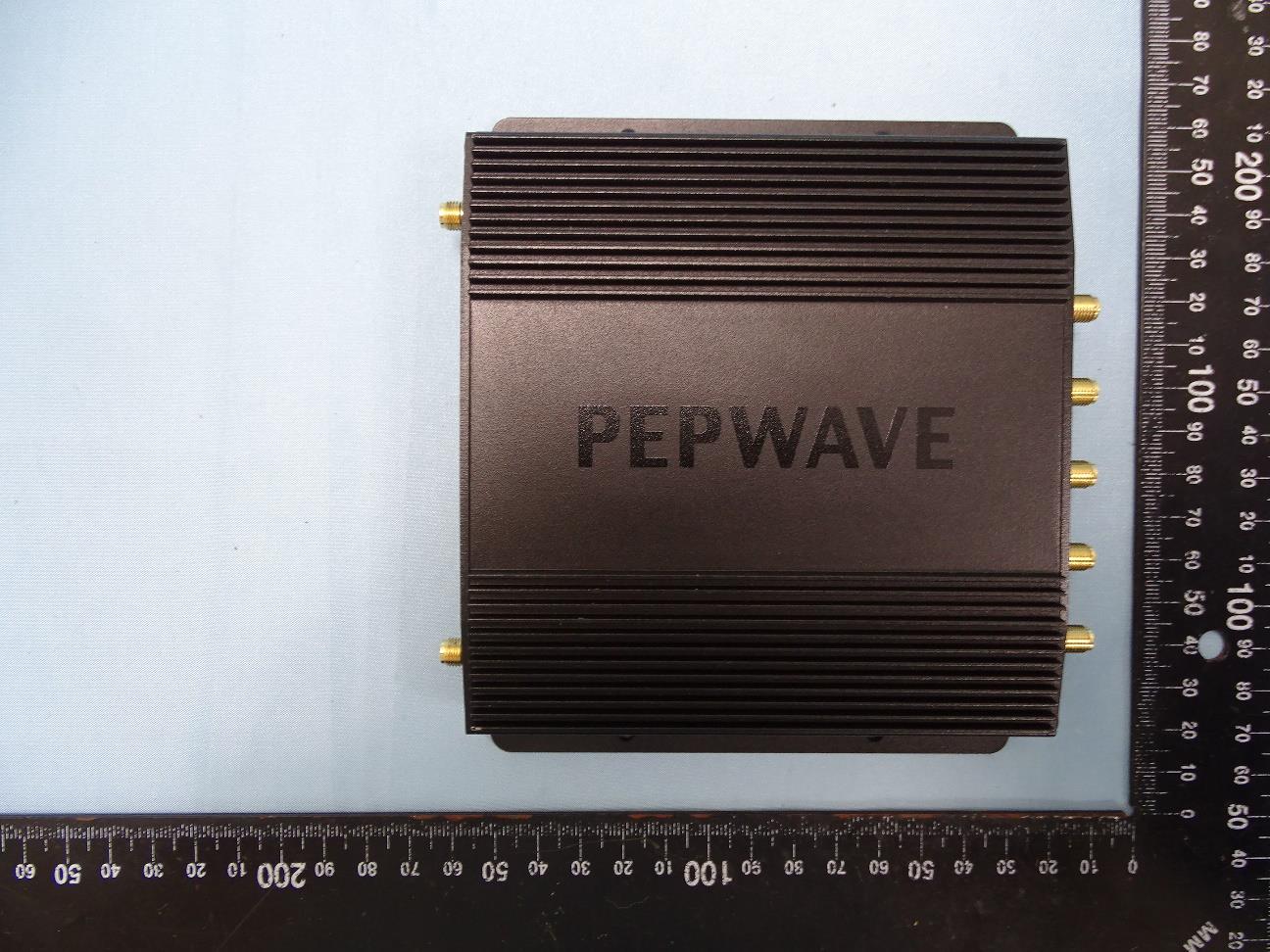

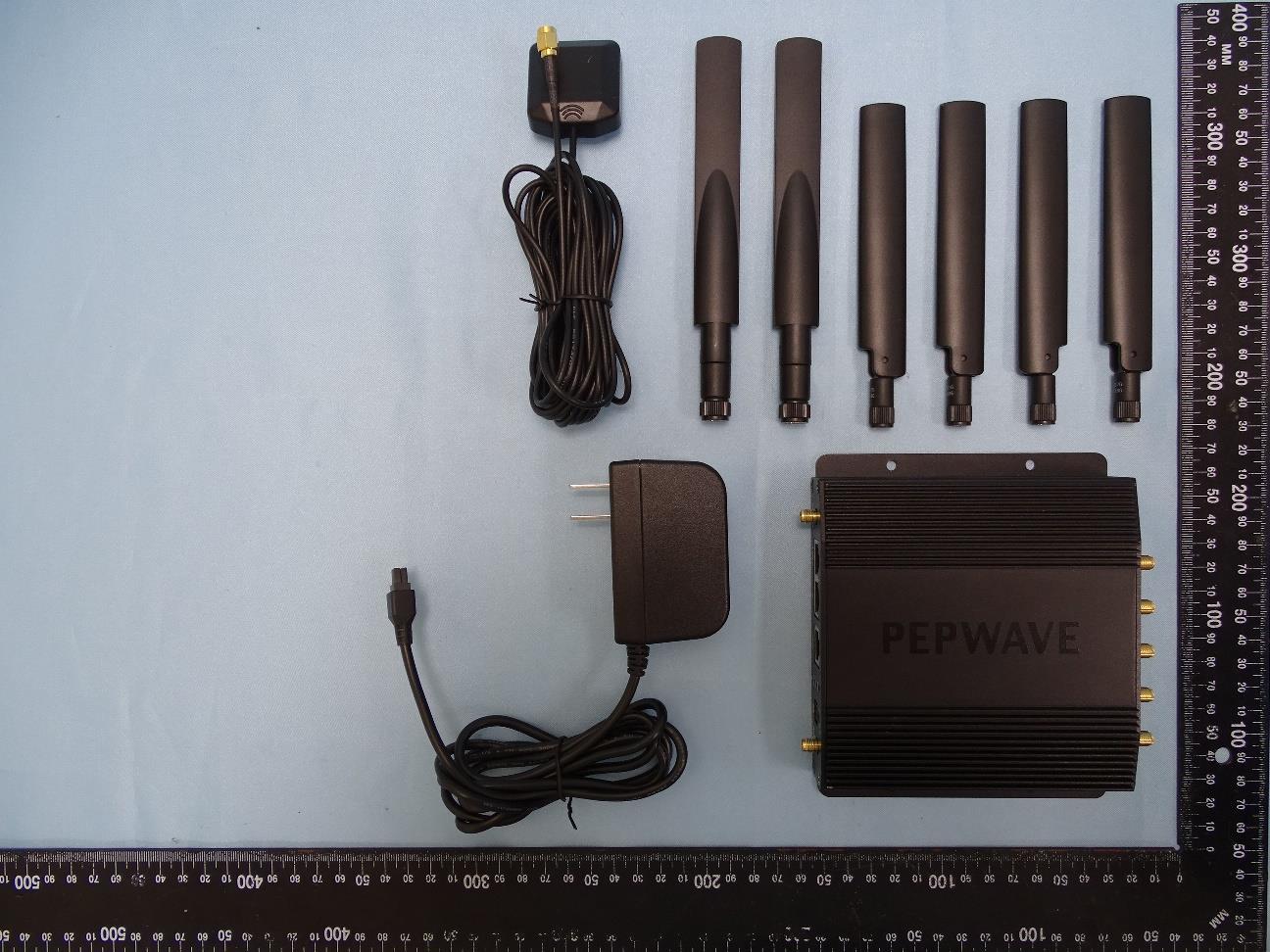

PHOTOGRAPHS OF EUT Report No.: EP131219 TEL : 886-3-327-3456 Page Number : 1 of 9 FAX : 886-3-328-4978 Issued Date : May 25, 2021 Report Version : 01 1. External Photograph of EUT Brand Name: PEPWAVE / peplink Model Name: MAX BR1 5G MAX-BR1-5GD-T MAX-BR1-5GH-T PHOTOGRAPHS OF EUT Report No.: EP131219 TEL : 886-3-327-3456 Page Number : 2 of 9 FAX : 886-3-328-4978 Issued Date : May 25, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP131219 TEL : 886-3-327-3456 Page Number : 3 of 9 FAX : 886-3-328-4978 Issued Date : May 25, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP131219 TEL : 886-3-327-3456 Page Number : 4 of 9 FAX : 886-3-328-4978 Issued Date : May 25, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP131219 TEL : 886-3-327-3456 Page Number : 5 of 9 FAX : 886-3-328-4978 Issued Date : May 25, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP131219 TEL : 886-3-327-3456 Page Number : 6 of 9 FAX : 886-3-328-4978 Issued Date : May 25, 2021 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP131219 TEL : 886-3-327-3456 Page Number : 7 of 9 FAX : 886-3-328-4978 Issued Date : May 25, 2021 Report Version : 01 2. Photograph of Accessory Brand Name: PEPWAVE / peplink Model Name: MAX BR1 5G MAX-BR1-5GD-T MAX-BR1-5GH-T Specification of Accessory AC Adapter Brand Name DVE Model Name DSA-24PFS-12 FUS 120200 WWAN Antenna Brand Name Master Wave Model Name 98619ZSAX053 WLAN Antenna Brand Name Master Wave Model Name 98614PRSX000 GPS Antenna Brand Name Master Wave Model Name 98335KSAF000 WWAN Module 1 Brand Name Sierra wireless Model Name EM9191 WWAN Module 2 Brand Name THALES DIS AIS Model Name MV31-W Remark: For accessories equipped with this EUT, please refer to the following photos. PHOTOGRAPHS OF EUT Report No.: EP131219 TEL : 886-3-327-3456 Page Number : 8 of 9 FAX : 886-3-328-4978 Issued Date : May 25, 2021 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP131219 TEL : 886-3-327-3456 Page Number : 9 of 9 FAX : 886-3-328-4978 Issued Date : May 25, 2021 Report Version : 01 ─────THE END──── AC Adapter
