C OPYRIGHT & T RADEMARKS Specifications are subject to change without notice. Copyright © 2020 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. 8 AP Use the controls on the AP tab to set the wireless SSID and AP settings, as well as wireless distribution system (WDS) settings. 8.1 Wireless SSID Wireless network settings, including the name of the network (SSID) and security policy, can be defined and managed in this section. Click New SSID to create a new network profile, or click the existing network profile to modify its settings. SSID Settings Enable Check this box to enable wireless SSID. Radio Selection Available only on the AP One AC mini, this setting, shown below, allows you to C OPYRIGHT & T RADEMARKS Specifications are subject to change without notice. Copyright © 2020 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. enable or disable either of the two on-board radios. Band Steering This setting, shown below, allows you to reduce 2.4 GHz band overcrowding, AP with band steering steers clients capable of 5 GHz operation to 5 GHz frequency. Force - Clients capable of 5 GHz operation are only offered with 5 GHz frequency. Prefer - Clients capable of 5 GHz operation are encouraged to associate with 5 GHz frequency. If the clients insist to attempt on 2.4 GHz frequency, 2.4 GHz frequency will be offered. Default: Disable SSID This setting specifies the AP SSID that Wi-Fi clients will see when scanning. Broadcast SSID This setting specifies whether or not Wi-Fi clients can scan the SSID of this wireless network. Broadcast SSID is enabled by default. Data Rate Select Auto to allow your access point to set the data rate automatically, or select Fixed and choose a rate from the drop-down menu. Click the MCS Index link to display a reference table containing MCS and matching HT20 and HT40 values. Multicast Filter This setting enables the filtering of multicast network traffic to the wireless SSID. Multicast Rate This setting specifies the transmit rate to be used for sending multicast network traffic. IGMP Snooping To allow your access point to convert multicast traffic to unicast traffic for associated clients, select this option. DHCP Setting To set your access point as a DHCP server or relay, select Server or Relay. Otherwise, select None. DHCP Option 82 If you use a distributed DHCP server/relay environment, you can enable this option to provide additional information on the manner in which clients are physically connected to the network. Default VLAN ID This setting specifies the VLAN ID to be tagged on all outgoing packets generated from this wireless network (i.e., packets that travel from the Wi-Fi segment through your access point to the Ethernet segment via the LAN port). If 802.1x is enabled and a per-user VLAN ID is specified in authentication reply from the Radius server, then the value specified by Default VLAN ID will be overridden. The default value of this setting is 0, which means VLAN tagging is disabled (instead of tagged with zero). VLAN Pooling Check this box to enable VLAN pooling using the values specified in VLAN Pool. VLAN Pool If VLAN pooling is enabled, enter VLAN pool values separated by commas. Network Priority (QoS) Select from Gold, Silver, and Bronze to control the QoS priority of this wireless network traffic. C OPYRIGHT & T RADEMARKS Specifications are subject to change without notice. Copyright © 2020 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. Layer 2 Isolation Refers to the second layer in the ISO Open System Interconnect model. When this option is enabled, clients on the same VLAN, SSID, or subnet are isolated to that VLAN, SSID, or subnet, which can enhance security. Traffic is passed to the upper communication layer(s). By default, the setting is disabled. Maximum Number of Clients The maximum number of clients that can simultaneously connect to your access point, or enter 0 to allow unlimited Wi-Fi clients. Security Settings Security Policy This setting configures the wireless authentication and encryption methods. Available options are Open (No Encryption), WPA2 – Personal, WPA2 – Enterprise, WPA/WPA2 - Personal, and WPA/WPA2 – Enterprise. To allow any Wi-Fi client to access your AP without authentication, select Open (No Encryption). Details on each of the available authentication methods follow. WPA2 – Personal Passphrase Enter a passphrase of between 8 and 63 alphanumeric characters to create a passphrase used for data encryption and authentication. Click Hide / Show Passphrase to toggle visibility. Fast Transition Fast Transition [802.11r] The transition process of a mobile client as it moves between access points is improved when this option is ticked. C OPYRIGHT & T RADEMARKS Specifications are subject to change without notice. Copyright © 2020 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. WPA2 – Enterprise 802.1X Version Choose v1 or v2 of the 802.1x EAPOL. When v1 is selected, both v1 and v2 clients can associate with the access point. When v2 is selected, only v2 clients can associate with the access point. Most modern wireless clients support v2. For stations that do not support v2, select v1. The default is v2. WPA/WPA2 – Personal Passphrase Enter a passphrase of between 8 and 63 alphanumeric characters to create a passphrase used for data encryption and authentication. Click Hide / Show Passphrase to toggle visibility. WPA/WPA2 – Enterprise 802.1X V…

Text truncated - open the document above for the full version.

C OPYRIGHT & T RADEMARKS Specifications are subject to change without notice. Copyright © 2020 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. Name Admin Password This field allows you to specify a new administrator password. Confirm Admin Password This field allows you to verify and confirm the new administrator password. Web Session Timeout A web login session will be logged out automatically when it has been idle longer than the Web Session Timeout Unlimited session timeout: 0 hours 0 minutes Default: 4 hours 0 minutes Security This option is for specifying the protocol(s) through which the web admin interface can be accessed: ˗ HTTP ˗ HTTPS ˗ HTTP/HTTPS Web Admin Port This field is for specifying the port number on which the web admin interface can be accessed. Allowed Source IP Subnets This option is for specifying the IP subnets through which the web admin interface can be accessed. Language Set language of the Web Interface 9.2 Firmware There are two ways to upgrade the unit. The first method is through an online download. The second method is to upload a firmware file manually. To perform an online download, click on the Check for Firmware button. The Access Point will check online for new firmware. If new firmware is available, the Access Point automatically C OPYRIGHT & T RADEMARKS Specifications are subject to change without notice. Copyright © 2020 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. downloads the firmware. The rest of the upgrade process will be automatically initiated. You may also download a firmware image from the Peplink website and update the unit manually. To update using a firmware image, click Choose File to select the firmware file from the local computer, and then click Manual Upgrade to send the firmware to the Access Point. It will then automatically initiate the firmware upgrade process. Please note that all devices can store two different firmware versions in two different partitions. A firmware upgrade will always replace the inactive partition. If you want to keep the inactive firmware, you can simply reboot your device with the inactive firmware and then perform the firmware upgrade. Firmware Upgrade Status Status LED Information during firmware upgrade: ˗ OFF – Firmware upgrade in progress (DO NOT disconnect power.) ˗ Red – Unit is rebooting ˗ Green – Firmware upgrade successfully completed Important Note The firmware upgrade process may not necessarily preserve the previous configuration, and the behavior varies on a case-by-case basis. Consult the release notes for the particular firmware version before installing. Do not disconnect the power during the firmware upgrade process. Do not attempt to upload a non-firmware file or a firmware file that is not supported by Peplink. Upgrading the Peplink Balance with an invalid firmware file will damage the unit and may void the warranty. 9.3 Time The time server functionality enables the system clock of the Access Point to be synchronized with a specified time server. The settings for time server configuration are located at System>Time. C OPYRIGHT & T RADEMARKS Specifications are subject to change without notice. Copyright © 2020 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. 9.4Event Log Event log functionality enables event logging at a specified remote syslog server. The settings for configuring the remote system log can be found at System>Event Log. Remote Syslog Settings Remote Syslog This setting specifies whether or not to log events at the specified remote syslog server. Remote Syslog Host This setting specifies the IP address or hostname of the remote syslog server. Port: Default 514 9.5SNMP SNMP or simple network management protocol is an open standard that can be used to collect information about the Peplink Balance unit. SNMP configuration is located at System>SNMP. C OPYRIGHT & T RADEMARKS Specifications are subject to change without notice. Copyright © 2020 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. SNMP Settings SNMP Device Name This field shows the router name defined at System>Admin Security. SNMP Port This option specifies the port which SNMP will use. The default port is 161. SNMPv1 This option allows you to enable SNMP version 1. SNMPv2 This option allows you to enable SNMP version 2. SNMPv3 This option allows you to enable SNMP version 3. To add a community for either SNMPv1 or SNMPv2, click the Add SNMP Community button in the Community Name table, upon which the following screen is displayed: SNMP Community Settings Community Name This setting specifies the SNMP community name. IP Address & IP mask This setting specifies a subnet from which access to the SNMP server is allowed. Enter subnet address here (e.g., 192.168.1.0) and select the appropriate subnet mask. Access Mode Choose between Read Only and Read and Write Status Enable or Disable SNMP community To define a user name for SNMPv3, click Add SNMP User in the SNMPv3 User Name table, upon which the following screen is displayed: C OPYRIGHT & T RADEMARKS Specifications are subject to change without notice. Copyright © 2020 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. SNMPv3 User Settings SNMPv3 User Name This setting specifies a user name to be used in SNMPv3. Authentication Protocol Thi…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (obsolete) 4.0 5.0 Sep-16-2014 Updated company name & logo (current) 5.0 6.0 Jun-27-2018 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 6.0 PISMO LABS TECHNOLOGY LIMITED. A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong July24, 2020 To: BVCPS, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, PISMO LABS TECHNOLOGY LIMITED hereby authorize Bureau Veritas Consumer Product Services, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: U8G-P1X02 Product Description: PEPWAVE / peplink Wireless Product Model: AP One AX Series Model: AP One ENT AX, APO-ENT-AX, APO-AX, PRB-11AX, Pepwave AP One AX, Pepwave AP One Enterprise AX, Peplink AP One AX, Peplink AP One Enterprise AX, AP One Enterprise AX Sincerely, Signature: Name / Title: Antony Chong/Director of Hardware Engineering Company Name: PISMO LABS TECHNOLOGY LIMITED Address: A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong TEL: +852- 2990-7634 FAX: +852-3007-0588 Email: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 6.0 PISMO LABS TECHNOLOGY LIMITED. A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong July 16, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: U8G-P1X02 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: Block Diagram Schematics SDR Software and Security information Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name / Title: Antony Chong / Director of Hardware Engineering Company Name: PISMO LABS TECHNOLOGY LIMITED Address: A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong TEL: +852-2990-7634 FAX: +852-3007-0588 Email: [email protected]

PISMO LABS TECHNOLOGY LIMITED. A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road,Cheung Sha Wan, Hong Kong Date: July 24, 2020 Dear Sir or Madam, Due to the business consideration, we hereby declare that our product of PEPWAVE / peplink Wireless Product Model: AP One AX and as following is difference Series model: AP One ENT AX, APO-ENT-AX, APO-AX, PRB-11AX, Pepwave AP One AX, Pepwave AP One Enterprise AX, Peplink AP One AX, Peplink AP One Enterprise AX, AP One Enterprise AX is identical with main model and the difference is for marketing. An y questi ons regardi ng thi s declaration, please don’t hesitat e to contac t us. Sincerely, Signature___________________________________ Name / Title: Antony Chong/Director of Hardware Engineering Company Name: PISMO LABS TECHNOLOGY LIMITED TEL：+852-2990-7634 FAX： +852-3007-0588 Email: [email protected]

PISMO LABS TECHNOLOGY LIMITED. A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong UNII Device Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization, Device FCC ID : U8G-P1X02 (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability , █ N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5150-5250 █Yes , No Yes , █ No Yes , █No █Yes , No 5725-5850 █Yes , No Yes , █ No Yes , █No █Yes , No (3) Country code selection ability - █ Yes , No If no, pls explain how it was implemented : (4) Meet 15.202 requirement - █Yes , No , pls check below : █A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , █ No Apply , (If apply , pls help to provide explanation on it was implement , and how software was controlled) Signature: Date: July 21, 2020 Name/Title: Antony Chong/Director of Hardware Engineering Company Name: PISMO LABS TECHNOLOGY LIMITED. Address: A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong TEL: 85229907634 FAX: 85230070588 Email: [email protected]

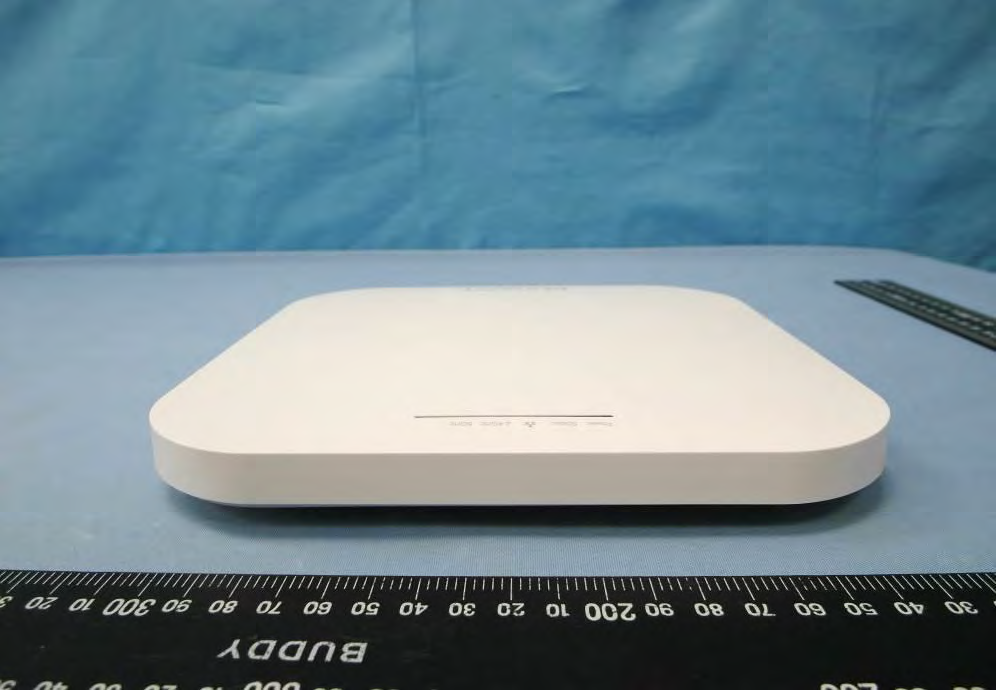

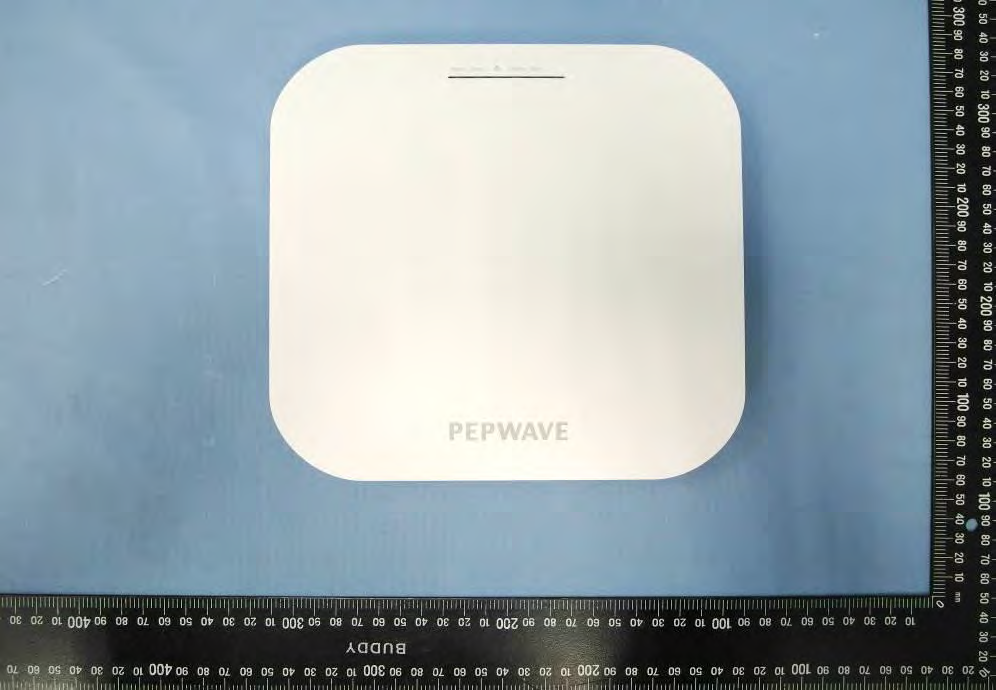

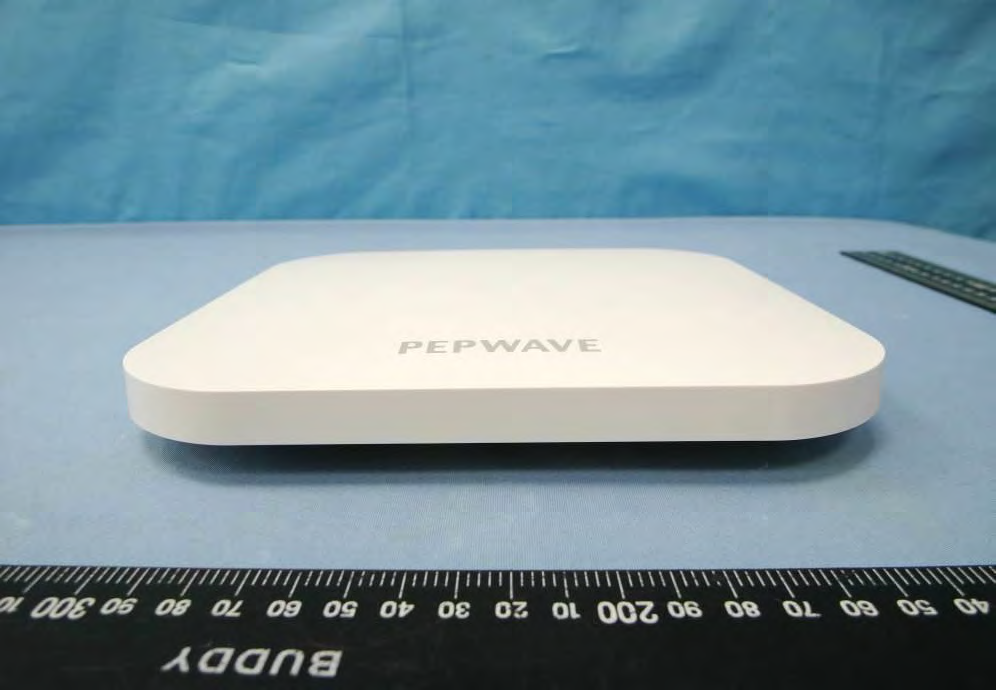

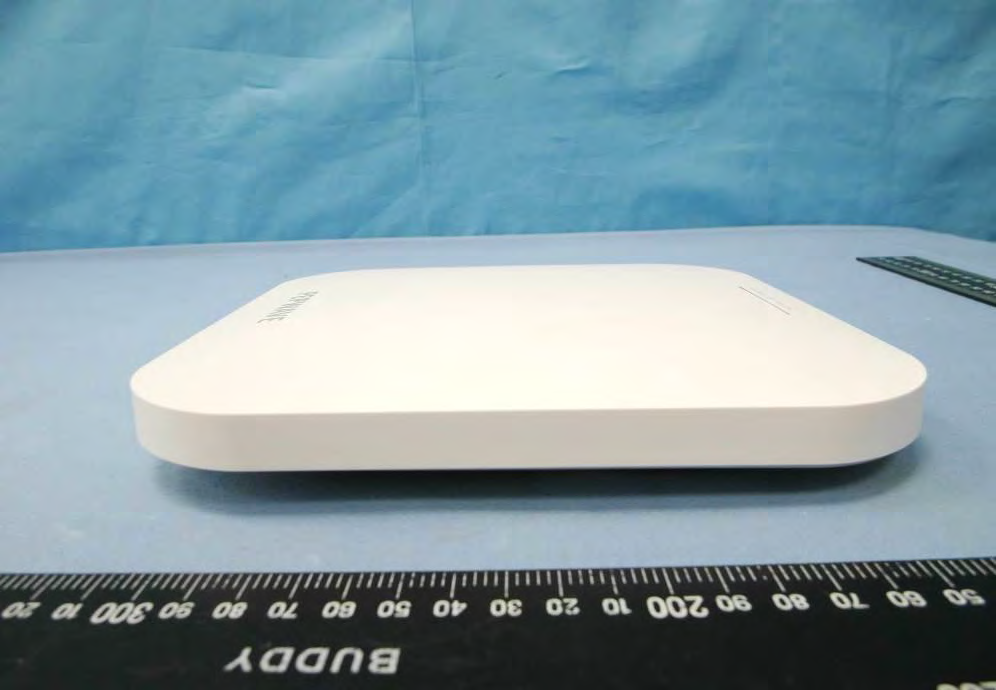

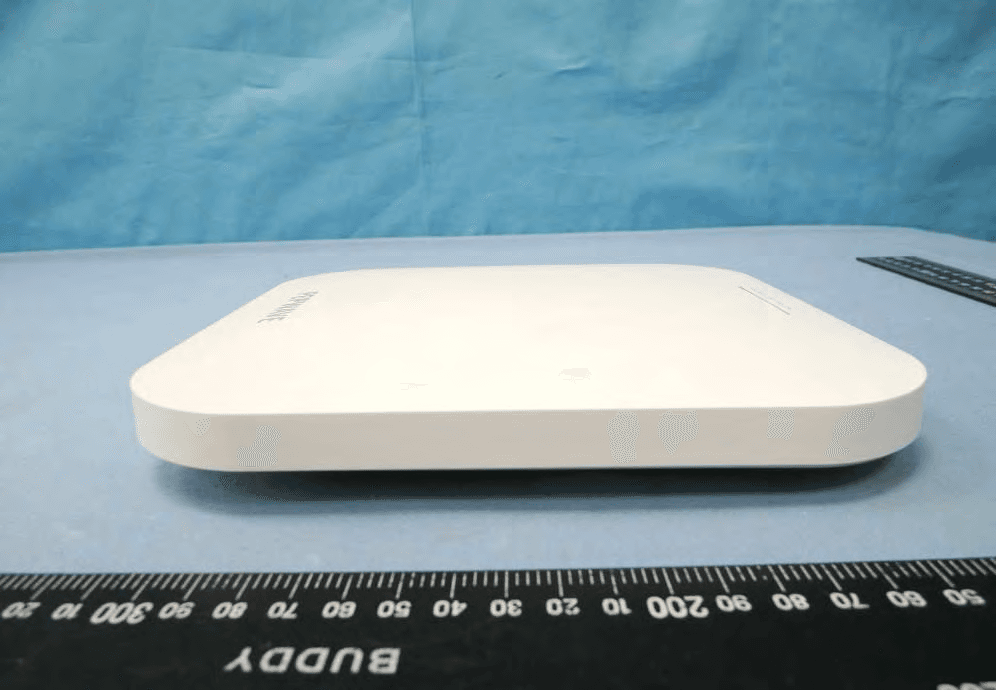

Page 1 of 5 External Photos Model Number: AP One AX, AP One ENT AX, APO-ENT-AX, APO-AX, PRB-11AX, Pe pwave AP One AX, Pepwave AP One Enterprise AX, Peplink AP One AX, Peplink AP One Enterprise AX, AP One Enterprise AX Page 2 of 5 EUT Photo (1) EUT Photo (2) Page 3 of 5 EUT Photo (3) EUT Photo (4) Page 4 of 5 EUT Photo (5) EUT Photo (6) Page 5 of 5 EUT Photo (7)

Label Info. & Location AP One AX AP One ENT AX Label Info. & Location AP One Enterprise AX APO-AX Label Info. & Location APO-ENT-AX Peplink AP One AX Label Info. & Location Peplink AP One Enterprise AX Pepwave AP One AX Label Info. & Location Pepwave AP One Enterprise AX PRB-11AX Label Info. & Location

Page 1 of 10 Internal Photos Model Number: AP One AX, AP One ENT AX, APO-ENT-AX, APO-AX, PRB-11AX, Pepwave AP One AX, Pepwave AP One Enterprise AX, Peplink AP One AX, Peplink AP One Enterprise AX, AP One Enterprise AX Page 2 of 10 EUT Photo (1) EUT Photo (2) WLAN 2.4G ANT-0. WLAN 2.4G ANT-1. WLAN 2.4G ANT-2. WLAN 2.4G ANT-3. WLAN 5G ANT-3. WLAN 5G ANT-2. WLAN 5G ANT-1. WLAN 5G ANT-0. Page 3 of 10 EUT Photo (3) EUT Photo (4) Page 4 of 10 EUT Photo (5) EUT Photo (6) Page 5 of 10 EUT Photo (7) EUT Photo (8) Page 6 of 10 EUT Photo (9) EUT Photo (10) Page 7 of 10 EUT Photo (11) EUT Photo (12) Page 8 of 10 EUT Photo (13) EUT Photo (14) Page 9 of 10 EUT Photo (15) EUT Photo (16) Page 10 of 10 EUT Photo (17) EUT Photo (18)

MPE Report Applicant ： PISMO LABS TECHNOLOGY LIMITED Product Type ： PEPWAVE / peplink Wireless Product Trade Name ： PEPWAVE, peplink Model Number ： AP One AX, AP One ENT AX, APO-ENT-AX, APO-AX, PRB-11AX, Pepwave AP One AX, Pepwave AP One Enterprise AX, Peplink AP One AX, Peplink AP One Enterprise AX, AP One Enterprise AX Applicable Standard ： IEEE Std.C95.1 47 CFR § 2.1091 / 47 CFR § 1.1310 Received Date ： May 13, 2020 Test Period ： Jun. 10 ~ Jun. 24, 2020 Issued Date： Aug. 12, 2020 Issued by Approved By ： (Kris Pan) A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C.) Te l：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Te s t F i r m MRA designation number: TW0010 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of A Test Lab Technology Corporation. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Report Number: 2007FS15 Rev.01 Page 1 of 13 Revision History Re v. Issued Date Revisions Revised By 00 Aug. 05, 2020 Initial Issue Nicole Chu 01 Aug. 12, 2020 P05 Revised Frequency Range Nicole Chu Report Number: 2007FS15 Rev.01 Page 2 of 13 Contents 1. Reference Applicable Standard .......................................................................................................... 4 2. Description of Equipment under Test (EUT) ....................................................................................... 5 3. Human Exposure Assessment ............................................................................................................ 7 4. Power Density Limit – RF Exposure Evaluation ................................................................................. 8 4.1 Conducted Power ............................................................................................................................... 9 5. Test Result ........................................................................................................................................ 13 Report Number: 2007FS15 Rev.01 Page 3 of 13 1.Reference Applicable Standard Standard Description Version ANSI/IEEE C95.1 American National Standard safety levels with respect to human exposure to radio frequency electromagnetic fields, 300 KHz to 100 GHz, New York. 1992 47 CFR Part §2.1091 Radiofrequency radiation exposure evaluation: mobile devices. - 47 CFR Part §1.1310 Radiofrequency radiation exposure limits. - Report Number: 2007FS15 Rev.01 Page 4 of 13 2.Description of Equipment under Test (EUT) Applicant PISMO LABS TECHNOLOGY LIMITED A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong Manufacturer PISMO LABS TECHNOLOGY LIMITED A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong Product Type PEPWAVE / peplink Wireless Product Trade Name PEPWAVE, peplink Model Number AP One AX, AP One ENT AX, APO-ENT-AX, APO-AX, PRB-11AX, Pepwave AP One AX, Pepwave AP One Enterprise AX, Peplink AP One AX, Peplink AP One Enterprise AX, AP One Enterprise AX FCC ID U8G-P1X02 Frequency Range Operate Band Frequency Range (MHz) IEEE 802.11b / 802.11g 2412 - 2462 I…

Text truncated - open the document above for the full version.
