COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2007 PePWave Ltd. All Rights Reserved. PePWave and the PePWave logo are trademarks of PePWave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. PePWave Surf Series PePWave Surf Indoor Series: Surf 200, AP 200, AP 400 PePWave Surf Outdoor Series: Surf AP 200/400-X, PolePoint 400-X, Surf 400-DX User Manual Document Rev. 1.2 September 07 PePWave Surf Series User Manual Page 2 Table of Contents 1 COPYRIGHT.....................................................................................................................................3 2 DISCLAIMER.....................................................................................................................................3 3 PRODUCT DESCRIPTION .................................................................................................................4 3.1 FEATURES.....................................................................................................................................4 3.2 HARDWARE SETUP........................................................................................................................5 3.3 LED DESCRIPTION........................................................................................................................5 4 USING THE PEPWAVE SURF.............................................................................................................7 4.1 FIRST TIME SETUP...........................................................................................................................8 4.2 SETTINGS DETAILS.......................................................................................................................11 4.3 INTEGRATED WI-FI ACCESS POINT CONFIGURATION....................................................................13 4.4 TEST THE SETUP............................................................................................................................20 4.5 FIRMWARE UPGRADE.................................................................................................................21 4.6 RESTORE TO DEFAULT SETTINGS....................................................................................................21 APPENDIX: FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT...............................................22 PePWave Surf Series User Manual Page 3 1 Copyright Copyright © 2007 by PePWave Ltd. The content of this documentation may not be reproduced in any part or as a whole without the prior written permission of PePWave Ltd. 2 Disclaimer PePWave does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent right nor the patent rights of others. PePWave further reserves the right to make changes in any products described herein without notice. This documentation is subject to change without notice. PePWave Surf Series User Manual Page 4 3 Product Description PePWave Surf is a feature-rich Wi-Fi CPE with WPA, WPA2 and 802.1x supplicant support. It is designed to act as a Wireless router and connects LAN users with a Wireless Broadband Internet Service (such as Citywide Wi-Fi). It associates to a service provider and authenticates using 802.1x (if needed) on start up. Upon successful association and authentication, it will acquire an IP address from the service provider using DHCP. A DHCP server is built-in on its LAN port. Network Address Translation is performed for all outbound connections. Thus it supports multiple terminals to access the Internet simultaneously. 3.1 Features
10/100 Ethernet interface with auto-crossover detection
Reset button for restoring settings to factory defaults
Signal strength LED for showing the current signal strength (PePWave indoor serials only)
WPA/WPA2-Personal and WPA/WPA2-Enterprise support
Network Address Translation (NAT) routing
Built-in DHCP server
Inbound port range forwarding
Integrated Wi-Fi Access Point (Surf AP indoor and outdoor only) Surf 200, AP 200, AP 400 Surf AP 200/400-X, PolePoint 400-X Surf 400-DX PePWave Surf Series User Manual Page 5 3.2 Hardware Setup 3.2.1 Surf Indoor Series 1. Attach the provided antenna to the left most antenna connector 2. Connect the LAN port to the computer’s Ethernet port with an Ethernet cable. 3. Connect the end of the included power adapter to the power socket (labeled “DC 5V”) on PePWave Surf. 4. Power on the power adaptor. 3.2.1 Surf Outdoor Series Please follow the installation guide to set up AP 200/400-X, PolePoint 400-X, Surf 400-DX 3.3 LED Description 3.3.1 Surf Indoor Series LED Color Status Description Green On Power is on Power Off Power is off Green Solid Received signal is Excellent, Very Good and Good Green Blinking Received signal is Low Amber Blinking Received signal is Very Low Amber Solid No wireless signal is detected Status Off Booting up / Upgrading firmware Green On Ethernet is connected Green Blinking Sending/Receiving data LAN Off Ethernet is not connected PePWave Surf Series User Manual Page 6 LED Color Status Description Green On Associated with an access point Green Blinking Sending/Receiving data Wi-Fi Off Not associated with any access point Signal Bars Green N/A The number of lit signal bars depends on the strength of the received signal. A larger number of lit signal bars indicate stronger signals. 3.3.2 Surf DX Series LED Description LED Color Status Description Green On Power is on PWR Off Power is off Green On Ethernet is connected LAN Off Ethernet is not connected Green On Associated with an access point. The number of LED lights from “MIN” to “MAX” indicates the received signal strength level. Wi-Fi Off Not associated with any access point PePWave Surf Series User Manual Page 7 4 Using the PePWave Surf You should set up your computer’s L…

Text truncated - open the document above for the full version.

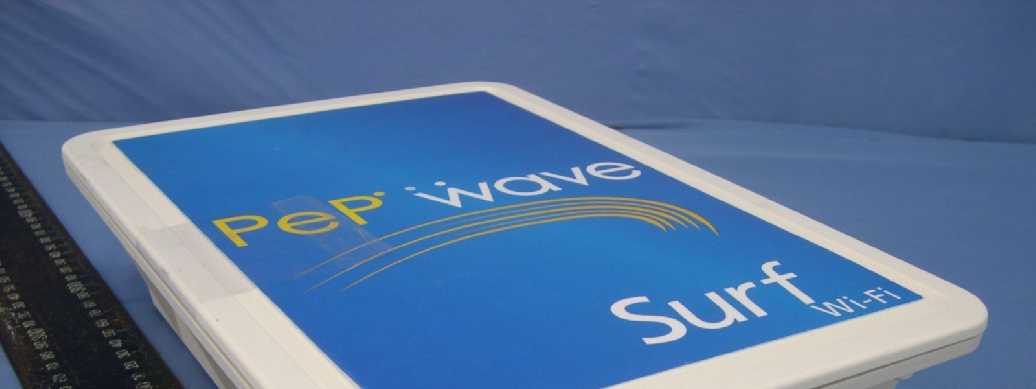

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID：U8G-SURF400DX Label location FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13

Report No.: SA960823H01 1 RF EXPOSURE REPORT REPORT NO.: SA960823H01 MODEL NO.: Surf 400-DX FCC ID: U8G-SURF400DX ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Pismo Labs Technology Limited ADDRESS: Room 1703A, 17/F, Park Building,476 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA960823H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA960823H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 30cm away from the body of the user. Warning statement to the user for keeping at least 30cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA960823H01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 13dBi or 19.95262 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 30cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 363.078 0.641 1.0 6 2437 478.630 0.844 1.0 11 2462 467.735 0.825 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 524.807 0.926 1.0 6 2437 524.807 0.926 1.0 11 2462 512.861 0.905 1.0

Report No.: RF960823H01 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF960823H01 MODEL NO.: Surf 400-DX RECEIVED: Aug. 23, 2007 TESTED: Sep. 02 to 04, 2007 ISSUED: Sep. 04, 2007 APPLICANT: Pismo Labs Technology Limited ADDRESS: Room 1703A, 17/F, Park Building,476 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 65 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960823H01 2 Report Format Version 2.0.6 Table of Contents 1 CERTIFICATION...........................................................................................4 2 SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY.................................................................5 3 GENERAL INFORMATION............................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................6 3.2 DESCRIPTION OF TEST MODES................................................................7 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................8 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................10 3.5 DESCRIPTION OF SUPPORT UNITS........................................................11 3.6 CONFIGURATION OF SYSTEM UNDER TEST.........................................12 4 TEST TYPES AND RESULTS.....................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT..............................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................13 4.1.2 TEST INSTRUMENTS.................................................................................13 4.1.3 TEST PROCEDURES.................................................................................14 4.1.4 TEST SETUP..............................................................................................14 4.1.5 EUT OPERATING CONDITIONS................................................................15 4.1.6 TEST RESULTS..........................................................................................16 4.2 RADIATED EMISSION MEASUREMENT...................................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................18 4.2.2 TEST INSTRUMENTS.................................................................................19 4.2.3 TEST PROCEDURES.................................................................................20 4.2.4 TEST SETUP..............................................................................................21 4.2.5 EUT OPERATING CONDITIONS................................................................21 4.2.6 TEST RESULTS..........................................................................................22 4.2.7 TEST RESULTS - DSSS.............................................................................23 4.2.8 TEST RESULTS - OFDM............................................................................30 4.3 6dB BANDWIDTH MEASUREMENT...........................................................37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................37 4.3.2 TEST INSTRUMENTS.................................................................................37 4.3.3 TEST PROCEDURE....................................................................................38 4.3.4 TEST SETUP..............................................................................................38 4.3.5 EUT OPERATING CONDITIONS................................................................38 4.3.6 TEST RESULTS –DSSS.............................................................................39 4.3.7 TEST RESULTS-OFDM..............................................................................42 4.4 MAXIMUM PEAK OUTPUT POWER...........................................................45 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........45 4.4.2 TEST INSTRUMENTS.................................................................................45 4.4.3 TEST PROCEDURES.................................................................................46 Report No.: RF960823H01 3 Report Format Version 2.0.6 4.4.4 TEST SETUP..............................................................................................46 4.4.5 EUT OPERATING CONDITIONS................................................................46 4.4.6 TEST RESULTS – DSSS............................................................................47 4.4.7 TEST RESULTS –OFDM.............................................................................48 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................49 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................49 4.5.2 TEST INSTRUMENTS.................................................................................49 4.5.3 TEST PROCEDURE....................................................................................50 4.5.4 TEST SETUP..............................................................................................50 4.5.5 EUT OPERATING CONDITIONS................................................................50 4.5.6 TEST RESULTS –DSSS.............................................................................51 4.5.7 TEST RESULTS –OFDM.............................................................................54 4.6 CONDUCTE…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
