U8GMC200MC200

COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2007 PePWave Ltd. All Rights Reserved. PePWave and the PePWave logo are trademarks of PePWave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. PePWave Surf Series PePWave MC200 User Manual Document Rev. 1.2 February 07 PePWave Surf Series User Manual Page 2 Table of Contents 1 COPYRIGHT.....................................................................................................................................3 2 DISCLAIMER.....................................................................................................................................3 3 PRODUCT DESCRIPTION .................................................................................................................4 3.1 FEATURES.....................................................................................................................................4 3.2 HARDWARE SETUP........................................................................................................................5 3.3 LED DESCRIPTION........................................................................................................................5 3.4 INTEGRATED HOME WI-FI ACCESS POINT......................................................................................6 4 USING THE PEPWAVE SURF.............................................................................................................8 4.1 FIRST TIME SETUP...........................................................................................................................9 4.2 SETTINGS DETAILS.......................................................................................................................12 4.3 INTEGRATED HOME WI-FI ACCESS POINT CONFIGURATION..........................................................14 4.4 TEST THE SETUP............................................................................................................................21 4.5 FIRMWARE UPGRADE.................................................................................................................22 4.6 RESTORE TO DEFAULT SETTINGS....................................................................................................22 PePWave Surf Series User Manual Page 3 1 Copyright Copyright © 2007 by PePWave Ltd. The content of this documentation may not be reproduced in any part or as a whole without the prior written permission of PePWave Ltd. 2 Disclaimer PePWave does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent right nor the patent rights of others. PePWave further reserves the right to make changes in any products described herein without notice. This documentation is subject to change without notice. PePWave Surf Series User Manual Page 4 3 Product Description MC200 is a feature-rich Wi-Fi CPE with WPA, WPA2 and 802.1x supplicant support. It is designed to act as a Wireless router and connects LAN users with a Wireless Broadband Internet Service (such as Citywide Wi-Fi). It associates to a service provider and authenticates using 802.1x (if needed) on start up. Upon successful association and authentication, it will acquire an IP address from the service provider using DHCP. A DHCP server is built-in on its LAN port. Network Address Translation is performed for all outbound connections. Thus it supports multiple terminals to access the Internet simultaneously. 3.1 Features
10/100 Ethernet interface with auto-crossover detection
Reset button for restoring settings to factory defaults
Signal strength LED for showing the current signal strength
WPA/WPA2-Personal and WPA/WPA2-Enterprise support
Network Address Translation (NAT) routing
Built-in DHCP server
Inbound port range forwarding
Integrated Home Wi-Fi Access Point (PePWave Surf AP only) PePWave Surf Series User Manual Page 5 3.2 Hardware Setup 1. Attach the provided antenna to the left most antenna connector 2. Connect the LAN port to the computer’s Ethernet port with an Ethernet cable. 3. Connect the end of the included power adapter to the power socket (labeled “DC 5V”) on PePWave Surf. 4. Power on the power adaptor. 3.3 LED Description LED Color Status Description Green On Power is on Power Off Power is off Green Solid Received signal is Excellent, Very Good and Good Green Blinking Received signal is Low Amber Blinking Received signal is Very Low Amber Solid No wireless signal is detected Status Off Booting up / Upgrading firmware Green On Ethernet is connected Green Blinking Sending/Receiving data LAN Off Ethernet is not connected Green On Associated with an access point Green Blinking Sending/Receiving data Wi-Fi Off Not associated with any access point Signal Bars Green N/A The number of lit signal bars depends on the strength of the received signal. A larger number of lit signal bars indicate stronger signals. PePWave Surf Series User Manual Page 6 3.4 Integrated Home Wi-Fi Access Point The Integrated Home Wi-Fi Access Point functionality of PePWave Surf AP allows 802.11b/g devices on the customers’ premises to wirelessly connect with a PePWave Surf AP unit in order to gain access to Citywide Wi-Fi through PePWave Surf AP. With PePWave Surf AP, the already existing Ethernet capability of the PePWave Surf Series remains unaffected. PePWave Surf AP and Integrated Home Wi-Fi Access Point PePWave Surf Series User Manual Page 7 Previously, PePWave Surf, prior to the introduction of PePWave Surf AP, connects wirelessly at one end with Citywide Wi-Fi, and at the other end through an Ethernet cable with a computer, router, or other equipment on the customers’ premises. PePWave Surf, prior to the introduction of PePWave Surf AP PePWave Surf Series User Manual Page 8 4 Using the PePWave MC200 You should set up your…

Text truncated - open the document above for the full version.

PISMO LABS TECHNOLOGY LIMITED Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: U8GMC200 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics U8GMC200_FCC_Schematics.pdf Block Diagram U8GMC200_FCC_BlockDiagram.jpg Operational Description U8GMC200_FCC_CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, PISMO LABS TECHNOLOGY LIMITED

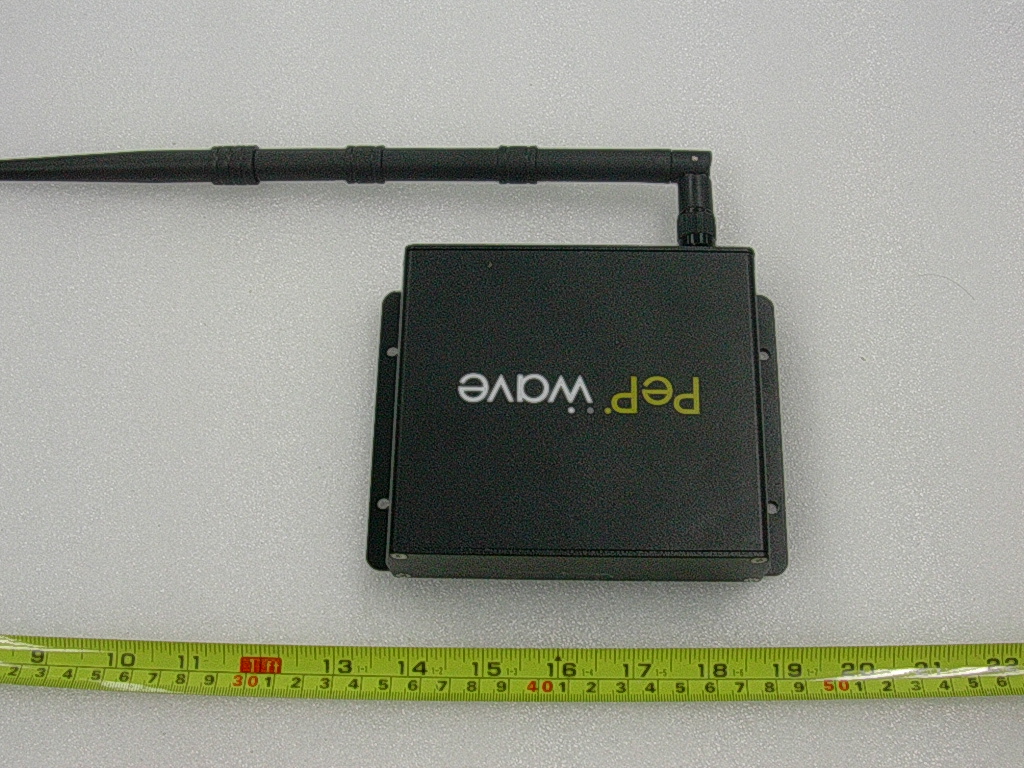

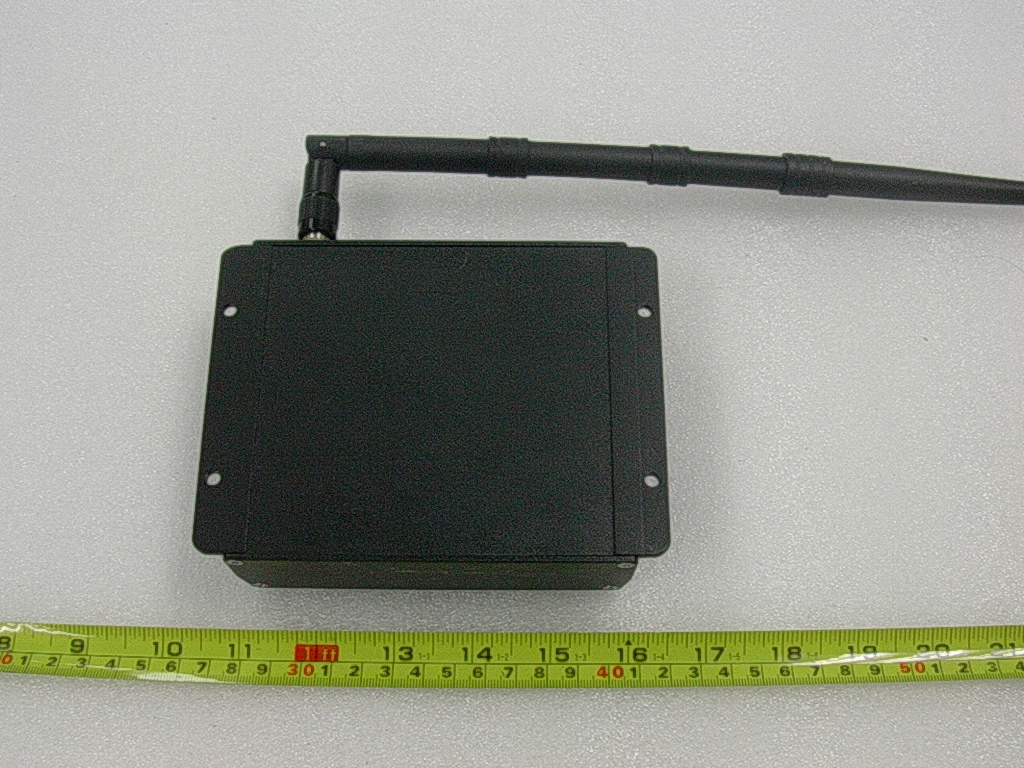

PISMO LABS TECHNOLOGY LIMITED Model: MC200 Report No.: STR07098022I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 PISMO LABS TECHNOLOGY LIMITED Model: MC200 Report No.: STR07098022I FCC PART 15.247 EUT View 3

PISMO LABS TECHNOLOGY LIMITED Model: MC200 Report No.: STR07098022I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: U8GMC200 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

PISMO LABS TECHNOLOGY LIMITED Model: MC200 Report No.: STR07098022I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: U8GMC200 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

PISMO LABS TECHNOLOGY LIMITED Model: MC200 Report No.: STR07098022I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 PISMO LABS TECHNOLOGY LIMITED Model: MC200 Report No.: STR07098022I FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 PISMO LABS TECHNOLOGY LIMITED Model: MC200 Report No.: STR07098022I FCC PART 15.247 Solder Board-Component View 4 Solder Board-Component View 5

MC200 PART LIST 11 210 32 41 51 61 71 81 93 101 111 121 131 141 151 161 174 183 191 201 211 221 231 242 2512 2657 271 281 291 301 311 321 334 341 356 361 371 382 392 402 415 422 431 441 453 461 471 482 25MHZ 49US 30PPM 20PF 2PIN DIPY1 100UF 25V φ6*7MM +/-20% ROHS C1.C3.C22.C55.C140.C141.C2001.C200 3.C2022.C2140. 22UH 3A +/-10% φ8*10MM ROHSL3.L2003 HN1664C 16PIN ROHST1 1*1 B3MM 21*16*14MM 8P8C 2D2 ROHSJ2 90' 2.0MM Y ROHSJ1 RP SMA RRA23-5T14000 ROHSJ4 CON.MMCX Through hole ROHSJ1003 φ5*4MM ROHS φ6*3MM ROHS 2*5PIN 2.54MM 180' 11.5MM ROHSJP1 2*6PIN 2.54MM 180' 11.5MM ROHSJP2 2*7PIN 2.54MM 180' 11.5MM ROHSJ500 2PIN 1.0MM DIP 2PIN 90'S1 PISMO21B-VA ROHS 40MHZ 18PPM 15PF 4PIN 5*3.2MM SMD ROHSY2 0Ω 0402 +/-5% ROHSR137.R148.R507.R1023 0Ω 1206 +/-5% ROHSL2.L1.R16 1KΩ 0402 +/-5% ROHSR3 1Ω 0805 +/-5% ROHSR81 2KΩ 0402 +/-1% ROHSR5 10KΩ 0402 +/-5% ROHSR202 15KΩ 0402 +/-5% ROHSR147 1.1KΩ 0402 +/-1% ROHSR4.R2004 4.7KΩ 0402 +/-5% ROHS R1.R15.R29.R50.R51.R136.R150.R151. R501.R502.R503.R504 56Ω 0402 +/-5% ROHS R21.R22.R27-R28.R33-R36.R38- R41.R45-R47.R61.R69-R80.R82.R85- R98.R105-R106.R108-R117.R124.R146 68Ω 0402 +/-1% ROHSR1016 75KΩ 0402 +/-1% ROHSR145 100KΩ 0402 +/-5% ROHSR139 162Ω 0402 +/-1% ROHSR1014 18.2KΩ 0402 +/-1% ROHSR1018 196Ω 0402 +/-1% ROHSR1019 270Ω 0402 +/-5% ROHSR11.R17.R18.R32 3.32KΩ 0402 +/-1% ROHSR2005 49.9Ω 0402 +/-1% ROHSR2.R6.R7.R9.R12.R144 4.02KΩ 0402 +/-5% ROHSR1017 523Ω 0402 +/-1% ROHSR1015 64.9Ω 0402 +/-5% ROHSR1020.R1021 6.19KΩ 0402 +/-1% ROHSR142.R42 0.5PF 50V NPO 0402 +/-0.25PF ROHSC86.R132 1PF 50V NPO 0402 +/-0.25PF ROHSC21.C23.C84.C85.C133 1.2PF 50V NPO 0402 +/-0.25PF ROHSC13.C102 2PF 50V NPO 0402 +/-0.25PF ROHSC1030 2.2PF 50V NPO 0402 +/-5% ROHSC134 2.2PF 50V NPO 0402 +/-0.25PF ROHSC99.C100.C111 3.9PF 50V 0402 +/-0.25PF ROHSC128 5PF 50V NPO 0402 +/-0.25PF ROHSC93 5.6PF 50V NPO 0402 +/-0.5PF ROHSC1023.C1026 4918 5010 5150 523 534 541 552 564 573 581 594 601 616 621 631 641 652 663 671 681 693 701 711 722 730 741 752 761 771 782 790 801 811 821 831 841 851 861 871 881 891 901 911 921 931 943 951 961 10PF 50V NPO 0402 +/-5% ROHS C64.C72.C80.C107.C108.C109.C110.C1 13.C115.C131.C132.C2109.C1032.C102 5.C1031.C1128.C1133.C1033 10PF 50V NPO 0402 +/-0.5PF ROHS C123.C124.C129.C130.C1125.C1127.C1 124.C1130.C1132.C1135. 100NF 25V X5R 0402 +/-10% ROHS C9.C15.C16.C17.C18.C24.C25.C26.C28 .C29.C30.C32.C34.C35.C36.C37.C38.C 39.C40.C42.C44.C45.C49.C50.C59.C63. C65.C66.C70.C71.C78.C79.C90.C91.C9 2.C97.C105.C106.C112.C114.C117.C11 8.C2015.C2091.C2118.C1022.C1024.C1 027.C1088.C1123. 1UF 16V 0603 +/-10% ROHSC1028.C1029.C1122 10UF 6.3V X5R 1206 +/-10% ROHSC12.C51.C56.C142 120PF 50V NPO 0402 +/-5% ROHSC125 15PF 50V NPO 0402 +/-5% ROHSC46.C47 2200PF 50V X7R 0805 +/-10% ROHSC6.C7.C2006.C2007 2.2UF 25V X5R 0805 +/-10% ROHSC119.C68.C2119 24PF 50V NPO 0402 +/-5% ROHSC122 390PF 50V X7R 0402 +/-10% ROHSC8.C11.C57.C1126 47PF 50V 0402 +/-5% ROHSC87 120欧@100MHZ 0805 +/-25% ROHSL4.L5.L6.L14.L2014.L1013 10NH 0603 +/-5% ROHSL1003 12NH 0805 +/-5% ROHSL1005 18NH 0402 +/-5% ROHSL13 2.7NH 0402 +/-0.3NH ROHSL1012.C1129 3.9NH 0402 +/-0.3NH ROHSL7.L9.L11, SMA 4.7NH 0603 +/-0.3NH ROHSL1004 0Ω 2010 +/-5% ROHSF1 180' φ3*5.3MM ROHS LED LampDS1.DS3.DS4 180' φ3*5.3MM ROHS LED LampDS2 DEA252400BT-2030A1 4PIN SMD ROHSF16 HHM1517 6PIN SMD ROHSF3.F5. LFB2H2G45SG7A204 4PIN SMD ROHSPase LFB2H2G45SG7B734 4PIN SMD ROHSF14 TA0222A 4PIN SMD ROHSF11.F13 ZC-PISMO 21B ROHS SMS7621-079LF SC-79 SMD ROHSD2 SS24 30V 2A SMD ROHSD1.D2001 SCD32.3A SMB ROHSD3 NEC B772 TO89 SMD ROHSQ1 SGA-8343Z SOT-343 ROHSQ3 74V1G32S. SOT23-5 ST ROHSU16 MC74VHC1G08DFT1. SOT353 5PIN ROHSU15 AME8805YEFT 1.9V SOT-89 3PIN SMD ROHSVR2 AP1509-SL. SOP 8PIN ROHSVR1 MASWSS0130 M7 10PIN ROHSS2 MAX811REUS 2.63V SOT-143 ROHSU6. S25FL064A0LMFI001 SOIC 16PIN ROHSU5 V54C3256164VDI7I TSOP 54PIN ROHSU2 AR2315A-001 BGA233 Atheros ROHSU3 AWL6153 QFN 12PIN ROHSU1002 IP175C PQFP 128PIN ROHSU1 SZM-2066 OFN 40PIN ROHSU1003 20279-001E-01 ROHSJ5.J1001.J1002 44+/-0.5*33+/-0.5MM WL01K ROHS 44+/-0.5*33+/-0.5MM ROHSX99 971 982 991 PISMO21B-VA ROHS Pan Head D1.5x3mm 3.3NH 0402 +/-0.3NH ROHSSMA Connector

PISMO LABS TECHNOLOGY LIMITED Model: MC200 Report No.: STR07098022I Page 1 of 40 FCC PART 15.247 FCC Part 15C Measurement and Test Report For PISMO LABS TECHNOLOGY LIMITED Room 1703A, 17/F, Park Building, 476 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong FCC ID: U8GMC200 Report Concerns: Original Report Equipment Type: MC200 Model: MC200 Report No.: STR07098022I Test/Witness Engineer: Lahm Peng Test Date: 2007-04-06 Prepared By: Shenzhen SEM.Test Compliance Service Co., Ltd Room 609-610, Baotong Building, Baomin 1 st Road, Baoan District, Shenzhen, Guangdong, P.R.C. (518133) Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . PISMO LABS TECHNOLOGY LIMITED Model: MC200 Report No.: STR07098022I Page 2 of 40 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS..................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE........................................................................................................................................6 3.2 TEST RESULT.........................................................................................................................................................6 4. CONDUCTED EMISSIONS ....................................................................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.3 TEST PROCEDURE...................................................................................................................................................7 4.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................7 4.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.6 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 4.7 CONDUCTED EMISSIONS TEST DATA......................................................................................................................8 5. POWER SPECTRAL DENSITY ...........................................................................................................................11 5.1 STANDARD APPLICABLE......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. 6-DB BANDWIDTH ................................................................................................................................................16 6.1 STANDARD APPLICABLE......................................................................................................................................16 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................16 6.3 TEST PROCEDURE.................................................................................................................................................16 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................16 6.5 SUMMARY OF TEST RESULTS/PLOTS..........…

Text truncated - open the document above for the full version.

PISMO LABS TECHNOLOGY LIMITED Model: MC200 Report No.: STR07098022I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (30MHz to 1GHz) PISMO LABS TECHNOLOGY LIMITED Model: MC200 Report No.: STR07098022I FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
