U9FMO12Wireless Alarm

The receiver must be in the same room with the child so that the child can wake up and reset it. IMPORTANT Please read instruction booklet before use ModelMO12 Wireless Alarm Instructions:Please read 1.Select a pair of close fitting cotton underpants. 2.Attach the small transmitter (Tx) to theoutsideof the underpants waistband using the magnetic clip. See page 12. 3.Lift theEasy-Clip©lever, remove and dispose of the white plastic insulator (if present). Keep lever up. 4.Attach theEasy-Clip©sensor to theoutsideof the underpants , at the location most likely to get wet first (boy or girl), by folding and inserting the material inside the sensor jaws at the front. Lower the lever to lock onto the material. See diagram below. 5.Switch on the receiver (Rx). Red LED will flash. 6.Place the receiver away from the bed but in thesame room. 7.Upon waking to the alarm sound, remove theEasy-Clip©sensor by lifting the lever. Stop the alarm sound by pressing the reset button on the top of the receiver. Do not switch off the receiver. 8.Replace the transmitter and theEasy-Clip©sensor onto a clean and dry pai r of underpants as before. Lock the Easy-Clip onto the material by pressing down the lever. IMPORTANT: Regularly CLEAN Easy-Clip Sensor in soapy water, rinse and shake dry. IMPORTANT: DO NOT PLACE ANY MATERIAL UNDER THE SECURING LEVER. Place underwear material into mouth (jaws) at the front of the Easy-Clip . 2 , Wireless AlarmCleaning Wipe clean the alarm unit using a damp cloth and mild detergent. Dry throughly.Never immerse in water. Regularly clean theEasy-Clip©sensor in soapy water. Rinse and shake dry to prevent fluff and urine accumulation inside the jaws. Always test the alarm by lowering theEasy-Clip©lever (without material). The Tx LED should glow and the receiver should sound. When not in use never leave theEasy-Clip©lever down as this will activate the transmitter and discharge the battery. Always remove the batteries and clean theEasy-Clip©sensor if the alarm is not going to be used for a long period of time. 3 Settings Sound selection:See page9 The Malem wireless alarm is set to 8 random sounds. If you wish to change to a single sound, remove receiver battery cover slide all the switches from 1 to 9 to off (leave 10 on). Select any of the sounds from 1 to 8 by sliding the switch to On . Sliding switch 10 to Off will disable all sounds. Only the LED will be activated. Channel selection:See page11 The Malem wireless alarm consists of a matched pair of a transmitter and receiver. To avoid interference from other wireless equipment, you can change the channel. A choice of 64 settings is possible. Remove the back of the transmitter by using a slotted screwdriver. Twist to open. Change the setting of the code selection switch by moving any of the switches in any of the 64 combinations. Replace the back of the transmitter. Avoid disturbing the water-seal ring. Re-tuning(Pairing)the receiver:See page9 12345678910 123456 Sound selection switch setting for 8 random sounds Channel Selection Switch On Off 12345678910 For single sound selection Select any one (1 - 8) to on On Off 4 Remove the clip Push the straight end of a paper clip into the small hole at the back of the receiver under the green LED. The green LED will glow .Lower the lever of theEasy-Clip©(without material), the green LED will flash and the alarm will sound. Lift the lever of theEasy-Clip©and press the reset button on the top of the receiver. The receiver and the transmitter are now automatically re-tuned again. To prevent interference, use the same procedure when using more than one pair of alarms in the same location. Alternatively, you can tune several receivers to the same transmitter. This is ideal if parents/guardians want an additional receiver in their bedroom. . . FaultFinding ● Alarm does not sound: Switchonthereceiver(Rx).RedLEDlightwillflash. ReplacebatterieswithnewAlkalineones(2xAA).Observecorrect batteryorientationandmakesurecontactsinsidethealarmareclean andfreeofanydeposits. DoesthetransmitterredLEDglowwhentheEasy-Clip©leveris lowered?Ifnot,replacebattery(Alkaline23AE12v)observe correctpolarityandcleancontacts. Ifalltheabovefail,re-tuneRxandTx,seepages4and9. ● Alarm does not reset: CleanEasy-Clip©sensorbyliftinglever,washinsoapywater,rinse underthetapandshakedry. MakesureEasy-Clip©leverisup. Makesurethatunderpantsʼmaterialisnottoothinorwet. Replacereceiverbatteries(2xAAAlkaline). Transmitterisdamagedorflooded. ● Sound level is too low: Adjustsoundlevelwithvolumecontrol. Guarantee UndernormalusetheMalemWirelessAlarmisguaranteedforaperiodof threemonthsfrompurchase.Thisexcludesbatteries,flooding,misuse, physicaloraccidentaldamage.Ifthealarmshouldmalfunctionduringthis period,pleasecontactusBEFORERETURNING.Pleaseremovebatteries anddecontaminatetheunit/sensorbeforereturning.DONOTreturn floodedorcontaminatedalarms. Repairs Ifyouralarmrequiresrepair,wewillexchangeitforanewoneataspecial discount.(Repairsarenotundertakenforhygienereasons).Pleasecontact usbytelephone,fax,e-mailorinwritingforthecostofthisservice. Please decontaminatetheunitbeforereturning. 5 Specifications:Transmitter (Tx) Colour:Green Dimensions:4.4cm x 4.2cm x 1.9cm Weight:40g including battery and sensor Battery:Alkaline 23AE 12v. Observe correct polarity when replacing Range:Approximately 25m depending on nature of the structure and state of the battery. Receiver (Rx) must be in the same room as the transmitter (Tx). Sensor:Easy-Clip©. Keep lever up when not in use. Clean sensor regularly. Clip:Magnetic to secure Tx on outside of underpants alo ng waistband (see diagram on page 12). LED:Internal red in colour. Glows when sensor detects wetness or if lever is lowered without dry material between the jaws in the front of theEasy-Clip© sensor. Frequency:433MHZ Model:MO12 (Tx) 6 Standards: FCC Certificate Specifications:Receiver (Rx) Colour:Green Dimensions:7.4cm x 7.6cm x 2.5cm Weight:95g including batteries On/Off:Sliding switch on side Volume:Volume cont…

Text truncated - open the document above for the full version.

SHEET 1 OF 2 REV.: 1 D C C D 3 2 1 A DATE: MODEL: TITLE: PART NO.: APPROVED BY: DRAWN BY: 6 5 4 B A B 1 2 3 4 5 6 Kolf Industries (H.K.) Ltd. PCB FILE: SCH FILE: Transmission Unit - Block Diagram TX/RX 11-Jan-2010 Y1 Y2 4 MHz 433 MHz SAW Filter SWITCH MODULATE CODE_SET XIN XOUT ENCODER SWITCH SWITCH ANT MODULATE RF ANTENNA CODE_SET DIP_SWITCH

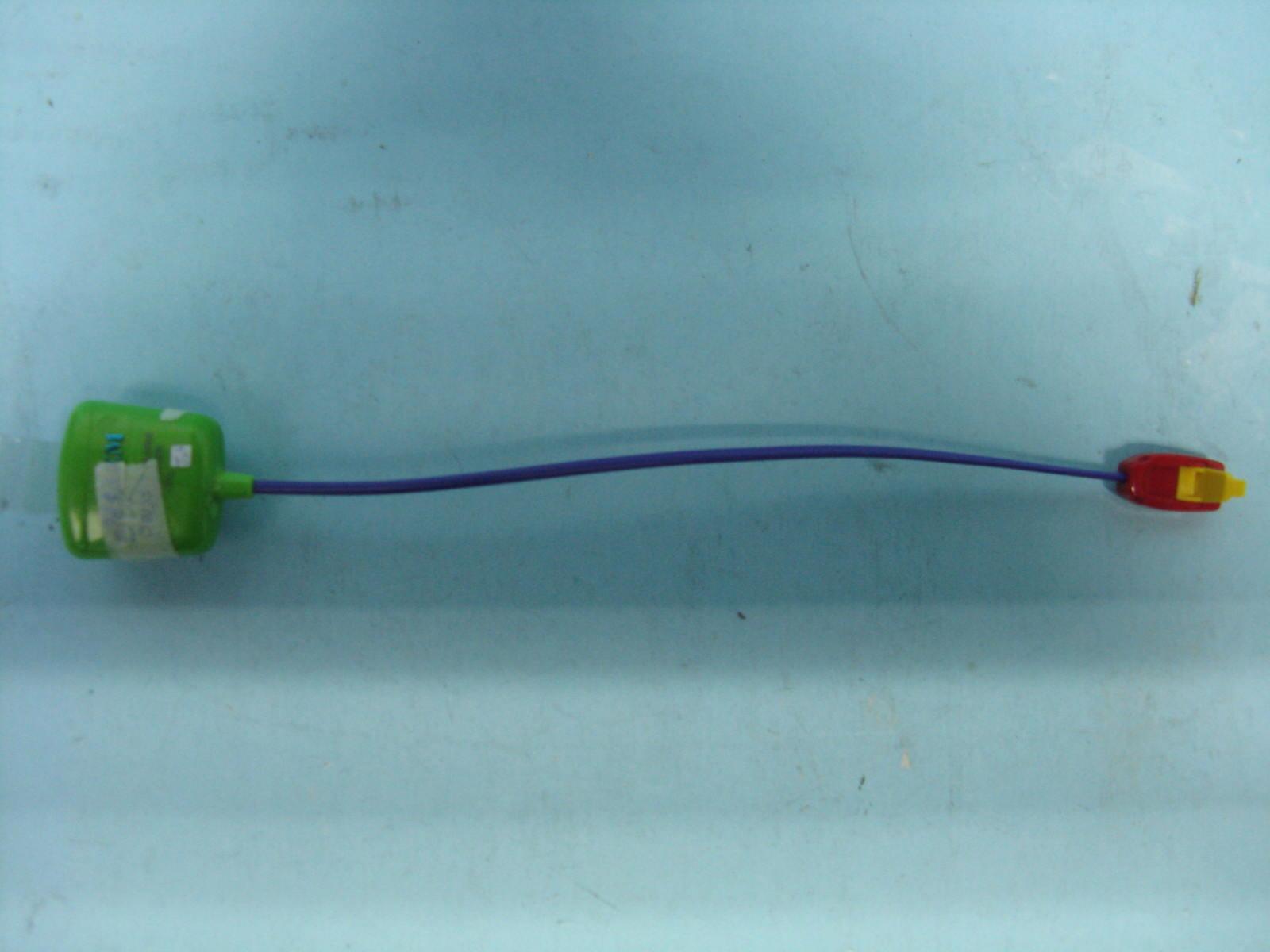

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

STC Test Report Date : 2010-01-13 Page 1 of 23 No. : HM164668 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (KOI004): Kolf Industries (H.K.) Ltd. No. 1, 2/F., Sing Win Ind. Bldg., 15-17 Shing Yip St., Kwun Tong Manufacturer: Kolfda Electronics (Shenzhen) Co., Ltd. 8/D, Block 1, Sheung Yuen Ind. Bldg, North, Honggang Road Luohu, Shenzhen, China Description of Sample(s): Submitted sample(s) said to be Product: Wireless Alarm Brand Name: Malem Model Number: MO12 FCC ID: U9FMO12 Date Sample(s) Received: 2009-12-09 Date Tested: 2009-12-17 to 2010-01-07 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4:2003 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2010-01-13 Page 2 of 23 No. : HM164668 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 23 Content Page 2-3 of 23 1.0 General Details 1.1 Test Laboratory Page 4 of 23 1.2 Applicant Details Page 4 of 23 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 23 Description of EUT operation 1.4 Date of Order Page 5 of 23 1.5 Submitted Sample(s) Page 5 of 23 1.6 Test Duration Page 5 of 23 1.7 Country of Origin Page 5 of 23 2.0 Technical Details 2.1 Investigations Requested Page 6 of 23 2.2 Test Standards and Results Summary Page 6 of 23 3.0 Test Results 3.1 Emission Page 7-10 of 23 3.2 Bandwidth Measurement Page 11-12 of 23 STC Test Report Date : 2010-01-13 Page 3 of 23 No. : HM164668 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 23 Appendix B Duty Cycle Correction During 100 msec Page 14-20 of 23 Appendix C Periodic Operation Page 21 of 23 Appendix D Photographs Page 22-23 of 23 STC Test Report Date : 2010-01-13 Page 4 of 23 No. : HM164668 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Kolf Industries (H.K.) Ltd. No. 1, 2/F., Sing Win Ind. Bldg., 15-17 Shing Yip St., Kwun Tong Manufacturer Kolfda Electronics (Shenzhen) Co., Ltd. 8/D, Block 1, Sheung Yuen Ind. Bldg, North, Honggang Road Luohu, Shenzhen, China STC Test Report Date : 2010-01-13 Page 5 of 23 No. : HM164668 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Submitted sample(s) said to be Product: Wireless Alarm Manufacturer: Kolfda Electronics (Shenzhen) Co., Ltd. Brand Name: Malem Model Number: MO12 Rating: 12Vd.c. (“23AE” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Kolf Industries (H.K.) Ltd., Wireless Alarm. The EUT is a periodic transmitter, While the EUT switched on, the EUT will periodically transmit signals to the receiver unit. The transmission signal modulated by IC; and the type is pulse modulation. 1.4 Date of Order 2009-12-09 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2009-12-17 to 2010-01-07 1.7 Country of Origin China STC Test Report Date : 2010-01-13 Page 6 of 23 No. : HM164668 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accord…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
