U9FREM40RF Remote

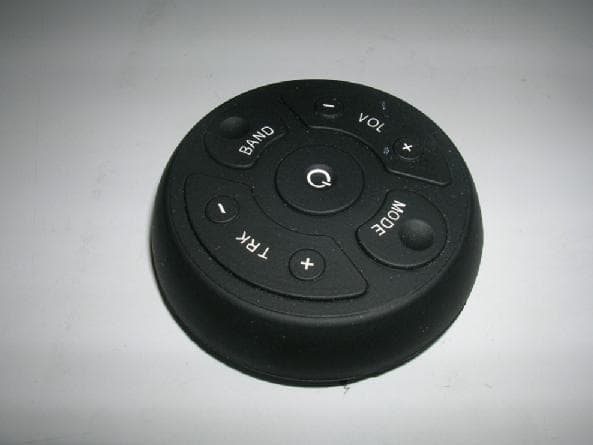

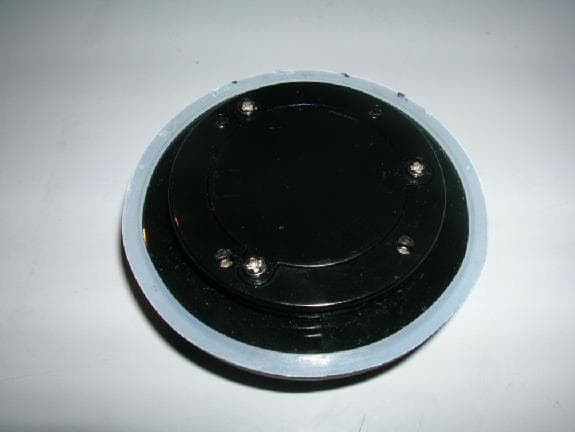

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

FCC ID: U9FREM40 Circuit Description The 433 MHz crystal oscillator drives the base of Q3 the final/buffer amplifier. The modulation provided by IC. The output of Q3 has the matching network consisting of L1, L2 and C1, C2 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source No external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“CR2032” size battery x 1) primary battery Operation Descriptions The transmitter is a remote control operating at 433MHz band. The transmitter is powered by a 3V battery (“CR2032” size battery x 1) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 433 MHz carrier frequency. Remarks: The transmitter is a 7 button transmitter. The EUT continues to transmit while button is being pressed. It is button transmitter, Modulation by IC; and type is Pulse modulation.

STC Test Report Date : 2007-07-18 Page 1 of 18 No. : HM158504 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (KOI004): Kolf Industries (H.K.) Ltd. No. 1, 2/F., Sing Win Ind. Bldg., 15-17 Shing Yip St., Kwun Tong, Kowloon, Hong Kong. Manufacturer: Kolf Industries (H.K.) Ltd. No. 1, 2/F., Sing Win Ind. Bldg., 15-17 Shing Yip St., Kwun Tong, Kowloon, Hong Kong. Description of Samples: Model Name: RF Remote Brand Name: JBL Model Number: REM40 FCC ID: U9FREM40 Date Samples Received: 2007-03-31 Date Tested: 2007-04-12 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-07-18 Page 2 of 18 No. : HM158504 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 18 Content Page 2-3 of 18 1.0 General Details 1.1 Test Laboratory Page 4 of 18 1.2 Applicant Details Page 4 of 18 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 18 Description of EUT operation 1.4 Date of Order Page 5 of 18 1.5 Submitted Samples Page 5 of 18 1.6 Test Duration Page 5 of 18 1.7 Country of Origin Page 5 of 18 2.0 Technical Details 2.1 Investigations Requested Page 6 of 18 2.2 Test Standards and Results Summary Page 6 of 18 3.0 Test Results 3.1 Emission Page 7-10 of 18 3.2 Bandwidth Measurement Page 11-12 of 18 STC Test Report Date : 2007-07-18 Page 3 of 18 No. : HM158504 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 18 Appendix B Duty Cycle Correction During 100 msec Page 14-15 of 18 Appendix C Periodic Operation Page 16 of 18 Appendix D Photographs Page 17-18 of 18 STC Test Report Date : 2007-07-18 Page 4 of 18 No. : HM158504 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Kolf Industries (H.K.) Ltd. No. 1, 2/F., Sing Win Ind. Bldg., 15-17 Shing Yip St., Kwun Tong, Kowloon, Hong Kong. HKSTC Code Number for Applicant Manufacturer Kolf Industries (H.K.) Ltd. No. 1, 2/F., Sing Win Ind. Bldg., 15-17 Shing Yip St., Kwun Tong, Kowloon, Hong Kong. STC Test Report Date : 2007-07-18 Page 5 of 18 No. : HM158504 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Product: RF Remote Manufacturer: Kolf Industries (H.K.) Ltd. Brand Name: JBL Model Number: REM40 Rating: 3Vd.c (“CR2032” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Kolf Industries (H.K.) Ltd., RF Remote. The transmitter is a 7 buttons transmitter. The EUT continues to transmit while button is being pressed. It is button transmitter, Modulation by IC; and type is pulse modulation. 1.4 Date of Order 2007-03-31 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2007-04-12 1.7 Country of Origin China STC Test Report Date : 2007-07-18 Page 6 of 18 No. : HM158504 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 2006 and ANSI C63.4:…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
