U9S-MY103LGSM 850/1900 Mobile Phone

USER MANUAL My103L INDEX ANATOMY....................................................1 INSTALLATION ............................................2 1. SIM Card................................................................... 2 2. Battery ....................................................................... 3 BASICS ........................................................5 1. Turn it on/off ............................................................. 5 2. Make a call ................................................................ 5 3. Answer a call ............................................................. 6 4. Display ....................................................................... 6 5. Text input................................................................... 8 6. Phone lock ................................................................. 9 7. Auto key lock........................................................... 10 8. Language ................................................................. 10 MENU MAP ................................................ 11 TECHNICAL INFORMATION .....................14 SAFETY INFORMATION............................16 ANATOMY Left soft key Right soft key Navigation key Call key End key Power on/off Battery door 4pin slot INSTALLATION 1. SIM Card ①. Push the hook of the battery door on the back of phone. ②. Slide down and detach the battery door ③. Insert SIM card into the SIM slot in the right direction. Caution: Don’t bend or scratch your SIM card. Keep it away from static electricity, water and dirt. 2. Battery ④. Connect the battery plug with the slot of phone. Caution: The plug and slot have the direction and it will be connected only in the right direction. ⑤. Lay the battery and close the door Caution: New battery is not fully charged. ⑥. Connect the DC adapter with Phone and plug the DC adapter into your power outlet. ⑦. Insert the plug of DC adapter into the slot of Phone. BASICS 1. Turn it on/off To turn on your phone, press and hold “End key” for a few seconds or until the display turns on. If prompted, enter your 4-digit PIN code. Caution: If you enter an incorrect PIN code 3 times in a row, your SIM card is disabled and your display shows SIM Blocked. Contact your service provider. To turn off your phone, press and hold “End key” for a few seconds 2. Make a call 1) Enter phone number which you want to call. 2) Press “Call key” to make a call. Tip: In some menus like Phonebook, Message, Call log, etc. which have individual phone number, Press “Call key” directly to make a call. 3. Answer a call When your phone rings, just press “Call key” If the phone mode is set to “Any Key Answer”, pressing any key will answer to the coming call. 4. Display The display shows when you turn on the phone [Status indicator] 1) Signal strength indicator - Vertical bars show the strength of network connection. 2) Network indicator - Shows network status. Status indicators Time & Date Soft keys PLMN Greeting text : In use of call : Cannot make or receive calls : Network forwarding : Roaming (outside of home area) 3) Message indicator - Shows when you receive a new message. : Text message : Voice message 4) Alarm indicator : Alarm is active 5) Ring-tone indicator : ring-tone volume set to zero : Manner mode 6) Battery level indicator - shows the battery charging level. : Full battery : Low battery 5. Text input Text input is used for creating message, editing phonebook entry, changing idle banner, etc. z To change the input mode, press Pound key(#) to toggle in numeric mode, upper letter mode and lower letter mode. z To input Symbol, press Star key(*) to change the input mode. z To input common symbol, press 1 key to input several common symbols. Input mode Tip: If you want to input the different language with the current language setting, you have to change “language” setting first. 6. Phone lock You can lock your phone to prohibit others from using the phone. Phone lock is neither SIM card lock nor SIM lock by the operator. [Change Password] Entering: “Left soft key” > “Security Setup” > “Change Phone PW” Tip: The original PW is “0000” [Turn phone lock on/off] Entering: “Left soft key” > “Security Setup” > “Phone Lock” Tip: If phone lock is on, you need to enter the phone PW, whenever phone turn on. [unlock the phone] Press and hold “pound key” for a few second, then enter your PW. 7. Auto key lock You can lock your phone to prevent accidental key presses. [Setting auto key lock] Entering: “Left soft key” > “Security Setup” > “Auto Key Lock” [unlock key] Pressing any key will pup up a window. And then press and hold “pound key” for a few second. 8. Language If the language setting is “Automatic”, It will depends on SIM card setting. Entering: “Left soft key” > “Settings” > “Phone Settings” > “Language” MENU MAP 1. Phone Book 1. Browse 2. Create 3. Memory Status 4. Delete all entries 5. My Number 2. Message 1. Write Message 2. Inbox 3. Outbox 4. Drafts 5. Voice Mail 1. Number 2. Delete 3. Connect to Voice Mail 6. Broadcast Message 1. Receive Mode 2. Languages 7. Message Settings 1. Service Center Number 2. Expire Period 3. Massege Type 4. Status Report 5. Alert Period 8. Template 9. Memory Status 3. Call Log 1. Incoming Call 2. Outgoing Call 3. Missed Call 4. Call Duration 4. Settings 1. Phone Settings 1. Clock Settings 2. Language 3. Answer Mode 2. Call Setup 1. Call Divert 2. Call Barring 3. Call Waiting 4. Auto Redial 5. Caller ID 6. Line Select 3. Network Setup 4. Factory Default 5. Security Setup 1. SIM PIN 2. Phone Lock 3. Auto Key Lock 4. Change Password 6. Tone 1. Tone Setup 1. Incoming Call 2. Message Tone 2. Volume 1. Call 2. Ring Tone 3. Keypad Tone 7. Display 1. Idle Display 1. Clock and Date 2. Idle Text 2. Contrast 3. LCD Backlight 8. Accessories 1. Alarm 2. Calculator 3. Calendar 9. SIM Tool Kit TECHNICAL INFORMATION This wireless phone meets the government’s requirements for exposure to radio waves. Your wireless phone is a radio tr…

Text truncated - open the document above for the full version.

Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: GSM Mobile Phone Product Model: My103L FCC ID: U9S-MY103L The following information should be held confidential: All Schematics/block diagrams All Parts list for the above schematic diagram Tune-Up Procedure and Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Andy dong Title: Product Manager i-sirius Co., Ltd

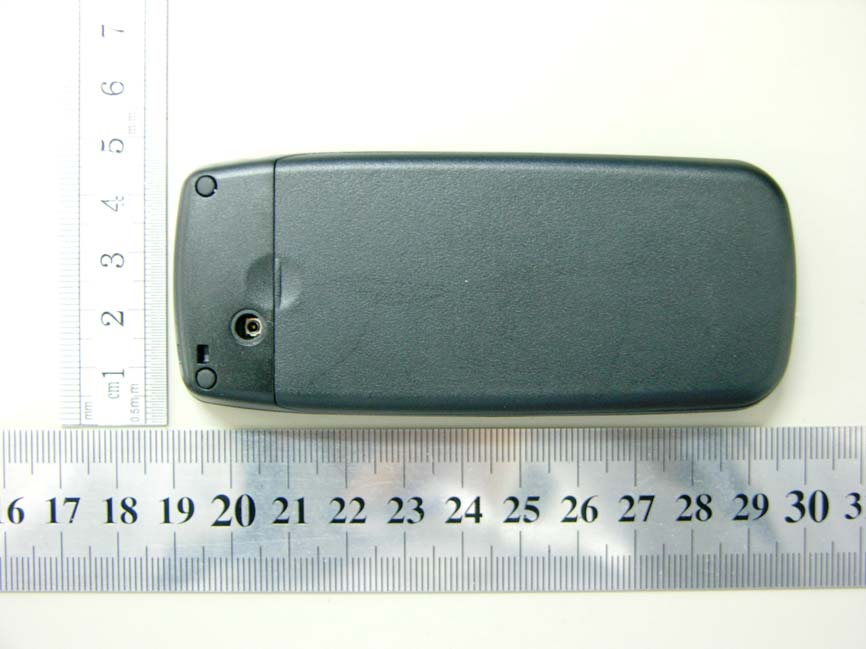

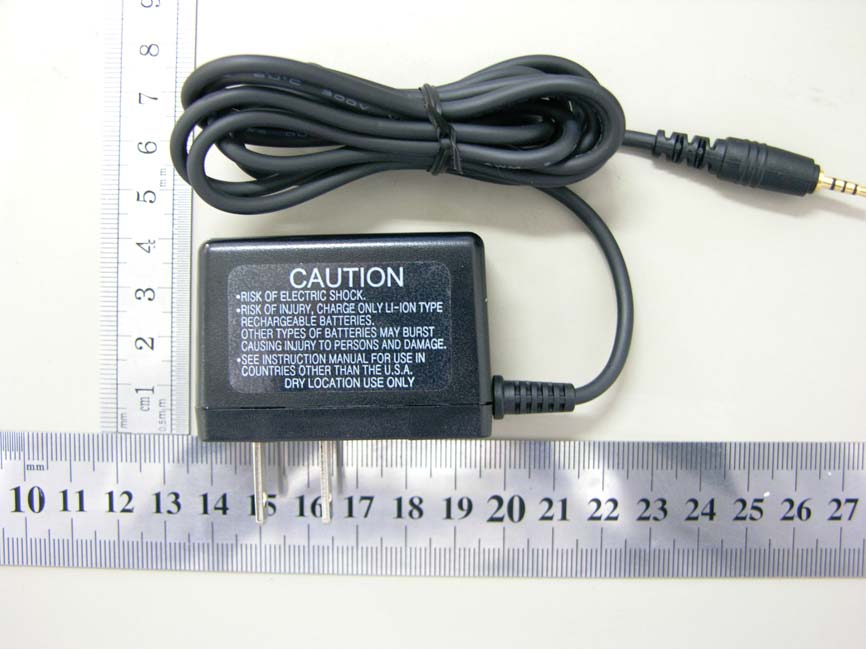

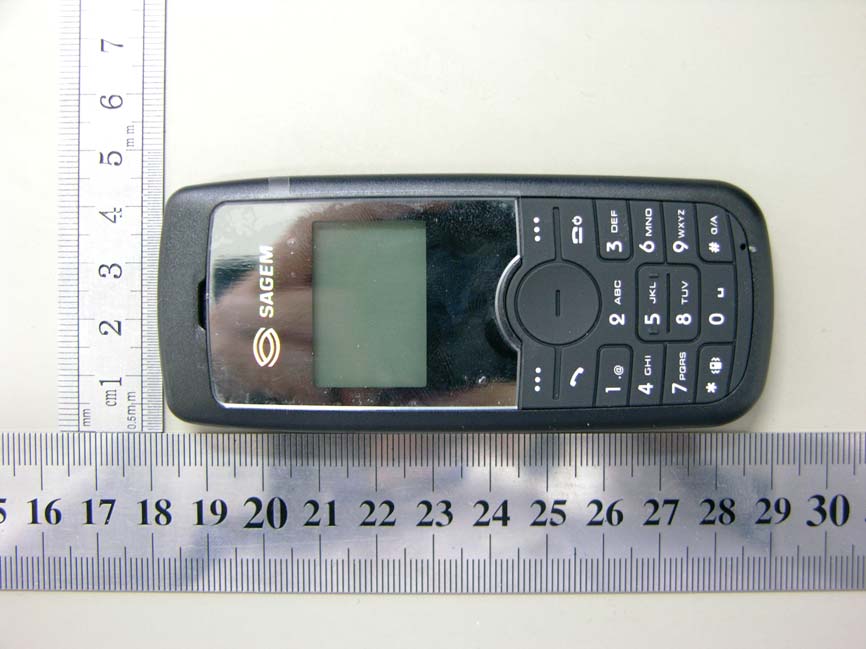

U9S-My103L External Photo

U9S-MY103L Internal Photo

The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-E0016 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 39 of 86 Fig24 SAR Test result Left Side Cheek 1909.8 MHz Touch position -High/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Maximum value of SAR (measured) = 1.41mW/g Touch position - High/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.5 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 2.32 W/kg SAR(1 g) = 1.26 mW/g; SAR(10 g) = 0.654 mW/g Maximum value of SAR (measured) = 1.41 mW/g 0 dB =1.41mW/g The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-E0016 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 40 of 86 Left Side Tilt 1850.2 MHz Tilt position - Low/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Maximum value of SAR (measured) =1.00 mW/g Tilt position-low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.9 V/m; Power Drift = -0.144 dB Peak SAR (extrapolated) = 1.63 W/kg SAR(1 g) = 0.901 mW/g; SAR(10 g) = 0.481 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.00 mW/g 0 dB =1.00 mW/g Fig25 SAR Test result The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-E0016 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 41 of 86 Left Side Tilt 1880 MHz Tilt position - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Maximum value of SAR (measured) =1.41mW/g Tilt position - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.1 V/m; Power Drift = 0.001 dB Peak SAR (extrapolated) = 2.42 W/kg SAR(1 g) = 1.27 mW/g; SAR(10 g) = 0.658 mW/g Maximum value of SAR (measured) = 1.41 mW/g 0 dB = 1.41 mW/g Fig26 SAR Test result The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-E0016 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 42 of 86 Left Side Tilt 1909.8 MHz Tilt position –High /Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Maximum value of SAR (measured) =0.951 mW/g Tilt position-high /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.8 V/m; Power Drift = -0.055 dB Peak SAR (extrapolated) = 1.52 W/kg SAR(1 g) = 0.858 mW/g; SAR(10 g) = 0.464 mW/g Maximum value of SAR (measured) = 0.951 mW/g 0 dB =0.951 mW/g Fig27 SAR Test result The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-E0016 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 43 of 86 850MHz/Body Towards ground 836.4 MHz Towards ground - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Maximum value of SAR (measured) = 1.57 mW/g Towards ground - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 2.16 W/kg SAR(1 g) = 1.42 mW/g; SAR(10 g) = 0.953 mW/g Maximum value of SAR (measured) =1.57 mW/g 0 dB =1.57 mW/g Fig28 SAR Test result The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-E0016 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 44 of 86 Back ground 836.4 MHz Back ground - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Maximum value of SAR (measured) = 0.539mW/g Back ground - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.5 V/m; Power Drift = 0.027 dB Peak SAR (extrapolated) = 0.583 W/kg SAR(1 g) = 0.505 mW/g; SAR(10 g) = 0.363 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.539 mW/g 0 dB = 0.539mW/g Fig29 SAR Test result The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-E0016 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 45 of 86 Towards ground 848.8 MHz Towards ground - High /Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Maximum value of SAR (measured) = 0.787mW/g Towards ground – High/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.8 V/m; Power Drift =-0.118 dB Peak SAR (extrapolated) = 1.65 W/kg SAR(1 g) = 0.737 mW/g; SAR(10 g) = 0.489 mW/g Maximum value of SAR (measured) = 0.787 mW/g 0 dB = 0.787 mW/g Fig30 SAR Test result The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-E0016 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 46 of 86 Towards ground 824.2 MHz Towards ground – Low/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Maximum value of SAR (measured) = 0.488 mW/g Towards ground – low /Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.7 V/m; Power Drift = -0.176 dB Peak SAR (extrapolated) = 0.547 W/kg SAR(1 g) = 0.456 mW/g; SAR(10 g) = 0.323 mW/g Maximum value of SAR (measured) = 0.488 mW/g 0 dB = 0.488 mW/g Fig31 SAR Test result The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-E0016 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 47 of 86 1900MHz/Body Towards ground 1880 MHz Towards ground - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Maximum va…

Text truncated - open the document above for the full version.

DAT-P-174/04-00 NO.L0447 Registration No.612767 CONFORMANCE TEST REPORT FOR HUMAN EXPOSURE TO ELECTROMAGNETIC FIELDS Report No. : SRMC2007-H024-E0016 Product Name: GSM Mobile Phone Product Model: My103L FCC ID: U9S-MY103L Manufacture: i-sirius Co., Ltd Specification: FCC OET Bulletin 65 (Edition 97-01) Supplement C (Edition 01-01) The State Radio Monitoring Center, Equipment Testing Division The State Radio Spectrum Monitoring and Testing Center No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 Executive Summary The Myl03L is a GSM mobile phone operating in the 850MHz and 1900MHz frequency range. The device has a internal integrated antenna .The system concepts used are the GSM850 and GSM1900 standards. The objective of the measurements done by SRMC (State radio monitoring center) was the dosimetric assessment of one device in the GSM850 and GSM1900 standards. The examinations have been carried out with the dosimetric assessment system, “DASY4”. The measurements were made according to FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields .All measurements have been performed in accordance to the recommendations given by SPEAG. The maximum SAR of the My103L mobile phone is Mode CH/f(MHz) Power Position Limit (mW/g)/1g Measured (mW/g) Result M 850 189/836.4 32.6dBm To w a r d s Ground 1.6 1.42 PASS Checked By: Tested By: This Test Report Is Issued By: Issued date: The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-E0016 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 1 of 86 Tables of Contents 1. General information ......................................................................................................................3 1.1 Notes of the test report........................................................................................................3 1.2 Information about the testing laboratory...........................................................................3 1.3 Applicant’s details.................................................................................................................3 1.4 Manufacturer’s details..........................................................................................................3 1.5 Application details.................................................................................................................4 1.6 Information of Test Sample.................................................................................................4 1.7 Auxiliary Equipment (AE)....................................................................................................4 1.8 Reference Specification.......................................................................................................5 2．Subject of Investigation ..............................................................................................................6 2.1 The IEEE Standard C95.1 and the FCC Exposure Criteria...........................................6 2.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...7 2.3 Distinction between Maximum Permissible Exposure and SAR Limits........................7 2.4 SAR Limit...............................................................................................................................8 3 The FCC Measurement Procedure .................................................................................................8 3.1 General Requirements.........................................................................................................8 3.2 Phantom specifications (shell and liquid)..........................................................................9 3.3 Specifications of the SAR measurement equipment.......................................................9 3.4 Scanning system specifications.......................................................................................10 3.5 Mobile phone holder specifications.................................................................................10 4. Measurement preparation............................................................................................................10 4.1 General preparation...........................................................................................................10 4.2Simplified performance checking......................................................................................10 4.3 Preparation of the mobile phone under test................................................................... 11 4.4 Position of the mobile phone in relation to the phantom.............................................. 11 4.5Tests to be performed.........................................................................................................12 5. The Measurement system........................................................................................................12 5.1 DASY4 Information............................................................................................................12 5.2Test Equipments:.................................................................................................................15 5.3 Uncertainty Assessment....................................................................................................16 6. Test Results .................................................................................................................................17 6.1Test Environment:...............................................................................................................17 6.2Test Method and Procedure...............................................................................................17 6.3Test Configuration........................…

Text truncated - open the document above for the full version.

DAT-P-174/04-00 NO.L0447 Registration No.612767 1 TEST REPORT Report No.: SRMC2007-H024-E0015 Product Name: GSM Mobile Phone Product Model: My103L Manufacture: i-sirius Co., Ltd Specification: FCC Part22, Part 24, Part 2, Part 15 FCC ID: U9S-MY103L The State Radio Monitoring Center, Equipment Testing Division The State Radio Spectrum Monitoring and Testing Center No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 The State Radio Monitoring Center, Equipment Testing Division No.: SRMC2007-H024-E0015 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 2 of 50 CONTENTS 1．General information ................................................................................ 3 1.1 Notes of the test report...................................................................................................3 1.2 Information about the testing laboratory.......................................................................3 1.3 Applicant’s details............................................................................................................3 1.4 Manufacturer’s details.....................................................................................................3 1.5 Application details............................................................................................................4 1.6 Reference specification...................................................................................................4 1.7 Information of EUT..........................................................................................................4 1.7.1 General information..............................................................................................4 1.7.2 EUT details............................................................................................................5 1.7.3 Auxiliary equipment details..................................................................................5 2. Test information: ....................................................................................... 6 2.1 Summary of the test results:..........................................................................................6 2.2 Test result..........................................................................................................................7 2.2.1 GSM850.........................................................................................................................7 2.2.1.1 RF Power Output –FCC Part2.1046...............................................................7 2.2.1.2 Effective Radiated Power-FCC Part22.913...................................................8 2.2.1.3 Occupied Bandwidth-FCC Part2.1049.........................................................10 2.2.1.4 Spurious Emissions at antenna terminals-FCC Part2.1051/22.917........13 2.2.1.5 Band Edges Compliance-FCC Part2.1051/22.917....................................16 2.2.1.6 Frequency Stability-FCC Part2.1055/Part22.355.......................................18 2.2.1.7 Radiated Spurious Emissions-FCC Part2.1053/22.917............................19 2.2.1.8 Conducted Emissions-FCC Part15.107.......................................................24 2.2.1.9 Radiated Emissions-FCC Part15.109..........................................................26 2.2.2 PCS1900......................................................................................................................28 2.2.2.1 RF Power Output –FCC Part2.1046.............................................................28 2.2.2.2 Effective Isotropic Radiated Power-FCC Part24.232.................................29 2.2.2.3 Occupied Bandwidth-FCC Part2.1049.........................................................31 2.2.2.4 Spurious Emissions at antenna terminals-FCC Part2.1051/24.238........34 2.2.2.5 Band Edges Compliance- FCC Part2.1051/24.238...................................37 2.2.2.6 Frequency Stability-FCC Part2.1055/Part24.235.......................................39 2.2.2.7 Radiated Spurious Emissions-FCC Part2.1053/24.238............................40 2.2.2.8 Conducted Emissions-FCC Part15.107.......................................................45 2.2.2.9 Radiated Emissions-FCC Part15.109..........................................................47 2.3. List of test equipments.................................................................................................49 Appendix................................................................................................................................50 The State Radio Monitoring Center, Equipment Testing Division No.: SRMC2007-H024-E0015 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 3 of 50 1．General information 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio Monitoring Center. The test results relate only to individual items of the samples which have been tested. 1.2 Information about the testing laboratory Company： The State Radio Monitoring Center, Equipment Testing Division The State Radio Spectrum Monitoring and Testing Center Address： No.80 Beilishi Road, Xicheng District, Beijing China City: Beijing Country or Region: China Contacted person: Wang Junfeng Tel +86 10 68009181 +86 10 68009202 Fax: +86 10 68009195 +86 10 68009205 Email: [email protected] 1.3 Applicant’s details Company: i-sirius Co., Ltd Address： 2th FL, Samyoung B/D, 106-2, Banpo-Dong, Secho-Gu ,Seoul, 137-040, City: Seoul Country or Region: Korea Grantee Code: U9S Contacted person: Andy dong Tel: 82-16-320-7092 Fax: 82-2-3481-1535 Email: [email protected] 1.4 Manufacturer’s details Company: i-sirius Co., Ltd Address： 2th FL, Samyoung B/D, 106-2, Banpo-Dong…

Text truncated - open the document above for the full version.

DAT-P-174/04-00 NO.L0447 Registration No.612767 Appendix1 TEST SETUP Report No.: SRMC2007-H024- E0015 Product Name: GSM Mobile Phone Product Model: My103L Manufacture: i-sirius Co., Ltd Specification: FCC Part22, Part 24, Part 2, Part 15 FCC ID: U9S-MY103L The State Radio Monitoring Center, Equipment Testing Division The State Radio Spectrum Monitoring and Testing Center No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 The State Radio Monitoring Center, Equipment Testing Division No.: SRMC2007-H024-E0001 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 2 of 3 Pic 1 Conducted Emissions Test Setup Pic 2 Radiated Spurious Emissions Test Setup The State Radio Monitoring Center, Equipment Testing Division No.: SRMC2007-H024-E0001 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 3 of 3 Pic 3 Radiated Emissions Test Setup
