U9S-MY203LMobile Phone

USER MANUAL My203L INDEX ANATOMY....................................................1 INSTALLATION ............................................2 1. SIM Card................................................................... 2 2. Battery ....................................................................... 3 BASICS ........................................................7 1. Turn it on/off ............................................................. 7 2. Make a call ................................................................ 7 3. Answer a call ............................................................. 8 4. Display ....................................................................... 8 5. Text input................................................................. 11 6. Phone lock ............................................................... 11 7. Auto key lock........................................................... 12 8. Language ................................................................. 13 MENU MAP ................................................14 TECHNICAL INFORMATION .....................17 SAFETY INFORMATION............................19 1 ANATOMY Left soft key Right soft key Navigation key Call key End key Power on/off Battery door 4pin slot 2 INSTALLATION 1. SIM Card ①. Push the hook of the battery door on the back of phone. ②. Slide down and detach the battery door ③. Insert SIM card into the SIM slot in the right direction. Caution: Don’t bend or scratch your SIM card. Keep it away from static electricity, water and dirt. 3 2. Battery ④. Connect the battery plug with the slot of phone. Caution: The plug and slot have the direction and it will be connected only in the right direction. ⑤. Lay the battery and close the door Caution: New battery is not fully charged. ⑥. Connect the DC adapter with Phone and plug the DC adapter into your power outlet. 4 ⑦. Insert the plug of DC adapter into the slot of Phone. 5 FCC RF Exposure FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Regulatory information / Disclaimers Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user 6 to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. For bady worn operation,this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5cms from the body.Use of other accessories may not ensure compliance with FCC RF exposure guidelines. 7 BASICS 1. Turn it on/off To turn on your phone, press and hold “End key” for a few seconds or until the display turns on. If prompted, enter your 4-digit PIN code. Caution: If you enter an incorrect PIN code 3 times in a row, your SIM card is disabled and your display shows SIM Blocked. Contact your service provider. To turn off your phone, press and hold “End key” for a few seconds 2. Make a call 1) Enter phone number which you want to call. 2) Press “Call key” to make a call. Tip: In some menus like Phonebook, Message, Call log, etc. which have individual phone number, Press “Call key” directly to make a call. 8 3. Answer a call When your phone rings, just press “Call key” If the phone mode is set to “Any Key Answer”, pressing any key will answer to the coming call. 4. Display The display shows when you turn on the phone [Status indicator] 1) Signal strength indicator - Vertical bars show the strength of the network connection. Status indicators Time & Date Soft keys PLMN Greeting text 1 23 4567 8 9 2) Network indicator - Shows network status. : In use of call : Cannot make or receive calls : Network forwarding : Roaming (outside of your home area) 3) Phone lock indicator - Shows when your phone is locked. : Phone lock 4) Line connection - Shows the line number which your phone is connected to. : Line 1 : Line 2 5) Message indicator - Shows when you receive a new message. 10 : Text message : Voice message 6) Alarm indicator - Shows when the alarm is active. 7) Ring-tone indicator - Shows the current setting of ring-tone and vibration. : Bell only : Vibration only : Vibration then bell : Manner mode 8) Battery level indicator - shows the battery charging level. : Full battery : Low battery 11 5. Text input Text input is used for creating message, editing phonebook entry, changing idle banner, etc. z To change the input mode, press Pound key(#) to toggle in numeric mode, upper letter mode and lower letter mode. z To input Symbol, press Star key(*) to go to symbol mode. z To input common symbol, press 1 key to input several common symbols. Tip: If you want to input the different language with the current language setting, you have to change “language” setting first. 6. Phone lock You can lock your phone to prohibit others from using the Input mode 12 phone. Phone lock is not SIM card lock nor SIM lock by the operator. [Change Password] Entering: “Left soft key” > “Security Setup” > “Change Phone PW” Tip: The original PW is “0000” [Turn phone lock on/off] Entering: “Left soft key” > “Security Setup” > “Phone Lock” Tip: If phone lock is on, you need to enter the phone PW, whenever phone turn on. [unlock the phone] Press and hold “pound key” for a few second, then enter your PW. 7. Auto key lock You can lock your phone to prevent accidental key presses. [Setting…

Text truncated - open the document above for the full version.

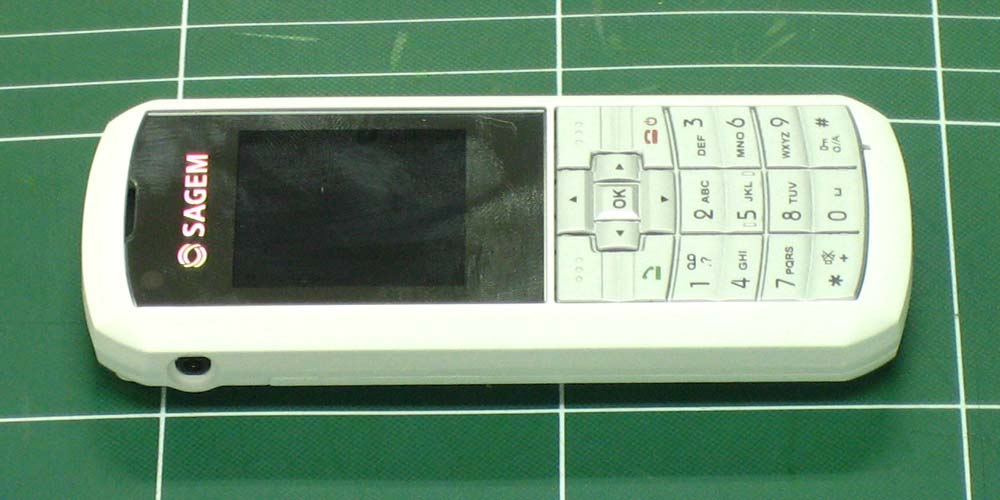

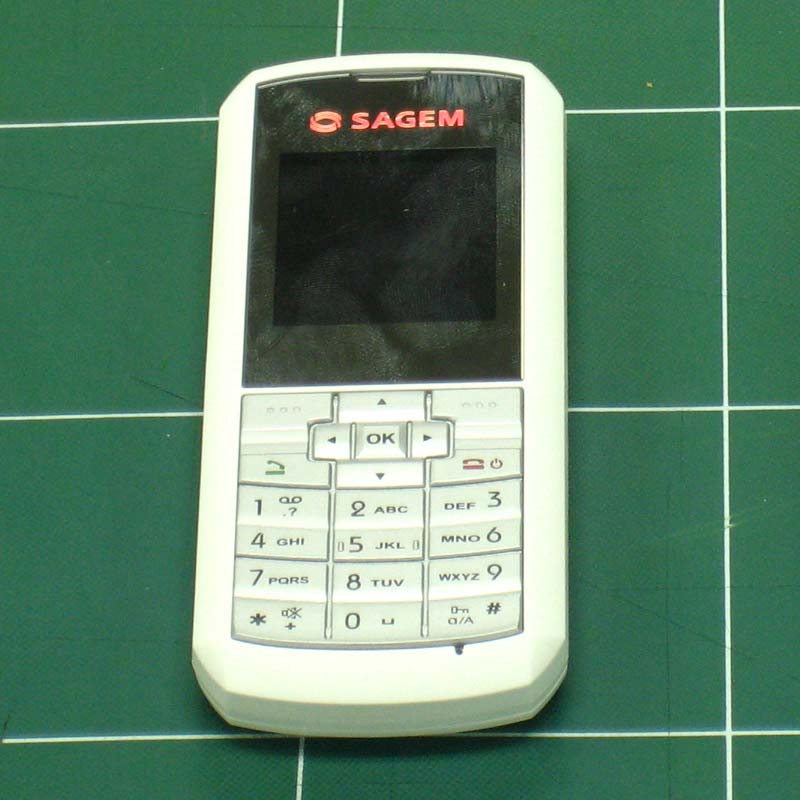

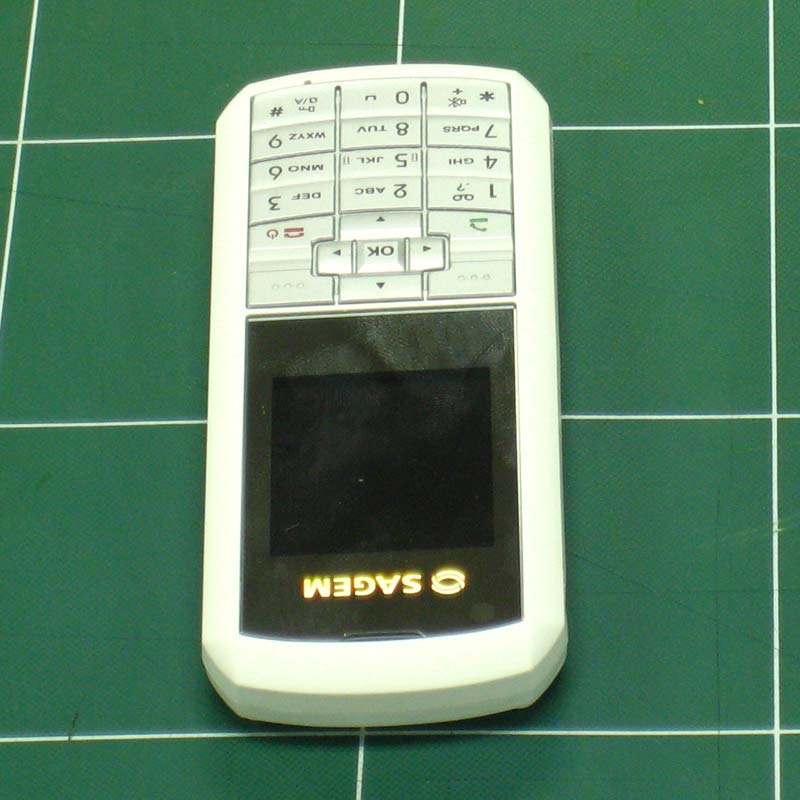

Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 12, 2007 1. EXTERNAL PHOTOGRAPHS OF EUT EUT PHOTOS Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 12, 2007 Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 12, 2007 Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 12, 2007 AC to DC charger Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 12, 2007

LABEL LOCATION

Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 15, 2007 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 15, 2007 Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 15, 2007 Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 15, 2007 Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 15, 2007 Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 15, 2007 Antenna connecter Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 15, 2007

Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 12, 2007 Page 1 Totle 30 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C ANSI/IEEE Std. C95.1-1992 For GSM Mobile phone Model: My203L Trade name:SAGEM Prepared for i-Sirius Co., Ltd 2th fl, Sam Young B/D, 106-2, Banpo-Dong, Seocho-Gu，Seoul, 137-040, Korea Prepared by Compliance Certification Services (Kunshan) Inc. No.10, Weiye Rd., Innovation Park, Eco & Tec. Development Part, Kunshan City, Jiangsu Province, PRC. TEL: 86-512-57355888 FAX: 86-512-57370818 http://www.ccsemc.com.cn Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 12, 2007 Page 2 Totle 30 TABLE OF CONTENTS 1. EUT DESCRIPTION .............................................................................................................. 3 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ............. 4 3. DOSIMETRIC ASSESSMENT SYSTEM ............................................................................ 4 3.1 MEASUREMENT SYSTEM DIAGRAM .................................................................................... 5 3.2 SYSTEM COMPONENTS ........................................................................................................... 6 4. EVALUATION PROCEDURE.............................................................................................. 8 4.1 DATA EVALUATION ................................................................................................................. 8 4.2 SAR EVALUATION PROCEDURES........................................................................................ 10 4.3 SPATIAL PEAK SAR EVALUATION ...................................................................................... 11 5. EXPOSURE LIMIT .............................................................................................................. 12 6. EUT ARRANGEMENT........................................................................................................ 13 7.1 ANTHROPOMORPHIC HEAD PHANTOM......................................................................................... 13 7. MEASUREMENT RESULTS .............................................................................................. 16 7.1 TEST LIQUID CONFIRMATION ............................................................................................. 16 7.2 EUT TUNE-UP PROCEDURE................................................................................................... 18 7.3 EUT SETUP PHOTOS................................................................................................................ 19 7.4 SAR MEASUREMENT RESULT .............................................................................................. 21 8. EUT PHOTOS ....................................................................................................................... 23 9. EQUIPMENT LIST & CALIBRATION ............................................................................ 28 10. FACILITIES .......................................................................................................................... 29 11. REFERENCES ......................................................................................................................29 12. ATTACHMENT .................................................................................................................... 30 CONTENT................................................................................................................................................. 30 Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue: October 12, 2007 Page 4 Totle 30 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system OPENSAR from ANTENNESSA.The system is based on a high precision robot (working range greater than 0.9 m), which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetric probe EP74 0807 (manufactured by ANTENNESSA), designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe has been calibrated according to the procedure …

Text truncated - open the document above for the full version.

CALIBRATION REPORT VALIDATION DIPOLE Bâtiment le Ponant Avenue de la PEROUSE 29280 PLOUZANÉ France Tél. : 02.98.05.13.34 Fax. : 02.98.05.53.87 [email protected] 835 MHz 2 PRODUCT DESCRIPTION CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Vector Network Analyzer HP8753D MEASUREMENT PROCEDURE We placed the dipole as define in IEEE1528-2005 SAR standard : CALIBRATION REPORT VALIDATION DIPOLE Bâtiment le Ponant Avenue de la PEROUSE 29280 PLOUZANÉ France Tél. : 02.98.05.13.34 Fax. : 02.98.05.53.87 [email protected] 835 MHz 3 RETURN LOSS MEASUREMENT RESULTS Return Loss Parameter (S 11 ) Vs Frequency 0,835; -20,61 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 0,750,80,850,90,9511,051,11,151,2 Frequency (GHz) Return Loss S 11 (dB) Figure 1 : Return Loss in Head Liquid Return Loss Parameter (S 11 ) Vs Frequency 0,835; -32,551 -40 -35 -30 -25 -20 -15 -10 -5 0 0,750,80,850,90,9511,051,11,151,2 Frequency (GHz) Return Loss (dB) Figure 2 : Return Loss in Body Liquid VSWR at 835 MHz in HL : 1.206:1 VSWR at 835 MHz in BL : 1.048:1 CALIBRATION REPORT VALIDATION DIPOLE Bâtiment le Ponant Avenue de la PEROUSE 29280 PLOUZANÉ France Tél. : 02.98.05.13.34 Fax. : 02.98.05.53.87 [email protected] 835 MHz 4 SAR MEASUREMENT EQUIPEMENT PC Dell (Pentium IV 2.4GHz, SN:X10-23533) Voltmeter Keithley (2000, SN:1000572) Synthetizer Rohde&Schwarz (SML_03, SN:101868) Amplifier Nuclétudes (ALB216, SN:10800) Power Meter Rohde&Schwarz (NRVD, SN:101066) Probe Antennessa (SN:EP37) Phantom Antennessa (SN: SN_20_07_SAM42) Liquid Antennessa (Last Calibration: 17 09 07) Head Liquid Values: eps’ : 41,76 sigma : 0,877 Body Liquid Values: eps’ : 55,17 sigma : 1,009 Sotfware OpenSAR V3 SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 6,364 W/Kg + 2,65% 9,610 W/Kg + 1,16% SAR measured Liquid : BL Input power : 1W 6,422 W/Kg + 3,58% 9,590 W/Kg + 0,95%

CALIBRATION REPORT VALIDATION DIPOLE Bâtiment le Ponant Avenue de la PEROUSE 29280 PLOUZANÉ France Tél. : 02.98.05.13.34 Fax. : 02.98.05.53.87 [email protected] 1900 MHz 2 PRODUCT DESCRIPTION CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Vector Network Analyzer HP8753D MEASUREMENT PROCEDURE We placed the dipole as define in IEEE1528-2005 SAR standard : CALIBRATION REPORT VALIDATION DIPOLE Bâtiment le Ponant Avenue de la PEROUSE 29280 PLOUZANÉ France Tél. : 02.98.05.13.34 Fax. : 02.98.05.53.87 [email protected] 1900 MHz 3 RETURN LOSS MEASUREMENT RESULTS Return Loss Parameter (S 11 ) Vs Frequency 1,9; -32,037 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 1,61,651,71,751,81,851,91,9522,052,1 Fre que ncy (GHz) Return Loss S 11 (dB) Figure 1 : Return Loss in Head Liquid Return Loss Parameter (S 11 ) Vs Frequency 1,9; -22,753 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 1,61,651,71,751,81,851,91,9522,052,1 Fre que ncy (GHz) Return Loss S 11 (dB) Figure 2 : Return Loss in Body Liquid VSWR at 1900 MHz in HL: 1.051:1 VSWR at 1900 MHz in BL: 1.157:1 CALIBRATION REPORT VALIDATION DIPOLE Bâtiment le Ponant Avenue de la PEROUSE 29280 PLOUZANÉ France Tél. : 02.98.05.13.34 Fax. : 02.98.05.53.87 [email protected] 1900 MHz 4 SAR MEASUREMENT EQUIPEMENT PC Dell (Pentium IV 2.4GHz, SN:X10-23533) Voltmeter Keithley (2000, SN:1000572) Synthetizer Rohde&Schwarz (SML_03, SN:101868) Amplifier Nuclétudes (ALB216, SN:10800) Power Meter Rohde&Schwarz (NRVD, SN:101066) Probe Antennessa (SN:EP37) Phantom Antennessa (SN: SN_20_07_SAM42) Liquid Antennessa (Last Calibration: 17 09 07) Head Liquid Values: eps’ : 39,93 sigma : 1,377 Boby Liquid Values: eps’ : 51,34 sigma : 1,574 Sotfware OpenSAR V3 SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 20.358 W/Kg - 0,69% 38,248 W/Kg - 3,66% SAR measured Liquid : BL Input power : 1W 20.110 W/Kg - 1,90% 37,746 W/Kg - 4,92%

Project name: KS071010A01 9/29/2007 9:11:00 PM Page 1 SAR MEASUREMENT REPORT Project name : KS071010A01 Project name: KS071010A01 9/29/2007 9:11:00 PM Page 2 II. RESULTS TYPE PAR AM E TE RS Noise -- Validation Measurement 1: Validation Plane with Dipole device position on Middle Channel in CW mode GSM850 Phone -- Noise -- Validation -- GSM900 Phone -- Noise -- Validation -- GSM1800 Phone -- Noise -- Validation -- GSM1900 Phone -- Noise -- Validation -- IMT2000 Phone -- Project name: KS071010A01 9/29/2007 9:11:00 PM Page 3 Noise -- Validation -- CUSTOM Phone -- Project name: KS071010A01 9/29/2007 9:11:00 PM Page 4 MEASUREMENT 1 VALIDATION Type: Validation measurement (Complete) Date of measurement: 12/10/2007 Measurement duration: 6 minutes 51 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Dipole Band GSM850 Channels Middle Signal CW Project name: KS071010A01 9/29/2007 9:11:00 PM Page 5 B. Instrumentations. PC HP (Pentium(R) V 3.06GHz375052-AA1, SN:375052-AA1) Network Emulator Agilent (E5071B, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_0807_EP_74) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa (Last Calibration:02/2006) Project name: KS071010A01 9/29/2007 9:11:00 PM Page 6 C. SAR Measurement Results Middle Band SAR (Channel 189): Frequency (MHz) 835.000024 Relative permitivity (real part) 52.246901 Relative permitivity (imaginary part) 22.076829 Conductivity (S/m) 1.035649 Variation (%) 0.260000 SURFACE SAR VOLUME SAR Project name: KS071010A01 9/29/2007 9:11:00 PM Page 7 Maximum location: X=1.00, Y=-2.00 SAR 10g (W/Kg) 6.146353 SAR 1g (W/Kg) 9.035760 Project name: KS071010A01 9/29/2007 9:11:00 PM Page 8 Z Axis Scan

Project name: KS071010A01 9/29/2007 2:30:00 PM Page 1 SAR MEASUREMENT REPORT Project name : KS071010A01 Project name: KS071010A01 9/29/2007 2:30:00 PM Page 2 II. RESULTS TYPE PAR AM E TE RS Noise -- Validation -- GSM850 Phone -- Noise -- Validation -- GSM900 Phone -- Noise -- Validation -- GSM1800 Phone -- Noise -- Validation Measurement 1: Validation Plane with Cheek device position on Middle Channel in CW mode GSM1900 Phone -- Noise -- Validation -- IMT2000 Phone -- Project name: KS071010A01 9/29/2007 2:30:00 PM Page 3 Noise -- Validation -- CUSTOM Phone -- Project name: KS071010A01 9/29/2007 2:30:00 PM Page 4 MEASUREMENT 1 validation Type: Validation measurement (Complete) Date of measurement: 12/10/2007 Measurement duration: 7 minutes 3 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Dipole Band GSM1900 Channels Middle Signal CW B. Instrumentations. Project name: KS071010A01 9/29/2007 2:30:00 PM Page 5 PC HP (Pentium(R) V 3.06GHz375052-AA1, SN:375052-AA1) Network Emulator Agilent (E5071B, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_0807_EP_74) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa (Last Calibration:02/2006) Project name: KS071010A01 9/29/2007 2:30:00 PM Page 6 C. SAR Measurement Results Middle Band SAR (Channel 661): Frequency (MHz) 1880.000000 Relative permitivity (real part) 40.795839 Relative permitivity (imaginary part) 13.631050 Conductivity (S/m) 1.357830 Variation (%) 0.080000 SURFACE SAR VOLUME SAR Project name: KS071010A01 9/29/2007 2:30:00 PM Page 7 Maximum location: X=-1.00, Y=-1.00 SAR 10g (W/Kg) 19.436580 SAR 1g (W/Kg) 38.198353 Project name: KS071010A01 9/29/2007 2:30:00 PM Page 8 Z Axis Scan

Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01-RP FCC ID:U9S-MY203L Date of Issue: October 15, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 46 Rev. 00 FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E TEST REPORT For GSM Mobile phone Model: My203L Trade Name: SAGEM Issued to i-Sirius Co., Ltd 2th fl, Sam Young B/D, 106-2, Banpo-Dong, Seocho-Gu，Seoul, 137-040, Korea Issued by COMPLIANCE CERTIFICATION SERVICES (KUNSHAN) INC. 1 0#Weiye Rd, Innovation Park Eco. & Tec. Development Zone Kunshan city JiangSu, (215300) CHINA TEL: 86-512-57355888 FAX: 86-512-57370818 Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01-RP FCC ID:U9S-MY203L Date of Issue: October 15, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 EUT CONFIGURATION.......................................................................................................................... 5 EUT EXERCISE..................................................................................................................................... 5 GENERAL TEST PROCEDURES.............................................................................................................. 5 DESCRIPTION OF TEST MODES............................................................................................................. 5 4. INSTRUMENT CALIBRATION................................................................................................. 6 5. FACILITIES AND ACCREDITATIONS ................................................................................... 7 FACILITIES.......................................................................................................................................... 7 EQUIPMENT......................................................................................................................................... 7 TABLE OF ACCREDITATIONS AND LISTINGS........................................................................................ 8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 SETUP CONFIGURATION OF EUT.......................................................................................................... 9 SUPPORT EQUIPMENT .................................................................................................................. 9 7. FCC PART 22 & 24 REQUIREMENTS ................................................................................... 10 PEAK POWER..................................................................................................................................... 10 ERP & EIRP MEASUREMENT ...................................................................................................... 12 OCCUPIED BANDWIDTH MEASUREMENT ............................................................................. 15 OUT OF BAND EMISSION AT ANTENNA TERMINALS .......................................................... 20 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ......................................... 30 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT........................................ 37 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT .................................................. 39 POWERLINE CONDUCTED EMISSIONS................................................................................................ 41 Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01-RP FCC ID:U9S-MY203L Date of Issue: October 15, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product GSM Mobile phone Trade Name SAGEM Model Number My203L Power Supply 1．AC to DC charger Model Number : MCW4737D-US Input: AC100-240V, 50/60Hz, 0.3A Output:DC5.0V,600mA Frequency Range TX: 824 ~ 849 MHz / 1850 ~ 1910 MHz RX: 869 ~ 894 MHz / 1930 ~ 1990 MHz Transmit Power 32.51 dBm GSM 850: 32.51dBm GSM 1900: 28.99dBm Cellular Phone Protocol GSM (PCS) Type of Emission 252KGXW Antenna Type INTERNAL Antenna Remark: This submittal(s) (test report) is intended to comply with Part 22 and Part 24 of the FCC 47 CFR Rules. Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01-RP FCC ID:U9S-MY203L Date of Issue: October 15, 2007 Page 5 Rev. 00 3. TEST METHODOLOGY Both conducted and radiated testing were performed according to the procedures document on chapter 13 of ANSI C63.4 and FCC CFR 47, 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055 and 2.1057. EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4.Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m away from the…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue:October 12, 2007 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST Compliance Certification Services (Kunshan) Inc. Report No: KS071010A01 FCC ID:U9S-MY203L Date of Issue:October 12, 2007 RADIATED EMISSION TEST Front of view Back of view
