U9SFX853CCRADLEDESKTOP CHARGER WITH ZIGBEE

1 User Manual FX-853C Dual band Wireless Local Loop Phone 2 (Back cover) Motorola, the Stylized M Logo, and other Motorola trademarks and trade dress are owned by Motorola, Inc. and are used under license from Motorola, Inc. MOTOROLA and the Stylized M Logo are registered in the U.S. Patent & Trademark Office. All other products or service names are the property of their respective owners. © Motorola, Inc 2007. All rights reserved. The information contained in the FX- 853C user guide is believed to be correct at the time of printing. We reserve the right to change or modify any information, product specifications, features or functionality without notice. The contents of the FX- 853C user guide are provided “as is.” Certain features may not be activated by your service provider, and/or their network settings may limit the feature’s functionality. Additionally, certain features may require a subscription. Contact your service provider for details. FX- 853C User Guide version 1.1 11/15/2007 © Copyright 2007, Motorola Inc., All rights reserved 3 ------------------------------------------------------------------------------------------------------------ USER’S GUIDE This page is intentionally left blank 4 WELCOME Congratulations on the purchase of your Motorola FX-853C product! Please retain your original dated sales receipt for your records. For warranty service of your Motorola FX- 853C product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Thank you for choosing a Motorola product. Please read important safety instructions before use. Read and understand all instructions before use. Please retain this guide for future reference. 5 Index 1.1. PLUGGING THE AC/DC ADAPTOR................................................... 10 1.2. SIM CARD....................................................................................... 10 1.3. BATTERY.......................................................................................... 12 1.4. COMBINING BELT CLIP................................................................... 13 1.5. LOCATING THE PHONE ON THE CRADLE......................................... 14 2. FEATURE HIGHLIGHTS.................................................................. 15 3. ABOUT THE PHONE ......................................................................... 16 3.1. FX-853C PHONE............................................................................. 16 3.2. KEY FUNCTIONS.............................................................................. 16 3.2.2. Send key............................................................................. 17 3.2.3. End key.............................................................................. 17 3.2.4. Numeric Keys............................................................................ 17 3.2.5. Scroll keys............................................................. 17 3.2.6. Using the selection keys............................................................ 17 3.2.7. Using the scroll keys................................................................. 17 3.2.8. Speaker button.............................................................. 17 3.3. DISPLAY INDICATORS AND ICONS.................................................... 18 3.3.1. Start screen................................................................................ 18 3.3.2. Scroll bar................................................................................... 18 3.4. IDENTIFIERS.................................................................................... 18 4. BASIC OPERATIONS ........................................................................ 20 4.1. SWITCHING THE PHONE ON AND OFF........................................... 20 4.2. MAKING A CALL............................................................................... 20 6 4.3. ANSWERING A CALL......................................................................... 20 4.4. SPEAKER MODE............................................................................... 20 4.5. ADJUSTING THE VOLUME................................................................ 21 4.5.1. Adjusting the ringer volume..................................................... 21 4.5.2. Adjusting earpiece volume........................................................ 21 4.6. REDIALING THE LAST-DIALED NUMBER.......................................... 21 4.7. CALLER ID...................................................................................... 22 4.8. SMS AND VOICE MAIL.................................................................... 22 4.9. PAGING THE PHONE BY THE CRADLE.............................................. 23 5. USING PHONE MENUS .................................................................... 24 5.1. NAVIGATE MENUS............................................................................ 24 5.1.1. Scrolling through menus.......................................................... 24 5.1.2. Exiting menu levels................................................................... 24 5.2. MENU TREE..................................................................................... 24 6. ENTERING LETTERS AND NUMBERS......................................... 28 6.1. ENTERING LETTERS........................................................................ 28 6.1.1. Editing name or phone number............................................... 28 6.1.2. Changing the case of letters and numbers............................... 29 7. USING THE PHONEBOOK............................................................... 30 7.1. USING THE PHONE BOOK................................................................ 30 7.2. USING PHONE BOOK MENUS........................................................... 30 7.3. BROWSE (BY NAME)......................................................................... 31 7.4. ADDING A NEW PHONE BOOK ENTRY...............................…

Text truncated - open the document above for the full version.

i-Sirius Co.,Ltd 3th FL,Sam Young B/D, 106-2, Banpo-Dong, Seocho-Gu, Seoul, 137-040, Korea March 20, 2008 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: U9SFX853CCRADLE. including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from i-Sirius Co.,Ltd. LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyung-Taek Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, Steve Bae / Product Manager Company name: i-Sirius Co., Ltd Phone:(82)2-3480-0900 E-mail: [email protected]

i-Sirius Co.,Ltd 3th FL,Sam Young B/D, 106-2, Banpo-Dong, Seocho-Gu, Seoul, 137-040, Korea March 20, 2008 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : i-Sirius Co., Ltd FCC ID : U9SFX853CCRADLE Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics [U9SFX853CCRADLE] SCH.pdf Parts list [U9SFX853CCRADLE] PL.pdf Block diagram [U9SFX853CCRADLE] BLK.pdf Operational description [U9SFX853CCRADLE] OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Steve Bae / Product Manager Company name: i-Sirius Co., Ltd Phone:(82)2-3480-0900 E-mail: [email protected]

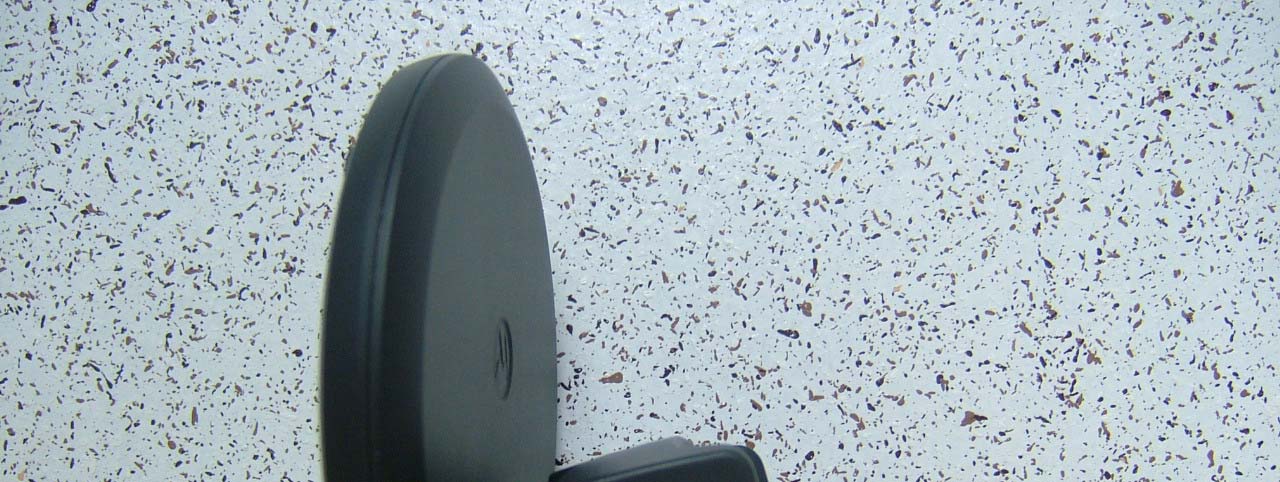

Model No.: FX-853C FCC ID: U9SFX853CCRADLE Copyright ○ c 2008, LTA Co., Ltd. Page 1 of 3 Model No.: FX-853C FCC ID: U9SFX853CCRADLE Copyright ○ c 2008, LTA Co., Ltd. Page 2 of 3 Model No.: FX-853C FCC ID: U9SFX853CCRADLE Copyright ○ c 2008, LTA Co., Ltd. Page 3 of 3

Model No.: FX-853C FCC ID: U9SFX853CCRADLE Copyright ○ c 2008, LTA Co., Ltd. Page 1 of 3 Model No.: FX-853C FCC ID: U9SFX853CCRADLE Copyright ○ c 2008, LTA Co., Ltd. Page 2 of 3 Model No.: FX-853C FCC ID: U9SFX853CCRADLE Copyright ○ c 2008, LTA Co., Ltd. Page 3 of 3 Zigbee Antenna for Cradle

Ref. No.: LR500190803A Copyright ○ c 2008, LTA Co., Ltd. Page 1 of 26 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com TEST REPORT Dates of Tests: JAN 14 ~ 25, 2008 Test Report S/N: LR500190803A Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT FCC Classification : Digital Transmission System (DTS) Manufacturing Description : DESKTOP CHARGER Manufacturer : Jurong Hi-Tech (Suzhou) Co. Ltd Model name : FX-853C Test Device Serial No.: : - Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2405MHz ~ 2480MHz Max. Output Power : -1.73 dBm Peak Conducted Data of issue : January 31, 2008 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 U9SFX853CCRADLE i-Sirius Co., Ltd Ref. No.: LR500190803A Copyright ○ c 2008, LTA Co., Ltd. Page 2 of 26 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 6dB BANDWIDTH ------------------------------------------------------------------------------ 3.2.2 OUTPUT POWER ------------------------------------------------------------------------------- 3.2.3 POWER SPECTRAL DENSITY --------------------------------------------------------------- 3.2.4 BAND - EDGE ----------------------------------------------------------------------------------- 3.2.5 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.6 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX 1 MAXIMUM PERMISSIBLE EXPOSURE CALCULATIONS ------------------- APPENDIX 2 TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 10 12 17 20 23 25 Ref. No.: LR500190803A Copyright ○ c 2008, LTA Co., Ltd. Page 3 of 26 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2008-09-30 ECT accredited Lab. RRL KOREA KR0049 2009-06-20 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500190803A Copyright ○ c 2008, LTA Co., Ltd. Page 4 of 26 2. Information’s about test item 2-1 Client / Manufacturer Company name : i-Sirius Co.,Ltd Address : 3th FL,Sam Young B/D, 106-2, Banpo-Dong, Seocho-Gu, Seoul, 137-040, Korea Tel / Fax : +82-2-3480-0970/ +82-2-596-6570 2-2 Manufacturer Company name : Jurong Hi-Tech (Suzhou) Co. Ltd Address : 275,Xinglong Street Suzhou Industrial Park, Suzhou 215024,China 2-3 Equipment Under Test (EUT) Trade name : DESKTOP CHARGER Model name : FX-853C Brand name : MOTOROLA Date of receipt : December 16, 2007 EUT condition : Pre-Production, not damaged Antenna Gain : Max 1.45dBi Frequency Range 2405MHz ~ 2480MHz (DSSS) RF output power Range -1.73 dBm Peak Conducted Number of channels : 16 Channel spacing : 5MHz Type of Modulation : O-QPSK Power Source (Adaptor): Input: 100-240Vac, 50/60Hz, 0.3A Output: 5Vdc, 0.6A Power Source (Battery) 3.6Vdc Ni-MH Battery, 500mAh 2-4 Tested frequency LOW MID HIGH Frequency (MHz) 2405 2445 2480 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer GSM Phone FX-853C - i-Sirius Ref. No.: LR500190803A Copyright ○ c 2008, LTA Co., Ltd. Page 5 of 26 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc C 15.247(a) 6 dB Bandwidth > 500kHz C 15.247(d) Transmitter Power Spectral Density < 8dBm @ 3kHz Conducted C 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.207 AC Conducted Emissions EN 55022 Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR500190803A Copyright ○ c 2008, LTA Co., Ltd. Page 6 of 26 3.2 Technical Characteristics Test 3.2.1 6 dB Bandwidth Procedure: The bandwidth at 6dB below the highest in-band spectral density was measured with a spectrum analyzer connected to the antenna terminal, while EUT is operating in transmission mode at the appropriate frequencies. After the trace being stable, Use the marker-to-peak function to set the marker to the peak of the emission. Use the marker-delta function to measure 6dB down one side of the emission. Reset the marker-delta function, and move the marker to the other side of the emission, until it is ( as close as possible to ) even with the reference marker level. The marker-delta readin…

Text truncated - open the document above for the full version.

Model No.: FX-853C FCC ID: U9SFX853CCRADLE Copyright Ⓒ 2008, LTA Co., Ltd. Page 1 of 2 Radiated Emission Model No.: FX-853C FCC ID: U9SFX853CCRADLE Copyright Ⓒ 2008, LTA Co., Ltd. Page 2 of 2 Conducted Emission
