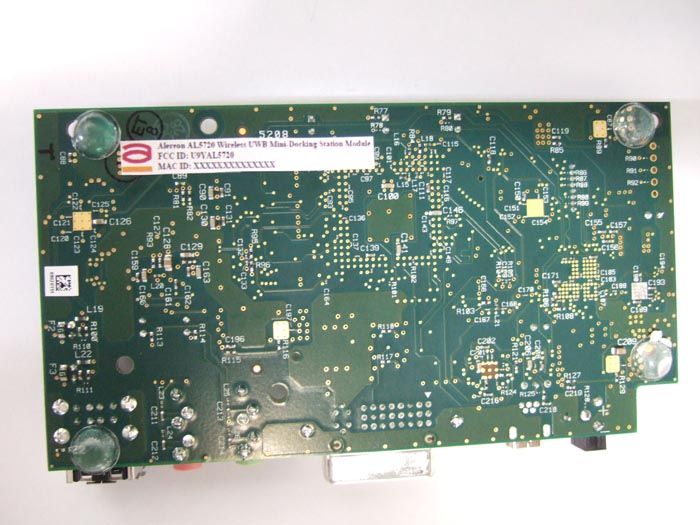

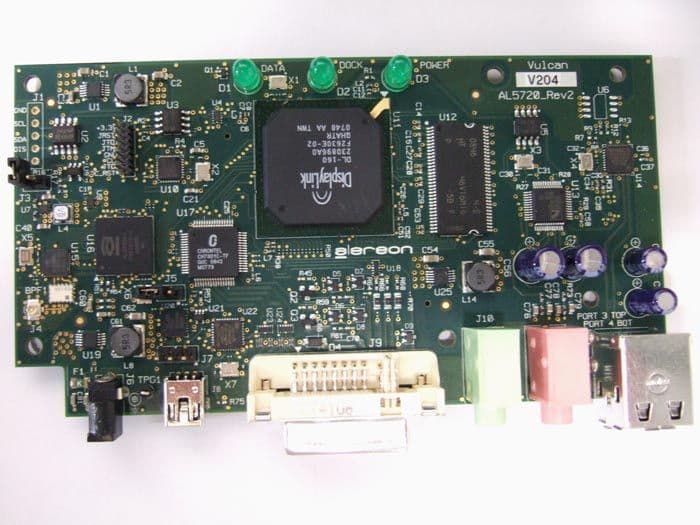

U9YAL5720Worldwide Wireless USB Mini Docking Station

[7600 N. Capital of Texas Hwy] [Building C] [Suite 200] [Austin, TX 78731] ph [512-345-4200] fx [512-345-4201] February 16, 2009 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Alereon Application for Certification of Singular Modular Transmitter FCC ID: U9YAL5720 To Whom It May Concern: Please be advised that Alereon requests the following exhibits included with the application for Equipment Authorization of the referenced FCC ID are to be held confidential:  Schematics  Block Diagrams  Bill of Materials Additionally, Alereon requests short-term confidentiality for the following exhibits.  Internal and external photographs This application contains technical information that Alereon considers to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. David Dickson Senior Principal RF Engineer Alereon, Inc.

[7600 N. Capital of Texas Hwy] [Building C] [Suite 200] [Austin, TX 78731] ph [512-345-4200] fx [512-345-4201] p. 1/2 February 16, 2009 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for unlicensed Modular Transmitter Approval. Reference: FCC 07-56A1 47 CFR 15.212 To Whom It May Concern: Alereon, Inc. hereby requests FCC Equipment Authorization as a Singular Modular Transmitter of the Alereon, Inc. Model AL5720 WUSB Mini-Docking Station Module, FCC ID: U9YAL5720. Alereon, Inc. intends to manufacture this device and market it as a computer modular component. This letter addresses the information required by points one through eight of 47 CFR 15.212. 1. The modular transmitter must have its own RF shielding. All shielding necessary for normal operation is accomplished by the multi-layer construction of the printed wiring board which incorporates multiple grounded conductor layers shielding all critical radio- frequency circuits including the frequency-determining components. As this transmitter is designed to operate stand-alone in its own enclosure, connected to industry-standard USB interfaces, no additional shielding is incorporated to minimize coupling such as might occur if the module were incorporated within another unit. 2. The modular transmitter must have buffered modulation/data inputs. The Alereon AL5720 receives data via the industry-standard USB 2.0 interface. The USB interface is implemented within the USB2514 integrated circuit as may be seen on sheet eleven of the schematic diagram included in the filing for FCC Equipment Authorization. This digital interface limits the data rate and modulation. 3. The modular transmitter must have its own power supply regulation. The Alereon AL5720 receives power from an external +5.0 Volt power unit. The +5.0 Volt source from is conditioned on the module to power a +3.3V domain and the +1.2V digital subsystem domain plus three additional power domains required by the module circuitry; +2.6V, +2.4V and +1.2V. The power regulation topology may be seen on sheet twenty of the schematic diagram included in the filing for FCC Equipment Authorization. 4. The modular transmitter antenna must comply with the antenna and transmission system requirements of sections 15.203, 15.204(b) and 15.204(c). The antenna of the Alereon AL5620 is an external monopole, one of two part numbers which have identical electrical characteristics and differ only in their physical appearance: Alereon part number AL50001-060 or Acon part number ADM6P-700042, either of which attaches to the AL5720 PCB by a 60mm coaxial cable with a type U.FL connector. The antenna is [7600 N. Capital of Texas Hwy] [Building C] [Suite 200] [Austin, TX 78731] ph [512-345-4200] fx [512-345-4201] p. 2/2 intended to be permanently attached to the product housing and the connector is not accessible to the user. The U.FL connector complies with the requirement of FCC 15.203 for a unique coupling. 5. The modular transmitter must be tested in a stand-alone configuration. As described in section 2.6.3 of the test report included in the filing for FCC Equipment Authorization, the AL5720 UWB Module plus antennas was tested without a housing. For the tests reported the AL5720 was connected to the USB port of a standard P.C. This arrangement of the unit, cable and device, represents the security association configuration. The AL5720 is designed with an industry-standard USB Type-B connector as its electrical and mechanical interface to the host system and with industry- standard USB type-A connectors as its electrical and mechanical interface to attached USB devices, the industry standard Mini-D video connector as its electrical and mechanical interface to attached display devices and standard jacks for speakers connection. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. The Alereon AL5720 is intended to be placed within an enclosure unique to the brand I.D. under which it is marketed. The prescribed label with the FCC Identifier will be applied to the outside of the housing. Additionally, the module will have a label affixed to the PCBA which includes the FCC identifier. An example of the label which will be used is included in the filing for FCC Equipment Authorization. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter. Part 15.519 of the FCC rules and Regulations requires that a UWB transmitter shall transmit only when it is sending information to an associated receiver. That rules part also requires that the UWB intentional radiator shall cease transmission within 10 seconds unless it receives an acknowledgement from the associated receiver that its transmission is being received. An acknowledgment of reception must continue to be received by the UWB intentional radiator at least every 10 seconds or the UWB device must cease transmitting. This requirement is met by design and is implemented by the firmware encoded into the device. 8. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. There are no RF exposure requirements for UWB devices operating under subpart F of the FCC Rules and Regulations. David M. Dickson Sr. Principal RF Engineer Alereon, Inc.

[7600 N. Capital of Texas Hwy] [Building C] [Suite 200] [Austin, TX 78731] ph [512-345-4200] fx [512-345-4201] February 16, 2009 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Please be advised that Alereon, Inc. authorizes TDK RF Solutions to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission (FCC) regarding Ultra-Wideband (UWB) products. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. David Dickson Senior Principal RF Engineer Alereon, Inc.

Alereon Proprietary Information, Released Under NDA, p.1/3 AL50001 PRELIMINARY DATA SHEET UWB WHIP ANTENNA 1. Features o Worldwide UWB Bands Coverage, WiMedia BG#1, 3, 4, 6. o FCC and EU approvals for use with Alereon products. o Rotating mounting ±90°plus hinge with position detents at: -90°,-45°,0°,+45°,+90° angle for flexible orientation. o Slim design. o Low cost attachment design. o Low cost RF Connector; U.FL-type. 2. Specifications o Frequency range: 3.1 GHz to 9.504 GHz o Nominal impedance: 50 Ω o VSWR: ƒ 3.168GHz – 4.752GHz < 3.5 ƒ 6.336GHz – 9.504GHz < 3.0 o Pattern: Omni directional o Polarization: linear o Gain: 0 ±2 dBi o Color: Black o Finish: Matte Alereon Proprietary Information, Released Under NDA, p.2/3 AL50001 PRELIMINARY DATA SHEET 3. Dimensions Note: Rotating mount engagement is a proprietary Alereon design, dimensions and details are available to qualified partners upon request. Dimensions are nominal Dimensions in mm 9 5 L 50.7 56.5 See Table Alereon Proprietary Information, Released Under NDA, p.3/3 4. Ordering Information Antennas are orderable directly from: Golden Bridge Electronics (GBE). 3F, No, 6, Lane 270, Sec. 3, BeiShen Rd Shenkeng Shiang, Taipei County 222, Taiwan (ROC) Tel.: +866 2 26627300 Ext. 825 FAX: +866 2 26620642 Part Number External cable length (L) AL50001-035 35mm AL50001-060 60mm AL50001-140 140mm Alereon product RDK usage is per the following table, the referenced antenna p/n has received regulatory approval for use with the named product(s). Alereon RDK Antenna Part Number AL5604 AL50001-035 AL5612 AL50001-035 AL5621 AL50001-060 AL5620 AL50001-060 AL5705 AL50001-035 AL5708 AL50001 Not Applicable AL5720 AL50001-060 AL5721 AL50001-060 AL5722 AL50001-060 Note: AL50001-140 is for special application of AL5621. The listed part number is the only part number that should be ordered for the product without consultation with Alereon Engineering.

All services undertaken are subject to the following general policy. Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of TDK RF Systems Inc. This report must not be used to claim product endorsement by NVLAP, NIST nor any other agency of the US Government. Test Report for Certification of AL5720 Worldwide Wireless USB Mini Docking Station Customer: Alereon Date: February 11, 2009 TDK Report: TTS-TR-T113-120 Test performed by: TDK R&D Corporation 1101 Cypress Creek Rd Cedar Park, TX 78613 Technician Checked by Radiated 30 MHz to 40 GHz A. Medina K. Yata Report A. Medina K. Yata / P. Carson This document contains confidential information and cannot be disclosed outside of Alereon or any affiliated company in whole or in part without the express written permission of TDK R&D Corporation. TTS-TR-T113-120 page 2 of 103 1. Executive Summary An EMC evaluation to determine compliance of the AL5720 Worldwide Wireless USB Mini Docking Station with requirements of FCC 47 CFR Part 15, Subpart F Section 15.519 was conducted. All references are to the most current version of the Code of Federal Regulations 47 that are currently in effect. In accordance with §2.1033, the following data is presented in support of the Certification of the AL5720 Worldwide Wireless USB Mini Docking Station. The client should retain a copy of this document on file for at least 5 years after the manufacturing of the product has been discontinued. Test Description FCC 47 CFR Section Compliance Operational Limitations 15.519(a) The client has been notified of these limitations. In normal operating mode the transmitter will only send data when associated with a receiver. See section 5 for detail UWB Bandwidth 15.519(b) Yes Radiated Emissions 15.519(c), 15.209 Yes Radiated Emissions in GPS Bands 15.519(d) Yes Peak Emissions within a 50 MHz Bandwidth 15.519(e) Yes Labelling Requirements 15.19/15.212 Yes Report prepared by Approved by Armando Medina Kunio Yata February 11, 2009 February 17, 2009 Page 3 of 103 2. Task Description 2.1. Scope Reference FCC 47 CFR, Part 15, Subpart F, Ultra-Wideband Operation; FCC ET Docket No. 98-153, FCC 02-48 First R&O, Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems; FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005). Purpose of Test To gain FCC Certification for technical requirements for Modular UWB Systems operating between 3.1 GHz and 10.6 GHz. Test Procedures The tests were conducted in accordance with the following documents: FCC ET Docket 98-153, FCC 02-48 First R&O ANSI C63.4: 2003: Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Code of Federal Regulations 47, Part 15 Subpart A: General FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) General Procedures FCC Code of Federal Regulations 47, Part 2 Frequency Allocations and Radio Treaty Matter: General Rules and Regulations Classification of EUT Modular Ultra-Wideband System (Hand-held limit) 2.2. Related Submittal(s)/Grant(s) As required in 07-56A1 and 47 CFR 15.212 a cover letter requesting modular approval is included in the application for equipment authorization. 2.3. Test Plan Reference Publication Year Title FCC 47 CFR, Part 15, Subpart A 10/2007 Code of Federal Regulations, Part 15 Subpart A: General FCC 47 CFR, Part 15, Subpart B 10/2007 Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators Page 4 of 103 FCC 47 CFR, Part 15, Subpart C 10/2007 Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators FCC 47 CFR, Part 15, Subpart F 10/2007 Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation FCC ET Docket 98-153, FCC 02-48 First R&O 04/2002 Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems: First Report & Order ANSI C63.4 01/2004 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ET Docket No. 04- 352 3/2005 Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG FCC 47 CFR, Part 15, Subpart C 04/2007 Part 15.212 unlicensed Modular Transmitter Approval 2.4. Client Information APPLICANT Name Alereon Address 7600-C Capitol of Texas Highway Suite 200 Austin, Texas 78731 Contact Person David M. Dickson MANUFACTURER Name Alereon Address 7600-C Capitol of Texas Highway Suite 200 Austin, Texas 78731 Contact Person David M. Dickson 2.5. Equipment Under Test (EUT) The following information (with the exception of the date information) has been supplied by the applicant. The test results in this report pertain only to the item tested. General Brand Name Alereon Product Name Worldwide Wireless USB Mini Docking Station Model Name or Number AL5720 Serial Number V204 Type of Equipment UWB Transmitter Input Power Supply Type 5.0 Vdc Page 5 of 103 Classification Modular Ultra Wideband system (Hand-held-limits) Antenna Manufacturer OMRON ACON Model Name or Number AL50001 ADM6P-700042 Type and Description Monopole Monopole Antenna Connector Type Hirose U.FL Hirose U.FL Cable Length (cm) 6.0 6.0 Technical Power Supply Requirements AC mains 100-240V, 50-60Hz RF Output Rating -42 dBm EIRP @ 3 meters Operating Frequency Range 3168 MHz to 4752 MHz, 6336 MHz to 7920 MHz 7392 MHz to 8976 MHz RF Output Impedance 50 Ω Channel Spacing N/A Pulse Width N/A Pulse Repetition Frequency N/A 10 dB Bandwidth >500 MHz Modulation/Constellation Multiband OFDM Oscillators’ Frequencies 20 MHz, 24 MHz, 44 MHz 66 MHz, 1056 MHz EUT Ports USB (1 mini B…
